WVI51UC6LS - Basket JENN-AIR - Free user manual and instructions

Product Type	Island Range Hood
Brand	JENN-AIR
Model	WVI51UC6LS
Dimensions (W x D x H min)	30.8 cm x 33.5 cm x 72.7 cm
Dimensions (W x D x H max)	30.8 cm x 33.5 cm x 125.4 cm
Exhaust Duct Diameter	15.2 cm (6 in)
Power Supply	120 V, 60 Hz, 15 A
Motor Power	240 W
Number of Fan Speeds	3 (Low, Medium, High)
Lighting	Integrated LED
Evacuation Type	External Duct or Recirculation with Charcoal Filter
Grease Filter	Metal, Dishwasher-Safe
Charcoal Filter	Optional for Recirculation, 6 Month Max Lifespan
Main Material	Stainless Steel and Glass
Controls	Push Buttons for Speed and Lighting
Minimum Installation Height Above Cooking Surface	61 cm (Electric Cooking) or 68.6 cm (Gas Cooking)
Suggested Maximum Installation Height	91.4 cm
Required Ceiling Support Capacity	36.6 kg (80 lb)
Installation Type	Ceiling Mount with Support Structure
Included Accessories	Duct Covers, Brackets, Screws, Mounting Template
Optional Accessories	Recirculation Kit, Charcoal Filter, Duct Cover Extension
Maintenance	Clean surfaces with a soft cloth and mild detergent; wash metal filters in dishwasher

Frequently Asked Questions - WVI51UC6LS JENN-AIR

How to install the JENN-AIR WVI51UC6LS hood?

Installation must be performed by a qualified professional. The hood is fixed to the ceiling via a structural support capable of supporting 80 lb (36.6 kg). Follow the provided instructions: attach the top horizontal support to the joists, assemble the support structure, connect the exhaust duct (6 in) or install the deflector for recirculation, make the electrical connection (120 V, 15 A), then mount the duct covers.

How to clean the metal grease filters?

The metal filters are removed by pulling the spring handle. They can be washed in the dishwasher or by hand with a hot detergent solution. Dry them thoroughly before reinstalling by inserting them into the top groove and snapping the handle.

How to replace the LED bulbs?

The LED lights must be replaced only by a qualified service technician. Contact Whirlpool/Jenn-Air customer service for assistance. Do not attempt to replace them yourself.

Can I use the hood without external ventilation?

Yes, the hood can operate in recirculation mode. You must purchase the recirculation kit (ref. W11548458) which includes a deflector and a charcoal filter. The vapors are then filtered and returned to the kitchen through the upper louvers.

What is the recommended installation height above the cooktop?

The minimum height is 61 cm for electric cooking and 68.6 cm for gas cooking. The suggested maximum height is 91.4 cm. The hood must be centered above the cooking surface.

How do the hood controls work?

The controls are located on the front of the hood. Use the ON/OFF button to turn on the fan at low speed. Press MED or HIGH to change speed. The light button controls the LED lights. Press once to turn on, a second time to turn off.

What to do if the hood does not work?

First check if the home circuit breaker or fuse has tripped. Make sure the power supply is connected. If the problem persists, contact after-sales service at 1-800-807-6777 (Canada). Do not open the electrical box yourself.

How to order spare parts or accessories?

You can order original parts by calling Whirlpool Canada customer service at 1-800-807-6777 or visiting www.whirlpool.ca. Available accessories include: recirculation kit (W11548458), charcoal filter (W11548460), duct cover extension (EXTKIT10ES), and makeup air kit (W10446915).

What are the required electrical specifications?

The hood requires a power supply of 120 V AC, 60 Hz, 15 A, on a circuit protected by fuse or circuit breaker. Wiring must comply with the National Electrical Code. A ground conductor is mandatory.

How to maintain the hood regularly?

Clean the exterior surfaces with a soft cloth and mild detergent. Wash the grease filters monthly (in dishwasher). Replace the charcoal filter every 6 months in normal use. Check proper operation of the fan and lighting.

USER MANUAL WVI51UC6LS JENN-AIR

30" AND 36" (76.2 AND 91.4 CM) ISLAND-MOUNT CANOPY RANGE HOOD

Installation Instructions and Use & Care Guide

For questions about features, operation/performance, parts, accessories or service, call: 1-800-253-1301 or visit our website at www.whirlpool.com

In Canada, call 1-800-807-6777 or visit our website at www.whirlpool.ca

HOTTE DE CUISINIÈRE CONFIGURÉE EN ÎLOT DE 30" ET 36" (76,2 ET 91,4 CM)

Line drawing of a multi-tiered industrial or storage unit with internal compartments and a base structure (no text or symbols)

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

FOR RESIDENTIAL USE ONLY.

IMPORTANT : LIRE ET CONSERVER CES INSTRUCTIONS.

POUR UTILISATION RÉSIDENTIELLE UNIQUEMENT.

TABLE OF CONTENTS TABLE DES MATIÈRES

RANGE HOOD SAFETY 2

INSTALLATION REQUIREMENTS......4

Tools and Parts....4

Location Requirements....4

Venting Requirements....5

Electrical Requirements 6

INSTALLATION INSTRUCTIONS....7

Prepare Location....7

Assemble Range Hood....8

Install Range Hood....9

Make Electrical Connection....10

Install Duct Covers....11

Complete Installation 12

RANGE HOOD USE....13

Range Hood Controls ....13

RANGE HOOD CARE....14

Cleaning 14

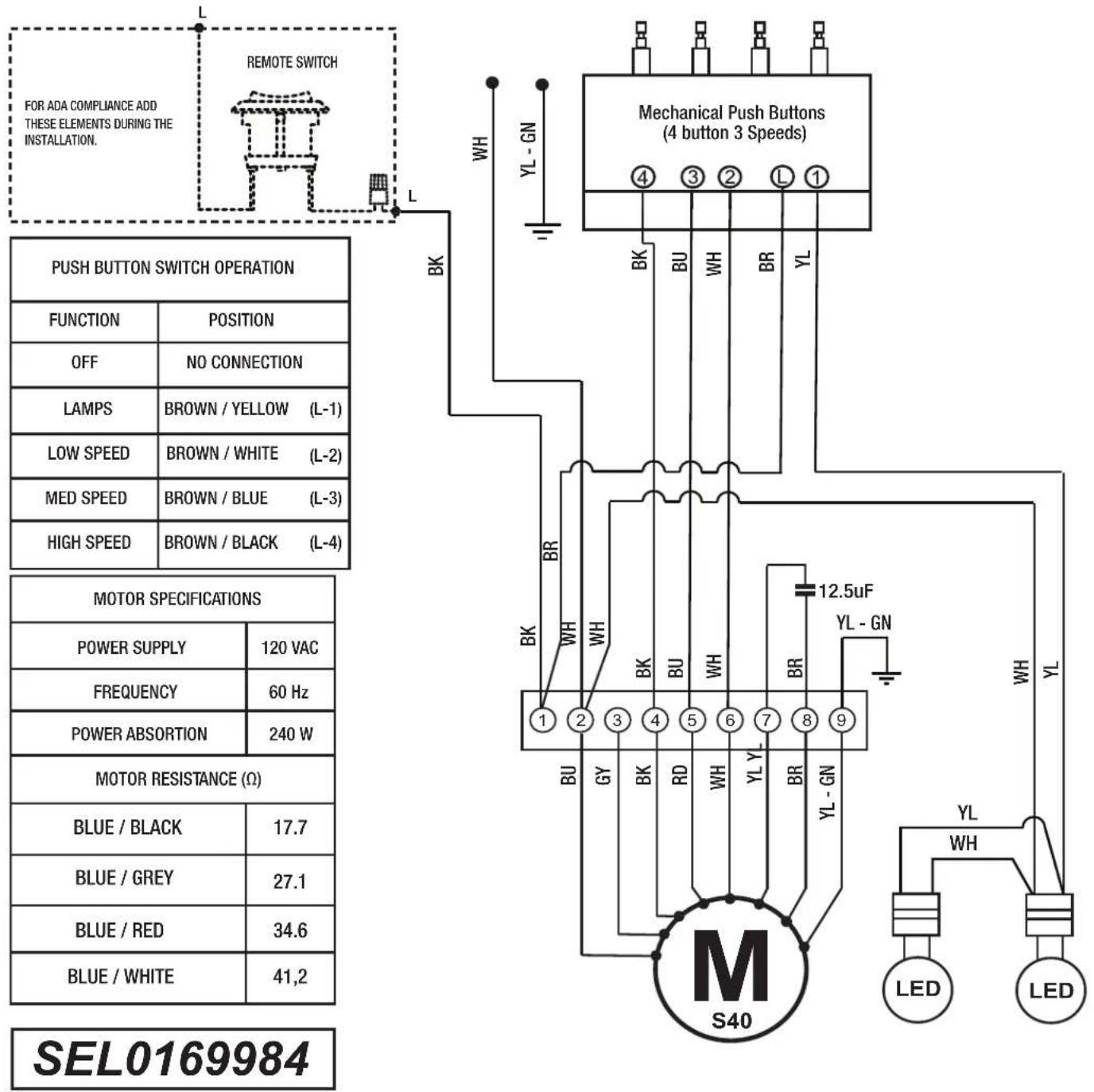

WIRING DIAGRAM....15

ASSISTANCE OR SERVICE....16

In the U.S.A. 16

In Canada....16

Accessories....16

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE .....17

EXIGENCES D'INSTALLATION ....19

INSTRUCTIONS D'INSTALLATION....22

ASSISTANCE OU SERVICE....32

Au Canada....32

Accessoires....32

RANGE HOOD SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
■ Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
■ Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
■ When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
■ Ducted fans must always be vented outdoors.
CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.
WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

■ Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
■ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
■ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
■ Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: ^a

■ SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

■ NEVER PICK UP A FLAMING PAN - you may be burned.

■ DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

■ Use an extinguisher ONLY if:
- You know you have a class ABC extinguisher, and you already know how to operate it.
- The fire is small and contained in the area where it started.
– The fire department is being called.
- You can fight the fire with your back to an exit.

^a Based on "Kitchen Fire Safety Tips" published by NFPA.

■ WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.

■ This appliance is not intended for use by people (including children) whose physical, sensory or mental capacities are different or impaired or who lack the necessary experience or knowledge/expertise to do so, unless such persons are supervised or are trained to operate the appliance by a person who accepts responsibility for their safety.

READANDSAVETHESEINSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Needed

Level
■ Drill with ^1/4 " (3.2 cm), ^3/8 " (9.5 mm), ^1/8 " (3.2 mm) and ^7/64 " (2.75 mm) drill bits
■ Pilot hole drill bits (determined by chimney support attachment method)
■ Pencil
■ Wire stripper or utility knife
■ Tape measure or ruler
■ Pliers
■ Caulking gun and weatherproof caulking compound
■ Vent clamps
■ Jigsaw or keyhole saw
■ Flat-blade screwdriver
■ Metal snips
Phillips screwdriver
■ T2d Torx® adapter

Parts Needed

■ Home power supply cable
■ 1/2" (12.7 mm) UL listed or CSA approved strain relief
■ 3 UL listed wire connectors

For Vented Installations, You Will Also Need:

■ 1 wall or roof cap
■ Metal vent system
■ Recirculation Kit for non-vented (recirculating) installations only. See the "Assistance or Service" section to order.
■ 6" (15.2 cm) diameter round metal vent duct - length required is determined by ceiling height.

For Non-Vented (Recirculating) Installations, You Will Also Need:

Parts Supplied

Remove parts from packages. Check that all parts are included.

■ Hood ventilator assembly with canopy glass, retainer brackets, rubber seals, and LED lights installed

■ Metal grease filter

■ 60 - 4.2 x 8 mm screws

■ 4 - 3.5 x 6.5 mm screws

■ 4 - 5 x 45 mm screws

■ 2 - 2.9 x 3 mm screws

■ 2 - Leveling screws

■ 4 - Washer

■ 2 - Upper vent covers

■ 2 - Lower vent covers

■ 4 - Plastic vent clips

■ 2 - 3.5 x 9.5 mm mounting screws

■ Mounting template
■ 2 - Horizontal support brackets
■ 8 - Vertical supports
■ Vent transition with back draft damper installed

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

Have a qualified technician install the range hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial/rating plate. The model/serial/rating plate is located behind the left filter on the rear wall of the vent hood.

Canopy hood location should be away from strong draft areas, such as windows, doors and strong heating vents.

Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance.

Grounded electrical supply is required. See “Electrical Requirements” section.

Because of the size and weight of this island hood, the chimney support must be securely attached to the ceiling.

■ For plaster or drywall ceilings, the chimney support must be attached to joists. If this is not possible, you must build a support structure behind the plaster or drywall. The support structure must be able to support 80 lbs (36.6 kg).

This range hood is recommended for use with cooktops with a maximum total rating of 60,000 BTUs or less.

The range hood is factory set for venting through the roof or wall.

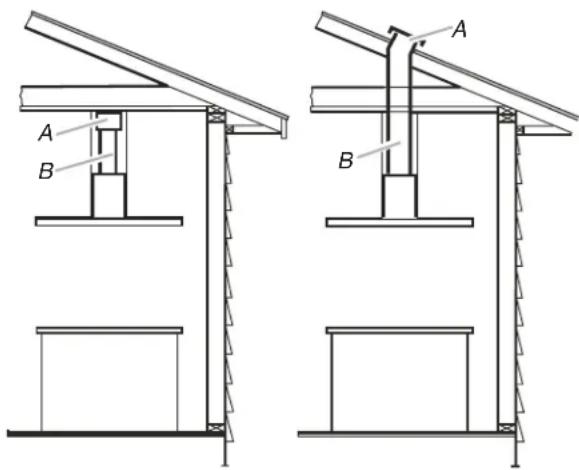

For non-vented (recirculating) Installation see “Non-vented (recirculating) Installation” in “Install Range Hood” section. Recirculation Kit is available from your dealer or an authorized parts distributor. See the “Assistance or Service” section to order.

All openings in ceiling and wall where canopy hood will be installed must be sealed.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or, when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes.

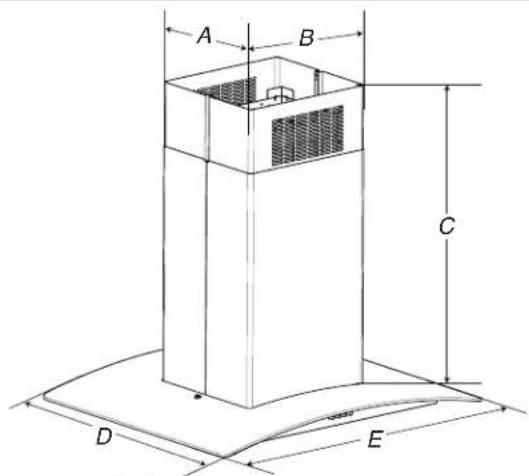

Product Dimensions

A B C D E

A. 12^7/_a "(30.8 cm)

B. 13 ^3 / _16 ''(33.5 cm)

C. ^*28^5/''(72.7 cm) min. 49^3/''(125.4 cm) max.

^**28^1/16 "(71.3 cm) min. 44^1/2 "(113.1 cm) max.

D. 25 ^11 / _16 "(65.3 cm)

E. 30"(76 cm) or 36"(91.2 cm)

* For non-vented (recirculating) installations

** For vented installations

Installation Dimensions

B C D A

A. Countertop height

B. Hood height from ceiling to bottom of the range hood filter surface: D-A-C=B

C. Hood height: 24" (61 cm) min. from electric cooking surface, 27" (68.6 cm) min. from gas cooking surface, suggested 36" (91.4 cm) max.

D. Ceiling height

* For non-vented (recirculating) installations

IMPORTANT:

Minimum distance "C": 24" (61 cm)

from electric cooking surface

Minimum distance "C": 27" (68.6 cm)

from gas cooking surface

Suggested maximum distance "C": 36" (91.4 cm)

The chimneys can be adjusted for different ceiling heights. See the following chart.

	Vented Installations
	Min. ceiling height Max. ceiling height
Electric cooking surface	7' 8" (2.34 m) 9' 10" (3 m)
Gas cooking surface	7' 11" (2.41 m) 9' 10" (3 m)

Non-Vented (Recirculating) Installations

	Min. ceiling height Max. ceiling height
Electric cooking surface	7' 8" (2.34 m) 10' 3" (3.12 m)
Gas cooking surface	7' 11" (2.41 m) 10' 3" (3.12 m)

NOTE: The range hood chimneys are adjustable and designed to meet varying ceiling or soffit heights depending on the distance "C" between the bottom of the range hood and the cooking surface. For higher ceilings, a Chimney Extension Kit is available from your dealer or an authorized parts distributor. The chimney extension replaces the upper chimney shipped with the range hood. See the "Assistance or Service" section to order.

Venting Requirements

(vented models only)

■ Vent system must terminate to the outdoors except for non-vented (recirculating) installations.
■ Do not terminate the vent system in an attic or other enclosed area.
■ Do not use 4" (10.2 cm) laundry-type wall cap.
■ Use metal vent only. Rigid metal vent is recommended. Plastic or metal foil vent is not recommended.
■ The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the range hood.

For the Most Efficient and Quiet Operation:

■ Use a straight run or as few elbows as possible.
■ Use no more than three 90° elbows.
■ Make sure there is a minimum of 24" (61 cm) of straight vent between the elbows if more than 1 elbow is used.
■ Do not install two elbows together.
■ Use vent clamps to seal all joints in the vent system.
■ Use caulking to seal exterior wall or roof opening around the cap.
■ The size of the vent should be uniform.

Cold Weather Installations

An additional back draft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup Air

Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area.

Venting Methods

This island hood is factory set for venting through the roof.

A 6" (15.2 cm) round vent system is needed for installation (not included). The hood exhaust opening is 6" (15.2 cm) round.

NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduce performance.

Vent system can terminate through the roof.

To vent through a wall, a 90° elbow is needed.

For Non-Vented (Recirculating) Installations

If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating) version, fitting a charcoal filter and the deflector. Fumes and vapors are recycled through the top grille. To order, see the "Assistance or Service" section.

Non-Vented (Recirculating) Roof Venting

Technical diagram showing two structural frame configurations labeled A and B, with supports and supports.

A. Deflector
B. 6" (15.2 cm) round vent
A. Roof cap
B. 6" (15.2 cm) round vent

Calculating Vent System Length

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

Vent Piece 6" (15.2 cm) Round

45° elbow 2.5 ft (0.8 m)

90° elbow 5 ft (1.5 m)

Maximum equivalent vent length is 35 ft (10.7 m).

Example Vent System

90° Elbow 6 ft (1.8 m) Wall cap 2 ft (0.6 m)

The following example falls within the maximum recommended vent length of 35 ft (10.7 m).

1 - 90° elbow = 5 ft (1.5 m)

1 - wall cap = 0 ft (0 m)

8 ft (2.4 m) straight = 8 ft (2.4 m)

Length of system = 13 ft (3.9 m)

Electrical Requirements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

■ A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.
■ If the house has aluminum wiring, follow the procedure below:

Connect the aluminum wiring using special connectors and/or tools designed and UL listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

■ Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial/rating plate. The model/serial/rating plate is located behind the left filter on the rear wall of the range hood.
■ Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

INSTALLATION INSTRUCTIONS

Prepare Location

■ Lay out the vent duct system before installing the range hood to determine the best routing for the vent duct.
■ It is recommended that the vent system be installed before hood is installed.
■ Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent.
- Range hood is to be installed 24" (61 cm) min. for electric cooking surfaces, 27" (68.6 cm) min. for gas cooking surfaces, to a suggested maximum of 36" (91.4 cm) above the cooking surface.
■ Remove film from metal surfaces as needed prior to assembly.
■ Check your ceiling height and the hood height maximum before you select your hood.

1. Disconnect power.
2. Determine which venting method to use: roof or non-vented.
3. Select a flat surface for assembling the range hood. Place covering over that surface. Place two 3" (7.6 cm) high spacers (not included) onto the covered surface.

NOTE: Cover the spacers to avoid damage to the range hood surface.

WARNING

Excessive Weight Hazard

Use two or more people to move and install range hood.

Failure to do so can result in back or other injury.

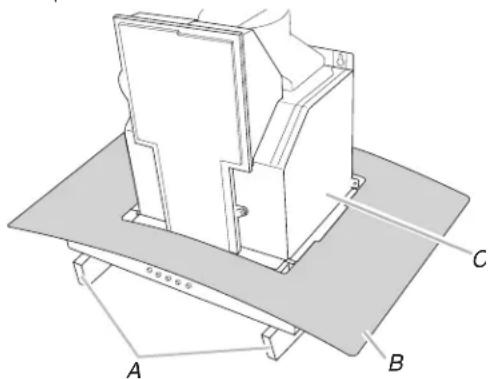

1. Using two or more people, lift range hood onto covered spacers.

Technical line drawing of a mechanical assembly with labeled components A, B, and C (no text or symbols beyond labels)

A. Covered spacers
B. Glass canopy
C. Ventilator assembly

Range Hood Mounting Screws Installation

1. Determine and mark the centerline on the ceiling where the range hood will be installed, considering the requirements for ceiling support structures. See the “Location Requirements” section. Make sure the range hood is centered over the cooking surface.
2. Tape template in place on the ceiling at the marked centerline. The line for the front of the range hood should be parallel to the front of the cooktop.

Hand placing a square plate with a circular pattern on top, against a plain background (no text or symbols)

1. Use a pencil to mark the mounting screws, wire access and duct hole locations on the ceiling.

NOTE: Mounting hole locations should be into a ceiling support structure capable of holding 80 lbs (36.6 kg). Remove the template.

1. Drill 4 - 3/16" (4.8 mm) pilot holes for mounting the upper horizontal support.
2. Remove template.

Complete Preparation

1. Determine the required location for the home power supply cable and drill a 1/2" (1.3 cm) diameter hole for wire access.
2. Run 1/2" (1.3 cm) conduit and wires or home power supply cable according to the National Electrical Code or CSA Standards and local codes and ordinances. There must be enough 1/2" conduit and wires or home power supply cable from the fused disconnect (or circuit breaker) box to make the connection in the hood's electrical terminal box.

NOTE: Do not reconnect power until installation is complete.

1. For vented installations only: Using a jigsaw or keyhole saw, cut a 61/2" (16.5 cm) diameter hole for the vent duct.
2. Attach the upper horizontal support bracket to the ceiling with 4 - 5 x 45 mm #2 Phillips wood screws.

NOTE: Upper horizontal support screws must be into a ceiling support structure capable of holding 80 lbs (36.6 kg).

A B

A. Upper horizontal support
B. 5 x 45 mm screws (#2 Phillips drive)

Install In-Line Smart Kit - Optional

NOTE: Your range hood can work with either an internal or an inline (external) blower motor system. An optional In-Line Smart Kit (purchased separately) allows the blower motor that comes with this range hood to be installed in a location other than inside the range hood cavity.

CAUTION: To reduce the risk of fire and electric shock, install this range hood only with the In-Line Smart Kit manufactured by Whirlpool. See the "Assistance or Service" section to order.

For installation see the In-Line Smart Kit installation instructions. See the "Assistance or Service" section to order.

Assemble Range Hood

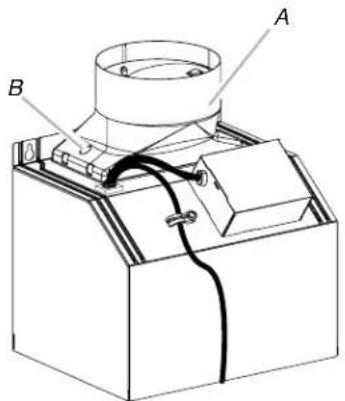

1. Install transition on top of hood (if removed for shipping) with 2 - 3.5 x 9.5 mm sheet metal screws.

Technical diagram of a mechanical device with labeled components A and B

A. Vent transition
B. 3.5 x 9.5 mm screw

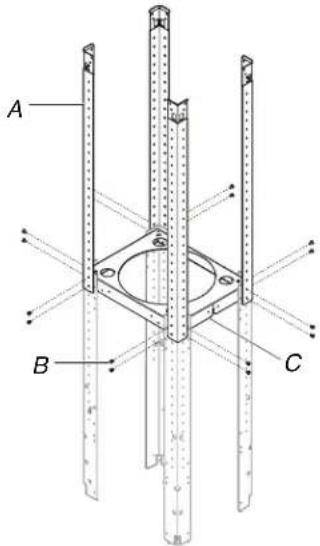

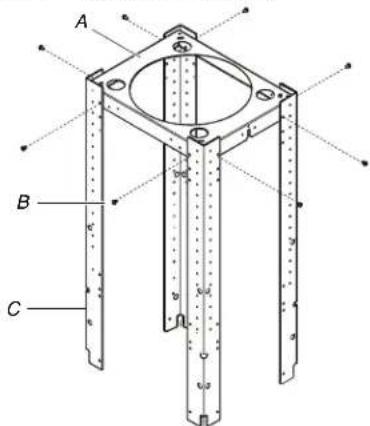

1. Install the lower horizontal support to 4 lower vertical supports with 8 - 4.2 x 8 mm screws.

A B C

A. Lower horizontal support
B. 8 - 4.2 x 8 mm screws
C. 4 Lower vertical supports

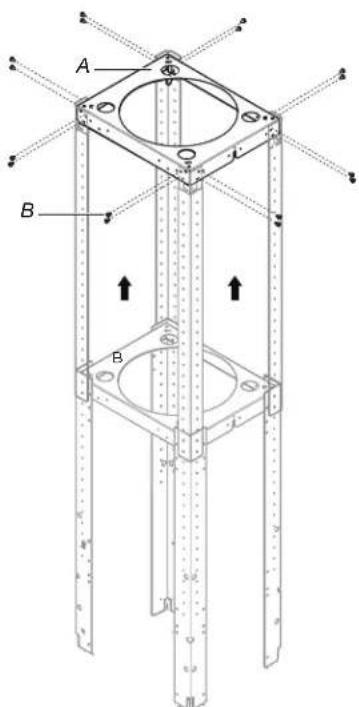

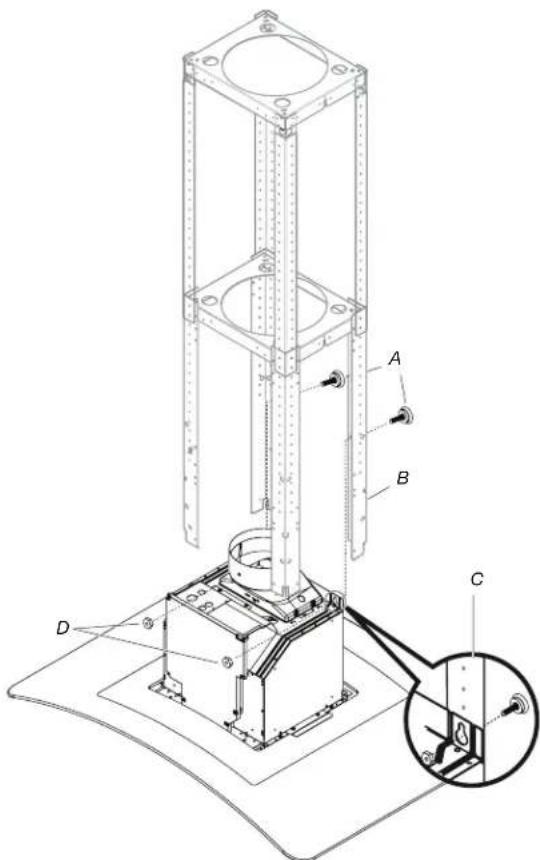

1. Install 4 upper vertical supports to the lower horizontal support with 16 - 4.2 x 8 mm screws.

A B C

A. 4- Upper vertical supports
B. 16 - 4.2 x 8 mm screws
C. Lower horizontal support

1. Install the structure to the upper horizontal support with 16 - 4.2 x 8 mm screws.

NOTE: Attach the structure to the previously installed upper horizontal support.

A B B

A. Vent transition
B. 3.5 x 9.5 mm screw

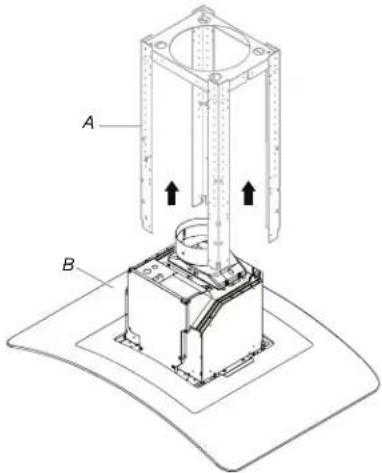

1. Using 2 or more people, lift the range hood assembly under the structure.

A B

A. Lower vertical supports
B. Range hood assembly

1. Attach the range hood assembly to the lower vertical supports with 2 leveling screws and 2 nuts.

Technical diagram of a mechanical assembly with labeled components A, B, C, D and an inset view showing a detail view.

A. 2 - Leveling screws
B. Lower vertical support
C. Place leveling screws through the structure
D. Nut

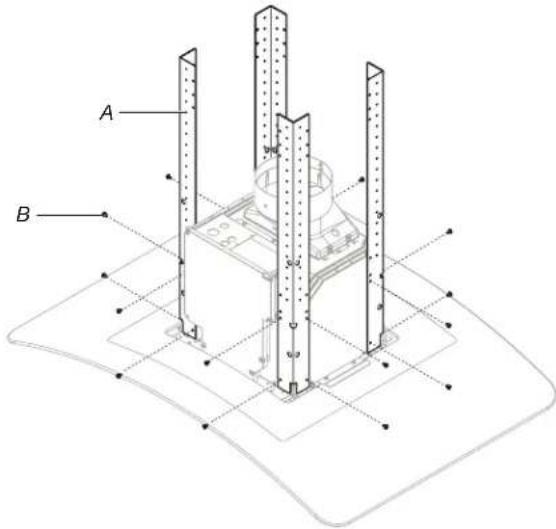

1. Install the 4 vertical supports with 16 - 4.2 x 8 mm screws. Make sure all screws are securely tightened.

A B

A. 4 - Lower vertical supports
B. 16 - 4.2 x 8 mm screws

Install Range Hood

NonVented (recirculating) Installation

1. Attach the air deflector to the upper horizontal support using 4 mounting screws.

A B B

A. Deflector
B. Mounting screws

1. Measure the length of 6" (15.2 cm) duct needed to connect the transition to the deflector.

NOTE: Vent should fit up inside the deflector 1" (2.5 cm) minimum.

1. Install vent between the transition and the deflector.

NOTE: To make vent installation easier, temporarily remove the deflector from the chimney support bracket and replace after vent section is in place.

1. Seal all connections with vent clamps.

Connect Vent System

1. Install vent system.

2. Push duct over the exhaust outlet. Seal all connections with vent clamps.

3. Use caulk to seal all openings.

Make Electrical Connection

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.
2. Remove terminal box cover.
3. Remove the knockout in the terminal box and install a UL listed or CSA approved 12 " strain relief.

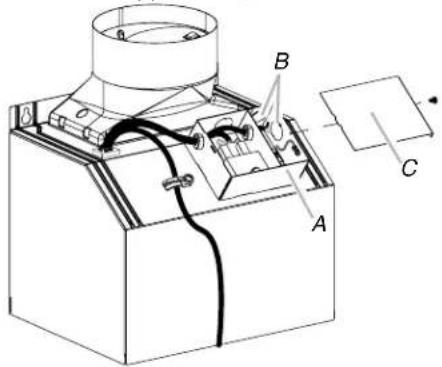

Technical diagram of a mechanical device with labeled components A, B, and C, showing internal wiring and components.

A. Terminal box
B. Knockout
C. Terminal box cover

1. Run home power supply cable through strain relief into terminal box.

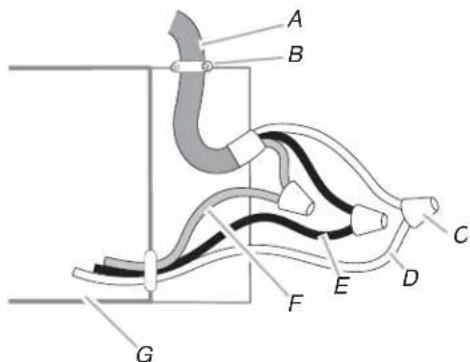

A B C D E F G

A. Home power supply cable
B. UL listed or CSA approved strain relief
C. UL listed wire connectors

D. White wires
E. Black wires
F. Green (or bare) and yellow-green ground wires
G. Terminal box

1. Use UL listed wire connectors and connect black wires (E) together.

2. Use UL listed wire connectors and connect white wires (C) together.

WARNING

Electrical Shock Hazard

Electrically ground blower.

Connect ground wire to green and yellow ground wire in terminal box.

Failure to do so can result in death or electrical shock.

1. Connect green (or bare) ground wire from home power supply to yellow-green ground wire (F) in terminal box using UL listed wire connectors.
2. Tighten strain relief screw.
3. Install terminal box cover.
4. Check that all light bulbs are secure in their sockets.
5. Reconnect power.

Install Duct Covers

NOTE: Remove protective film from the duct covers.

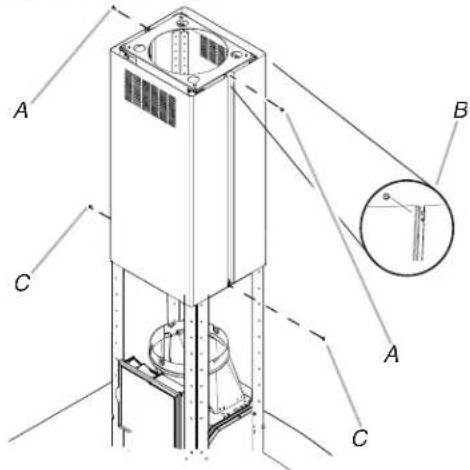

1. Assemble the upper duct covers together and install the duct covers around the support frame. The larger hole in the flanges of the upper duct cover must be outside the smaller hole in the mating flange of the other upper duct cover.
2. Secure the upper duct covers together with two 3.5 x 6.5 mm screws at the top and two 2.9 x 3 mm screws at the bottom. Install 1 screw on each side at the top and bottom of the assembled duct covers.

Technical diagram of a vertical cylindrical device with labeled components A, B, and C, showing internal structure and alignment indicators.

A. 3.5 x 6.5 mm screws (2)
B. Assembly holes (larger hole outside of smaller hole on both sides)
C. 2.9 x 3 mm screws (2)

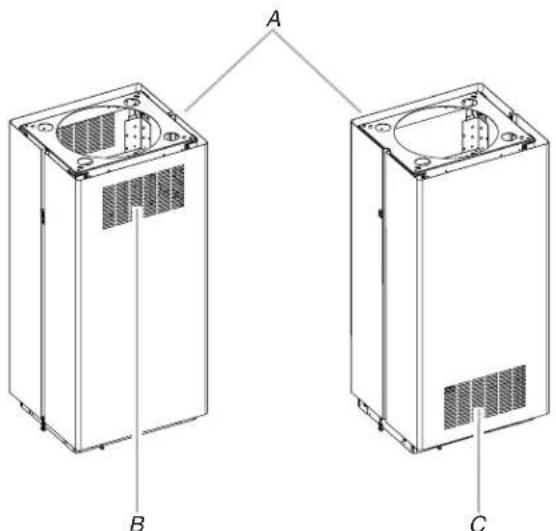

NOTE: For non-vented (recirculating) installation, the slotted holes in the upper duct covers will be visible when assembled. For vented installations, the slotted holes will be hidden down inside the lower duct covers.

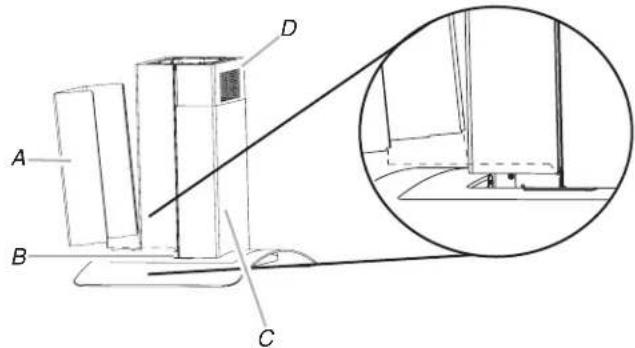

A B C

A. Top toward ceiling
B. Slots installed up for non-vented installations
C. Slots installed down for vented installations

1. Slide the upper duct covers up the frame to the ceiling and secure to the upper horizontal support with 2 - 3.5 x 6.5 mm screws.

A B C D

A. 3.5 x 6.5 mm screw
B. Slotted holes (2)
C. Upper duct covers
D. Ceiling

1. Place the long end of the plastic clips (2) into the bottom of the front lower duct cover.

A B

A. Lower duct cover - (front)
B. Plastic clips (2) (long end for front placement)

1. Install the lower duct cover (front) to the range hood canopy. Spread the lower duct cover opening slightly and position it over the upper duct cover. Set the lower duct cover in place. Position so the flanges of the lower duct cover set into the flanges of the upper duct covers.

A B C D

A. Range hood canopy
B. Plastic clips
C. Lower duct covers
D. Upper duct covers

1. Install the lower duct cover (rear) to the range hood canopy. Spread the lower duct cover opening slightly and position it over the upper duct cover. Set the lower duct cover in place. Position so the flanges of the lower duct cover set into the flanges of the upper duct cover. Make sure the front and rear lower duct covers mate properly.

NOTE: When assembling the rear lower duct cover to the front lower duct cover, the flange (both sides) must be placed over the plastic clip to secure the lower duct covers together at the bottom.

A B C D

A. Lower duct cover (rear)
B. Plastic clips
C. Lower duct covers
D. Upper duct covers

1. Secure the lower duct covers together at the top using 2 plastic clips. Use one plastic clip on each side.

A B

A. Plastic clips (2)
B. Lower duct covers top clip area

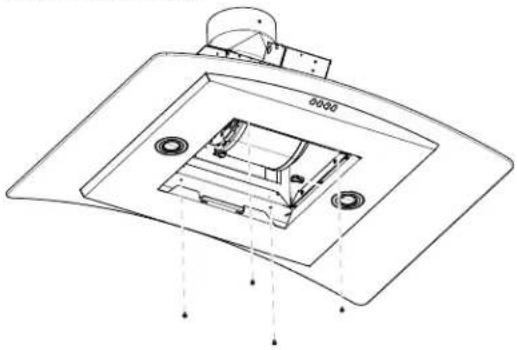

1. Secure the lower duct cover to the range hood canopy using 4 - 4.2 x 8 mm screws.

Technical line drawing of a mechanical component with no visible text or symbols

Complete Installation

1. For non-vented (recirculating) installations only, install charcoal filters over metal grease filter. See the "Range Hood Care" section.
2. Install metal filters. See the "Range Hood Care" section.
3. Check the operation of the range hood blower and light. See the "Range Hood Use" section.

If range hood does not operate, check to see whether a circuit breaker has tripped or a household fuse has blown.

NOTE: To get the most efficient use from your new range hood, read the "Range Hood Use" section.

RANGE HOOD USE

The range hood is designed to remove smoke, cooking vapors, and odors from the cooktop area. For best results, start the hood before cooking, and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen.

The hood controls are located on the front side of the canopy.

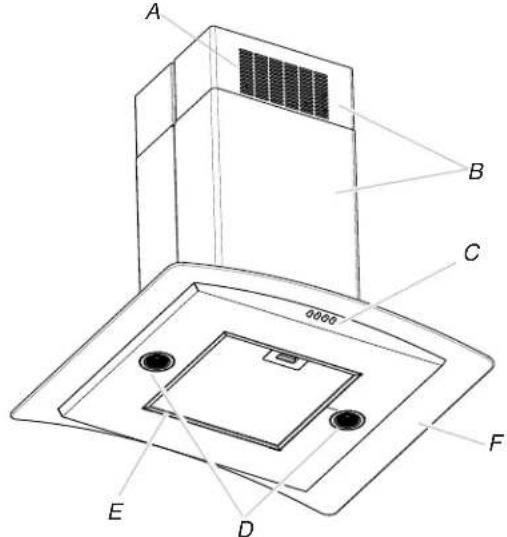

A B C 0000 E D F

A. Louver holes (non-vented [recirculating] installations only)
B. Duct covers
C. Control panel

D. LED lights
E. Metal grease filters (located behind the perimetric cover)
F. Glass canopy

Range Hood Controls

A B C D

ON/OFF

MED

HIGH

A. Light button
B. Turn the blower on and off
C. Blower speed medium button
D. Blower speed maximum button

Operating the light

The button controls both lights. Press once for ON and again for OFF.

Operating the blower

The ON/OFF button turn the blower on and set the blower minimumspeed and sound level for quiet operation. The speed can be changed anytime during fan operation by pressing the desired Blower Speed button.

Press the blower ON/OFF button a second time to turn the blower off.

RANGE HOOD CARE

Cleaning

IMPORTANT: Clean the hood and grease filters frequently according to the following instructions. Replace grease filters before operating hood.

Exterior Surfaces

To avoid damage to the exterior surface, do not use steel wool or soap-filled scouring pads.

Always wipe dry to avoid water marks.

Cleaning Method:

■ Liquid detergent soap and water or all-purpose cleanser
■ Wipe with damp soft cloth or nonabrasive sponge, and then rinse with clean water and wipe dry.

Metal Grease Filter

1. Remove the filter by pulling the spring release handle and then pulling down the filter.

Pure diagram of a mechanical or electrical component with downward arrow and labeled point A (no text or symbols beyond label)

A. Spring release handle

1. Wash metal filter as needed in dishwasher or hot detergent solution.
2. Reinstall the filter by making sure the spring release handles are toward the front. Insert aluminum filter into upper track.
3. Push in spring release handle.
4. Push up on metal filter and release handle to latch into place.

Non-Vented (recirculating) Installation Filters

The charcoal filter is not washable. It should last up to 6 months with normal use. Replace with Charcoal Filter Kit. See the "Assistance or Service" section to order.

To replace charcoal filter:

1. Remove metal grease filter from range hood. See "Metal Grease Filter" in this section.
2. Bend spring clips away from metal grease filter.

Pure diagram of a rectangular plate with curved arrows indicating rotation or movement, no text or symbols present.

1. Place charcoal filter into top side of metal filter.

2. Bend spring clips back into place to secure the charcoal filter to the metal filter.

Pure diagram of a rectangular plate with curved arrows indicating rotation or movement (no text or symbols)

1. Replace metal grease filter. See "Metal Grease Filter" in this section.

Replacing a LED Lamp

The LED lights are replaceable by a service technician only. See the "Warranty" section for service contact information.

WIRING DIAGRAM

FOR ADA COMPLIANCE ADD THESE ELEMENTS DURING THE INSTALLATION. REMOTE SWITCH PUSH BUTTON SWITCH OPERATION FUNCTION POSITION OFF NO CONNECTION LAMPS BROWN / YELLOW (L-1) LOW SPEED BROWN / WHITE (L-2) MED SPEED BROWN / BLUE (L-3) HIGH SPEED BROWN / BLACK (L-4) MOTOR SPECIFICATIONS POWER SUPPLY 120 VAC FREQUENCY 60 Hz POWER ABSORTION 240 W MOTOR RESISTANCE (Ω) BLUE / BLACK 17.7 BLUE / GREY 27.1 BLUE / RED 34.6 BLUE / WHITE 41.2 SEM0169984 Mechanical Push Buttons (4 button 3 Speeds) YL - GN BK WH YL-GN BK BU WH BR YL BK BR WH WH 12.5uF BY BY-LGN BY GY BK RD WH YLY_ BY-LGN YL-GN WL WL LED LED M S40

ASSISTANCE OR SERVICE

If You Need Service

Please refer to the warranty page in this manual.

If You Need Replacement Parts

If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance.

To locate factory specified replacement parts in your area, call the following customer assistance telephone number or your nearest designated service center.

In the U.S.A.

Call the Whirlpool Customer eXperience Center toll-free: 1-800-253-1301 or visit our website at www.whirlpool.com.

Our Consultants Provide Assistance With:

■ Scheduling of service. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in the United States.
■ Features and specifications on our full line of appliances.
■ Referrals to local dealers.
■ Installation information.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

For Further Assistance

If you need further assistance, you can write to Whirlpool Corporation with any questions or concerns at:

Whirlpool Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

Call the Whirlpool Canada Customer eXperience Centre toll-free: 1-800-807-6777, or visit our website at www.whirlpool.ca.

Our Consultants Provide Assistance With:

■ Scheduling of Service. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in Canada.
■ Features and specifications on our full line of appliances.
■ Referrals to local dealers.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.

For Further Assistance

If you need further assistance, you can write to Whirlpool Canada with any questions or concerns at:

Whirlpool Brand Home Appliances

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

Accessories

Recirculation Kit

(for non-vented installations only) Order Part Number W11548458

Charcoal Filter Kit

(for non-vented installations only) Order Part Number W11548460

Chimney Extension Kit

Order Part Number EXTKIT10ES

6" (15.2 cm) Makeup Air Kit

(consult local building codes) Order Part Number W10446915

Range Hood Power Cord Kit

(consult local building codes) Order Part Number W10613691

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

Technical line drawing of a mechanical assembly with labeled components A, B, and C (no text or symbols beyond labels)

Hand placing a square plate with a grid pattern on top, against intersecting lines (no text or symbols)

Technical diagram of a mechanical device with labeled components A and B, showing internal components and wiring.

A. Raccord de transition

A. Vent transition
B. 3.5 x 9.5 mm screw

Technical diagram of a mechanical assembly with labeled components A, B, C, D and an inset view showing a component detail.

Technical diagram of a mechanical device with labeled components A, B, and C, showing internal wiring and components.

A B C D E F G

Technical diagram of a vertical cylindrical device with labeled components A, B, and C, showing internal structure and alignment indicators.

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Achever l'installation

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Diagram of a rectangular plate with curved arrows indicating rotation or movement (no text or symbols)

Pure diagram of a rectangular plate with curved arrows indicating rotation or movement (no text or symbols)

ASSISTANCE OU SERVICE

Customer eXperience Centre

Whirlpool Canada

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7
