USER MANUAL LGC297 LG

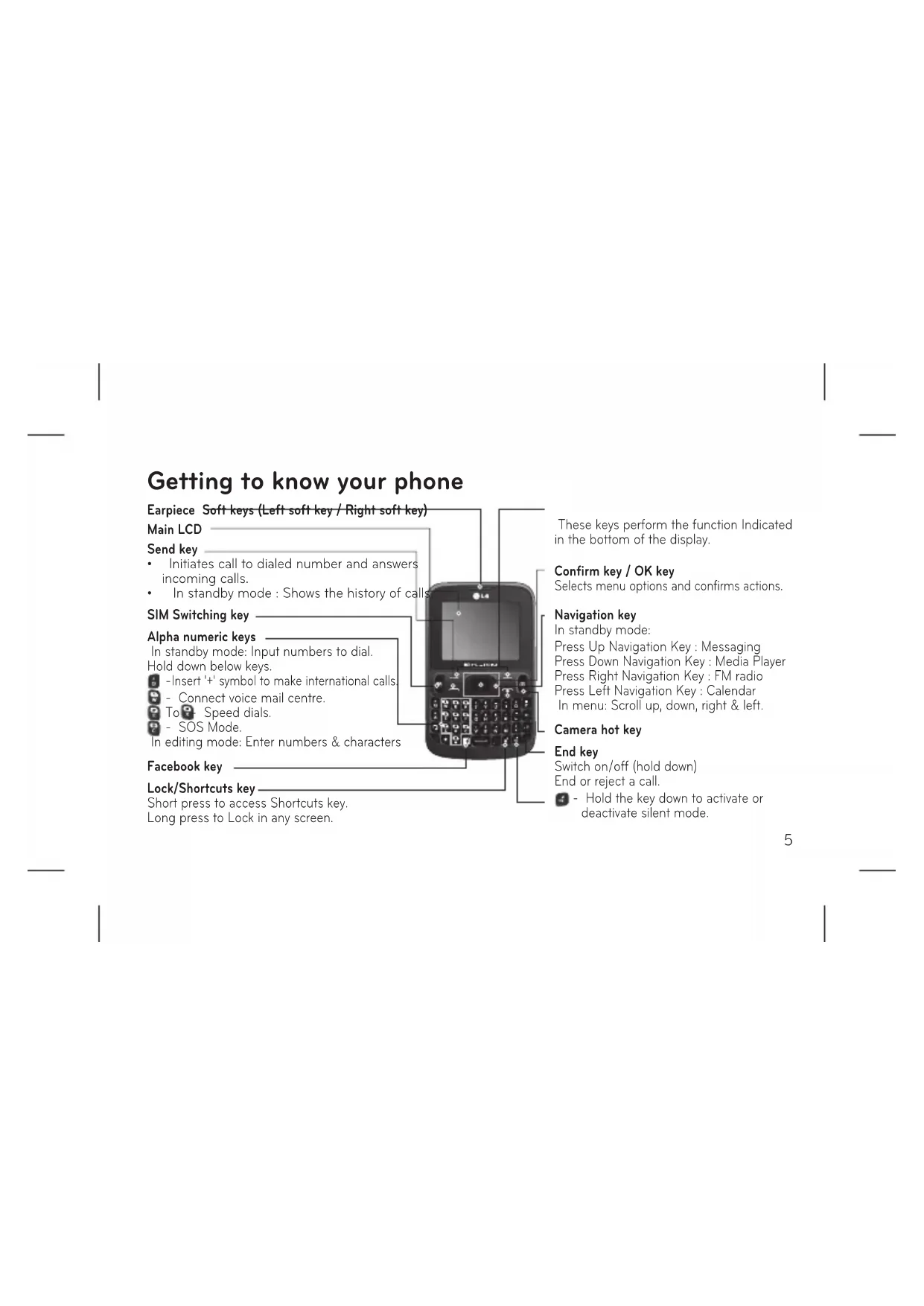

• Initiates call to dialed number and answers incoming calls.

• In standby mode : Shows the history of calls. Navigation key In standby mode: Press Up Navigation Key : Messaging Press Down Navigation Key : Media Player Press Right Navigation Key : FM radio Press Left Navigation Key : Calendar In menu: Scroll up, down, right & left. SIM Switching key Camera hot key Facebook key Lock/Shortcuts key Short press to access Shortcuts key. Long press to Lock in any screen. Alpha numeric keys In standby mode: Input numbers to dial. Hold down below keys.

Insert '+' symbol to make international calls. - Connect voice mail centre. To - Speed dials. - SOS Mode. In editing mode: Enter numbers & characters End key Switch on/off (hold down) End or reject a call. - Hold the key down to activate or deactivate silent mode.6 Handsfree or Stereo earphone connector Charger/USB cable connector Microphone Battery pack Camera lens Back cover SIM Card holder 1 SIM Card holder 27 Installing the SIM Card and Charging the Battery Installing the SIM Card When you subscribe to a cellular network, you are provided with a SIM card loaded with your subscription details, such as your PIN, any optional services available and many others. Installing a Memory card Remove the Back cover and insert a micro SD card with the golden contact area facing downwards as shown in the diagram. To remove the Memory card, gently pull it. Note: Memory card is an optional accessory. Formatting the Memory card From your home screen, Press Menu and select Gallery, Select External memory and From Options choose Format and enter Phone Password to format the Memory card.

WARNING: When you format your Memory

card, all the content will be Erased. If you do not want to lose the data on your Memory card, take a backup first.8 Important! › The SIM card can be easily damaged by scratches or bending, so be careful when handling, inserting or removing the card. Keep all SIM cards out of the reach of small children. › Only 2G/2.5G SIM cards are supported. Illustrations

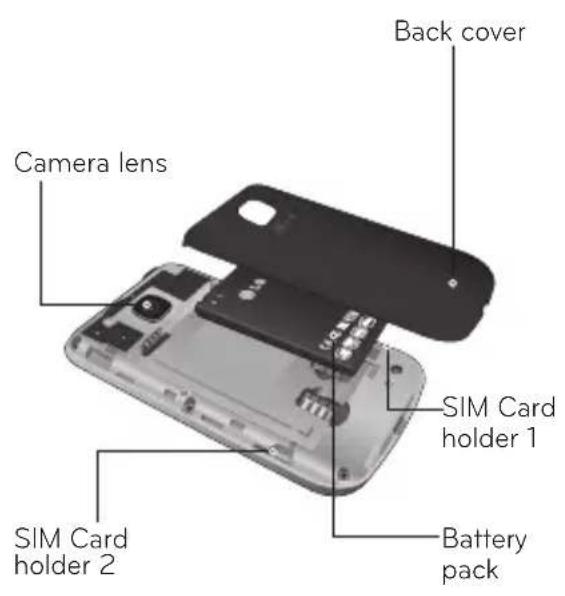

2. Remove the battery.

3. Insert your SIM Cards.9

4. Insert your battery.

5. Close the back cover.

6. Charge your battery.

WARNING: Do not remove the

battery when the phone is switched on, as this may damage the phone.10 Turning Your Phone On and Off You can power the phone on and off by pressing and holding the Power key. Lock/Unlock Your Keypad To Lock, press and hold key To Unlock, press Unlock(LSK) and then press Yes(RSK). Calls Making a call

1. Enter the number using the keypad. To

delete a digit press Clear.

2. Press to initiate the call.

• To control the volume during a call, press the up and down navigation keys.

• You can record your conversation during a call. Press Options and select Voice recorder. Answering and rejecting a call When your phone rings, press to answer the call. While your phone is ringing, select Silent to mute the ringing.11 This is useful if you have forgotten to change your profile to Silent while in a meeting. Press or select Reject to reject the incoming call. TIP! You can change the settings on your phone to answer your calls in different ways. From Menu, select Settings and choose Call. Select Advanced settings then select Answer mode and choose from Any key, Auto answer when headset mode. Using the speaker phone During a call, you can activate speakerphone by pressing RSK (H-Free) and you can use the handset in hands-free mode. If the speakerphone is active, press RSK (H-Held) again to resume normal handset conversation mode. Speed dialling Press Menu and select Contacts > Options > Phonebook settings, then choose Speed dial. Set the Status and choose Set numbers. Assign contacts to any keys between 4 and 8. Speed dial 1 is set to your voice mail, 9 key is set to SOS mode and 2 & 3 keys are assigned to Speed SIM Budget. so you can not change these keys. TIP! Speed SIM budget is the function that is easy way for checking SIM budget. If you register Speed SIM budget, you can get the12 information of SIM budget by long press of ‘2’ / ‘3’ in idle screen. Note: To activate Speed dial , status should be On [Speed dial > Status] Viewing your call logs Press to view your missed, received and dialled call logs. Changing the call settings You can set the menu relevant to a call. Press Menu, select Settings and choose Call. Cost save mode Every contact is added along with assigned SIM when adding in phone book. During Calling, matching operator SIM is identified and the operation is completed using the matching operator SIM. This makes possible to use benefit from using same operator. To use Cost save mode feature,make sure the feature is On [Settings > Call > Cost save mode] Note: Cost save mode doesn’t work during in-call. Advanced settings Blacklist - This menu shows you the phone numbers of person you have chosen to reject.13 You can add the new number in Blacklist numbers. The incoming calls received from the Blacklist numbers will be automatically rejected. Making a call from your contacts

1. Select Contacts from the home screen.

2. Using the keypad, enter the first letter

of the contact you want to call and scroll through the Contacts.

3. Press to begin the call.

• To scroll through your contacts, use the up and down navigation keys.

• You can make a call from any of the two SIM cards, by selecting SIM Switching Key. Call Reminder You can easily make a call at specific set time to a selected contact. Press Menu and select Organiser > To-do list > Add > Enable Call Reminder. Contacts Searching for a contact

1. Select Contacts from the home screen.

2. Using the keypad enter the first letter of

the contact you want to call.

3. Press Up/Down navigation key to scroll

through the contacts.14 Adding a new contact

1. Select Contacts from the home screen.

Select Add new contact.

2. Choose the contact storage location.

3. Then enter the Name, Number & details

of your new contact, select Options then choose Save. TIP! Assign SIM field is used to assign the Contact to Default SIM/SIM1/SIM2. Call will be originated via assigned SIM for the Contact when Cost Save mode is ON. Messaging Sending a message

1. Press Menu, select Messaging, and

choose Write message to send an SMS or MMS.

2. If you want to add some images or

videos etc, select Options and choose Add picture, Add sound, Add video, Add subject.

3. From Options choose Send to then

Select Enter recipient, Add from Phonebook or Recent input. You can even add multiple contacts by marking the contacts.15 Note: Message can be sent to a group also. Edit the message then press OK Key to send and select Add from phonebook. Navigate to the right to select Caller groups and select the group you want.

4. Press Send icon to send the

message. TIP! You can select your message type as SMS or MMS when you enter text by pressing Options > Switch to MMS/SMS.

WARNING: Image, Video clip, Sound clip or

Subject is added to the message editor, it will be automatically converted to MMS mode and you will be charged accordingly. Facebook Your device has SNS that lets you enjoy and manage your social network. You can update your own SN place status and view your friend’s SN updates. Note: SNS feature is a data intensive application. Additional cost may be incurred when connecting and using online services. Check your data charges with your network provider.16

• Steps to be followed to set the required language in Facebook Application: After login: Menu > Settings > Language, user can select the language. Before Login: In login screen, the last option “Language”, user can select the language. E-mail Sending an e-mail using your new account To send/receive an e-mail, you should set up an e-mail account.

1. From Menu Select Messaging and

2. From Options Choose Write e-mail and a

new e-mail editor screen will open.

3. Enter the recipient’s address and write

5. Press Options, select Add attachments

6. From Options Choose Send to send your

e-mail. Quick text You can write a message on idle instantly without pressing any menu buttons and17 send. - Memo, Google Search, E-mail, Message, Internet. Camera You can take photos with the built in camera and adjust its settings to suit your needs. Video camera You can record a video clip through the built-in camera. Media Player Your LG-C297 has a built-in Media player so you can play all your favourite music. When Media playing: - Full Screen - Silent mode FM radio Your LG-C297 has an FM radio feature so you can tune into your favourite stations and listen on the move. Note: You can enjoy listening FM without using headset as phone supports wireless FM service. Voice recorder Use your Voice recorder to record voice18 memos or other sounds. Applications Your LG-C297 comes with preloaded games to keep you amused when you have time to spare. If you choose to download any additional games or applications they will be saved into this folder. Press Menu and select Applications. Choose My games & apps. Organizer Setting your alarm (Menu > Organizer > Alarm clock) You can set up to 5 alarms to invoke on a specified time. Using the calendar (Menu > Organizer > Calendar) When you enter this menu, a calendar appears. A square cursor is located on the current date. You can move the cursor to another date using the navigation keys. Adding an item to your to do list (Menu > Organizer > To-do list) You can view, edit and add tasks to do. Adding a note (Menu > Organizer > Notes) You can register your own notes here.19 Using your calculator (Menu > Organizer > Calculator) The calculator provides the basic arithmetic functions: addition, subtraction,multiplication and division. Using the stopwatch (Menu > Organizer > Stopwatch) This option allows you to use the function of a stopwatch. Converting a unit (Menu > Organizer > Converter) This converts any measurements into a unit you want. Adding a city to your world time (Menu > Organizer > World time) You can check the current time of major cities around the world. Shortcuts (Menu > Organizer > Shortcuts) It helps you to go to the menu you search for. You can set the item as Shortcuts. Internet Accessing the internet browser You can launch the Opera Mini browser for accessing web pages over the internet.20 Press Menu and select Internet. Alternatively, you can also launch Obigo browser from Menu > Applications > Browser > Internet service and access the homepage of the activated profile on Internet Profiles. You can also manually enter an URL address and access the associated browser page. Note: An additional cost is incurred when connecting to this service and downloading content. Check your data charges with your network provider. Settings Switching your SIM cards (Menu > Settings > Dual SIM > Dual SIM switch) You can choose which SIM card you’re going to use between manually or automatically. Changing your phone settings (Menu > Settings > Phone) Enjoy the freedom of adapting how your LG-C297 works for your own style.

• UART settings - User will be able to perform the operation from PC using modem for selected SIM card in UART21 settings (like AT command using HyperTerminal, PC dialup). User will be able to make the GPRS dialup on PC using the SIM which is selected in UART setting for e.g. if SIM1 is selected then user will be able to make the connection using selected SIM card.

• Misc. settings - You can set the brightness and time of the display screen. Changing your security settings (Menu > Settings > Phone > Security) Change your security settings to keep your LG-C297 and the important information safe.

• Anti-theft mobile tracker - When the handset is stolen, handset sends the SMS to the numbers configured by real owner. To activate the ATMT(Antitheft mobile tracker) feature, enter the security code. And you will need to set ATMT on, and configure the ATMT settings with Sender name, numbers. Default security code is “0000.” ATMT SMS will contain information about the stolen phone IMEI & number of the person who is using that handset. Activating SIM cards (Menu > Settings > Dual SIM > Dual SIM Settings)22 You can choose one or all of SIM cards when you would like to activate. Changing your display settings (Menu > Settings > Display) You can change the settings for the phone display. Changing your connectivity settings (Menu > Settings > Connectivity > Data account) Your connectivity settings have already been set up by your network operator, so you can enjoy your new phone from switch on. If you want to change any settings, use this menu. You can configure the Data account in this menu. Changing your Bluetooth settings (Menu >Settings > Connectivity > Bluetooth)

• Power - Select Power as On/Off.

• Visibility - Choose whether to Permanent visible, Temporary visible or Off your device to others.

• my device - View new device by choosing search new device.

• search audio device - View the searched audio device list.

• My name - Enter a name for your LG-C297.23

• Advanced - Set your Bluetooth settings for Audio path, Storage, Sharing permission and View your Bluetooth address by choosing My address. Note: When you use a Bluetooth headset , A2DP and AVRCP profiles are not supported while you play video. It means you will not listen video sound if you use Bluetooth headset. Note: Bluetooth file transferring function will be blocked under some applications running. (Camera, Camcorder, UMS) Resetting your phone (Menu > Settings > Restore factory settings) Use Restore factory settings to reset all the settings to their factory definitions. You need the security code to activate this function. The default security code is set to “0000”. Installing LG PC Suite on your computer

1. Go to www.lg.com and choose your

2. Select Support and Go to Mobile

3. Follow the instructions on screen to

complete the LG PC Suite Installation on your PC.24 Phone Software update LG Mobile Phone Software update from internet For more information on using this function, please visit the http://update.lgmobile.com or http://www.lg.com/common/index.jsp ----> select country. This Feature allows you to update the firmware of your phone to the latest version conveniently from the internet without the need to visit a service centre. As the mobile phone firmware update requires the user’s full attention for the duration of the update process, please make sure to check all instructions and notes that appear at each step before proceeding. Please note that removing the USB data cable or battery during the upgrade may seriously damage your mobile phone.25 Guidelines for Safe and Efficient Use Please read these simple guidelines. Not following these guidelines may be dangerous or illegal. Exposure to radio frequency energy Radio wave exposure and Specific Absorption Rate (SAR) information. This mobile phone model LG-C297 has been designed to comply with applicable safety requirements for exposure to radio waves. These requirements are based on scientific guidelines that include safety margins designed to assure the safety of all persons, regardless of age and health.

• The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or SAR. Tests for SAR are conducted using standardised methods with the phone transmitting at its highest certified power level in all used frequency bands.

• While there may be differences between the SAR levels of various LG phone models, they are all designed to meet the relevant guidelines for exposure to radio waves.

• The SAR limit recommended by the International Commission on Non-Ionizing Radiation Protection (ICNIRP) is 2W/kg averaged over 10g of tissue.26

• The highest SAR value for this model phone tested for use at the ear is

W/kg (10 g) and when worn on the body is

• This device meets RF exposure guidelines when used either in the normal use position against the ear or when positioned at least 1.5 cm away from the body. When a carry case, belt clip or holder is used for body-worn operation, it should not contain metal and should position the product at least 1.5 cm away from your body. In order to transmit data files or messages, this device requires a quality connection to the network. In some cases, transmission of data files or messages may be delayed until such a connection is available. Ensure the above separation distance instructions are followed until the transmission is completed. Product care and maintenance WARNING Only use batteries, chargers and accessories approved for use with this particular phone model. The use of any other types may invalidate any approval or warranty applying to the phone and may be dangerous.27

• Do not disassemble this unit. Take it to a qualified service technician when repair work is required.

• Repairs under warranty, at LG’s discretion, may include replacement parts or boards that are either new or reconditioned, provided that they have functionality equal to that of the parts being replaced.

• Keep away from electrical appliances such as TVs, radios, and personal computers.

• The unit should be kept away from heat sources such as radiators or cookers.

• Do not subject this unit to mechanical vibration or shock.

• Switch off the phone in any area where you are required to by special regulations. For example, do not use your phone in hospitals as it may affect sensitive medical equipment.

• Do not handle the phone with wet hands while it is being charged. It may cause an electric shock and can seriously damage your phone.

• Do not charge a handset near flammable material as the handset can become hot and create a fire hazard.

• Use a dry cloth to clean the exterior of the unit (do not use solvents such as benzene, thinner or alcohol).28

• Do not charge the phone when it is on soft furnishings.

• The phone should be charged in a well ventilated area.

• Do not subject this unit to excessive smoke or dust.

• Do not keep the phone next to credit cards or transport tickets; it can affect the information on the magnetic strips.

• Do not tap the screen with a sharp object as it may damage the phone.

• Do not expose the phone to liquid or moisture.

• Use the accessories like earphones cautiously. Do not touch the antenna unnecessarily.

• Do not use, touch or attempt to remove or fix broken, chipped or cracked glass. Damage to the glass display due to abuse or misuse is not covered under the warranty.

• Your phone is an electronic device that generates heat during normal operation. Extremely prolonged, direct skin contact in the absence of adequate ventilation may result in discomfort or minor burns. Therefore, use care when handling your phone during or immediately after operation.29 Efficient phone operation Electronic devices All mobile phones may receive interference, which could affect performance.

• Do not use your mobile phone near medical equipment without requesting permission. Avoid placing the phone over pacemakers, for example, in your breast pocket.

• Some hearing aids might be disturbed by mobile phones.

• Minor interference may affect TVs, radios, PCs, etc. Road safety Check the laws and regulations on the use of mobile phones in the area when you drive.

• Do not use a hand-held phone while driving.

• Give full attention to driving.

• Use a hands-free kit, if available.

• Pull off the road and park before making or answering a call if driving conditions require you to do so.

• RF energy may affect some electronic systems in your vehicle such as car stereos and safety equipment.30

• If your vehicle is equipped with an air bag, do not obstruct with installed or portable wireless equipment. It can cause the air bag to fail or cause serious injury due to improper performance.

• If you are listening to music whilst out and about, please ensure that the volume is at a reasonable level so that you are aware of your surroundings. This is of particular importance when near roads. Avoid damage to your hearing To prevent possible hearing damage, do not listen at high volume levels for long periods. Damage to your hearing can occur if you are exposed to loud sounds for long periods of time. We therefore recommend that you do not turn the handset on or off close to your ear. We also recommend that music and call volumes are set to a reasonable level.

• When using headphones, turn the volume down if you cannot hear the people speaking near you, or if the person sitting next to you can hear what you are listening to. Note: Excessive sound pressure from earphones and headphones can cause hearing loss.31 Glass Parts Some parts of your mobile device are made of glass. This glass could break if your mobile device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch or attempt to remove. Stop using your mobile device until the glass is replaced by an authorised service provider. Blasting area Do not use the phone where blasting is in progress. Observe restrictions, and follow any regulations or rules. Potentially explosive atmospheres

• Do not use your phone at a refuelling point.

• Do not use near fuel or chemicals.

• Do not transport or store flammable gas, liquid or explosives in the same compartment of your vehicle as your mobile phone or accessories. In aircraft Wireless devices can cause interference in aircraft.

• Turn your mobile phone off before boarding any aircraft.32

• Do not use it on the ground without permission from the crew. Children Keep the phone in a safe place out of the reach of small children. It includes small parts which may cause a choking hazard if detached. Emergency calls Emergency calls may not be available on all mobile networks. Therefore you should never depend solely on your phone for emergency calls. Check with your local service provider. Battery information and care

• You do not need to completely discharge the battery before recharging. Unlike other battery systems, there is no memory effect that could compromise the battery’s performance.

• Use only LG batteries and chargers. LG chargers are designed to maximise battery life.

• Do not disassemble or short-circuit the battery pack.

• Keep the metal contacts of the battery pack clean.

• Replace the battery when it no longer provides acceptable performance. The33 battery pack may be recharged hundreds of times before it needs replacing.

• Recharge the battery if it has not been used for a long time to maximise usability.

• Do not expose the battery charger to direct sunlight or use it in high humidity, such as in the bathroom.

• Do not leave the battery in hot or cold places, as this may deteriorate battery performance.

• There is risk of explosion if the battery is replaced with an incorrect type.

• Dispose of used batteries according to the manufacturer’s instructions. Please recycle when possible. Do not dispose as household waste.

• If you need to replace the battery, take it to your nearest authorised LG Electronics service point or dealer for assistance.

• Always unplug the charger from the wall socket after the phone is fully charged to save unnecessary power consumption of the charger.

• Actual battery life will depend on network configuration, product settings, usage patterns, battery and environmental conditions.

• Make sure that no sharp-edged items such as animal’s teeth or nails, come into contact with the battery. This could cause a fire.34 There are various accessories for your mobile phone. You can select these options according to your personal communication requirements. Travel Adapter Standard Battery User Guide LG-C297 Data Cable NOTE:

• Always use genuine LG accessories. Failure to do this may invalidate your warranty.

• Accessories may be different in different regions; please check with our regional service company or agent for further enquires. Accessories35

DECLARATION OF CONFORMITY

Hereby, LG Electronics declares that this LG-C297 product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http:// www.lg.com/global/support/cedoc/ RetrieveProductCeDOC.jsp Ambient temperatures Max: +50°C (discharging), +45°C (charging) Min: -10°C Technical Data36 Problem Possible Solution Telephone cannot be switched on Please take out battery and insert again. Then press Power key to power on the phone. Battery empty Charge battery. Check charging indicator on display. The battery doesn’t charge properly or the phone sometimes turns itself off Wipe the charging contacts, both on the phone and on the battery, with a clear soft cloth. Usage time of battery becomes shorter If the battery time is short, it may be due to the user environment, a large volume of calls, or weak signals. Charging error— Temperature out of range Make sure the ambient temperature is right, wait for a while, and then charge again. Troubleshooting37 Problem Possible Solution Charging error— Wrong charger Only use original LG accessories. Charging error— Battery defective Replace battery. Charging error—No battery icon appears when charging The battery is empty or has been not used for a long time. It may take a while before the battery icon appears on the screen. Forgot the phone code or password The default phone code is “0000”. Enter PUK The PIN code has been entered incorrectly three times in succession, and the phone is now blocked. Enter the PUK supplied by your service provider.38 Problem Possible Solution Loss of Network You may be in a weak signal area. Move and try again. You are trying to access an option for which you have no subscription with your service provider. Contact the service provider for further details. You have entered a number but it was not dialed Be sure that you have pressed Call key. Be sure that you have accessed the right network service. Be sure that you have not set an outgoing call barring option. Be sure that you have entered the area code. Your correspondent cannot reach you Be sure that your phone is switched on. Be sure that you are accessing the network service. Be sure that you have not set an incoming call barring option.39 Problem Possible Solution Your correspondent cannot hear you speaking Be sure that you have switched off the loudspeaker. Be sure that you are holding the phone close enough to your mouth. The microphone is located at the bottom of the phone. The voice quality of the call is poor Check the signal strength indicator on the display. The number of bars indicates the signal strength. Try moving the phone slightly or moving closer to a window if you are in a building. No number is dialed when you recall a contact Use the Phonebook Search feature to ensure the number has been stored correctly. Resave the number, if necessary. Cannot use the Browser Your subscription does not include data capability. You will need to contact your service provider to enable the service.40 Problem Possible Solution If the above guidelines do not help you to solve the problem Take note of the model number of your mobile phone and a clear description of the problem. Contact your phone dealer or LG Service Center for help.LG-C297 Guide de l'utilisateur - Français Ce guide va vous aider à mieux comprendre votre nouveau téléphone portable. Vous y trouverez des informations utiles sur les fonctions de votre téléphone. Le contenu de ce manuel peut présenter quelques différences avec celui de votre téléphone selon l'opérateur et la version du logiciel que vous utilisez.2 Présentation du téléphone.........................5 Installation de la carte SIM et chargement de la batterie ................................................ 7 Installation de la carte SIM ......................7 Mise en marche/Arrêt du téléphone ...
