USER MANUAL Chocolate TG800F LG

1. WHAT THIS WARRANTY COVERS:

LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions:

1. The limited warranty for the product extends for ONE (1) year beginning on the date of purchase of the

product by the original end user.

2. The limited warranty extends only to the original end user of the product and is not assignable or

transferable to any subsequent purchaser/end user.

3. This warranty is good only to the original end user of the product during the warranty period as long as

4. Upon request from LG, the consumer must provide information to reasonably prove the date of

5. During the applicable warranty period, LG will repair or replace at LG’s sole option, without charge to the

original end user, any defective component part of the phone or accessory.

6. LG may use rebuilt, reconditioned or new parts or components when repairing any product or replace a

product with a rebuilt, reconditioned or new product.

2. WHAT THIS WARRANTY DOES NOT COVER:

1. Defects or damages resulting from use of the product in other than its normal and customary manner.

2. Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or

dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation or other acts which are not the fault of LG, including damage caused by spills of food or liquids.

3. Breakage or damage to antennas unless caused directly by defects in material or workmanship.

4. The fact that the Customer Service Department at LG was not notified by the original end user of the

alleged defect or malfunction of the product, during the warranty period.

5. Products which have had their serial numbers removed or made illegible.

6. Damage resulting from use of non-LG approved accessories.

TG800 ¿•–˘…(¿„fi_”)_1030 2006.10.30 1:52 PM ˘`17. All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use.

8. Products serviced by non-authorized persons or companies.

1. This limited warranty supersedes all other warranties, expressed or implied either in fact or by operations

of law, statutory or otherwise, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose.

2. Shipping damage is the sole responsibility of the shipping company.

3. EXCLUSION OF LIABILITY:

No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG ELECTRONICS CANADA, INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT.

4. HOW TO GET WARRANTY SERVICE:

To obtain warranty service, please call the following telephone number from anywhere in Canada: LG Electronics Canada, Inc. Tel. [phone] www.lg.ca (see links to “Wireless Phone Service”) Electronics Canada Inc. Mississauga, Ontario TG800 ¿•–˘…(¿„fi_”)_1030 2006.10.30 1:52 PM ˘`220:56 01 Jan[Sun] TG800F User Guide - English TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`1How to Use Touch Button 6 Introduction 9 For Your Safety 10 Guidelines for safe and efficient use 11 Radio wave exposure and Specific Absorption Rate (SAR) information Product care and maintenance 12 Efficient phone operation 14 Electronics devices Road safety 15 Blasting area Potentially explosive atmospheres 16 In aircraft Battery information and care Network service 17 Avoid damage to your hearing TG800F features 18 Parts of the phone Display Information 22 Installation 25 Installing the SIM card and the handset battery Charging the Battery 27 Disconnecting the charger 28 General Functions 29 Making and answering calls Making a call Making a call from the call history list Making international call Ending a Call 30 Making a call from the phonebook Adjusting the volume Answering a call 31 Manner mode (Quick) Signal strength Entering text 32 T9 mode ABC mode 123 mode (Number mode) Changing the text input mode 33 Using the T9 mode Using the ABC mode 35 Using the 123 (Number) mode 37 Using the Symbol Mode Contacts Selecting Functions and Options 38 Table of Contents Table of Contents

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`2In-call menu 39 During a call Multiparty or conference calls 41 Menu Tree 43 Tools 46 Calendar Memo 47 Alarm clock Calculator 48 Unit converter World time 49 Media 50 Camera Video camera 52 Voice recorder 53 Record View List MP3 player 54 Ring Tunes 57 Photo album 58 Video album 59 Graphics Sounds 60 Others 60 Settings 61 Camera Video camera Games & Apps 62 Download Games 63 My Games & Apps Profiles 64 Call history 65 Missed calls Received calls Dialed calls 66 All calls Delete recent calls Call Timer 67 Last call All calls Received calls Dialed calls Reset all Internet 68 Home 69 Bookmarks 70 Table of Contents

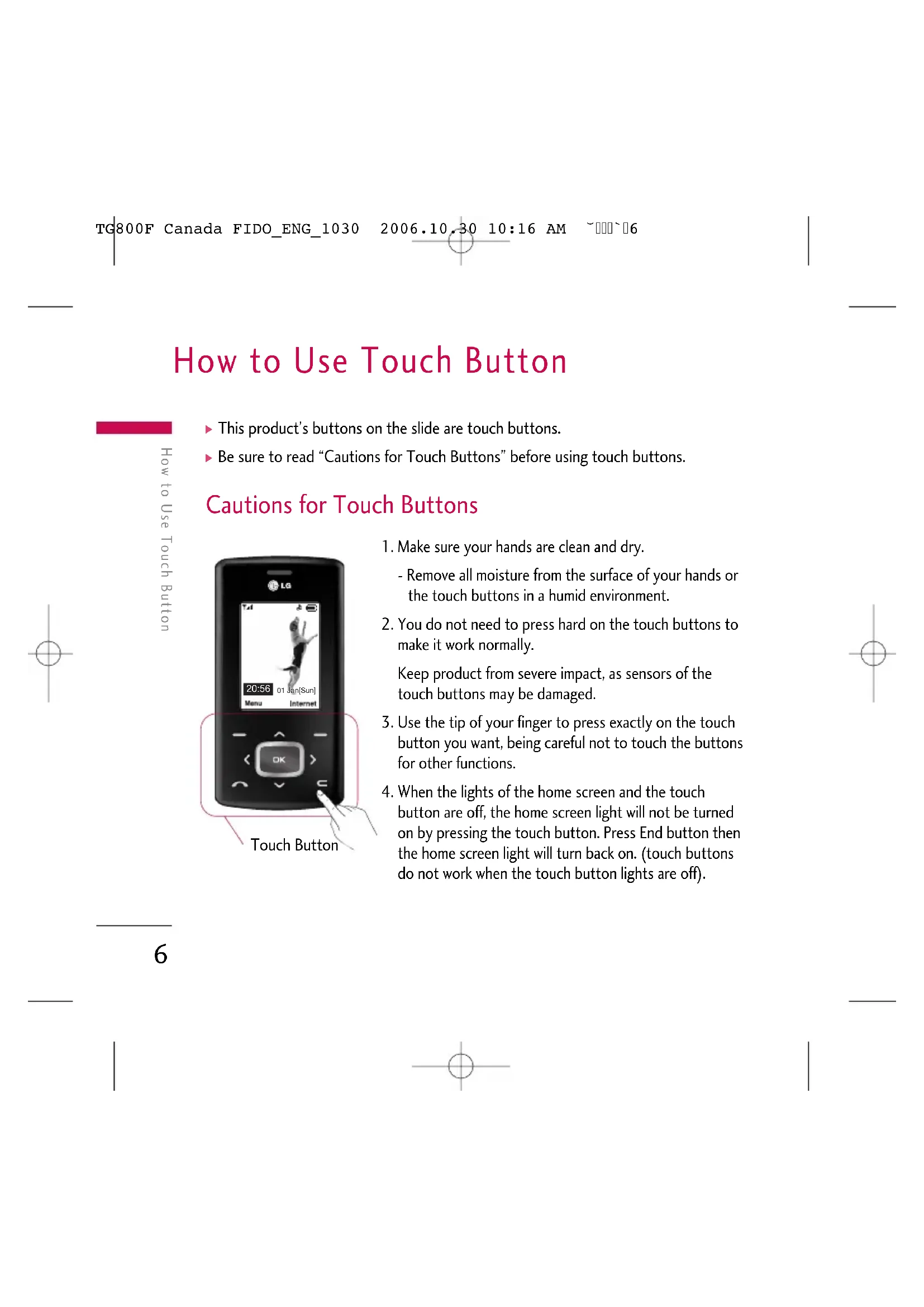

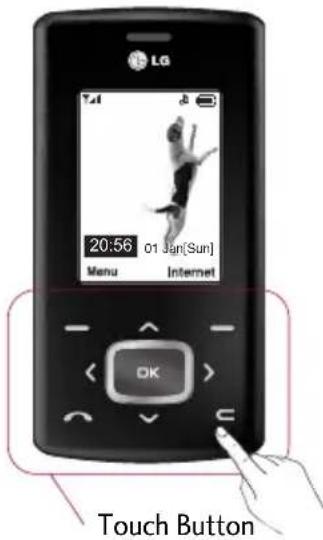

Be sure to read “Cautions for Touch Buttons” before using touch buttons. Cautions for Touch Buttons

1. Make sure your hands are clean and dry.

- Remove all moisture from the surface of your hands or the touch buttons in a humid environment.

2. You do not need to press hard on the touch buttons to

make it work normally. Keep product from severe impact, as sensors of the touch buttons may be damaged.

3. Use the tip of your finger to press exactly on the touch

button you want, being careful not to touch the buttons for other functions.

4. When the lights of the home screen and the touch

button are off, the home screen light will not be turned on by pressing the touch button. Press End button then the home screen light will turn back on. (touch buttons do not work when the touch button lights are off). How to Use Touch Button How to Use Touch Button

20:5601 Jan[Sun] Touch Button TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`65. If the slide is closed and the Touch Protection function is on, the Touch button Lock function is automatically enabled during calls. (For details, see ‘Touch Button Status When Using Mobile Phone’.)

6. Touch buttons may not work properly if a mobile phone case or plastic covers the

touch buttons. Also, touch buttons may not work properly if you use it with wearing a glove.

7. Keep metal and other conductive material away from the surface of touch buttons,

as contact with them may result in error. Touch Button Status When Using Mobile Phone When the slide is closed, the Touch Protection function is automatically enabled in order to prevent indiscreet action of the touch buttons while using the phone or during calls. (In this case, the touch buttons will not work even if they are pressed)

1. When slide is closed

- When the slide is closed, Touch Protection function is automatically enabled. (Opening the slide will automatically disable it.) - To disable Touch Protection when slide is closed, press volume button twice. - After disabling Touch Protection, if there is no button action for a certain duration (5 seconds), Touch Protection function will be enabled again. How to Use Touch Button

For user convenience, touch button image with functions of each touch button is shown on the home screen when purchasing products. How to Use Touch Button How to Use Touch Button

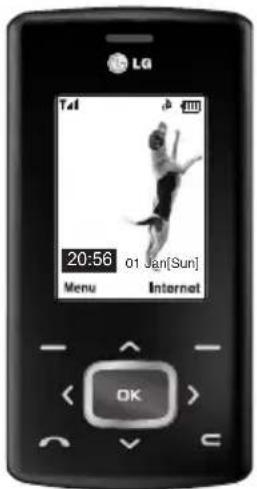

Congratulations on your purchase of the advanced and compact TG800F cellular phone, designed to operate with the latest digital mobile communication technology. 20:56 01 Jan[Sun] This user’s guide contains important information on the use and operation of this phone. Please read all the information carefully for optimal performance and to prevent any damage to or misuse of the phone. Any changes or modifications not expressly approved in this user’s guide could void your warranty for this equipment. Use of phone cases with magnetic locks for slide type phones has caused problems such as loss of network signal and phones powering off. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`9For Your Safety For Your Safety

Please read these simple guidelines. Not following these guidelines may be dangerous or illegal. Further detailed information is given in this manual. CAUTION!

• Switch off the phone in any area where required by special regulations. For example, do not use your phone in hospitals or it may affect sensitive medical equipment.

• Emergency calls may not be available under all mobile networks. Therefore, you should never depend solely on your mobile phone for emergency calls.

• Only use ORIGINAL accessories to avoid damage to your phone.

• All radio transmitters carry risks of interference with electronics in close proximity. Minor interference may affect TVs, radios, PCs, etc.

• Batteries should be disposed of in accordance with relevant legislation.

• Do not dismantle the phone or battery. WARNING!

• Mobile Phones must be switched off at all times in aircrafts.

• Do not hold the phone in your hand while driving.

• Do not use your phone near petrol stations, fuel depots, chemical plants or blasting operations.

• For your safety, use ONLY specified ORIGINAL batteries and chargers.

• Do not handle the phone with wet hands while it is being charged. It may cause an electric shock or serious damage to your phone.

• Keep the phone in a safe place out of small children’s reach. It includes small parts which, if detached, may cause a choking hazard. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`10Radio wave exposure and Specific Absorption Rate (SAR) information This mobile phone model TG800F has been designed to comply with applicable safety requirements for exposure to radio waves. This requirement is based on scientific guidelines that include safety margins designed to assure the safety of all persons, regardless of age and health.

The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or SAR. Tests for SAR are conducted by using standardised methods with the phone transmitting at its highest certified power level in all used frequency bands.

While there may be differences between the SAR levels of various LG phone models, they are all designed to meet the relevant guidelines for exposure to radio waves.

The SAR limit recommended by the International Commission on Non-Ionizing Radiation Protection (ICNIRP) is 2W/kg averaged over ten (10) gram of tissue.

SAR data information for residents in countries/ regions that have adopted the SAR limit recommended by the Institute of Electrical and Electronics Engineers (IEEE) is 1.6 W/kg averaged over one (1) gram of tissue. Guidelines for safe and efficient use Guidelines for safe and efficient use

Product care and maintenance

Do not disassemble this unit. Take it to a qualified service technician when the repair is required.

Keep away from electrical appliances such as no a TV's, radios and personal computers.

The unit should be kept away from heat sources such as radiators or cookers.

Do not subject this unit to mechanical vibration or shock.

The coating of the phone may be damaged if covered with wrap or vinyl wrapper.

Do not use harsh chemicals (such as alcohol, benzene, thinners, etc.) or detergents to clean your phone. There is a risk of this causing a fire.

Do not subject this unit to excessive smoke or dust.

Do not keep the phone next to credit cards or transport tickets; it can affect the information on the magnetic strips.

Do not tap the screen with sharp objects. it may damage the phone. WARNING! Only use batteries, chargers and accessories approved for use with this particular phonemodel. The use of any other types may invalidate any approval or warranty applying to thephone, and may be dangerous.TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`12] Do not expose the phone to liquid or moisture.

Use the accessories like an earphone cautiously.

If you put your phone in a pocket or bag without covering the receptacle of the phone (power plug pin), metallic articles (such as a coin, paperclip or pen) may short-circuit the phone. Always cover the receptacle when not in use.

Never place your phone in a microwave oven as it will cause the battery to explode.

Only authorised personnel should service the phone and its accessories. Faulty installation or service may result in accidents and consequently invalidate the warranty.

Do not use the phone if the antenna is damaged. If a damaged antenna contacts skin, it may cause a slight burn. Please contact an LG Authorised Service Centre to replace the damaged antenna.

The label on the phone contains important information for customer support purposes. Do not remove it.

Use accessories, such as earphones and headsets, with caution. Ensure that cables are tucked away safely and do not touch the antenna unnecessarily. Guidelines for safe and efficient use

Efficient phone operation To enjoy optimum performance with minimum power consumption please:

Hold the phone as you speak to any other telephone. While speaking directly into the microphone, angle the antenna in a direction up and over your shoulder. If the antenna is extendable/retractable, it should be extended during a call.

Do not hold the antenna when the phone is in use. If you hold it, it can affect call quality, it also may cause the phone to operate as a higher power level that needed and shorten talk and standby times.

If your mobile phone supports infrared, never direct the infrared ray at anyone’s eyes. Electronics devices All mobile phones may get interference, which could affect the performance.

Do not use your mobile phone near medical equipment without requesting permission. Avoid placing the phone over pacemakers, (i.e. in your breast pocket).

Some hearing aids might be disturbed by mobile phones.

Do not bend, scratch, or expose to static electricity. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`14Road safety Check the laws and regulations on the use of mobile phones in the areas when you drive.

Do not use a hand-held phone while driving.

Give full attention to driving.

Pull off the road and park before making or answering a call if driving condition is so required.

RF energy may affect some electronic systems in your motor vehicle such as a car stereo or safety equipment.

When riding in a car, do not leave your phone or set up the hands-free kit near to the air bag. If wireless equipment is improperly installed and the air bag is activated, you may be seriously injured. Blasting area Do not use the phone where blasting is in progress. Observe restrictions, and follow any regulations or rules. Guidelines for safe and efficient use

Potentially explosive atmospheres

Do not use the phone at a refueling point. Don’t use near fuel or chemicals.

Do not transport or store flammable gas, liquid, or explosives in the compartment of your vehicle, which contains your mobile phone and accessories. In aircraft Wireless devices can cause interference in aircraft.

Turn off your mobile phone before boarding any aircraft.

Do not use it on the ground without crew permission. Battery information and care

You do not need to completely discharge the battery before recharging. Unlike other battery systems, there is no memory effect that could compromise the battery’s performance.

Use only LG batteries and chargers. LG chargers are designed to maximize the battery life.

Do not disassemble or short-circuit the battery pack.

Keep the metal contacts of the battery pack clean. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`16] Replace the battery when it no longer provides acceptable performance. The battery pack may be recharged hundreds of times until it needs replacing.

Recharge the battery if it has not been used for a long time to maximize usability.

Do not expose the battery charger to direct sunlight or use it in high humidity, such as the bathroom.

Do not leave the battery in hot or cold places, this may deteriorate the battery performance. Network service

Some services and functions described in this user's guide are dependent on network or subscription. Therefore, all menu may not be available in your phone. Please consult your network operator for more information about your subscription. Avoid damage to your hearing

Damage to your hearing can occur if you are exposed to loud sound for long periods of time. We therefore recommend that you do not turn the handset on or off close to your ear. We also recommend that music and call volumes are set to a reasonable level.

If you are listening to the music whilst out and about, please ensure that the volume is at a reasonable level so that you are aware of your surroundings. This is particularly imperative when attempting to cross the street. Guidelines for safe and efficient use

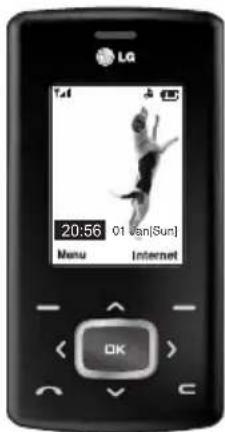

20:5601 Jan[Sun] Earpiece Navigation keys In standby mode:Briefly: List of MediaBriefly: List of ContactsBriefly: List of MessagesBriefly: List of Call history In menu: scroll up & downMain LCD Top: Icons showing signalstrength, battery level andvarious other functions. Bottom: Soft key indicationsAlpha numeric keys In standby mode: Inputnumbers to dial. Hold down- International calls- Dial Voice mail centre.to - Speed dials In editing mode: Enternumbers & characters TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`18TG800F features

Dial a phone number and answer a call.

In standby mode: shows a history of calls made, received, and missed. Confirm key Selects menu options and confirms actions. Clear key Deletes a character with each press. Hold the key down to clear all input. Use this key to go back to a previous screen. Left soft key/Right soft key These keys perform the function Indicated in the bottom of the display. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`19TG800F features TG800F features

To protect the sense of hearing while Slide open, maximum volume level is 3. Side keys

In standby mode (opened): Volume of key tone

In standby mode (closed): The main LCD light on.

During a call: volume of the earpiece End key

Switch on/off (hold down)

Activates the MP3 player (long press) and Multimedia menu (short press) directly. Left side view Right side view TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`20TG800F features

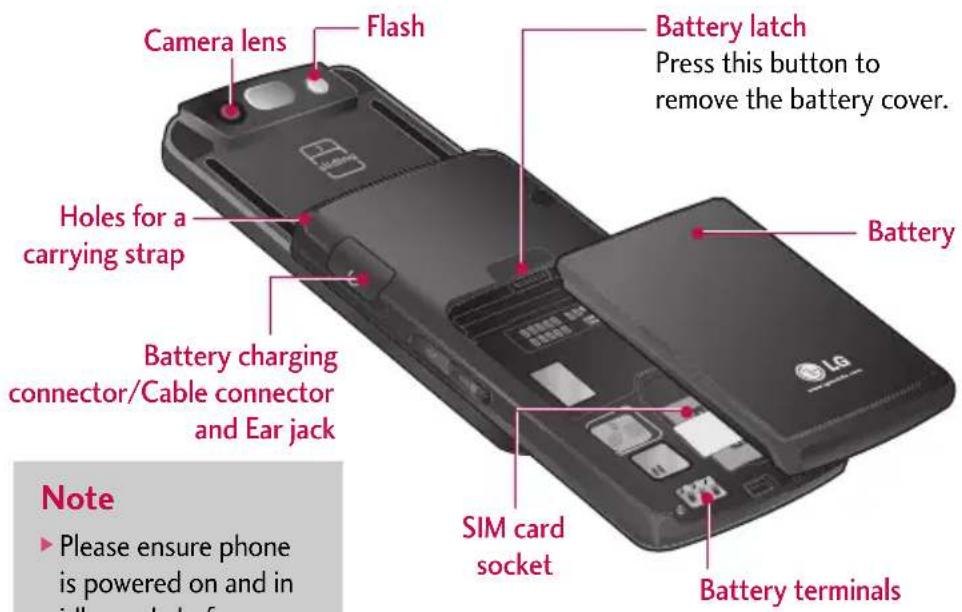

Rear view Camera lens Holes for a carrying strap SIM card socket Battery terminals Battery charging connector/Cable connector and Ear jack Note

Please ensure phone is powered on and in idle mode before connecting the USB cable. Battery latch Press this button to remove the battery cover. Flash Battery TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`21Display Information TG800F features TG800F features

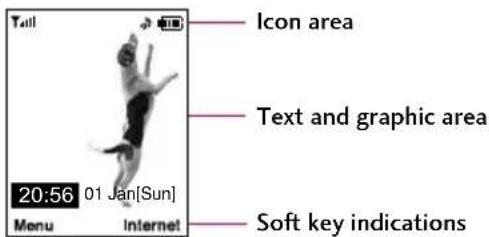

Icon area Text and graphic area Soft key indications Area Description First line Displays various icons. Middle lines Display messages, instructions and any information that you enter, such as number to be dialed. Last line Shows the functions currently assigned to the two soft keys. 20:5601 Jan[Sun] TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`22TG800F features

The screen displays several icons. These are described below. On-Screen Icons Icon/Indicator Description Tells you the strength of the network signal. Call is connected. You can use GPRS service. Shows that you are using a roaming service. The alarm has been set and is on. Tells you the status of the battery. You have received a text message. You have received a voice message. Vibrate only menu in profile. General menu in profile. Loud menu in profile. Silent menu in profile. Headset menu in profile. You can divert a call. Indicates that the phone is accessing the WAP. Indicates that you are using GPRS. You have activated Bluetooth menu. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`23TG800F features TG800F features

The quality of the conversation may change depending on network coverage. When the signal strength is below 2 bars, you may experience muting, call drop and poor audio. Please refer to this signal as an indicator for your calls. When there are no bars, that means that there is no network coverage: in this case, you won’t be able to access the network for any service (call, messages and so on). TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`24Installing the SIM card and the handset battery Make sure the power is off before you remove the battery.

1. Remove the battery.

Press and hold down the battery release button and slide the battery down.

2. Install the SIM card.

Insert and slide the SIM card into the SIM card holder. Make sure that the SIM card is inserted properly and that the gold contact area on the card is facing downwards. To remove the SIM card, press down lightly and pull it in the reverse direction. Installation Installation

3. Install the battery.

Slide the battery upwards until it snaps back into place. Note

The metal contact of the SIM card can be easily damaged by scratches. Pay special attention to the SIM card while handling. Follow the instructions supplied with the SIM card. Installation Installation

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`26Charging the Battery Before connecting the travel adapter to the phone, you must first install the battery.

1. Ensure the battery is fully charged before using the phone for the first time.

2. With the arrow facing you as shown in the diagram push the plug on the battery

adapter into the socket on the side of the phone until it clicks into place.

3. Connect the other end of the travel adapter to the mains socket. Use only the

charger included in the box.

4. The moving bars of battery icon will stop after charging is complete.

• Do not force the connector as this may damage the phone and/or the travel adapter.

• Do not remove your battery or the SIM card while charging. Installation

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`27Disconnecting the charger Disconnect the travel adapter from the phone as shown in the diagram below. WARNING!

• Unplug the power cord and charger during lightning storms to avoid electric shock or fire.• Make sure that no sharp-edged items such as animal teeth or nails, come into contact withthe battery. There is a risk of this causing a fire.• Do not place or answer calls while charging the phone as it may short-circuit the phoneand/or cause electric shock or fire. Installation Installation TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`28General Functions General Functions

Making and answering calls Making a call

1. Make sure your phone is switched on.

2. Enter a phone number, including the area code.

Press and hold the clear key to erase the entire number.

3. Press the send key to call the number.

4. To end the call, press the end key .

Making a call from the call history list

1. In standby mode, press the send key , then the latest incoming, outgoing

and missed phone numbers will be displayed.

2. Select the desired number by using the up/down navigation keys.

3. Press to call the number.

Making international call

1. Press and hold the key for the international prefix. The ‘+’ character

automatically selects the international access code.

2. Enter the country code, area code, and the phone number.

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`293. Press to call the number. Ending a Call When you have finished your call, press the end key. Making a call from the phonebook You can save the names and phone numbers dialed regularly in Contacts. You can save them to the SIM card and/or phone memory. You can dial a number by simply looking up the desired name in the phonebook and pressing the key. Adjusting the volume If you want to adjust the earpiece volume during a call, use the side keys . Press the up side key to increase and down side key to decrease the volume. Note

Answering a call When you receive a call, the phone rings and the flashing phone icon appears on the screen. If the caller can be identified, the caller’s phone number (or name/photo if saved in the phonebook) is displayed.

1. To answer an incoming call, open the phone. (When Slide open has been set as the

You can answer a call while using the address book or other menu features.

2. To end the call, close the phone or press the key.

Manner mode (Quick) You can activate the manner mode by pressing and holding down the key after opening the phone. Signal strength You can check the strength of your signal by the signal indicator ( ) on the LCD screen of your phone. Signal strength can vary, particularly inside buildings. Moving near to a window may improve reception. Note

If Press any key has been set as the answer mode any key press will answer a call except for the or the right soft key. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`31Entering text You can enter alphanumeric characters by using the phone’s keypad. For example, storing names in the phonebook, writing a message, creating a personal greeting. The following text input methods are available in the phone. T9 mode This mode lets you enter words with only one keystroke per letter. Each key on the keypad has more than one letter. The T9 mode automatically compares your keystrokes with an internal dictionary to determine the correct word, thus this mode requires far fewer keystrokes than the traditional ABC mode. This is sometimes known as predictive text. ABC mode This mode lets you enter letters by pressing the key labelled with the required letter once, twice, three or four times until the letter is displayed. 123 mode (Number mode) Type numbers using one keystroke per number. To change to 123 mode in a text entry field, press the key until 123 mode is displayed. General Functions General Functions TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`32General Functions

1. When you are in a field that allows characters to be entered, you will notice the

text input mode indicator in the top right corner of the LCD screen.

2. Change the text input mode by pressing You can check the current text

input mode in the top right corner of the LCD screen. Using the T9 mode The T9 predictive text input mode lets you enter words easily with a minimum number of key presses. As you press each key, the phone begins to display the characters that it thinks you are typing based on the built-in dictionary. You can also add new words in the dictionary. As new words are added, the word changes to reflect the most likely candidate from the dictionary. You can turn the T9 mode on or off, and change the T9 language by holding down the ( ) key.

1. When you are in the T9 predictive text input mode, start entering a word by

pressing keys to . Press one key per letter.

The word changes as letters are typed. Ignore what is on the screen until the word is typed completely.

If the word is still incorrect after typing completely, press the down navigation key once or more to cycle through the other word options. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`33Example: Press to type Good. Press [down navigation key] to type Home.

If the desired word is missing from the word choice list, add it using the ABC mode.

You can select the language of the T9 mode. Press the left soft key [Options], then select T9 languages. Select the desired language of T9 mode. You can also turn off the T9 mode by selecting T9 off. The default setting on the phone is T9 enabled mode.

2. Enter the whole word before editing or deleting any keystrokes.

3. Complete each word with a space by pressing the key. To delete letters,

press . Press and hold down to erase entire words. Note

To exit from the text input mode without saving your input, press . The phone goes back to standby mode. General Functions General Functions

Using the ABC mode Use the to keys to enter your text.

1. Press the key labelled with the required letter:

Once for the first letter.

Twice for the second letter.

2. To insert a space, press the key once. To delete letters, press the

key. Press and hold down the key to clear the whole display. Note

Using the 123 (Number) mode The 123 mode enables you to enter numbers in a text message (a telephone number, for example). Press the keys corresponding to the required digits before manually switching back to the appropriate text entry mode. You can quickly switch from letters to numbers by pressing and holding down the ( ) key. Using the Symbol Mode The Symbol Mode enables you to enter various symbols or special characters. To enter a symbol, press the key. Use the navigation keys to scroll through the symbols and press the corresponding key and then press the [OK] key. Contacts You can store phone numbers and their corresponding names in the memory of your SIM card. In addition, you can store up to 1000 numbers and names in the phone memory. The SIM card and phone are both used in the same way in the Contacts menu. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`37Your phone offers a set of functions that allow you to customise the phone. These functions are arranged in the menus and submenus, accessed via the two soft keys marked and . Each menu and sub-menu lets you view and alter the settings of a particular function. The role of the soft keys vary according to the current context or the label on the bottom line of the screen just above each key indicates its current role. Selecting Functions and Options Selecting Functions and Options

20:56 01 Jan[Sun] Press the left soft key to access the available menu. Press the right soft key to access the available Internet. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`38Your phone provides a number of control functions that you can use during a call. To access these functions during a call, initially press the MP3 key to unlock the touch screen and then press the left soft key [Options]. During a call The menu displayed on the handset screen during a call is different to the default main menu displayed when in standby mode, and the options are described below. Making a second call You can get a number you wish to dial from the phonebook to make a second call. Press the right soft key selecting Contacts. To save the dialed number into the phonebook during a call, press the right soft key then select Add new. Switching between two calls To switch between two calls, press the left soft key then select Swap. Answering an incoming call To answer an incoming call when the handset is ringing, slide open the phone then press the key. The handset is also able to warn you of an incoming call while you are already on a call. A tone sounds in the earpiece, and the display will show that a second call is waiting. In-call menu In-call menu TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`39This feature, known as Call waiting, is only available if your network supports it. For details of how to activate and deactivate it see Call waiting (Menu 9.7.4) If Call waiting is activated, you can put the first call on hold and answer the second, by pressing or by selecting the left soft key, then Hold & Answer. You can end the current call and answer the waiting call by selecting the Right soft key and then End & Answer. Rejecting an incoming call You can reject an incoming call without answering by simply pressing the key. During a call, you can reject an incoming call by pressing the Right soft key [Menu] key and selecting the Conference/Reject or by pressing the . Muting the microphone You can mute the microphone during a call by pressing the [Options] key then selecting Mute on. The handset can be unmuted by selecting Mute off. When the handset is muted, the caller cannot hear you, but you can still hear them. Switching DTMF tones on during a call To turn DTMF tones on during a call, press the left soft key, and then select DTMF on. DTMF tones can be turned off the same way. DTMF tones allow your phone to make use of an automated switchboard. In-call menu In-call menu

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`40Multiparty or conference calls The multiparty or conference service provides you with the ability to have a simultaneous conversation with more than one caller, if your network operator supports this feature. A multiparty call can only be set up when you have one active call and one call on hold, both calls having been answered. Once a multiparty call is set up, calls can be added, disconnected or separated (that is, removed from the multiparty call but still connected to you) by the person who set up the multiparty call. These options are all available from the In-Call menu. The maximum callers in a multiparty call are five. Once started, you are in control of the multiparty call, and only you can add callers to the multiparty call. Making a second call You can make a second call while currently on a call. Enter the second number and press the key. When the second call is connected, the first call is automatically placed on hold. You can swap between calls by pressing the left soft key then selecting Swap. Setting up a conference call Place one call on hold and while the active call is on, press the left soft key and then select the Conference/Join all. Putting a conference call on hold Press the left soft key, then select the Conference/Hold all. In-call menu

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`41Activate the conference call on hold Press the left soft key, then select the Conference/Join all. Adding calls to the conference call To add a call to an existing conference call, press the left soft key, then select the Conference/Join all. Displaying callers in a conference call To scroll through the numbers of the callers who make up a conference call on the handset screen, use the up/down navigation keys. Taking a private call during a conference call To have a private call with one caller from a conference call, display the number of the caller you wish to talk to on the screen, then press the left soft key. Select the Conference/Private to put all the other callers on hold. Ending a conference call The currently displayed caller from a conference call can be disconnected by pressing the key. To end a conference call, press the left soft key, then select the Conference/End multiparty. After pressing the left soft key, selecting all will end all the active and onhold calls. In-call menu In-call menu

Number assigned to each menu option. Menu Tree Menu Tree

Listen to voice mail

4.5 Delete recent calls

7.5 Supported services

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`45Calendar Menu 1.1 When you enter this menu a calendar will be displayed. The month and year are shown at the top of the screen. Whenever you no the change the date under the Settings menu, the calender will update automatically. The current date will be highlighted in green and any schedule or memos will be indicated with a red triangle at the top left hand corner of the corresponding square. An audible alarm can be set for memo’s and reminders. To change the day, month and year. Key Description Key Description Yearly Weekly Monthly Daily In calendar mode, press the left soft key [Options] as follows;

Add new: Allows you to add a new schedule and memo for the chosen day. You can store up to 20 notes. Input the subject and then press left soft key [OK]. You enter the appropriate information in the following section; Time, Repeat and Alarm.

View daily schedules: View all schedules and memo for the chosen day. Use , to browse through the note lists. If you set the alarm for a note, the alarm icon is displayed. If you want to view the note in detail, press the left soft key [OK]. Press the left soft key [Options] to delete or edit the note you have selected.

Delete past: You can delete the past schedule that you have already been notified of. Tools Tools

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`46] Delete all: You can delete all the notes.

Go to date: You can go to chosen date directly.

Set alarm tone: You can set the alarm tone of each chosen date. Memo Menu 1.2

1. Select the Memo by pressing the left soft key [OK].

Alarm clock Menu 1.3 You can set up to 5 alarm clocks to go off at a specified time.

1. Select On and enter the alarm time you want.

2. Select the repeat period: Once, Mon Fri, Mon Sat, Everyday.

3. Select the alarm tone you want and press [OK].

If you want to change the text input mode, press the in order. Tools TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`47Calculator Menu 1.4 This contains the standard functions such as +,

, x, ÷ : Addition, Subtraction, Multiplication, and Division. Furthermore, you can use the various function of calculator such as +/

1. Input the numbers by pressing numeric keys.

2. Use a navigation key to select a sign for calculation.

3. Then input the numbers.

4. Press key to view the result.

Unit converter Menu 1.5 This converts any measurement into a unit you want. There are 9 types that can be converted into units: Currency, Area, Length, Weight, Temperature, Volume, Velocity, Shoes and Clothes.

1. You can select one of nine unit types by pressing [OK] key.

2. Select the unit you want to convert by pressing and . It is impossible to input

“-” symbol in unit converter.

3. Select the standard value by using , .

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`48World time Menu 1.6 You can check the current time of Greenwich Mean Time (GMT) and major cities around the world, using the left/right navigation keys. The screen shows the city name, current date and time. To select the time zone in which you are located, proceed as follows:

1. Select the city corresponding to your time zone by pressing the left/right navigation

keys one or more times. The local date and time are displayed.

2. If you want to change the time display in standby mode to the selected time, press the

left soft key and select Set. Tools

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`49Camera Menu 2.1 This application enables you to take a still picture. You can take a picture in your desired size, and use it for the contacts photo, home screen and other more general purposes. Once taken, a still image can be sent via Multimedia msg or Email. Press the left soft key to display the following popup menu items.

Brightness: Determines the brightness.

Size: Determines the size of an image.

Timer: Determines the delay time.

Quality: Determines the quality of an image.

White Balance : Allows you to change the settings according to the environment.

Album: Shows the still images taken.

When you connect the phone to a PC using the USB cable, the Photo folder is dedicated for images which are taken by users using handset's camera. If you copy your own images into this folder, you will not be able to view from the handset. In order to view your own images from the handset, you need to put these images in Others folder. Media Media TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`50] Mode: Determines whether to take a single , multishot or frame shot photo.

Effect: Determines the special effect to the picture.

Flash: Determines the flash operation.

Frame shots are only available with the pixel resolution set to 176 x 220.

Multi shots are only available when the pixel resolution is set to 320 x 240 or 640 x 480.

To use the Photo Caller ID feature, you must take photos you wish to associate with your contacts in 72x72 resolution.

Once the photo has been taken and saved, go to Contacts and select the contact you wish to associate the photo to or select Add new to create a new contact(please note that a photo can only be associated with a contact stored in the phone's memory and not on the SIM).

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`51Video camera Menu 2.2 This application enables you to record a video clip. You can play and watch a saved video file while using this function. Press the left soft key to display the following popup menu items.

Brightness: Determines the brightness.

Size: Determines the size of an image.

Timer: Determines the delay time.

Quality: Determines the quality of a video clip.

White Balance : Allows you to change the settings according to the environment.

Record Time: Determines the recording time. Note

Use the , keys to scroll through the photos (please note that only pictures taken in 72x72 resolution will be listed here).

Once you have selected the photo you wish to use press the left soft key to save this in the contacts profile.

The photo will be shown when this particular contact calls you (as long as the contact does not have their telephone number set to hidden). Media Media TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`52] Exit: To exit the Video camera.

Effect: Determines the special effect to the video clip.

Flash: Determines the flash operation.

Zoom: Determines the zoom rate. Voice recorder Menu 2.3 With the voice memo feature you can record up to 20 voice messages and each memo can be up to 20 seconds long. Record (Menu 2.3.1) You can record a voice memo in the Voice recorder menu.

1. Once recording has started, the message Recording and the remaining time is displayed.

2. If you want to finish recording, press the left soft key [Save].

3. Key in Voice memo title, press the left soft key [OK].

View List (Menu 2.3.2) The list of voice memos are displayed. You can playback and delete the recorded voice memo. The following [Options] menus are available Media

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`53MP3 player Menu 2.4 The TG800F has an integrated MP3 player built-in. You can enjoy listening to the MP3 music files on your phone memory using a compatible headset or via the internal loudspeaker. The music player supports:

• MPEG-1 Layer III, MPEG-2 Layer III, MPEG-2.5 Layer III Sampling frequency up from 8KHz to 48KHz. Bit rate up to 320Kbps, stereo.

• AAC: ADIF, ADTS formats (Sampling frequency from 8KHz to 48KHz)

• AAC+: V1 : (Bit rate 16-128Kbps) V2 : (Bit rate 16-48Kbps) (Sampling frequency from 8KHz to 48KHz)

• MP4, M4A: Sampling frequency up from 8KHz to 48KHz, Bit rate up to 320Kbps, stereo.

• WMA: Sampling frequency up from 8KHz to 48KHz, Bit rate up to 320Kbps, stereo. Note

Because of the small dimension of the speaker, in some cases the audio could be distorted, especially at maximum volume and when there are lots of bass sounds. Therefore, we recommend you to use the stereo headset in order to appreciate the high quality of your music. Media Media TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`54You can transfer MP3 files from a compatible PC to the memory in your phone using the Mass Storage. When you connect the phone to a PC using the USB cable(supplied in the same package), this will be displayed as a removable disk through Windows Explorer. If you are using Win98 SE, you will have to install the Mass storage driver for Windows 98 on CD-ROM. This menu allows you to view the whole play list. You can move through the tracks by pressing the navigation key. In addition, once you have selected the track, you can delete the file or view its information via the options menu. Note

You should copy MP3 to my media\Music folder. If you copy to another folder, you will not be able to view the MP3 files.

TG800F doesn't support the variable rate of MP3 and AAC file. Therefore, you can't change the file from VBR MP3 format to AAC. Media

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`551. Go to MP3 player : Move to MP3 player. Press the left soft key [Options] to access the following menus.

View play list: You can view the play list on listening to the music.

Area repeat: The special area part of the current music is repeated when you select ON of the menu.

Set as ring tone: This menu allows to set the MP3 file as a ring tone. You can also set it as a ring tone in Profile.

Setting - Equalizer This menu helps you to adjust to a variety of environments when listening to the music. This phone supports four preset menus. When you enter this menu, you can view current value of equalizer. - Playmode This menu allows to set the play mode. - Set shuffle You can listen to your MP3 music randomly. - Visual effect You can select the visual effect menus: Rainbow, Basic and Blue. This menu allows to change the backgroud of main LCD and sub LCD on playing MP3 file.

2. Delete: Deletes the file selected.

3. View details: To view the information of the file you selected.

4. Delete all: Deletes all of the files.

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`56Ring Tunes Menu 2.5 This option allows you to select the required ring melody. You can choose between many different melodies. If you have downloaded any sounds from the Internet or received any ring tone messages, you can view the list in this menu. Note

Music is copyright protected in international treaties and national copyright laws. It may be necessary to obtain permission or a license to reproduce or copy music. In some countries national law prohibits private copying of copyrighted material. Please check the national legislation of the applicable country concerning the use of such material. Media

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`57Photo album Menu 2.6 You can view and send a picture. In addition, you can set the picture as a wallpaper.

Multi view: You can view the maximum of 9 thumbnails in a screen.

Send via Bluetooth: You can send a picture by Bluetooth.

Set as wallpaper: You can set a picture as a wallpaper.

Slide show: You can view the pictures in a slide show.

Delete: You can delete a picture.

Edit title: You can edit the title of picture.

Information: Displays information about the saved picture. Note

The Photo Album will only display pictures taken by the handsets camera. Media Media TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`58Video album Menu 2.7 You can view videos which have been saved in the memory.

Play: You can play the video file when pressing the OK key or selecting Play menu of the Options menu.

Send via Bluetooth: Send the selected file to another device via Bluetooth.

Rename: Change the file name of the selected file.

Delete: Delete a file.

Delete all: Delete all files in the list

Information: Show the file information. Graphics Menu 2.8 After selecting a image, press the left key [View] and then you can check the options as follows:

Set as wallpaper: Currently selected image can be set as a wallpaper.

Write messages: The images downloaded from the network can be sent by Multimedia or Email service. Maximum message size is 100 kb for MMS message and 300 kb for E-mail message.

Send via Bluetooth: The sound downloaded from network can be sent by Bluetooth. Media

Sounds Menu 2.9 After selecting a sound, press the left key [Options]. You can check the options as follows:

Set as ring tune: Currently selected sound can be set as a ringtone.

Write messages: The sound downloaded from network can be sent by SMS or MMS, Email service. Maximum MMS message is 100 kb, and for e-mail is 300 kb.

Send via Bluetooth: The sound downloaded from network can be sent by Bluetooth. Others Menu 2.0 Any type of file can be stored here. This folder is mainly used for transporting files from one PC to another.

View: You can view a file if it is one of the following types; JPG, GIF, WBMP, PNG and TXT. The handset can preview JPG (Max 460K), GIF (Max 100K).

Auto save: If you set this feature to On, the images will be saved automatically without displaying the menu bar to save.

Delete all photos: You can delete all the photos which have been saved in the memory. Video camera (Menu 2.*.2)

Delete all videos: Allows you to delete all the videos which have been saved in the memory. Media

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`61Java is a technology developed by Sun Microsystems. Similar to the way you would download the Java Applet using the standard Netscape or MS Internet Explorer browsers, Java MIDIet can be downloaded using the WAP enabled phone. Depending on the service provider, all Java based programs such as Java games can be downloaded and run on a phone. Once downloaded, the Java program can be viewed within the Games & Apps menu where you can select, execute or delete. The Java program files saved in the phone are in .JAD and .JAR formats. Note

The JAR file is a compressed format of the Java program and the JAD file is a description file that includes all detailed information. From the network, prior to download, you can view all detailed file descriptions from the JAD file. Warning

Only J2ME (Java 2 Micro Edition) based programs will run in a phone environment. The J2SE (Java 2 Standard Edition) based programs will only run in a PC environment. Games & Apps Games & Apps

Download Games Menu 3.1 Download a game from the carrier URL address. My Games & Apps Menu 3.2

• Default Games: In this menu, you can manage the Java applications installed in your phone. You can play or delete downloaded applications, or set the connect option. The downloaded applications are organised in folders. Press the left soft key [OK] to open the selected slide or launch the selected midlet. Java

, is a technology developed by Sun Microsystems. Similar to the way you would download the Java Applet using the standard MS Internet Explorer browsers, Java MIDlet can be downloaded using a WAP enabled phone. Depending on the service provider, all Java based programs such as Java games can be downloaded and run on a phone. Once downloaded, the Java program can be viewed in the Games & Apps menu where you can select, execute, or delete. The Java program files saved in the phone are in .JAD or .JAR format. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`63Profiles Menu 3.3 A profile is the network information used to connect to the Internet. There are default profiles for some operators, stored in phone memory. It is impossible to rename default profiles. Each profile has submenus as follows:

Settings: Use this to edit and change WAP settings for the selected profile. - Bearer: You can set the bearer data service. 1 Data/2 GPRS - GPRS settings: The service settings are only available when GPRS is chosen as a bearer service. APN: Input the APN of the GPRS. User ID: The users identify for your APN server. Password: The password is required by your APN server. - Proxy settings IP address: Input the IP address of the Proxy server you access. Port: Input the Proxy Port. - DNS settings Primary server: Input the IP address of the primary DNS server you access. Secondary server: Input the IP address of the secondary DNS server you access.

Rename: You can change the profile name. Games & Apps Games & Apps

You can check the record of missed, received, and dialed calls only if the network supports the Calling Line Identification (CLI) within the service area. The number and name (if available) are displayed together with the date and time at which the call was made. You can also view call times. Missed calls Menu 4.1 This option lets you view the last 10 unanswered calls. You can also:

View the number if available and call it, or save it in the Address Book

Enter a new name for the number and save both in the Address Book

Delete the call from the list Received calls Menu 4.2 This option lets you view the last 10 incoming calls. You can also:

View the number if available and call it or save it in the Address Book

Enter a new name for the number and save both in the Address Book

Dialed calls Menu 4.3 This option lets you view the last 20 outgoing calls (called or attempted). You can also:

View the number if available and call it or save it in the Address Book

Enter a new name for the number and save both in the Address Book

Delete the call from the list All calls Menu 4.4 You can view all the lists of outgoing or incoming calls. Delete recent calls Menu 4.5 Allows you to delete Missed calls and Received calls lists. You can delete Dialed calls and All calls lists at one time. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`66Call history

Call Timer Menu 4.6 Allows you to view the duration of your incoming and outgoing calls. You can also reset the call times. Last call (Menu 4.6.1) Length of the last call. All calls (Menu 4.6.2) Total length of all calls made and incoming calls since the timer was last reset. Received calls (Menu 4.6.3) Length of the incoming calls. Dialled calls (Menu 4.6.4) Length of the outgoing calls. Reset all (Menu 4.6.5) Allows you to reset the timers of all calls by pressing the left soft key [Yes]. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`67Internet Internet

You can access various WAP (Wireless Application Protocol) services such as banking, news, weather reports, and flight information. These services are specially designed for mobile phones and they are maintained by the WAP service providers. Check the availability of WAP services, pricing and tariffs with your network operator and/or the service provider whose service you wish to use. Service providers will also give you instructions on how to use their services. To launch the browser in standby mode, press the right soft key. Once connected, the homepage is displayed. The content depends on the service provider. You can open any WWW page by entering its URL address. To exit the browser at any time, press the key. The idle screen is displayed. Navigating with the WAP Browser You can surf the Internet using either the phone keys or the WAP Browser menu. Using the Phone Keys When surfing the Internet, the phone keys function differently from the phone mode. Key Description up/down navigation key Scroll each line of the content area TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`68Internet

Using the WAP Browser Menu There are various menu options available when surfing the Wireless Web. Home Menu 5.1 Connect to a homepage. The homepage may be the site which is defined in the activated profile. It will be defined by the Service Provider if you have not defined it in the activated profile. Note The WAP Browser menus may vary, depending on your version of the browser. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`69Internet Internet

Bookmarks Menu 5.2 This menu allows you to store the URL of favourite web pages for easy access at a later time. To create a bookmark

1. Press the left soft key [Options].

2. Select Add new and press the OK key.

3. After entering the desired URL and title, press the OK key.

After selecting a desired bookmark, the following options are available.

Connect: Connects to the selected bookmark.

Add new: Select this to create a new bookmark.

Edit: You can edit the URL and/or the title of the selected bookmark.

Delete: Deletes the selected bookmark.

Settings Menu 5.3 You can set the profile, cache, cookie and security related to the internet service. Profiles (Menu 5.3.1) A profile is the network information used to connect to the Internet. There are default profiles for some operators, stored in phone memory. It is impossible to rename default profiles. Each profile has submenus as follows:

Settings: Use this to edit and change WAP settings for the selected profile. - Homepage: This setting allows you to enter the address (URL) of a site you want to use as homepage. You do not need to type http:// at the front of each URL as the WAP Browser will automatically add it. - Bearer: You can set the bearer data service. 1 Data/2 GPRS - GPRS settings: The service settings are only available when GPRS is chosen as a bearer service. APN: Input the APN of the GPRS. User ID: The users identify for your APN server. Password: The password is required by your APN server. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`71- Proxy settings Proxy: Activates or cancels proxy. IP address: Input the IP address of the Proxy server you access. Port number: Input the Proxy Port. - DNS settings Primary server: Input the IP address of the primary DNS server you access. Secondary server: Input the IP address of the secondary DNS server you access.

Rename: You can change the profile name.

Add new: You can add a new profile. Cache (Menu 5.3.2) The information or services you have accessed are saved in the cache memory of the phone. Cookie (Menu 5.3.3) The information or services you have accessed are saved in the cache memory of the phone. Internet Internet

Authority: You can see the list of authority certificates that have been stored in your phone.

Personal: You can see the list of personal certificates that have been stored in your phone. Note

A cache is a buffer memory, which is used to save data temporarily. Internet

New Message Menu 6.1This menu includes functions related to SMS (Short Message Service), MMS (MultimediaMessage Service), Email, voice mail, as well as the network’s service messages. Write text message (Menu 6.1.1)You can write and edit text message, checking the number of message pages.

1. Enter the New messages menu by pressing the left soft key [OK].

2. If you want to write a new message, select Write text message.

Images: You can insert the Default graphics or graphics in My pictures that are available for short messages. Sounds: You can insert sounds that are available for short messages. Text templates: You can use Text templates already set in the phone.

Contacts: You can add phone numbers or e-mail addresses in the address book.

1. Enter numbers of recipient.

2. Press key to add more recipients.

3. You can add phone numbers in the address book.

4. Once the numbers have been entered, press the left soft key to send the message.

All messages will automatically be saved in the outbox folder, even after a sending failure.

Save to drafts: Stores messages in the Drafts folder.

Font & Alignment: You can select the Size and Style of font, and the Alignment of text.

Colour: You can also set the Colour of the text (foreground) and the background.

Add T9 dictionary: You can add your own words. This menu will only be shown when the edit mode has been set to T9ABC/T9Abc/T9abc.

T9 languages: Select the desired language for T9 input mode. You can also deactivate the T9 input mode by selecting ‘T9 off’.

Write multimedia message (Menu 6.1.2) A multimedia message can contain text, images, and/or sound clips. This feature can be used only if it is supported by your network operator or service provider. Only devices that offer compatible multimedia message or e-mail features can receive and send multimedia messages.

1. Enter the New message menu by pressing the left soft key [OK].

2. If you want to write a new message, select Write multimedia message.

4. Press Insert to add Photos, Graphics, Sound, Contacts, Symbol, New photo, New

sound, Text templates, My business card. Maximum available file size, that can be inserted to MMS-message, is 100 kb. Note

This phone supports EMS release 5, so is available to send colour pictures, sounds, text styles, etc.. If the other parties handsets do not support such options, the pictures, sounds or texts sent may not be displayed correctly on their phones. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`76Messages

Send: You can send multimedia messages to multiple recipients, as well as save it to send at a later time.

Preview: You can preview multimedia messages you have created.

Edit subject: Allows you to modify the multimedia message you have chosen.

Add slide: You can add a slide before or after current slide.

Move to slide: You can move to the previous or the next slide.

Delete slide: You can delete current folders.

Set slide format - Set timer: You can set a timer for slide, text, picture and sound. - Swap text and picture: You can switch the position of picture and text of the message.

Remove media: You can remove a picture or sound in the slide. This option can be shown only when any media file has been added. Note

Add T9 dictionary: You can add your own words. This menu will only be shown when the edit mode has been set to T9ABC/T9Abc/T9abc.

T9 languages: Select the desired language for T9 input mode. You can also deactivate T9 input mode by selecting ‘T9 off’.

When creating a multimedia message, if you upload a picture (50K) you may find that whilst the picture is loading you will not be able to carry out any other actions until the picture has competed loading. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`78Messages

Inbox Menu 6.2 You will be alerted when you have received a message. They will be stored in the Inbox. In the Inbox, you can identify each message by icons. For detail, see the icon directive. Icon Icon directive Multimedia message Short message SIM message Read multimedia message Read text message Push message Notified multimedia message If the phone shows ‘No space for SIM message’, you only have to delete the SIM messages from the Inbox. If the phone displays ‘No space for message’, you will then need to delete messages, media or applications to free up space.

• SIM message SIM message means that the message is exceptionally stored in the SIM card. You can move this message to the phone. When you are notified that you have received a multimedia message, you have to wait for the message to be downloaded before you can view it. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`79Messages Messages

To read a message, select one of the messages by pressing the left soft key [Options].

View: You can view the received messages.

Reply: You can reply to the sender.

Forward: You can forward the selected message to another party.

Delete: You can delete the current message.

Return call: You can call back to the sender.

Information: You can view information about received messages; Sender’s address, Subject (only for Multimedia message), Message date & time, Message type, Message size.

Delete all: You can delete all messages. Drafts Menu 6.3 Using this menu, you can preset up to five multimedia messages that you use most frequently. This menu shows the preset multimedia message list. The following options are available.

View: You can see the multimedia messages.

Edit: Allows you to modify the chosen message.

Information: To view the information of the message.

Delete all: Deletes all of the messages in the slide. Outbox Menu 6.4 This menu allows you to view the messages which you have sent, those that are currently sending or messages that have failed sending previously. Icon Icon directive MMS Unsent MMS sent MMS delivery confirmed SMS unsent SMS sent SMS delivery confirmed

View: You can view the message.

Forward: You can forward the selected message to another party.

Delete: You can delete the message.

Information: You can check the information of each message.

Delete all: You can delete all the messages in the outbox. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`81Messages Messages

Listen to voice mail Menu 6.5Once this menu has been selected, simply press the left soft key [OK] to listen tothe voice mail. You can also hold down the key instandby mode to listen to the voice mail. Info message Menu 6.6Info service messages are text messages delivered by the network to your handset. Theyprovide general information such as weather reports, traffic news, taxis, pharmacies, andstock prices. When you receive an info service message, you will see a popup messageshow you that or the info service message is directly displayed. To view the message againfollow the sequence shown below; Read (Menu 6.6.1)1. When you have received an info service message and select Read to view themessage, it will be displayed on the screen. You can read another message byscrolling , or [OK].2. The message will be shown until another message is selected. Note

When you receive a voice mail, your phone will display an icon and you will hear analert. Please check with your network provider for details of their service in order toconfigure the handset correctly.TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`82Messages

Add new: You can add Info service message numbers in the Phone memory with its nickname.

View list: You can see Info service message numbers which you have added. If you press [Options], you can edit and delete info message categories which you have added.

Active list: You can select info service message numbers in the active list. if you activate an info service number, you can receive messages sent from the number. Templates Menu 6.7 There are 6 predefined messages in the list. You can view and edit the template messages or create new messages. Text templates (Menu 6.7.1) You have 6 text templates as below;

• Please call me back.

• I’m late. I will be there at

• Top urgent. Please contact.

Multimedia templates (Menu 6.7.2) After you have saved a new template, you can use the following options.

Delete: You can delete multimedia templates.

Write messages: You can write and send multimedia messages.

Delete all: Allows you to delete all multimedia messages. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`84Messages

Message types: Text, Voice, Fax, Natl. paging, X.400, Email, ERMES Usually, the type of message is set to Text. You can convert your text into alternative formats. Contact your service provider for the availability of this function.

Delivery report: If you set to Yes, you can check whether your message is sent successfully.

Reply charging: When a message is sent, it allows the recipients to reply and charge the cost of the reply to your telephone bill.

SMS centre: If you want to send the text message, you can receive the address of SMS centre through this menu. Multimedia message (Menu 6.8.2)

Priority: You can set the priority of the message you choose.

Delivery report: If it is set to Yes in this menu, you can check whether your message is sent successfully.

Auto retrieve: If you select On, you receive multimedia messages automatically. If you select Off, you receive only notification message in the inbox and then you can check this notification. If you select Home network only, you receive multimedia messages depends on Homenetwork.

Permitted message types Personal: Personal message. Advertisements: Commercial message. Information: Necessary information. Voice mailbox number (Menu 6.8.3) You can receive voicemail if your network service provider supports this feature. When a new voicemail has arrived, the symbol will be displayed on the screen. Please check with your network service provider for details of their service in order to configure the phone accordingly. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`86Info message (Menu 6.8.4)

Receive Yes: If you select this menu, your phone will receive Info service messages. No: If you select this menu, your phone will not receive Info service messages any more.

Alert Yes: Your phone will beep when you have received Info service message numbers. No: Your phone will not beep even though you have received info service messages.

Languages You can select the language you want by pressing [On/Off]. Then, the info service message will be shown in the language that you selected. Push message (Menu 6.8.5) You can set the option whether you will receive the message or not. Messages

TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`87Bluetooth enables compatible mobile devices, peripherals and computers that are in close proximity to communicate directly with each other without wires. This handset supports built-in Bluetooth connectivity, which makes it possible to connect them with compatible Bluetooth headsets, computer applications and so on. Note

If you use LG PC Sync via Bluetooth, you can exchange data only within the phonebook.

When you receive data from another Bluetooth device, the phone requests confirmation. After confirming the transfer, the file will be copied on to your phone.

Depending on the file type, it will be stored in the following folders: - MP3 (.mp3, mp4, aac, m4a, wma): Music folder. - Video (.3GP, MP4): video folder. - Phonebook contacts (.VCF): Phonebook. - Text (.txt): Text folder. - Other files (.*.*): File storage folder.

The handset normally operates with WIDCOMM driver(version 1.4.3.4) or WIDCOMM driver(version 1.4.2.10). And it does not support the LG Contents Bank with Bluetooth. Bluetooth Bluetooth

Set Bluetooth Menu 7.1 You can activate or cancel the Bluetooth function. Paired devices/Handsfree devices (Menu 7.2/7.3) You can view all devices which your TG800F is already paired to. If you have entered Paired devices or Handsfree devices, you will see the following options in both no need those menus.

Connect: Allows you to connect to your paired Bluetooth devices.

Add new: Allows you to search for new Bluetooth devices and add them to your phone's list of paired devices. When you select Add new, your handset will start to search for Bluetooth devices within range. Once the device you wish to pair appears on the list press the right soft key [Stop]. Scroll to the desired device and press the left soft key [Pair]. You will then be asked to enter a passcode. The passcode can be any code you wish to use (the same passcode must be used by both devices) or is one that is pre-determined by the manufacturer of the device you are trying to pair with. Please check the User Manual of the device you are initiating the pair with to see if it already has a predetermined passcode in place.

Assign name: Allows you to change the name of the paired Bluetooth device and how it is displayed on the handset. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`89] Set as authorised: Allows you to set an authorised connection between each Bluetooth device. For example if you regularly use a Bluetooth headset with your phone then setting the connection as authorised will mean the headset to be automatically connected to the handset each time the headset is powered on.

All services: Allows you to view all services which are supported by a Bluetooth device.

Delete: Allows you to delete a paired Bluetooth device.

Delete all: Allows you to delete all paired Bluetooth devices. Settings Menu 7.4

My handset’s visibility This indicates whether or not your handset will be visible to other Bluetooth devices.

Supported services Menu 7.5 Displays a list of Bluetooth services the handset supports.

Business card transfer

Browsing other device

Serial Port Profile TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`91Search contacts Menu 8.1

1. Select Search contacts by pressing the left soft key [OK] or [OK].

2. Enter the name that you want to search.

3. If you want to edit, delete or copy an entry, select the left soft key [Options]. The

following menu will be displayed.

Edit: You can edit the name, number, group, character and picture by using the navigation key.

Write messages: After you have found the number you want, you can send a text/multimedia message to the selected number.

Send via Bluetooth: You can send the data of the phone book to the devices which are compatible with Bluetooth through Bluetooth.

Copy to handset: You can copy an entry from SIM to phone or from phone to SIM.

Assign speed dial: You can assign the entry as a speed dial.

View caller groups: For further details see (Menu 8.3).

Delete: You can delete an entry. Note

Instant searching is available by inputting the initial letter of the name or number you want to search. Contacts Contacts TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`92Contacts

Add new Menu 8.2 You can add a phonebook entry by using this function. Phone memory capacity is 1000 entries. SIM card memory capacity depends on the mobile service provider. You can also save 40 characters of name in The Phone memory, and save characters in the SIM card. The number of characters is a SIM dependent feature.

1. Select Add new by pressing the left soft key [OK] or [OK].

2. Select the memory you want to save: SIM or Handset. If you set to Phone, you need to

select which number you want as a main number. a. Press [OK] to input a name. b. Press [Save], then you can input a number. c. You can set a group for the entry by pressing , . d. You can set a picture for the entry by pressing , . Note

To use the Photo Caller ID feature, contacts must exist within the Phone Book and photos must be taken in 72x72 resolution. For more information about associating a photo to a contact please refer to the Camera section. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`93Caller groups Menu 8.3 You can add up to 20 members per group, with up to a maximum of 7 groups in total.

Member list: Shows the group members you have selected.

Group icon: Allows you to select the icon depends on Group.

Add member: You can add group members. Each group should not exceed 20 members.

Remove member: You can remove the member from the Group member list. But the name and the number will remain in the phonebook.

Rename: You can change a group name.

Remove all: Allows you to delete all the members in the group. Speed dial Menu 8.4 Assign contacts to any of the keys to . You can then call that contact by pressing the corresponding number key.

1. Scroll to Speed dial, then press the left soft key [OK].

2. If you want to add speed dial, select (empty). Then, you can search the name in from

3. After assigning the number as speed dial, you can change and delete the entry. You can

also make a call or send a message to this number. Contacts Contacts

Own number Menu 8.5 You can save and check your own number in SIM card. My business card Menu 8.6 This option allows you to create your own business card featuring Name and a mobile phone number. To create a new business card, press the left soft key [Add] and enter the information into the fields. Settings Menu 8.7 Default memory (Menu 8.7.1) Scroll to Settings, then press the left soft key [OK].

Name only: Set the phonebook list by displaying the name only.

Name & number: Set the phonebook list by displaying the name and number.

With pictures: Set the phonebook list with the information and picture of contact. Copy all (Menu 8.7.3) You can copy entries from SIM card memory to Phone memory and vice versa. Scroll to Copy all, and then press the left soft key [OK] to enter this menu.

SIM to Handset: You can copy the entries from SIM Card to Phone memory.

Handset to SIM: You can copy the entries from Phone memory to SIM Card. Move all (Menu 8.7.4) You can move entries from SIM card memory to Phone memory and vice versa. Scroll to Move all, and then press the left soft key [OK] to enter this menu.

SIM to Handset: You can move the entries from SIM Card to Phone memory.

Handset to SIM: You can move the entries from Phone memory to SIM Card. Contacts Contacts

Memory in use (Menu 8.7.5) This feature allows you to see how many entries are in use, or free in your phonebook. Clear contacts (Menu 8.7.6) You can delete all the entries in the SIM and Phone. This function requires the Security code.

1. Scroll to highlight Clear contacts, and then press the left soft key [OK].

2. Highlight the memory you wish to erase, and then press the left soft key [OK].

3. Enter the security code and press the left soft key [OK] or the right soft key

[Back]. Service dial number (Menu 8.7.7) Use this function to access a particular list of services provided by your network operator (if supported by the SIM card). TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`97Profiles Menu 9.1 In Profiles, you can adjust and customise the phone tones for different events, environments, or caller groups. There are five preset profiles: General, Silent, Vibrate only, Loud and Headset. Each profile can be personalised. Press the left soft key [Menu] and select Profiles using up/down navigation keys. Activate (Menu 9.1.X.1)

1. A list of profiles is displayed.

2. In the Profiles list, scroll to the profile you want to activate and press the left soft key

Personalise (Menu 9.1.X.2) Scroll to the desired profile in the Profile list. After pressing the left soft key or the OK key, select Personalise. The profile setting option opens. Set the option as required.

Call alert type: Set the alert type for incoming calls.

Ring tone: Select the desired ring tone from the list.

Ring volume: Set the volume of the ringing tone.

Keypad tone: Select the desired keypad tone.

Slide tone: Allows you to set the slide tone.

Effect sound volume: Set the volume of effect sound.

Power on/off volume: Set the volume of the ringing tone when switching the phone on/off.

Auto answer: This function will be activated only when your phone is connected to the handsfree kit.

• Off: The phone will not answer automatically.

• After 5 secs: After 5 seconds, the phone will answer automatically.

• After 10 secs: After 10 seconds, the phone will answer automatically. Rename (Menu 9.1.X.3) You can rename a profile and give it any name you choose to.

1. To change the name of a profile, scroll to the profile in the profile list and after pressing

the left soft key or the OK key, select Rename.

Vibrate only, Silent and Headset profiles cannot be renamed. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`99Date & time Menu 9.2You can set functions relating to the date and time. Date (Menu 9.2.1) Set date You can enter the current date. Date format You can set the Date format such as DD/MM/YYYY, MM/DD/YYYY, YYYY/MM/DD.(D: Day / M: Month / Y: Year) Time (Menu 9.2.2) Set time You can enter the current time. Time format Your can set the time format between 24-hour and 12-hour. Auto Update (Menu 9.2.3)Select On to set the phone to automatically update the time and date according tothe current local time zone. For the Auto Update setting to take effect, you shouldrestart the phone. Settings Settings TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`100Settings

Display Menu 9.3 You can change the background image and the display style for Menu Mode according to your preference. Wallpaper (Menu 9.3.1) You can select the background pictures in standby mode. Menu colour (Menu 9.3.2) Your phone provides you with 4 menu colour themes. Set the menu colour by scrolling and pressing the left soft key [OK]. Standby text (Menu 9.3.3) If you select On, you can edit the text which is displayed in standby mode. Backlight (Menu 9.3.4) You can set the light-up duration of the display. Brightness (Menu 9.3.5) The screen brightness can be adjusted from 40% to 100%. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`101Network name (Menu 9.3.6) If this function is activated, network name will be displayed on main LCD. Home screen shortcut (Menu 9.3.7) Selecting On displays the functionalities of 4 Navigation keys and Menu key as pictures on the middle of the idle window. Dial font colour (Menu 9.3.8) You can set the colour of displayed number when press the number keys in idle state for call connection. Power saving Menu 9.4 This function saves battery power by keeping backlight brightness to max 40%. Language Menu 9.5 You can change the language for the display texts in your phone. This change will also affect the Language Input mode. Settings Settings TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`102Settings

Connectivity Menu 9.6 Modem (Menu 9.6.1) You can access the network services through the Modem. If you want to use the LG PC Sync, Contents bank or Internet Cube, you should access the menu and activate the modem and then plug in the USB cable. Network (Menu 9.6.2) You can select a network which will be registered either automatically or manually. Usually, the network selection is set to Automatic. Network selection You can select a network type.

Automatic: If you select Automatic mode, the phone will automatically search for and select a network for you. Once you have selected “Automatic”, the phone will be set to “Automatic” even though the power is off and on.

Manual: The phone will find the list of available networks and show you them. Then you can select the network which you want to use if this network has a roaming agreement with your home network operator. The phone lets you select another network if the phone fails to access the selected network.

Preferred: You can set a list of preferred networks and the phone attempts to register with first, before attempting to register to any other networks. This list is set from the phone’s predefined list of known networks. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`103Settings Settings

GSM850/PCS: Depending on Network situation, you can select EGSM/DCS.

DCS only: Depending on Network situation, you can select PCS only. GPRS attach (Menu 9.6.3) You can set GPRS service depending on various situations. Switch on If you select this menu, the phone is automatically registered to a GPRS network when you switch the phone on. Starting a WAP or PC dial-up application created the connection between phone and network and data transfer is possible. When you end the application, GPRS connection is ended but the registration to the GPRS network remains. When needed If you select this menu, the GPRS connection is established when you connect a WAP service and closed when you end the WAP connection. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`104Settings

Calling Menu 9.7 To change the settings for call diverting: Call Forward (Menu 9.7.1) The Call divert service allows you to divert incoming voice calls, fax calls, and data calls to another number. For details, contact your service provider.

All voice calls Diverts voice calls unconditionally.

If busy Diverts voice calls when the phone is in use.

If no reply Diverts voice calls which you do not answer.

If out of reach Diverts voice calls when the phone is switched off or out of coverage.

All data calls Diverts to a number with a PC connection unconditionally.

All fax calls Diverts to a number with a fax connection unconditionally.

The submenus Call divert menus have the submenus shown below.

• Activate Activate the corresponding service. To voice mail centre Forwards to message centre. This function is not shown at All data calls and All fax calls menus. To other number Inputs the number for diverting. To favourite number You can check back to last five diverted numbers.

• Cancel Deactivate the corresponding service.

Slide up If you select this menu, you can receive an incoming call when you open the slide.

Any key If you select this menu, you can receive a call by pressing any key except [End] key.

Send key only If you select this menu, you can receive a call by only pressing [Send] key. Send my number (Menu 9.7.3)

Set by network If you select this, you can send your phone number depending on two line service such as line 1 or line 2.

You can send your phone number to another party. Your phone number will be shown on the receiver’s phone.

Activate If you select Activate, you can accept a waiting (receiving) call.

Cancel If you select Cancel, you cannot recognize the waiting (receiving) call.

View status Shows the status of Call waiting. Minute minder (Menu 9.7.5) If you select On, you can check the call duration by a beep sound given every minute during a call. Auto redial (Menu 9.7.6)

When this function is activated, the phone will automatically try to redial in the case of failure to connect a call.

Off Your phone will not make any attempts to redial when the original call has not connected. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`108Settings

Security Menu 9.8 Various codes and passwords are used to protect the features of your phone. They are described in the following sections. PIN code request (Menu 9.8.1) In this menu, you can set the phone to ask for the PIN code of your SIM card when the phone is switched on. If this function is activated, you’ll be requested to enter the PIN code.

1. Select PIN code request in the security settings menu, and then press [OK].

2. Set Enable/Disable

3. If you want to change the setting, you need to enter PIN code when you switch on the

4. If you enter wrong PIN code more than 3 times, the phone will lock out. If the PIN is

blocked, you will need to key in PUK code.

5. You can enter your PUK code up to 10 times. If you put wrong PUK code more than

10 times, you can not unlock your phone. You will need to contact your service provider. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`109Handset lock (Menu 9.8.2) You can use a security code to avoid unauthorised use of the phone. Whenever you switch on the phone, the phone will request security code if you set phone lock to When switch on. If you set phone lock to When SIM changed, your phone will request security code only when you change your SIM card. Call barring (Menu 9.8.3) The Call barring service prevents your phone from making or receiving certain category of calls. This function requires the call barring password. You can view the following submenus.

All outgoing calls The barring service for all outgoing calls.

Outgoing international The barring service for all outgoing international calls.

Outgoing international when roaming The barring service for all international outgoing calls except home network.

Incoming when roaming The barring service for all incoming calls when roaming.

Cancel all You can cancel all barring services. Settings Settings

Change password You can change the password for Call Barring Service. The submenus:

• Activate Allows to request the network to set call restriction on.

• Cancel Set the selected call restriction off.

• View status View the status whether the calls are barred or not. Fixed dial number (Menu 9.8.4) You can restrict your outgoing calls to selected phone numbers. The numbers are protected by your PIN2 code. The numbers, you wish to allow access to this service once has been enabled, must be added to the contacts after enabling Fixed dial number.

Enable You can restrict your outgoing calls for selected phone numbers.

Disable You can cancel fixed dialling function.

Number list You can view the number list saved as Fixed dial number. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`111Change codes (Menu 9.8.5) PIN is an abbreviation of Personal Identification Number to prevent use by unauthorised person. You can change the access codes: Security code, PIN2 code.

1. If you want to change the Security code / PIN2 code input your original code, and then

2. Input new Security code / PIN2 code and verify them.

On: It is impossible to activate the touch pad with slide closed. (You can use the touch pad only when slide opens.)

Off: It is possible to activate the touch pad using the Volume key even with slide closed. Settings Settings

Memory status Menu 9.9 You can check the free space and the memory usage of each repository, Internal memory, Multimedia memory. You can go to each repository menu. Reset settings Menu 9.0 You can initialise all factory defaults. You will need the Security code to activate this function.

Restore default settings: Allows you to restore the phone back to its default settings.

Please check to see if any problems you have encountered with the phone are described in this section before taking the phone in for a service or calling a service engineer. Q How do I view the list of outgoing calls, incoming calls and missed calls? A Press the key. Q How do I clear all call history? A Press the left soft key[Menu] and then the key. Q How do I view all numbers stored in memory? A Press the left soft key [Menu] and then

key. Q Why is the connection inconsistent or not audible in certain areas? A When frequency environment is unstable in a certain area, connection may be inconsistent and not audible. Relocate to another area and try again. Q Why is the connection not consistent abruptly disconnects even when established? A When frequency is unstable or weak or if there are too many users, connection may be cut off even after it was established. Please try again later or attempt after relocating to other areas. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`114Q&A

Q Why does the LCD not turn on? A Remove the battery and turn on the power after placing it back on. If there is no change, fully charge the battery and try again. Q Why is there an echo when a connection is made with certain telephones in a certain area? A This is called the ‘Echo Phenomenon’, where it occurs if connection volume is too high or caused by special properties (semi electronic telephone exchange) of the equipment on the other end. Q Why does the phone heat up? A The phone may get hot when there is a very long call duration or when games are played or even when surfing the Internet for a long time. This has no effect upon the life of the product or performance. Q Why is there no ring tone, but only a blinking LCD screen? A Phone may be set to ‘Vibration All’ or in ‘Silent All’ mode. In the Profiles menu, please select General → Ringtone → Volume 1 ~ Volume 5. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`115Q&A Q&A

Q Why does the battery life get shorter in standby mode? A The battery is worn out. As time passes, the battery life gradually becomes shorter. If the battery lasts about half the amount of time as when first purchased, it is the time to purchase a new battery. Q Why does the battery run out so quickly during normal use? A It is due to the user environment or a large number of calls or weak signal. Q Why is no number dialed when you recall a Address Book entry? A Check that the number has been stored correctly by using the address book Search feature. Re-store them, if necessary. Q I cannot find the lock, PIN, or PUK code. What is my password? A The default lock code is ‘0000’. If you forget or lose the lock code, contact your phone dealer. If you forget or lose a PIN or PUK code, or if you have not received such a code, contact your network service provider TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`116Accessories Accessories

There are a variety of accessories available for your mobile phone. You can select these options according to your personal communication requirements. Consult your local dealer for availability. Travel Adapter This adapter allows you to charge the battery. It supports standard U.S. 120 Volt 60Hz outlets. It takes 5 hours to charge a completely discharged battery. Battery Standard battery is available. USB Data cable / PC_Sync CD You can connect your phone to PC to exchange the data between them. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`117Accessories Accessories

Hands free ear-microphone and music player controller combo Stereo headset Controller: Answer & End button, music player control, volume control, Hold button and microphone. After connecting the headset and the controller, plug the end of controller into the headset jack on the right side of the phone. Hand Strap Note

Always use genuine LG accessories.

Failure to do so may invalidate your warranty.

Accessories may vary in different regions; please check with our regional service company or agent for further information. VOL. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`118Safety Guidelines Safety Guidelines

TIA Safety Information Provided herein is the complete TIA Safety Information for Wireless Handheld phones. Inclusion of the text covering Pacemakers, Hearing Aids, and Other Medical Devices is required in the owner's manual for CTIA Certification. Use of the remaining TIA language is encouraged when appropriate. Exposure to Radio Frequency Signal Your wireless handheld portable telephone is a low-power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August, 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for handheld wireless phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies: ANSI C95.1 (1992) * NCRP Report 86 (1986) ICNIRP (1996) Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C95.1). *American National Standards Institute; NationalCouncil on Radiation Protection and Measurements;International Commission on Non-Ionizing RadiationProtection The design of your phone complies with the FCC guidelines (and those standards). TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`119Safety Guidelines Safety Guidelines

Antenna Care Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone and may violate FCC regulations. Phone Operation NORMAL POSITION: Hold the phone as you would any other telephone with the antenna pointed up and over your shoulder. Tips on Efficient Operation For your phone to operate most efficiently:

Do not touch the antenna unnecessarily when the phone is in use. Contact with the antenna affects call quality and may cause the phone to operate at a higher power level than otherwise needed. Driving Check the laws and regulations on the use of wireless phones in the areas where you drive. Always obey them. Also, if using your phone while driving, please:

Give full attention to driving - driving safely is your first responsibility;

Pull off the road and park before making or answering a call if driving condition is so required. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`120Safety Guidelines

Electronic Devices Most modern electronic equipment is shielded from RF signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Pacemakers The Health Industry Manufacturers Association recommends that a minimum separation of six (6’) inches be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research. Persons with pacemakers:

Should ALWAYS keep the phone more than six inches from their pacemaker when the phone is turned ON;

Should not carry the phone in a breast pocket.

Should use the ear opposite the pacemaker to minimize the potential for interference.

If you have any reason to suspect that interference is taking place, turn your phone OFF immediately. Hearing Aids Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your service provider. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`121Safety Guidelines Safety Guidelines

Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if they are adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy. Health Care Facilities Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may use equipment that could be sensitive to external RF energy. Vehicles RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle. Posted Facilities Turn your phone OFF in any facility where posted notices so require. Aircraft FCC regulations prohibit using your phone while in the air. Turn your phone OFF before boarding an aircraft. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`122Safety Guidelines

Blasting Areas To avoid interfering with blasting operations, turn your phone OFF when in a ‘blasting areaí or in areas posted: ‘Turn off two-way radio’. Obey all signs and instructions. Potentially Explosive Atmosphere Turn your phone OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, marked clearly. Potential areas may include: fueling areas (such as gasoline stations); below deck on boats; fuel or chemical transfer or storage facilities; vehicles using liquefied petroleum gas (such as propane or butane); areas where the air contains chemicals or particles (such as grain, dust, or metal powders); and any other area where you would normally be advised to turn off your vehicle engine. For Vehicles Equipped with an Air Bag An air bag inflates with great force. DO NOT place objects, including either installed or portable wireless equipment, in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result. Safety Information Please read and observe the following information for safe and proper use of your phone and to prevent damage. Also, keep the user guide in an accessible place at all the times after reading it. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`123Safety Guidelines Safety Guidelines

Charger and Adapter Safety

The charger and adapter are intended for indoor use only. Battery Information and Care

Please dispose of your battery properly or take it to your local wireless carrier for recycling.

The battery does not need to be fully discharged before recharging.

Use only LG-approved chargers specific to your phone model since they are designed to maximize battery life.

Do not disassemble or impact the battery as it may cause electric shock, short-circuit, and fire. Store the battery in a place out of reach of children.

Keep the battery’s metal contacts clean.

Replace the battery when it no longer provides acceptable performance. The battery can be recharged several hundred times before replacement.

Recharge the battery after long periods of non-use to maximize battery life.

Battery life will vary due to usage patterns and environmental conditions.

Use of extended backlighting, MiniBrowser, and data connectivity kits affect battery life and talk/standby times.

The self-protection function of the battery cuts the power of the phone when its operation is in an abnormal state. In this case, remove the battery from the phone, reinstall it, and turn the phone on. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`124Safety Guidelines

Explosion, Shock, and Fire Hazards

Do not put your phone in a place subject to excessive dust and keep the minimum required distance between the power cord and heat sources.

Unplug the power cord prior to cleaning your phone, and clean the power plug pin when it is dirty.

When using the power plug, ensure that it is firmly connected. If it is not, it may cause excessive heat or fire.

If you put your phone in a pocket or bag without covering the receptacle of the phone (power plug pin), metallic articles (such as a coin, paperclip or pen) may short-circuit the phone. Always cover the receptacle when not in use.

Do not short-circuit the battery. Metallic articles such as a coin, paperclip or pen in your pocket or bag may short-circuit the + and – terminals of the battery (metal strips on the battery) upon moving. Short-circuit of the terminal may damage the battery and cause an explosion. General Notice

Using a damaged battery or placing a battery in your mouth may cause serious injury.

Do not place items containing magnetic components such as a credit card, phone card, bank book or subway ticket near your phone. The magnetism of the phone may damage the data stored in the magnetic strip.

Talking on your phone for a long period of time may reduce call quality due to heat generated during use. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`125Safety Guidelines Safety Guidelines

When the phone is not used for a long period time, store it in a safe place with the power cord unplugged.

Using the phone in proximity to receiving equipment (i.e., TV or radio) may cause interference to the phone.

Do not use the phone if the antenna is damaged. If a damaged antenna contacts skin, it may cause a slight burn. Please contact an LG Authorized Service Center to replace the damaged antenna.

Do not immerse your phone in water. If this happens, turn it off immediately and remove the battery. If the phone does not work, take it to an LG Authorized Service Center.

The power cord on this product will expose you to lead, a chemical known to the State of California to cause (cancer) birth defects or other reproductive harm. Wash hands after handling.

Do not paint your phone.

The data saved in your phone might be deleted due to careless use, repair of the phone, or upgrade of the software. Please backup your important phone numbers. (Ring tones, text messages, voice messages, pictures, and videos could also be deleted.) The manufacturer is not liable for damage due to the loss of data.

When you use the phone in public places, set the ring tone to vibration so as not to disturb others.

Do not turn your phone on or off when putting it in your ear. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`126Safety Guidelines

FDA Consumer Update The U.S. Food and Drug Administrationís Center for Devices and Radiological Health Consumer Update on Mobile Phones. 1.Do wireless phones pose a health hazard? The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radiofrequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the standby mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results. 2.What is the FDA’s role concerning the safety of wireless phones? Under the law, the FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radiofrequency energy (RF) at a level that is hazardous to the user. In such a case, the FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace, or recall the phones so that the hazard no longer exists. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`127Safety Guidelines Safety Guidelines

Although the existing scientific data do not justify FDA regulatory actions, the FDA has urged the wireless phone industry to take a number of steps, including the following:

Support needed research into possible biological effects of RF of the type emitted by wireless phones;

Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and

Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health. The FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:

National Institute for Occupational Safety and Health

Environmental Protection Agency

Occupational Safety and Health Administration

National Telecommunications and Information Administration The National Institutes of Health participates in some interagency working group activities, as well. The FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. The FCC relies on the FDA and other health agencies for safety questions about wireless phones. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`128Safety Guidelines

The FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones. Base stations are thus not the subject of the safety questions discussed in this document. 3.What kinds of phones are the subject of this update? The term ‘wireless phone’ refers here to handheld wireless phones with built-in antennas, often called ‘cell’, ‘mobile’, or ‘PCS’ phones. These types of wireless phones can expose the user to measurable radiofrequency energy (RF) because of the short distance between the phone and the user’s head. These RF exposures are limited by FCC safety guidelines that were developed with the advice of the FDA and other federal health and safety agencies. When the phone is located at greater distances from the user, the exposure to RF is drastically lower because a person’s RF exposure decreases rapidly with increasing distance from the source. The so-called ‘cordless phones,’ which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures far below the FCC safety limits. 4.What are the results of the research done already? The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radiofrequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`129Safety Guidelines Safety Guidelines

However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be pre-disposed to develop cancer in the absence of RF exposure. Other studies exposed the animals to RF for up to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don’t know with certainty what the results of such studies mean for human health. Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phone RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years. 5.What research is needed to decide whether RF exposure from wireless phones poses a health risk? A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but 10 or more years follow-up may be needed to provide answers about some health effects, such as cancer. This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do - may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`130Safety Guidelines

Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used. 6.What is the FDA doing to find out more about the possible health effects of wireless phone RF? The FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radiofrequency energy (RF). The FDA has been a leading participant in the World Health Organization International Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The project has also helped develop a series of public information documents on EMF issues. The FDA and the Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. The FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through contracts with independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`131Safety Guidelines Safety Guidelines

7.How can I find out how much radio frequency energy exposure I can get by using my wireless phone? All phones sold in the United States must comply with Federal Communications Commission (FCC) guidelines that limit radio frequency energy (RF) exposures. The FCC established these guidelines in consultation with the FDA and the other federal health and safety agencies. The FCC limit for RF exposure from wireless telephones is set at a Specific Absorption Rate (SAR) of 1.6 watts per kilogram (1.6 W/kg). The FCC limit is consistent with the safety standards developed by the Institute of Electrical and Electronic Engineering (IEEE) and the National Council on Radiation Protection and Measurement. The exposure limit takes into consideration the body’s ability to remove heat from the tissues that absorb energy from the wireless phone and is set well below levels known to have effects. Manufacturers of wireless phones must report the RF exposure level for each model of phone to the FCC. The FCC website (http://www.fcc.gov/oet/ rfsafety) gives directions for locating the FCC identification number on your phone so you can find your phone’s RF exposure level in the online listing. 8.What has the FDA done to measure the radio frequency energy coming from wireless phones? The Institute of Electrical and Electronic Engineers (IEEE) is developing a technical standard for measuring the radio frequency energy (RF) exposure from wireless phones and other wireless handsets with the participation and leadership of FDA scientists and engineers. The standard, ‘Recommended Practice for Determining the Spatial-Peak Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques,’ sets forth the first consistent test methodology for TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`132Safety Guidelines

measuring the rate at which RF is deposited in the heads of wireless phone users. The test method uses a tissue-simulating model of the human head. Standardized SAR test methodology is expected to greatly improve the consistency of measurements made at different laboratories on the same phone. SAR is the measurement of the amount of energy absorbed in tissue, either by the whole body or a small part of the body. It is measured in watts/kg (or milliwatts/g) of matter. This measurement is used to determine whether a wireless phone complies with safety guidelines. 9.What steps can I take to reduce my exposure to radiofrequency energy from my wireless phone? If there is a risk from these products - and at this point we do not know that there is - it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radiofrequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure. If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna. Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`133Safety Guidelines Safety Guidelines

10.What about children using wireless phones? The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radiofrequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure. Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000. They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists. 11.What about wireless phone interference with medical equipment? Radio frequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, the FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by the FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI. The FDA has tested hearing aids for interference from handheld wireless phones and helped develop a voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`134Safety Guidelines

This standard specifies test methods and performance requirements for hearing aids and wireless phones so that no interference occurs when a person uses a ‘compatible’ phone and a ‘compatible’ hearing aid at the same time. This standard was approved by the IEEE in 2000. The FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, the FDA will conduct testing to assess the interference and work to resolve the problem. 12.Where can I find additional information? For additional information, please refer to the following resources: FDA web page on wireless phones (http://www.fda.gov/cdrh/phones/index.html) Federal Communications Commission (FCC) RF Safety Program (http://www.fcc.gov/oet/rfsafety) International Commission on Non-lonizing Radiation Protection (http://www.icnirp.de) World Health Organization (WHO) International EMF Project (http://www.who.int/emf) National Radiological Protection Board (UK) (http://www.nrpb.org.uk/) TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`135Safety Guidelines Safety Guidelines

10 Driver Safety Tips Your wireless phone gives you the powerful ability to communicate by voice almost anywhere, anytime. An important responsibility accompanies the benefits of wireless phones, one that every user must uphold. When operating a car, driving is your first responsibility. When using your wireless phone behind the wheel of a car, practice good common sense and remember the following tips:

1. Get to know your wireless phone and its features such as speed dial and redial.

Carefully read your instruction manual and learn to take advantage of valuable features most phones offer, including automatic redial and memory. Also, work to memorize the phone keypad so you can use the speed dial function without taking your attention off the road.

2. When available, use a hands-free device. A number of hands-free wireless phone

accessories are readily available today. Whether you choose an installed mounted device for your wireless phone or a speaker phone accessory, take advantage of these devices if available to you.

3. Position your wireless phone within easy reach. Make sure you place your wireless

phone within easy reach and where you can reach it without removing your eyes from the road. If you get an incoming call at an inconvenient time, if possible, let your voicemail answer it for you.

4. Suspend conversations during hazardous driving conditions or situations. Let the

person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`136Safety Guidelines

Rain, sleet, snow and ice can be hazardous, but so is heavy traffic. As a driver, your first responsibility is to pay attention to the road.

5. Do not take notes or look up phone numbers while driving. If you are reading an

address book or business card, or writing a “to-do” list while driving a car, you are not watching where you are going. It is common sense. Don’t get caught in a dangerous situation because you are reading or writing and not paying attention to the road or nearby vehicles.

6. Dial sensibly and assess the traffic; if possible, place calls when you are not moving or

before pulling into traffic. Try to plan your calls before you begin your trip or attempt to coincide your calls with times you may be stopped at a stop sign, red light or otherwise stationary. But if you need to dial while driving, follow this simple tip— dial only a few numbers, check the road and your mirrors, then continue.

7. Do not engage in stressful or emotional conversations that may be distracting.

Stressful or emotional conversations and driving do not mix; they are distracting and even dangerous when you are behind the wheel of a car. Make people you are talking with aware you are driving and if necessary, suspend conversations which have the potential to divert your attention from the road.

8. Use your wireless phone to call for help. Your wireless phone is one of the greatest

tools you can own to protect yourself and your family in dangerous situations — with your phone at your side, help is only three numbers away. Dial 911 or other local emergency number in the case of fire, traffic accident, road hazard or medical emergency. Remember, it is a free call on your wireless phone! TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`137Safety Guidelines Safety Guidelines

9. Use your wireless phone to help others in emergencies. Your wireless phone provides

you a perfect opportunity to be a “Good Samaritan” in your community. If you see an auto accident, crime in progress or other serious emergency where lives are in danger, call 911 or other local emergency number, as you would want others to do for you.

10. Call roadside assistance or a special wireless nonemergency assistance number when

necessary. Certain situations you encounter while driving may require attention, but are not urgent enough to merit a call for emergency services. But you can still use your wireless phone to lend a hand. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured or a vehicle you know to be stolen, call roadside assistance or other special non-emergency wireless number. For more information, please call to 888-901-SAFE, or visit our website www.wow- com.com Consumer Information on SAR (Specific Absorption Rate) This Model Phone Meets the Government’s Requirements for Exposure to Radio Waves. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`138Safety Guidelines

scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. * Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. Because the phone is designed to operate at multiple power levels to use only the power required to reach the network, in general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear is 0.53 W/kg and when worn on the body, as described in this user’s manual, is 1.18 W/kg. (Body-worn measurements differ amongphone models, depending upon available accessories and FCC requirements.) While there may be differences between SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`139Safety Guidelines Safety Guidelines

The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID BEJMG800D. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Association (CTIA) website at http://www.wow-com.com

• In the United States and Canada, the SAR limit for mobile phones used by the public is

1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a

substantial margin of safety to give additional protection for the public and to account for any variations in measurements. TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`140Glossary Glossary

To help you understand the main technical terms and abbreviations used in this booklet and take full advantage of the feature on your mobile phone, here are a few definitions. Call Divert Ability to reroute calls to another number. Call waiting Ability to inform users that they have an incoming call when engaged on another call. GPRS (General Packet Radio Service) GPRS guaranties continuous connection to the Internet for mobile phone and computer users. It is based on the Global System for Mobile Communication (GSM) circuit-switched cellular phone connections and the Short Message Service (SMS). GSM (Global System for Mobile Communication) International standard for cellular communication, guaranteeing compatibility between the various network operators. GSM covers most European countries and many other parts of the world. Java Programming language generating applications that can run on all hardware platforms, whether small, medium or large, without modification. It has been TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`141Glossary Glossary

promoted for and geared heavily to the Web, both for public Web sites and Intranets. When a Java program runs from a Web page, it is called a Java applet. When it is run on a mobile phone or pager, it is called a MIDlet. Line Identification Services (Caller ID) Service allowing subscribers to view or block the telephone numbers of callers. Multiparty Calls Ability to establish a conference call involving up to five additional parties. Phone Password Security code used to unlock the phone when you have selected the option to lock it automatically each time it switches on. Roaming Use of your phone when you are outside your home area (when traveling for example). SDN (Service Dial Number) Telephone numbers supplied by your network provider and giving access to special services, such as voice mail, directory inquiries, customer support and emergency services. SIM (Subscriber Identification Module) Card containing a chip with all the information required to operate the phone TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`142Glossary

(network and memory information, as well as the subscriber's personal data). The SIM card fits into a small slot on the back of the phone and is protected by the battery. SMS (Short Message Service) Network service sending and receiving messages to and from another subscriber without having to speak to the correspondent. The message created or received (up to 160 characters long) can be displayed, received, edited or sent. Patent Information This product was manufactured under one or more of the following U.S. patents: 5276765 5749067 6061647 TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`143NOTE TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`144NOTE TG800F Canada FIDO_ENG_1030 2006.10.30 10:16 AM ˘`145GARANTIE LIMITÉE LG
