USER MANUAL BRO8 Aukey

2-in-1 Wireless Transmitter and Receiver

Contents

English 01\~13

Deutsch 14~25

Francais 26~37

Espanol 38~49

Italiano 50~61

Thank you for purchasing the AUKEY BR-O8 2-in-1 Wireless Transmitter and Receiver. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

2-in-1 Wireless Transmitter and Receiver

Micro-USB Cable

3.5mm Audio Cable

3.5mm to RCA Audio Cable

Toslink Optical Cable

User Manual

Warranty Card

Specifications

Model	BR-O8
Technology	BT 5.0, aptX, aptX-LL
Frequency Range	2.402GHz – 2.480GHz
Input	DC 5V
Operating Range	Up to 50m / 164ft
Dimensions	113 x 110 x 73mm / 4.45" x 4.33" x 2.87"
Weight	300g / 10.58oz

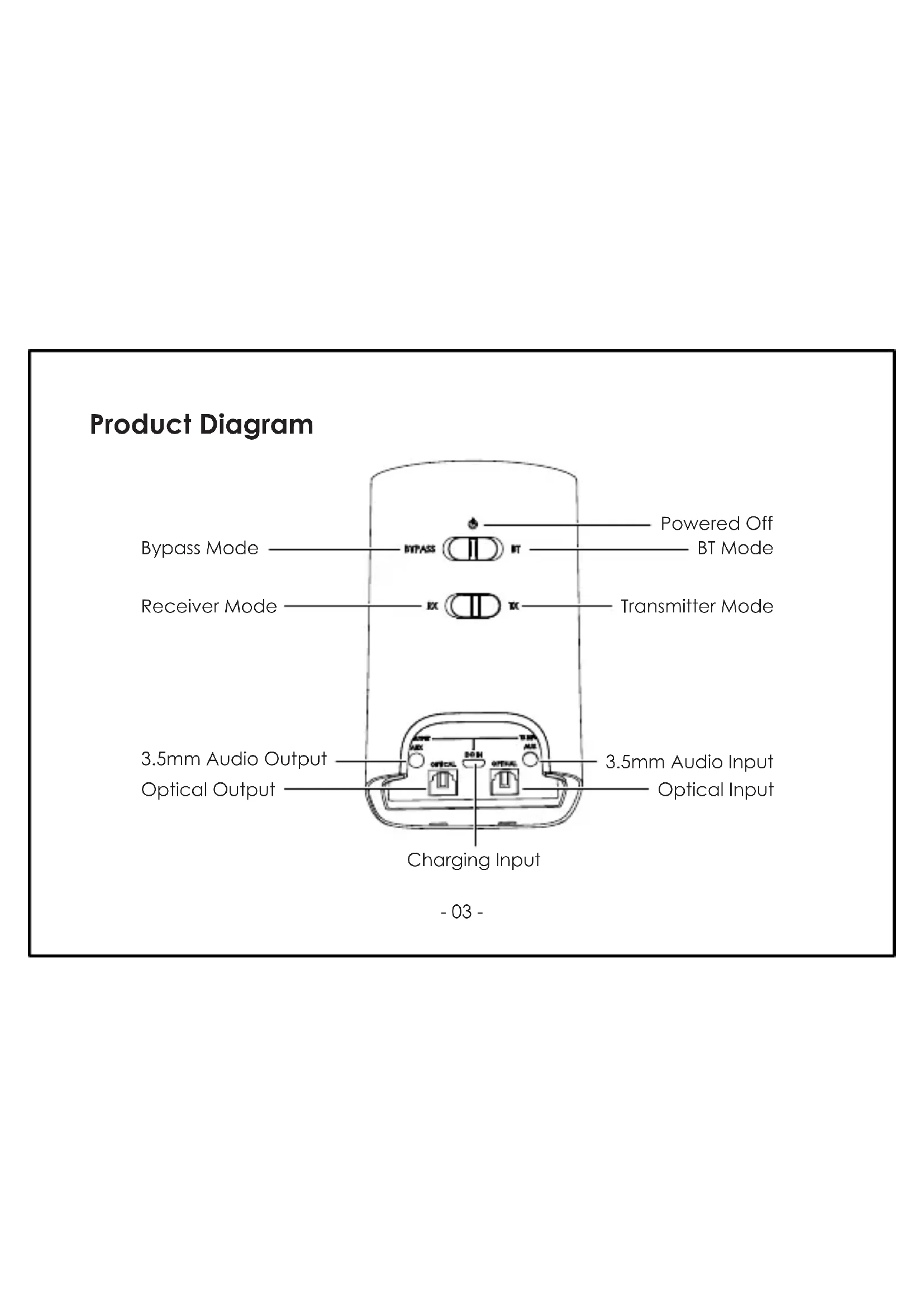

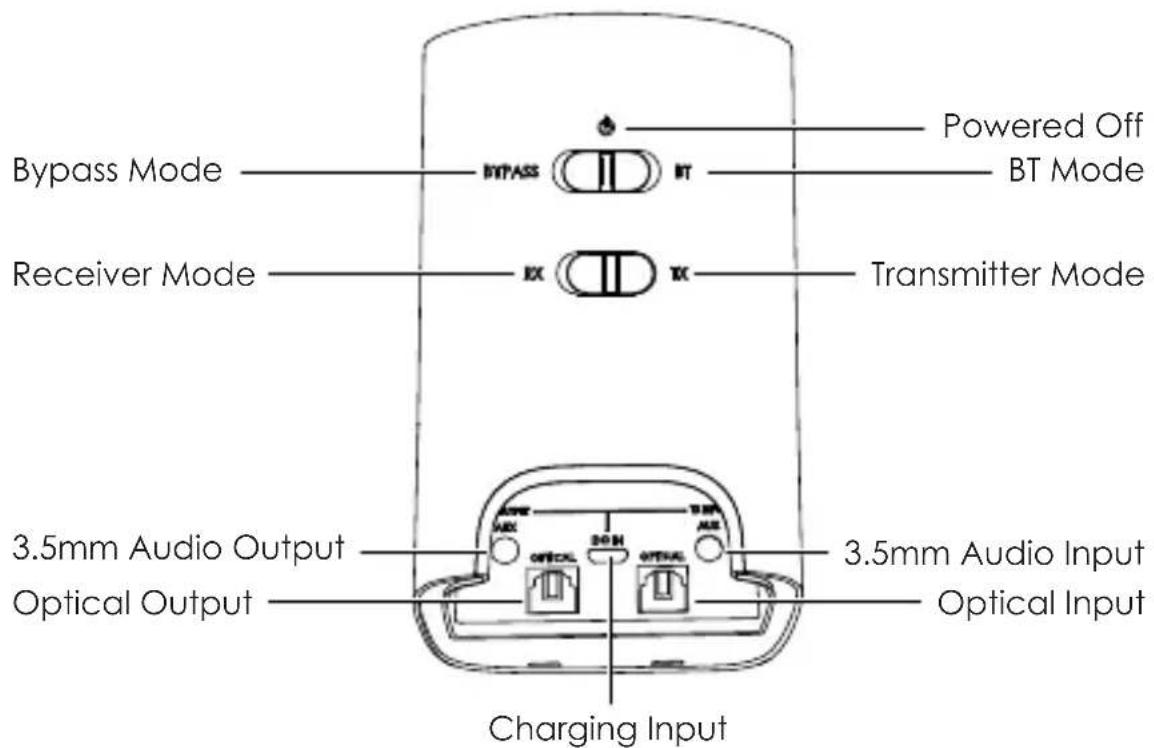

Product Diagram

Getting Started Receiver Mode (RX Mode)

1. Connect one end of the included 3.5mm audio cable or Toslink optical cable to the 3.5mm audio output or optical output of BR-O8. Connect the other end to your wired audio equipment (wired headphones, speaker, or stereo system). You can also plug your audio equipment cable directly into BR-O8 instead
2. Connect the BR-O8 to a power source with the micro-USB cable
3. Slide the RX/TX switch to "RX" position and slide the Power/Mode switch to "BT" position
4. Tap and hold for 3 seconds, and the BR-O8 will enter pairing mode with the square connection status indicator flashing white rapidly
5. Activate the pairing function of your wireless-compatible audio device (like a smartphone) and select "AUKEY BR-O8"
6. Once paired, there will be a solid white "A" indicator on the display
7. If you want to pair with a second wireless-compatible audio device for dual device connection, repeat steps 4 & 5 with that device
8. Once paired, there will be solid white "A" and "B" indicators on the display

Notes for Receiver Mode

• If your speaker or stereo system has left & right channel RCA inputs (colored white and red respectively), you can use the included RCA cable to connect instead
• When simultaneously connected with two devices, the BR-O8 can only accept audio input from one device at a time

Transmitter Mode (TX Mode)

1. Connect one end of the included 3.5mm audio cable or Toslink optical cable to the 3.5mm audio input or optical input of BR-O8. Connect the other end to your audio source device (TV, computer, DVD player, CD player, or MP3 player) that doesn't have wireless function
2. Connect the BR-O8 to a power source with the micro-USB cable
3. Slide the RX/TX switch to "TX" position. Then slide the Power/Mode switch to "BT" position
4. Tap and hold for 3 seconds, and the BR-O8 will enter pairing mode with the square connection status indicator flashing green rapidly

5. Activate the pairing function of your wireless-compatible audio device (like wireless headphones or speaker). Keep your device close to the BR-O8 and they will pair automatically

6. Once paired, there will be a solid white "A" indicator on the display

7. If you want to pair with a second wireless-compatible audio device for dual device connection, repeat steps 4 & 5 with that device
8. Once paired, there will be solid white "A" and "B" indicators on the display

Note for Transmitter Mode

• If your TV, DVD player, or CD player has left & right channel RCA outputs (colored white and red respectively), you can use the included RCA cable to connect instead

Notes for Receiver & Transmitter Modes

• When you turn on the BR-O8, it will automatically reconnect to the last-paired device
  The BR-O8 will exit pairing mode after 1 minute
• To clear the pairing list, tap and hold ⑥ for 8 seconds in RX or TX Mode
• The maximum wireless operating range is 50m (164ft). If you exceed this range, the BR-O8 will disconnect from your paired device. The connection will be re-established once you re-enter the wireless range within 5 minutes

Bypass Mode

1. Connect an audio source device (TV, computer, DVD player, CD player, or MP3 player) to the BR-O8 3.5mm audio input or optical input with the included 3.5mm audio cable or optical cable
2. Connect your wired audio equipment (wired headphones, speaker, or stereo system) to BR-O8 3.5mm audio output or optical output with a 3.5mm audio cable or optical cable
3. Connect the BR-O8 to a power source with the micro-USB cable
4. Slide the Power/Mode switch to "BYPASS" position
5. Tap to select the audio input mode "AUX" or "OPT"
6. Once connected, you can enjoy boosted sound from your wired audio equipment

Note

• Only one of each cable type is included, so you will need to use two different cable types to connect your two devices to BR-O8 (or supply a second cable if you want to use two the same). If your connected audio equipment has left & right channel RCA outputs (colored white and red respectively), you can also use the included RCA cable to connect

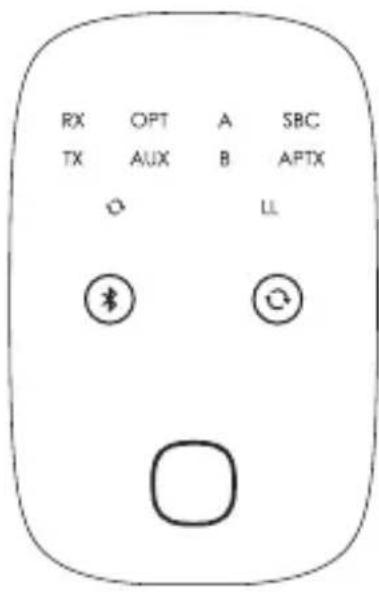

Status Indicators

Indicator	Status
RX	Receiver mode
TX	Transmitter mode
OPT	Optical audio input mode
AUX	3.5mm audio input mode
A	Device A connected
B	Device B connected
SBC	Connected Bluetooth device supports SBC audio codec
APTX	Connected Bluetooth device supports aptX audio codec
LL	Connected Bluetooth device supports aptX Low Latency audio codec

Bluetooth Audio Codec (for Receiver and Transmitter Modes)

Bluetooth audio codecs encode digital audio data for transmission over Bluetooth connection and decode it at the other end. SBC is a standard codec for Bluetooth audio streaming. aptX offers lower latency (less audio delay when watching videos or playing games) and improved audio quality. aptX Low Latency has the best performance of the three with much lower latency. BR-O8 supports all three codecs, so the codec used will be the best one your connected Bluetooth device supports.

Controls Summary

Button	Operation
④	Tap and hold for 3 seconds to enter pairing mode
	Tap to play or pause (receiver mode only)
◎	Tap to switch between 3.5mm and optical audio input modes

Note

Use your device to adjust volume

Connections Status Indicators

Indicator	Mode Status
Green flashing slowly	Transmitter mode	Not connected (standby)
Green flashing rapidly		Pairing
Green		Connected
White flashing slowly	Receiver mode	Not connected (standby)
White flashing rapidly		Pairing
White		Connected

Product Care & Use

• Keep away from liquids and extreme heat
• Don't use headphones or speakers at high volume for extended periods, as this may cause permanent hearing damage or loss

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

*Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.

Notice for the US

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

Amazon EU commands: [e-mail]

www.aukey.com | [e-mail]

No.102, Building P09, Electronics Trade Center

Huanan City, Pinghu Town, Longgang District

Shenzhen, Guangdong, 518111, CN

RoHS

Made in China

图

208-170148

FCCID:2AHPBBR-08
