PLA8 - Car charger Aukey - Free user manual and instructions

Product Type	Cigarette lighter car charger
Model	AUKEY CC-Y12 (PLA8)
Dimensions (approx.)	7.0 x 3.2 x 3.2 cm
Weight (approx.)	50 g
Input Power	12 V / 24 V (cigarette lighter socket)
Maximum Output Power	18 W (USB-C Power Delivery 2.0)
Output Port	1 x USB-C (Power Delivery 2.0)
Output Voltage	5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A (PD negotiation)
Main Features	Fast charging via Power Delivery, compatible with iPhone X/8/8 Plus (with original Apple USB-C to Lightning cable)
Care and Cleaning	Keep away from liquids and extreme heat sources. Wipe with a dry cloth if necessary.
Safety	Protection against overvoltage, overcurrent, and short circuits (Power Delivery standard)
Spare Parts and Repairability	No detachable parts supplied. In case of malfunction, contact AUKEY customer service.
Warranty	Manufacturer warranty (contact [e-mail] with Amazon order number)
Box Contents	Car charger, user manual, warranty card
Manufacturer	Aukey (Shenzhen, China)

Frequently Asked Questions - PLA8 Aukey

Which devices are compatible with fast PD charging from the AUKEY PLA8?

Any device that supports USB Power Delivery can benefit from fast charging, such as iPhone 8 and later, iPad Pro, Nintendo Switch, and some Android smartphones. For fast charging on iPhone X/8/8 Plus, use an original Apple USB-C to Lightning cable.

Can I use the charger with a 24V car battery?

Yes, the charger accepts an input voltage of 12 V to 24 V, making it compatible with cars, trucks, and boats.

Does the PLA8 charger come with a cable?

No, the charging cable is not included. You must use your own USB-C to USB-C cable (or USB-C to Lightning for iPhone).

How do I contact AUKEY customer service?

For orders on Amazon Europe, send an email to [e-mail] with your Amazon order number and product model number (CC-Y12).

What is the maximum output power of the USB-C port?

The USB-C port can deliver up to 18 W with Power Delivery, at voltages of 5 V, 9 V, and 12 V depending on the connected device.

Can I use the charger with a laptop?

Yes, if your laptop supports charging via USB-C Power Delivery and requires less than 18 W. It can be used for top-up charging, but not for full fast charging on larger laptops.

Does the charger heat up during use?

Slight warming is normal during fast charging. If the charger becomes very hot, unplug it and check that it is not obstructed or short-circuited.

Can I charge multiple devices at the same time?

No, the AUKEY PLA8 has only one USB-C output port. It can only charge one device at a time.

What should I do if my device is not charging?

Check that the charger is firmly inserted into the cigarette lighter socket, that the cable is properly connected, and that your device is PD compatible. Try a different cable. If the problem persists, contact customer service.

Does the charger work with Tesla cars?

Yes, the cigarette lighter socket in Teslas provides 12 V, so the charger is compatible. However, charging will be limited to 18 W.

USER MANUAL PLA8 Aukey

Thank you for purchasing the AUKEY CC-Y12 18W PD Car Charger. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

18W PD Car Charger

User Manual

Warranty Card

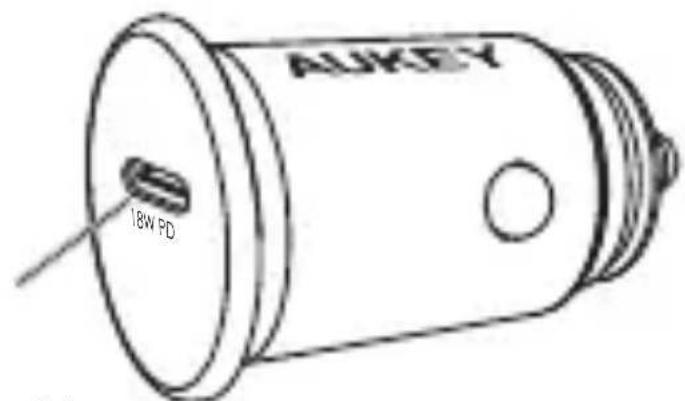

Product Diagram

USB-C Output (Power Delivery 2.0)

AUKEY 18W PD

Specifications

Model	CC-Y12
Technology	Power Delivery 2.0
Input	DC 12–24V
USB-C Output	5V 3A, 9V 2A, 12V 1.5A
Maximum Power Output 18W
Dimensions	42 x 25 x 25mm /1.65" x 0.96" x 0.96"
Weight	16g / 0.56oz

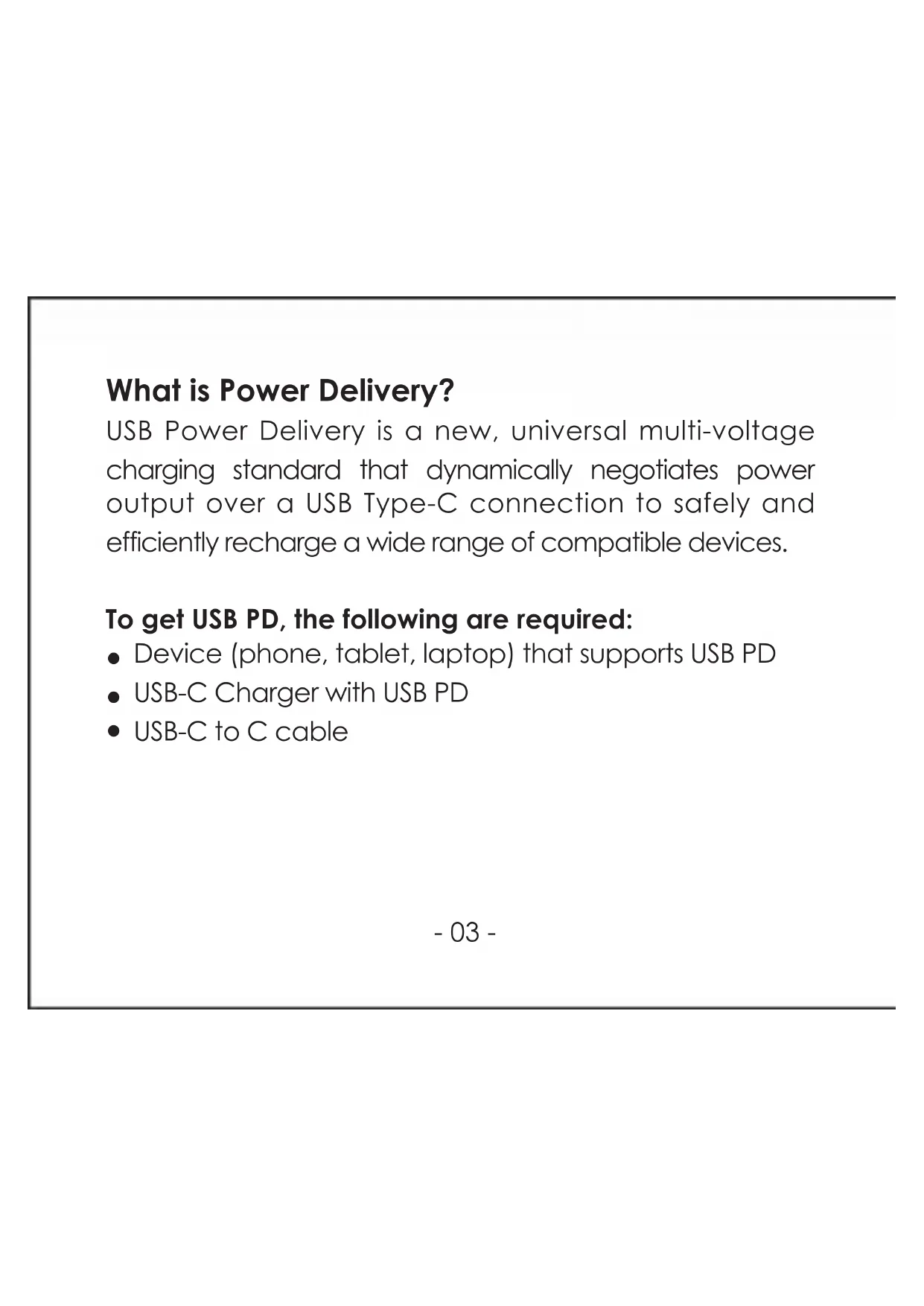

What is Power Delivery?

USB Power Delivery is a new, universal multi-voltage charging standard that dynamically negotiates power output over a USB Type-C connection to safely and efficiently recharge a wide range of compatible devices.

To get USB PD, the following are required:

• Device (phone, tablet, laptop) that supports USB PD
• USB-C Charger with USB PD
- USB-C to C cable

Getting Started

• Plug the CC-Y12 into your vehicle's 12/24V socket
• Connect a USB charging cable (not included) to your device's charging port
• Connect the other end of the USB charging cable to the USB output port on CC-Y12
• Unplug your devices when fully charged

Note: USB-C Output with Power Delivery supports fast charging for iPhone X / 8 / 8 Plus when used with original Apple USB-C to Lightning cable

Product Care

Keep away from liquids and extreme heat●

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

*Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.

ALKEY 16W PD ng o

- 06 -

Technische Daten

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

www.aukey.com | [e-mail]

No.102, Building P09, Electronics Trade Center

Huanan City, Pinghu Town, Longgang District

Shenzhen, Guangdong, 518111, CN
