CCY12 - Car charger Aukey - Free user manual and instructions

Product Type	Car Charger
Brand	Aukey
Model	CC-Y12
Charging Technology	Power Delivery 2.0
Input Voltage	DC 12–24 V
USB-C Output	5V/3A, 9V/2A, 12V/1.5A
Maximum Power	18 W
Dimensions	42 x 25 x 25 mm
Weight	16 g
Package Contents	Charger, user manual, warranty card
Fast Charging Compatibility	iPhone X/8/8 Plus (with USB-C to Lightning cable)
Maintenance	Keep away from liquids and extreme heat sources
Safety	Built-in surge and overheat protection
Warranty	Manufacturer's warranty, contact [e-mail]

Frequently Asked Questions - CCY12 Aukey

Is this charger compatible with fast charging for my smartphone?

Yes, the AUKEY CC-Y12 charger supports Power Delivery 2.0 and can fast charge compatible devices, including the iPhone X/8/8 Plus with a USB-C to Lightning cable.

What types of output ports does this charger have?

The charger is equipped with a single USB-C port with Power Delivery support.

What is the maximum output power?

The maximum power is 18 W (12V/1.5A).

How to use the AUKEY CC-Y12 car charger?

Plug the CC-Y12 into your car's 12/24 V outlet, then connect a USB cable (not included) to your device and to the charger's USB-C port.

Does this charger work on a 24V truck battery?

Yes, the accepted input voltage is 12 to 24 V DC, making it compatible with 12V and 24V vehicles.

What are the dimensions and weight of the charger?

Dimensions are 42 x 25 x 25 mm and weight is 16 g, making it very compact.

Is the charger delivered with a cable?

No, the charger is delivered without a cable. You must use a USB-C cable to your device (not included).

How to clean and maintain the charger?

Keep the charger away from liquids and extreme heat sources. Do not immerse in water.

What to do if the charger does not work?

First check your vehicle's cigarette lighter socket. If the problem persists, contact AUKEY customer service at [e-mail] mentioning the Amazon order number and model CC-Y12.

Is this charger compatible with laptops?

Yes, the charger can charge USB-C Power Delivery compatible laptops up to 18 W, but the charging speed will be limited by the maximum power.

USER MANUAL CCY12 Aukey

Thank you for purchasing the AUKEY CC-Y12 18W PD Car Charger. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

18W PD Car Charger

User Manual

Warranty Card

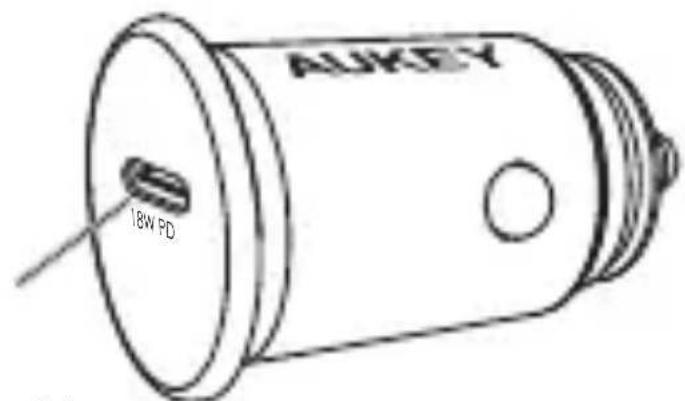

Product Diagram

USB-C Output (Power Delivery 2.0)

AUKEY 18W PD

Specifications

Model	CC-Y12
Technology	Power Delivery 2.0
Input	DC 12–24V
USB-C Output	5V 3A, 9V 2A, 12V 1.5A
Maximum Power Output 18W
Dimensions	42 x 25 x 25mm /1.65" x 0.96" x 0.96"
Weight	16g / 0.56oz

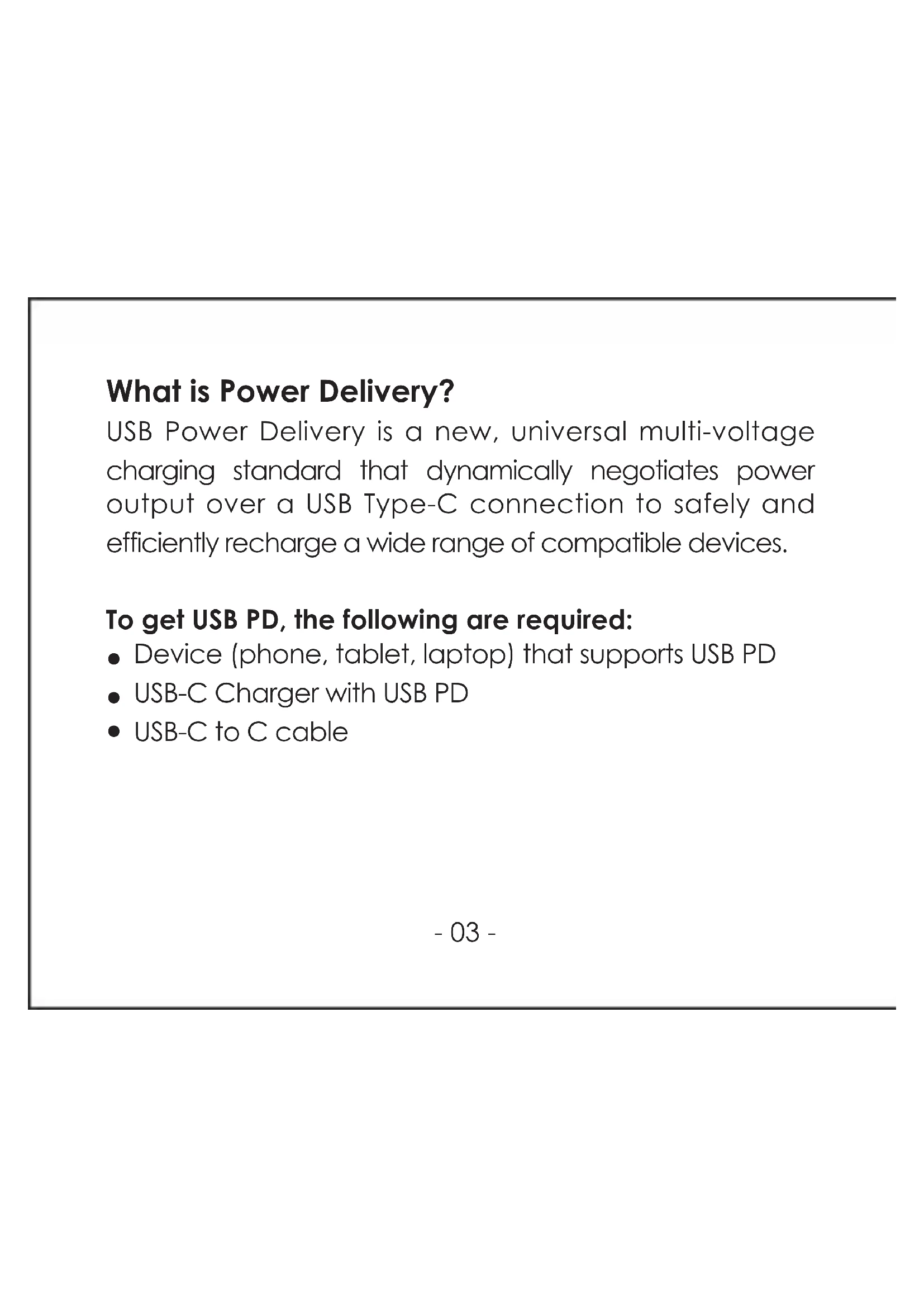

What is Power Delivery?

USB Power Delivery is a new, universal multi-voltage charging standard that dynamically negotiates power output over a USB Type-C connection to safely and efficiently recharge a wide range of compatible devices.

To get USB PD, the following are required:

• Device (phone, tablet, laptop) that supports USB PD
• USB-C Charger with USB PD
- USB-C to C cable

Getting Started

• Plug the CC-Y12 into your vehicle's 12/24V socket
• Connect a USB charging cable (not included) to your device's charging port
• Connect the other end of the USB charging cable to the USB output port on CC-Y12
• Unplug your devices when fully charged

Note: USB-C Output with Power Delivery supports fast charging for iPhone X / 8 / 8 Plus when used with original Apple USB-C to Lightning cable

Product Care

Keep away from liquids and extreme heat●

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

*Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.

ALKEY 16W PD ng o

- 06 -

Technische Daten

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

www.aukey.com | [e-mail]

No.102, Building P09, Electronics Trade Center

Huanan City, Pinghu Town, Longgang District

Shenzhen, Guangdong, 518111, CN

RoHS

Made in China
