USER MANUAL SMZCD 400 A1 SILVERCREST

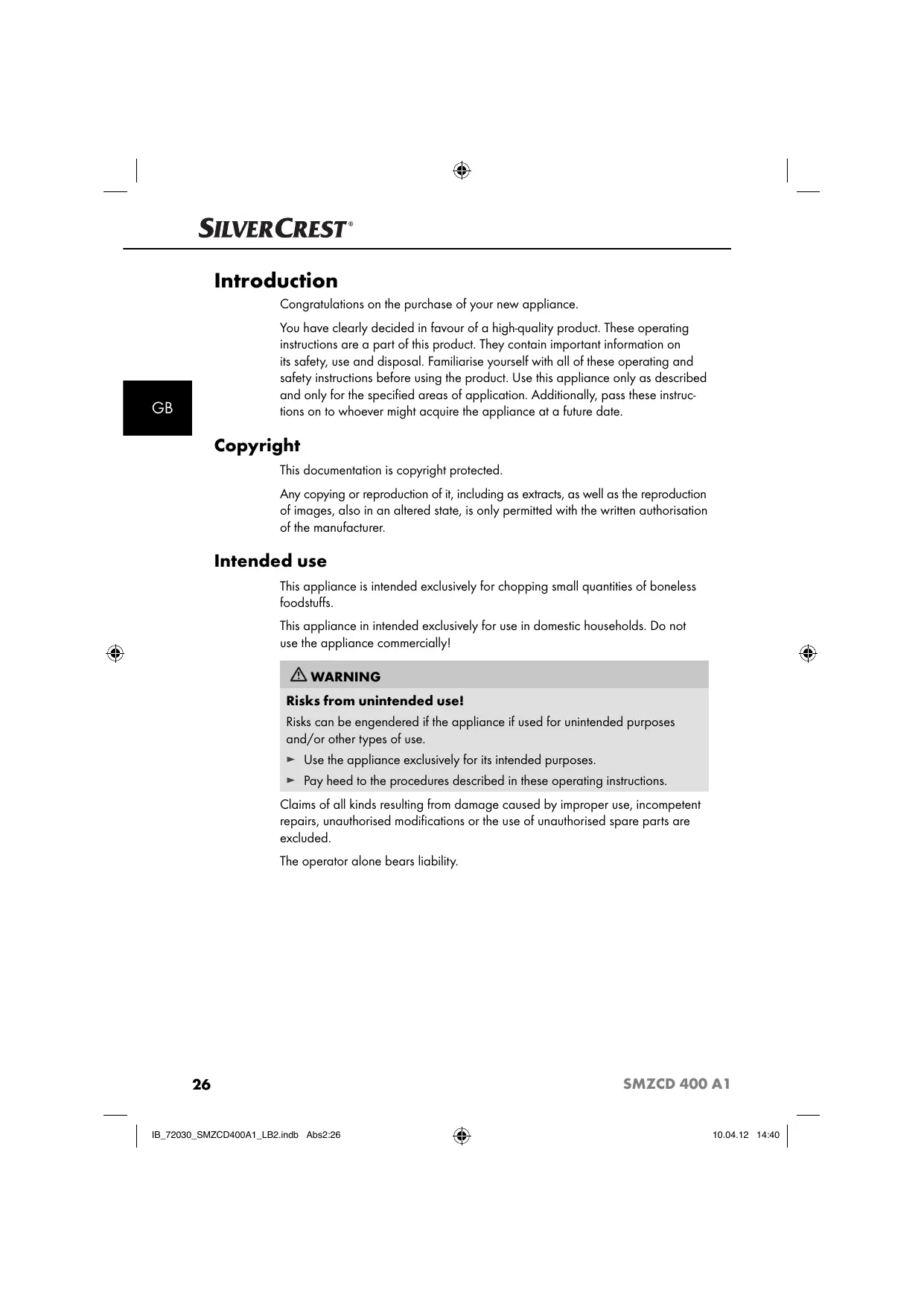

Introduction Congratulations on the purchase of your new appliance. You have clearly decided in favour of a high-quality product. These operating instructions are a part of this product. They contain important information on its safety, use and disposal. Familiarise yourself with all of these operating and safety instructions before using the product. Use this appliance only as described and only for the specified areas of application. Additionally, pass these instructions on to whoever might acquire the appliance at a future date.

Copyright This documentation is copyright protected. Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer. Intended use This appliance is intended exclusively for chopping small quantities of boneless foodstuffs. This appliance in intended exclusively for use in domestic households. Do not use the appliance commercially! WARNING Risks from unintended use! Risks can be engendered if the appliance if used for unintended purposes and/or other types of use. ► Use the appliance exclusively for its intended purposes. ► Pay heed to the procedures described in these operating instructions. Claims of all kinds resulting from damage caused by improper use, incompetent repairs, unauthorised modifications or the use of unauthorised spare parts are excluded. The operator alone bears liability.

IB_72030_SMZCD400A1_LB2.indb Abs2:26 SMZCD 400 A1

Safety instructions In this chapter you will receive important safety information regarding the handling of the appliance. This appliance complies with the statutory safety regulations. Incorrect usage can lead to personal injury and property damage. For safe handling of the appliance observe the following safety information:

DANGER - RISK OF ELECTRICAL SHOCK! ► Connect this appliance only to correctly installed mains power sockets supplying a mains voltage of 220-240 V ~/50 Hz. ► To avoid risks, arrange for defective plugs and/or power cables to be replaced at once by qualified technicians or our Customer Service Department. ► In the event of operating malfunctions and before cleaning the appliance, remove the plug from the mains power socket. ► Always remove the power cable from the socket by pulling on the plug, not on the power cable itself. ► Do not kink or crimp the power cable and place it in such a way as to prevent anyone from stepping on or tripping over it. ► NEVER immerse the motor unit of the appliance in liquids and do NOT allow any liquids to enter the housing of the motor unit. ► Do not expose the appliance to humidity and do not use it outdoors. Should liquids enter the housing, unplug the appliance from the mains power socket immediately and arrange for it to be repaired by a qualified technician. ► NEVER take hold of the motor unit, the power cable or the plug with wet hands. ► If the power cable or the motor unit are damaged, you must have the appliance repaired by qualified technicians before using it again. ► Do not open the housing of the appliance motor unit. Should you do so, the safety concept of the appliance may be compromised and the warranty becomes void. ► Disconnect the appliance from the mains power source immediately after use. The appliance is completely free of electrical power ONLY when unplugged. SMZCD 400 A1 IB_72030_SMZCD400A1_LB2.indb Abs2:27

WARNING - RISK OF INJURY! ► This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiences in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used. ► Children should be supervised to ensure that they do not play with the appliance.

► Handle the extremely sharp blade with caution, it can cause injuries. Reassemble the appliance after using and/or cleaning it so that you do not injure yourself with the exposed blade. Keep the blade out of the reach of children. ► NEVER attempt to remove foodstuffs from the bowl for as long as the blade is still rotating. Risk of injury! ► Before removing the motor block, wait until the blade has stopped rotating. NEVER try to grasp the still rotating blade! Risk of injury! CAUTION - PROPERTY DAMAGE! ► Pay heed to the table regarding the filling quantities given in the chapter “Chopping”. Exceeding these may cause foodstuffs to spill out. Items supplied The appliance is delivered with the following components as standard: ▯ Universal Food Processor consisting of: – Bowl with Stand – Blade holder – Lid with sealing ring – Motor unit ▯ These operating instructions NOTICE ► Check the contents to ensure everything is present and available and for signs of visible damage. ► If the delivery is not complete, or is damaged due to defective packaging or transportation, contact the Service Hotline (see chapter Service).

6 Blade 7 Bowl 8 Appliance base Initial Preparations Unpacking ♦ Remove all components of the appliance and these operating instructions from the carton. ♦ Remove all packaging material. ♦ Clean all of the components as described in the section "Cleaning and care". Disposal of the packaging The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable. The recirculation of packaging into the material circuit saves on raw material and reduces the amount of waste generated. Dispose of packaging material that is no longer needed as per the regionally established regulations. NOTICE ► If possible preserve the appliance's original packaging during the warranty period so that, in the event of a warranty claim, you can package the appliance ideally for its return. SMZCD 400 A1 IB_72030_SMZCD400A1_LB2.indb Abs2:29

1) Place the bowl 7 in the appliance base 8.

2) Place the blade holder 5 with the blade 6 on the drive shaft in the interior

3) Prepare the items to be processed by cutting large pieces to a size that will

4) Place the food to be processed in the bowl 7. Thereby, pay heed to the

5) Ensure that the sealing ring 4 is inserted into the lid 3: the two rubber lips on

the sealing ring 4 must engage in the plastic rail in the interior of the lid 3.

6) Then close the bowl 7 with the lid 3: Place it on the bowl 7 so that the

lugs on the lid 3 engage in the slots on the bowl 7. Then turn the lid 3 so that the lugs slide unter the slots and the lid 3 locks into place.

7) Place the motor unit 2 on the lid 3.

8) Press the motor unit 2 down to start the motor at normal operating speed.

9) To obtain the higher processing speed "Turbo“ for the contents, in addition to

the motor unit 2 press and hold down the turbo button 1. As soon as you release the turbo button 1 the appliance returns to the normal operating speed. NOTICE ► Should larger pieces of the contents collect on the wall of the bowl while processing, lift the motor unit 2 from the lid 3. Shake the bowl 7 vigorously and then continue with the processing. Remove possible residues with a dough scraper. ► Before starting the processing, particularly hard foods must be cut into smaller pieces (about 2cm). Otherwise, the motor will block. Select a pulsating processing for hard foodstuffs. For this, press the turbo button 1 repeatedly for a short time (in addition to the motor block 2). Should the foodstuff not be completely chopped, you can either cut it into smaller pieces or lift the motor unit 2 from the lid 3. Shake the bowl 7 vigorously and then continue with the processing.

10) When the contents have been sufficiently chopped, release the motor unit 2

and, if necessary, the turbo button 1.

11) Remove the power plug from the mains power socket.

WARNING - RISK OF INJURY! ► Never attempt to remove foodstuffs from the bowl 7 as long as the blade 6 is still rotating. Contents could shoot out and make a mess.

12) Wait until the blade 6 has stopped rotating.

13) Lift the motor unit 2 from the lid 3 and remove it.

WARNING - RISK OF INJURY! ► To prevent injuries, exercise caution when handling the extremely sharp blade 6. Keep the blade 6 out of the reach of children. SMZCD 400 A1 IB_72030_SMZCD400A1_LB2.indb Abs2:31

14) Carefully pull the blade holder with the blade 6 out of the bowl 7.

15) Remove the contents.

NOTICE ► Due to the grinding of hard and abrasive foodstuffs, the bowl 7 can take on a dull appearance over time. This is normal and does not influence the functioning of the appliance.

NOTICE ► You can use the appliance base 8, after the processing of the foods has been completed, as a lid for the bowl 7, to help keep the food fresh for longer. ► Take the motor unit 2 and lid 3 off of the bowl 7. ► The blade holder 5 with the blade 6 can, if you wish, remain in the bowl 7. ► Disconnect the appliance base 8 from the underside of the bowl 7. You can now place the appliance base 8 on the bowl 7 and press it in the middle so that it closes the bowl 7. Cleaning and care DANGER - RISK OF ELECTRICAL SHOCK! ► Before cleaning, ALWAYS remove the plug from the mains power socket! There is the risk of receiving an electric shock! ► Do not open any part of the housing. There are no user-serviceable elements inside. An open housing can create the risk of a lethal electrical shock. NEVER submerse the appliance in water or other liquids! This would increase the risk of a potentially fatal electric shock should liquids come into contact with power carrying components. WARNING - RISK OF INJURY! ► To prevent injuries, exercise caution when handling the extremely sharp blade 6. Reassemble the Universal Food Processor after using and/or cleaning it so that you do not injure yourself on the exposed blade 6. Keep the blade 6 out of the reach of children.

IB_72030_SMZCD400A1_LB2.indb Abs2:32 SMZCD 400 A1

CAUTION - PROPERTY DAMAGE! ► Do not clean the motor unit 2, the appliance base 8 and the sealing ring 4 in a dishwasher, as this would damage them. ► Do not use abrasive or aggressive cleaning materials. These could attack the upper surfaces and irreparably damage the appliance. ■ Remove the plug from the mains power socket.

■ Clean the motor unit 2 with a moist cloth. Dry it well. ■ Remove the sealing ring 4 from the lid 3 and release the appliance base 8 from the bowl 7. ■ The bowl 7, the lid 3 and the blade holder with the blade 6 are dishwasher safe. ■ Clean the sealing ring 4 and the appliance base 8 in water and add a mild detergent. Afterwards, rinse all parts with clean water so that no detergent residues remain. Ensure that everything is dryed thoroughly before reassembling the appliance. Storage ■ Clean the appliance as described in the section "Cleaning and care". ■ Store the appliance in a dry and clean location. Troubleshooting Problem The appliance does not function. SMZCD 400 A1 IB_72030_SMZCD400A1_LB2.indb Abs2:33 Cause Remedy The plug is not inserted into a mains power socket. Insert the plug into a mains power socket. The mains power socket is defective. Try another mains power socket. The appliance is defective. In this case, contact Customer Services.

Disposal of the appliance Do not dispose of this appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2002/96/EC. Dispose of this appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your local waste disposal centre.

Rated power 400 W Protection class II / Maximum filling volume for foodstuffs up to the 400 ml marking Notes on the Declaration of Conformity With regard to conformity with essential requirements and other relevant provisions, this appliance complies with the guidelines of the Electromagnetic Compatibility Directive 2004/108/EC as well as the Directive for Low Voltage Devices 2006/95/EC. The complete original declaration of conformity can be obtained from the importer. Importer KOMPERNASS GMBH BURGSTRASSE 21 44867 BOCHUM, GERMANY www.kompernass.com

IB_72030_SMZCD400A1_LB2.indb Abs2:34 SMZCD 400 A1

Warranty You receive a 3-year warranty for this appliance as of the purchase date. This appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our Customer Service department. Only in this way can a post-free despatch for your goods be assured.

NOTICE ► The warranty covers only material or manufacturing faults, but not for transport damage, normal wear and tear or damage to fragile parts, such as switches. This product is for domestic use only and is not intended for commercial applications. In the event of misuse and improper handling, use of force and interference not carried out by our authorised service branch, the warranty will become void.. Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs effected under warranty. This applies also to replaced and repaired parts. Damages or defects discovered after purchase are to be reported directly after unpacking, at the latest two days after the purchase date. Repairs carried out after lapse of the warranty period are subject to charge. Service Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk IAN 72030 SMZCD 400 A1 IB_72030_SMZCD400A1_LB2.indb Abs2:35
