USER MANUAL DTE602 IFM

Operating instructions

RFID compact unit

DTE601

DTE602

DTE604

DTE605

Contents

1 Preliminary note 3

1.1 Symbols used 3
1.2 Warnings.... 3
1.3 Legal and copyright information 3
1.4 Open source information.... 4

2 Safety instructions.... 5

2.1 Safety symbols on the unit 5
2.2 Safety note on high-frequency electromagnetic radiation 5
2.3 Cybersecurity 6

3 Intended use.... 7

3.1 Application area 7

4 Items supplied.... 8

5 Function 9

5.1 Device overview 9

6 Installation.... 11

6.1 Installation instructions for devices 11
6.2 Installation instructions for ID tags.... 11
6.3 Avoiding interference 11
6.4 Mechanical design 12
6.5 Mounting options.... 12

6.5.1 Installation with angle bracket E80432 13
6.5.2 Installation with mounting device E80431 13
6.5.3 Installation with fixing bars E80337 14

6.6 Mounting distances.... 14
6.7 Positioning of the ID tags 15

7 Electrical connection.... 16

7.1 Wiring 16

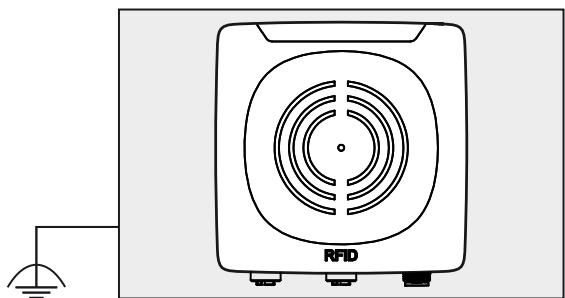

7.2 Connecting the functional earth.... 17

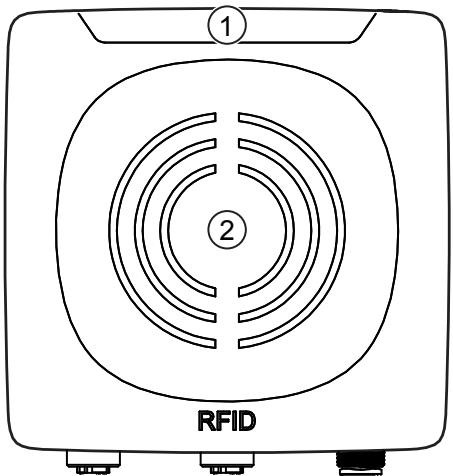

8 Operating and display elements 18

8.1 Display elements DTE601.... 19
8.2 Display elements DTE602.... 20
8.3 Display elements DTE604 / DTE605.... 21

9 Maintenance, repair and disposal 22

10 Approvals / standards 23

1 Preliminary note

You will find instructions, technical data, approvals and further information using the QR code on the unit / packaging or at documentation.ifm.com.

1.1 Symbols used

√ Requirement
Instructions
Reaction, result

[...] Designation of keys, buttons or indications

→ Cross-reference

Important note

Non-compliance may result in malfunction or interference.

Information

Supplementary note

1.2 Warnings

Warnings indicate the possibility of personal injury and damage to property. This enables safe product handling. Warnings are graded as follows:

WARNING

Warning of serious personal injury

▷ If the warning is not observed, fatal and serious injuries are possible.

CAUTION

Warning of minor to moderate personal injury

▷ If the warning is not observed, minor to moderate injuries are possible.

ATTENTION

Warning of damage to property

▷ If the warning is not observed, damage to property is possible.

1.3 Legal and copyright information

© All rights reserved by ifm electronic gmbh. No part of these instructions may be reproduced and used without the consent of ifm electronic gmbh.

All product names, product pictures, companies or other brands used on our pages are the property of the respective rights owners:

• AS-i is the property of AS-International Association
• CAN is the property of Robert Bosch GmbH, Germany
• CANopen is the property of CiA (CAN in Automation e. V.), Germany
- CODESYS™ is the property of CODESYS GmbH, Germany (→ www.codesys.com)
• Device
Net™ is the property of ODVA™ (Open Device
Net Vendor Association), USA

• Ether
  Net/IP is the property of ODVA ^TM
• EtherCAT® is a registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany
• IO-Link® is the property of → PROFIBUS Nutzerorganisation e. V., Deutschland
  • ISOBUS is the property of AEF - Agricultural Industry Electronics Foundation e. V., Germany
• Windows® is the property of Microsoft Corporation, USA
• Modbus® is the property of Schneider Electric SE, France
  • PROFINET® is the property of PROFIBUS Nutzerorganisation e. V., Deutschland
  • PROFINET® is the property of PROFIBUS Nutzerorganisation e. V., Deutschland
• Windows® is the property of Microsoft Corporation, USA

1.4 Open source information

For more open source information see: documentation.ifm.com.

2 Safety instructions

- The unit described is a subcomponent for integration into a system.

• The system architect is responsible for the safety of the system.

• The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system. This documentation must contain all necessary information and safety instructions for the operator, the user and, if applicable, for any service personnel authorised by the architect of the system.

• Read this document before setting up the product and keep it during the entire service life.

• The product must be suitable for the corresponding applications and environmental conditions without any restrictions.
• Only use the product for its intended purpose (→ Intended use).
• If the operating instructions or the technical data are not adhered to, personal injury and/or damage to property may occur.
• The manufacturer assumes no liability or warranty for any consequences caused by tampering with the product or incorrect use by the operator.
• Installation, electrical connection, set-up, operation and maintenance of the product must be carried out by qualified personnel authorised by the machine operator.
• Protect units and cables against damage.

2.1 Safety symbols on the unit

The following symbols are used on the device. Observe the instructions in order to avoid hazards:

• Electric supply must correspond to IEC 61010-1, chapter 9.4 - Limited-energy circuit.

• Device of protection class III. Only for operation in SELV/PELV circuits.

2.2 Safety note on high-frequency electromagnetic radiation

Under application-specific conditions, the risk for the user may differ depending on the installation situation and the device settings.

The system architect/operator is required to carry out a hazard analysis and to take appropriate measures for the protection of persons. In particular national regulations also have to be adhered to. Possible protective measures may include guaranteed minimum distances of a user, access controls and user training.

WARNING

Operation of this device can cause radio interference in residential areas.

▷ The device emits high-frequency electromagnetic waves that may interfere with the operation of electronic devices in the vicinity, including pacemakers, hearing aids and defibrillators.
▶ Due to human exposure regulations, a minimum distance of 20 cm must be maintained between the device and persons.
▶ If you have a pacemaker or other implanted medical product, do not use the device without first consulting your doctor or the manufacturer of your medical product. Keep a safe distance between the device and your medical devices and refrain from further use of the device if you observe permanent impairment of your medical product.

2.3 Cybersecurity

Installation

The device is suitable for operation in a secure environment according to IEC 62443-1-1.

▶ Carry out a risk assessment of the system according to IEC 62443-1-1.
▶ Take measures to ensure physical security.
▶ Ensure that only authorised persons have access to the device, its interfaces and the RFID tags.

Operation

▶ Observe the security functions described in the product documentation and the recommendations for their use.

Maintenance

▶ Regularly check whether software updates are available for the device.
- ▶ Back up system configuration and system data in accordance with your company’s change management processes.

Decommissioning

▶ Ensure that no sensitive information can fall into unauthorised hands.
▶ Always reset the system settings to the factory settings before decommissioning the device.

Ethernet interface

The device has no built-in protection against unauthorised access.

▶ Only operate the device in trustworthy networks.

Examples of trustworthy networks (according to IEC 62443-3-1, part 5):

• Internal company networks (Local Area Networks - LANs)
– Networks managed and secured by the IT department
• Industrial control systems (Industrial Control Systems - ICS)
– Networks for the control and monitoring of industrial processes
– ICS are isolated from other networks
- Point-to-point connection between the device and its direct communication partner
▶ Set the system password during initial set-up.

RFID

ID tags are portable and can be duplicated.

▶ Ensure that ID tags are operated within a secure environment.
▶ Do not store any sensitive data on unencrypted ID tags, e.g. personal data or financial data.

Software update

Ensure the integrity and authenticity of the software update by taking the following organisational measures:

▶ Download the new firmware file to a secure laptop/PC.
▶ Calculate the SHA-256 hash value for the downloaded firmware file, www.ifm.com/cnt/product-security.
▶ Check whether the calculated hash value matches the SHA-256 hash value provided on the ifm website.
▶ Install the firmware file on the device via a secure connection, e.g. a point-to-point connection.

3 Intended use

The device is composed of an evaluation unit and an integrated RFID read/write head and provides the following functions

• read and write ID tags which conform to the system without contact,
  • can be configured via a web server,
• only DTE601: communication with the control level via PROFINET IO,
• only DTE602: communication with the control level via Ether
  Net/IP,
• only DTE604: communication with the control level via Ether
  Net TCP/IP,
• only DTE605: communication with the control level via Ether
  Net IoT protocols.

3.1 Application area

The device safety is rated for use under the following operating conditions:

• Protection class 3 (SELV/PELV) and supply of the device to limited energy according to IEC 61010-1, chapter 9.4. Isolate the external circuits as required by figure 102 in IEC 61010-2-201.
• For indoor use.
  • Altitudes up to 2000 m.
• Relative air humidity up to max. 80 %, non condensing.
  • Pollution degree 2.

4 Items supplied

• RFID compact unit
  • Package insert 'general information'
  • Package insert 'radio approval'

The device is supplied without installation and connection accessories.

Available accessories: www.ifm.com.

The optimum function is not ensured when using components from other manufacturers.

5 Function

The ID tags are operated passively without battery. The energy required for operation is provided by the compact RFID device.

The energy is transferred via an electromagnetic wave. The receiving antenna takes up the wave and transforms it into voltage which supplies the data carrier with energy.

The radiated power is specified in ERP (Effective Radiated Power) and in EIRP (Effective Isotropic Radiated Power) for the devices. The respective value can be converted using the following formula:

P [dBm EIRP] = P [dBm ERP] + 2.15 [dB]

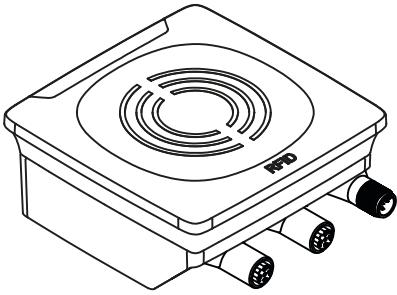

5.1 Device overview

DTE601

	Article number:	DTE601
	Function:	RFID compact unit
	Type designation:	DTRHF HLRWPNUS03
	Type:	rectangular

DTE602

	Article number:	DTE602
	Function:	RFID compact unit
	Type designation:	DTRHF HLRWEIUS03
	Type:	rectangular

DTE604

	Article number:	DTE604
	Function:	RFID compact unit
	Type designation:	DTRHF HLRWENUS03
	Type:	rectangular

DTE605

	Article number:	DTE605
	Function:	RFID compact unit
	Type designation:	DTRHF HLRWITUS03
	Type:	rectangular

6 Installation

ATTENTION

Radiated electromagnetic field strengths

▷ The device sends ultrahigh frequency electromagnetic waves. It complies with the country-specific limit values for the public and workers.
▶ Disconnect the device in the vicinity of medical equipment.

6.1 Installation instructions for devices

Devices installed next to each other interfere if they are not configured correspondingly.
When mounting several RFID units adhere to the minimum distances between the systems.
Installing a unit in or on metal reduces the read and write distance.
Device performance can be affected if positioned in the immediate vicinity of powerful HF emission sources such as welding transformers or converters.

6.2 Installation instructions for ID tags

For installation in and on metal use the ID tags provided for this purpose.
Position the ID tag in the area of the sensing face. When doing so, the angle of aperture and the operating distance must be adhered to ( → Data sheet of the device).
Align the axes of the RFID device and the ID-TAG in the same way.

6.3 Avoiding interference

The device generates a modulated electromagnetic field with a frequency of 13.56 MHz.

Interference in data communication is avoided if there are no other RFID UHF devices in the vicinity. If there are other RFID UHF devices in the vicinity:

▶ The mounting distances between the devices should be as large as possible.
▶ Use the RSSI filter.
▶ Use the devices in alternating operation.
▶ Switch the HF field of the device on/off.

The UHF field is attenuated if there are people or objects (cables, metal profiles, etc.) between the device and ID tag.

▶ Keep the area between the device and ID tag clear during reading or writing.

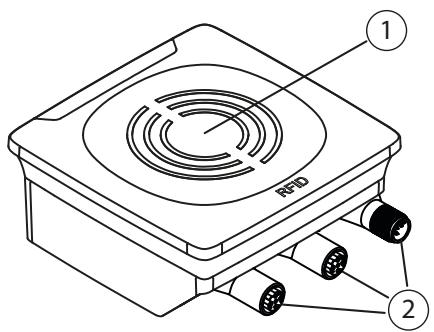

6.4 Mechanical design

1 Sensing face
2 Connections (can be rotated by 270° )

6.5 Mounting options

The device can be mounted without the accessories.

▶ For installation, please use the threaded sleeves on the back of the device.
▷ The required screws are not supplied with the device.

No liquid should be allowed to accumulate on the connected sockets and plugs.

▶ Mount the device preferably vertically, with the connections facing downwards.
▶ Route the connection cables vertically or horizontally downwards away from the device.

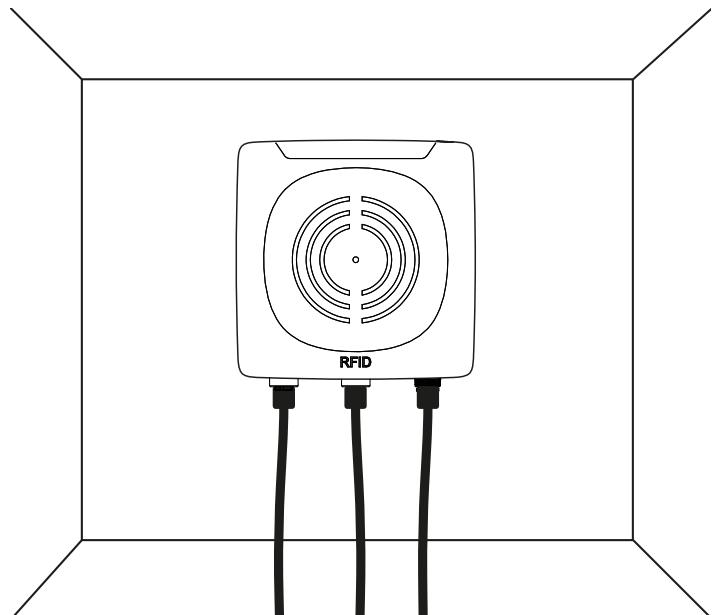

Fig. 1: Vertically mounted device with the connections facing downwards

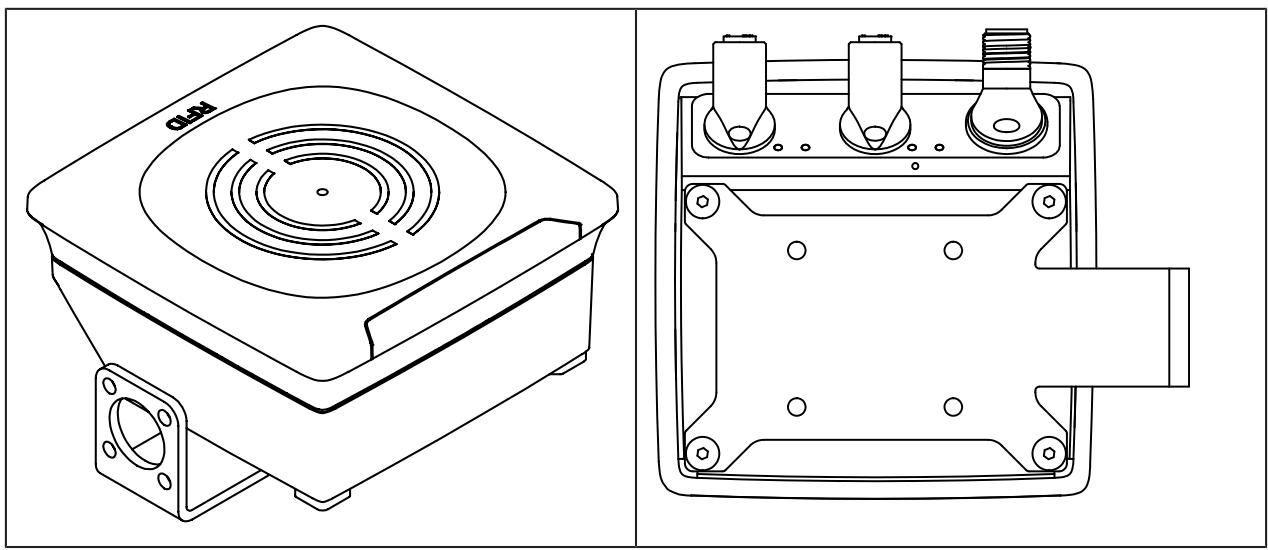

6.5.1 Installation with angle bracket E80432

6.5.2 Installation with mounting device E80431

The mounting device is used to mount the unit on a clamp. Compatible clamps:

• E21110 with a rod diameter of 12 mm
• E20795 with a rod diameter of 14 mm
• E21109 with a rod diameter of 14 mm

6.5.3 Installation with fixing bars E80337

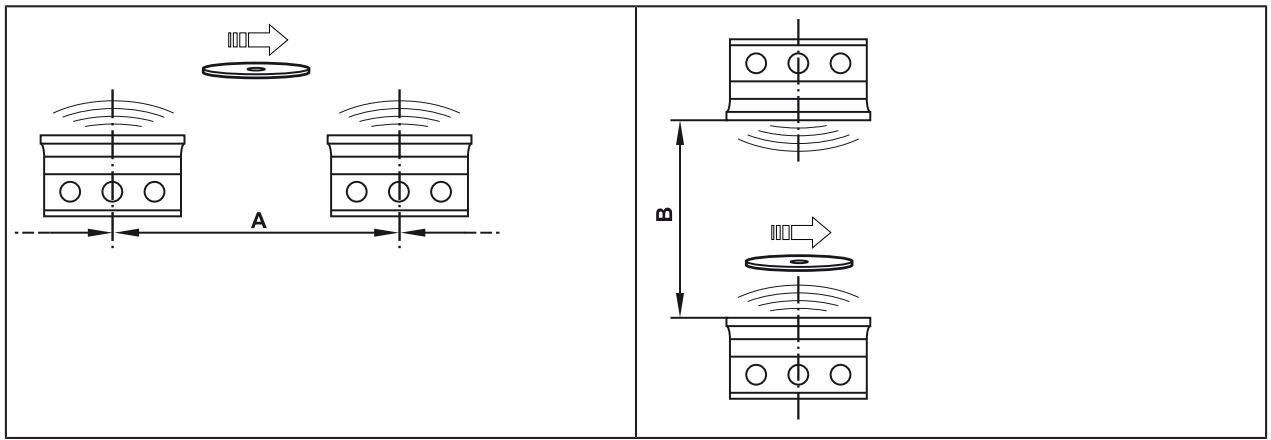

6.6 Mounting distances

Operating mode	Distance side (A)	Distance front (B)
Read and write (at 100% transmitter power)	≥ 850 mm	≥ 600 mm

Interference in data communication is avoided if there are no other RFID UHF devices in the vicinity. If there are other RFID UHF devices in the vicinity:

▶ The mounting distances between the devices should be as large as possible.
▶ Use the RSSI filter.
▶ Use the devices in alternating operation.
▶ Switch the HF field of the device on/off.

6.7 Positioning of the ID tags

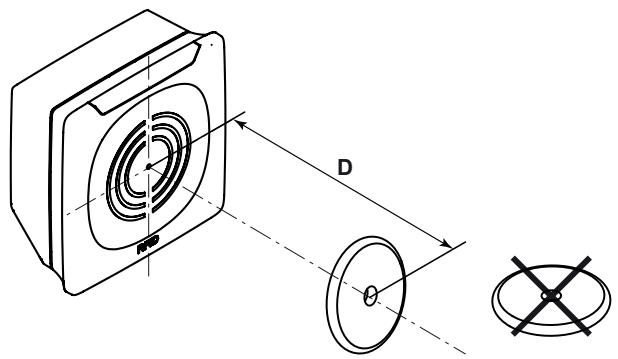

Fig. 2: Position the ID tag

▶ Align the ID tag on the antenna central axis.
▷ The distance “D” is indicated in the data sheet.

ID tags are also detected on the back of the device. To avoid this:

▶ Use the RSSI filter.

7 Electrical connection

The device must be connected by a qualified electrician.

Device of protection class III (PC III).

The electrical supply must only be made via PELV/SELV circuits.

▶ Disconnect power before connecting the device.

ATTENTION

The IP rating indicated in the data sheet is only guaranteed if the M12 connectors are firmly screwed. The device can be damaged by insufficiently tightened M12 connectors.

▶ Screw the M12 connector to the device applying 1 to 1.5 Nm.

Use strain reliefs for cables connected to the device.

7.1 Wiring

+PWR voltage supply

▶ Connect the device to a voltage supply using an M12 connection cable.

	Pin assignment	Wiring
	1	24 V DC
	2	Digital input / output 2
	3	0 V
	4	Digital input / output 1
	5	not connected

Ethernet

▶ Connect the device to a PC using an M12 Ethernet connection cable.

	Pin assignment	Wiring
	1	TD+
	2	RD+
	3	TD-
	4	RD-

For trouble-free operation:

▶ use a shielded M12 Ethernet connection cable.

The following parameters are preset at the factory:

Parameter	Preset
IP address	192.168.0.79
Gateway address	192.168.0.100
Subnet mask	255.255.255.0
Auto-negotiation	On
DHCP	Off

The settings can be changed via the device's web server or via a connected PC.

Resetting the Ethernet parameters

Reset the Ethernet parameters to factory setting:

▶ Remove all cable connections from the device.
▶ Insert an electrically conductive bridge between pin 2 and pin 4 on the connection “PWR voltage supply”.
▶ Connect the device to the voltage supply.
▷ The LEDs of the signal bar (yellow) are on one after the other. Then LED 4 of the signal bar (yellow) flashes at 8 Hz.
▶ As soon as the LEDs of the signal bar (yellow) flash at 8 Hz, remove the electrically conductive bridge between pin 2 and pin 4.
▶ Disconnect the device from the voltage supply and connect it again after 1 s.
▷ The Ethernet parameters have been reset.

7.2 Connecting the functional earth

For trouble-free operation:

▶ Connect the device to an earth potential free from external voltage.

▶ Connect the mounting plate to functional earth.

Fig. 3: Mounting plate with mounted device

When the device is mounted on a mounting plate:

▶ Connect one of the 4 mounting bolts on the back of the device to the mounting plate.
▶ Connect the mounting plate to an earth potential free from external voltage.

8 Operating and display elements

Fig. 4: LED signal bar and sensing face

1 1x LED Power (green)

2 Sensing face

4x LED signal bar (yellow)

2x LEDs SF/BF or LEDs Mod/Net (green/red)

Depending on the device, the LEDs SF/BF or the LEDs Mod/Net are used:

▷ DTE8x1/DTE9x1: LEDs SF/BF
▷ DTE8x2/DTE9x2: LEDs Mod/Net
▷ DTE8x4/DTE8x5/DTE9x4/DTE9x5: LEDs SF/BF

Fig. 5: Connections with LEDs

1 ETH2 ACT

2 ETH2 LINK

3 ETH1 ACT

4 ETH1 LINK

The following table applies to all devices.

State	Power LED (green)	LED signal bar (yellow)
Voltage supply OK (18 V ≤ UPWR ≤ 36 V)	on	off
Antenna (HF field) is deactivated	flashes at 2 Hz	off
ID tag read / written successfully	on	flashes twice
ID tag read / written incorrectly	on	flashing quickly

The maximum receive signal strength depends on the type of the ID tag.

If the ID tag has a high receive signal strength, all LEDs of the signal bar are on.

▷ The response of the LEDs of the signal bar is adjustable.

LED LINK/ACT ETH1 / ETH2

LED green	LED yellow	State	Note
off	off	No connection to an Ethernet counterpart.	Link status: “No Link”
on	off	Connection to Ethernet counterpart exists, no data exchange.	Link status: “Link”, “No traffic”
on	flashes sporadically	Connection to Ethernet counterpart exists, data exchange running.	Link status: “Link”, “Traffic”

Special device LED indicators

LED	State	Note
Power LED (green) on LEDs of signal bar (yellow) flashing at 8 Hz.	Device is in the service mode “emergency system started”.	A firmware update is necessary and can be executed via the web server.
Power LED (green) on LEDs of signal bar (yellow) flashing at 8 Hz.	Major error, device has to be returned.	Hardware fault or permanent data in the device are corrupt.
Power LED (green) on The LEDs of the signal bar (yellow) are on one after the other. Then LED 4 of the signal bar (yellow) flashes at 8 Hz.	Reset to factory settings.	-

8.1 Display elements DTE601

The following tables only apply to the DTE601 device.

LED SF

LED red	LED green	State	Note
off	off	no voltage supply	Check the voltage supply
off	flashes	“Node flash test”, initiated by the PROFINET IO controller	-
off	on	Normal operation	-
flashes	off	Error at channel level	Overload TemperatureInternal error
on	off	Error at device level	Undervoltage Temperature
flashes	flashes	Self-test	Starting phase of the device

LED BF

LED red	LED green	State	Note
off	off	no voltage supply	Check the voltage supply
off	flashes	PROFINET IO controller is in STOP mode	-
off	on	PROFINET IO controller is in RUN mode	-
flashes	off	Connection to the PROFINET IO controller is established, no valid configuration	Check configuration
on	off	No connection to the PROFINET IO controller	Check connection
flashes	flashes	Self-test	Starting phase of the device

8.2 Display elements DTE602

The following tables only apply to the DTE602 device.

LED Mod (module status)

LED red	LED green	State	Note
off	off	no voltage supply	▶ Verify voltage supply.
off	flashes	Ready for operation	The device is not configured. There is no exchange of data:▶ Check the connection of the Ethernet/IP scanner. ▶ Check the parameter setting of the configuration assembly.
off	on	Normal operation	Connection to the Ether Net/IP scanner is established. The device is configured. The data transfer is running.
flashes	off	Minor error	A connection to the Ether Net/IP scanner was not established:▶ Verify voltage supply. ▶ Check the configuration of the unit.
on	off	Major error	Software / hardware error of the device:▶ Reboot the device. ▷ If the error remains, send the device for service.
flashes	flashes	Self-test	Starting phase of the device.

LED Net (network status)

LED red	LED green	State	Note
off	off	No IP address or no voltage supply	▸ Verify voltage supply.▸ ▶ If DHCP is activated, check the accessibility of the DHCP server.
off	flashes	No connection	The device has received an IP address. An Ether Net/IP connection was not established.▸ ▶ Check the configuration of the device via Ether Net/IP scanner.
off	on	Connection exists	At least one Ether Net/IP connection to the device was established.
flashes	off	Timeout of the connection	A timeout was found with one of the existing Ether Net/IP connections.▸ ▶ Check the status of the connection in the Ether Net/IP scanner.
on	off	The IP address already exists	The same IP address as that of the device was detected in the Ether Net/IP network.▸ ▶ Activate DHCP.
flashes	flashes	Self-test	Starting phase of the device.

8.3 Display elements DTE604 / DTE605

The following tables only apply to the DTE604 / DTE605 devices.

LED SF

LED red	LED green	State	Note
off	off	No voltage supply	Verify voltage supply.
off	on	Normal operation	-
flashes	off	Error at channel level	Overload TemperatureInternal error
on	off	Error at device level	Undervoltage Temperature
flashes	flashes	Self-test	Starting phase of the device.

LED BF

LED red	LED green	State	Note
off	off	No voltage supply	Check the voltage supply
off	flashes	Connection to the host controller is established, there is no data exchange	-
off	on	Connection to the host controller is established, data exchange takes place	-
flashes	off	Connection to the host controller is established, no valid configuration	Check configuration
on	off	No connection to the host controller	Check connection
flashes	flashes	Self-test	Starting phase of the device

9 Maintenance, repair and disposal

The unit is maintenance-free.

▶ Contact ifm in case of malfunction.
▶ Do not open the housing as the unit does not contain any components which can be maintained by the user. The unit must only be repaired by the manufacturer.
▶ Clean the device using a dry cloth.
▶ Dispose of the unit in accordance with the national environmental regulations.

10 Approvals / standards

The EU Declaration of Conformity, approvals and country-specific certificates are available at:

→ www.ifm.com

Notes relevant for approval: → Package insert
