USER MANUAL PI2204 IFM

Operating instructions

Electronic pressure sensor

PI22xx

PI23xx

Contents

1 Preliminary note 4

1.1 Symbols used 4
1.2 Warnings.... 4

2 Safety instructions.... 5

2.1 Cybersecurity 5

3 Intended use....7

3.1 Application area 7

4 Function 8

4.1 IO-Link 8
4.2 Zero point behaviour of the device display and outputs.... 8
4.3 Operating modes 9

4.3.1 2-wire operation 9
4.3.2 3-wire operation 10

4.4 Switching function (only for 3-wire operation) 10

4.5 Analogue function 10
4.6 Customer-specific calibration 11

5 Installation.... 13

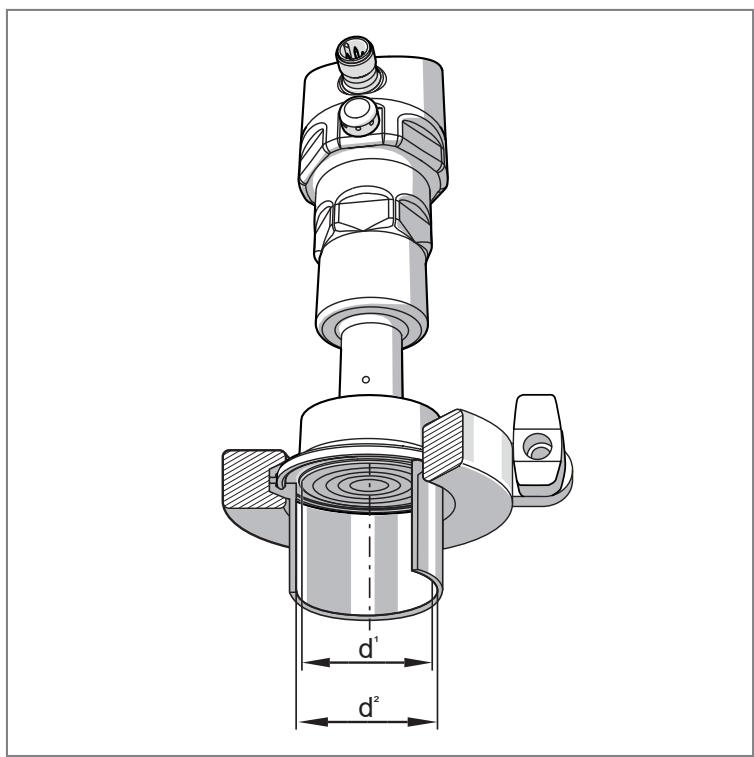

5.1 Connection versions clamp seals 13
5.2 Use in hygienic areas according to 3-A....14
5.3 Use in hygienic areas to EHEDG 15
5.4 Function ventilation diaphragm 15
5.5 Orientation filter cover 15

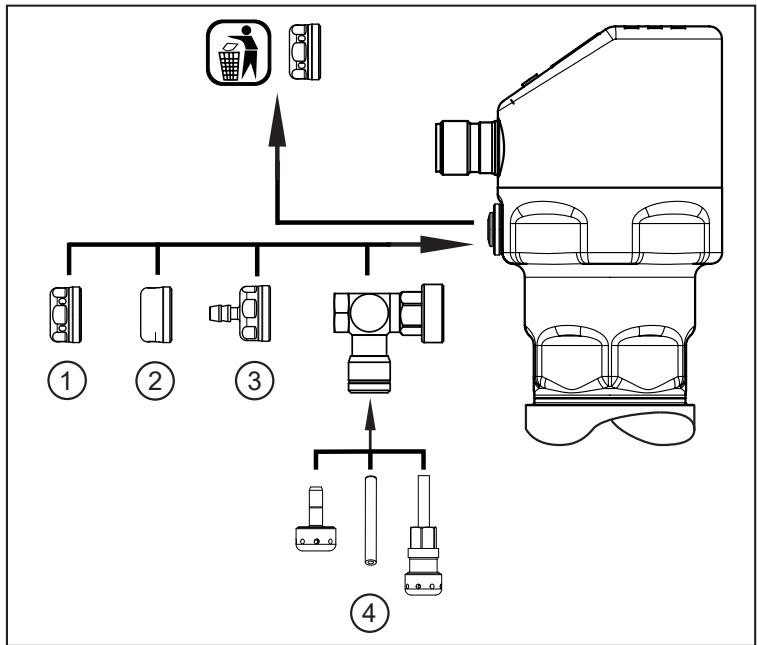

5.6 Filter cover 16

6 Electrical connection.... 18
7 Operating and display elements 19
8 Menu....20

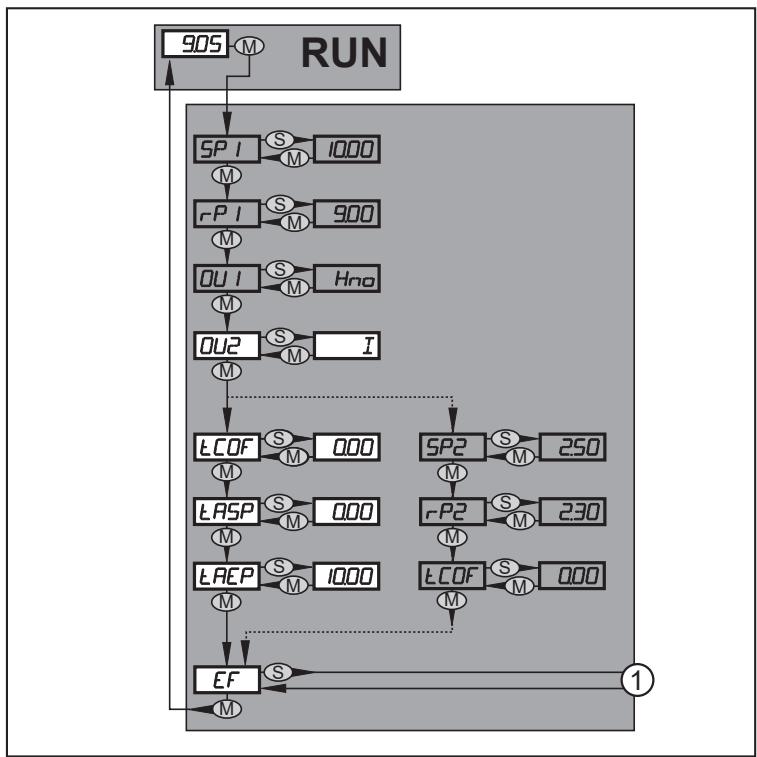

8.1 Menu structure: Main menu.... 20
8.2 Explanation of the main menu.... 20
8.3 Menu structure: Level 2 (extended functions) 21
8.4 Explanation of menu level 2 21

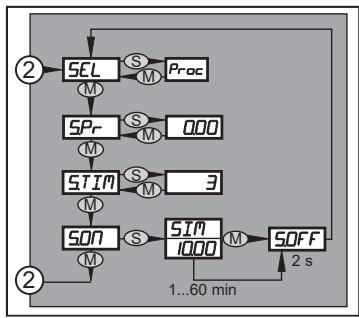

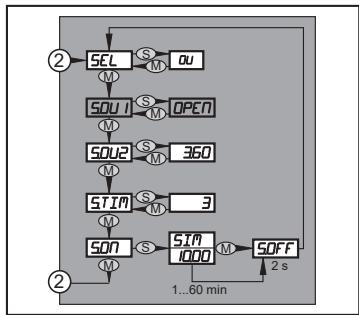

8.5 Menu structure: level 3 (simulation). 22
8.6 Explanation of menu level 3 22

9 Parameter setting 24

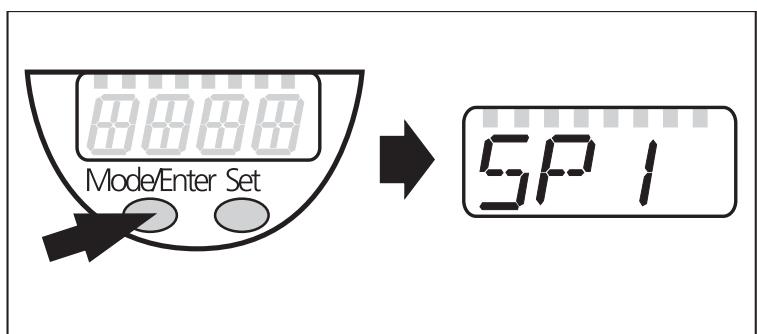

9.1 Parameter setting in general 24
9.2 Parameter setting via IO-Link 27
9.3 Configure display (optional).... 27
9.4 Set output signals 28

9.4.1 Setting of the output function.... 28
9.4.2 Set switching limits 28
9.4.3 Scale analogue value for OUT2 28

9.5 User settings (optional) 29

9.5.1 Zero-point calibration 29
9.5.2 Define incorrect behaviour of the outputs 29
9.5.3 Set delay time for the switching outputs 29
9.5.4 Set output logic for the switching outputs 30
9.5.5 Set damping for the switching signal 30
9.5.6 Set damping for the analogue signal 30
9.5.7 Calibrate curve of measured values 30

9.6 Service functions.... 31

9.6.1 Read min/max values for the system pressure 31
9.6.2 Reset all parameters to factory setting 31

9.7 Simulation function 31

9.7.1 Open menu level 3 (simulation).... 31
9.7.2 Set simulation value 31
9.7.3 Set simulation value 32
9.7.4 Start simulation 32

10 Operation 33

10.1 Read set parameters.... 33
10.2 Change the display in the Run mode 33
10.3 Self-diagnostics / error indications.... 33

11 Disposal, repair and return 35

12 Factory setting 36

1 Preliminary note

You will find instructions, technical data, approvals and further information using the QR code on the unit / packaging or at documentation.ifm.com.

1.1 Symbols used

√ Requirement
Instructions
Reaction, result

[...] Designation of keys, buttons or indications

→ Cross-reference

Important note

Non-compliance may result in malfunction or interference.

Information

Supplementary note

1.2 Warnings

Warnings indicate the possibility of personal injury and damage to property. This enables safe product handling. Warnings are graded as follows:

WARNING

Warning of serious personal injury

▷ If the warning is not observed, fatal and serious injuries are possible.

CAUTION

Warning of minor to moderate personal injury

▷ If the warning is not observed, minor to moderate injuries are possible.

ATTENTION

Warning of damage to property

▷ If the warning is not observed, damage to property is possible.

2 Safety instructions

- The unit described is a subcomponent for integration into a system.

• The system architect is responsible for the safety of the system.

• The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system. This documentation must contain all necessary information and safety instructions for the operator, the user and, if applicable, for any service personnel authorised by the architect of the system.

• Read this document before setting up the product and keep it during the entire service life.

• The product must be suitable for the corresponding applications and environmental conditions without any restrictions.
• Only use the product for its intended purpose (→ Intended use).
• Only use the product for permissible media (→ Technical data).
• If the operating instructions or the technical data are not adhered to, personal injury and/or damage to property may occur.
• The manufacturer assumes no liability or warranty for any consequences caused by tampering with the product or incorrect use by the operator.
• Installation, electrical connection, set-up, operation and maintenance of the product must be carried out by qualified personnel authorised by the machine operator.
• Protect units and cables against damage.
  • Store the device in its original packaging.

CAUTION

With high medium temperatures, parts of the device may heat up.

▷ Risk of burns
▶ Do not touch the device.
▶ Protect the housing against contact with flammable substances and unintentional contact.

ATTENTION

Applications where steam is applied

▷ Risk of mechanical damage of the sensor or the piping system due to steam surge.
▶ Protect the sensor from excessive stress due to cavitation and steam surge.
▶ Design the piping system according to the state of the art.
▶ Do not install the sensor in the direct vicinity of fittings, pipe bends and the like in order to prevent unnecessary maximisation of steam surges.
▶ Preheat the system before the steam enters and remove liquid residues from the pipes, e.g. by blowing out or other suitable measures.
▷ The permissible temperatures of the sensor must not be exceeded → Data sheet.

2.1 Cybersecurity

Installation

The device is suitable for operation in a secure environment according to IEC 62443-1-1.

The device was designed for operation behind a firewall.

▶ Carry out a risk assessment of the system according to IEC 62443-1-1.
▶ Take measures to ensure physical security.

Operation

▶ Observe the security functions described in the product documentation and the recommendations for their use.

Maintenance

- ▶ Back up system configuration and system data in accordance with your company’s change management processes.

Decommissioning

▶ Ensure that no sensitive information can fall into unauthorised hands.
▶ Always reset the system settings to the factory settings before decommissioning the device.

3 Intended use

The unit measures and monitors the system pressure of machines and installations.

3.1 Application area

Type of pressure: relative pressure

Information on pressure rating and bursting pressure → Data sheet
Avoid static and dynamic overpressure exceeding the indicated pressure rating by taking appropriate measures. The indicated bursting pressure must not be exceeded. Even if the bursting pressure is exceeded only for a short time, the unit may be destroyed. ATTENTION: Risk of injury!
Not suitable for systems that have to meet the criteria of D10.2 / 63-03 of the 3-A standard 63-03.
The device is vacuum resistant. Adhere to the specifications in the data sheet!

4 Function

• ▷ The device displays the current system pressure.
• It generates output signals according to the operating mode and the parameter setting.
  • Moreover, it provides the process data via IO-Link.
• The device is designed for fully bidirectional communication. So the following options are possible:
• Remote display: reading and displaying the current system pressure.
• Remote parameter setting: reading and changing the current parameter setting.
  – IO-Link parameter setting: IO-Link (→ 8)

4.1 IO-Link

IO-Link is a communication system for connecting intelligent sensors and actuators to automation systems. IO-Link is standardised in the IEC 61131-9 standard.

General information on IO-Link at io-link.ifm

Input Output Device Description (IODD) with all parameters, process data and detailed descriptions of the device at documentation.ifm.com

IO-Link offers the following advantages:

• Interference-free transmission of all data and process values
• Parameter setting in the running process or presetting outside the application
- Parameters for identifying the connected devices in the system
• Additional parameters and diagnostic functions
• Automatic backup and restore of parameter sets in case of device replacement (data storage)
- Logging of parameter sets, process values and events
• Device description file (IODD - Input Output Device Description) for easy project planning
• Standardised electrical connection
- Remote maintenance

4.2 Zero point behaviour of the device display and outputs

Due to permissible device tolerances and temperature changes, the sensor can show a deviation from the zero point when no pressure is applied. To prevent this, the device is equipped with functions that keep the measured signal more stable at the process value 0.

Zero point behaviour of the device display and switching output:

Fig. 1: Device display and switching output

1: Process value
2: Sensor output signal with hysteresis (green)
3: Ideal measurement signal (red)
4: System pressure
5: Zero point stabilisation → Data sheet

The first process value that is shown on the device display and can be evaluated via the switching output is determined by the zero point stabilisation.

The switching output cannot be configured within the zero point stabilisation.

The zero point stabilisation is specified in \% of the span → Data sheet.

Zero point behaviour of the analogue output and communication via IO-Link:

Fig. 2: Analogue output and communication via IO-Link

1: Process value
2: Sensor output signal (green)
3: Ideal measurement signal (red)
4: System pressure
5: Zero point stabilisation → Data sheet
6: 0.5 x zero point stabilisation → data sheet

The first process value that can be evaluated via the analogue output and the IO-Link communication is indicated by the half zero point stabilisation (6).

In the further range of the zero point stabilisation (5), the output signal of the sensor runs at a larger gradient angle.

The zero point stabilisation is specified in \% of the span → Data sheet.

4.3 Operating modes

The operating mode is defined by the wiring ( → Electrical connection) and automatically recognised by the unit.

4.3.1 2-wire operation

OUT2 (pin 2)

Analogue signal proportional to pressure 4...20 mA or 20...4 mA

4.3.2 3-wire operation

OUT1 (pin 4)	2 possibilities (automatic changeover)• switching signal for pressure limit• Communication via IO-Link
OUT2 (pin 2)	3 possibilities (manual changeover in the menu)• switching signal for pressure limit• Analogue signal proportional to pressure 4...20 mA• Analogue signal proportional to pressure 20...4 mA

4.4 Switching function (only for 3-wire operation)

OUTx changes its switching status if it is above or below the set switching limits (SPx, rPx). The following switching functions can be selected:

• Hysteresis function / normally open: [OUx] = [Hno] (→ Figure hysteresis function).
• Hysteresis function / normally closed: [OUx] = [Hnc] (→ Figure hysteresis function).

First the set point (SPx) is set, then the reset point (rPx) with the requested difference.

• Window function / normally open: [OUx] = [Fno] (→ Figure window function).
• Window function / normally closed: [OUx] = Fnc
• The width of the window can be set by means of the difference between SPx and rPx. SPx = upper value, rPx = lower value.

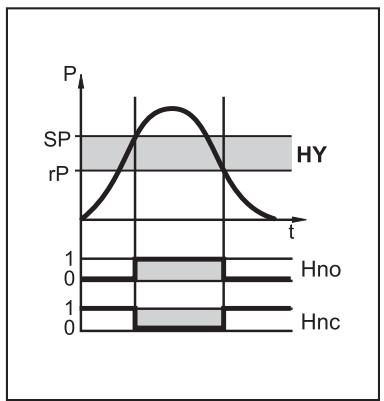

Fig. 3: Hysteresis function

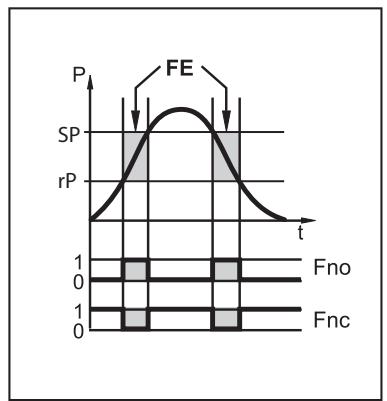

Fig. 4: Window function

P =	System pressure
HY =	Hysteresis
FE =	Window

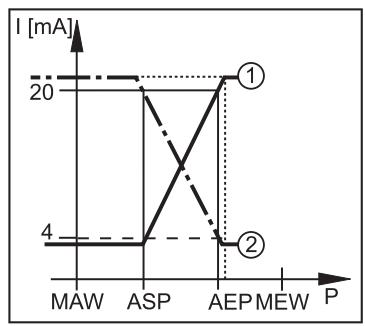

4.5 Analogue function

The analogue output can be configured.

- [OU2] defines whether the set measuring range is provided as 4...20 mA ([OU2] = [I]) or 20...4 mA ([OU2] = [InEG]).

Scaling can be set by means of the teach process or by entering a value for the parameters ASP and AEP.

• Teaching the analogue start point [tASP] or setting the parameter [ASP] defines at which measured value the output signal is 4 mA (20 mA at [InEG]).
• Teaching the analogue end point [tAEP] or setting the parameter [AEP] defines at which measured value the output signal is 20 mA (4 mA at [InEG]).

Minimum difference between [ASP] and [AEP] = 25 % of the final value of the measuring range (Turn-Down 1:4); for PI2x09: 25 % of the measuring span.

P:	System pressure
MAW:	Initial value of the measuring range
MEW:	Final value of the measuring range
1:	[OU2] = [I]
2:	[OU2] = [InEG]

In the set measuring range the output signal is between 4 and 20 mA ([OU2] = [I]) or between 20 and 4 mA ([OU2] = [InEG]).

It is also indicated:

• System pressure above the measuring range:

• Output signal > 20 mA at [OU2] = [I].
• Output signal 4 to 3.8mA at [OU2] = [InEG].

• System pressure below the measuring range:

• Output signal 4 to 3.8 mA at [OU2] = [I].
• Output signal > 20 mA at [OU2] = [InEG].

4.6 Customer-specific calibration

The customer-specific calibration changes the curve of measured values compared to the real measured values Calibrate curve of measured values ( → ☐ 30).

• Two calibration points can be defined (CP1, CP2). The two points are independent of each other.
• The two calibration points must be within the scaled measuring range. Analogue function (→ 10)
• The zero point calibration [COF] influences the calibration of the curve of measured values. Recommendation: Set [COF] to 0, then calibrate the curve of measured values Zero-point calibration ( → ☐ 29).

After a change the calibration can be reset to factory setting: [res]

P: Measured pressure

P': Modified measured value

CP1: Calibration point 1

CP1': Modified measured value for CP1

CP2: Calibration point 2

1: Curve of measured values at factory setting
2: Curve of measured values after calibration

P: Measured pressure

P': Modified measured value

CP1: Calibration point 1

CP2: Calibration point 2

CP2': Modified measured value for CP2

1: Curve of measured values at factory setting

2: Curve of measured values after calibration

P: Measured pressure

P': Modified measured value

CP1: Calibration point 1

CP1': Modified measured value for CP1

CP2: Calibration point 2

CP2': Modified measured value for CP2

1: Curve of measured values at factory setting

2: Curve of measured values after calibration

5 Installation

CAUTION

If the medium temperature is above 50\ °C ( 122\ °F ), parts of the housing can increase in temperature to over 65\ °C ( 149\ °F ).

▷ Risk of burns.

▶ Protect the housing against contact with flammable substances and unintentional contact.

CAUTION

▷ Before installing and removing the device

▶ Make sure that no pressure is applied to the system and there is no medium in the pipe or tank. Also always take into account the potential dangers related to extreme machine and medium temperatures.

CAUTION

▷ Before installing and removing the device

▶ Allow the device and process adapter to cool down before maintenance.

Available accessories: www.ifm.com.

When using siphons

▶ Fill these with liquid before set-up.

5.1 Connection versions clamp seals

The clamp adapter must be suitable for the system pressure.

▶ Use connection pieces with a suitable system seal, clamp and screw plug.

▶ For installation where EHEDG conditions have to be met: → EHEDG position paper

The tightening torque of the clamp adapter depends on the sealing version and the Shore hardness of the seal used.

▶ Tightening torque for the clamp adapter: → Manufacturer's specification

Clamp connection to pipe according to DIN 11866	PI22xxEffective diameter:Dw = 34 mm	PI23xxEffective diameter:Dw = 47.5 mm
Series A - metric	Nominal width DN 40Di = 38 mm	Nominal width DN 50Di = 50 mm
Series B - ISO	Nominal widthDN / OD 42.4Di = 38.4 mm	----
Series C - ASME	Nominal widthDN / OD 1 1⁄2“Di = 34.8 mm	Nominal widthDN / OD 2“Di = 47.5 mm

Internal pipe diameter Di (d2) > diameter of the effective area of the diaphragm Dw (d1).

5.2 Use in hygienic areas according to 3-A

The following applies to devices with 3-A certification:

▶ Only use adapters with 3-A certification for the process connection.
▶ Do not install the device in the lower section of the pipe or tank (positions 4 and 5) in order that the medium can run off the area of the measuring element.

5.3 Use in hygienic areas to EHEDG

The device is suited for CIP (cleaning in process) when installed correctly.

▶ Observe the application limits (temperature and material resistance) according to the data sheet.

▶ Ensure that the installation of the device in the system complies with EHEDG guidelines.
▶ Use self-draining installation.
▶ Only use process adapters permitted according to EHEDG with special seals required by the EHEDG position paper.

The seal of the system interface must not be in contact with the effective area of the ceramic cell. Any influence of the seal on the effective area must be avoided.

▶ When mounted in a tank, the installation must be flush mount. If not possible then direct water jet cleaning must be possible. Dead spaces must be detected.

▶ To avoid dead space adhere to the dimensions: L < D

5.4 Function ventilation diaphragm

▷ The ventilation diaphragm enables the relative pressure measurement since barometric and temperature-dependent pressure fluctuations between the measuring cell and the environment are compensated for.

The ventilation diaphragm is protected against damage by a screwed filter cover with circumferential ports.

For a correct functioning of the ventilation diaphragm please take the following into account:
▶ Remove soiling and cleaning agents immediately using plenty of lime-deficient splash water.

If the sensor is in a cooling stage:

▶ Avoid contact of the ventilation diaphragm with liquids to avoid negative pressure in the measuring system (resulting in a slightly falsified measured value) and additional strain on the diaphragm.

5.5 Orientation filter cover

When the sensor is mounted in a vertical position, the condensate escapes through the ports in the protective cap due to gravity.

When the sensor is mounted horizontally and the display is orientated upwards or downwards, the condensate is less likely to escape via the filter cover, as this is located at the top or bottom point ( → Figure Filter cover).

Fig. 5: Filter cover

▶ Ideal orientation (1): The filter cover is in a horizontal position.
The ventilation diaphragm (2) in the filter cover is in a vertical position.
▶ Maximum inclination of the filter cover: 30° (3)

5.6 Filter cover

Replace filter cover:

(1) Replacement of the filter cover incl. ventilation diaphragm (E30142).

(2) Replacement of the filter cover with a closed version (E30148)*.

When using the closed filter cover, there is no more pressure compensation of the measuring cell. This results in measurement deviations caused by:

• Fluctuations of the atmospheric pressure.
• Pressure fluctuations inside the device in case of temperature changes ( Δ 10 K ≤ 30 mbar ).

Improve the protection of the filter cover:

(3) Replacement of the filter cover with a version with a tube fitting and a vent tube that ends in a protected and dry area (E30139).

(4) Set of accessories (E30467) with integrated replacement diaphragm (GORE), for high degree of soiling and / or high climate pollution. Function: (→ Instructions E30467)

▶ Avoid soiling and moisture during the replacement.
▶ Clean the thread carefully and without residues.
▶ Do not damage the adhesive surface for the diaphragm on the sensor.
▶ Observe the orientation of the filter cover ( → Installation instructions E30139 / E30467).

6 Electrical connection

The unit must be connected by a qualified electrician.

Observe the national and international regulations for the installation of electrical equipment.

Voltage supply according to SELV, PELV.

▶ Disconnect power.
▶ Connect the unit as follows:

1: 2-wire operation
2: 3-wire operation

Pin	Core colour
1:	BN	brown
2:	WH	white
3:	BU	blue
4:	BK	black
OUT1: Switching output or IO-Link
OUT2: Switching output or analogue output
Colours to DIN EN 60947-5-2

Circuit examples:

1: 2 x positive switching
2: 2 x negative switching
3: 1 x positive switching / 1 x analogue
4: 1 x negative switching / 1 x analogue

7 Operating and display elements

1 to 8: Indicator LEDs
LED 1 – 5	System pressure in the indicated unit of measurement.
LED 6	System pressure in % of the set scaling of the analogue output (range ASP to AEP) if [OU2] is configured as analogue output. System pressure in % of the final value of the measuring range if [OU2] is configured as switching output.
LED 7	Switching status OUT2 (on if output 2 is switched).
LED 8	Switching status OUT1 (on if output 1 is switched).
9: Alphanumeric display, four digits.
Display of the current system pressure. Indication of the parameters and parameter values.
10: Set button
Setting of the parameter values (scrolling by holding pressed, incrementally by pressing once).
11: Mode/Enter button
Selection of the parameters and acknowledgement of the parameter values.

8 Menu

8.1 Menu structure: Main menu

1: Change to menu level 2 (extended functions).

Menu items highlighted in grey are not active in 2-wire operation.

8.2 Explanation of the main menu

SP1/rP1*	Upper / lower limit for system pressure at which OUT1 switches.
OU1*	Output function for OUT1:Switching signal for the pressure limits: hysteresis function [H ..] or window function [F ..], either normally open [. no] or normally closed [. nc].
OU2	Output function for OUT2:Switching signal for the pressure limits: hysteresis function [H ..] or window function [F ..], either normally open [. no] or normally closed [. nc]; (only available for 3-wire operation). Analogue signal for the current system pressure: 4...20 mA [I], 20...4 mA [InEG].
tCOF	Teach zero-point calibration.
tASP	Teach analogue start point for system pressure: set measured value at which 4 mA is provided (20 mA if [OU2] = [InEG]).
tAEP	Teach analogue end point for system pressure: set measured value at which 20 mA is provided (4 mA if [OU2] = [InEG]).
SP2/rP2*	Upper / lower limit for system pressure at which OUT2 switches.
EF	Extended functions / opening of menu level 2.

* Menu items not active in 2-wire operation

8.3 Menu structure: Level 2 (extended functions)

1: Change to the main menu, 2: Change to menu level 3 (simulation).

Menu items highlighted in grey are not active in 2-wire operation.

8.4 Explanation of menu level 2

Uni	Standard unit of measurement for system pressure.
SELd	Display mode:Pressure in the unit set in [Uni]. Pressure in % of the set scaling of the analogue output.
ASP	Analogue start point for system pressure: Measured value at which 4 mA is provided (20 mA if [OU2] = [InEG]).
AEP	Analogue end point for system pressure: Measured value at which 20 mA is provided (4 mA if [OU2] = [InEG]).
HI	Maximum value memory for system pressure.
LO	Minimum value memory for system pressure.
COF	Zero-point calibration.
dS1*	Switch-on delay for OUT1.
dr1*	Switch-off delay for OUT1.
dS2*	Switch-on delay for OUT2, only active if [OU2] = [Hnc], [Hno], [Fnc] or [Fno].
dr2*	Switch-off delay for OUT2, only active if [OU2] = [Hnc], [Hno], [Fnc] or [Fno].
FOU1*	Behaviour of output 1 in case of an internal fault.
FOU2	Behaviour of output 2 in case of an internal fault.
P-n*	Switching logic for the outputs: pnp or npn.
dAP	Damping for switching outputs and display.
dAA	Damping for analogue output (OUT2), also has an effect on the IO-Link process value.
diS	Update rate and orientation of the display.
CAL	Calibration function (setting the curve of measured values).
CP1	Calibration point 1.
CP2	Calibration point 2.
SIM	Change to menu level 3 (simulation).
rES	Restore factory setting.

* Menu items not active in 2-wire operation

8.5 Menu structure: level 3 (simulation)

With setting SEL = OU:

With setting SEL = Proc:

2: Change to menu level 2 (extended functions).

Menu items highlighted in grey are not active in 2-wire operation.

8.6 Explanation of menu level 3

With setting SEL = OU
SEL	Status to be simulated:Output functions [OU].
S. OU1*	Simulation values for OUT1, only active for 3-wire operation and if [SEL] = [OU]. Output inactive [OPEN] or output active [CLOS].
S. OU2	Simulation values for OUT2, only active if [SEL] = [OU]. For 3-wire operation and if OUT2 has been configured as switching output: output inactive [OPEN] or active [CLOS]. If OUT2 is set as analogue output: analogue signal between 3.6 and 21.1 mA.
S. TIM	Time for the simulation process in minutes.
S. ON	Start of the simulation process. During the simulation process the display alternately shows [SIM] and the current operation indication. If the simulation process is aborted (briefly press [Mode/Enter] or [Set]) [S. OFF] is indicated for 2 s, then [SEL] is active again.

* Menu items not active in 2-wire operation

With setting SEL = Proc
SEL	Status to be simulated:• Process value [Proc].
S. Pr	Simulation of a process value, only active if [SEL] = [Proc].• Any value between initial value of the measuring range and final value of the measuring range.
S. TIM	Time for the simulation process in minutes.
S. ON	Start of the simulation process. During the simulation process the display alternately shows [SIM] and the current operation indication. If the simulation process is aborted (briefly press [Mode/Enter] or [Set]) [S. OFF] is indicated for 2 s, then [SEL] is active again.

9 Parameter setting

Depending on the parameter setting, the parameters available in the menu may change.

Parameter setting can be carried out via the IO-Link interface or via the operating elements on the unit.

Parameters can be set before installation or during operation.

If you change parameters during operation, this will influence the function of the plant.

▶ Ensure that there will be no malfunctions in your plant.

During parameter setting the unit remains in the operating mode. It continues to monitor with the existing parameter until the parameter setting has been completed.

Changes to the parameters COF, CP1 and CP2 take effect immediately.

9.1 Parameter setting in general

CAUTION

With high medium or ambient temperatures, parts of the housing may get hot.

▷ Risk of burns
▶ Do not touch the device with your hands.
▶ If necessary, use a blunt object to make settings on the device.

▶ 3 steps must be taken for each parameter setting.

1: Select Parameter

▶ Press [Mode/Enter] until the requested parameter is displayed.
If the main menu is protected by an access code, [Cod0] flashes in the display.
▶ Press and hold down [Set] until the valid code no. is displayed.
▶ Briefly press [Mode/Enter].

When delivered by ifm electronic: no access restriction.

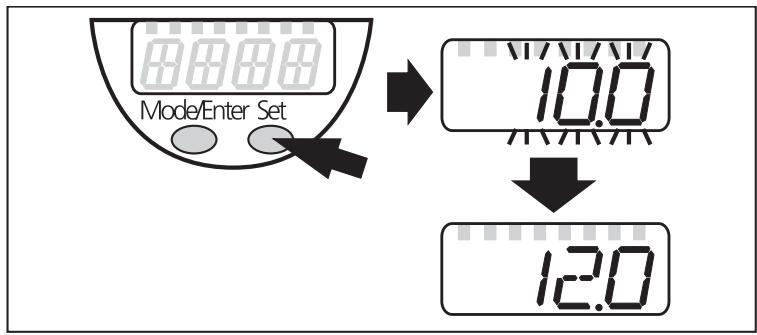

2: Set parameter value

▶ Press and hold down [Set].
▷ Current setting value of the parameter flashes for 5 s.
▷ After 5 s: setting value is changed: incrementally by pressing the button once or continuously by keeping the button pressed.
▷ The numerical values are incremented continuously.

For reducing the value:

▶ let the display move to the maximum setting value.
▷ Then the cycle starts again at the minimum setting value.

3: Acknowledge parameter value

▶ Briefly press [Mode/Enter].
▷ The parameter is displayed again. The new setting value is saved.

Set other parameters

▶ Start again with step 1

Finish parameter setting

▶ Press [Mode/Enter] several times until the current measured value is displayed or wait for 15 s.
▷ The device returns to the operating mode.

For 2-wire operation those menu items referring to switching functions are not active ( → Menu structure); in addition, those parameter values of some menu items referring to switching functions cannot be selected.

If [SLoc] is displayed when an attempt is made to modify a parameter value, the sensor is locked via software. This locking can only be removed with a parameter setting software.

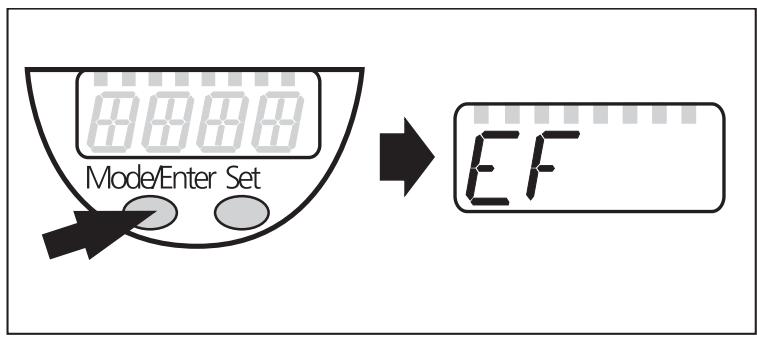

Change from menu level 1 to menu level 2

▶ Press [Mode/Enter] until [EF] is displayed.

▶ Briefly press [Set].
▷ The first parameter of the submenu is displayed (here: [Uni]).

If menu level 2 is protected by an access code, "Cod1" flashes in the display.

▶ Press and hold down [Set] until the valid code no. is displayed.
▶ Briefly press [Mode/Enter].

When delivered by ifm electronic: no access restriction.

Locking

The device can be locked electronically to prevent unintentional settings.

▶ Make sure that the device is in the normal operating mode.
▶ Press [Mode/Enter] + [Set] for 10 s.
▷ [Loc] is displayed.

During operation: [Loc] is briefly displayed if you try to change parameter values.

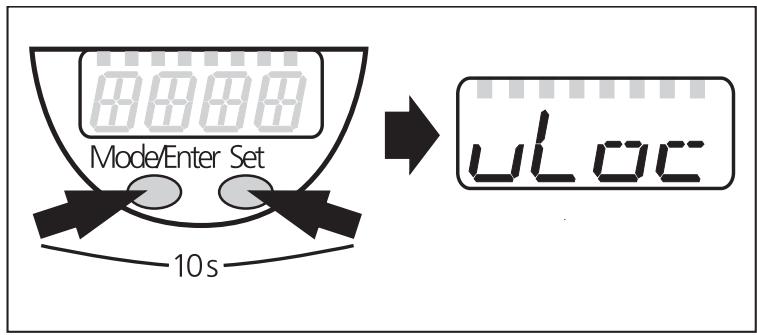

Unlocking

▶ Press [Mode/Enter] + [Set] for 10 s.
▷ [uLoc] is displayed.

Timeout

If no button is pressed for 15 s during parameter setting, the device returns to the operating mode with unchanged values.

9.2 Parameter setting via IO-Link

The device parameters can be set via the IO-Link interface in the following ways, for example:

• Parameter setting via a suitable parameter setting software, e.g. ifm moneo|configure
  • Parameter setting via a PLC
  • Parameter setting via an IIoT application

Requirements for parameter setting via the IO-Link interface:

√ The Input Output Device Description (IODD) for the device in case of parameter setting via a parameter setting software, see documentation.ifm.com
√ The IO-Link interface description (PDF) for the device in case of parameter setting via a PLC or IIoT application, see documentation.ifm.com
√ An IO-Link master
▶ Connect the IO-Link master to the parameter setting software, the PLC or the IIoT application.
▶ Connect the device to a suitable free port of the IO-Link master.
▶ Set the port of the IO-Link master to the IO-Link operating mode.
▷ The device changes to the IO-Link mode.
▶ Change the parameter settings in the software.
▶ Write the parameter settings to the device.

Support for system integration and parameter setting via IO-Link:

→ Manual of the parameter setting software (e.g. moneo)
→ Explanations and startup packages at ifm.com/cnt/io-link-system-integration.

9.3 Configure display (optional)

▶ Select [Uni] and set the unit of measurement:• [bAr], [mbAr], [MPA], [kPA].• [psi]• [InHO] (only PI2xx6, PI2xx7, PI2xx9).• [mWS] (only PI2xx6, PI2xx7, PI2xx9).	[Uni]
► ▶ Select [SELd] and set type of display:• [P]: system pressure in the unit set in Uni.• [P%]: system pressure in % of the set scaling of the analogue output; the following applies: 0% = ASP value / 100% = AEP value. If OU2 is configured as switching output, [ASP] and [AEP] are not active. In this case the following applies: 0% = initial value of the measuring range / 100% = final value of the measuring range. If [SELd] = [P%] please note the following: "0" does not mean that no pressure is applied to the sys-tem!	[SELd]
► ▶ Select [diS] and set the update rate and orientation of the display:• [d1]: update of the measured values every 50 ms.• [d2]: update of the measured values every 200 ms.• [d3]: update of the measured values every 600 ms.• [rd1], [rd2], [rd3]: display as with d1, d2, d3; rotated by 180°.• [OFF] = The measured value display is deactivated in the Run mode. When one of the buttons is pressed, the current measured value is displayed for 15 s. Pressing the [Mode/Enter] button again activates the display mode. The LEDs remain active even if the display is deactivated. Error messages are displayed even if the display is deactivated.	[diS]

9.4 Set output signals

9.4.1 Setting of the output function

▶ Select [OU1] and set the switching function:• [Hno] = hysteresis function/normally open.• [Hnc] = hysteresis function/normally closed.• [Fno] = window function/normally open.• [Fnc] = window function/normally closed.	[OU1]
▶ Select [OU2] and set the function:• [Hno] = hysteresis function/normally open.• [Hnc] = hysteresis function/normally closed.• [Fno] = window function/normally open.• [Fnc] = window function/normally closed.• [I] = current signal proportional to pressure 4...20 mA.• [InEG] = current signal proportional to pressure 20...4 mA.	[OU2]

9.4.2 Set switching limits

▶ Select [SP1] / [SP2] and set the value at which the output switches.	[SP1][SP2]
▶ Select [rP1] / [rP2] and set the value at which the output switches.rPx is always smaller than SPx. The unit only accepts values which are lower than the value for SPx.	[rP1][rP2]

9.4.3 Scale analogue value for OUT2

▶ Approach the desired minimum system pressure in the installation and keep it constant. ▶ Press [Mode/Enter] until [tASP] appears. ▶ Press and hold down [Set]. ▷ Current setting value flashes. ▶ Release [Set] when the display stops flashing. ▷ New setting value is displayed. ▶ Briefly press [Mode/Enter]. ▷ The current system pressure is defined as start value for the analogue signal.	[tASP]
▶ Approach the desired maximum system pressure in the installation and keep it constant. ▶ Press [Mode/Enter] until [tAEP] appears. ▶ Press and hold down [Set]. ▷ Current setting value flashes. ▶ Release [Set] when the display stops flashing. ▷ New setting value is displayed. ▶ Briefly press [Mode/Enter]. ▷ The current system pressure is defined as end value for the analogue signal.	[tAEP]

You can only teach ASP / AEP within defined limits ( → Setting ranges). If teaching is made with an invalid pressure value, [UL] or [OL] is displayed. After acknowledgement by [Mode/Enter] [Err] flashes, the ASP value / AEP value is not changed.

Alternatively:► ▶ Select [ASP] and set the measured value at which 4 mA is provided (20 mA if [OU2] = [InEG]).► ▶ Select [AEP] and set the measured value at which 20 mA is provided (4 mA if [OU2] = [InEG]). Minimum distance between ASP and AEP = 25 % of the final value of the measuring range (turn-down 1:4).

[ASP][AEP]

9.5 User settings (optional)

9.5.1 Zero-point calibration

► ▶ Select [coF] and set a value between -5 % and 5 % of the final value of the measuring range. The internal measured value "0" is shifted by this value.	[coF]
Alternatively: automatic adjustment of the offset in the range 0 bar ± 5 %. ► ▶ Make sure that no pressure is applied to the system. ► ▶ Press [Mode/Enter] until [tCOF] appears. ► ▶ Press and hold down [Set]. ► ▷ The current offset value (in %) flashes briefly. ► ▷ The current system pressure is displayed. ► ▶ Release [Set]. ► ▶ Briefly press [Mode/Enter] (= to confirm the new offset value).	[tcoF]

9.5.2 Define incorrect behaviour of the outputs

▶ Select [FOU1] and set the value:• [On] = output 1 switches ON in case of a fault.• [OFF] = output 1 switches OFF in case of a fault.• [OU] = output 1 switches irrespective of a fault as defined with the parameters SP1, rP1 and OU1. ▶ Select [FOU2] and set the value:• [On] = output 2 switches ON in case of a fault, the analogue signal goes to the upper final value.• [OFF] = output 2 switches OFF in case of a fault, the analogue signal goes to the lower final value.• [OU] = output 2 switches irrespective of the fault as defined with the parameters SP2, rP2, OU2. The analogue signal corresponds to the measured value.

[FOU1][FOU2]

Error indications → self-diagnostics / error indications

9.5.3 Set delay time for the switching outputs

[dS1] / [dS2] = switch-on delay for OUT1 / OUT2.	[dS1]
[dr1] / [dr2] = switch-off delay for OUT1 / OUT2.	[dr1]
► ▶ Select [dS1], [dS2], [dr1] or [dr2] and set a value between 0.1 and 50 s (at 0.0 the delay time is not active).	[dS2]
	[dr2]

9.5.4 Set output logic for the switching outputs

▶ Select [P-n] and set [PnP] or [nPn].

[P-n]

9.5.5 Set damping for the switching signal

▶ Select [dAP] and set a value between 0.00 and 30.00 s; (at 0.00 [dAP] is not active).dAP value = response time between pressure change and change of the switching status in seconds. [dAP] influences the switching frequency: fmax = 1 ÷ 2dAP . [dAP] also has an effect on the display.

[dAP]

9.5.6 Set damping for the analogue signal

▶ Select [dAA] and set a value between 0.01 and 99.99 s; (at 0.00 [dAA] is not active). dAA value = response time between pressure change and change of the analogue signal in seconds.

[dAA]

9.5.7 Calibrate curve of measured values

▶ Set a defined reference pressure between ASP and AEP in the system. ▶ Select [CAL]. ▶ Briefly press [Set]. ▷ [CP1] is displayed. ▶ Press [Set] for 5 s. ▷ The pressure measured by the device is displayed. ▶ Press [Set] until the set reference pressure is indicated (measured pressure = reference pressure) or the corresponding analogue signal is provided on OUT2. Maximum correction value = ± 2 % of the final value of the measuring range. ▶ Briefly press [Mode/Enter]. ▷ [CP1] is displayed. ▶ Briefly press [Mode/Enter]. ▷ [CP2] is displayed. Continue with a) or b):

[CAL][CP1]

a): Finish calibration:▶ Briefly press [Mode/Enter]. ▷ [CAL] is displayed.b): Change a 2nd point on the curve of measured values▶ Set a second defined reference pressure in the system. Minimum distance between the calibration points CP1 and CP2 = 5 % of the final value of the measuring range. ▶ Press [Set] for 5 s. ▷ The pressure measured by the device is displayed. ▶ Press [Set] until the set reference pressure is indicated (measured pressure = reference pressure) or the corresponding analogue signal is provided on OUT2. Maximum correction value = ± 2 % of the final value of the measuring range. ▶ Briefly press [Mode/Enter]. ▷ [CP2] is displayed. ▶ Briefly press [Mode/Enter]. ▷ [CAL] is displayed, the process is finished.

[CP2]

9.6 Service functions

9.6.1 Read min/max values for the system pressure

▶ Select [HI] or [LO] and briefly press [Set]. [HI] = maximum value, [LO] = minimum value. Delete memory:▶ Select [HI] or [LO]. ▶ Press and hold down [Set] until [----] is displayed. ▶ Briefly press [Mode/Enter].

[HI][LO]

9.6.2 Reset all parameters to factory setting

▶ Select [rES]. ▶ Press and hold down [Set] until [----] is displayed. ▶ Briefly press [Mode/Enter]. It is recommended to take down your own settings before carrying out the function (→ Factory setting).

[res]

9.7 Simulation function

9.7.1 Open menu level 3 (simulation)

▶ Select [EF] and briefly press [Set] (= to open menu level 2).	[EF]
▶ Select [SIM] and briefly press [Set] (= to open menu level 3).	[SIM]
▷ [SEL] is displayed.

9.7.2 Set simulation value

Output statesIf [SEL] is active:► ▶ Press and hold down [Set] until [OU] is displayed.► ▶ Briefly press [Mode/Enter]. ▷ [S. OU1] is displayed (in 2-wire operation [S. OU2] is displayed).► ▶ Press [Set] to set the requested value:[OPEN] = output 1 not active / open. [CLOS] = output 1 active / closed.► ▶ Briefly press [Mode/Enter]. ▷ [S. OU2] is displayed.► ▶ Press [Set] to set the requested value:If [OU2] = [Hnc], [Hno], [Fnc] or [Fno] (not in 2-wire operation):- [OPEN] = output 2 not active / open.- [CLOS] = output 2 active / closed. If [OU2] = [I] or [InEG]:- 3.60...21.10 mA in steps of 0.01 mA.► ▶ Briefly press [Mode/Enter].

[SEL][SOU.1][SOU.2]

Process valueIf [SEL] is active:► ▶ Press [Set] and keep it pressed until [Proc] is displayed.► ▶ Briefly press [Mode/Enter]. ▷ [S. Pr] is displayed.► ▶ Press [Set] to set the requested pressure value.► ▶ Briefly press [Mode/Enter].

[SEL][S. Pr]

9.7.3 Set simulation value

▶ Select [S. Tim] and set a value between 1...60 minutes.

[S. Tim]

9.7.4 Start simulation

► Select [S. On] and set:► ▶ Press and hold down [Set] until the display alternately shows [SIM] and the current operation indication. Current operation indication:• Current system pressure if [SEL] = [OU].• Simulated measured value set in [S. Pr] if [SEL] = [Proc]. After the simulation time has elapsed ▷ [S. OFF] is displayed for 2 s, then [SEL].	[S. On]
Abort simulation:► ▶ Briefly press [Mode/Enter] or [Set]. ▷ [S. OFF] is displayed for 2 s, then [SEL].

10 Operation

After switching on the supply voltage and expiry of the power-on delay time

(2-wire: approx. 1 s / 3-wire: approx. 0.5 s), the device is in the RUN mode (= normal operating mode). It carries out its measurement and evaluation functions and generates output signals according to the set parameters.

10.1 Read set parameters

▶ Press [Mode/Enter] until the requested parameter is displayed.
▶ Briefly press [Set].
▷ The device displays the corresponding parameter value for approx. 15 s. After 15 s it again displays the parameter, then it returns to the Run mode.

10.2 Change the display in the Run mode

▶ Briefly press [Set] in the Run mode.
The device displays the current measured value in the selected type of display for approx. 15 s:

• System pressure in the unit set in Uni.

• System pressure in % of the set scaling of the analogue output if [OU2] is configured as analogue output.
• System pressure in % of the final value of the measuring range if [OU2] is configured as switching output.

10.3 Self-diagnostics / error indications

The device has many self-diagnostic options.

• It monitors itself automatically during operation.
• Warnings and faults are displayed (even if the display is deactivated), in addition they are available via IO-Link.
• If a fault is found, the outputs are set according to the setting of the parameters FOU1 and FOU2.

Indication	IO-Link event number	IO-Link PD-Valid	IO-Link device status Idx 36	Type of fault	Corrective measures
-/-*	0x5111	no	2**	Supply voltage too low.	Check / correct the supply voltage. In 2-wire operation: Check / correct the connected load.
SC1	0x8CB3	yes	2**	Excessive current switching output 1.	Check switching output 1 for short circuit or excessive current; Remove the fault.
SC2	0x8CB4	yes	2**	Excessive current switching output 2.	Check switching output 2 for short circuit or excessive current; Remove the fault.
Para	0x1810/0x1 Fxx	no	2**	Parameter setting fault via IO-Link; setting a parameter outside the permitted area.	Define parameter via the IO-Link event number 0x1 Fxx. Change parameter via IO-Link or setting buttons. Reset all parameters to factory setting.
OL	0x8C10	yes	2**	Process value too high.	Check / reduce system pressure.
UL	0x8C30	yes	2**	Process value too low.	Check / increase system pressure.
E100	0x5000	no	4**	Internal sensor error detected.	Replace the device.
W531	0x8CA1	yes	2**	Analogue output at the upper limit (20.5 mA).	Increase AEP value if possible (if [OU2] = [InEG] ASP value) or reduce system pressure.
W530	0x8CA0	yes	2**	Analogue output at the lower limit (3.8 mA).	Reduce ASP value if possible (if [OU2] = [InEG] AEP value) or increase system pressure.
W532	0x8CA5	yes	2**	Load at analogue output too high.***	Reduce load at output 2 or increase the supply voltage.
W203	0x1822	yes	2**	Fault during the temperature compensation of the pressure measurement.	The device uses a higher temperature coefficient (i.e. with reduced accuracy). Replace the device.
W703	0x8CC2	yes	2**	Sensor temperature too high.	Reduce temperature.
W704	0x8CC3	yes	2**	Sensor temperature too low.	Increase temperature.
W161	0x4210	yes	2**	Device temperature too high (>90 °C).	Device outside the specification. Do not insulate the installation.
W162	0x4220	yes	2**	Device temperature too low (< -30 °C).	Device outside the specification. Insulate the installation.

* In case of undervoltage (fault no. W403) nothing is displayed.
** 2 = Out of Spec; 4 = Failure
*** This message is only displayed for 3-wire operation. For 2-wire operation undervoltage is detected and displayed. If OU2 is not used for the application, the message can be suppressed by defining a switching function for OU2 (define → output function).

11 Disposal, repair and return

▶ After use, dispose of the unit in an environmentally friendly way in accordance with the applicable national regulations.
▶ In case of return shipment, ensure that the unit is free from soiling, especially from dangerous and toxic substances.
▶ It is not possible to repair the unit.

12 Factory setting

	Factory setting	User settings
SP1	25 % MEW*
rP1	23 % MEW*
OU1	Hno
OU2	I
SP2	75 % MEW*
rP2	73 % MEW*
COF / tCOF	0.0
ASP / tASP	0 % MEW*PI2209: -1 bar
AEP / tAEP	100 % MEW*
Uni	bAr / mbAr
SELd	P
dS1	0.0
dr1	0.0
dS2	0.0
dr2	0.0
FOU1	OUT
FOU2	OUT
P-n	pnp
dAP	0.06
dAA	0.03
dis	d2
CP1	0.00
CP2	0.00

* = The indicated percentage of the final value of the measuring range (MEW) of the respective sensor (for PI2x09 the percentage of the measuring span) is set.
