Product Type	Pool Heat Pump
Brand	GRE
Model	HPGI70
Heating Capacity (Air 28°C / Water 28°C / Humidity 80%)	15 kW
Power Consumption (Air 28°C / Water 28°C / Humidity 80%)	2.26 kW
COP (Air 28°C / Water 28°C / Humidity 80%)	16 - 6.6
Power Supply	220-240 V ~ 50 Hz, single phase
Max Current	10.0 A
Recommended Circuit Breaker	14 A (curve D)
Recommended Max Pool Volume	80 m³
Recommended Water Flow	4.0 m³/h
Pressure Drop	15 kPa
Heat Exchanger Type	Twisted titanium tube, PVC body
Inlet/Outlet Diameter	50 mm
Refrigerant	R32 (A2L, flammable)
Refrigerant Quantity	750 g
CO2 Equivalent	0.51 tonne
Sound Level at 10 m	23-37 dB(A)
Sound Level at 1 m	40-54 dB(A)

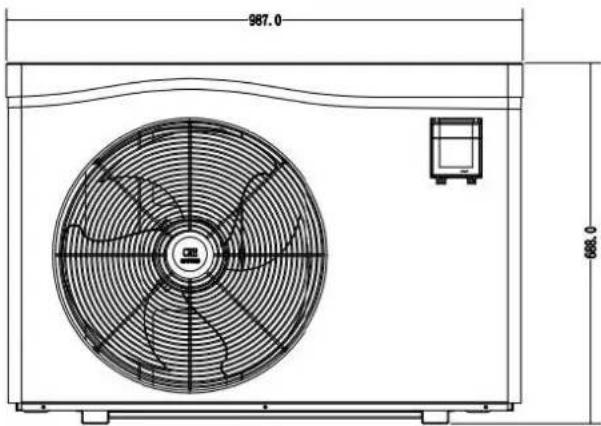

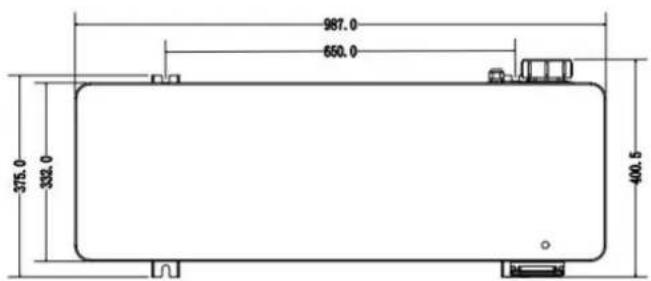

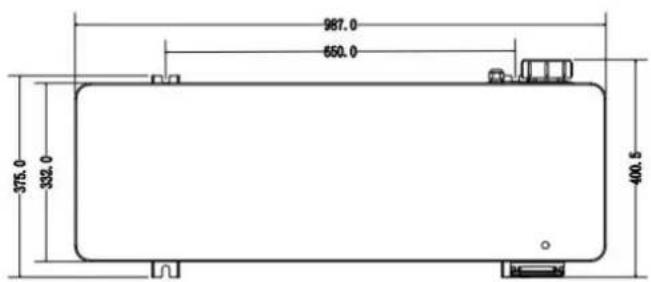

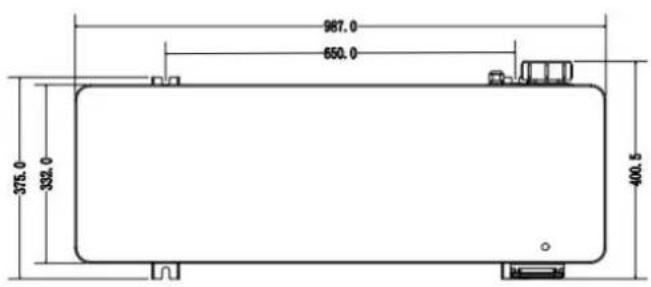

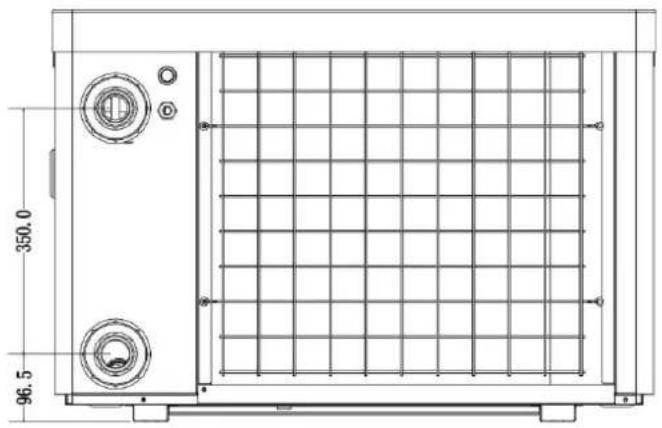

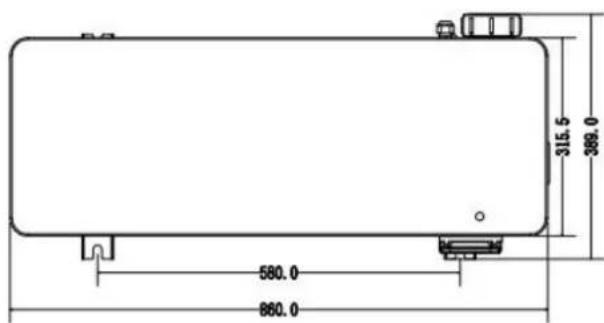

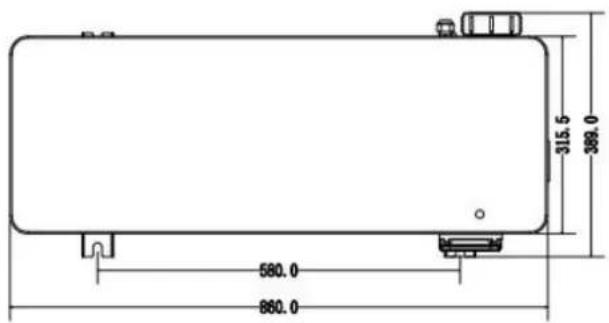

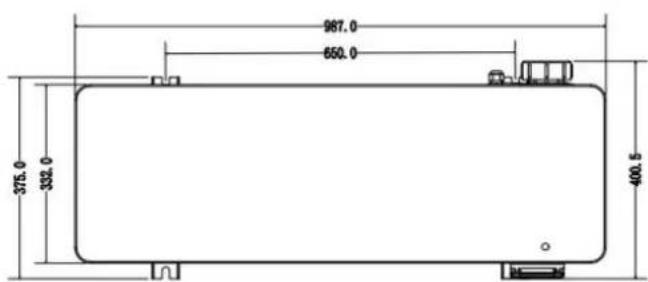

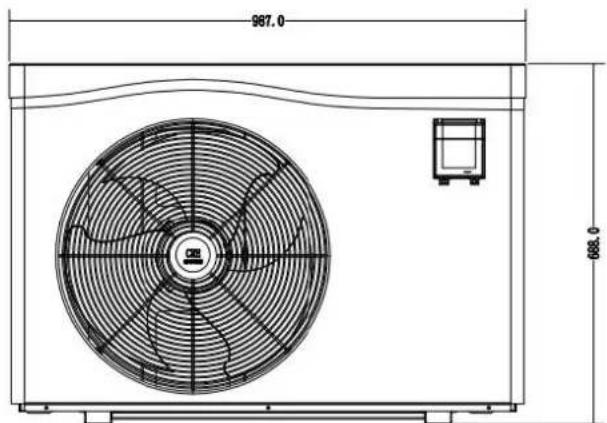

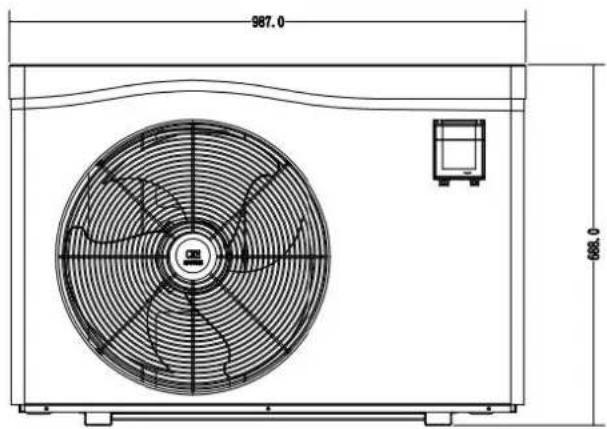

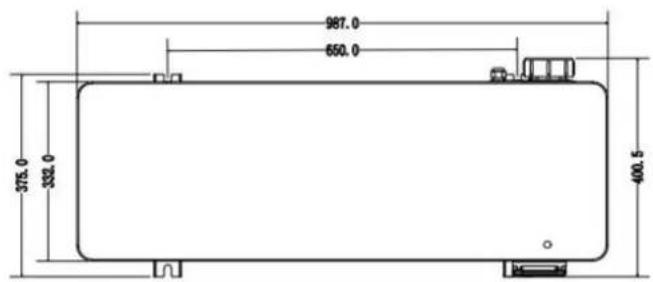

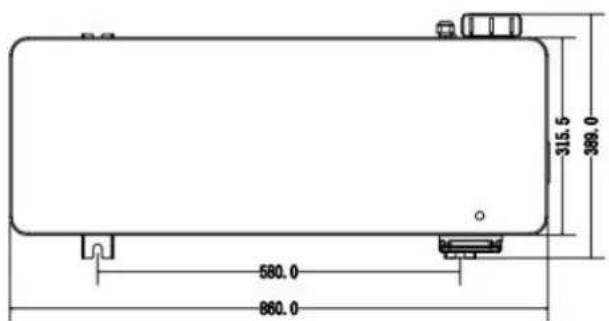

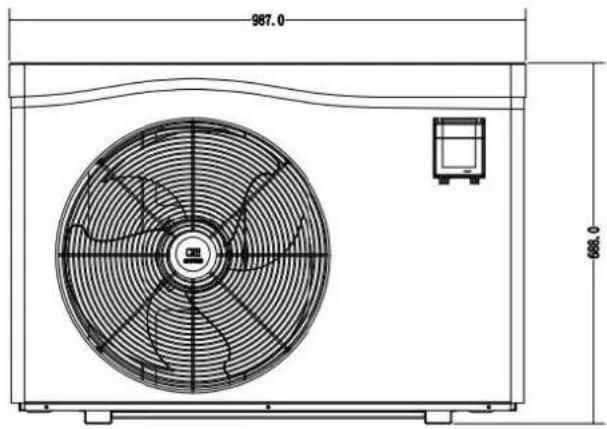

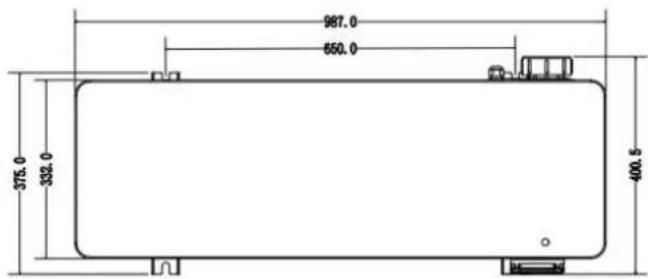

Dimensions (L x D x H)	987 x 400.5 x 688 mm
Net Weight	73 kg
Gross Weight	78 kg
Protection Rating	IPX4
Max Circuit Pressure	4.2 MPa
Operating Modes	Powerful, Smart, Silent
Special Functions	Filtration control, programmable timer, automatic defrost
Included Accessories	Rubber feet (4), drain connectors (2), protective cover, remote control cable 10 m, drainage hoses (2), winter cover
Warranty	2 years (parts and labor)

Frequently Asked Questions - HPGI70 GRE

What is the heating capacity of the HPGI70 heat pump?

The output power is 15 kW at Air 28°C / Water 28°C / Humidity 80%, and 10 kW at Air 15°C / Water 26°C / Humidity 70%.

What type of refrigerant does the HPGI70 pump use?

It uses R32, a potentially flammable A2L refrigerant. The global warming potential (GWP) is 675.

What operating modes are available?

Three modes are available: Powerful (rapid temperature rise), Smart (automatic, temperature maintenance), and Silent (quiet, for summer).

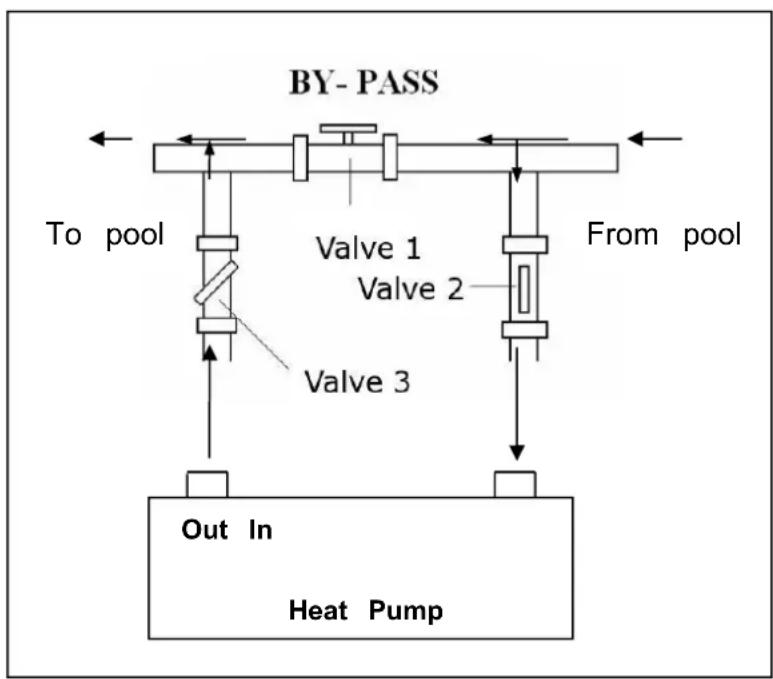

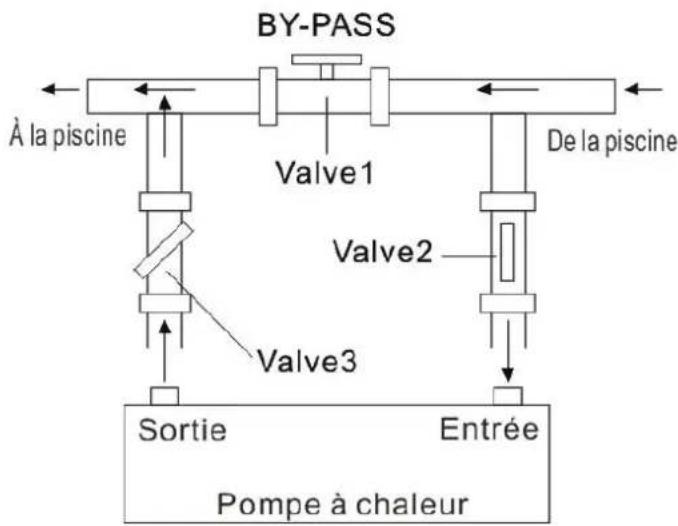

How to install the heat pump bypass?

Open valve 1, close valves 2 and 3. Then slowly open valves 2 and 3 halfway, then close valve 1 to increase flow. Adjust until a temperature difference of 2°C between inlet and outlet is achieved.

What to do if the screen displays an error code?

Refer to the troubleshooting table in the manual. For example, EE01 indicates high pressure protection (check water flow and fan), EE03 indicates water flow fault (clean the filter). If in doubt, contact a qualified technician.

What is the maximum recommended pool volume for this model?

The maximum recommended pool volume is 80 m³.

How to maintain the heat pump in winter?

It is essential to completely drain the water from the heat pump before winter or if the temperature drops below 0°C, to prevent frost damage to the titanium heat exchanger.

Can the pool filtration be controlled with the heat pump?

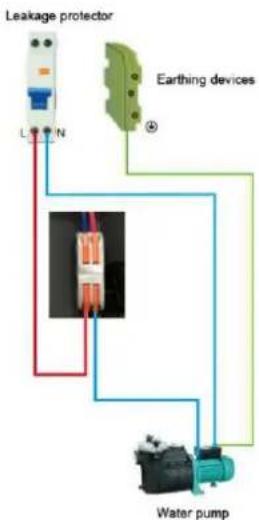

Yes, the heat pump can control the filtration pump via a dry contact. In P3=0 mode, filtration starts 60 seconds before the compressor and stops 5 minutes after. In P3=1 mode, filtration is always active.

What accessories are supplied with the HPGI70 pump?

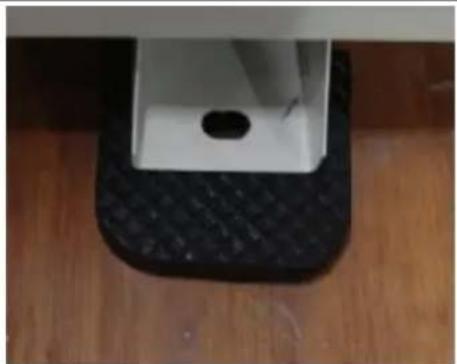

The accessories include: 4 anti-vibration rubber feet, 2 drain connectors, 1 protective cover, 1 remote control cable (10 m), 2 drainage hoses, and 1 winter cover.

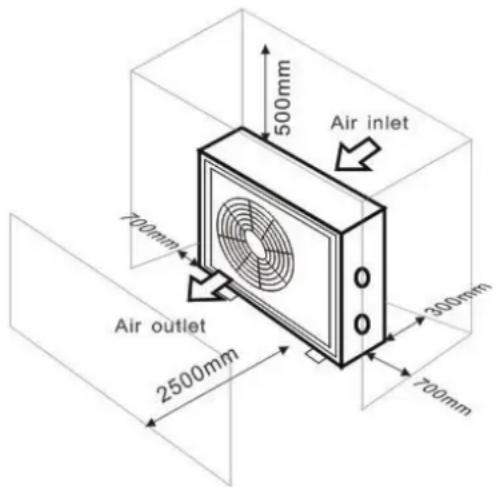

What is the minimum distance to observe for installation?

The unit must be installed outdoors with good ventilation. The minimum distances are: 500 mm at the rear, 700 mm on the sides, 700 mm in front (air outlet), and 2500 mm above.

USER MANUAL HPGI70 GRE

Exterior view of a black inverter pool heating fan with visible blades and control panel (no text or symbols on the device itself)

inverter pool heating

Refs. HPGI50

HPGI60

HPGI70

HPGI85

Owner's Manual - Manual de Instruccion Manuel d'instructions - Bedienungsanleitung Manuale delle instruzioni - Handleiding met instructies Manual de instruções - Instrukcja obsługi

DISTRIBUTED BY/DISTRIBUIDO POR/DISTRIBUÉ PAR/VERTRIEB DURCH/DISTRIBUITO DA/GEDISTRIBUEERD DOOR/DISTRIBUIDO POR/WYPRODUKOWANY PRZEZ: MANUFACTURAS GRE, S.A. ARITZ BIDEA N° 57 BELAKO INDUSTRIALDEA, APARTADO 69 - 48100 MUNGUIA (VIZCAYA) ESPAÑAN° Reg. Ind. 48-06762

MADE IN CHINA / FABRICADO EN CHINA / FABRIQUÉ AU CHINE / HERGESTELLT IN CHINA / PRODOTTO IN CHINA / GEPRODUCEERD IN CHINA / FABRICADO NA RPC /

WYPRODUKOWANO W CHINACH

INDEX FOR DIFFERENT LANGUAGES

English manual....2\~82

Manual en Español ....83\~110

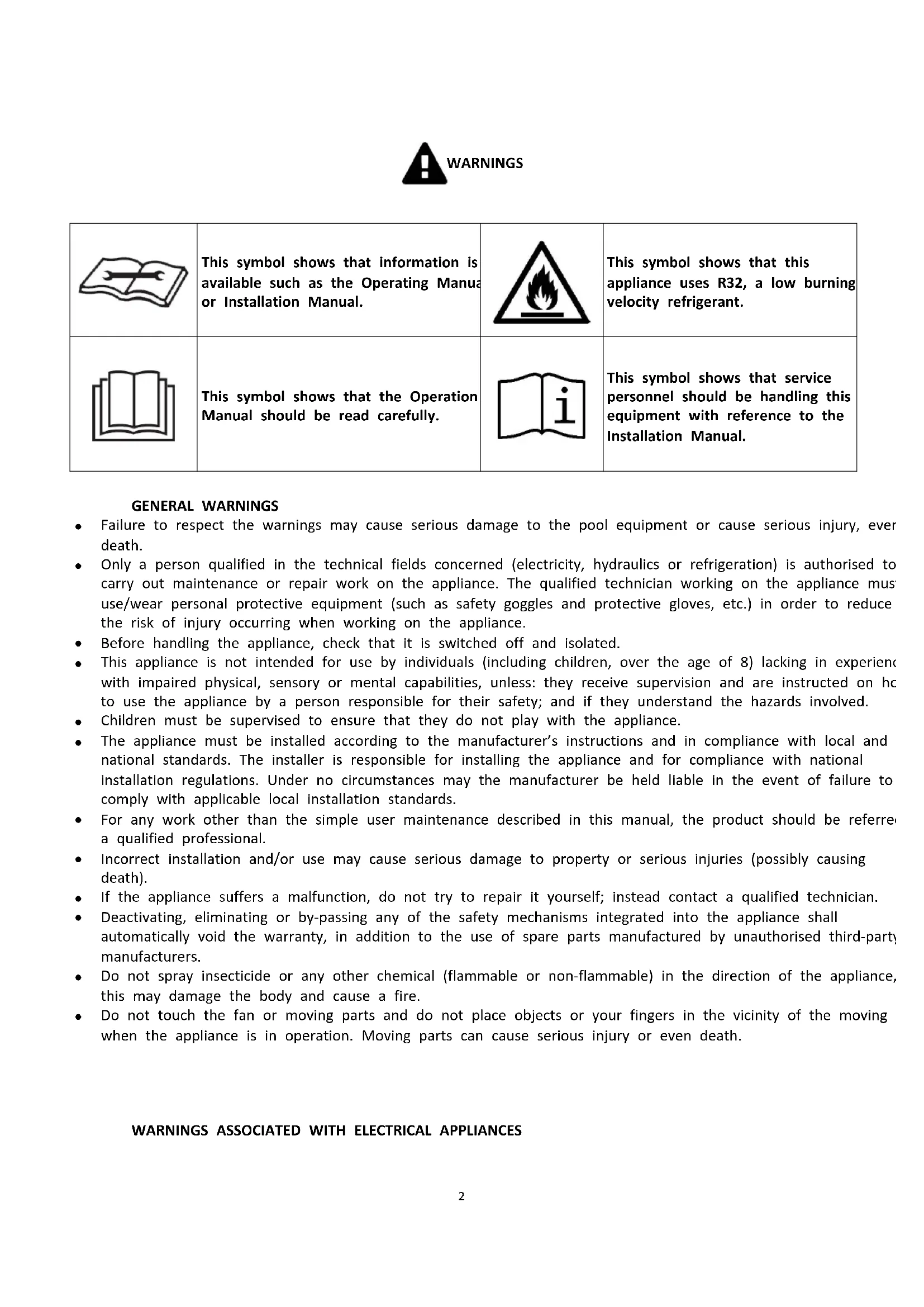

	This symbol shows that information is available such as the Operating Manual or Installation Manual.		This symbol shows that this appliance uses R32, a low burning velocity refrigerant.
	This symbol shows that the Operation Manual should be read carefully.		This symbol shows that service personnel should be handling this equipment with reference to the Installation Manual.

GENERAL WARNINGS

• Failure to respect the warnings may cause serious damage to the pool equipment or cause serious injury, ever death.
• Only a person qualified in the technical fields concerned (electricity, hydraulics or refrigeration) is authorised to carry out maintenance or repair work on the appliance. The qualified technician working on the appliance mus use/wear personal protective equipment (such as safety goggles and protective gloves, etc.) in order to reduce the risk of injury occurring when working on the appliance.
• Before handling the appliance, check that it is switched off and isolated.
• This appliance is not intended for use by individuals (including children, over the age of 8) lacking in experience with impaired physical, sensory or mental capabilities, unless: they receive supervision and are instructed on how to use the appliance by a person responsible for their safety; and if they understand the hazards involved.
• Children must be supervised to ensure that they do not play with the appliance.
• The appliance must be installed according to the manufacturer's instructions and in compliance with local and national standards. The installer is responsible for installing the appliance and for compliance with national installation regulations. Under no circumstances may the manufacturer be held liable in the event of failure to comply with applicable local installation standards.
• For any work other than the simple user maintenance described in this manual, the product should be referred a qualified professional.
• Incorrect installation and/or use may cause serious damage to property or serious injuries (possibly causing death).
• If the appliance suffers a malfunction, do not try to repair it yourself; instead contact a qualified technician.
• Deactivating, eliminating or by-passing any of the safety mechanisms integrated into the appliance shall automatically void the warranty, in addition to the use of spare parts manufactured by unauthorised third-party manufacturers.
• Do not spray insecticide or any other chemical (flammable or non-flammable) in the direction of the appliance, this may damage the body and cause a fire.
• Do not touch the fan or moving parts and do not place objects or your fingers in the vicinity of the moving when the appliance is in operation. Moving parts can cause serious injury or even death.

WARNINGS ASSOCIATED WITH ELECTRICAL APPLIANCES

• The power supply to the appliance must be protected by a dedicated 30 mA Residual Current Device (RCD), complying with the standards and regulations in force in the country in which it is installed.
• Do not use any extension lead when connecting the appliance; connect the appliance directly to a suitable power supply.
  • Before carrying out any operations, check that:
• The voltage indicated on the appliance information plate corresponds to the mains voltage.
• The power grid must be adapted to the power requirements of the appliance, and is grounded.
• The plug (where applicable) is suitable for the socket.
• Do not disconnect and reconnect the appliance to the power supply when in operation.
• Do not pull on the power cord to disconnect it from the power supply.
• If the power cord is damaged, it must be replaced by the manufacturer, its technician or a qualified person to guarantee safety.
• Do not perform maintenance or servicing operations on the appliance with wet hands or if the appliance is w
• Before connecting the appliance to the power supply, check that the connection unit or socket to which the appliance will be connected is in good condition and shows no signs of damage or rust.
• In stormy weather, disconnect the appliance from the power supply to prevent it from suffering lightning damage. Do not immerse the appliance in water or mud.

WARNINGS CONCERNING APPLIANCES CONTAINING REFRIGERANT R32

• R32 refrigerant is classed under category A2L as mildly flammable.

- Do not release R32 fluid into the atmosphere. These are fluorinated greenhouse gases, covered by the Kyoto Protocol, with a Global Warming Potential (GWP) of 675 (European regulation EU 517/2014).

- The appliance must be stored in a well-ventilated location away from all ignition sources.

• Install the unit outdoors. Do not install the unit indoors or in an enclosed and non-ventilated outdoor location

- Do not use means for accelerating the defrosting or cleaning process other than those recommended by the manufacturer.

- The appliance must be stored in a room without any permanent ignition source (such as open flames, operating gas appliance or operating electric heating).

- Do not perforate or incinerate.

- Please note that R32 refrigerant may give off a certain odour.

- In order to comply with the applicable standards and regulations in terms of the environment and installation, particular French decree No. 2015-1790 and/or European regulation EU 517/2014, a leak test must be performed on the cooling circuit at least once a year. This operation must be carried out by a specialist certified to test cooling appliances.

- Please keep the display controller in a dry area, or well close the insulation cover to protect the display control from being damaged by humidity.

MAINTENANCE: WARNINGS CONCERNING APPLIANCES CONTAINING R32 REFRIGERANT

• When servicing the appliance, the composition and state of the heat transfer fluid must be checked, as well a absence of any traces of refrigerant.
• During the annual appliance sealing test in accordance with applicable legislation, the high and low pressure switches must be checked to ensure that they are securely fastened to the refrigerant circuit and that they cut the electrical circuit when tripped.
• During maintenance work, ensure there are no traces of corrosion or oil around the cooling components.
• Do not braze or weld the pipe if there is refrigerant inside machine. Please do not charge the gas when in a confined space.

Area check

- Before starting work on systems containing flammable refrigerants, safety checks must be carried out to guarantee a minimal ignition risk.

Work procedure

• The work must be carried out according to a controlled procedure in order to reduce the risks of releasing a flammable gas or vapour while working.
• Before beginning work on the cooling circuit, stop the appliance and wait for a few minutes before fitting the temperature and pressure sensors. Some elements such as the compressor and piping may reach temperatures excess of 100^ C and high pressures with the consequent risk of severe burns.

General work area

- All maintenance staff and other personnel working in the surrounding area must be made aware of the work carried out. Work conducted in enclosed areas must be avoided.

Check for the presence of refrigerant

- The area must be analysed using a suitable refrigerant detector before and during work so that the technician informed of the presence of a potentially toxic or flammable atmosphere. Check that the leak detection equipment used is suitable for use with all refrigerants concerned, i.e. that it does not cause a spark, is corre isolated or is entirely safe.

Check for the presence of a fire extinguisher

- If work must be carried out on the cooling equipment or any part associated therewith at a certain temperatu suitable fire extinguishing means must be within reach. Place a dry chemical fire extinguisher or CO_2 fire extinguisher near the work area.

No source of ignition

- No person carrying out work on a cooling system involving exposing the piping may use any ignition source, which could create a fire or explosion risk. All possible ignition sources, in particular cigarettes, must not enter within sufficient perimeter of the installation, repair, removal or disposal site, in the event that refrigerant could be released into the surrounding space. Before starting the work, the area around the equipment must be examined to check for all fire or ignition risks. "No smoking" signs must be displayed.

Area ventilation

- Before accessing the unit in any manner whatsoever with the intention of performing any maintenance task, check that the area is open and well-ventilated. Suitable ventilation must be provided throughout the maintenance task to allow any refrigerant that could be released into the atmosphere to be safely dispersed.

Refrigeration equipment check

• The manufacturer's recommendations in terms of care and maintenance must always be complied with. When replacing electric components, check that components used are of the same type and category as those recommended/approved by the manufacturer. When in doubt, contact the manufacturer's technical department for assistance.

• The following checks must be applied to installations using flammable refrigerants:

• the markings on the equipment must remain visible and legible; any illegible markings or signs must be rectified;

• the hoses or components of the cooling circuit are installed in a position where they are unlikely to be exposed to any substance capable of corroding the components containing refrigerant, unless the components are made from materials that are typically corrosion-proof or correctly protected from such corrosion.

Electric component check

• The repair and maintenance of electric components must include initial safety checks and component inspection procedures. If a defect capable of jeopardising safety arises, no power supply must be connected to the circuit until the problem has been completely resolved. If the defect cannot be rectified immediately and if maintain work must continue, an appropriate temporary solution must be found. This must be reported to the equipme owner so that all persons concerned are made aware.
• The repair and maintenance of electric components must include the following initial safety checks:

– the capacitors are discharged: this must be carried out safely to prevent all risks of ignition;
- no electric component or live wiring is exposed while charging, overhauling or draining the system;
- the system must be grounded at all times.

Repair of insulated components

- When repairing insulated components, all power sources must be disconnected from the equipment on which it work is being carried out before removing the insulating cover, etc. If the equipment must be powered during maintenance work, a leak detector must continuously monitor for leaks at the most critical point in order to report any potentially hazardous situation.

• Particular attention must be paid to the following points to ensure that, when performing work on the electric components, the housing is not altered to the point of affecting the protection rating. This includes damaged wires, an excessive number of connections, terminals that do not comply with the original specifications, damaged seals, incorrect installation of the cable glands, etc.
  • Make sure that the appliance is properly fixed.
• Make sure that the seals or insulating materials are not deteriorated to the point that they no longer prevent flammable atmosphere from penetrating the circuit. Spare parts must be compliant with the manufacturer's specifications.

Repair of intrinsically safe components

• Do not apply any permanent electric capacitance or induction charge to the circuit without checking that it do not exceed the allowed voltage and intensity for the equipment being used.
• Typically safe components are the only types on which work can be carried out in the presence of a flammab atmosphere when live. The test appliance must fall under a suitable classification.
• Only replace components with parts specified by the manufacturer. Other parts could cause the refrigerant to leak and ignite in the atmosphere.

Wiring

- Check that the wiring shows no signs of wear, corrosion, excessive pressure, vibration, cutting edges or any ot detrimental environmental effect. The check must also take into account the effects of ageing or continuous vibrations caused by sources such as compressors or fans.

Detection of flammable refrigerant

• Under no circumstances must potential ignition sources be used to search for or detect refrigerant leaks. A ha torch (or any other detector using a naked flame) must not be used.
• The following leak detection methods are considered to be acceptable for all cooling systems.
• Electronic leak detectors can be used to detect refrigerant leaks; however, in the case of flammable refrigerant the sensitivity level may not be suitable or recalibration may be necessary. (The detection equipment must be calibrated in an area devoid of refrigerant). Check that the detector is not a potential ignition source and is appropriate for the refrigerant used. The leak detection equipment must be adjusted to a percentage of the refrigerant's LFL and must be calibrated according to the refrigerant used. The appropriate gas percentage (25% at most) must be confirmed.
• Leak detection fluids are also suited for use with most refrigerants, however the use of detergents containing chlorine must be avoided since it could react with the refrigerant and cause corrosion to the copper piping.
• If a leak is suspected, all naked flames must be removed/extinguished.
• If a refrigerant leak is detected and requires soldering, the entire quantity of refrigerant must be removed from the system or isolated (by way of shut-off valves) in part of the system located away from the leak.

Removal and discharge

• When accessing the cooling circuit to carry out repairs, or for any other reason, conventional procedures must employed. However, for flammable refrigerants, the recommendations must be complied with in order to take account of the product's flammability. The following procedure must be followed:
• remove the refrigerant;
  • purge the circuit with an inert gas (optional for A2L);
  • drain (optional for A2L);

• purge with an inert gas (optional for A2L);
- open the circuit by cutting or soldering.
- The refrigerant charge must be recovered in suitable recovery cylinders. For appliances containing flammable refrigerants other than A2L refrigerants, the system must be bled with nitrogen devoid of oxygen to make the appliance suitable for receiving flammable refrigerants. You may need to repeat this process several times. Compressed air or oxygen must not be used to purge cooling systems.

Loading procedures

• Check that the vacuum pump outlet is not located in the vicinity of any potential ignition source and that ventilation is provided.
• In addition to conventional charging procedures, the following requirements apply.
• Check that there is no possibility of cross-contamination between the different refrigerants when using charging equipment. Hoses or lines must be as short as possible to reduce the quantity of refrigerant contained therein
• Cylinders must be kept in an appropriate position, in accordance with the instructions.
• Check that the cooling system is grounded before charging the system with refrigerant.
• Label the system once charging is complete (if this is not already the case).
• Pay close attention to not overfilling the cooling system.
• Before recharging the system, carry out a pressure test using a suitable purge gas. The system must be examined to make sure there are no leaks after the charging operation and before commissioning. A follow-up leak test must be carried out before leaving the site.

Dismantling

- Before dismantling, the technician must familiarise himself/herself with the equipment and its specifications. We highly recommend carefully recovering all refrigerants. Before this, oil and refrigerant samples must be taken if analyses are to be carried out before any other use of the recovered refrigerant. Check for the presence of a power supply before starting work.

1. Familiarise yourself with the equipment and how it operates.
2. Electrically isolate the system.
3. Before starting work, check the following points:

– mechanical handling equipment is available if needed to handle the refrigerant cylinders;
– all personal protective equipment is available and used correctly;
– the recovery process is followed at all times by a cognizant person;
– the recovery cylinders and equipment comply with the relevant standards.
4. Drain the cooling system where possible.
5. If a vacuum cannot be created, install a manifold in order to be able to remove the refrigerant from various locations within the system.
6. Make sure that the cylinder is located on the scales before starting recovery operations.
7. Start the recovery unit and operate as per its instructions.
8. Do not overfill the cylinders (no more than 80% of the volume must be filled with liquid).
9. Do not exceed the maximum working pressure of the cylinder, even temporarily.
10. When the cylinders have been filled correctly and the process is complete, check that the cylinders and the equipment are quickly removed from the site and that the alternative shut-off valves on the equipment are closed.
11. The recovered refrigerant must not be charged in another cooling system, unless it has been cleaned and inspected.

TROUBLESHOOTING

• All brazing must be carried out by qualified brazers.
• Replacement pipes must always be made of copper in compliance with standard NF EN 12735-1.
• Leak detection; pressure test:

– never use oxygen or dry air, risk of fire or explosion,
- use dry nitrogen or the mixture of nitrogen and refrigerant indicated on the information plate,
- the test pressure for both the high and low pressure circuits must not exceed 42 bar in cases where the appliance is equipped with the optional pressure gauge.

• The high pressure circuit pipes are made of copper and have a diameter equal to or greater than 1"5/8. A certificate as indicated in §2.1 in compliance with standard NF EN 10204 must be requested from the supplier filed in the installation's technical file.
• Technical data relative to the safety requirements of the various applicable directives are indicated on the information plate. All this information must be recorded in the appliance's installation manual, which must be kept in its technical file: model, code, serial number, maximum and minimum OT, OP, year of manufacture, CE marking, manufacturer's address, refrigerant and weight, electrical parameters, thermo-dynamic and acoustic performance.

LABELLING

• The equipment must be labelled so as to specify that it is out of order and that the refrigerant has been dra
  • The label must be dated and signed.
• For appliances containing a flammable refrigerant, check that labels are placed on the equipment stating that it contains a flammable refrigerant.

RECOVERY

• When draining the refrigerant for maintenance or decommissioning, best practices should be followed in order safely drain all of the refrigerant.
• When transferring refrigerant to a cylinder, make sure that you use a recovery cylinder that is compatible with refrigerant. Make sure that the correct number of cylinders are provided for recovering all of the refrigerant. A cylinders used must be intended for the recovery of refrigerant and must be labelled for this specific refrigerator. The cylinders must be equipped with a vacuum valve and a stop gate in good working order. Empty collection cylinders are drained and, where possible, cooled before recovery.
• The recovery equipment must be in good working order, the instructions for using the equipment must be with reach and the equipment must be compatible for use with the refrigerant concerned, including, where appropriate, a flammable refrigerant. Moreover, a set of calibrated scales must be available and in good working order. The pipework must be complete, have no leaks or disconnected connectors, and must be in good condition. Before using the recovery unit, check that it is in good working order, that it has been well maintained and the associated electric components are sealed so as to prevent any risk of fire in the event of refrigerant being released. If you have any doubts, contact the manufacturer.
• The recovered refrigerant must be sent to the refrigerant supplier in its recovery cylinder with a waste transfer note. Do not mix different refrigerants in the recovery units, and in particular in the cylinders.
• If the compressor has been removed or if oil from the compressor has been drained, check that the refrigerant has been completely removed to prevent it from mixing with the lubricant. The draining process must be carried out before returning the compressor to the supplier. Only the electric heater of the compressor body can be carried to accelerate this process. This operation can be carried out safely once all liquids within the system have been drained.

RECYCLING

This symbol is required by the European directive DEEE 2012/19/EU (directive on waste electrical and electronic equipment) and means that your appliance must be thrown into a normal bin. It will be selectively collected for the purpose of recycling or transformation. If it contains any substances that may be harmful to environment, these will be eliminated or neutralised. Contact your retailer for recycling information.

ADVERTENCIAS

ALGEMENE WAARSCHUWINGEN

WAARSCHUWINGEN MET BETREKKING TOT ELEKTRISCHE APPARATEN

Swimming Pool Heat Pump User and Service manual

INDEX

1. Specifications
2. Dimension
3. Installation and connection
4. Accessories
5. Electrical Wiring
6. Display Controller Operation
7. Troubleshooting

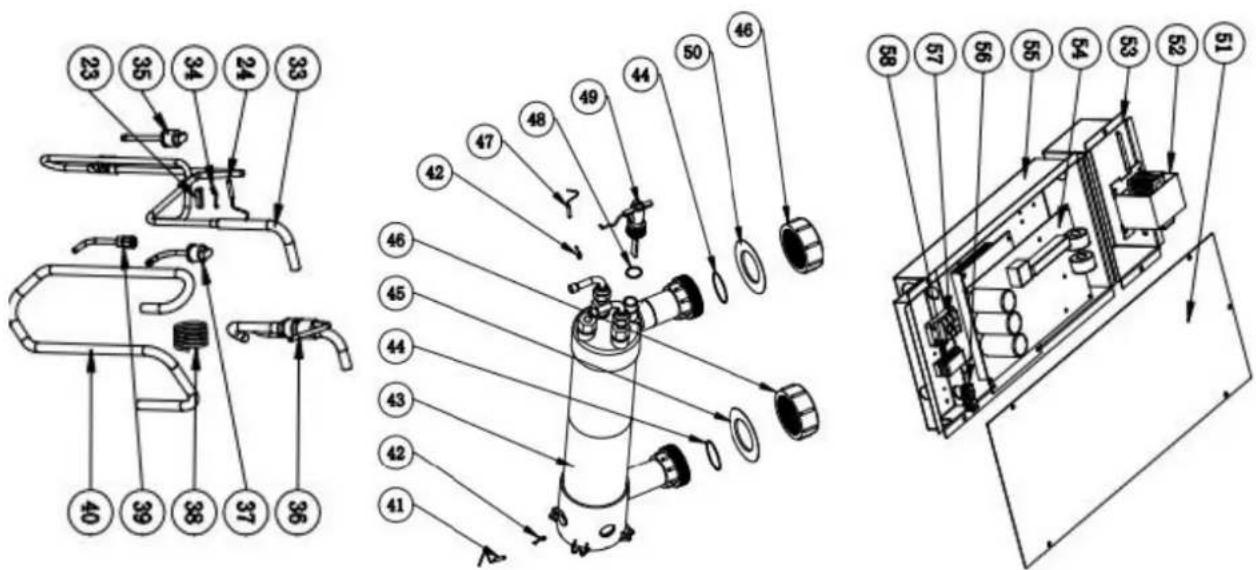

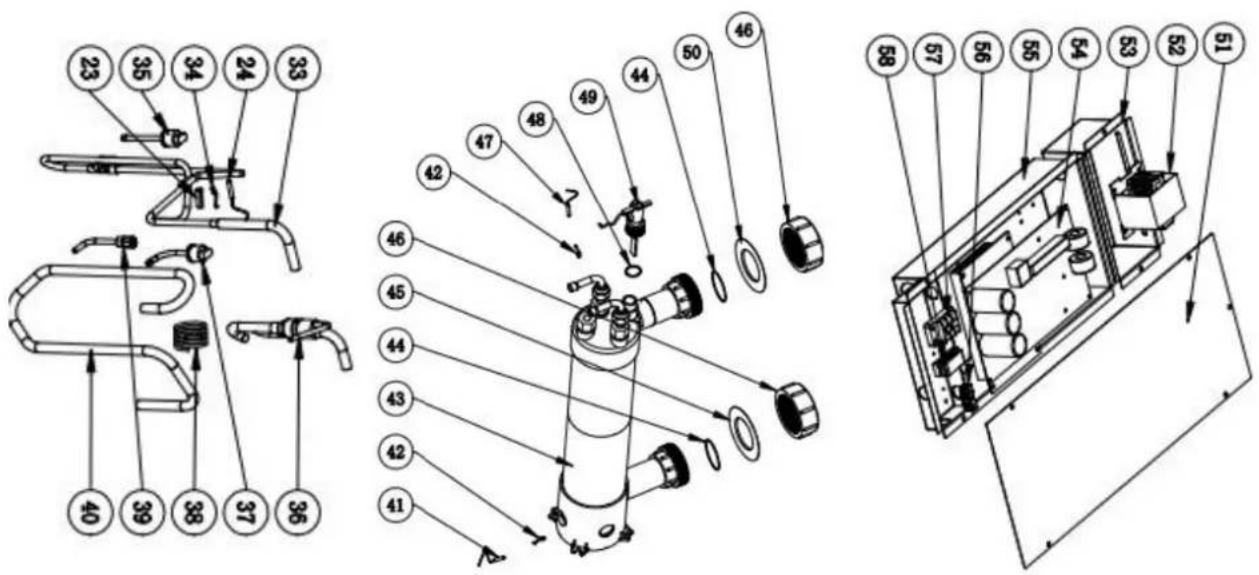

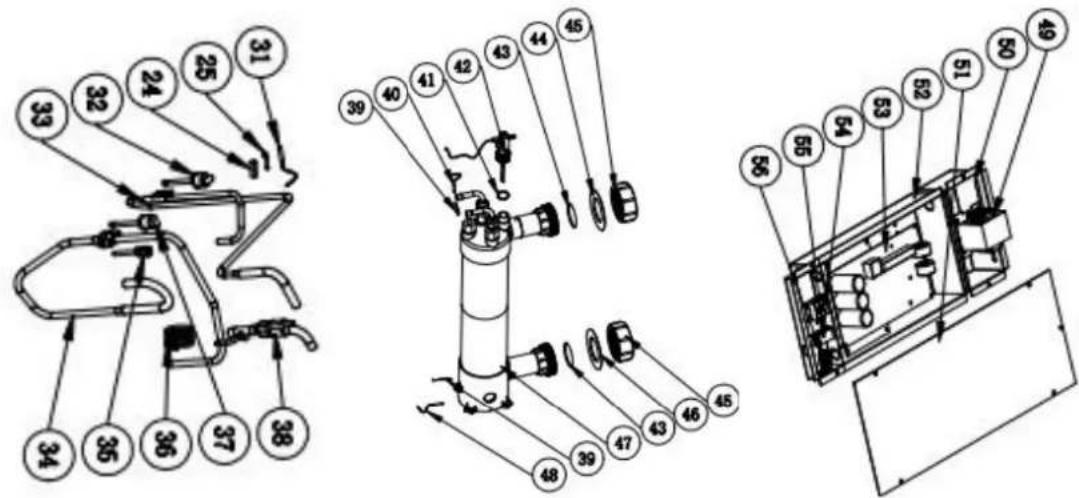

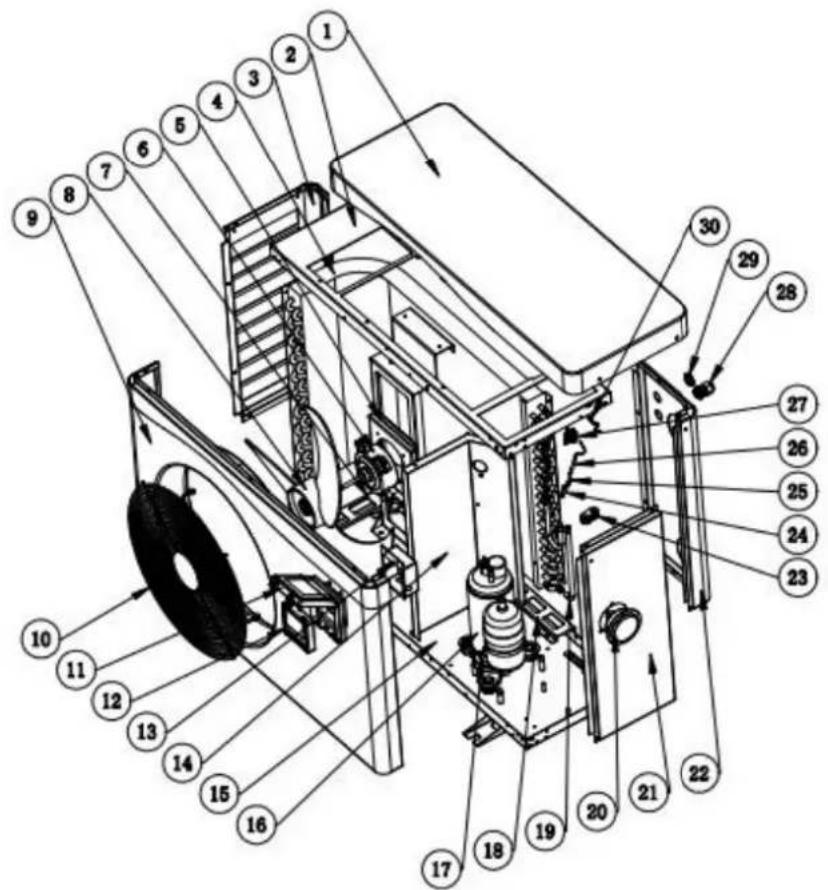

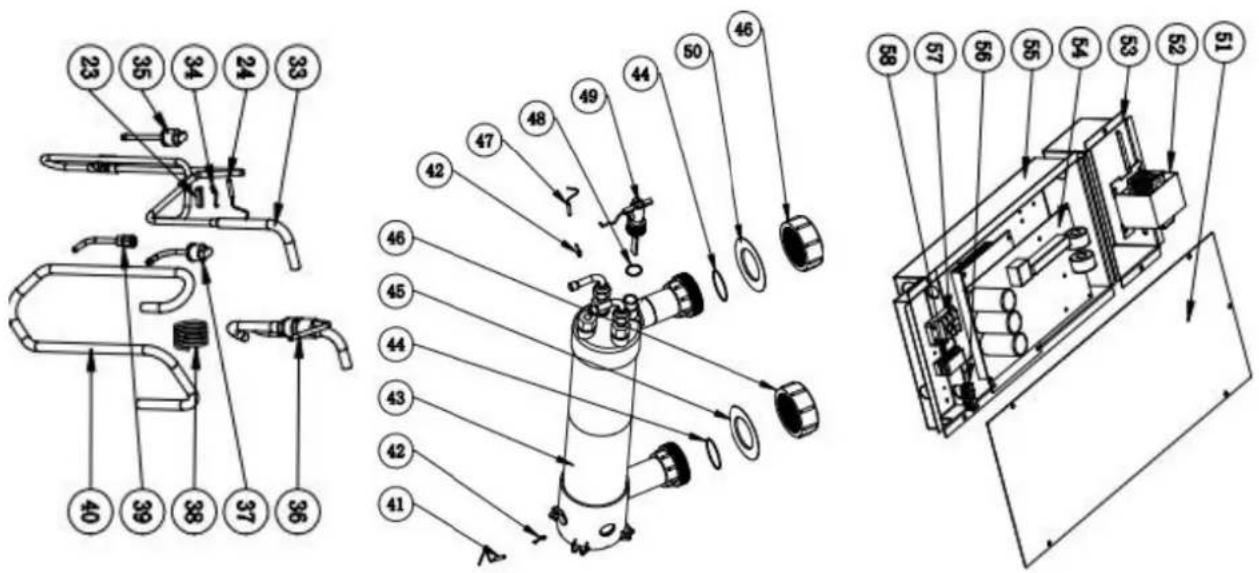

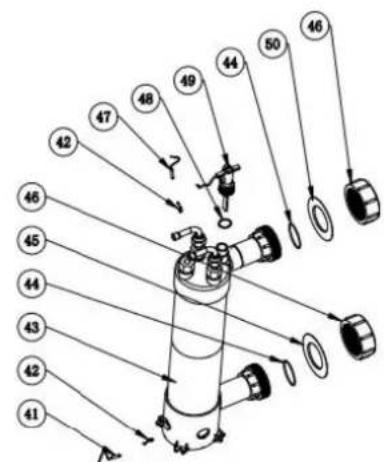

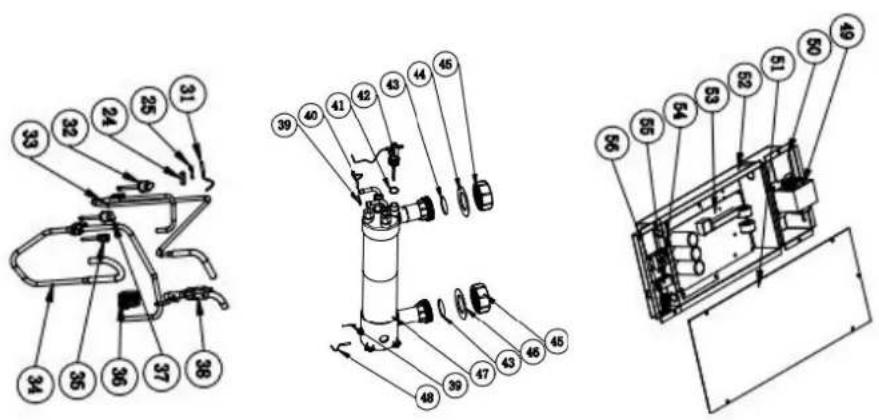

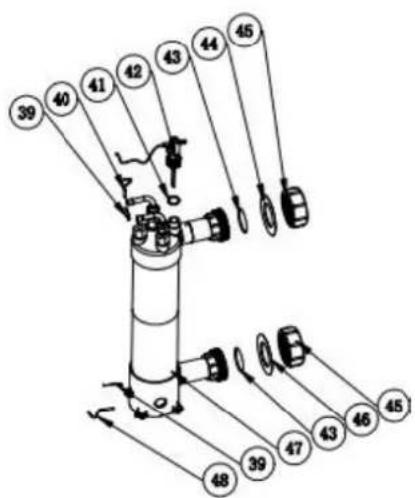

8. Exploded Diagram
9. Maintenance

Thank you for using Gre swimming pool heat pump for your pool heating, it will heat your pool water and keep the constant temperature when the air ambient temperature is at +7 to 43°C

ATTENTION: This manual includes all the necessary information with the use and the installation of

heat pump.

The installer must read the manual and attentively follow the instructions in implementation and maintenance. Please keep and pass on this manual for later throughout the appliance's service life.

The installer is responsible for the installation of the product and should follow all the instructions of the manufacturer and the regulations in application. Incorrect installation against the manual implies the exclusive the entire guarantee.

The manufacturer declines any responsibility for the damage caused with the people, objects and of the er to the installation that disobey the manual guideline. Any use that is without conformity at the origin of it manufacturing will be regarded as dangerous.

1. Specifications

Technical data pool heat pumps

Model		HPGI50	HPGI60	HPGI70	HPGI85
Code		74162	74163	74164	74165
* Performance at Air 28°C, Water 28°C, Humidity 80%
Heating capacity	kW	10-2.3	12-2.9	15-3.2	17-3.8
Power consumption	kW	1.55-0.14	1.77-0.18	2.26-0.2	2.67-0.23
C.O.P.		16-6.5	16-6.8	16-6.6	16-6.4
* Performance at Air 15°C, Water 26°C, Humidity 70%
Heating capacity	kW	7-1.9	8.5-2	10-2.2	12-3
Power consumption	kW	1.43-0.27	1.72-0.28	2.07-0.31	2.43-0.42
C.O.P.		7.1-4.9	7.2-4.9	7.2-4.8	7.2-4.9
* General data
Compressor type		Inverter Compressor
Voltage	V	220~240V / 50Hz /1PH
Rated current	A	6.9	7.9	10.0	11.8
Minimum fuse	A	10	12	15	18
Maximum pool volume**	m3	<55	<70	<80	< 95
Advised water flux	m3/h	2.8	3.7	4.0	4.6
Water pressure drop	Kpa	12	14	15	15
Heat exchanger		Twist-titanium tube in PVC
Water connection	mm	50
Ventilation type		Horizontal
Protection rating		IPX4
Max Pressure-suction and discharge side	MPa	4.2
Noise level(10m)	dB(A)	22-34	23-35	23-37	24-37
Noise level(1m)	dB(A)	40-52	40-52	40-54	41-54
Refrigerant		R32
Refrigerant quantity	g	720	550	750	850
CO2 equivalent	Tonne	0.49	0.37	0.51	0.57
Net weight	kg	56	68	73	78
Gross weight	kg	68	73	78	83
Net dimension	mm	860*389*586.5	987*400.5*688
Packing dimension	mm	890*420*625	1015*435*713

* Above data is subject to update without prior notice.
**Check our packaging or website for more details.

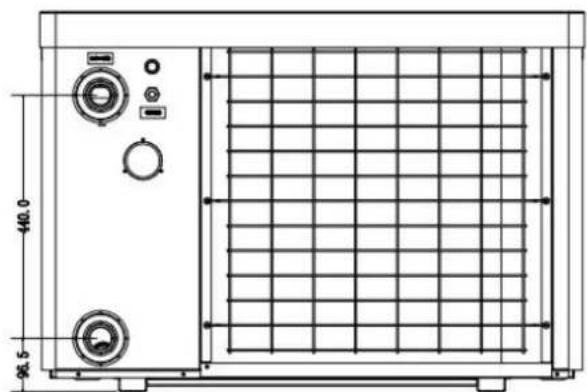

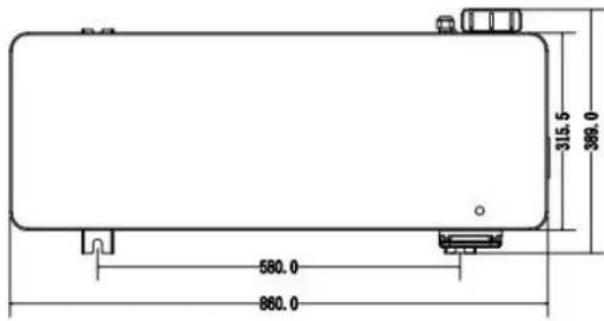

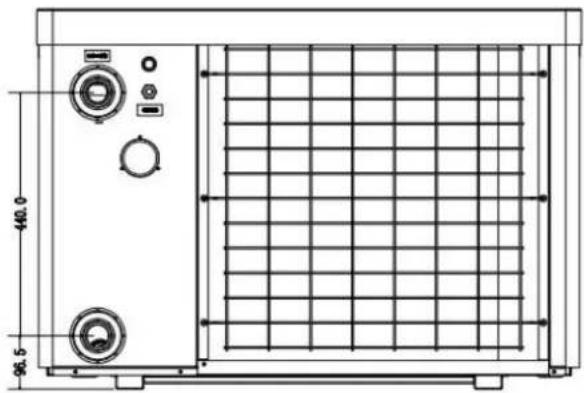

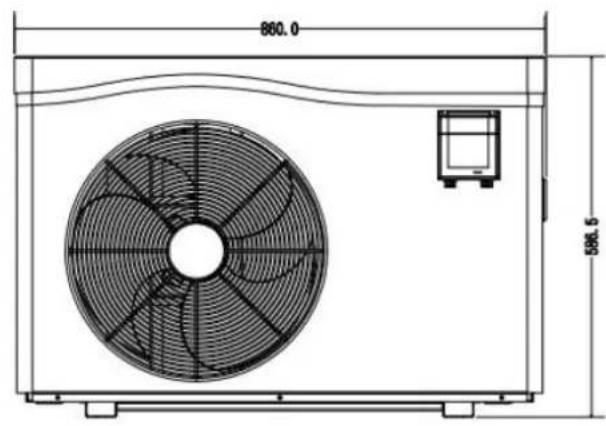

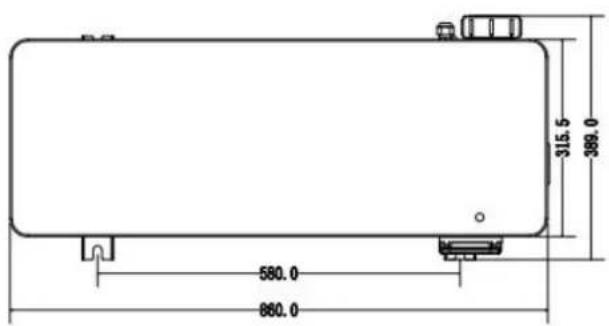

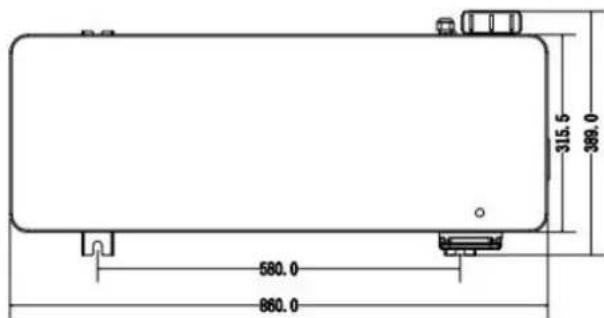

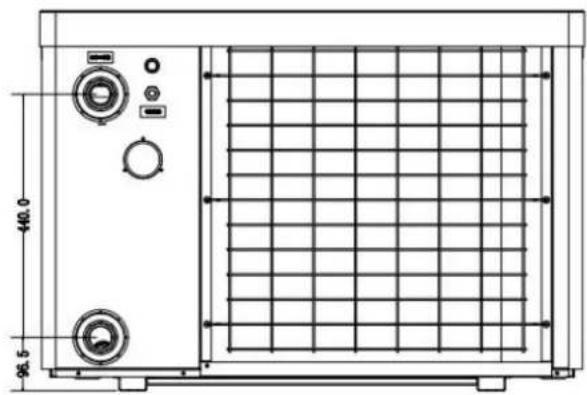

2. Dimension (mm)

Model: HPGI50

800.0 500.5

350,0 98,5

315.5 389.0 580.0 860.0

Model: HPGI60/70/85

987.0 688.0

Technical line drawing of a rectangular industrial or laboratory equipment unit with control panel and side gauges (no text or symbols)

987.0 650.0 375.0 332.0 400.5

3. Installation and connection

3.1 Notes

The factory supplies only the heat pump. All other components, including a bypass if necessary, must be provided by the user or the installer.

Attention:

Please observe the following rules when installing the heat pump:

1. Any addition of chemicals must take place in the piping located downstream from the heat pump.
2. Install a bypass if the water flow from the swimming pool pump is more than 20% greater than the allowable flow through the heat exchanger of the heat pump.
3. Always place the heat pump on a solid foundation and use the included rubber mounts to avoid vibration and noise.
4. Always hold the heat pump upright. If the unit has been held at an angle, wait at least 24 hours before starting the heat pump.3.2 Heat pump location

3.2 Heat pump placement

The unit will work properly in any desired location as long as the following three items are present:

1. Fresh air - 2. Electricity - 3. Swimming pool filters

The unit may be installed in virtually any outdoor location as long as the specified minimum distances to other objects are maintained (see drawing below). Please consult your installer for installation with an indoor pool. Installation in a windy location does not present any problem at all, unlike the situation with a gas heater (including pilot flame problems).

ATTENTION: Never install the unit in a closed room with a limited air volume in which the air expelled from the unit will be reused, or close to shrubbery that could block the air inlet. Such locations impair the continuous supply of fresh air, resulting in reduced efficiency and possibly preventing sufficient heat output.

See the drawing below for minimum dimensions.

Air inlet 500mm 700mm Air outlet 2500mm 300mm 700mm

3.3 Distance from your swimming pool

The heat pump is normally installed within a perimeter area extending 7.5 m from the swimming pool. The greater the distance from the pool, the greater the heat loss in the pipes. As the pipes are mostly underground, the heat loss is low for distances up to 30 m (15 m from and to the pump; 30 m in total) unless the ground is wet or the groundwater level is high. A rough estimate of the heat loss per 30 m is 0.6 kWh (2,000 BTU) for every 5 °C difference between the water temperature in the pool and the temperature of the soil surrounding the pipe. This increases the operating time by 3% to 5%.

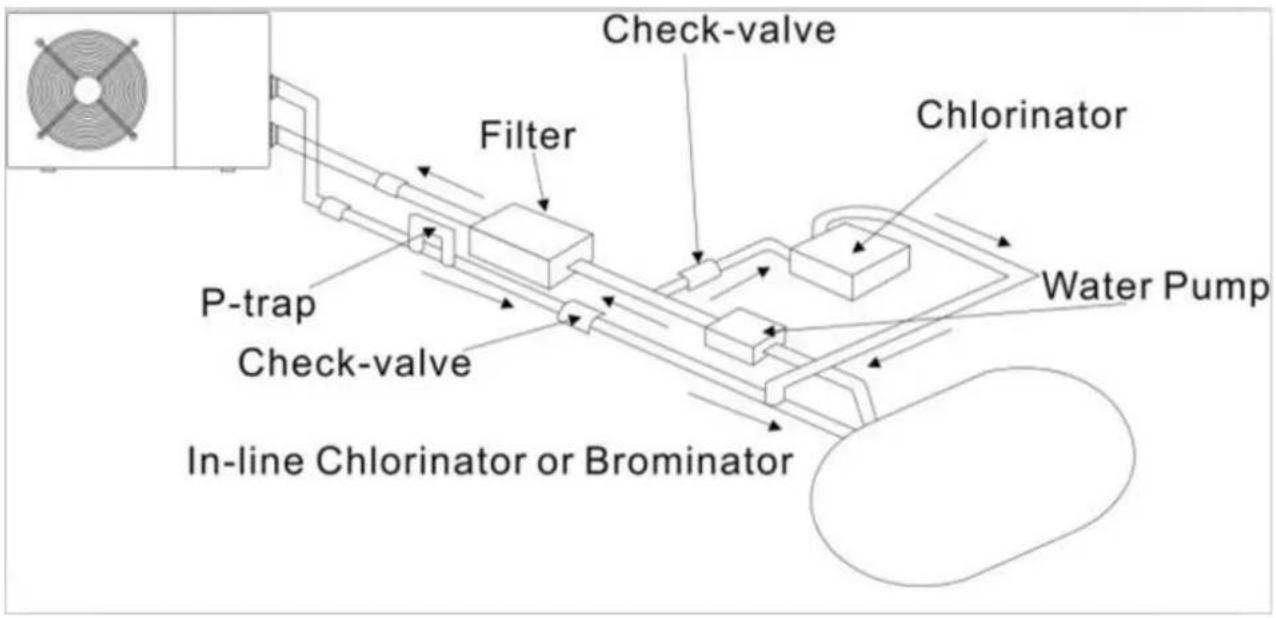

3.4 Check-valve installation

Note: If automatic dosing equipment for chlorine and acidity (pH) is used, it is essential to protect the heat pump against excessively high chemical concentrations which may corrode the heat exchanger. For this reason, equipment of this sort must always be fitted in the piping on the downstream side of the heat pump, and it is recommended to install a check-valve to prevent reverse flow in the absence of water circulation.

Damage to the heat pump caused by failure to observe this instruction is not covered by the warranty.


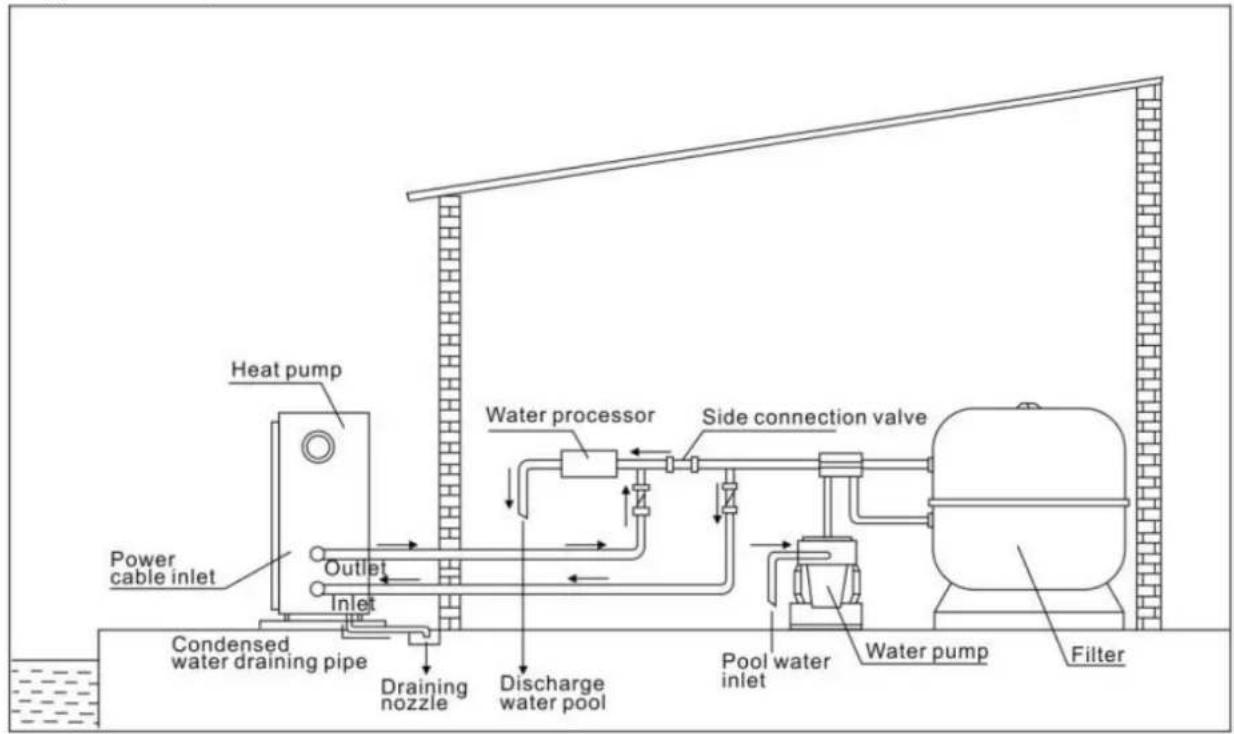

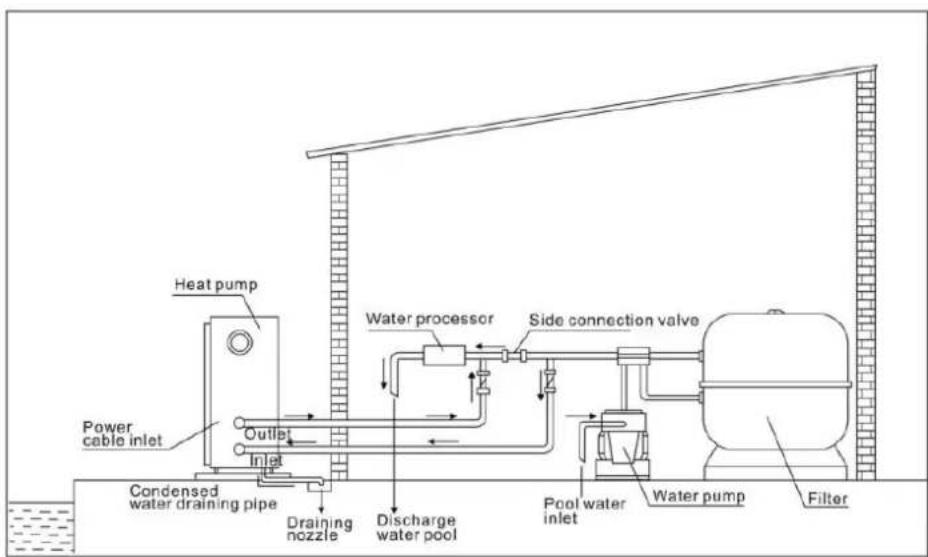

3.5 Typical arrangement

Heat pump Power cable inlet Outlet Inlet Condensed water draining pipe Draining nozzle Water processor Side connection valve Discharge water pool Pool water inlet Water pump Filter

Note: This arrangement is only an illustrative example.

3.6 Adjusting the bypass

Use the following procedure to adjust the bypass:

1. Valve 1 wide open. Valve 2 & valve 3 closed.
2. Slowly open valve 2 & valve 3 half, then close the valve 1 slow to increase the water flow to valve & valve 3.
3. If it shows 'ON' or 'EE3' on display, it means the water flow heat pump is not enough, then need adjust the valves to increase the water flow through the heat pump.

How to get the optimum water flow:

Please turn on the heat pump under heating function, firstly close the by-pass then open it slowly to start the heat pump (the machine can't start running when the water flow is insufficient).

Continue to adjust the by-pass, at the meantime to check the Inlet water temp. & Outlet water temp., it will be optimum when the difference is around 2 degree.

3.7 Electrical connection

Note: Although the heat pump is electrically isolated from the rest of the swimming pool system, this only prevents the flow of electrical current to or from the water in the pool. Earthing is still required for protection against short-circuits inside the unit. Always provide a good earth connection.

Warning: Before any work inside the appliance, you must cut the appliance's electricity supply as there is a risk of electric shock which may cause material damage, serious injury or even death.

• Incorrectly tightened terminals may cause the terminal box to heat up, which can invalidate the warranty.
• Only a qualified and experienced technician is authorised to carry out cabling work within the appliance or to replace the power cord.

Before connecting the unit, verify that the supply voltage matches the operating voltage of the heat pump.

It is recommended to connect the heat pump to a circuit with its own fuse or circuit breaker (slow type; curve D) and to use adequate wiring.

Connect the electrical wires to the terminal block marked 'POWER SUPPLY'.

A second terminal block marked 'WATER PUMP' is located next to the first one. The filter pump switch(12V) can be connected to the second terminal block here. This allows the filter pump operation to be controlled by the heat pump or the extra dry contact.

3.8 Initial operation

Note: In order to heat the water in the pool (or hot tub), the filter pump must be running to cause the water to circulate through the heat pump. The heat pump will not start up if the water is not circulating.

After all connections have been made and checked, carry out the following procedure:

1. Switch on the filter pump. Check for leaks and verify that water is flowing from and to the swimming pool.
2. Connect power to the heat pump and press the On/Off button on the electronic control panel. The unit will start up after the time delay expires.
3. After a few minutes, check whether the air blowing out of the unit is cooler.
4. When turn off the filter pump, the unit should also turn off automatically, if not, then adjust the flow switch.

Depending on the initial temperature of the water in the swimming pool and the air temperature, it may take several days to heat the water to the desired temperature. A good swimming pool cover can dramatically reduce the required length of time.

Water Flow Switch:

It is equipped with a flow switch for protecting the HP unit running with adequate water flow rate. It will turn on the pool pump runs and shut it off when the pump shuts off. If the pool water level higher than 1 m above or below the heat pump's automatic adjustment knob, your dealer may need to adjust its initial startup.

Time delay - The heat pump has a built-in 3-minute start-up delay to protect the circuitry and avoid excessive contact wear. The unit will restart automatically after this time delay expires. Even a brief power interruption will trigger this time delay and prevent the unit from restarting immediately. Additional power interruptions during this delay period do not affect the 3-minute duration of the delay.

3.9 Condensation

The air drawn into the heat pump is strongly cooled by the operation of the heat pump for heating the pool water which may cause condensation on the fins of the evaporator. The amount of condensation may be as much as several litres per hour at high relative humidity. This is sometimes mistakenly regarded as a water leak.

3.10 Operating modes for optimal use

- POWERFUL: Used primarily at the beginning of the season because this mode allows very rapid temperature rise - SMART: The heat pump has completed its primary task, in this mode; the heat pump is in a position to maintain the pool water in an energy efficient manner. By automatically adjusting speed of compressor and fan the heat pump delivers a better return.

- SILENT: In the summer months when the heat output is minimal required, the heat pump in this mode is even more profitable. Added benefit; when the heat pump heats. It goes with minimal noise load.

4. Accessories

4.1 Accessories list

Anti-vibration base, 4 pcs	Draining jet, 2 pcs	Waterproof box, 1 pc
10M Signal wire, 1 pc	Water drainage pipes, 2 pcs	Winter cover, 1 pcs

4.2 Accessories Installation

Close-up of a white rectangular object placed on a black textured base, placed on a wooden floor (no text or symbols visible)

Anti-vibration bases

1. Take out 4 Anti-vibration bases
2. Put them one by one on the botton machine like the picture.

Close-up of a black pipe fitting attached to a wooden surface, with a mesh fence in the background (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Draining jet

1. Install the draining jet under the bottom panel
2. Connect with a water pipe to drain the water.

Note: Lift the heat pump to install the jet. Never overturn the heat pump, it could damage the compressor.

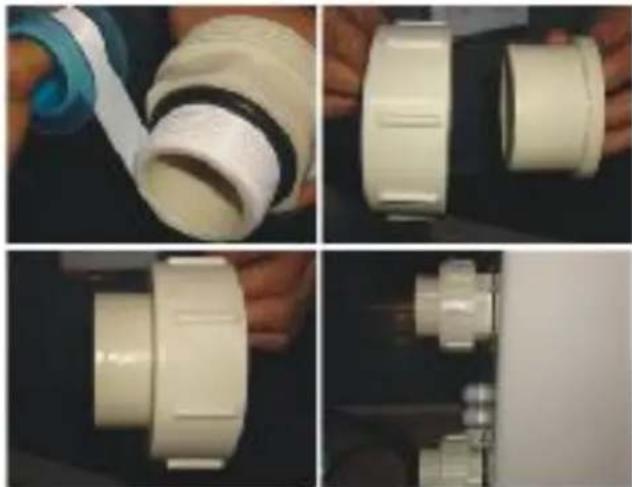

Four-panel photo showing hands assembling a white PVC pipe fitting, with no visible text or symbols.

Water Inlet & outlet junction

1. Use the pipe tape to connect the water Inlet & outlet junction onto the heat pump
2. Install the two joints like the picture shows
3. Screw them onto the water Inlet & outlet junction

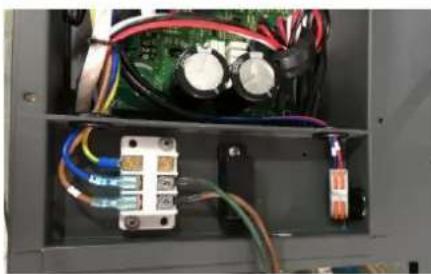

Interior view of an electronic control panel with visible wiring and components (no text or symbols)

Cable wiring

1. Open the cover of the electric box
2. Fix the power supply wire on joints E

Close-up of a small electrical connector with orange and blue wires, mounted on a black terminal block (no visible text or symbols)

Water pump wiring (Dry contact)

1. Open the cover of the electric box
2. With the connector 1 and 2 you can pilot the water filtration through the timer of the filtration (dry contact)

4.3 Connection to the filtration pump

Close-up of three electrical connectors with wires and colored wires, no visible text or symbols

Photo 1 Photo 2 Photo 3

• Open the button upwards as (Photo 1)
• Attach the dry contact wiring through the two holes as (Photo 2 & Photo 4)
• Press the button and tighten the wiring as (Photo 3)

Photo 4

5. Electrical Wiring

5.1 SWIMMING POOL HEAT PUMP WIRING DIADRAM

HPGI50, HPGI60, HPGI70, HPGI85

Reactor Magnet ring (WHT) FAN RED I1 I2 Magnet ring (WHT) FAN2 OUT9 ON MOD 4-Way valve coil N6 N5 N4 OUT6 OUT5 OUT4 Base Electric heater Crankshaft electric heating N3 N2 N1 N9 OUT3 OUT2 OUT1 W V U Magnet ring (BLK) RED BLK WHT JTAG Electronic Expansion Valve Th1 Th2 Th3 Th4 Th5 Th6 Th7 Th8 Ambient temperature Coil Temperature Exhaust Temperature Water out temperature Water in temperature Wire controller COM1 COM2 NO OUT10 1 2 AC-N AC-L TS1 TS2 TS3 TS4 TS5 Defrosting switch Water flow switch High pressure switch Low pressure switch BRN Magnet ring (BLK) BLU L N 1 2 Switch (Water Pump) I-3041 * The dotted line part are only used in some models

NOTE:

(1)Above electrical wiring diagram only for your reference, please subject machine posted the wiring diagram.
(2)The swimming pool heat pump must be connected ground wire well, although the unit heat exchanger is electrically isolated from the rest of the unit .Grounding the unit is still required to protect you against short circuits inside the unit .Bonding is also required.
(3)It is recommended that your pool filtration pump and your heat pump are wired independently.

Wiring your pool pump into the heat pump will result in your filtration being switched off once the pool water has reached temperature.

Only wire the pool pump through the heat pump if you have a pool pump for heating only that is independent to ur pool filtration system.

Disconnect: A disconnect means (circuit breaker, fused or un-fused switch) should be located within sight of and readily accessible from the unit. This is common practice on commercial and residential heat pumps. It prevents remotely-energizing unattended equipment and permits turning off power at the unit while the unit is being serviced.

5.2 Installation of the remote control

Photo(1) Photo(2) Photo(3) Photo(4) Photo(5)

White electronic device with coiled cable and indicator lights (no visible text or symbols)

Close-up of a white plastic electrical plug with a coiled cable, lying on a plain surface (no text or symbols visible)

Close-up of a white electrical terminal panel with multiple blue and red connectors (no visible text or symbols)

Close-up of a green printed circuit board with various electronic components (no visible text or symbols)

• The side with plug connects with the control panel (photo1)
• The other side of the signal wire. (photo2)
• Open the wiring panel and put the side without plug through the electrical box. (photo3,4)
• Insert the wiring into the disignated position (code:COM 1 or COM-L) on the PC board. (photo5)

6. Display Controller Operation

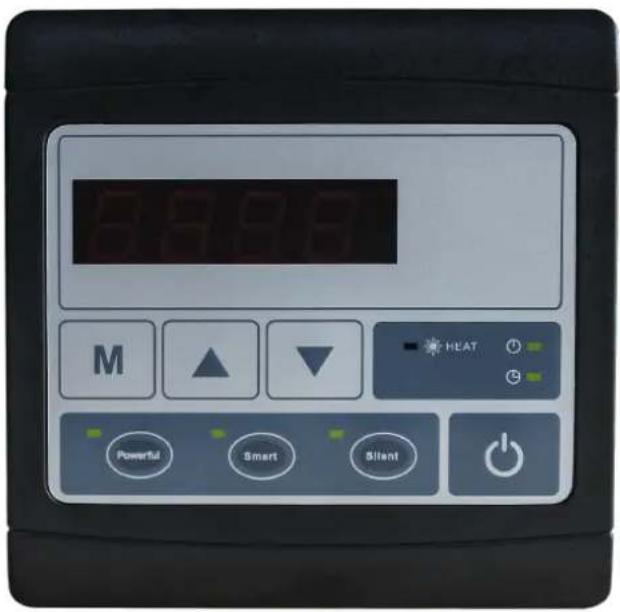

6.1 The buttons of LED wire controller

M HEAT Powerful Smart Silent

6.2 The keys and their operations

NOTE: Every time, when the heat pump connects to the power, the LED display shows a code for 3 seconds which indicates the heat pump model.

6.2.1 button

Press to start the heat pump unit, the LED display shows the desired water temperature for 5 seconds, then shows the inlet water temperature and the operation mode.

Press to stop the heat pump unit and show "OFF"

Notice : During the parameter checking and setting, press the to quick-exit and save the current setting .

Press again to turn on/off the machine.

6.2.2 and button

Clock/unclock the display:

Hold and for 5 seconds to lock/Unlock the display.

Water temperature setting :

Press

or

to set the water temperature directly.

Water temp. setting range in Heating mode :6-41°C,

6.2.3 button

Parameter checking :

Press first, then press to check the "User parameter from d0 to d11"

Code	Condition	Scope	Remark
d0	IPM mould temperature	0-120°C	Real testing value
d1	Inlet water temp.	-9°C~99°C	Real testing value
d2	Outlet water temp.	-9°C~99°C	Real testing value
d3	Ambient temp.	-30°C~70°C	Real testing value
d4	Frequency limitation code	0,1,2,4,8,16	Real testing value
d5	Piping temp.	-30°C~70°C	Real testing value
d6	Gas exhaust temperature	0°C~C5°C (125°C)	Real testing value
d7	Step of EEV	0~99	N*5
d8	Compressor running frequency	0~99Hz	Real testing value
d9	Compressor current	0~30A	Real testing value
d10	Current fan speed	0-1200 (rpm)	Real testing value
d11	Error code for last time	All error code

Press first, then press to check the "User parameter from P0 to P7"

If needed, press second, then press or to adjust the current parameter.

(for example: Press first, then press to enter parameter P7 checking, and press second, then

press or to adjust the parameter P7 Inlet water temp. Correction from -9 to 9.)

Code	Name	Scope	Default	Remark
P0	Manual defrost	0-1	0	1 Manual defrosting mode, 0 Normal mode
P1	Working mode	1	1	1 Heating mode (Non-adjustable)
P2	Timer on/off	0-1	0	1 Timer on/off is under function, 0 Timer on/off is out of function (The setting of P5 and P6 won’t work)
P3	Water pump	0-1	0	1 Always running, 0 Depends on the running of compressor
P4	Current time	HH:MM	00: 00	0-23:0-59
P5	Timer on	HH:MM	00: 00	0-23:0-59
P6	Timer off	HH:MM	00: 00	0-23:0-59
P7	Inlet water temp. correction	-9~9	0	Default setting: 0

NOTE: Under defrosting mode, P0=1.

After defrosting finished, it will be automatic enter Normal mode, P0=0.

6.2.4 Heating priority (see the paragraph 6.9), option of connection

Option 1; P3=0 Filtration pump is related to heat pump operation to start and stop.

Filtration pump starts 60s before compressor, filtration pump start 30s and then the water flow switch detect flow. Before the heat pump enters into Standby mode, the compressor stops first and after 5 minutes filtratio pump stops.

	Condition	Example	Water pump working logic
Heating mode	P3=0,T1≥Tset-0.5°C,last for 30 minutes	P3=0,T1≥27.5°C,last for 30 minutes	1. Then it enters into standby mode for 1 hour (It will not restart except turn it on manually.)	2. After 1 hour, the filtration pum will restart for 5 minutes. If the T1≤27°C, the heat pump will start to work until T1≥27.5°C and last 30 minutes to go into standby

Option 2; P3=1 Filtration pump is always on, P2=0 the timer function is no active

Under condition P3=1, when T1≥Tset+1°C (T1≥29°C) last for 3 minutes, heat pump will be in standby, while filtration pump is always on.

Under option 2, with activation of the timer; P2=1 to start and stop the filtration pump according to the programming of the P4 (time), P5 (timer ON) and P6 (timer OFF)

Condition for the heat pump start, timer ON actives;

When the timer reaches the set time of TIMER ON, the filtration pump will start and after 5 minutes the heat pump start. The heat pump stays in stop if the water in temperature is ≥ T_set+1^ , before the TIMER OFF, the filtration is still activated.

Condition to stop the heat pump, timer OFF actives;

When the timer reaches the set time of the TIMER OFF, the heat pump will stop and after 5 minutes the filtration pump stops.

NB; Symbol of automatic TIMER start ⏻, the light will be on when it is in operation, symbol of automatic

TIMER stop, the light will be on when it is in operation. Outside the time operation the display will be advise by OFF.

If heat pump is turned ON/OFF manually, the filtration pump will start and stop accordingly.

NOTE :

Tset = Tsetting water temperature

For example : Tset = 28°C Tsetting water temperature in your pool heat pump

Tset-0.5 = less 0.5°C than Tsetting temperature, Tset-0.5 = 28-0.5=27.5°C

Tset+0.5= more 1°C than Tsetting temperature, Tset+ 0.5 = 28+0.5=28.5°C

6.2.5 System reset function

Press

and

in 10s, the system will reset and display "0000" on the controller.

6.2.6

Symbol of heating, the light will be on when it is in operation.

When defrosting, the light will flash.

6.2.7

Symbol of automatic stop, the light will be on when it is in operation.

Note: When parameter P6 is on checking/adjusting, Symbol of automatic stop light will be flash.

6.2.8

Symbol of automatic start, the light will be on when it is in operation.

Note: When parameter P5 is on checking/adjusting, Symbol of automatic start light

(1)

ill be flash.

6.2.9

will be flash.

Press this button, the light will be flache, heat pump will operate in 'Full output' only.

6.2.10

While you choose the Smart, the heat pump will just operate in 'Small output', 'Medium output' and 'Full output'

When in 'Small output', the lamp of Smart is lighting, the light of Silent will be flash.

When in 'Medium output', the light of Smart will flash.

When in 'Full output', the lamp of Smart is lighting, the lamp of Powerful will be flash.

6.2.11

While you choose the Silent, the heat pump will just operate in 'Medium output' and 'Small output'. When in 'Small output', the light of Silent will flash.

When in 'Medium output', the lamp of Silent is lighting, the lamp of Smart will be flash

7. Troubleshooting

7.1 Error code display on LED wire controller

Malfunction	Error code	Reason	Solution
Inlet water temperature sensor failure d1-TH6	PP01	1. The sensor in open or short circ2. The wiring of sensor is loose	1. Check or change the sensor2.Re-fix the wiring of the sensors
Outlet water temperature sensor failure d2-TH5	PP02	1. The sensor in open or short circ2. The wiring of sensor is loose	1. Check or change the sensor2.Re-fix the wiring of the sensors
Heating piping sensor failure d5-TH2	PP03	1. The sensor in open or short circ2. The wiring of sensor is loose	1. Check or change the sensor2.Re-fix the wiring of the sensors
Ambient temperature sensor failure d3-TH1	PP05	1. The sensor in open or short circ2. The wiring of sensor is loose	1. Check or change the sensor2.Re-fix the wiring of the sensors
Exhaust piping sensor failure d6-TH3	PP06	1. The sensor in open or short circ2. The wiring of sensor is loose	1. Check or change the sensor2.Re-fix the wiring of the sensors
Antifreeze protection in Winter	PP07	Ambient temperature or water inlet temperature is too low	1. Check the d1((inlet water temp.) and d3(outlet water temp.)2. Normal protection
Low ambient temperature protection	PP08	1. Out of the normal operating ambient temperature for this machine by checking d32. Sensor abnormality d3-TH1	1. Stop using, beyond the scope of usin2.Change the sensor
High pressure failure TS4	EE01	1. Ambient temperature is too high2. Water temperature is too high3. Water flow is too low4. Fan motor speed is abnormal5. Gas system jammed6. High pressure wire is loose or damaged7. Too much refrigerant	1. Choose the silent mode.2. Check the water flow or filtration pu3. Check and repair the refrigerating system4. Reconnect the high pressure wire or replace a new high pressure switch5. Check and repair the refrigerating system
Low pressure failure TS5	EE02	1. EEV has blocked or pipe system is jammed2. Fan motor speed is abnormal or fan motor is damaged under heating mode3. Gas leakage4. Low pressure wire is loose or damaged	1. Check the EEV and piping system2. Check the fan motor under heating mode, replace a new one if it is abnormal3. Check refrigeration system or check the pressure value through the high-pressure gauge.4. Reconnect the low pressure wire or replace a new low pressure switch
Water flow failure TS1	EE03 Or "ON"	1. The wiring of water flow switch is loose or water flow switch damaged2. No/Insufficient water flow.	1. Check the wiring of water flow switch change a new one.2. Check the filtration pump or the waterway system if there is air or jam inside
Over heating protection for water temperature (d2- TH5) in heating mode	EE04	1. Low water flow2. Water flow switch is stuck and the water supply stops3. d2- TH5 outlet water temperature sensor is abnormal4. The difference of outlet water temperature and set temperature is 7°C or above in heating mode	1. Check the water flow switch if it wor well2. Check the filtration pump or the waterway system if there is air or jam inside3. Check d2- TH5 outlet water temperature sensor or replace a new on4. Change the set temperature.
d6-TH3 Exhaust too high protection	EE05	1. Lack of gas2. Low water flow3. Piping system has been blocked4. Exhaust temp. sensor failure d6-TH35. Ambient temperature is too high	1. Check the pressure gauge, and fill with some gas if it is lack of gas2. Check the filtration pump or the waterway system if there is air or jam inside3. Check the piping system if there was any block4. Change a new exhaust temp. sensor d6-TH35. Check whether the current ambient temp. and water temp. are beyond the running temp. of the machine
Controller failure	EE06	1. Signal is not well connected or damaged2. Controller failure	1. Stop the power supply and restart.2. Re-connect the signal wire or replace new one3. Replace a new controller
Compressor current protection	EE07	1. The compressor current is too large instantaneously2. Wrong connection for compressor phase sequence3. Compressor accumulations of liquid and oil lead to the current becomes larger4. Compressor or driver board damaged5. The water flow is abnormal6. Power fluctuations within a short tim	1. Check if the power in the normal ran2. Check the compressor3. Check the compressor phase4. Check the phase sequence connection5. Check the waterway system and filtration pump6. Check mains power input
Communication failure between controller and main board	EE08	1. Signal wire is not well connected or damaged2. Controller failure3. Driving failure	1. Stop the power supply and restart.Re-connect the signal wire or replace a new one2. Check the controller or replace a new one3. Check the driving system or update
Communication failure between Main control board and Driving board	EE09	1. Poor connection of communication wire2. PCB failure3. The wire is damaged	1. Stop the power supply and restart.2. Reconnect the communication wire or replace a new one3. Check the wirings according to the electric diagram4. Replace a new PCB
VDC voltage too high protection	EE10	1. Line voltage is too high2. Driver board is damaged.	1. Check whether the power supply is normal2. Change driver board or main board
IPM module protection	EE11	1. Data mistake2. Wrong compressor phase connection3. Compressor liquid and oil accumulation lead to the current becomes larger4. Poor heat dissipation of drive module or high ambient temperature5. Compressor or driver board damaged	1. Program error, turn off electricity supply and restart after 3 minutes2. Check compressor sequence connection3. Check the pressure of system by pressure gauge4. Check if the ambient and water temperature is over high5. If it is the refrigeration system failure, send it to the service center6. Change driver board
VDC voltage too low protection	EE12	1. Mother line voltage is too low2. Driver board is damaged.	1. Check if the power supply is in the normal range2. Change driver board
Input current over high protection.	EE13	The compressor current is too large momentaryThe water flow is abnormalPower fluctuations within a short timeWrong reactor	Check the compressor if it works normallyCheck the waterway systemCheck if the power is in the normal raCheck if the reactor is used correctly.
IPM module thermal circuit is abnormal	EE14	Output abnormality of IPM module thermal circuitFan motor is abnormal or damagFan blade is broken	Check if the motor speed is too low of fan motor is damaged, replace it by a ne one.Replace a new driver boardChange the fan blade if it is broken
IPM module temperature too high protection	EE15	Output exception of IPM module thermal circuitFan motor is abnormal or damagFan blade is brokenThe screw on driver board is loose	Check the main board or replace the driver boardCheck if the motor speed is too low of fan motor is damaged, replace it by a ne one if any failure.Change the fan blade if it is brokenCheck the screw on driver board
PFC module protection	EE16	Output exception of PFC moduleFan motor is abnormal or damagFan blade is brokenInput voltage leap, input power is abnormal	Check the main board or replace the driver boardCheck if the motor speed is too low of fan motor is damaged, replace it by a ne one.Change the fan bladeCheck the input voltage
DC fan motor failure	EE17	DC motor is damagedFor the tri-phase check if the neutral is connectedMain board is damagedThe fan blade is stuck	Detect DC motor for mono phase machine, replace a new one if any failureCheck the wiring connection for tri-pha machineCheck the board, replace a new driver board or main board if any failureCheck if there is any barrier in front of fan blade and remove it
PFC module thermal circuit is abnormal	EE18	The driver board is damaged	Check if the motor speed is too low of fan motor is damaged, replace it by a ne one.Change a new driver board
PFC module high temperature protection	EE19	1. PFC module thermal circuit output abnormal2. Fan motor is abnormal or damaged3. Fan blade is broken4. The screw in the driver board is not tight	1. Check the main board or replace the driver board2. Check if the motor speed is too low or fan motor is damaged, replace it b new one if any failure.3. Change the fan blade if it is broken4. Check the screw on driver board
Input power failure	EE20	The supply voltage fluctuates too much	Check whether the voltage is stable
Software control exception	EE21	1. Compressor runs out of step2. Wrong program3. Impurity inside compressor causes the unstable rotate speed	1. Check the main board or change a new one2. Update the correct program3. Check the refrigeration system
Current detection circuit failure	EE22	1. Voltage signal abnormal2. Driver board is damaged3. Main board failure	1. Change a new main board2. Change a new driver board
Compressor start failure	EE23	1. Main board is damaged2. Compressor wiring error or poor contact or unconnected3. Liquid accumulation inside4. Wrong phase connection for compressor	1. Check the main board or change a new one2. Check the compressor wiring according to the circuit diagram3. Check the compressor or change a new one
Ambient Temperature device failure on Driver board	EE24	Ambient Temperature device failure	Change driver board or main board
Compressor phase failure	EE25	Compressors U, V, W are just connected one phase or two phases.	Check the actual wiring according to t circuit diagram
EEPROM data read malfunction	EE27	1. Wrong EEPROM data in the program failed input of EEPROM data2. Main board failure	1. Re-enter correct EEPROM data2. Change a new main board
The inter-chip communication failure on the main control board	EE28	Main board failure	1. Stop electricity supply and restart it2. Change a new main board

Remarks:

1. In heating mode, if the water out temperature is higher than the set temperature over 7^ C, LED controller displays EE04 for water over-heating protection.

EE04 Water Overheating Protection

For example as below:

Mode	Output water temperature	Set point temperature	Condition	Malfunction
Heating mode	36°C	29°C	Tout -Tset ≧7°C	EE04 Overheating protection for water temperature (d2- TH5)

7.2 Other Malfunctions and Solutions (No display on LED wire controller)

Malfunctions	Observing	Reasons	Solution
Heat pump is not running	LED wire controller no display.	No power supply	Check cable and circuit breaker if it is connected
	LED wire controller. displays the actual time.	Heat pump under standby status	Startup heat pump to run.
	LED wire controller displays the actual water temperature.	1. Water temperature is reaching to setting value, HF under constant temperature status.2. Heat pump just starts to run.3. Under defrosting.	1. Verify water temperature setting.2. Startup heat pump after a few minutes.3. LED wire controller should display "Defrosting".
Short running	LED displays actual water temperature, no error code displays.	1. Fan NO running.2. Air ventilation is not enough.3. Refrigerant is not enough	1. Check the cable connection between the motor and fan, necessary, it should be replaced.2. Check the location of heat pump unit, and eliminate all obstacles to make good air ventilation.3 Replace or repair the heat pump unit.
water stains	Water stains on heat pump unit.	1. Concreting.2. Water leakage.	1. No action.2. Check the titanium heat exchanger carefully if it is any defect.
Too much ice or evaporator	Too much ice on evaporator.		1. Check the location of heat pump unit, and eliminate all obstacles to make good air ventilation.2. Replace or repair the heat pump unit.

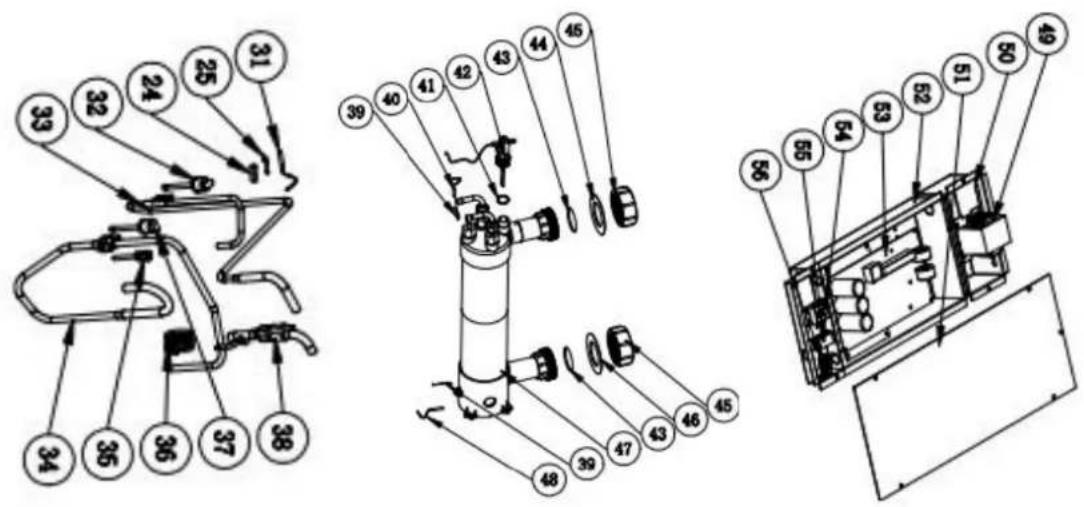

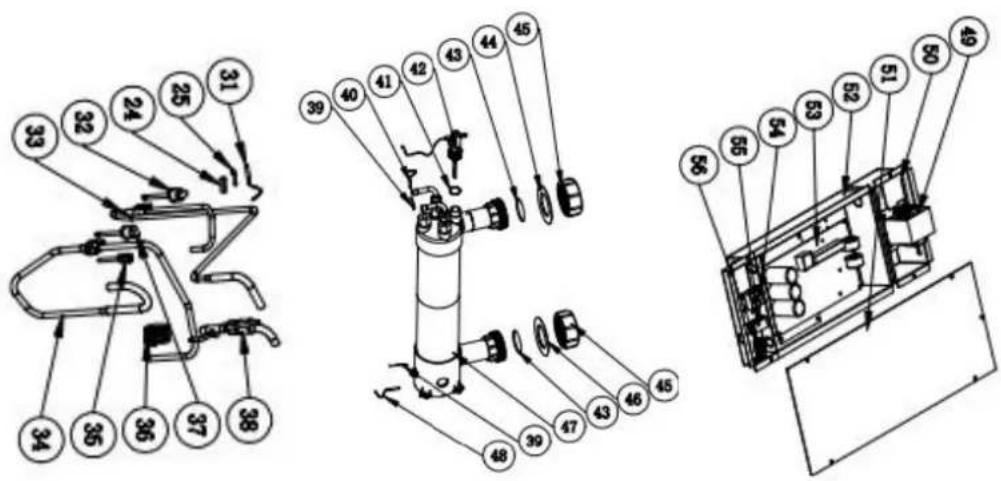

1. Exploded Diagram
2. 1 Exploded Diagram

Model: HPGI50

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

Technical diagram of a robotic arm with numbered parts and exploded views, likely for assembly or maintenance instructions.

No	Spare parts	No	Spare parts
1	Top cover	32	Cable connector
2	Top frame	33	Four-way valve coil
3	Left Panel	34	Four-way valve
4	Evaporator	35	Ambient temp. sensor
5	Fan motor bracket	36	Exhaust temp. sensor
6	Fan motor	37	High pressure switch
7	Evaporator pad	38	Exhaust pipe
8	Fan blade	39	Back gas piping
9	Front Panel	40	Needle Valve
10	Ventilation grid	41	Capillary
11	Waterproof box	42	Low pressure switch
12	Controller	43	Pipe (Titanium exchanger to Capillary
13	Controller box	44	Heat exchanger Sensor Clip
14	Isolation panel	45	Water outlet temp. sensor
15	Base tray	46	Rubber ring
16	Compressor	47	Water flow switch
17	Compressor heating belt	48	O' ring
18	Evaporator pad	49	Red rubber ring
19	Evaporator gas collecting pipe	50	Water connection
20	Pressure gauge	51	Blue rubber ring
21	Right Panel	52	Titanium heat exchanger
22	Back panel	53	Water inlet temp. sensor
23	B-shaped rubber fixing block	54	Reactor
24	Sensor casing pipe	55	Reactor box
25	Sensor casing pipe spring leaf	56	Electric box cover
26	Coil temp. sensor	57	Electric box
27	Ambient temp. sensor Clip	58	PCB
28	Cable connector	59	3-position terminal
29	Wire loop with film	60	Clamp
30	Ambient temp. sensor	61	2-position terminal
31	Pressure gauge

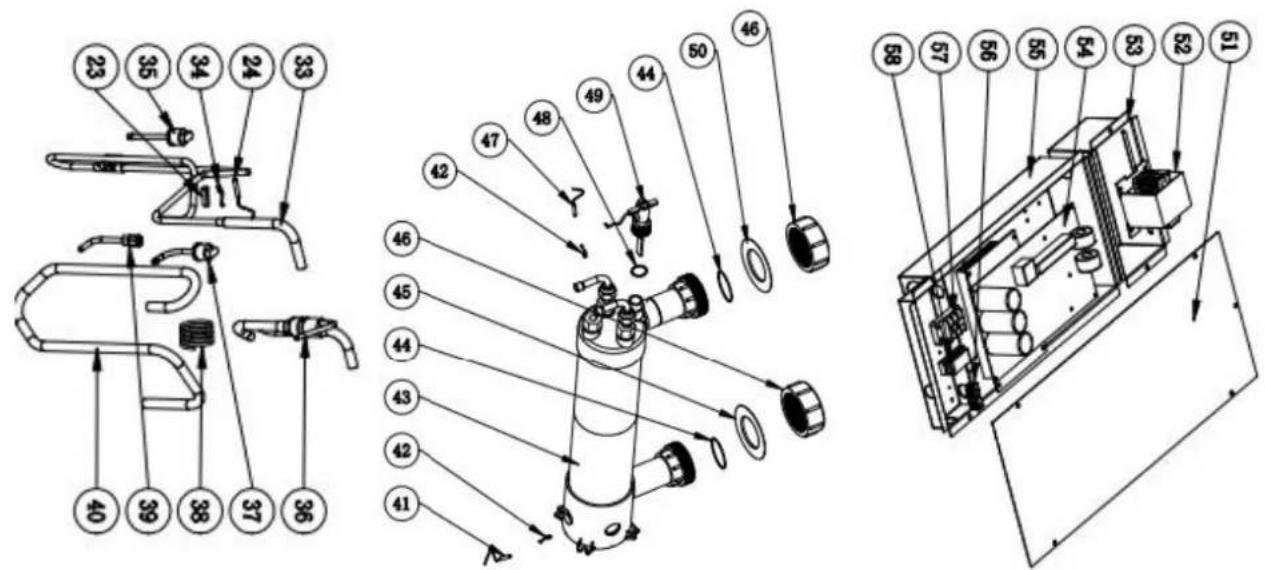

Model: HPGI60/70/85

Technical diagram of a device with numbered components for identification

Technical diagram of a mechanical device with numbered parts and exploded view, likely for assembly or manufacturing purposes.

No	Spare parts	No	Spare parts
1	Top cover	30	Wire loop with film
2	Top frame	31	Ambient temp. sensor Clip
3	Evaporator	32	Ambient temp. sensor
4	Fan motor bracket	33	Exhaust pipe
5	Left Panel	34	Exhaust temp. sensor
6	Fan motor	35	High pressure switch
7	Casing pipe	36	Pipe (Titanium heat exchanger to Capillary
8	Fan blade	37	Low pressure switch
9	Front Panel	38	Capillary
10	Ventilation grid	39	Needle Valve
11	Controller	40	Back gas piping
12	Waterproof box	41	Water inlet temp. sensor
13	Controller box	42	Heat exchanger Sensor Clip
14	Evaporator pad	43	Titanium heat exchanger
15	Base tray	44	Joint seal ring
16	Isolation panel	45	Blue rubber ring
17	Compressor heating belt	46	Water connection
18	Compressor	47	Water inlet temp. sensor
19	Evaporator pad	48	Joint seal ring
20	Right Panel	49	Water flow switch
21	Evaporator gas collecting pipe	50	Red rubber ring
22	rubber fixing block	51	Electric box cover
23	Sensor casing pipe	52	Reactor
24	Sensor casing pipe spring leaf	53	Reactor box
25	Coil temp. sensor	54	PCB
26	Distribution pipe	55	Electric box
27	Back panel	56	2-position terminal
28	Pressure gauge	57	3-position terminal
29	Cable connector	58	Clamp

9. Maintenance

Warning!

-Before any maintenance work on the appliance, you must cut the electricity supply as there is a risk of electric shock which may cause material damage, serious injury or even death.

- It is recommended that the appliance undergo general servicing at least on a yearly basis to ensure its proper operation, maintain performance levels and prevent any possible failures. These operations are carried out at the user's expense, by a qualified technician. for maintenance to be carried out by a qualified technician.

-For maintenance to be carried out by a qualified technician, please read the safety instructions in the previous pages provided in the chapter entitled "maintenance: warnings concerning appliances containing R32 refrigerant" before performing any of the maintenance operations described below.

(1) You should check the water supply system regularly to avoid the air entering the system and occurrence of low water flow, because it would reduce the performance and reliability of HP unit.
(2) Clean your pools and filtration system regularly to avoid the damage of the unit as a result of the dirty of clogged filter.
(3) In another way, you should check the unit is water fully before the unit start to run again.
(4) After the unit is conditioned for the winter season, it is recommended to cover the heat pump with special winter cover.
(5) When the unit is running, there is all the time a little water discharge under the unit.
(6) Please always empty the water in heat pump during winter time or when the ambient temperature drops below 0^ C, or else the Titanium exchanger will be damaged because of being frozen, in such case, your warranty will be lost.

* Above data is subject to update without prior notice.
**Check our packaging or website for more details.

2. Dimensión (mm)

Model: HPGI50

860.0 586.5

350.0 96.5

580.0 860.0 315.5 389.0

Model: HPGI60/70/85

567.0 668.0

Technical line drawing of a rectangular industrial or laboratory equipment unit with control panels and measurement annotations (no readable text or symbols)

987.0 650.0 375.0 332.0 400.5

Heat pump Power cable inlet Outlet Inlet Condensed water draining pipe Draining nozzle Water processor Side connection valve Discharge water pool Pool water inlet Water pump Filter Water pump

BY-PASS To pool From pool Valve 1 Valve 2 Valve 3 Out In Heat Pump

Three-panel photo showing a connector with colored wires and connectors, no visible text or symbols

Foto 1 Foto 2 Foto 3

Leakage protector L N Earthing devices Water pump

Foto 4

Reactor Magnet ring (WHT) FAN RED I1 I2 Magnet ring (WHT) FAN2 OUT9 ON NOD 4-Way valve coil N5 N4 OUT6 OUT5 OUT4 Crankshaft electric heating N3 N2 N1 N9 OUT3 OUT2 OUT1 W V U Magnet ring (BLK) RED BLK WHT COMPRESSOR JTAG Electronic Expansion Valve TH1 TH2 TH3 TH4 TH5 TH6 TH7 TH8 Ambient temperature Coil Temperature Exhaust Temperature Water out temperature Water in temperature Wire controller COM1 COM2 AC-N NO OUT10 1/2 AC-L TS1 TS2 TS3 TS4 TS5 Defrosting switch Water flow switch High pressure switch Low pressure switch BRN Magnet ring (BLK) BLU L N 1 2 Switch (Water Pump) I-3041 * The dotted line part are only used in some models 220V-240V~50Hz/60Hz

NOTA:

Close-up of a white plastic pipe fitting with a small connector, mounted on a plain surface (no text or symbols visible)

Photo(2)

Photo(3)

Close-up of a white electronic device front panel with multiple colored wires and a black indicator button (no visible text or symbols)

Photo(4)

Close-up of a green printed circuit board with various electronic components and connectors (no visible text or symbols)

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Labeled diagram of a robotic arm with numbered parts for identification

49 50 51 52 53 54 55 56 57

Technical diagram of a mechanical device with numbered components and directional arrows indicating flow or movement.

23 35 34 24 33 40 39 38 37 36

Technical diagram of a mechanical device with numbered parts, likely a valve or pump assembly.

58 57 56 55 54 53 52 51

350.0 96.5

315.5 389.0 580.0 860.0

Technical line drawing of a rectangular industrial machine with control panel and side gauges (no text or symbols)

987.0 650.0 375.0 332.0 400.5

3. Installation et raccordement

3.1 Installation

Close-up of a small white object placed on a black textured base, placed on a wooden floor (no text or symbols visible)

Close-up of a black PVC pipe fitting attached to a wooden surface, with a mesh-patterned metal panel above (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Close-up of a hand holding a white cylindrical object with a blue ring, possibly a mechanical component or tool (no visible text or symbols)

Two white plastic cylindrical objects with side grooves, held by hands (no text or symbols visible)

Close-up of a white plastic cylindrical component with rounded ends, held by a hand (no visible text or symbols)

Close-up of two metallic mechanical components against a dark background (no visible text or symbols)

Interior view of an electronic control panel with visible wiring, capacitors, and a circuit board (no text or symbols)

Close-up of a small electrical connector with orange and blue wires, mounted on a black terminal block (no visible text or symbols)

Patin caoutchouc anti-vibration

Three-panel photo showing electrical connectors with wires and colored wires, no visible text or symbols

Photo 1 Photo 2 Photo 3

Leakage protector L N Earthing devices Water pump

Reactor Magnet ring (WHT) FAN RED I1 I2 Magnet ring (WHT) FAN2 OUT9 ON NOC 4-Way valve coil N5 N4 N3 N2 N1 N9 OUT6 OUT5 OUT4 Crankshaft electric heating OUT3 OUT2 OUT1 N6 N5 N4 Base Electric heater COM OUT10 NO OUT10 1 2 PE AC-N COM1 COM2 AC-L TS1 TS2 TS3 TS4 TS5 Defrosting switch High pressure switch Low pressure switch Magnet ring (BLK) BRN BLU L N 1 2 Switch (Water Pump) I-3041 * The dotted line part are only used in some models

NOTE:

Close-up of a white plastic electrical plug with a coiled cable (no text or symbols visible)

Close-up of a white electronic device front panel with multiple colored connectors and a black connector (no visible text or symbols)

Close-up of a green printed circuit board with various electronic components and traces (no visible text or symbols)

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

Technical diagram of a mechanical assembly with numbered parts and exploded views

Technical diagram of an air conditioning unit with numbered components and airflow indicators

Technical diagram of a mechanical device with numbered parts for identification

Diagram of a mechanical assembly with labeled parts and directional arrows indicating motion or assembly.

58 57 56 55 54 53 52 51

350.0 96.5

315.5 389.0 580.0 860.0

Model:HPGI60/70/85

987.0 688.0

Technical line drawing of a rectangular industrial machine with control panel and side gauges (no text or symbols)

987.0 650.0 375.0 332.0 400.5

White electronic device with coiled cable and indicator lights (no visible text or symbols)

Close-up of a white plastic electrical plug with a terminal connector (no visible text or symbols)

Close-up of a white electrical outlet with multiple blue and red cables, no visible text or symbols

Close-up of a green printed circuit board with various electronic components (no visible text or symbols)

Tset = Tsetting Wassertemperatur

Tset-0.5 = less 0.5^ C than Tsetting temperatur; Tset-0.5 = 28-0.5=27.5°C

Tset+0.5= more 0.5°C than Tsetting temperatur; Tset+ 0.5 = 28+0.5=28.

EE04 Water Overheating Protection

Zum Beispiel unten:

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

Technical diagram of a robotic arm with numbered parts, showing exploded and assembled views.

Technical diagram of a device with numbered components for identification

Technical diagram of a mechanical device with numbered parts and exploded view, likely for assembly or manufacturing purposes.

350.0 96.5

315.5 389.0 580.0 860.0

Modello: HPGI60/70/85

987.0 688.0

Technical line drawing of a rectangular industrial machine with control panel and side gauges (no text or symbols)

987.0 650.0 375.0 332.0 400.5

Reactor Magnet ring (WHT) FAN RED I1 I2 Magnet ring (WHT) FAN2 OUT9 NO N0 4-Way valve coil N5 N4 N3 N2 N1 N9 OUT6 OUT5 OUT4 Crankshaft electric heating OUT3 OUT2 OUT1 W V U Magnet ring (BLK) RED BLK WHT COMPRESSOR JTAG Electronic Expansion Valve TH1 TH2 TH3 TH4 TH5 TH6 TH7 TH8 Ambient temperature Coil Temperature Exhaust Temperature Water out temperature Water in temperature Wire controller COM1 COM2 AC-N OUT10 NO 1/2 AC-L TS1 TS2 TS3 TS4 TS5 Defrosting switch Water flow switch High pressure switch Low pressure switch BRN Magnet ring (BLK) BLU L N 1 2 Switch (Water Pump) I-3041 * The dotted line part are only used in some models 220V-240V~50Hz/60Hz

NOTA:

Close-up of a white plastic electrical plug with a coiled cable (no visible text or symbols)

White electrical circuit box with multiple blue and red connectors, no visible text or symbols

Close-up of a green printed circuit board with various electronic components (no visible text or symbols)

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

Technical diagram of a mechanical assembly with numbered parts, showing exploded and assembled views.

Technical diagram of a device with numbered components for identification

Technical diagram of a mechanical device with numbered parts and exploded view, likely for assembly or maintenance instructions.

350.0 96.5

315.5 399.0 580.0 860.0

Model: HPGI60/70/85

Technical line drawing of a front-end air conditioner unit with fan and ventilation slots (no text or symbols)

Technical line drawing of a rectangular industrial machine with control panel and side gauges (no text or symbols)

987.0 650.0 375.0 332.0 400.5

4.3 Connection to the filtration pump

Three-panel photo showing electrical plug connections with wires and connectors (no visible text or symbols)

Foto 1 Foto 2 Foto 3

Reactor Magnet ring (WHT) FAN RED I1 I2 Magnet ring (WHT) FAN2 OUT9 NO MOD 4-Way valve coil N6 N5 N4 OUT6 OUT5 OUT4 Base Electric heater Crankshaft electric heating N3 N2 N1 N9 OUT3 OUT2 OUT1 W V U Magnet ring (BLK) RED BLK WHT JTAG Electronic Expansion Valve Th1 Th2 Th3 Th4 Th5 Th6 Th7 Th8 Ambient temperature Coil Temperature Exhaust Temperature Water out temperature Water in temperature Wire controller AC-N COM1 COM2 TS1 TS2 TS3 TS4 TS5 AC-L Water flow switch Defrostling switch High pressure switch Low pressure switch Magnet ring (BLK) BRN L N 1 2 Switch (Water Pump) I-3041 * The dotted line part are only used in some models 220V-240V~50Hz/60Hz

OPMERKING:

White electronic device with coiled cable and indicator lights (no visible text or symbols)

Close-up of a white plastic electrical plug with a coiled cable (no visible text or symbols)

Close-up of a white electrical outlet with multiple blue and red cables, no visible text or symbols

Close-up of a green printed circuit board with various electronic components and traces (no visible text or symbols)

Tset- 0.5 = 28-0.5=27.5°C

Tset+ 0.5 = 28+0.5=28.5°C

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

Technical diagram of a robotic arm with numbered parts and exploded views, likely for assembly or maintenance instructions.

Technical diagram of a device with numbered components for identification

Technical diagram of a mechanical device with numbered parts and exploded view, likely for assembly or manufacturing purposes.

350.0 96.5

315.5 399.0 580.0 860.0

Modelo: HPGI60/70/85

987.0 688.0

Technical line drawing of a rectangular industrial or laboratory equipment unit with control panel and side gauges (no text or symbols)

967.0 650.0 375.0 332.0 400.5

Check-valve Filter P-trap Check-valve In-line Chlorinator or Brominator Chlorinator Water Pump

3.3 Arranjo típico

Heat pump Power cable inlet Outlet Inlet Condensed water draining pipe Draining nozzle Water processor Side connection valve Discharge water pool Pool water inlet Water pump Filter

3.4 Ajustar o bypass

4.2 Accessories Installation

Close-up of a black textured square base with a small white object on top, placed on a wooden floor (no text or symbols visible)

Bases antivibração

Reactor Magnet ring (WHT) FAN RED I1 I2 Magnet ring (WHT) FAN2 OUT9 ON N0C 4-Way val ve coil N5 N4 N3 N2 N1 N9 OUT6 OUT5 OUT4 Base Electric heater Crankshaft el electric heating OUT3 OUT2 OUT1 N6 N5 N4 N3 N2 N1 N0 COM OUT10 NO 1 2 PE AC-N W V U Magnet ring (BLK) RED BLK WHT JTAG Electronic Expansion Valve TH1 TH2 TH3 TH4 TH5 TH6 TH7 TH8 Ambient temperature Coil Temperature Exhaust Temperature Water out temperature Water in temperature Wire controller TS1 TS2 TS3 TS4 TS5 Defrosting switch Water flow switch High pressure switch Low pressure switch BRN Magnet (BLK) Ring L N 1 2 Switch (Water Pump) I-3041 * The dotted line part are only used in some models

NOTA:

Tset-0.5 = less 0.5°C than Tsetting temperatura, Tset-0.5 = 28-0.5=27.5°C

Tset+0.5= more 0.5°C than Tsetting temperatura, Tset+ 0.5 = 28+0.5=28.5°C

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

Technical diagram of a robotic arm with numbered parts and exploded views, likely for assembly or maintenance instructions.

Technical diagram of an electronic device with numbered components for identification

Technical diagram of a mechanical device with numbered parts and exploded view, likely for assembly or manufacturing purposes.

Technical line drawing of a rectangular industrial or electrical enclosure with grid pattern and two circular components (no text or symbols)

315.5 399.0 580.0 860.0

Model: HPGI60/70/85

987.0 668.0

Technical line drawing of a rectangular industrial or laboratory equipment unit with control knobs and a grid-patterned panel (no text or symbols)

987.0 650.0 375.0 332.0 400.5

Reactor Magnet ring (WHT) FAN RED I1 I2 Magnet ring (WHT) FAN2 OUT9 NO MOD 4-Way valve coil N6 N5 N4 OUT6 OUT5 OUT4 Base Electric heater Crankshaft electric heating N3 N2 N1 N9 OUT3 OUT2 OUT1 W V U Magnet ring (BLK) RED BLK WHT JTAG Electronic Expansion Valve Th1 Th2 Th3 Th4 Th5 Th6 Th7 Th8 Ambient temperature Coil Temperature Exhaust Temperature Water out temperature Water in temperature Wire controller AC-N COM1 COM2 TS1 TS2 TS3 TS4 TS5 AC-L Water flow switch Defrostling switch High pressure switch Low pressure switch Magnet ring (BLK) BRN L N 1 2 Switch (Water Pump) I-3041 * The dotted line part are only used in some models 220V-240V~50Hz/60Hz

UWAGA:

White electronic device with coiled white cables, no visible text or symbols

Close-up of a white plastic electrical plug with a coiled cable (no visible text or symbols)

Close-up of a white electrical outlet with multiple blue and red cables connected to a grid of connectors (no visible text or symbols)

Close-up of a green printed circuit board with various electronic components (no visible text or symbols)

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical assembly with numbered parts for identification and assembly reference.

Technical diagram of an industrial machine with numbered components and airflow indicators

Technical diagram of a mechanical device with numbered parts and exploded view, likely for assembly or manufacturing purposes.

1.1 In accordance with these provisions, the seller guarantees that the product corresponding to this guarantee ("the Product") is in perfect condition at the time of delivery.
1.2 The Guarantee Term for the Product is two (2) years from the time it is delivered to the purchaser.
1.3 In the event of any defect in the Product that is notified by the purchaser to the seller during the Guara Term, the seller will be obliged to repair or replace the Product, at his own cost and wherever he deems suitable unless this is impossible or unreasonable.
1.4 If it is not possible to repair or replace the Product, the purchaser may ask for a proportional reduction in the price or, if the defect is sufficiently significant, the termination of the salescontract.
1.5 The replaced or repaired parts under this guarantee, will not extend the guarantee period of the original Product, but will have a separate guarantee.
1.6 In order for this guarantee to come into effect, the purchaser must provide proof of the date of purchase delivery of the Product.
1.7 If, after six months from the delivery of the Product to the purchaser, he notifies a defect in the Product purchaser must provide proof of the origin and existence of the alleged defect.
1.8 This Guarantee Certificate is issued without prejudice to the rights corresponding to consumers under national regulations.

2 INDIVIDUAL TERMS

2.1 This guarantee covers the products referred to in this manual.
2.2 This Guarantee Certificate will only be applicable in European Union countries.
2.3 For this guarantee to be effective, the purchaser must strictly follow the Manufacturer's instructions included in the documentation provided with the Product, in cases where it is applicable according to the range of a model of the Product.
2.4 When a time schedule is specified for the replacement, maintenance or cleaning of certain parts or components of the Product, the guarantee will only be valid if this time schedule has been followed.

3 LIMITATIONS

3.1 This guarantee will only be applicable to sales made to consumers, understanding by “consumer”, a person who purchases the Product for purposes not related to his professional activities.
3.2 The normal wear resulting from using the product is not guaranteed. With respect to expendable or consumable parts, components and/or materials, such as batteries, light bulbs, etc. the stipulations in the documentation provided with the Product, will apply.
3.3 The guarantee does not cover those cases when the Product; (I) has been handled incorrectly; (II) has been repaired, serviced or handled by non- authorised people or (III) has been repaired or serviced not using original p In cases where the defect of the Product is a result of incorrect installation or start-up, this guarantee will only apply when said installation or start-up is included in the sales contract of the Product and has been conducted by the seller or under his responsibility.

ES - CERTIFICADO DE GARANTÍA 1

ASPECTOS GENERALES

MANUFACTURAS GRE, S.A.

ARITZ BIDEA N° 57 BELAKO INDUSTRIALDEA, APARTADO

48100 MUNGUIA (VIZCAYA) ESPAÑA

Nº Reg. Ind. 48-06762

• Wereserve the right to change all or part of the articles or content of this document, without prior notice
• Nos reservamos el derecho de cambiar total o parcialmente las características de nuestros artículos o el contenido de este documento sin previoaviso
• Nous nous réservons le droit de modier totalement ou en partie les caractéristiques de nos articles ou le contenu ce document sans préavis
• Wir behalten uns das Recht vor, die technischen Daten unserer Artikel oder den Inhalt dieses Dokumentes ohne vorherigen Hinweis ganz oder teilweise zu ändern
• Ci riserviamo il diritto di cambiare totalmente o parzialmente le caratteristiche tecniche dei nostri prodotti ed il contenuto di questo documento senza nessun preavviso
• Wij behouden ons het recht voor geheel of gedeeltelijk de kenmerken van onze artikelen of de inhoud van deze handleiding zonder voorafgaand bericht te wijzigen
• Reservamo-nos o direito de alterar, total ou parcialmente, as características dos nossos artigos ou o conteúdo deste documento sem avisoprévio.
• Zastrzegamy sobie prawo do zmiany w całości lub części niniejszej instrukcji bez uprzedniejinformacji
