USER MANUAL HM 47251 R KALORIK

Black KALORIK hand mixer with whisk, no visible text or symbols on the device itself

EN.....2

ES...... 11

FR..... 20

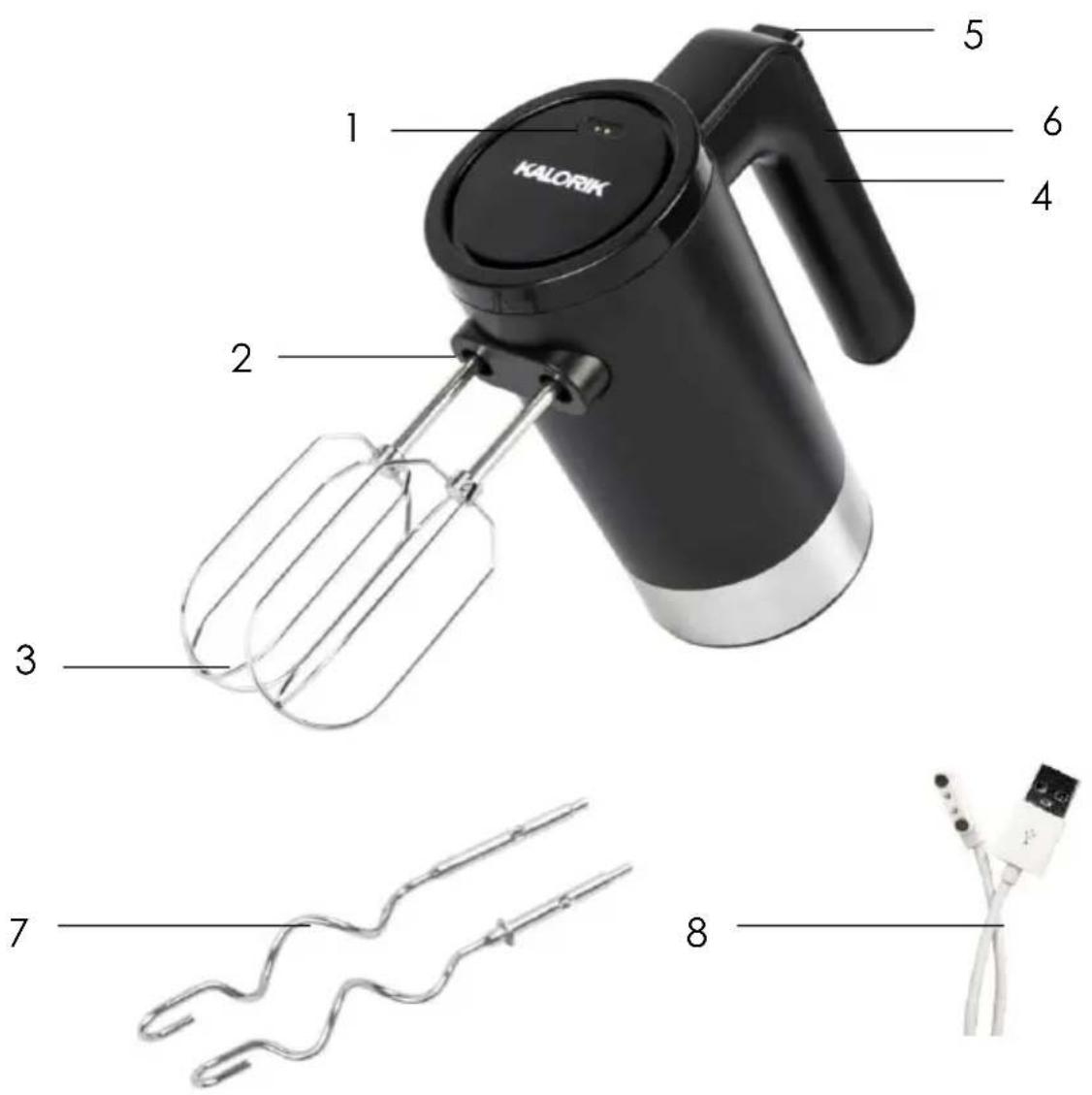

1. Magnetic charging port
2. Accessory holes
3. Beaters
4. Handle
5. Accessory release button
6. Speed control (5 speeds)
7. Dough hooks
8. USB charger

POWER SPECIFICATIONS

Battery type	Lithium ion
Voltage	7.4V (2 batteries of 3.7V/2000mA) Max 100W
Adapter Input	120V AC 60 Hz
Charging Time	About 3.5-4.5 hours (the smaller the charger output, the longer the charging time)

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS BEFORE USE!

1. To protect against electrical shock, fire or personal injury, do not immerse cord, plugs, or the appliance in water or other liquid.
2. Close supervision is necessary when any appliance is used by or near children. As a rule, this appliance is not intended to be used by children.
3. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment.
4. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
5. Do not use outdoors.
6. Do not place on or near a hot gas or electric burner, or in a heated oven.
7. Do not use the appliance for anything other than intended use.
8. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electric shock.
9. Do not store any materials, other than manufacturers recommended accessories, in this appliance when not in use.
10. Do not leave unit unattended when in use.
11. During the use of the product, avoid having long hair, scarves and other objects hanging around the beaters or hooks.
12. To ensure proper mixing and product life, please make sure you are using the correct amounts when mixing.
13. Do not touch the dismountable parts while the product is in use since it may cause injury.
14. This appliance is not suitable for mixing thicker doughs like dumpling dough or hard ingredients such as cold butter and rock sugar.
15. Do not press the release button while the product is in use, it may cause personal injury.

Caution!!

- This appliance is intended for normal household use only.

- This appliance will not work unless beaters and hooks are placed correctly.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

BEFORE THE FIRST USE

Wash beaters and hooks and remove all packaging materials if present. Charge the battery until the battery is full, blue light will be turned on. Refer to the Operating Instructions section below for instructions on how to charge your hand mixer.

OPERATING INSTRUCTIONS

Inserting the accessories:

E43210

IMPORTANT: Make sure that the speed controller is at "0" position before attaching and removing beaters or hooks. Slide the button to select desired speed.

Technical line drawing of a mechanical device with two views: top shows cylindrical component, bottom shows two inserted pins (no text or symbols)

Insert the stainless-steel beaters or dough hooks into the openings. Push accessory in until it clicks into place.

Simple line drawing of a mechanical clamp or connector assembly (no text or symbols)

Make sure you are inserting the accessories correctly. The end of the accessories should align with the slots in the accessory holes.

NOTE: When inserting the dough hooks, insert the hook with collar into the hole marked with an arrow (right hole if facing the two accessory holes).

Use:

Simple line drawing of a hand pouring liquid into a container (no text or symbols)

Hold the product in one hand and hold the container with the other. Use the speed controller to select desired mixing speed. Use for intervals of up to 1 minute of continuous use. Do not exceed more than 5 minutes of total working time.

NOTE: The Hand Mixer will not work while charging

Tips:

• Always set your hand mixer to the lowest speed when you start mixing.
• Speed 1: Use with beaters or dough hooks to combine and aerate dry ingredients or to fold delicate creams and egg whites into batters. Also use to mix frostings, stir sauces and gravies, mix muffins and pancakes or whip liquids.
• Speed 2: Use with beaters or dough hooks to cream butter and sugar, mash potatoes or squash or add dry ingredients to batter/dough or to mix cake mixes.
• Speed 3: Recommended with beaters, use with heavy cream cheese or to make whip cream or to beat whole eggs.
• Speed 5: Use with beaters to beat egg yolks until thick and light, to finish whipped cream, to finish whipping egg whites or to finish meringue.

Recharging your hand mixer:

Line drawing of a cylindrical device with a lid and control panel, showing an electrical outlet (no text or symbols)

The hand mixer includes a USB magnetic charging cord. Place the magnetic end of the cord on the magnetic port. Plug the USB into a 5V 1000mA charging cube or in a USB port optimized for charging.

• The red indicator light will turn on when charging.
• It will take 3.5 to 4.5 hours to recharge fully.
• When fully charged, your hand mixer can be used 20 – 25 times.
  • While connected and fully charged, the indicator light will be blue.

You can leave the adapter connected to maintain the full charge or disconnect it after 8 hours (in this case the blue light will be off).

CLEANING AND MAINTENANCE

DO NOT IMMERSE THE MOTOR HOUSING OF THE HAND MIXER IN WATER OR ANY OTHER LIQUID!

Turn hand mixer off by sliding speed controller to "0" position. Remove beaters or hooks from unit using the release button. Wash accessories with warm water and dish soap or place in the dishwasher. Wipe the motor body with a damp cloth.

Store in the included storage pouch.

Problem	Possible cause	Troubleshooting
The red light is flashing after starting up	Low power	Please charge
No lights on when charging	1. Bad contact2. Wrong adapter parameters	1. Reconnect2. Use adapter for 5V/1A
Beaters falling off while using	Not properly installed in the socket	Eject and reattach until you hear a “click” noise that indicates correct installation
Note: With the included charging cable, is recommended to use 5V1000mA charging cube or an USB port for optimized charging.The charging time of about 3.5-4.5 hours (the smaller the charger output, the longer the charging time).

We suggest that you complete and return the enclosed Product Registration Card promptly to facilitate verification of the date of original purchase. However, return of the Product Registration Card is not a condition of these warranties. You can also fill out this warranty card online, at the following address: www.KALORIK.com

This KALORIK product is warranted in the U.S.A. and in Canada for 1 year from the date of purchase against defects in material and workmanship. This warranty is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance.

During this period, if the KALORIK product, upon inspection by KALORIK, is proven defective, it will be repaired or replaced, at Kalorik's option, without charge to the customer. If a replacement product is sent, it will carry the remaining warranty of the original product.

This warranty does not apply to any defect arising from a buyer's or user's misuse of the product, negligence, failure to follow KALORIK instructions noted in the user's manual, use on current or voltage other than that stamped on the product, wear and tear, alteration or repair not authorized by KALORIK, or use for commercial purposes. There is no warranty for glass parts, glass containers, filter basket, blades and agitators. There is also no warranty for parts lost by the user.

ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD.

Some states do not allow limitation on how long an implied warranty lasts or do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If the appliance should become defective within the warranty period and more than 30 days after date of purchase, do not return the appliance to the store: often, our Customer Service Representatives can help solve the problem without having the product serviced. If

servicing is needed, a Representative can confirm whether the product is under warranty and direct you to the nearest service location.

If this is the case, send the product via your pre-paid postage back to Kalorik, along with proof of purchase and a return authorization number indicated on the outer package, given by our Customer Service Representatives. Send to the authorized KALORIK Service Center (please visit our website at www.KALORIK.com or call our Customer Service Department for the address of our authorized KALORIK Service Center).

When sending the product, please include a letter explaining the nature of the claimed defect.

If you have additional questions, please call our Customer Service Department (please see below for complete contact information), Monday through Thursday from 9:00am - 5:00pm (EST) and Friday from 9:00am - 4:00pm (EST). Please note hours are subject to change.

If you would like to write, please send your letter to:

KALORIK Customer Service Department

Team International Group of America Inc. 16175 NW 49th Avenue Miami Gardens, FL 33014 USA

Or call:

Toll Free: +1 888-521-TEAM / +1 888-KALORIK

Only letters can be accepted at this address above. Shipments and packages that do not have a return authorization number will be refused.

KALORIK 1 2 3 4 5 6 7 8

Technical line drawing of a mechanical device with two views: top shows cylindrical component, bottom shows two inserted pins (no text or symbols)

Pure mechanical diagram showing a pipe connection with a coiled cable (no text or symbols)

Illustration of a hand pouring liquid into a container with a mesh liquid (no text or symbols)

Diagram of a cylindrical device with a labeled component, showing internal components and an electrical outlet (no text or symbols present)
