ZILPE18AKKU - Compressor Zipper - Free user manual and instructions

Product Type	Cordless Inflator Compressor
Brand	Zipper
Model	ZILPE18AKKU
Power Supply	Rechargeable lithium-ion battery, 18 V (estimated from product reference)
Intended Use	Inflating vehicle and bicycle tires, sports and beach articles, pressure measurement
Inflation Capacity	Max continuous use 5 minutes, then allow to cool
Charge Status Indicator	3-level LED
Included Accessories	Balloon adapter, cone adapter, air hose
Removable Battery	Yes
Charger Included	Yes; recommended charging temperature: between 0 °C and 40 °C
Maintenance	Monthly cleaning with a dry cloth; store in a dry, frost-free place (10-25 °C)
Safety	Do not expose to rain, do not direct air at people, respect maximum permissible pressure
Spare Parts	Use original ZIPPER parts; order via service form
Warranty	2 years (DIY use) / 1 year (industrial use) from date of purchase
After-Sales Service Contact	Contact the dealer or ZIPPER (address in Austria)
Certifications	Compliant with EU directives

Frequently Asked Questions - ZILPE18AKKU Zipper

How to charge the battery of the ZILPE18AKKU compressor?

Plug the charger into a mains socket, then connect the charging plug to the battery. The charging process is indicated by a flashing LED. Charge only between 0 °C and 40 °C.

What is the maximum continuous use time?

The device must not be used for more than 5 minutes continuously. After that, let it cool down.

What to do if the motor does not start?

Check that the battery is properly connected and charged. If the switch is damaged, have it repaired by a specialist.

How to clean and maintain the machine?

Clean the machine once a month with a dry cloth or brush. Never use water, solvents, or a pressure washer. Keep the ventilation openings clean.

What types of items can I inflate?

This device is designed to inflate vehicle and bicycle tires, as well as sports and beach articles. Do not use it for inflatable boats or large mattresses.

Can I use the machine continuously for more than 5 minutes?

No, this could damage the device. Respect the maximum continuous operating time of 5 minutes, then allow it to cool.

How to store the machine after use?

Store the machine in a dry, frost-free place (10-25 °C). Remove the battery and store it separately. Charge the battery before winter storage.

Is the battery interchangeable?

Yes, the battery is removable. Use only original ZIPPER batteries matching the voltage indicated on the rating plate.

Where can I find spare parts?

Order spare parts via the service form at the end of the manual. Always use original ZIPPER parts to maintain the warranty.

What is the warranty on this compressor?

The warranty is 2 years for DIY use and 1 year for industrial use, from date of purchase. Wear parts are excluded.

USER MANUAL ZILPE18AKKU Zipper

Green and black JIPPES air pressure tool with attached hose and three small components (no visible text or symbols)

CE

ZI-LPE18-AKKU

EAN: 9120039232850

1 INHALT / INDEX

1 INHALT / INDEX 2

11.1 Operation instructions.... 18
11.2 Operation 18

12 MAINTENANCE 19

12.1 Cleaning 20
12.2 Storage.... 20
12.3 Disposal....20

13 TROUBLE SHOOTING 20

EN EC-CONFORM - This product complies with the EC-directives.

EN READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls in order to use the machine correctly and to avoid injuries and machine defects.

EN ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries and even lead to death.

EN Protection class II!

E B G H A L C F D D I J K M

ZI-LPE18-AKKU

A	Pumpe / Inflator / Pompa / Gonfleur	H	Verriegelungsknopf / Self-locking switch / Interruttore autobloccante / Interrupteur autobloquant
B	Luftschlauch / air hose / tubo dell'aria / Tuyau d'air	I	Ladegerät / Charger / Caricabatterie / Chargeur
C	Luftanschluss / air connector / connettore dell'aria / Connecteur d'air	J	Balladapter / Ball adpater / Adattatore palla / Adaptateur ballons
D	Manometer / manometer / Manometro / Manomètre	K	Adapter konisch / Tapered adapter / Adattatore affusolato / Adaptateur conique
E	Halterung für Luftschlauch und Adapter / Support for air hose and adapter / Supporto per tubo dell'aria adattatore Support pour tuyau d'air et adaptateur	L	LED / LED /LED /LED
F	Akku / battery / Batteria / Batterie	M	Fahrradadapter / adpater for bicycle / adattatore per bicicletta
G	EIN-AUS-Schalter / ON-OFF-Switch / ON-OFF interruttore / Interrupteur marche - arrêt

Four views of a white electric plug with black cable connectors, shown from different angles (no text or symbols visible)

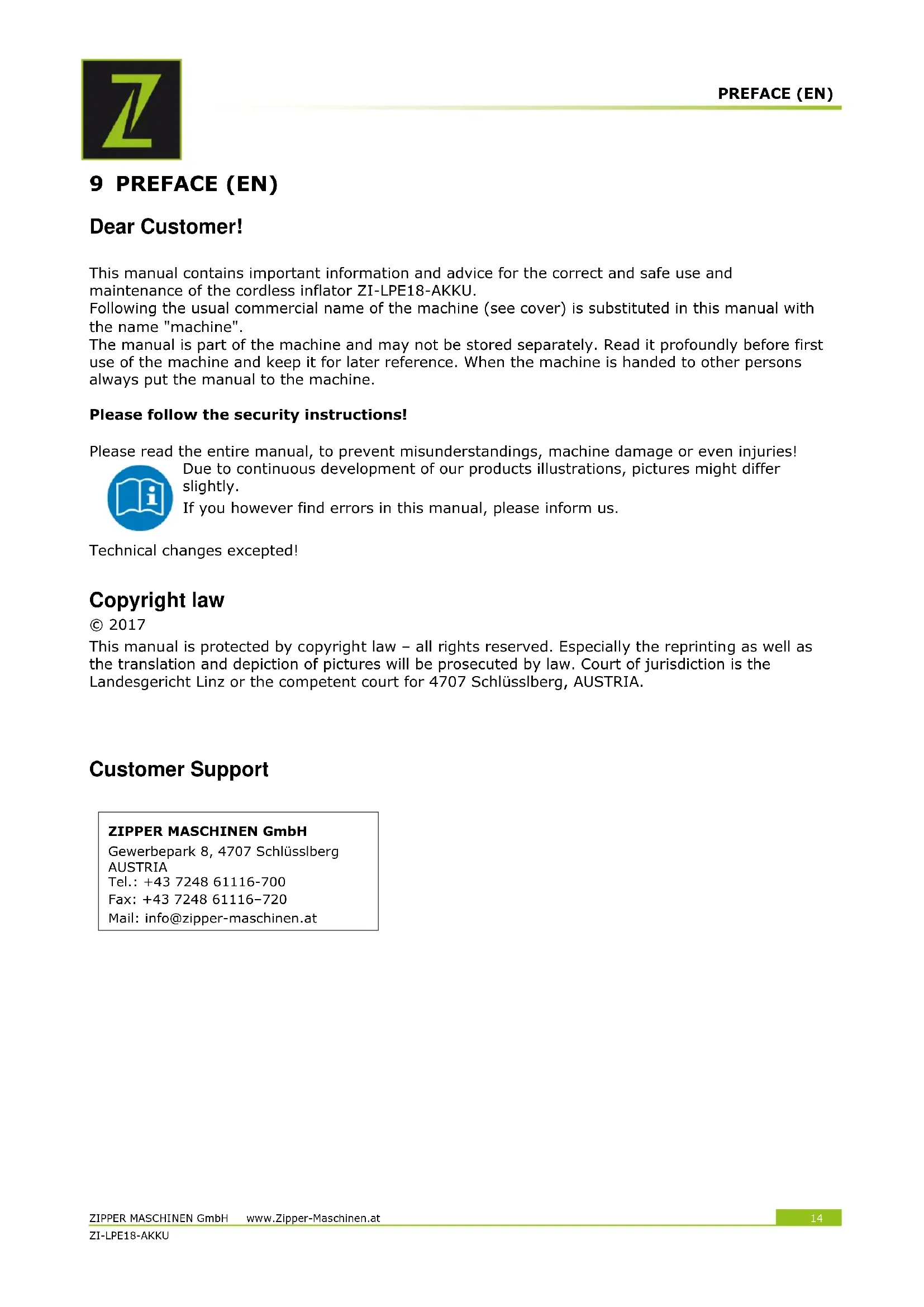

This manual contains important information and advice for the correct and safe use and maintenance of the cordless inflator ZI-LPE18-AKKU.

Following the usual commercial name of the machine (see cover) is substituted in this manual with the name "machine".

The manual is part of the machine and may not be stored separately. Read it profoundly before first use of the machine and keep it for later reference. When the machine is handed to other persons always put the manual to the machine.

Please follow the security instructions!

Please read the entire manual, to prevent misunderstandings, machine damage or even injuries!

Due to continuous development of our products illustrations, pictures might differ slightly.

If you however find errors in this manual, please inform us.

Technical changes excepted!

Copyright law

© 2017

This manual is protected by copyright law – all rights reserved. Especially the reprinting as well as the translation and depiction of pictures will be prosecuted by law. Court of jurisdiction is the Landesgericht Linz or the competent court for 4707 Schlüsslberg, AUSTRIA.

Customer Support

The machine must only be used for its intended purpose! Any other use is deemed to be a case of misuse.

To use the machine properly you must also observe and follow all safety regulations, the assembly instructions, operating and maintenance instructions lay down in this manual.

All people who use and service the machine have to be acquainted with this manual and must be informed about the machine's potential hazards.

It is also imperative to observe the accident prevention regulations in force in your area.

The same applies for the general rules of occupational health and safety.

The machine is used for:

Inflating vehicle and bicycle tyres, as well as articles used for games, sport and the beach; however, it is not intended for inflating large-volume articles, such as dinghies and large air-beds.

It is also suitable for measuring pressure.

This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. Never allow children or people unfamiliar with these instructions to use the machine. Supervise children. This will ensure that children do not play with the unit.

Any manipulation of the machine or its parts is a misuse, in this case ZIPPER-MASCHINEN and its sales partners cannot be made liable for ANY direct or indirect damage.

10.2 Safety instructions

Missing or non-readable security stickers have to be replaced immediately!

The locally applicable laws and regulations may specify the minimum age of the operator and limit the use of this machine!

To avoid malfunction, machine defects and injuries, read the following security instructions!

General power tool safety warnings:

• Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
• The term "power tool" in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety:

• Keep work area clean and well lit. Cluttered and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety:

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

Personal safety:

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust collectors and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Observe the permissible maximum pressure! Articles must not be inflated in excess of this pressure.
• The device produces a high pressure. Do not direct the air outlet at persons or animals.
• Do not load the machine so heavily that it comes to a standstill

Power tool use and care:

• Do not overload the machine. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care:

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Safety instructions for the battery charger:

• Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock.
• Keep the battery charger clean. Contamination can lead to danger of an electric shock.
• Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock.
• Do not place any objects on the battery charger and do not place the battery charger on soft surfaces. There is a risk of fire.
• Always check that the mains voltage matches the voltage indicated on the rating plate of the battery charger.
• Never use the charger if cable, plug or the machine itself has been damaged by external influences. Take the charger to the nearest service centre.
• Never open the battery charger. If the battery charger is defective, take it to a service centre.

Safety instructions for Li-ion batteries:

• Do not open the battery. There is a risk of a short-circuit.
• Protect the battery from heat, e.g. from continuous exposure to sunlight, fire, water and humidity. There is a risk of explosion.
• In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Use only original batteries with the voltage indicated on the rating plate of your electric power tool. If other batteries are used, e.g. imitations, reconditioned batteries or third-party products, there is a risk of injuries as well as damage caused by exploding batteries.
• The battery voltage must match the battery charging voltage of the battery charger. Otherwise there is a risk of fire and explosion.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Pointed objects, such as nails or screwdrivers, or external forces may damage the battery. This may cause an internal short-circuit and the battery to burn, smoke, explode or overheat. For disposal, transport or storage, the battery must (plastic bag, box) or the contacts are packed must be taped.

11 OPERATION

Please check the product contents immediately after receipt for any eventual transport damage or missing parts. Claims from transport damage or missing parts must be placed immediately after initial machine receipt and unpacking before putting the machine into operation. Please understand that later claims cannot be accepted anymore.

11.1 Operation instructions

WARNING

• Never charge batteries at temperatures below 0 °C or above 40 °C.
• Do not charge batteries in an environment which has high air humidity or at a high ambient temperature.
• Do not cover batteries and/or the battery charger during the charging process.
• Use only original batteries in the supplied battery charger
• Battery and charger heat up during the charging process. This is perfectly normal!
• Never remove the battery while the machine is running
• The device should only be used for a maximum continuous duration of 5 minutes. After 5 minutes it should be allowed to cool down.
• Before inflating an item, first determine its own particular pressure value.
• Items to be inflated should be held firmly or clamped.
• Ensure that there is a proper connection between the device and the item to be inflated.
• The air connector and adapter must always be kept clean

11.2 Operation

Inserting/replacing the battery:

• Charging the battery as described in the user manual
• Press the charged battery into the power tool until it clicks into place.
• To remove, press the release button and pull out the battery.

- Depending on the application the air hose and adapters can be stored in the support.

release button

Four different types of electric shock absorbers shown from top to bottom, no text or symbols visible.

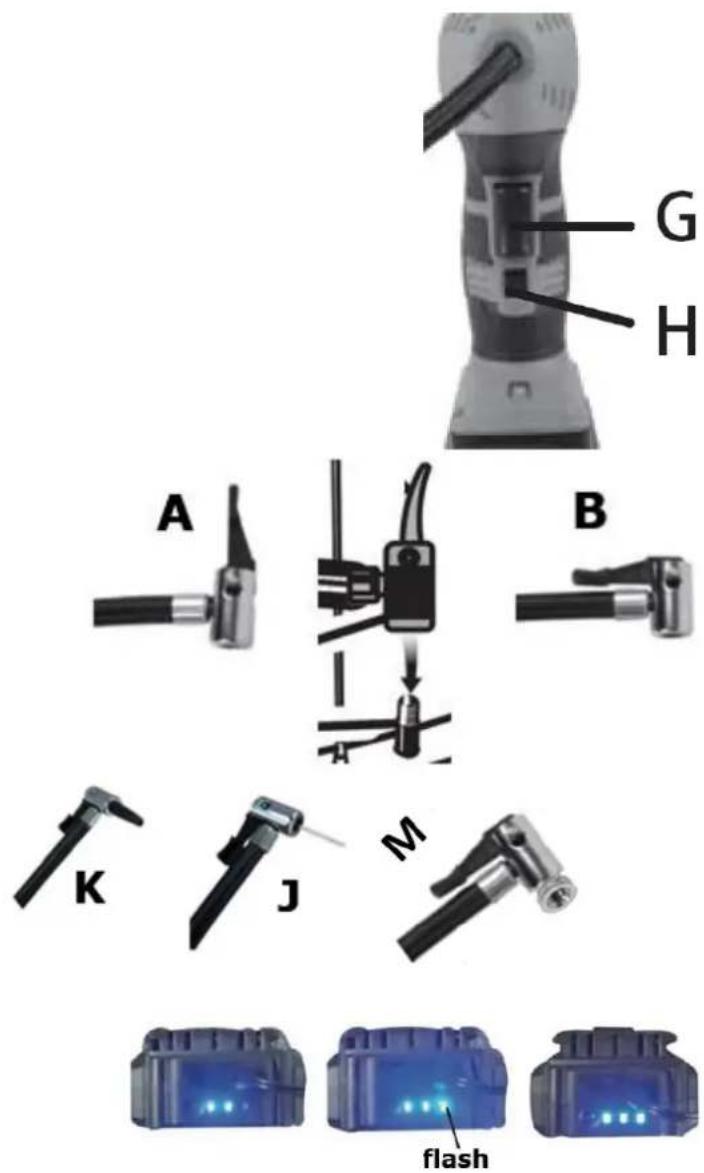

Switching on:

• Push ON-OFF-switch (G).
• For continuous operation push self-locking switch (H) up.
• LED lights

Switching off:

• Release ON-OFF-switch (G)
• At continuous operation push self-locking switch (H) down.
• LED off

Inflating vehicle tyres:

• Place the air connector (A) in open position to the valve.
• Close the air connector (B)
• Switch on the machine.
• Inflate until the desired pressure is showing on the manometer. (max. continuous operation 5 min!)

Inflating other items:

- For inflating toys, sports and beach articles and bicycle tires use balladapter (J), tapered adapter (K) or adapter for bicycle (M).

Charging battery:

• Connect the charger to the power supply
• Connect the charger plug with the battery

Battery state of charge:

• LED lights: charger connected
• LED flashes: charging process
• LED 1-3: charging status.

12 MAINTENANCE

G H A B K J M flash

The machine does not require extensive maintenance. If malfunctions and defects occur, let it be serviced by trained persons only.

NOTICE

Clean your machine regularly after every usage - it prolongs the machines lifespan and is a prerequisite for a safe working environment.

Repair jobs shall be performed by respectively trained professionals only!

Check regularly the condition of the security stickers. Replace them if required.

Check regularly the condition of the machine.

12.1 Cleaning

Once a month the machine and all its parts must be thoroughly cleaned.

NOTICE

The usage of certain solutions containing ingredients damaging metal surfaces as well as the use of scrubbing agents will damage the machine surface!

Never use running water or a high pressure cleaner to clean the machine.

• After each use, clean the machine using a dry cloth or a brush if the machine is very dirty.
- Keep the ventilation slits clean and dustfree.

12.2 Storage

• Store the machine in a dry and frost-free place (10-25 °C).
• Store the battery and the machine separately.
• Charge the battery before storing the machine in winter.
• Keep the machine, in particular its plastic components, away from brake fluids, petrol, petroleum products, penetrating oil, etc. They contain chemical substances which may damage, attack or destroy the plastic components of the machine.
• Fertilisers and other garden chemicals contain substances which may have a highly corrosive effect on the metal parts of the machine. Therefore do not store your machine near these substances.

12.3 Disposal

Do not dispose the machine in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old.

13 TROUBLE SHOOTING

BEFORE YOU START WORKING FOR THE ELIMINATION OF DEFECTS, UNPLUG THE BATTERY!

Trouble	Possible cause	Solution
Motor does not start	Battery is not plugged in	plug in battery
	Battery is not charged	Recharge battery
	Switch is damaged	Check switch
Battery cannot charged anymore	Contact failure	Check contact pins
	Battery damaged	Change battery

NOT ICE

Should you in necessary repairs not able to properly to perform or you have not the prescribed training for it always attract a workshop to fix the problem.

14 PREFAZIONE (IT)

Gentile Cliente!

Power tool use and care:

release button

A B K J M flash

17 MANUTENZIONE

ATTENZI O NE

Three different types of mechanical tools labeled K, J, and M (no text or symbols on the tools themselves)

flash

21 ENTRETIEN

ATTENTI ON

(EN) With original ZIPPER spare parts you use parts that are attuned to each other shorten the installation time and elongate your machines lifespan.

IMP OR TAN T

The installation of other than original spare parts voids the warranty!

So you always have to use original spare parts

When you place a spare parts order please use the service formular you can find in the last chapter of this manual. Always take a note of the machine type, spare parts number and partname. We recommend to copy the spare parts diagram and mark the spare part you need.

You find the order address in the preface of this operation manual.

Exploded view diagram of a handheld electric drill, showing exploded and assembled parts with numbered labels

No.	Name	No.	Name
1	Left housing	11	Right housing
2	Gauge cover	12	Screw
3	Absorber	13	LED cover
4	Air pump assembly	14	Red wire 1
5	Microswitch	15	LED light
6	Trigger	16	Red wire 2
7	Spring	17	Black wire
8	Torsional spring	18	Batter clip assembly
9	Fan	19	Battery Pack
10	Self-locked switch

Company ZIPPER Maschinen GmbH grants for mechanical and electrical components a warranty period of 2 years for amateur use; and warranty period of 1 year for professional use, starting with the purchase of the final consumer. In case of defects during this period, which are not excluded by paragraph 3, ZIPPER will repair or replace the machine at its own discretion.

2.) Report:

In order to check the legitimacy of warranty claims, the final consumer must contact his dealer. The dealer has to report in written form the occurred defect to ZIPPER. If the warranty claim is legitimate, ZIPPER will pick up the defective machine from the dealer. Returned shippings by dealers which have not been coordinated with ZIPPER, will not be accepted and refused.

3.) Regulations:

a) Warranty claims will only be accepted, when a copy of the original invoice or cash voucher from the trading partner of ZIPPER is enclosed to the machine. The warranty claim expires if the accessories belonging to the machine are missing.
b) The warranty does not include free checking, maintenance, inspection or service works on the machine. Defects due to incorrect usage of the final consumer or his dealer will not be accepted as warranty claims either. Some examples: usage of wrong fuel, frost damages in water tanks, leaving fuel in the tank during the winter, etc.
c) Defects on wear parts are excluded, e.g. carbon brushes, collection bags, knives, cylinders, cutting blades, clutches, sealings, wheels, saw blades, splitting crosses, riving knives, riving knife extensions, hydraulic oils, oil/air/fuel filters, chains, spark plugs, sliding blocks, etc.
d) Also excluded are damages on the machine caused by incorrect or inappropriate usage, if it was used for a purpose which the machine is not supposed to, ignoring the user manual, force majeure, repairs or technical manipulations by not authorized workshops or by the customer himself, usage of non-original ZIPPER spare parts or accessories.
e) After inspection by our qualified personnel, resulted costs (like freight charges) and expenses for not legitimated warranty claims will be charged to the final customer or dealer.
f) In case of defective machines outside the warranty period, we will only repair after advance payment or dealer's invoice according to the cost estimate (incl. freight costs) of ZIPPER.
g) Warranty claims can only be granted for customers of an authorized ZIPPER dealer who directly purchased the machine from ZIPPER. These claims are not transferable in case of multiple sales of the machine.

4.) Claims for compensation and other liabilities:

The liability of company ZIPPER is limited to the value of goods in all cases. Claims for compensation because of poor performance, lacks, damages or loss of earnings due to defects during the warranty period will not be accepted. ZIPPER insists on its right to subsequent improvement of the machine.

27 LINEE GUIDA DELLA GARANZIA (IT)

1.) Garanzia:

Product experience form

We observe the quality of our delivered products in the frame of a Quality Management policy.

Your opinion is essential for further product development and product choice. Please let us know about your:

• Impressions and suggestions for improvement.
• experiences that may be useful for other users and for product design
• Experiences with malfunctions that occur in specific operation modes

We would like to ask you to note down your experiences and observations and send them to us via FAX, E-Mail or by post:

Erworben von / purchased from:

E-Mail/ e-mail:

Please describe amongst others in the problem: What has cause the problem/defect, what was the last activity before you noticed the problem/defect? For electrical problems: Have you had checked you electric supply and the machine already by a certified electrician?

3. Bitte beachten

/ Additional information

INCOMPLETELY FILLED SERVICE FORMS CANNOT BE PROCESSED! FOR GUARANTEE CLAIMS PLEASE ADD A COPY OF YOUR ORIGINAL SALES / DELIVERY RECEIPT OTHERWISE IT CANNOT BE ACCEPTED. FOR SPARE PART ORDERS PLEASE ADD TO THIS SERVICE FORM A COPY OF THE RESPECTIVE EXPLODED DRAWING WITH THE REQUIRED SPARE PARTS BEING MARKED CLEARLY AND UNMISTAKABLE. THIS HELPS US TO IDENTIFY THE REQUIRED SPARE PARTS FASTLY AND ACCEL- LERATES THE HANDLING OF YOUR INQUIRY.
