MLV47A3AGG - Washing machine MIDEA - Free user manual and instructions

Product Type	Top-load washer
Brand	Midea
Model	MLV47A3AGG
Wash Capacity	0.116 m³ (4.1 cu.ft.)
Power Supply	120 V~, 60 Hz, 15 A
Required Water Pressure	14 – 116 psi (100 – 800 kPa)
Recommended Drain Height	122 cm (48 in)
Number of Cycles	12 (Normal/Colors, Bulky/Bedding, Rinse & Spin, Heavy Duty, Whites, Light, Quick Wash, Delicates, Towels, Active Wear, Tub Clean, Spin Only)
Wash Options	Turbo, water level (Auto/Low/Med/High), temperature (Tap Cold/Cold/Warm/Hot), soil level (Extra Light/Light/Medium/Heavy), rinse (1 or 2 rinses with/without fabric softener)
Recommended Detergent Type	High Efficiency (HE)
Dispensers	Liquid/powder detergent, bleach, fabric softener
Drum Material	Stainless steel (lifetime warranty)
Adjustable Leveling Legs	4 leveling legs

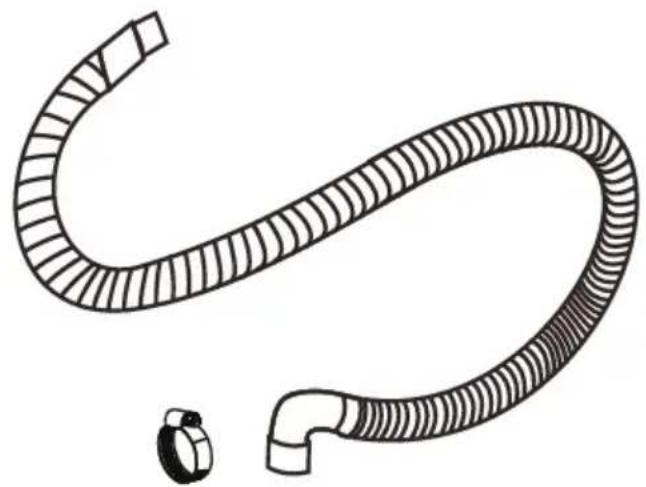

Included Accessories	Drain hose with bracket, hose guide, filters (x2), hose clamps
Safety	Lid lock, mandatory grounding, auto shut-off if lid is opened
Cleaning and Maintenance	Built-in Tub Clean cycle, clean exterior with a soft cloth
Warranty	1 year parts and labor, stainless steel drum lifetime (limited)
Approximate Weight	Requires two people for installation (weight not specified)

Frequently Asked Questions - MLV47A3AGG MIDEA

How do I install my Midea MLV47A3AGG washer?

Installation requires unpacking the washer by removing the protective foam, selecting a location on a hard, level floor, connecting the water hoses (not included) to the hot and cold water faucets, connecting the drain hose to a drain at 122 cm high, leveling the washer with the adjustable legs, and plugging into a 120 V/60 Hz/15 A properly grounded outlet. Run a test Rinse & Spin cycle to verify.

What type of detergent should I use?

Only use a high efficiency (HE) detergent to reduce suds and optimize cleaning. Do not use regular detergent. Pour the recommended amount into the dedicated dispenser (liquid or powder).

What if the washer does not start?

Check that the washer is plugged in, the lid is closed, the water faucets are turned on, and you have pressed the Start/Pause button. Check the fuse or circuit breaker. The washer makes clicking sounds before filling – that is normal.

How do I clean the washer drum?

Use the Tub Clean cycle once a month. Make sure the drum is empty, add one cup of bleach to the bleach dispenser, then start the cycle. This removes odors and residue.

Why is there water leaking?

Check that all hose connections are tight, that the drain hose is properly inserted and secured, and that you have not overloaded the machine. Use HE detergent to avoid excessive suds.

How do I unlock the lid?

Press the Start/Pause button to pause the washer. Wait a few seconds for the lock to release. If a power outage occurs, the lid unlocks when power is restored.

What does error code E1 mean?

The E1 code indicates a water fill issue. Check that the lid is closed, faucets are on, and there is no leak. Clean the hose screens if necessary.

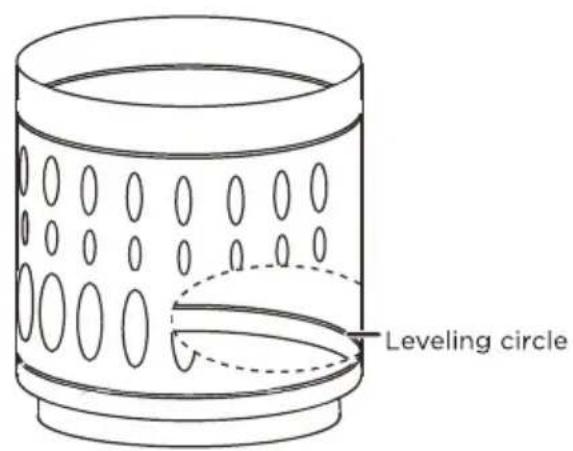

How do I level the washer?

Open the lid and pour water into the drum up to the leveling circle. If the water does not touch the entire circle, adjust the front adjustable legs by gently tilting the machine. Do not extend the legs more than necessary.

Can I use only cold water?

Yes, select the Tap Cold option to use only cold water. If you do not connect the hot water hose, insert a water inlet plug (not included) into the hot inlet.

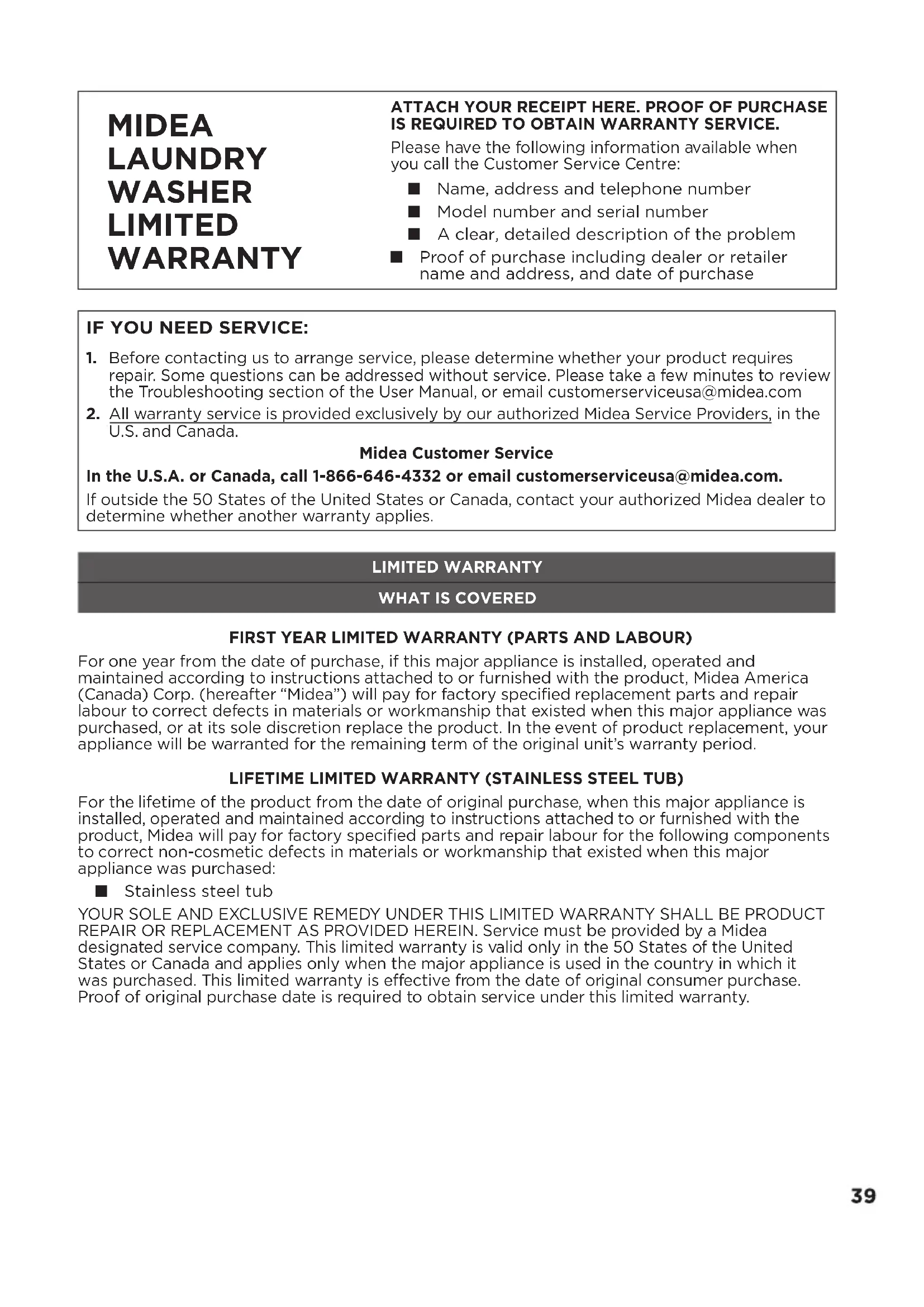

What is the warranty on the Midea washer?

The limited warranty covers 1 year parts and labor from the date of purchase, with a lifetime warranty on the stainless steel drum. Proof of purchase is required. Product registration may extend the warranty by 3 months.

USER MANUAL MLV47A3AGG MIDEA

Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

version A

USER MANUAL & INSTALLATION INSTRUCTIONS

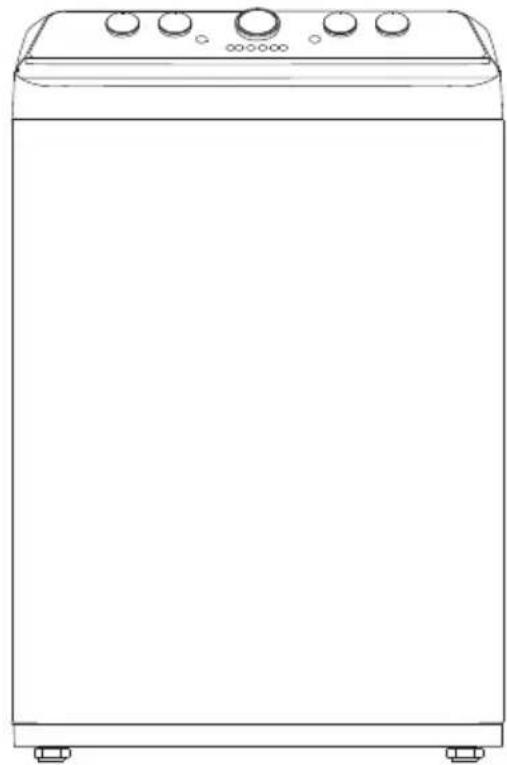

Line drawing of a simple washing machine with control knobs and buttons (no text or symbols)

Free 3 months extension of the original limited warranty period!* Simply text a picture of your proof of purchase to:

1-844-224-1614

*The warranty extension is for the three months immediately following the completion of the product's original warranty period. Individuals do not need to register the product in order to get all the rights and remedies of registered owners under the original limited warranty.

Dear user

THANK YOU and CONGRATULATIONS on your purchase of this high-quality Midea product. Your Midea washer is designed for reliable, trouble-free performance. Please take a moment to register your new washer.

Register your new washer at https://www.midea.com/ca/support/Product-registration

For future reference, record your product model and serial numbers located on the inside frame of the washer.

Model Number

Serial Number

SAFETY INSTRUCTIONS....3

FEATURES 11

Package contents....11

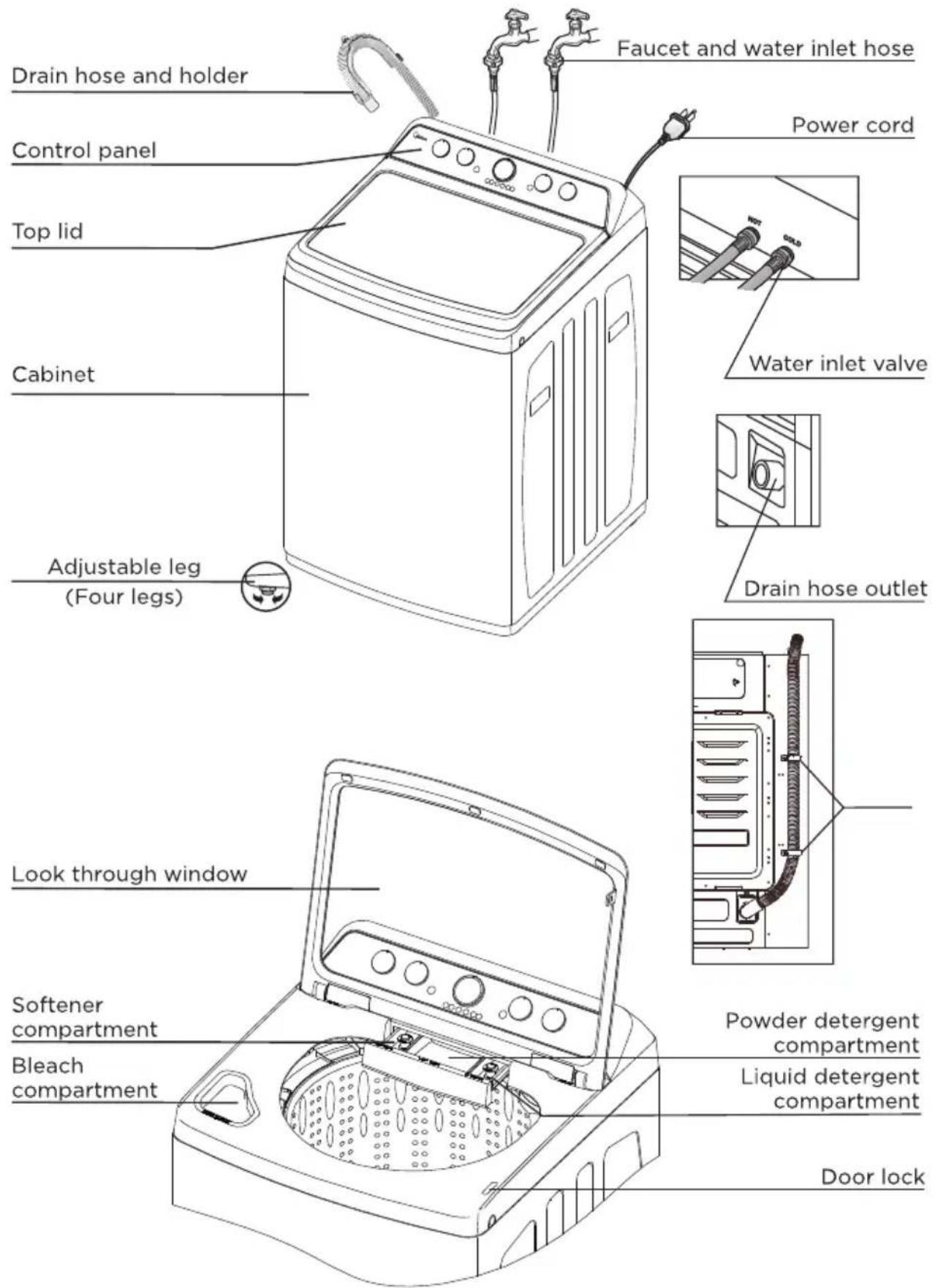

Main components....12

OPERATION REQUIREMENTS.... 13

Electrical requirements....13

Water requirements....14

Drainage requirements....14

INSTALLATION INSTRUCTIONS 15

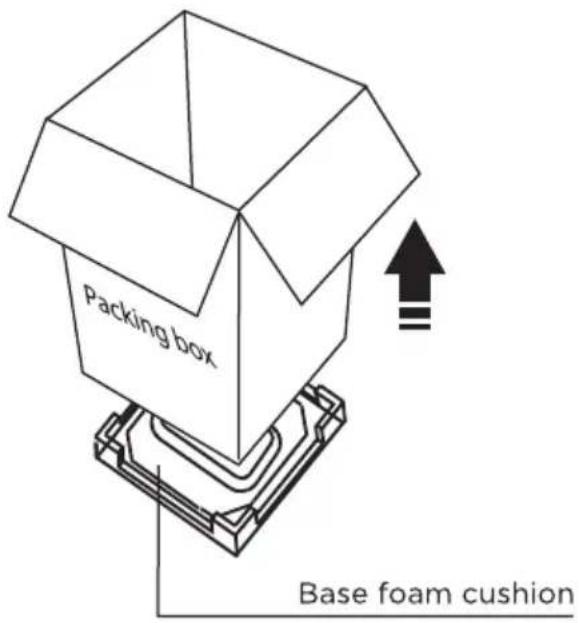

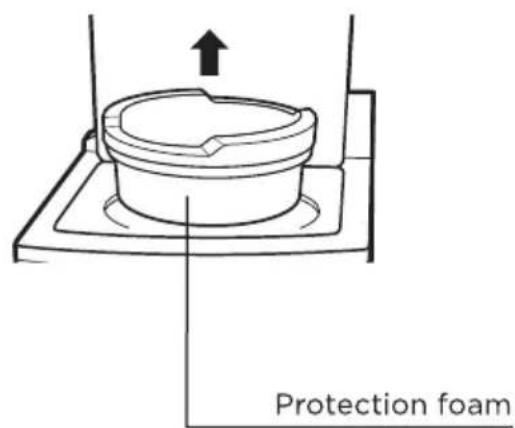

Unpacking your washer....15

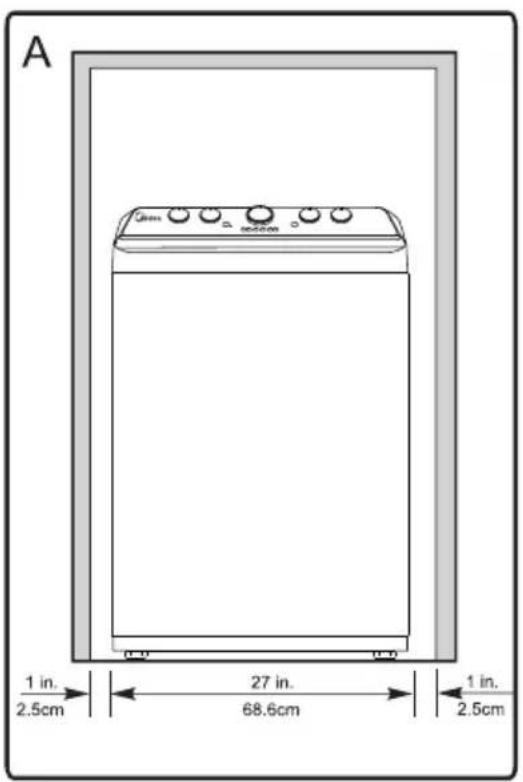

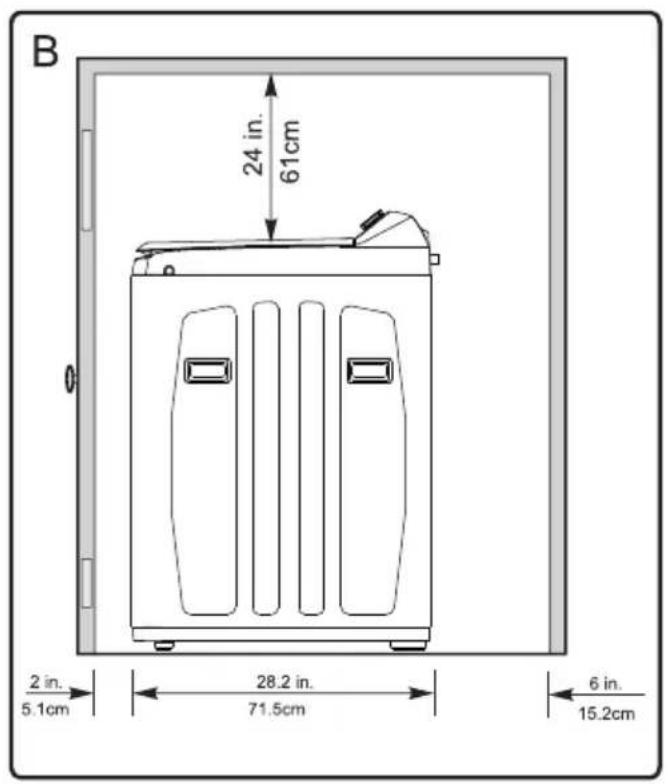

Choosing a location....16

Tools you will need 18

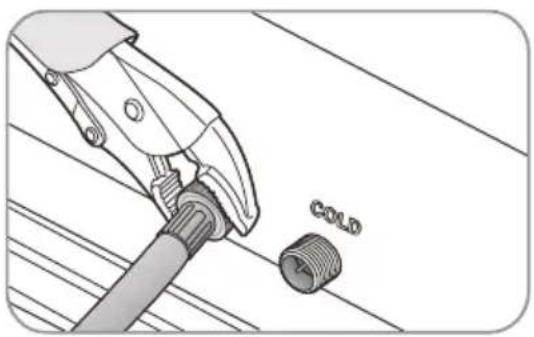

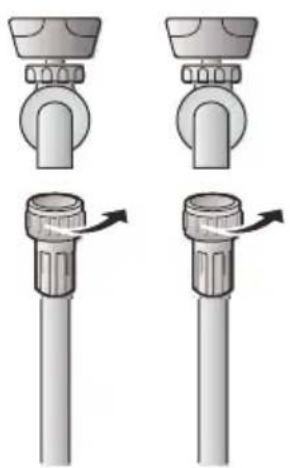

Connect the water hoses 19

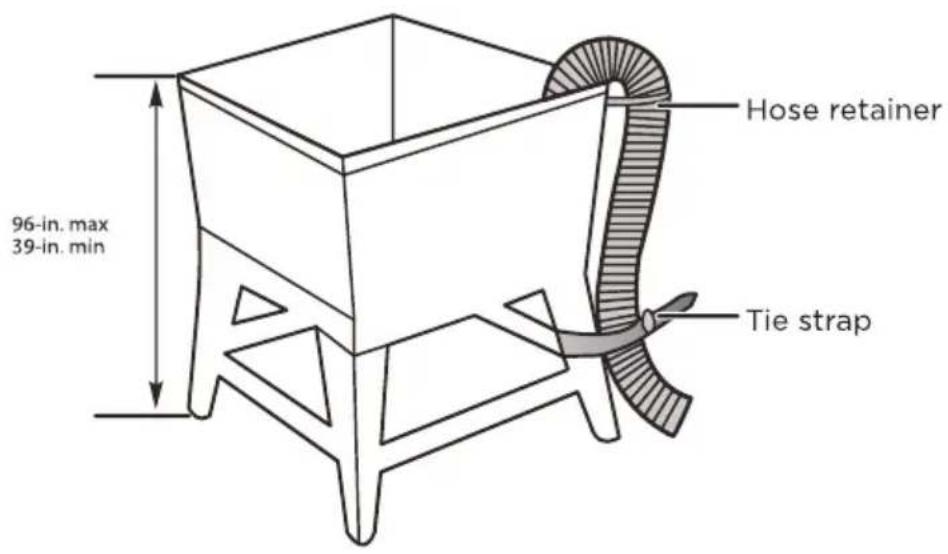

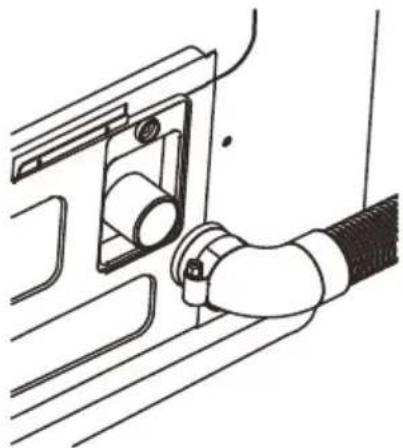

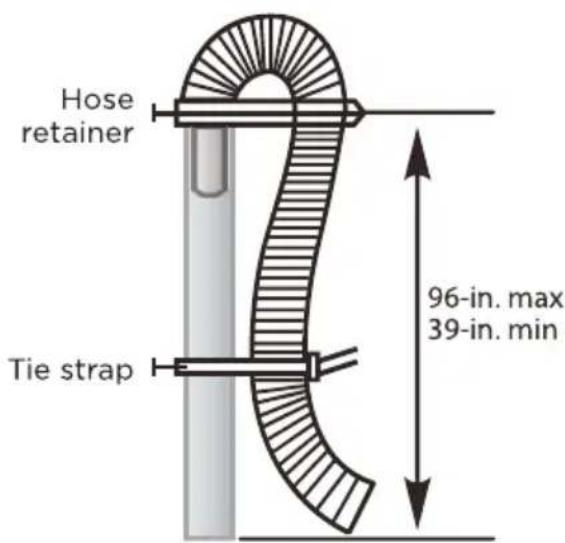

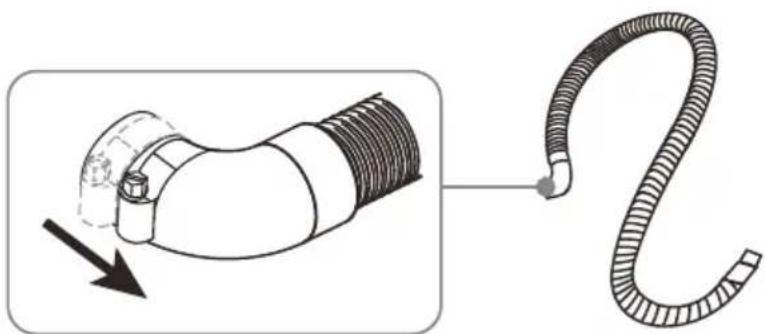

Connect the drain hose....21

Level your washer 24

Power on....25

Run a test cycle....26

WASHER USE 27

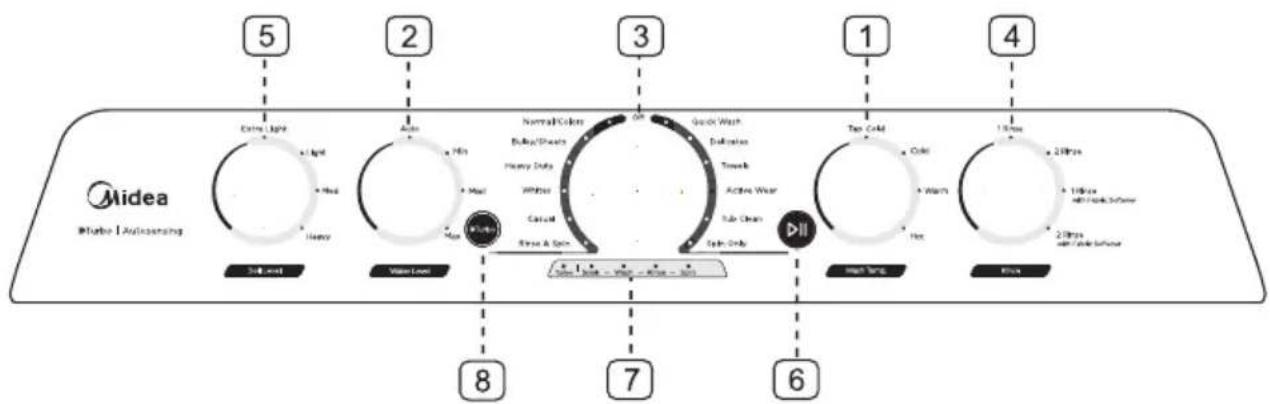

Control panel....27

Washing a load of laundry 29

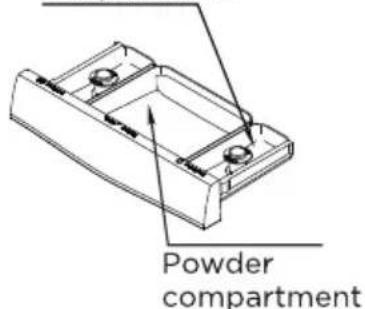

Selecting a detergent 29

Loading the fabric softener compartment....31

WASHER CARE 33

Cleaning and Maintenance 33

BEFORE YOU CALL FOR SERVICE 35

Troubleshooting tips....35

Error codes 38

WARRANTY....39

PRODUCT REGISTRATION....41

READ AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

This manual contains important information on the installation, use, and care of your appliance. Please read this manual carefully before installation and operation of this machine to prevent injury and property damage.

Warnings and Important Safety Instructions in this manual DO NOT cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution and care when installing, maintaining and operating your washer.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

SAFETY INSTRUCTIONS

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT

To prevent injury to the user or other people and property damage, the instructions shown here must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage, including death.

The level of risk is shown by the following indications.

This indicates that hazards or unsafe practices may cause serious personal injury or death.

To reduce the risk of fire, explosion, electric shock or personal injury when using your washing machine, you SHOULD follow these basic safety precautions.

This indicates that hazards or unsafe practices may cause minor personal injury or property damage.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your washing machine.

WARNING

State of California Proposition 65 Warnings.

The california Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the State of california to cause cancer, birth defects or other reproductive harm and requires businesses to warn of potential exposure to such substances. This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm. This appliance can cause low-level exposure to some of the substances listed, including benzene, formaldehyde and carbon monoxide. Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

WARNING

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

• Read all instructions before using the appliance.
• Use this appliance only for its intended purpose as described in this Owner's Manual.
• Before use, the dryer must be properly installed as described in this manual.
• ALWAYS follow the fabric care instructions supplied by the garment manufacturer.
• Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode.
• Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
• Before the appliance is removed from service or discarded, remove the lid of the washing compartment.
• Do not reach into the appliance if the tub is moving.
• Do not install or store this appliance where it will be exposed to the weather or freezing temperatures.
• Do not tamper with the controls.
• Do not repair or replace any part of the appliance or attempt any servicing unless it is specifically recommended in the user maintenance instructions or in published user repair instructions that you understand.
• Hydrogen gas is explosive. If the hot water system has not been used for two weeks or more, before using a washer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. The gas is flammable, so do not smoke or use an open flame during this time.
• Keep the area underneath and around your appliance free of combustible materials (lint, paper, rags and so on), gasoline chemicals, and other flammable vapors and liquids.
• Do not place items exposed to cooking oil in your washer. Items contaminated with cooking oil may contribute to a chemical reaction that could cause a load to catch fire.
• This washer is not designed for maritime use or for mobile installations such as in RVs aircraft and other mobile platforms.
• Turn off the water faucets and unplug the washer if the machine is to be left for an extended period of time, such as during vacations.
• Packaging material can be dangerous for children. There is a risk of suffocation! Keep all packaging away from children.
  • Always check the inside of the washer for foreign objects before loading laundry. Keep the lid closed when not in use.

WARNING

• Plug the power cord into an AC 120V/60Hz wall socket rated at 15 amps or higher. Use the socket for this washer only. Do not use an extension cord.
• Sharing a wall socket with another appliance, using a power strip, or extending the power cord may result in electric shock or fire.
• Do not use an electric transformer. It may result in electric shock or fire.
• Make sure that the power voltage, frequency and current match the product's specifications. Failing to do so may result in electric shock or fire.
• Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failing to do so may result in electric shock or fire.
• Plug the power plug into the wall socket in the right direction so that the cord runs towards the floor.
• If you plug the power plug into the socket in the opposite direction, the electric wires within the cable may be damaged and this may result in electric shock or fire.
• Plug the power plug into the wall socket firmly. Do not use a damaged power plug or loose wall socket, because this may result in electric shock fire.
• Do not pull or excessively bend the power cord. Do not twist or tie the power cord.
• Do not hook the power cord over a metal object. Place a heavy object on the power cord, insert power cord between objects, or push the power cord into the space behind the appliance, because this may result in electric shock or fire.
• Do not pull the power cord when unplugging the power plug.
• Unplug the power plug by holding the plug.
• Failing to do so may result in electric shock or fire.
• If the power plug or power cord is damaged, contact your nearest service center.
• Do not install on carpet. Install the washer on a level and solid floor that can support its weight. Failure to do so may result in abnormal vibration, noise or problems with the product.
• The washer is heavy. Two or more people may be needed to install and move the appliance. Failure to do so may result in bodily or other injuries.
• Store and install the washer where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions. Failure to do so may result in serious leak damage.
• Position the appliance so that the power plug is easily accessible. Failure to do so may result in electric shock or fire due to an electrical short circuit.
• Failure to follow all of the safety warnings in this guide may result in property damage or injury to persons.

WARNING

Use and Maintenance warnings and Precaution

• If the appliance is flooded, cut the power immediately and contact your nearest service center.
• If the appliance emits a strange noise, a burning smell or smoke, unplug the power plug immediately and contact your nearest service center. Failure to do so may result in electric shock or fire.
• In the event of a gas leak (such as propane or LP gas) ventilate the area immediately. Do not turn any appliance or light on or off.
• Do not use a ventilating fan.
• A spark may result in an explosion or fire.
• Do not force the washer lid open while the washer is operating (hightemperature washing, drying or spinning).
• Water flowing out of the washer may cause burns or cause the floor to be slippery. This may result in injury.
• Forcing the lid open can damage the product or cause injury.
• Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the washer before using it.
• Do not insert your hand or a metal object under the washer. This may result in injury.
• Do not attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled or has missing or broken parts, including a damaged cord or plug. This may result in electric shock, fire or death.
• Do not touch the power plug with wet hands. This may result in electric shock.
• Do not turn the appliance off by unplugging the power plug while the washer is in operation. Plugging the power plug into the wall socket again may cause a spark and result in electric shock or fire.
• Keep all packaging material well out of the reach of children, as packaging materials can be dangerous to children. If a child places a bag over his or her head, he or she may suffocate.
• Do not let children or infirm persons use this washer unsupervised. Failure to do so may result in electric shock, burns or injury.
• Do not attempt to repair, disassemble or modify the appliance yourself.
• Do not use any fuse (such as copper, steel wire etc.) other than the standard fuse.
• If you need to repair or reinstall the appliance, contact your nearest service center.
• Failure to do so may result in electric shock, fire, problems with the product or injury.
• If any foreign substance such as water enters the appliance in any area other than the tub, unplug the power plug and contact your nearest service center. Failure to do so may result in electric shock or fire.

• If the water supply hose comes loose from the faucet and floods the appliance, unplug the power plug. Failure to do so may result in electric shock or fire.

• Do not mix chlorine bleach with ammonia or acids such as vinegar. Incorrect usage can produce poisonous gas, resulting in serious injury.

• Do not reach into the washer while parts are moving. Before loading, unloading or adding items, press the Start Pause button and allow the tub to come to a complete stop before reaching inside. Failure to do so may result in electric shock injury or fire.
• Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. As children grow, teach them the proper, safe use of all appliances. Failure to do so may result in serious injury.
• Keep laundry products out of reach of children. Observe all warnings on product labels and follow them. Failure to do so may result in serious injury.
• Disconnect this appliance from the power supply before attempting any user maintenance. Pressing the Power button does not disconnect this appliance from the power supply. Failure to do so may result in electric shock, injury or fire.
• Do not clean the appliance by spraying water directly onto it.
• Do not use benzene, thinner or alcohol to clean the appliance. This may result in discoloration, deformation, damage, electric shock or fire.
• Unplug the power plug when the appliance is not being used for long periods of time or during a thunder/lightning storm. Failure to do so may result in electric shock or fire.
• Keep hands and foreign objects clear of the lid and latch area when closing the lid. Failure to do so may result in personal injury.
• If the washer is contaminated by a foreign substance such as detergent, dirt, or food waste, unplug the power plug and clean the washer with a damp, soft cloth. Failure to do so may result in discoloration, deformation. Damage or rust.
• The clear portion of the lid can be broken by a strong impact. Take care when using the washer. If the clear portion is cracked or broken, it may result in injury.

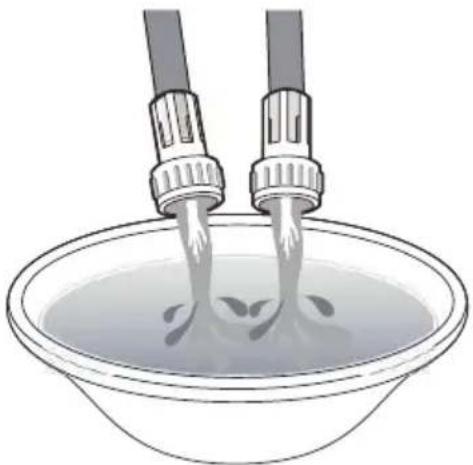

• After a water supply failure or when reconnecting the water supply hose, open the faucet slowly.
• Open the faucet slowly after a long period of non-use. The air pressure in the water supply hose or the water pipe may result in damage to a part or in water leakage.
• If a drain error occurs during an operation, check if there is a draining problem. If the washer is used when it is flooded because of a draining problem, it may result in electric shock or fire due to an electrical short circuit. Do not insert your hand or a metal object under the washer. This may result in injury.
• Insert laundry into the washer completely so that the laundry does not get caught in the lid. If laundry gets caught in the lid, it may result in damage to the laundry or the washer, or result in water leakage.
  • Make sure that the faucet is turned off when the washer is not being used.
• Make sure that the water supply hose connectors are properly tightened. Failure to do so may result in property damage or injury.

• Open the faucet and check if the water supply hose connector is firmly tightened and that there is no water leaking before using the product. If the water supply hose connectors are loose, it may result in water leakage.

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in electric shock, fire, problems with the product, or injury.

• Do not operate the appliance with wet hands. This may result in electric shock.
• Do not spray volatile material such as insecticide onto the surface of the appliance. As well as being harmful to humans, it may also result in electric shock, fire or problems with the product.
• Do not place an object that generates an electromagnetic field near the washer. This may result in injury due to a malfunction.
• Since the water drained during a high temperature wash or drying cycle is hot, do not touch the water. This may result in burns or injury.
• Do not wash, spin or dry water-proof seats, mats or clothing.
• Do not wash thick, hard mats even if the washer mark is on the care label. This may result in injury or damage to the washer, walls, floor or clothing due to abnormal vibrations.
• Do not operate the washer when the detergent dispenser is removed. This may result in electric shock or injury due to water leakage.
• Do not insert your hand into the detergent dispenser after opening it. This may result in injury because your hand may be caught.
• Do not place any non-laundry objects, such as shoes, food waste or animals into the washer. This can cause abnormal vibrations that can damage the washer, and in the case of pets, cause severe injury or death.
• Do not press the buttons using sharp objects such as pins, knives, or fingernails. This may result in electric shock or injury.
• Do not wash laundry contaminated by oils, creams or lotions usually found in skin-care shops or massage clinics. This may result in the rubber seal becoming deformed and water leakage.
• Make sure that the water inlet pipe is connected and the tap is opened before washing clothes.
• Do not leave metal objects (safety pins, hair pins, and so on) or bleach in the tub for long periods of time. This may cause the tub to rust.
• If rust appears on the surface of the tub, apply a neutral cleansing agent to the surface and use a sponge to clean it. Never use a metal brush.
• Do not use hot water from water cooling/heating devices. This may result in problems with the washer.
• Do not use natural hand-washing soap in the washer. If it hardens and accumulates inside the washer, it may cause problems with the product, discoloration, rust or bad odors.
• If using a washing net with this machine (not provided), do not wash laundry items such as bedding in the washing net. Doing so may result in injury due to abnormal vibrations. Place only smaller items such as lace socks and lingerie in the washing net.
• Do not use hardened powdered detergent. If it accumulates inside the washer, it may result in water leakage.
• Do not wash throw rugs or doormats. Doing so may cause sand to accumulate inside the washer, resulting in mechanical problems.

WARNING

Grounding/Earthing

• This appliance must be properly grounded.
- Do not ground the appliance to a gas pipe, plastic water pipe or telephone line.
- Improper grounding may result in electric shock, fire, explosion or problems with the product.
- Never plug the power cord into a socket that is not grounded correctly. Make sure that the socket you use is grounded in correctly. Make sure that the socket you use is grounded in accordance with local and national codes.

WARNING

Grounding/Earthing

• Do not install this appliance near a heater or inflammable material.
• Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or water (rain drops).
• Do not install this appliance in a location where gas may leak. Failure to do so may result in electric shock or fire.
• If the washer is moved to a new location, have it checked and reinstalled by a qualified service technician. Failure to follow this warning may result in electric shock or fire.
• Do not pull power cord or drain outlet hose to move appliance to desired location place.

FEATURES

Package Contents

Make sure that the following items came with your washer

Line drawing of a coiled tube with a small inset device (no text or symbols)

Drain Hose

Clamp (x2)

Simple line drawing of an arched pipe or clamp with a small triangular top (no text or symbols)

Drain Hose Guide

Stacked books or documents with a black bookmark and white cover, no visible text or symbols on covers

Manual

Filter (x2)

NOTE:

• Use the clamps to secure the drain hose to the washer rear panel.
• Use the filters to replace the rubber washers in the water hoses (faucet sides).

Main Components

Electrical requirements

WARNING

To reduce the risk of ire, electric shock, or injury to persons, read the SAFETY INSTRUCTIONS before operating this appliance.

Use a 120 Volt, 60Hz, 15 amp fuse or circuit breaker. We recommend an individual branch circuit that serves only your washer.

WARNING

Never use an extension cord.

Electrical grounding is required for your washer.

You must ground your washer. IN the event of a malfunction or breakdown, grounding reduces the risk of electric shock by providing a path of least resistance for the electric current.

Your washer is equipped with a power cord with a three-pronged grounding plug for use in a correctly installed and grounded outlet.

The outlet must be correctly installed and grounded in accordance with all local codes and ordinances.

WARNING

• You are responsible for providing adequate electrical services for your washer.
• An incorrectly connected equipment-grounding conductor can increase the risk of electrical shock. Check with a qualified electrician or serviceman if you are not sure whether your washer is grounded correctly.
• Do not modify the power cord plug that came with your washer. If the plug does not fit the outlet, have the correct type outlet installed by a qualified electrician.
• To prevent unnecessary risk of fire, electrical shock or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No.70 Latest Revision and local codes and ordinances.
• Never connect the ground wire to plastic plumbing lines, gas lines or hot water pipes.

Water requirements

To fill your washer in the correct amount of time, the water pressure needs to be between 14 and 116 psi (100 to 800 kPa).

If the water pressure is less than 14 psi (100 kPa):

• The water valve may fail or may not shut off completely.
• The time it takes to fill your washer may be longer than the time your washer controls allow. Your washer will turn off and report an error. A time-limit is built into the controls to prevent flooding in your home if a hose becomes loose.
• Water inlet hoses must be purchased separately. You can buy inlet hoses in various lengths up to 8 ft. (240 cm).

To avoid the possibility of water damage:

• Make sure that the water faucets are easily accessible.
• Turn off the faucets when you are not using your washer.
• Periodically check to make sure that water is not leaking from the water hose fittings.

Drainage requirements

The recommended height for the drain standpipe is 48 in. (122 cm).

The drain hose must be routed through the drain hose clip to the standpipe.

The standpipe must be large enough to accept the outside diameter of the drain hose.

INSTALLATION INSTRUCTIONS

Unpacking your washer

WARNING

• Packing materials can be dangerous to children. Keep all packing materials (plastic bags, polystyrene, and so on) well out of the reach of children.
• Do not operate your washer on the foam base cushion. Doing so will result in serious vibration, which could cause equipment damage or result in physical injury.

Remove the packing box and lift the washer up and away from the foam base cushion. Open the lid of the washer to take out all accessories including the protective foam.

Choosing a location

WARNING

• Do not install your washer in ares where water may freeze, because your washer always retains some water in its water valve, pump and hose areas. Frozen water can damage the valve, pump, hoses and other components.
• Never install on a platform or weakly supported structure.

For best performance, you must install your washer on a solid, level floor.

Wooden floors may need to be reinforced to minimize vibration or unbalanced load situations.

Carpeting and soft tile surfaces can contribute to excessive vibration, which can cause your washer to move slightly during the spin cycle.

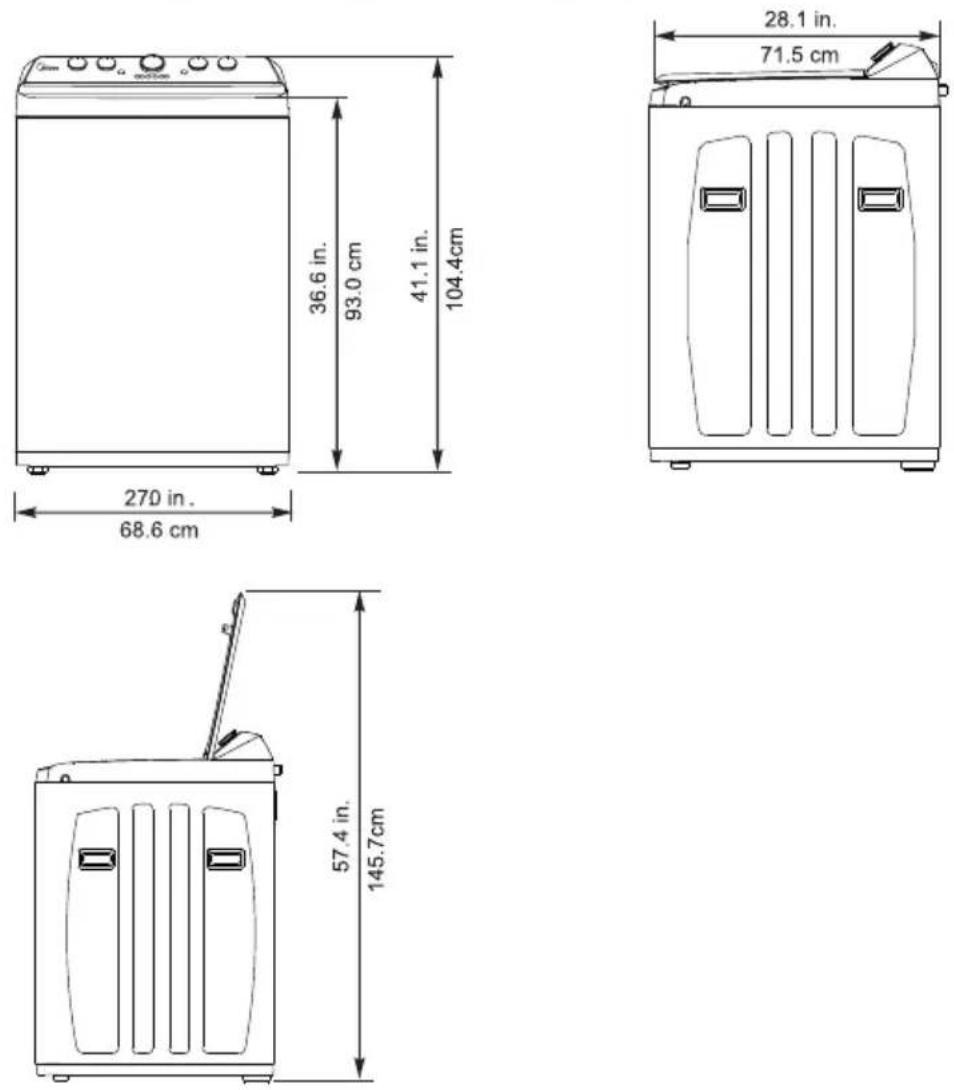

Washer dimensions and installation measurements

* Required spacing

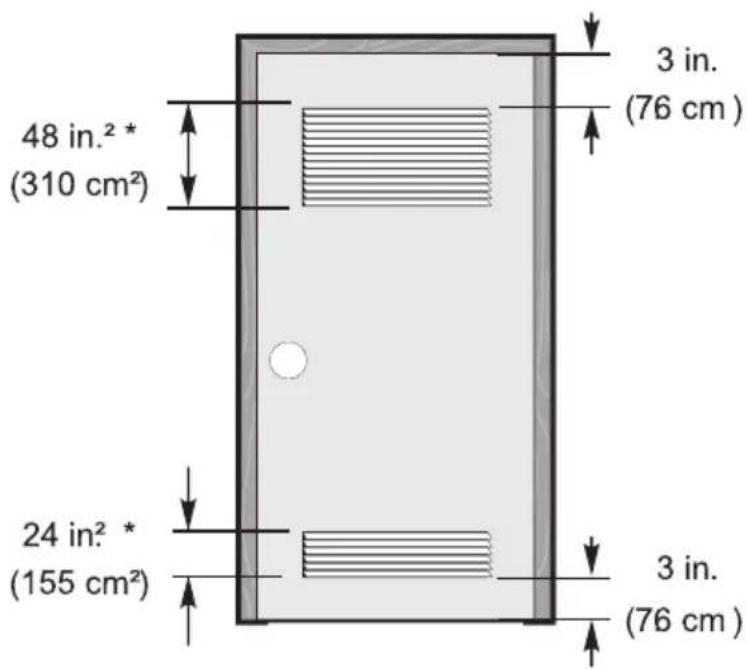

If you install your washer in an alcove or closet, the front of the closet must have two unobstructed air openings for a combined minimum total area of 72 sq.in. (465 sq.cm) with a minimum clearance of 3 in. (7.6 mm) at the top and bottom. A slatted door with equivalent space clearance is acceptable.

Installing in an alcove or closet

Minimum clearances between your washer and adjacent walls or other surfaces are:

• Either side: 1 in. (2.5 cm)
• Rear: 6 in. (15.2 cm)
- Closet Front: 2 in. (5.1 cm)
- Top: 24 in. (61 cm)

- Gap between the end of water valve and the wall: 6 in. (15.2 cm)

If you install your washer and dryer side-by-side in a closet, the closet front must have an unobstructed air opening of at least 72 square inches (465 square cm).

A. Recessed area
B. Side view - closet or confined area

WARNING

• Is a hard, level surface without carpeting or soft flooring that can obstruct ventilation.
  • Is away from direct sunlight.
• Has adequate ventilation.
  • Is not exposed to freezing temperatures (32 F or 0 C).
  • Is away from heat sources such as oil or gas.
• Has enough space so that the washer does not rest on its power cord.

Tools you will need

Pliers

Phillips screwdriver

Level

Phillips screwdriver

Adjustable wrench that opens to 1" (25 mm)

Connecting the water hoses

NOTE: The water supply hoses are not supplied with your washer and must be purchased separately.

Caution

• Use new water supply hoses. Using old hoses can result in leakage or overflow that can damage your property.

• Do not connect multiple water supply hoses together to increase the length of the hose. Hoses connected this way can leak and cause electrical shock. If a hose is too short, replace the hose with a longer, high-pressure hose.

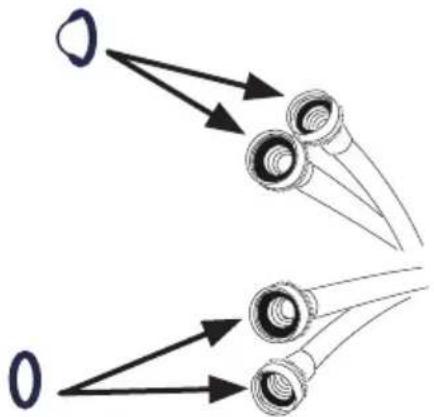

• Make sure that there are rubber washers inside the fittings at both ends of each new water hose. Remove the rubber washers in faucet side and replace with filters. Installing the water supply hoses without rubber washers can cause water leakage.

Diagram showing two types of mechanical components with arrows pointing to different parts (no text or labels)

1. Tighten the hose and faucet fittings by hand until they are snug, then tighten them an additional two-thirds of a turn with pliers or a wrench. Pull the water supply hoses downwards to make sure that they are connected securely.

Diagram showing three different pipe fittings with arrows indicating rotation or adjustment (no text or symbols present)

Caution

Do not overtighten the fittings or apply tape or sealant to the faucets or water supply intake. This can damage the fittings.

1. Place the unconnected ends of the hoses into a bucket and turn on the faucets connected to the water supply hoses for 10 or 15 seconds to remove any foreign substances. Turn off the faucets.

Illustration of two laboratory pipettes pouring liquid into a bowl (no text or symbols)

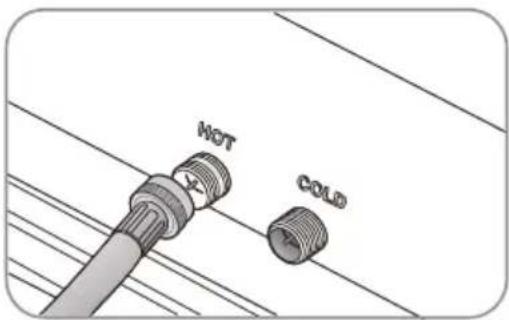

1. Connect the ends of the water supply hoses to the water supply intake connections at the top of the washer. Make sure that the rubber washers are in place. The water supply hose connected to the hot faucet must be connected to the hot water supply intake and the water hose connected to the cold faucet must be connected to the cold water supply intake.

NOTE: If you do not want to use the hot water supply hose, insert a water intake cap into the hot water supply intake hole. In this case you must select the Tap Cold option for the water temperature.

NOTE: No intake cap is provided with your washer. It must be purchased separately.

1. Tighten the fittings by hand until they are snug, and then tighten them an additional two-thirds of a turn with a pliers.

Technical illustration of a pliers tool with a threaded component labeled 'COLD' (no other text or symbols)

Caution

• Do not overtighten the fittings or apply tape or sealant to the faucets or water supply intakes. This can damage the fittings.

• Make sure that the water supply hoses are not twisted or bent. A bent or twisted hose can leak and cause an electric shock due to the water leakage. To ensure the correct water usage, connect both hot and cold water faucets. If either or both are not connected, an error code could occur.

• Turn on the hot and cold water supplies and check all the water supply intake connections and the faucets for water leaks.

Connect the drain hose

Caution

• Failure to slide the drain hose completely over the washer's drain pipe may result in water leakage.

• Failure to move the clamp or hoop onto the washer's drain pipe will result in water leakage.

• Turn on the hot and cold water supplies and check all the water supply intake connections and the faucets for water leaks.

Diagram of a cable connector with a coiled tube and directional arrow (no text or symbols)

1. Insert the drain hose with the clamp onto the washer's drain pipe. Make sure that the drain hose completely covers the end of the drain pipe.

Line drawing of a hand inserting a component into a door panel (no text or symbols)

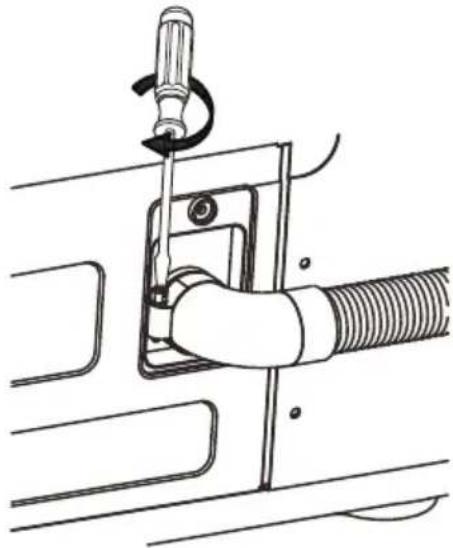

1. Move the clamp toward the drain pipe outlet. Tighten the clamp with a flat blade screwdriver.

Technical line drawing of a mechanical assembly with a coiled hose and screwdriver (no text or symbols)

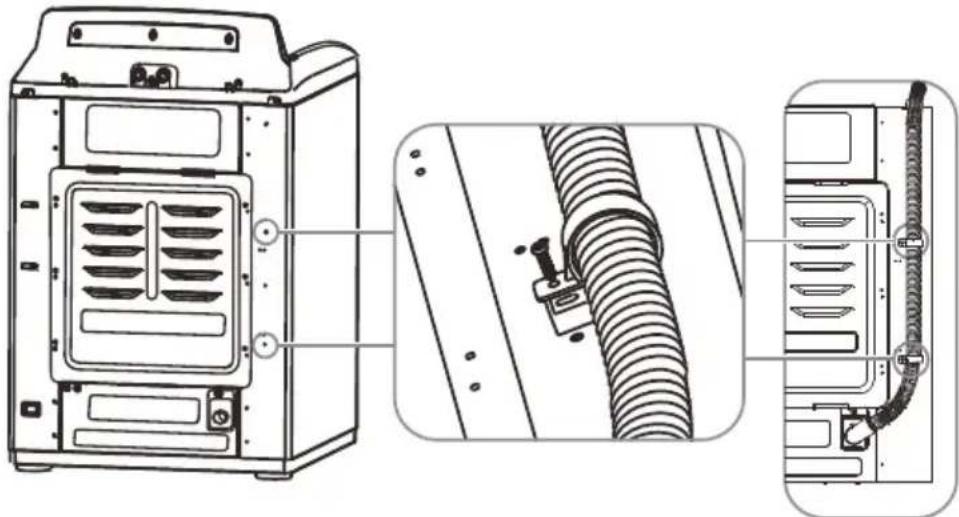

1. Fasten the drain hose to the washer frame at the indicated directions with the hose clamps (2) provided, using a phillips screwdriver.

Technical line drawing of a server rack with ventilation ducts and cable connectors (no text or symbols)

1. Insert the drain hose with the clamp onto the washer's drain pipe. Make sure that the drain hose completely covers the end of the drain pipe.

Caution

Make sure that the connection between the drain hose and the wash basin, standpipe or laundry tub is not airtight.

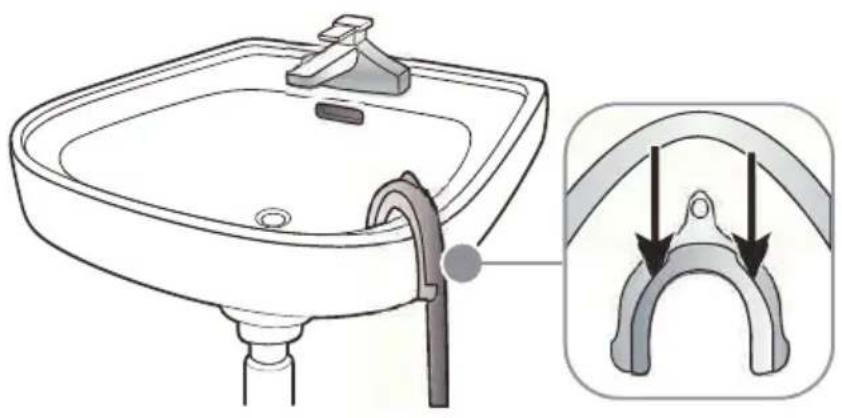

- Over the edge of wash basin - Secure the guide to the side of the basin wall with a hook, tape it or tie it with a piece of cord to prevent the drain hose from moving.

Illustration of a square sink with faucet and drain, accompanied by a magnified view of the handle mechanism (no text or symbols)

- In a standpipe - The standpipe must be no shorter than 39 in. (99 cm) and no longer than 96 in. (244 cm).

- In a laundry tub - The laundry tub must be no shorter than 39-in. (99 cm) and no higher than 96-in (244 cm) maximum.

Level your washer

Caution

Do not use your washing machine without leveling. If your washer is not level, it may:

• Vibrate excessively which can cause your washer to malfunction.
• Make excessive noise.
- Indicate error codes when the washer is running.

Extend the leveling feet only as much as is necessary. If the feet are extended too much, your washer may vibrate.

Determine if the washer is level by checking the position of the tub or by using a level.

1. Slide the washer into position.
2. Open the lid of the washer, then pour water into the tub to the leveling circle. If the washer is level, the water will touch the leveling circle all the way around. If the washer is not level, the water will only touch part of the leveling circle.

Simple line drawing of a fan or impeller inside a container with a checkmark indicating the tip (no text or symbols)

Washer is level - the water touches the leveling circle all the way around.

Simple line drawing of a fan or vent with a central hub and a cross mark, no text or symbols present.

Washer not level - the water does not touch the leveling circle all the way around.

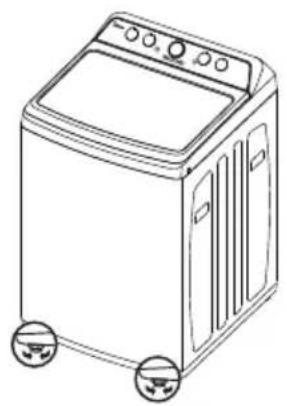

1. If your washer is not level, carefully tilt your washer just enough to adjust the leveling feet on the bottom front of your washer. Extend the feet only as much as is necessary. If the feet are extended too much, your washer may vibrate.

Line drawing of a washing machine with two wheels and control panel (no text or symbols)

Adjustable legs

Power on

Plug the power cord into a well-grounded, 3-prong, 120 Volt 60 Hz approved electrical outlet, protected by a 15-amp fuse or comparable circuit breaker. Your washer is grounded through the third prong of the power cord.

Run a test cycle

Run a test cycle to make sure that your washer is properly installed.

1. Load about 6 pounds (2.7 kg) of laundry into the tub.
2. Select the Cycles knob to turn on your washer.
3. Turn the cycle selector to select the Rinse & Spin cycle.
4. Press the Start Pause button to start the test cycle. Your washer should not rock or vibrate excessively when water fills the tub or when washing or spinning. The washer should drain well during the spin cycle.

Caution

• If you detect any water leaks while the washer is filling or draining, check the water connections. See Connect the water hoses on page 19 or Connect the drain hose on page 21.
• If the washer rocks and/or vibrates excessively, level it again. See Level your washer on page 24.

WASHER USE

Control panel

MLV41N1BWW

    subgraph Stage 5
        B --> G["Extra Light"]
        C --> H["Color"]
        D --> I["Size"]
        E --> J["Demand"]
    end

    subgraph Stage 2
        B --> K["Extra Light"]
        C --> L["Color"]
        D --> M["Size"]
        E --> N["Demand"]
    end

    subgraph Stage 3
        D --> O["Normal Colors"]
        D --> P["Quick Wash"]
        D --> Q["Definite"]
        D --> R["Tweeb"]
        D --> S["Active Wear"]
        D --> T["Sub Clean"]
        D --> U["Soft Only"]
    end

    subgraph Stage 1
        E --> V["Tap Cold"]
        V --> W["1.5lbs"]
        V --> X["Cold"]
        V --> Y["Warts"]
        V --> Z["Hot"]
        V --> AA["2.0lbs"]
        V --> AB["with a white shirt"]
    end

    subgraph Stage 4
        E --> AC["Top Cold"]
        AC --> AD["1.5lbs"]
        AC --> AE["Cold"]
        AC --> AF["Warts"]
        AC --> AG["Hot"]
        AC --> AH["2.0lbs"]
        AC --> AI["with a white shirt"]
    end

    subgraph Stage 8
        B --> AJ["Water Level"]
        C --> AK["Water Level"]
        D --> AL["Water Level"]
        E --> AM["Water Level"]
        F --> AN["Water Level"]
        G --> AO["Water Level"]
        H --> AP["Water Level"]
        I --> AQ["Water Level"]
        J --> AR["Water Level"]
        K --> AS["Water Level"]
        L --> AT["Water Level"]
        M --> AU["Water Level"]
        N --> AV["Water Level"]
        O --> AW["Water Level"]
        P --> AX["Water Level"]
        Q --> AY["Water Level"]
        R --> AZ["Water Level"]
        S --> BA["Water Level"]
        T --> BB["Water Level"]
        U --> BC["Water Level"]
        V --> BD["Water Level"]
        W --> BE["Water Level"]
        X --> BF["Water Level"]
        Y --> BG["Water Level"]
        Z --> BH["Water Level"]
        AA --> BI["Water Level"]
        AB --> BJ["Water Level"]
        AC --> BK["Water Level"]
        AD --> BL["Water Level"]
        AE --> BM["Water Level"]
        AF --> BN["Water Level"]
        AG --> BO["Water Level"]
        AH --> BP["Water Level"]
        AI --> BQ["Water Level"]
    end

1 Wash Temp Selector

Select water temperature desired for fabric type being washed. The rinse water temperature will always be Cold. When Rinse&Spin,Drain&Spin, Delicates are selected, wash temperature will always be Cold.

Hot - Hot water with some cold water added.

Warm - Mixture of hot and cold water.

Cold - Cold water with some hot water added.

Tap Cold - Only Cold water added.

2 Water level Selector

Select the washing water level. The rinsing water level is the same as the washing water level. There is only one water level when the selected programs are Quick wash, Tub clean, Drain&Spin. The following selections are available. You can use manual water level selections: Max - Select for the large load. Med - Select for the medium size load. Min - Select for very small load.

Auto - Automatically selects the water level according to the size of the washer load.

3-Wash Selector

Select the appropriate program for the type of clothing being washed. The cycle you select determines the wash program for the cycle.

The Wash Selector offers 12 wash programs.

On the Right: 6 programs intended for Quick Wash, Delicates, Towels, Active Wear, Tub Clean, Spin Only. On the Left: contains 6 programs intended for Normal/Colors, Bulky / Sheets, Rinse & Spin, Heavy Duty, Whites, Casual.

4-Rinse selector

Select the appropriate rinse before starting the Wash cycle. It is recommended to use 1 Rinse for normally soiled cotton clothing with normal detergent use. Select additional rinses if extra detergent is used for heavily soiled clothes. Select 1 Rinse or 2 Rinses with Fabric Softner when fabric softner is used, it will provide a deep fill rinse. Note: additional rinses are not available when Spin Only,Tub Clean or Drain & Spin are selected.

5-Soil level selector

Select the soil level based on the level of soiled clothing.

6 Start/Pause button

Press once to start the program. Press again to pause the program. You can add a garment. When paused, only. Cycles and Water Level can be changed. Press again to restart the program.

7 Cycle status lights

The status light will light when the washer is in its washing program. The soak indicator light will light when the washer is operating in soak process. The door can't be opened When the lock light is on. When the Turbo light is on, program will finish quicker than normal. When the program is finished, the light will flash 6 times.

8-Turbo button

After choosing a program, the user can press Turbo button (the Turbo indicator lights up) This function makes the program shorter and boosts washing performance.

Washing a load of laundry

WARNING

To reduce the risk of fire, electric shock, or injury to persons, read the SAFETY INSTRUCTIONS before operating this appliance.

Selecting a detergent

Your washer is designed to use high efficiency (HE) detergents.

• For the best cleaning results, use an HE detergent. We recommend that you do not use a regular detergent. HE detergents contain suppressors that reduce or eliminate suds. When fewer suds are produced, the load tumbles more efficiency and cleaning is maximized.

• Reducing the amount of detergent may reduce the quality of cleaning. Make sure that you:

• Pre-treat stains.

• Sort carefully by color and soil level.
• Avoid overloading.

1. Turn on you washer

• Your washer will run with cycle selections you choose.
• The lights will display different combinations according to the different cycles you choose.

2. Load your washer

Caution

Before loading your laundry, make sure that you remove coins, keys, and other hard objects and close zippers. These items may damage clothes and the washer.

• Sort laundry by fabric type, soil level, color, and load size.
• Fill the tub with dry, unfolded clothes. Load the tub no more than 3/4 full.

NOTE:

• Overloading may reduce washing efficiency, cause excess wear, and possibly cause creasing or wrinkling of the load.
- Wash delicate items such as bras, hosiery and other lingerie on the Delicates cycle with similar lightweight items.

• When washing big, bulky items (such as rugs or pillows) or a few smaller items (such as stuffed toys or one or two sweaters) that do not fill the tub completely, add a few towels to improve spin performance.
  • Always use the Bulky cycle for bulky items.
• When washing heavily soiled loads, do not overload your washer to ensure good cleaning results.

3. Add detergent and additives to the compartment

Liquid detergent compartment

Loading the liquid or powder detergent compartment

• Loading liquid or powder detergent in the compartment indicated.
• Pour the recommended amount of laundry detergent directly into the compartment before starting your washer.
• If you are using color-safe bleach, add it with the detergent to the detergent compartment.

NOTE:

• When adding color-safe bleach with detergent, both laundry products should be in the same form (liquid).
• If no detergent compartment, you should add the detergent into the tub.

Loading PODs in the washer

• First load PODs directly the bottom of an empty basket
• Then add clothes on top of the PODs

NOTE:

- Loading PODs at the bottom of the basket will improve wash performance and will enable detergent to dissolve more easily in the wash.

Bleach compartment

Simple line drawing of a mechanical component with a pointed tip and internal cavity (no text or symbols)

Loading the bleach compartment (liquid bleach only)

• Add chlorine bleach to the bleach compartment. Do not over-fill the compartment.
• There is no water inlet to the bleach dispenser, so the bleach will directly load into the tub when you pour it in.

Caution

• Avoid splashing or over-filling the compartment.
• Never pour undiluted liquid chlorine bleach directly onto the load or into the tub. Doing so can damage fabrics, by weakening of the fibers or stripping the color.

NOTE: Do not pour color-safe bleach into the bleach compartment. Instead, add it to the detergent compartment.

Loading the fabric softener compartment

• Pour the recommended amount of liquid fabric softener into the softener compartment.
• The dispenser automatically releases liquid fabric softener at the correct time during the rinse cycle.
• Whenever fabric softner is used, please make sure to select FABRIC SOFTNER on the Rinse selector knob.

Caution

• Use the softener compartment ONLY for liquid fabric softeners.
• Do not use the Downy Ball® in the fabric softener compartment.
• Do not use liquid fabric softener that is too thick as it may not mix with the water sufficiently.
• Be sure to select the Fabric Softener option when using fabric softener so that it is released in the rinse portion of the cycle.

4. Add detergent and additives to the compartment

- Turn the cycle selector to select a washing cycle. For information on wash cycles, see Washer options and settings on page 31.

5. Start your washer

- Press the Start Pause button.

NOTE:

- As your washer moves from stage to stage in the wash cycle, the related light turns on (such as Rinse or Spin).

- If you need to pause the cycle (for example to add or remove items or adjust the load), press the Start Pause button, then open the lid. Your washer stops. When you are ready to resume washing, close the door, then press the Start Pause button.

5. Upload your laundry

When the wash cycle is complete:

• When the wash cycle is complete.
• Open the lid and remove the laundry.

Washer options and settings

- Double beep when button pressed means option not livable for the cycle.

Options and settings table of MLV41N1BWW.

Cycle	Turbo	Water Level	Water Temp.	Soil Level	Rinse
Normal/color	--	Auto ●	Tap Cold O	Extra Light O	1 Rinse ●
		Min O	Cold O	Light O	2 Rinse O
		Med O	Warm O	Med ●	1 Rinse with frabric softener O
		Max O	Hot O	Heavy O	2 Rinse with frabric softener O
Bulky	●	Auto ●	Tap Cold O	Extra Light O	1 Rinse ●
		Min O	Cold O	Light O	2 Rinse O
		Med O	Warm O	Med ●	1 Rinse with frabric softener O
		Max O	Hot O	Heavy O	2 Rinse with frabric softener O
Whites	●	Auto ●	Tap Cold O	Extra Light O	1 Rinse ●
		Min O	Cold O	Light O	2 Rinse O
		Med O	Warm O	Med ●	1 Rinse with frabric softener O
		Max O	Hot O	Heavy O	2 Rinse with frabric softener O
Casual	●	Auto ●	Tap Cold O	Extra Light O	1 Rinse ●
		Min O	Cold O	Light O	2 Rinse O
		Med O	Warm O	Med ●	1 Rinse with frabric softener O
		Max O	Hot O	Heavy O	2 Rinse with frabric softener O
Rinse & Spin	--	--	--	--	--
Spin Only	--	--	--	--	--
Tub Clean	--		Tap Cold --	Extra Light O	--
			Cold --	Light O
			Warm --	Med ●
			Hot --	Heavy O
Active Wear	●	Auto ●	Tap Cold O	Extra Light O	1 Rinse ●
		Min O	Cold O	Light O	2 Rinse O
		Med O	Warm O	Med ●	1 Rinse with frabric softener O
		Max O	Hot O	Heavy O	2 Rinse with frabric softener O
Towels	●	Auto ●	Tap Cold O	Extra Light O	1 Rinse ●
		Min O	Cold O	Light O	2 Rinse O
		Med O	Warm O	Med ●	1 Rinse with frabric softener O
		Max O	Hot O	Heavy O	2 Rinse with frabric softener O
Delicates	●	Auto ●	Tap Cold O	Extra Light O	1 Rinse ●
		Min O	Cold O	Light O	2 Rinse O
		Med O	Warm O	Med ●	1 Rinse with frabric softener O
		Max O	Hot O	Heavy O	2 Rinse with frabric softener O
Quick Wash	--	Auto ●	Tap Cold O	Extra Light O	1 Rinse ●
		Min O	Cold O	Light O	2 Rinse O
		Med O	Warm O	Med ●	1 Rinse with frabric softener O
		Max O	Hot O	Heavy O	2 Rinse with frabric softener O
Heavy Duty	●	Auto ●	Tap Cold O	Extra Light O	1 Rinse ●
		Min O	Cold O	Light O	2 Rinse O
		Med O	Warm O	Med ●	1 Rinse with frabric softener O
		Max O	Hot O	Heavy O	2 Rinse with frabric softener O

● Means default ○ Means optional -- Means no selection
- When you turn to one option which there is no beep notice. It means the function can not be selected with this program.

WASHER CARE

Caution

Turn off the water faucets after final use. This shuts off the water supply to your washer and prevents the possibility of damage from escaping water. Leave the lid open to let the inside of your washer dry out.

CLEANING AND MAINTENANCE

Cleaning the exterior

Use a soft cloth to wipe up all detergent, bleach, or other spills as they occur.

Cleaning the interior

• Clean the interior of your washer periodically to remove any dirt, soil, odor, mold, mildew, or bacterial residue that may remain in your washer as a result of washing clothes.
• Failure to follow these instructions may result in unpleasant conditions, including odors or permanent stains in your washer or on your laundry.
• To remove hard water deposits, use a cleaner labeled "Washer safe".

Cleaning the control panel

• Clean with a soft, damp cloth. Do not use abrasive powders or cleaning pads.
• Do not spray cleaners directly on the panel. The control panel finish may be damaged by some laundry pre-treatment soil and stain remover products. Apply such products away from your washer and wipe up any spills or over-spray immediately.

Cleaning the detergent, bleach, or softener compartment

• Clean with a soft, damp cloth. Do not use abrasive powders or cleaning pads.
• Do not spray cleaners directly on the panel. The control panel finish may be damaged by some laundry pre-treatment soil and stain remover products. Apply such products away from your washer and wipe up any spills or over-spray immediately.

Cleaning the tub

The Tub Clean cycle is a self-cleaning cycle that removes the causes of odors that may occur inside your washer without using a cleaning agent. We suggest cleaning the tub about once a month.

Caution

Never use the tub clean cycle when laundry is in your washer. This may damage the laundry or your washer.

• With the tub empty, add one cup of chlorine bleach to the bleach
• dispenser.
• Turn the control knob to power on.
• Turn the cycle selector to Tub Clean. With the tub empty, add one cup of chlorine bleach to the bleach dispenser.
• Press the Start Pause button.

Storing your washer

You can damage your washer if you do not remove water from hoses and internal components before storage.

To prepare your washer for storage:

• Select the Quick Wash cycle and add bleach to the washer. Run your washer through the cycle without a load.
• Turn the water faucets off and disconnect the inlet hoses.
• Unplug your washer from the electrical outlet and leave your washer lid open to let air circulate inside the tub.

Caution

If your washer has been stored in below-freezing temperatures, allow time for any leftover water in your washer to dry out before use.

BEFORE YOU CALL FOR SERVICE...

Troubleshooting Tips

Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem	Solution
Washer does not start	Make sure that your washer is plugged in.Make sure that the lid is closed.Make sure that the water source faucets are open.Make sure that you press the Start Pause button to start your washer.Before your washer starts to fill, it makes a series of clicking noises to make sure that the lid is locked. The washer doesn't drain after the lid locks. For automatic cycles: Before filling, and after the lid locks, a load sensing program starts. Washer will agitate clothing without water to determine load type, water level, and cycle time. Then it fills. This can take up to one minute. Its normal. For non automatic cycles the washer fills after the lid locks.Check the fuse or reset the circuit breaker.
No water or not enough water	Make sure that both faucets are fully turned on.Make sure that the water pressure is in the range listed in Water requirements on page 14.Make sure that the water inlet hoses are not kinked. Straighten if necessary.Disconnect the hoses and clean the screens. The hose filter screens may be clogged.This is a water efficiency washer. It does not fill to the levels of a standard washer. Low water levels are normal. It is normal for parts of clothing to stick out of the water.For automatic cycles: Before filling, and after the lid locks, a load sensing program starts. Washer will agitate clothing without water to determine load type, water level, and cycle time. Then it fills. This can take up to one minute. Its normal. For non automatic cycles the washer fills after the lid locks.
When washer has excessive vibration or noise	Make sure that your washer is set on a level surface. If the surface is not level, adjust your washer's feet to level your washer.Make sure that your washer is not touching any other object.Make sure that the laundry load is balanced.During the spin process, if clothes are piled to one side of the tub, your washer may stop because of the imbalance. Your washer tries up to three times to solve the problem automatically. If the washer cannot solve the problem, try to manually redistribute clothes inside the tub.Check to make sure packaging pieces of base foam cushion are not stuck under washer.
Washer stops	Make sure that the power outlet is a working outlet.Check the fuse or reset the circuit breaker.Close the lid, then press the Start Pause button to start your washer. For your safety, your washer does not spin unless the lid is closed.Before your washer starts to fill, it makes a series of clicking noises to make sure that the lid is locked. The washer doesn't drain after the lid locks. For automatic cycles: Before filling, and after the lid locks, a load sensing program starts. Washer will agitate clothing without water to determine load type, water level, and cycle time. Then it fills. This can take up to one minute. Its normal. For non automatic cycles the washer fills after the lid locks.Sometimes your washer may pause between stages in the cycle. Wait to see if your washer starts again.Disconnect the inlet hoses and clean the screens periodically. The hose filter screens may be clogged.
Lid is locked or will not open	Press the Start Pause button to pause the washer. You cannot open the lid if the washer is running.After you pause the washer, it may take a few seconds for the lid lock to release.If the lid is locked when your washer is not running, press the Power button to turn on your washer.If power fails while your washer is running, when power is restored, the lid unlocks. Your washer waits three minutes then runs the rest of the cycle.
Washer does not drain or spin	Check the fuse or reset the circuit breaker.Close the lid, then press the Start Pause button to start your washer. For your safety, your washer does not spin unless the lid is closed.Make sure that the drain hose is not kinked. Straighten as necessary. Make sure that the height of the drain hose is within specified limits. See Drainage requirements on page 14.The pipes to your sewer system may be clogged.Contact a plumber or qualified repair professional.
Washer does not drain or spin	Make sure that you have selected the correct temp.Make sure that the water source faucets are fully opened.Make sure that the hoses are connected to the correct faucet and water intake connections on your washer, then flush the lines. See Connect the water hoses on page 19.Disconnect the hoses and clean the screens. The hose filter screens may be clogged.
Load is too wet at the end of the cycle	Use a high-efficiency detergent to reduce over-sudsing See Selecting a detergent on page 29.The load may be too small. Very small loads (one or two items) may become unbalanced and not spin out completely.
Water leaks	Make sure that all hose connections are tight. See Connect the water hoses on page 19 and Connect the drain hose on page 21.Make sure that the end of the drain hose is correctly inserted and secured to the drainage system. See Connect the drain hose on page 21.Avoid overloading.Use a high-efficiency detergent to reduce over-sudsing. See Selecting a detergent on page 29.
Oversuds condition	Use a high-efficiency detergent to reduce over-sudsing. See Selecting a detergent on page 29.If you have"soft" water, reduce the amount of detergent.For small or lightly soiled loads, reduce the amount of detergent.
Prevent odor	Periodically run a Tub Clean cycle to clean the tub. See Cleaning the tub on page 33.Use a high-efficiency detergent to reduce over-sudsing. Excessive suds collect in nooks and crannies and cause odor. See Selecting a detergent on page 29.Dry the interior of your washer after the total cycle has finished.

Error Codes

Your washer is equipped with an automatic error-monitoring system to detect and diagnose problems.

Error Code	Error Symbol	Possible Cause	Solutions
E1	○○○◎	When the water level sensor does not detect water level change after water is flowing for 5 min.	Check if the lid is open. Check Troubleshooting guide for, “No water or not enough water” Check for water leakage.
E2	○○◎○	The unit takes more than 10 minutes to drain.	Check Troubleshooting guide for “Does not drain or spin”
E3	○○◎◎	The lid is open.	Close the lid. See Installation instructions to, “Level your washer”. The door lock or PCB may have failed, try steps again. Call service center.
E4	◎○○○	The unit is out of balance in spin operation.	Check Troubleshooting guide for, “Excessive vibration or noise”. See Installation instructions to, “Level your washer”.
E5	◎●◎◎	The unit is out of balance in spin operation.	Adjust the washer level refer to installation instructions. If situation continues, call service center. Call service center.
F5	◎○◎○	Load sensing failed	Call service center.
F8	◎◎○○	Load sensing failed	Call service center.
Fd	◎◎○◎	Door lock failed	Call service center.

Notice:

1. LED display: when an error occurs, Turbo LED will flash and the wash process LEDs will indicate an error code
2. O - off, Ⓞ - blink, ● - Lighting
3. When an error occurs. Please refer to troubleshooting guide or installation instructions and try again. If error codes persist, call for service.

MIDEA LAUNDRY WASHER LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer Service Centre:

■ Name, address and telephone number
■ Model number and serial number
■ A clear, detailed description of the problem

■ Proof of purchase including dealer or retailer name and address, and date of purchase

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the User Manual, or email [e-mail]
2. All warranty service is provided exclusively by our authorized Midea Service Providers, in the U.S. and Canada.

Midea Customer Service

In the U.S.A. or Canada, call 1-866-646-4332 or email [e-mail].

If outside the 50 States of the United States or Canada, contact your authorized Midea dealer to determine whether another warranty applies.

LIMITED WARRANTY

WHAT IS COVERED

FIRST YEAR LIMITED WARRANTY (PARTS AND LABOUR)

For one year from the date of purchase, if this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Midea America (Canada) Corp. (hereafter “Midea”) will pay for factory specified replacement parts and repair labour to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit's warranty period.

LIFETIME LIMITED WARRANTY (STAINLESS STEEL TUB)

For the lifetime of the product from the date of original purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Midea will pay for factory specified parts and repair labour for the following components to correct non-cosmetic defects in materials or workmanship that existed when this major appliance was purchased:

■ Stainless steel tub

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. Service must be provided by a Midea designated service company. This limited warranty is valid only in the 50 States of the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

LIMITED WARRANTY

WHAT IS NOT COVERED

1. Commercial, non-residential or multiple-family use, or use inconsistent with published user, operator or installation instructions.
2. In-home Instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses, plumbing or water inlet hoses).
4. Consumable parts (i.e. light bulbs, batteries, air or water filters, etc.).
5. Defects or damage caused by the use of non-genuine Midea parts or accessories.
6. Damage from accident, misuse, abuse, fire, floods, electrical issues, acts of God or use with products not approved by Midea.
7. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.
8. Cosmetic damage including scratches, dents, chips, and other damage to appliance finishes unless such damage results from defects in materials and workmanship and is reported to Midea within 30 days.
9. Routine maintenance of the product.
10. Products that were purchased "as is" or as refurbished products.
11. Products that have been transferred from its original owner.
12. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.
13. Pick-up or delivery. This product is intended for in-home repair.
14. Travel or transportation expenses for service in remote locations where an authorized Midea servicer is not available.
15. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.
16. Service or parts for appliances with original model/serial numbers removed, altered or not easily identified.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Midea makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Midea or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. MIDEA SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

PROTECT YOUR PRODUCT:

We will keep the model number and date of purchase of your new Midea product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

Register online at www.midea.com/ca/support/Product-registration

OR

Please fill out and return it to the following address:

Midea America Corp. 759 Bloomfield Ave #386, West Caldwell, NJ 07006-6701

(detach here)

Name: Model#: Serial #:	Card:
Address: Date Purchased: Store / Dealer	Name:
City: State: Zip: E-mail Address:
Area Code: Phone Number:
Did you purchase an additional warranty: As your Primary Residence? (Y/N)
How did you learn about this product:☐ Advertising☐ In Store Demo☐ Personal Demo

Information collected or submitted to us is only available to company internal employees for purposes of contacting you or sending you emails, based on your request for information and to company service providers for purposes of providing services relating to our communications with you. All data will not be shared with other organizations for commercial purposes.

Line drawing of a simple kitchen appliance with four control knobs and a front-mounted top (no text or symbols)

Line drawing of a coiled tube with a small inset device (no text or symbols)

Tuyau de vidange

Pince (x2)

Simple line drawing of an arched pipe or clamp with a small triangular top (no text or symbols)

Diagram showing two types of optical lenses with arrows pointing to lens structures (no text or labels)

Illustration of three different pipe fittings with directional arrows indicating movement (no text or symbols)

Mise en garde

Illustration of two pipettes pouring liquid into a bowl (no text or symbols)

Technical illustration of a pliers tool with a threaded component labeled 'COLD' (no other text or symbols)

Mise en garde

Diagram of a flexible hose with a coiled tube, showing mechanical components and a directional arrow (no text or symbols)

Line drawing of a hand inserting a component into a door panel (no text or symbols)

Technical line drawing of a mechanical assembly with a coiled hose and screwdriver (no text or symbols)

Technical line drawing of a server rack with internal tubing and ventilation slots (no text or symbols)

Illustration of a bathroom sink with faucet and handle, showing a close-up of the handle structure (no text or symbols)

Simple line drawing of a fan or vent with a checkmark indicating the correct direction (no text or symbols)

Simple line drawing of a fan or vent with a central hub and a cross mark, no text or symbols present.

Line drawing of a washing machine with wheels and control panel (no text or symbols)

Pieds réglables

Mise sous tension
2 Water level Selector

Simple line drawing of a mechanical component with a pointed tip and internal cavity (no text or symbols)

make yourself at home
