USER MANUAL XMonster 3.0 Overmax

EN: The product complies with requirements of EU directives.

Pursuant to the Directive 2012/19/EU, this product is subject to selective collection. The product must not be disposed of along with domestic waste as it may pose a threat to the environment and human health. The worn-out product must be handed over to the electrics and electronics recycling center.

Thank you for placing trust in us and choosing Overmax.

Thanks to the use of high-quality materials and modern solutions, we provide you with a product perfect for everyday use. We are convinced that the product will satisfy your requirements as it has been designed with utmost care. Before you start using the product, please read this manual carefully.

Should you have any remarks or questions concerning the product, please do not hesitate to contact us:

Please read this manual before you start using the product to see all its functions and use them in accordance with intended use.

1. Do not repair or modify the device. Only an authorized service technician is allowed to perform these operations.
2. Do not switch the device on if you have noticed any damage.
3. Do not use the device when it acts up, has been dropped or immersed in water, overheats extensively, is discolored or deformed, and when other atypical circumstances occur. Contact the manufacturer's authorized service center.
4. Never leave the charging battery unattended.
5. The device is intended for persons aged above 5. Do not let younger children play with it.
6. Use the device away from sources of heat, high temperatures, hot surfaces, direct sunlight, source of ignition, naked flame, oils and sharp edges.
7. Do not use the device in inflammable, explosive or toxic atmosphere.

EN

1. Do not use chemicals to clean the device.
2. After every use, switch the device off and disconnect the battery.
3. Do not immerse the entire device in water or other liquids. Do not use the device near water.
4. Before you start cleaning or moving the device, switch it off.
5. Do not use the device for other purposes than designed.
6. Keep the device away from sharp items.
7. Do not place other items on the device when you use it.
8. Use the device on flat and hard surfaces only. Avoid going on sand, grass or other surfaces which may lead to damage.
9. To charge a battery, use a supplied charging cable only.
10. After every charging, disconnect the charging cable from USB port.
11. Pay attention to battery polarization in the device and controller.
12. In the device use the supplied battery only, in the controller three batteries AA 1,5V are used (they are not supplied). In the controller do not use storage batteries.
13. After the use, do not touch a car engine because it may be extremely hot.
14. Transformer, power supply, or battery charger used with the electric toy shall be regularly examined for damage to the supply cord, plug, enclosure or other parts, and in the event of such damage, it shall not be used until the damage has been repaired.
15. The toy must not be connected to more power sources than recommended.
16. Recharge the batteries only under adult supervision.
17. Batteries must be removed from the toy before charging.
18. Do not use different types of batteries or new and used batteries.
19. Remove exhausted batteries from the toy.
20. Power terminals should not be short-circuited.
21. Non-rechargeable batteries should not be recharged.
22. The batteries must be inserted with the correct polarity.

Warning. Not suitable for children under 3 years. Small parts. Choking hazard.

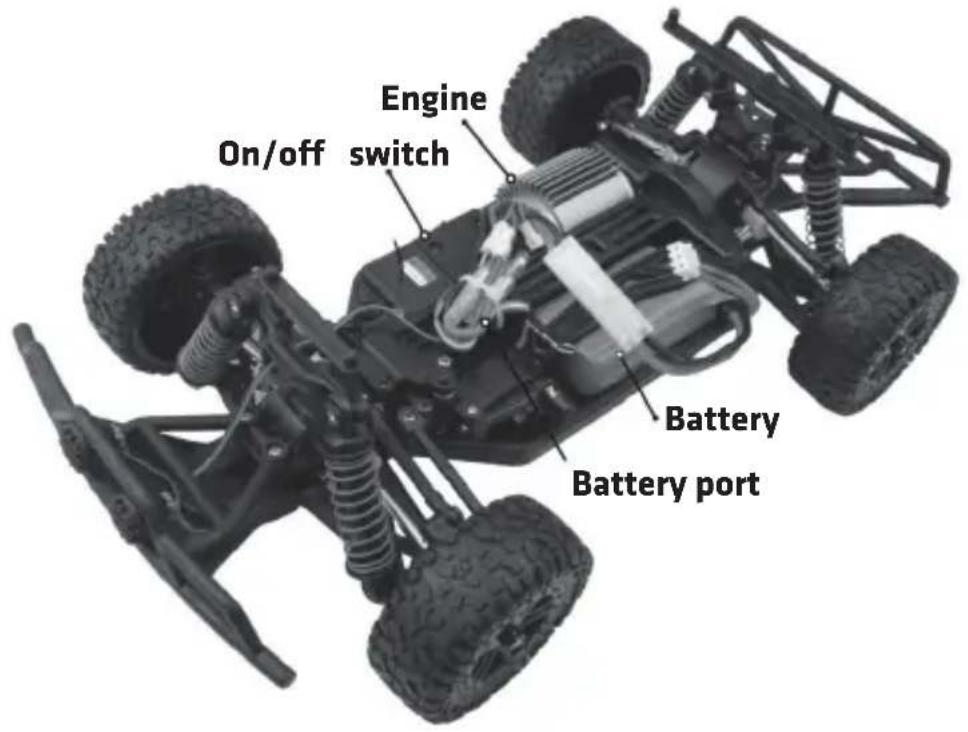

DEVICE OUTLINE

EN

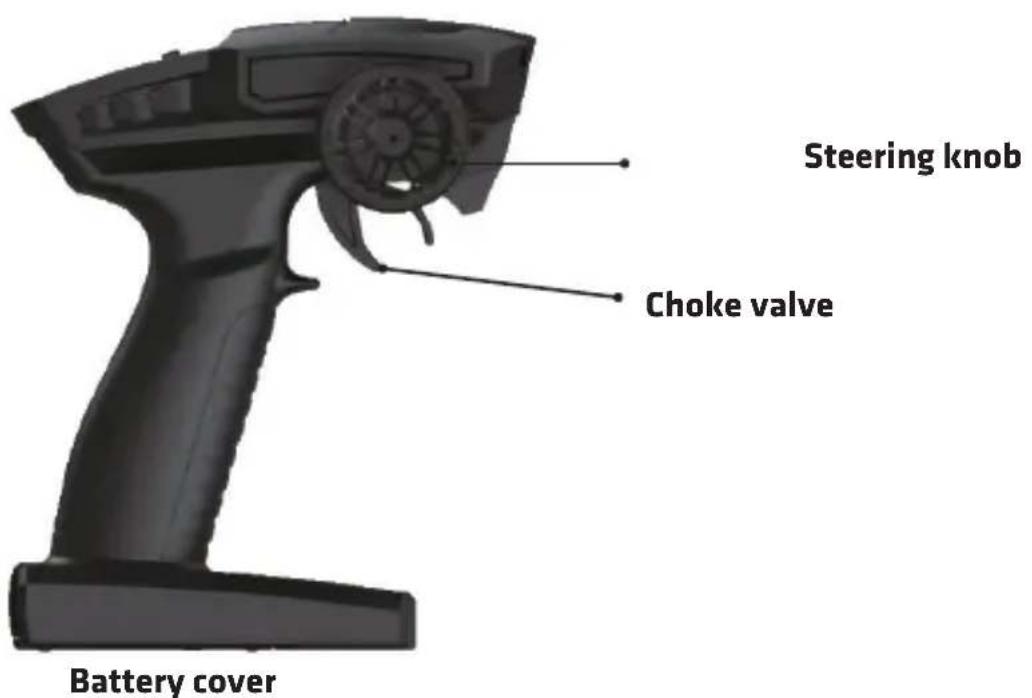

CONTROLLER OUTLINE

HOW TO ASSEMBLE BATTERY IN THE CONTROLLER

EN

1. Remove battery cover.

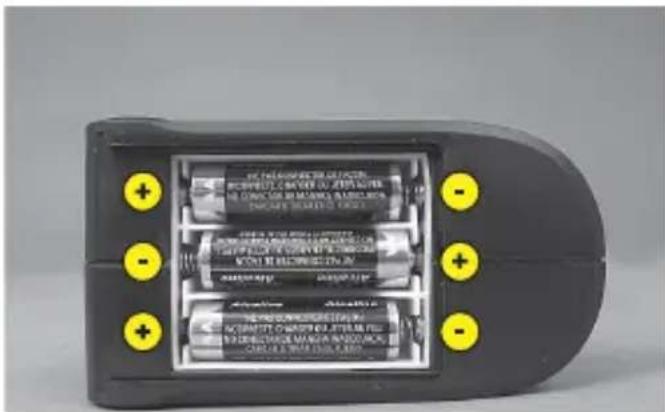

1. Insert three batteries AA 1,5 V. Pay special attention to battery poles.

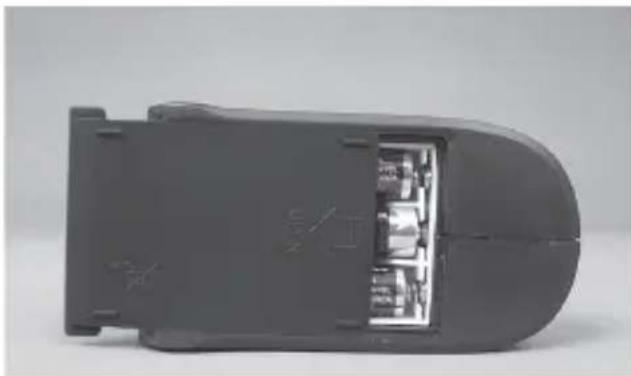

1. Put battery cover back on.

HOW TO CHARGE CAR BATTERY

1. Switch the car off.
2. Connect the charging cable to USB port in the PC or USB feeder. Next, connect the battery to the charging cable. When charging, green LED will flash.
3. Connect the battery to the charging cable.
4. When the battery is full, green LED will be on continuously. After charging, disconnect the battery from the charging cable.

NOTE After using in the car, wait 10-15 minutes before you start charging the battery. Do not leave the charging battery unattended. Recommended charger parameters: 5V = 2A .

HOW TO USE

1. Move the car switch into ON.
2. Move the controller switch into ON. The power LED will start flashing.

Wait about 15 seconds until the controller has connected with the car. The LED will be on continuously.

NOTE! Always switch the car on in the first place. Otherwise the controller may have difficulties in connecting with the car.

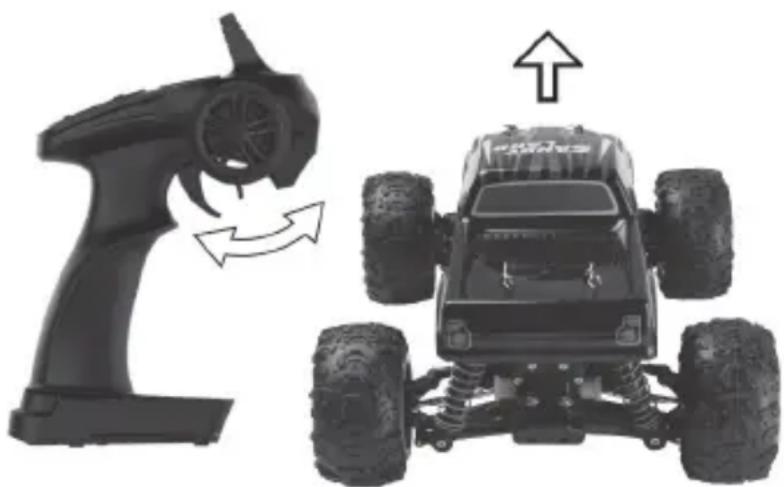

1. To move forward, move the choke valve to the back. The stronger you move the valve, the higher the speed of the car. Slide the choke valve to the front to stop and reverse.

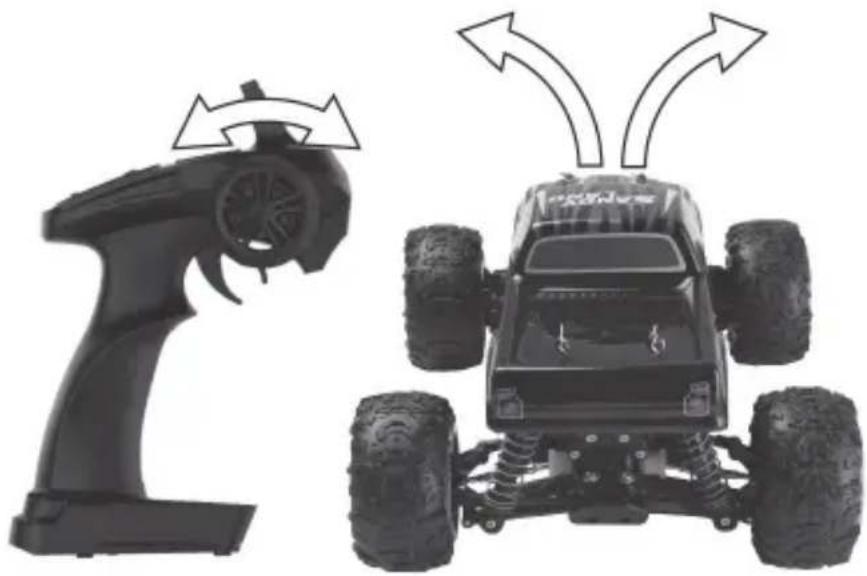

1. Turn the knob to the left or right to make the car turn.

EN

1. Once you have finished, switch the controller and car off and disconnect the battery.

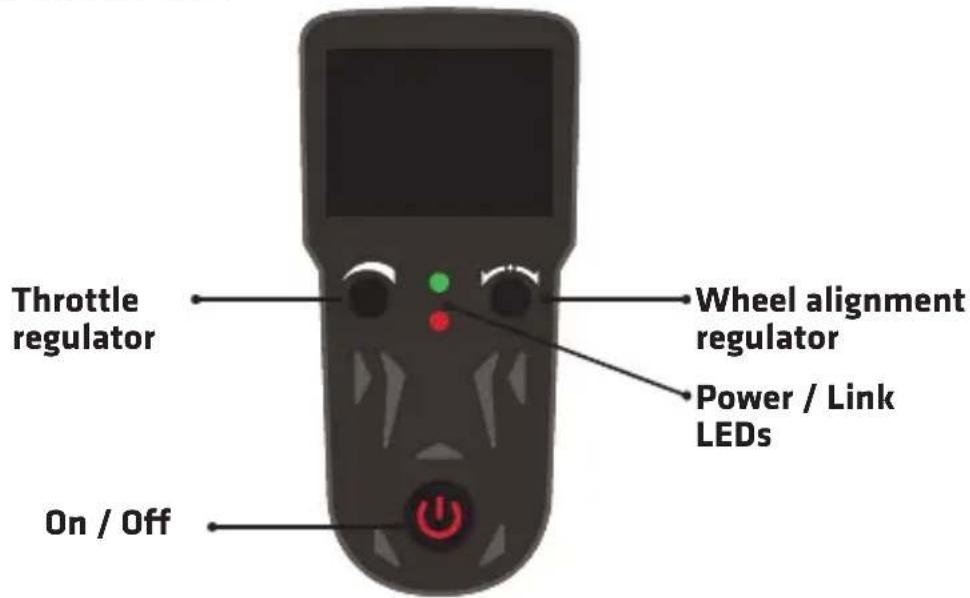

DESCRIPTION OF THE CONTROLLER FUNCTIONS

• If you notice that your car veers slightly to the left or right instead of going straight, you can adjust the steering with the wheel alignment regulator on the controller. Keep the front of the car in the air while using the regulator.
• To adjust the speed, turn the throttle regulator clockwise and the maximum speed will increase. Turn the regulator counterclockwise and the maximum speed will decrease.

CLEANING AND MAINTENANCE

1. Before you start cleaning, switch the device off and disconnect the battery.
2. Clean the car and controller with wet cloth.
3. Do not use chemicals to clean the device.
4. After every use, remove sand and dust from the car.

Frequency: 2.405-2.475 GHz

RF Output power: -8.91 dBm

Detailed warranty conditions are available on the website:

www.overmax.eu

The pictures are for reference only. The real design of the products may differ from the pictures presented.
