USER MANUAL Sport XL ION

Quickstart Guide English (3–7)

Appendix English (19)

Quickstart Guide (English)

Introduction

Thank you for purchasing the SPORT XL. At ION, your entertainment is as important to us as it is to you. That's why we design our products with one thing in mind—to make your life more fun and more convenient.

Box Contents

SPORT XL

Microphone and Cable

1/8" (3.5 mm) Stereo Aux Cable

Power Cable (2-pin IEC)

Quickstart Guide

Safety & Warranty Manual

Support

For the latest information about this product (documentation, technical specifications, system requirements, compatibility information, etc.) and product registration, visit ionaudio.com.

For additional product support, visit ionaudio.com/support.

Rechargeable Batteries

Rechargeable lead-acid batteries are the same type used in automobiles. As with your car battery, how you use this battery has a significant impact on its lifespan. With proper use and treatment, a lead-acid battery can last for years. Here are some recommendations for getting the longest life from the internal battery.

General Usage Fully charge the battery before using it.

Charge the battery completely after each use.

Storage For best product longevity, do not store at exceedingly hot (greater than 90^ F/ 32^ C) or exceedingly cold (less than 32^ F/ 0^ C) temperatures.

It is acceptable to leave your sound system plugged in. This will not overcharge the battery.

If you leave the battery level low and do not charge it for 6 months, it may permanently lose capacity.

Repair If the battery fails to charge, check your fuse near the power cable input. If your fuse is intact and it still will not charge, contact ION Audio at ionaudio.com.

Disposal Bring the unit to a recycling center or dispose of in accordance with local ordinances.

Outdoor Use and Care

Though SPORT XL is water-resistant and able to tolerate splashing water, please review the tips below to get the best performance from SPORT XL:

• SPORT XL must only be used outdoors with power outlets or extension cords that are rated for outdoor use.
• Bring SPORT XL indoors during extreme weather.
• Please do not place SPORT XL in standing water.
• Please do not connect the power cable to SPORT XL in a wet environment. Make sure the power input, power cable, and power outlet are all completely dry before making any connections.
• WARNING: Keep any non-water-resistant devices (phones, music players, etc.) in a dry place where they will not be affected by water and cause a risk of electric shock.

Quick Setup

1. Make sure all items listed in the Box Contents are included in the box.
2. Read the Safety & Warranty Manual before using the product.
3. Make sure the battery is completely charged prior to first use for maximum battery life.
4. Study the Connection Diagram.
5. Ensure the Master Volume on SPORT XL is at zero.
6. Connect your devices.
7. Raise the volume to a comfortable level.
8. Return the Master Volume to zero when you are finished using SPORT XL.

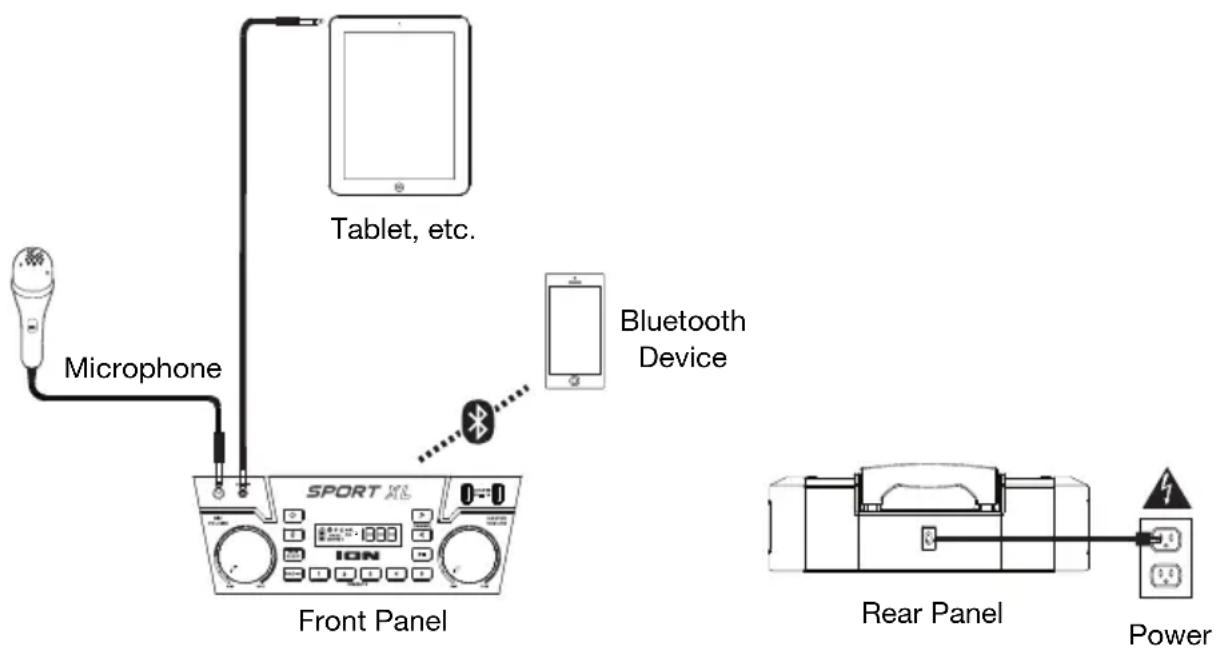

Connection Diagram

Items not listed under Introduction > Box Contents are sold separately.

Features

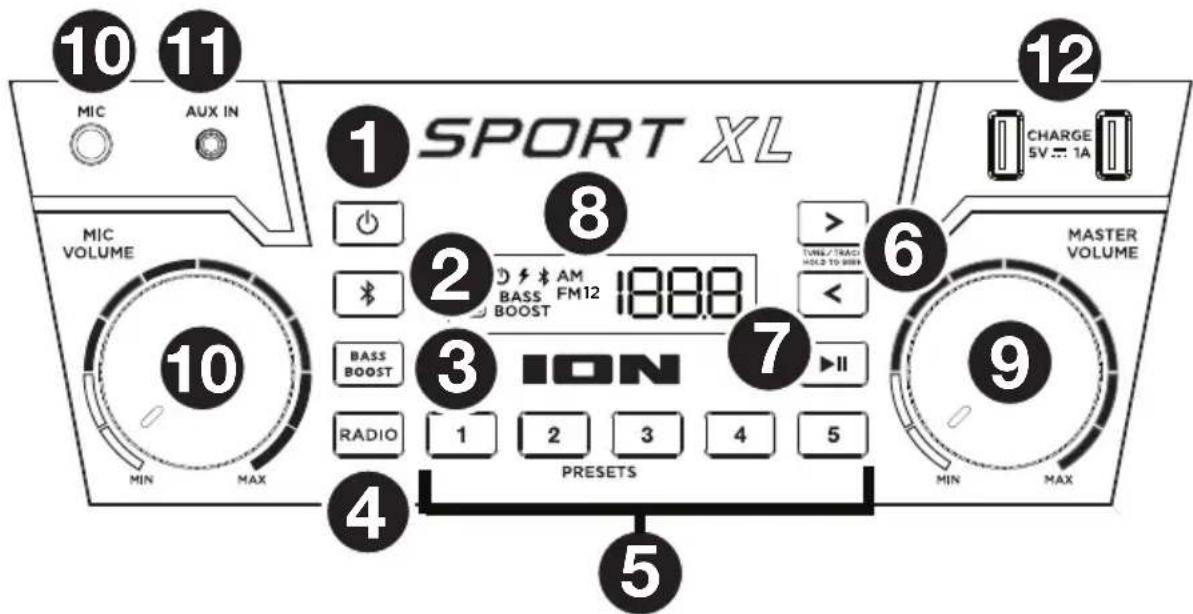

Front Panel

10 11 MIC AUX IN SPORT XL 12 CHARGE 5V: 1A MIC VOLUME 8 2 AM BASS FM12 BOOST 1888 TWO/TRACK HOLD TO WIN 6 MASTER VOLUME 3 ION BASS BOOST 4 RADIO 1 2 3 4 5 PRESETS 9 MIN MAX 4 5

1. Power Button: Turns SPORT XL on or off. Please note that while SPORT XL is connected to a power source, it does not need to be powered on to charge the battery. When the power is on, the display will show the power indicator.
2. Bluetooth Button: Press and release the Bluetooth button to pair to a Bluetooth device. Press and release the Bluetooth button to disconnect a paired Bluetooth device.

Press and hold this button to disable (or enable) the voice prompts.

1. Bass Boost: Press this button to enhance the overall bass frequency response.
2. Radio Selector: This button sets the Radio to AM, FM, or turns the radio off.
3. AM/FM Presets: Store a favorite radio station and quickly tune to a preset radio station. There are 5 numeric positions to store AM band presets and 5 numeric positions to store FM band presets.

To add a preset:

i. Select either the AM or FM band and then use the Tune/Track buttons to select the desired radio station.
ii. Press and hold a numeric preset button to assign the current station to that preset number. The display will show "SAV" to show the station has been saved. To use an added preset, press a preset number once lightly to go to the stored radio station.

1. Tune/Track Buttons: Press these buttons to tune in a radio station or go to the previous/next track on a Bluetooth connected device. To "seek" (jump to the next available station), hold either button down for a few seconds until it starts to seek a station. The unit will remember the last station it was on and start at that station when powered off and on again.

2. Play/Pause: Press to play or pause a track from a connected Bluetooth device.

3. Display: Displays the current radio station, battery status, and Bluetooth status.

4. Charging Indicator: When the power cable is connected, movement of the battery segments shows the battery is charging. When fully charged, all battery segments will be lit without blinking. When the power cable is disconnected, the battery segment shows the level of the battery.

5. Lightning Bolt Icon: The lightning bolt icon will illuminate when the IEC power cable is connected to wall power.
6. Bluetooth Icon: The Bluetooth icon will not be lit when SPORT XL is first powered on (unless it was previously paired with a device). The Bluetooth icon will be lit solid when a device is paired to SPORT XL.

7. Power Indicator: The power indicator will be lit when SPORT XL is powered on. The power indicator will not be lit when SPORT XL is powered off.

8. Master Volume Control: This adjusts the speaker's main mix volume, which includes the Microphone Input, Auxiliary Input, Radio, and the audio of a paired Bluetooth device.

9. Microphone Input with Volume Control (1/4"): This mono input accepts a 1/4" (6.35 mm) input such as a microphone, guitar, or other musical instrument.
10. Auxiliary Input: This stereo 1/8" (3.5 mm) input can be used to connect a CD player, MP3 player, or other audio source.
11. USB Charging Ports: Connect your device's charge cable here to charge it. USB charging only functions when the unit's power is turned on.

Rear Panel

1. Power Cable Input: Insert the included power cable here to charge the unit. Note that the SPORT XL can be used with the power cable while it simultaneously charges the battery.

Top Panel

1. NFC (near-field communication): After pressing and releasing the Bluetooth button, touch and briefly hold your supported and enabled device to the NFC logo to pair the device.

Operation

Using the Radio

Selecting a radio station:

1. Press the Radio button to select AM or FM.
2. Press either of the Tune/Track buttons to select a radio station. To "seek" (jump to the next available station), hold either button down for a few seconds until it starts to seek a station.

Saving a radio station as a preset:

1. Press the Radio button to select AM or FM.
2. Press either of the Tune/Track buttons to select a radio station.
3. Press and hold a numeric preset button to assign the current station to that preset number. The display will show "SAV" to show the station has been saved.

Recalling a saved radio station preset:

1. Press the Radio button to select AM or FM.
2. To use an added preset, press a preset number once lightly to go to the stored radio station.

Pairing a Bluetooth Device

1. Turn on your Bluetooth device.
2. Power on SPORT XL. If you have previously connected to another Bluetooth device, SPORT XL will reconnect. To disconnect pairing if the Bluetooth icon is lit solid, press and release the Bluetooth button. *
3. Press and release the Bluetooth button to pair to a Bluetooth device.
4. Navigate to your Bluetooth device's setup screen, find "SPORT XL" and connect. *
   Note: If your Bluetooth device prompts for a pairing code, enter "0000".
5. To disconnect pairing while the Bluetooth icon is lit solid, press the Bluetooth button. *
6. To connect to another Bluetooth device, repeat step 3.

* Tip: If you would like to disable (or enable) the voice prompts, press and hold the Bluetooth button.

Pairing a Bluetooth Device Using NFC

NFC (near-field communication) allows data exchange from devices, such as pairing, by gently bumping them together. Check in your device's manual to see if this feature is supported.

To use NFC to pair with SPORT XL:

1. In order to use NFC, your device must be turned on and unlocked.
2. Enter your device's Settings menu and check that NFC is turned On (one time step).
3. Power on SPORT XL.
4. Press and release the Bluetooth button on SPORT XL and the Bluetooth icon will flash (only needed for the first time when NFC pairing with the device).
5. Touch and briefly hold your device to the NFC logo.
6. Follow the pairing instructions that appear on your phone. If a passcode is required, enter "0000".
7. To unpair, gently bump your device against the NFC logo located on SPORT XL's top panel or disconnect the Bluetooth connection from your device's Bluetooth menu.

Troubleshooting

If the sound is distorted: Try lowering the volume control of your sound source, musical instrument, or microphone. Also, try to reduce the overall volume of SPORT XL using the Master Volume knob.

If there is too much bass: Try adjusting the tone or EQ control on your sound source to lower the bass level. This will allow you to play the music louder before clipping (distortion) occurs.

If there is a high-pitched whistling noise when using microphones: This is probably feedback. Point the microphone away from the speaker.

If there is poor AM reception: To adjust AM reception, move the entire unit.

If you can't hear the microphone over the music volume: Turn down the music volume from your source.

If you can't play music from a flash drive: The USB port is only for charging USB devices.

Microphone Tablet, etc. Bluetooth Device Front Panel

Power Rear Panel

Características

Panel frontal

10 11 MIC AUX IN SPORT XL 12 CHARGE SV: 1A MIC VOLUME 8 2 1888 BASS FM 12 BOOST TUBE/TRACK HOLD TO BMS < 3 ION BASS BOOST RADIO 1 2 3 4 5 PRESETS 4 5 MASTER VOLUME 9 MIN MAX

Technical Specifications

Output Power	100 W (peak)
Drivers	Low-Frequency: 8.0" / 203 mm wooferHigh-Frequency: 3.0" / 76 mm tweeter
Frequency Response	60 Hz – 17 khz (-4 dB)
Bluetooth Specifications	Profile: A2DP, AVRCPRange: Up to 100 feet / 30.5 meters
Microphone Type	Dynamic microphone recommended (included)
Radio Frequency Range US: 520–1710 kHz (AM), 87.5–107.9 MHz (FM)Europe: 522–1629 kHz (AM), 87.5–108.0 MHz (FM)Japan: 520–1710 kHz (AM), 75.5–108.0 MHz (FM)
USB Charging Ports 2 USB, +5 V, 1 A
Water Resistance Class	IPX5 - protection from a 6.3 mm spray of water (12.5 liters per minute) for 3 minutes, and dust protection to not interfere with normal operation.
Battery	Life: Up to 75 hoursRecharge time: 12 hoursCapacity: 12 V, 7.0 Ah, SLADimensions: 5.9" x 2.6" x 3.7" / 65 mm x 121 mm x 94 mm
Power	Connection: 2-pin IECInput Voltage: 100–240 VAC, 50/60 Hz
Dimensions(width x depth x height)	14.6" x 10.9" x 17.7" / 371 x 278 x 451 mm
Weight	26 lbs. / 12 kg

Specifications are subject to change without notice. Bluetooth and wireless reception and range are affected by walls, obstructions, and movement. For optimal performance, place the product in the center of the room so it is unobstructed by walls, furniture, etc. Battery life may vary based on temperature, age, and volume usage of product.
