Product type	Electric breast pump
Brand	Neno
Model	UNO
Dimensions	81 x 66 x 62 mm
Weight	300 g
Power supply	5V 1A (USB-C), Li-Ion battery 3.7 V 1400 mAh, battery life 2 h
Stimulation levels	6 levels (L1 to L6, pressure 14 to 43 kPa)
Expression levels	9 levels (L1 to L9, pressure 21 to 46 kPa)
Operating modes	Stimulation, expression, automatic, memory
Screen	Digital touchscreen with timer and memory
Anti-reflux function	Closed system preventing milk backflow into the pump
Breast shield	Soft silicone, BPA-free
Bottle compatibility	Compatible with most standard bottles
Maintenance	Wash with soapy water, disinfect by boiling 10 min (except pump)
Consumable parts	Membrane (every 8 weeks), valve (every 2-3 months), funnel (every 6 months)
Safety	Not for use during pregnancy, BPA-free, auto-off after 30 min
Warranty	24 months

Frequently Asked Questions - UNO Neno

How to start the Neno UNO breast pump?

Press and hold the power button for 2 seconds. The device starts in stimulation mode with the last saved setting.

What to do if the device does not start?

Check that the battery is charged. Plug the USB-C cable into a 5V source. If the screen remains off, contact customer service.

Why is there little or no suction?

Make sure all parts are correctly assembled and clean. Check that the valve and membrane are not damaged. Reassemble the breast pump according to the instructions.

How to clean and disinfect the breast pump?

After each use, disassemble and wash with warm soapy water. Once a day, boil the parts (except the pump) for 10 minutes. Wipe the pump with a damp cloth.

When to replace consumable parts?

Replace the membrane every 8 weeks (1-3 uses/day) or 3-4 weeks (more than 3/day). The valve every 2-3 months, the funnel every 6 months.

Is the provided bottle compatible with other brands?

The Neno UNO breast pump is compatible with most standard bottles thanks to its universal connector.

How to charge the breast pump?

Use the provided USB-C cable with a 5V/1A adapter. Full charge takes about 2 hours. The battery icon indicates the level.

How long does a pumping session last?

The device automatically shuts off after 30 minutes. You can start a new session if needed.

Can I use the breast pump during pregnancy?

No, use is prohibited during pregnancy as it may trigger premature labor.

How to store the breast pump long-term?

Clean all parts, fully charge the battery. The device goes into storage mode after inactivity; plug it in for 2 hours to reactivate.

USER MANUAL UNO Neno

Illustration of a green and white robotic device with no visible text or symbols

Table of contents

Spis treści

Diagram showing a sequence of cleaning steps for baby products, labeled with arrows and numbered parts.

PL

INSTRUKCJA OBSŁUGI

Dear Customer, the device Neno Uno you received is an electronic breast pump. It is used to express breast milk after childbirth.

Please read the instructions before using the device.

01. SAFETY MEASURES

1. Do not use the breast pump during pregnancy – this can cause early delivery.
2. Do not use the device if you suffer from chronic diseases or oversensitivity that would make using the device painful to you.

3. Before each use of the device, make sure that no component is damaged. Do not use a breast pump if any of its components are clearly damaged.

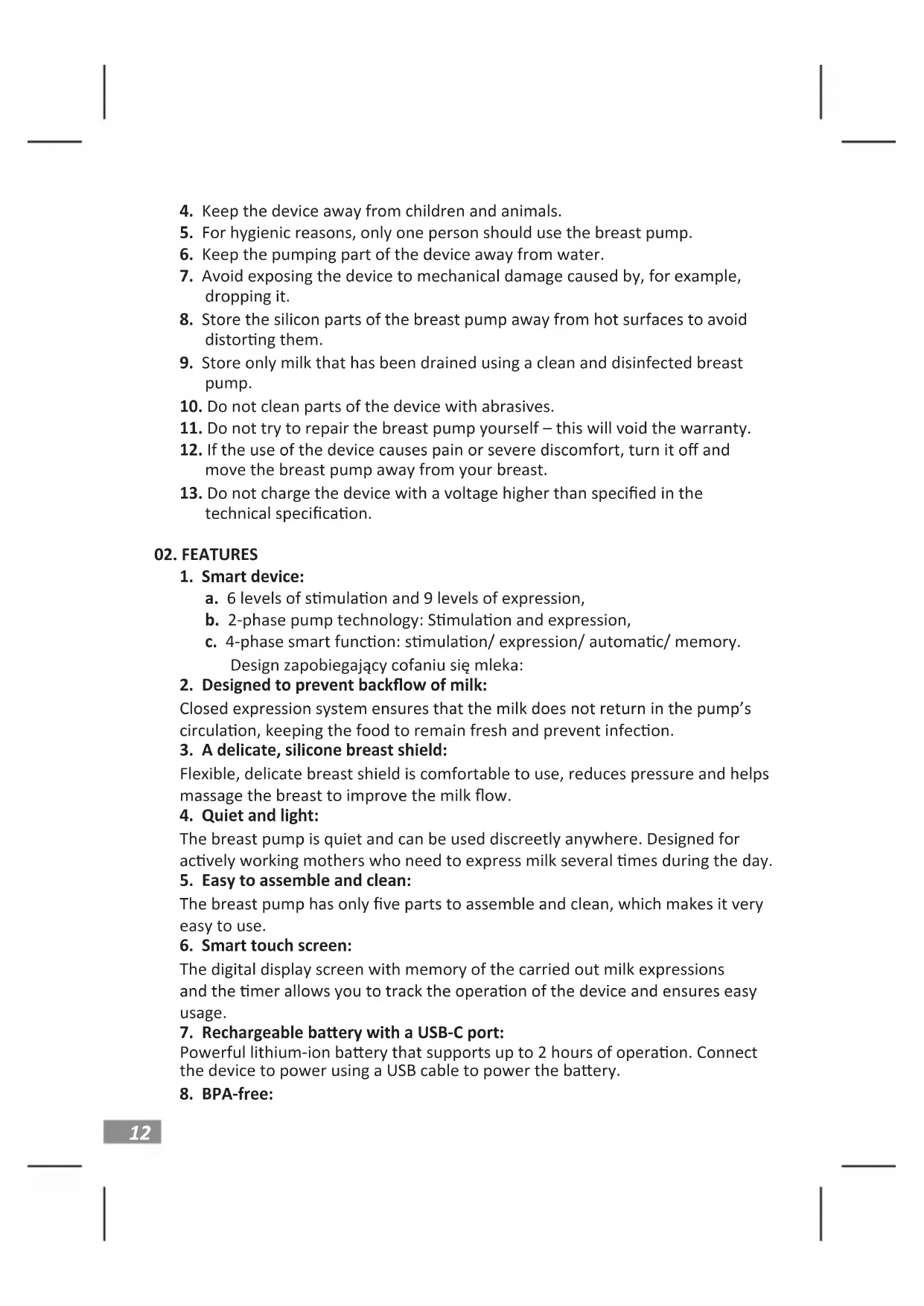

4. Keep the device away from children and animals.

5. For hygienic reasons, only one person should use the breast pump.
6. Keep the pumping part of the device away from water.
7. Avoid exposing the device to mechanical damage caused by, for example, dropping it.
8. Store the silicon parts of the breast pump away from hot surfaces to avoid distorting them.
9. Store only milk that has been drained using a clean and disinfected breast pump.
10. Do not clean parts of the device with abrasives.
11. Do not try to repair the breast pump yourself – this will void the warranty.
12. If the use of the device causes pain or severe discomfort, turn it off and move the breast pump away from your breast.
13. Do not charge the device with a voltage higher than specified in the technical specification.

02. FEATURES

1. Smart device:

a. 6 levels of stimulation and 9 levels of expression,
b. 2-phase pump technology: Stimulation and expression,
c. 4-phase smart function: stimulation/ expression/ automatic/ memory. Design zapobiegający cofaniu się mleka:

2. Designed to prevent backflow of milk:

Closed expression system ensures that the milk does not return in the pump's circulation, keeping the food to remain fresh and prevent infection.

3. A delicate, silicone breast shield:

Flexible, delicate breast shield is comfortable to use, reduces pressure and helps massage the breast to improve the milk flow.

4. Quiet and light:

The breast pump is quiet and can be used discreetly anywhere. Designed for actively working mothers who need to express milk several times during the day.

5. Easy to assemble and clean:

The breast pump has only five parts to assemble and clean, which makes it very easy to use.

6. Smart touch screen:

The digital display screen with memory of the carried out milk expressions and the timer allows you to track the operation of the device and ensures easy usage.

7. Rechargeable battery with a USB-C port:

Powerful lithium-ion battery that supports up to 2 hours of operation. Connect the device to power using a USB cable to power the battery.

8. BPA-free:

The breast-pump and its accessories are made out of BPA-free materials. The breast pump is compatible with most baby bottles.

9. Streamlined and wireless:

The breast pump was design with aesthetics in mind. No cables, no tubes, the device is easy to use wherever you are.

03. ELEMENTY

SEE FIG. A

1. Cap
2. Breast shield
3. Connector
4. Pumping device
5. Suction bowl
6. Valve
7. Milk bottle
8. Bottle holder
9. Bottle teat
10. Charging cable

04. DESCRIPTION OF MODES

Stimulation mode:

L1-6; L2-12; L3-17; L4-21; L5-24, L6 fast-14; L6 slow-43 kPa

Expression mode:

L1-21; L2-23; L3-27; L4-32; L5-36; L6-38; L7-42; L8-45; L9-46 kPa

Permissible difference ±5 Kpa.

05. DESCRIPTION OF ICONS AND BUTTONS

1. Power button:

Hold for 2 seconds to turn the breast pump on or off.

1. Mode change:

Press the button to change the mode. The device will automatically switch from stimulation to expression mode after 2 minutes. The device can save settings and has a time counter. When you turn on the device, the settings from the previous use of the device are automatically turned on. The breast pump will automatically turn off after 30 minutes of use.

2. Suction power:

+ increases suction power; - reduction of suction power (stimulation mode:

L1-L6; expression mode: L1-L9).

3. Battery status:

Indicates the amount of battery power remaining. Charge the breast pump if the battery is low.

4. Session duration:

Indicates how long you have been using the breast pump. The device will turn off automatically after 30 minutes of use.

SEE FIG. B

1. Suction decrease
2. Stimulation mode
3. Battery Percent
4. Power button/mode change
5. Suction increase
6. Suction level
7. Expression mode
8. Session Duration

06. BEFORE FIRST USE

SEE FIG. C

1. Remove the cap from the breast shield before each use.
2. Pull down on valve to remove from connector.
3. Separate the connector from the suction bowl and suction cap.

07. CLEANING

Cleaning and sanitizing are two different activities. They must be done separately to protect your child and ensure that the breast pump works properly.

Cleaning - washing the surface of the device and removing dirt.

Sanitizing - killing organisms such as bacteria or viruses that may be present on the Surface of the device.

	Breast shield	Breast pump elements (connector, suction cap, suction bowl)	The bottle and teat
Before first use	Cleaning and sanitizing	Cleaning and sanitizing	Cleaning and sanitizing
After each use	Cleaning Cleaning	Cleaning
Once a day	Sanitizing Sanitizing	Sanitizing

08. REPLACEMENT OF CONSUMABLE PARTS

Consumable parts are subject to natural wear and tear during operation of the breast pump and are therefore not covered by the manufacturer's warranty. Worn components of the breast pump that come into contact with milk should be replaced. A worn component has a crack, deformation, tarnishing or a distinct change in colour.

• Replace the diaphragm every 8 weeks (if you use the breast pump 1-3 times a day) or every 3-4 weeks (if you use the breast pump more than 3 times a day).
• Replace the valve every 2-3 months (if using 1-3 times a day) or every 4 weeks (if using more than 3 times a day).
• Replace the funnel every 6 months if you use the breast pump more than

3 times a day.

- Replace the tube only if moisture enters the tube or the tube is damaged.

09. THE BREAST PUMP

1. Wash your hands thoroughly with soap and water before touching the breast pump and breast.
2. Attach the suction bowl and pumping device to the connector.
3. Connect the breast shield to the connector.
4. Put the valve in the connector.
5. Screw the milk bottle into the connector, rotating it clockwise until it can't be turned anymore.

Tips:

a. Check the breast pump components for damage before each use. Replace damaged items with new ones as needed.
b. Always check the cleanliness of the elements before using the machine
c. To avoid damage to the breast pump, make sure that all its parts are dry before using it.

10. CHARGING THE BREAST PUMP

Before the first use, charge the breast pump for 2 hours by connecting it to the power supply using the USB cable. The battery icon on the display will be full when charging is complete.

11. USING THE BREAST PUMP

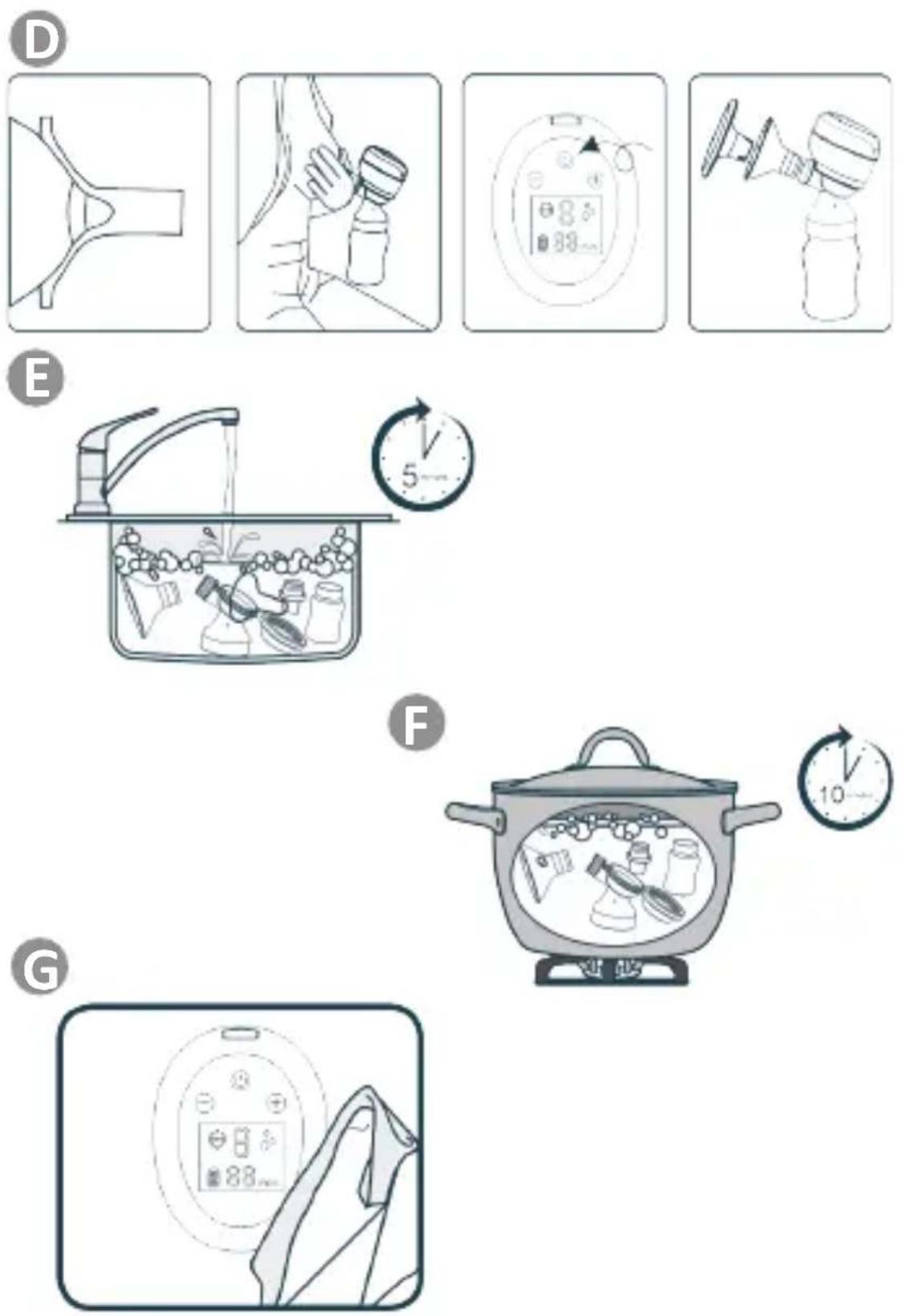

SEE FIG. D

1. Place the breast shield on the breast so that the nipple is inside the drainage channel.
2. Press the breast shield and the connector to your breast, using your thumb and forefinger. Support your chest with the palm of your hand.
3. Turn on the breast pump by pressing the power button and select the mode of operation that suits you.
4. Press the power button to turn off the breast pump after use and place the lid on the breast shield to protect the machine from dust.

a. The breast pump starts work in the stimulation mode. Set the suction power to a level that is comfortable for you using the +/- buttons.

Stimulation mode - fast pumping that mimics the natural sucking of breast milk by a baby, stimulating milk flow

b. After 2 minutes, the breast pump will automatically activate the expression mode. Adjust the level of suction using the +/- buttons to find the highest level of suction that is comfortable for you. If milk begins to flow out of your breast before two minutes pass, press the mode button to manually switch to the expression mode.

Expression mode - slower pumping which gently and efficiently sucks breast milk.

c. In the expression mode, increase the suction power until you feel slight discomfort (not pain) and reduce the suction power by one degree.

12. FAQ

1. The machine does not start: ensure that the breast pump is connected to a working electrical outlet. If the breast pump has no power source, its display will not turn on and no error message will appear.

2. No/ poor suction: make sure all parts of the breast pump are correctly positioned. Disassemble the breast pump and make sure that all parts are clean and undamaged. Assemble the breast pump again according to the instructions in section „Assembling the breast pump”.

3. More milk has flowed out of the breast than the bottle can hold: switch off the breast pump and unplug it. Use a damp (not wet) cloth to wipe the breast pump. When all parts of the device are dry, reassemble them.

13. LONG-TERM STORAGE

1. The breast pump has a built-in battery. To protect against damage, the device goes into storage mode after a long period of inactivity. To turn off storage mode, connect the device to power and charge it for 2 hours.
2. Before putting the breast pump away for a longer period of time, make sure that:

a. All parts of the breast pump are clean.
b. You have cleaned the pumping device.
c. The device's battery is fully charged.

14. CLEANING INSTRUCTIONS

Prepare: mild soap or other cleaning agent, clean dish towel, drinking-quality water. Parts that need to be washed or disinfected:

• Breast shield,
• Milk bottle,
• Connector,
• Valve,
• Suction cup,
• Suction bowl,
• Breast shield dust cap.

WARNING:

• Wash all parts that have had direct contact with breast milk immediately after use. This helps you will avoid residue and the growth of bacteria in the device.
• Use only drinking-quality water (tap or bottled) to clean the appliance.
• When cleaning valves, do not use small instruments such as brushes. Be careful not to pierce the part.

• Disassemble, wash and rinse all par.

• Cleaning (Before first use and after each use):

SEE FIG. E

Step 1 - Disassemble the device and rinse all parts that have come into contact with the breast and milk in cold water to get rid of the remains of milk and any residue.

Step 2 - Soak in warm, soapy water for 5 minutes, then wash and rinse

Step 3 - Let the parts air dry. Store dry device parts in a cool and dry place when you're not using them.

1. Disinfection (before first use and once per day):

SEE FIG. F

Step 1 - Fill the pot with enough water to cover all parts of the disassembled device. Do not place the device in water yet. Bring water to the boil.

Step 2 - Place the parts of the device in boiling water for 10 minutes.

Step 3 - Let the parts air dry. Store dry device parts in a cool and dry place when you're not using them.

1. Cleaning the pumping device:

SEE FIG. G

Prepare: mild soap or other cleaning agent, clean dish towel.

Parts that need to be cleaned: pumping device.

WARNING:

- Do not submerge the pumping device in water.

- Do not rinse the pumping device with water.

- When cleaning the display of the pumping device, use only a damp, soft cloth with a mild soap or cleaner. Stronger cleaning products or abrasive materials can destroy the display.

15. SPECIFICATION

Output power: 110-240V 50-60Hz | Input power: 5V 1A | Weight: 300 g | Dimensions: 81x66x62 mm | Battery capacity and type: 3.7V 1400 mAh Li-Ion

16. WARRANTY CARD/ COMPLAINTS

The product is covered by a 24-month warranty.

The terms of the guarantee can be found at: https://neno.pl/gwarancja

Details, contact and website address can be found at: https://neno.pl/kontakt

Specifications and contents of the kit are subject to change without notice. We apologise for any inconvenience.
