USER MANUAL Retro 48535 UNOLD

Red Popcornator with open lid and glass tray, no visible text or symbols on the device itself

POPCORNMAKER Retro

Bedienungsanleitung

Instructions for use | Notice d'utilisation Gebruiksaanwijzing | Istruzioni per l'uso Instrucciones de uso | Instrukcja obsługi

Modell 48535

INHALTSVERZEICHNIS

Instructions for use Model 48535

Technical data....16

Explanation of symbols....16

For your safety....16

Before use 19

Operation....20

Cleaning and care....21

Recipe tip....22

Guarantee Conditions....23

Waste Disposal/Environmental Protection.23

Service 15

Labeled diagram of a red coffee maker with numbered parts for identification and assembly.

DE Ab Seite 6

1 Housing
2 ON/OFF switch
3 Warming function
4 Crank
5 Power plug
6 Measuring spoon for popcorn kernels
7 Measuring spoon for oil
8 Collection bowl
9 Door
10 \$tainless steel kettle

FR Page 24

Red and silver portable movie theater with open door, featuring a basket of popcorn being inverted (no visible text or symbols)

Housing: Plastic, red metallic/transparent

Dimensions: approx. 25,0 x 28,6 x 43,3 cm (L/W/H)

Weight: approx. 3.2 kg

Power cord: approx. 80 cm

Features: ON/OFF switch, lighting and warming function, stainless steel kettle with integrated stirrer

Accessories: Operating instructions, 2 measuring spoons

Equipment features, technology, colours and design are subject to change without notice. Errors and omissions excepted.

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

FOR YOUR SAFETY

General safety instructions

Please read the following instructions and keep them on hand for later reference. Instructions for persons in the household

1. This appliance can be used by children 8 years and older, as well as by persons with reduced physical, sensory or mental abilities or with lack of experience and/or knowledge, if they are supervised or if they have been instructed with regard to safe use of the appliance and have understood the dangers that can result from use of the appliance.
2. Children must not play with the appliance.
3. Children are not allowed to perform cleaning and user maintenance, unless they are 8 years of age or older and are supervised.

4. Keep the appliance and the power cord out of the reach of children under 8 years of age.

5. The appliance is intended for household use only, or for similar areas of use, such as,

■ kitchenettes in businesses, offices or other workplaces,
■ agricultural enterprises,
■ for use by guests in hotels, motels or other lodgings,
■ in private guest houses or holiday homes.

Electrical safety

1. Only connect the appliance to an AC power supply with voltage corresponding to the voltage specified on the rating plate.

2. This appliance must not be operated with an external timer or a remote control system.

3. The stainless steel kettle, power cord and power plug must not come into contact with water. However, if this should happen, all parts must dry completely before it is used again.

4. If not in use, always turn off the appliance and unplug it from the electrical outlet.

5. Do not open the housing of the appliance under any circumstances. This can result in electric shock.

6. If you use an extension cord, ensure that it is intact and suitable for the power draw of the appliance; otherwise, there is a possibility of the appliance overheating.

7. Check the appliance, the plug and the power cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appliance for inspection and repair to our customer service department. Unauthorised repairs can result in serious hazards for the user and void the warranty.

Information on safe set-up and use of the appliance

1. For safety reasons, never place the appliance on hot surfaces, metal trays or on a wet surface.
2. Do not place the appliance and power cord near open flames during operation.
3. Always use the appliance on a level, uncluttered and heat-resistant surface.

4. The appliance is not suitable for use outdoors or in rooms that are damp or humid, such as bathrooms.

5. Ensure that the power cord does not hang over the edge of the counter-top or table, since this can cause accidents, for example if small children pull on the cord.

6. Route the power cord in such a manner that there is no possibility of the cord being pulled or tripped over.
7. To unplug the appliance, always pull on the power plug, do not, under any circumstances, pull on the power cord.
8. Never use the power cord to carry the appliance.
9. Maintain sufficient distance to curtains, other objects, walls and flammable materials.
10. The appliance is only designed for the preparation of popcorn in quantities that are usual for a household.
11. The appliance must be completely assembled and the lid must be closed during operation. Never switch the appliance on if corn has not been filled.
12. Before preparation ensure that there are no foreign objects in the stainless steel kettle.
13. Never reach into the appliance when it is in operation – danger of injury!
14. Before placing the appliance in service, ensure that there are no objects in the appliance.
15. Do not overfill the appliance (max. capacity per batch 2/3 of a measuring spoon (popcorn kernels).
16. Never use the appliance with popcorn kernels alone – a little oil must always be added!
17. Do not, under any circumstances, open the appliance during operation and never reach into the appliance in running operation.
18. The appliance and the stainless steel kettle become hot during operation. Do not touch any hot surfaces. Please use pot holders when removing the stainless steel kettle.
19. Hot oil can cause burn injuries. Therefore, always handle the appliance carefully.
20. Never cover the appliance during operation.

21. Switch off the appliance via the On/Off switch, as soon as you are finished making popcorn. Then the warming function can be activated.

22. Do not use the appliance with accessories of other manufacturers or brands. Such use could damage the appliance.

23. Unplug the mains plug from the electrical outlet after use and before cleaning. Never leave the appliance unattended when the mains plug is plugged in.
24. Allow the appliance to cool before cleaning it.
25. Never immerse the housing and the stainless steel kettle in water, if you do these components could be damaged.

CAUTION:

The appliance is very hot during and after operation!

Never open the housing of the appliance. This can result in electric shock.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

BEFORE USE

1. Remove all packaging materials and any transport safeguards. Keep packaging materials away from children – danger of suffocation! Dispose of packaging materials in accordance with local regulations.
2. Check the appliance for damage. If the appliance shows visible signs of damage, do not operate it. Contact our customer service organisation instead.
3. Clean all parts with a damp cloth and dry all parts well, as described in the section “Cleaning and care”.
4. Connect the power plug in the housing to the socket on the underside of the stainless steel kettle.
5. Fasten the stainless steel kettle right and left on the suspension element in interior of the housing. Ensure that the handle of the permanently mounted lid of the stainless steel kettle points toward the front, to the door.
6. On the right, insert the crank through the opening in the housing and screw it in firmly counter clockwise.
7. Slide the collection bowl into the housing.
8. Check whether there are objects in the stainless steel kettle, and remove any objects.
9. Close the door of the appliance.
10. Check to make sure that the appliance is stable.

OPERATION

Only use off-the-shelf, dry popcorn kernels. Do not use microwave popcorn.

Always add a little oil – do not, under any circumstances, use the appliance with just dry popcorn kernels without oil.

The maximum fill quantity per batch is approx. 50 g of popcorn kernels = 2/3 of a filled measuring spoon). Do not overfill the appliance, if you do so the popcorn kernels on the bottom can scorch and smoke can form.

In addition, ensure that you use a sufficient quantity of corn kernels, if you do not, fewer kernels will pop and there will be more unpopped kernels among the popcorn. Do not switch the appliance on if no popcorn has been filled into it.

1. Plug the appliance into an electrical outlet.
2. The appliance must be heated up before making the very first batch of popcorn. For this purpose, switch on the ON/OFF switch for the motor, by placing the switch on the „I“ position.
3. Let the appliance heat up for approx. 2 to 3 minutes.
4. Switch off the appliance by placing the ON/OFF switch for the motor on „0“.
5. Fill the small measuring spoon for oil 2/3 full with vegetable oil, place the oil in the stainless steel kettle. Attention – the lid is already hot. Use pot holders to open the lid, and only grasp the lid on the handle!
6. You can add a pinch of sugar or salt to suit your taste.
7. Now fill the popcorn kernel measuring spoon 2/3 full (approx. 50 g) with popcorn kernels and likewise place the popcorn kernels in the stainless steel kettle.
8. Close the lid of the stainless steel kettle.
9. Close the door of the appliance.
10. Switch on the appliance again via the ON/OFF switch for the motor, by moving the switch to the „l“ position.
11. The appliance heats up and after a short time the corn starts popping.
12. Attention: Never open the door of the appliance while the appliance is in operation!
13. When the noise of the popcorn popping subsides, all popcorn kernels have popped.
14. Switch off the appliance by placing the ON/OFF switch in the „O“ position.

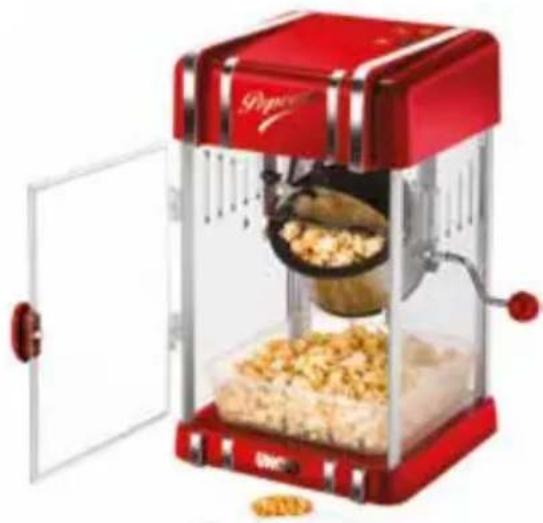

15. With crank, tip the stainless steel kettle slightly forward until the finished popcorn drops into the collection bowl.

Red and silver portable movie theater with open door, featuring a large spool of popcorn being filled with nuts (no visible text or symbols)

1. If need be, you can now switch on the warming function. To do this, place the switch for the warming function on „I“.

2. Now you can prepare more popcorn by repeating steps 10 to 20. Reheating the appliance is not necessary, you can simply add the ingredients directly and switch on the appliance.

3. When you have finished making popcorn, place all switches to „0“ and unplug the power plug from the electrical outlet.

4. Note: If there is a lot of smoke when making popcorn, this can be due to an accumulation of grease. Switch off the appliance and clean it, as described in the chapter, “Cleaning and care”, before making any more popcorn.

Attention: The appliance, particularly the stainless steel kettle becomes extremely hot during operation - danger of burn injuries! For example, use potholders when handling the appliance to prevent burns. Beware of sharp edges - risk of injury!

Do not open the door while the appliance is in operation – the escaping hot air can cause burn injuries.

CLEANING AND CARE

Switch off the appliance via the On/Off switch, by placing the switch on "O". Switch on the warming function by placing the switch on "O".

Unplug the power plug from the electrical outlet.

Allow the appliance to cool completely.

1. Do not immerse the housing, the stainless steel kettle, and the power cord in water or other liquids!
2. Do not use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants, as they can damage the appliance.
3. Open the door of the appliance. Disconnect the power connection by pulling the power plug out of the stainless steel kettle.

4. Remove the crank, by unscrewing it clockwise.

5. Take stainless steel kettle out of the left and right suspension elements.

6. Fill the stainless steel kettle up to 2/3 with hot water to which a little dish water has been added, and let the kettle soak for approx. 20 minutes.
7. Empty the stainless steel kettle and wipe it out thoroughly. Be careful not to cut yourself on sharp edges!
8. Then rinse the stainless steel kettle with clean water and dry it thoroughly. Never immerse the stainless steel kettle in water!
9. The housing and the inner chamber can be wiped off with a well wrung-out, damp cloth. Remove all food residues before placing the appliance in service again.
10. The measuring spoon and the collection bowl can be cleaned in warm water with a mild dish-washing detergent. Then thoroughly dry these parts.
11. The appliance and its component parts are not dishwasher safe!
12. All parts must be carefully dried before the appliance is put back together and before it can be used again.
13. Store the appliance in a dry location, where it is protected against dust.

RECIPE TIP

Parmesan popcorn

Prepare 60 g popcorn as described, without sugar or salt. Melt 2 tbsp butter. Place the popcorn and the melted butter in a bowl and add 2 tbsp of finely grated Parmesan, a pinch of salt and, if desired, a little garlic powder. Thoroughly mix all ingredients. Making popcorn is even easier if you put the ingredients into a freezer bag instead of a bowl, and then shake the bag vigorously.

Chocolate popcorn

Prepare 60 g popcorn as described, with a pinch of salt if desired. Carefully heat the chocolate to taste in a double boiler, until it has melted. Mix the popcorn and the melted chocolate in a bowl. Distribute the popcorn and chocolate mixture on a baking sheet lined with baking paper and let the chocolate become firm.

The authors have thoroughly considered and tested the recipes included in these operating instructions. Nevertheless, a guarantee cannot be accepted. The authors, respectively UNOLD AG and their assignees shall not be liable for personal injuries, material damages and financial loss.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendung. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

The instruction booklet is also available for download: www.unold.de

NOTICE D'UTILISATION MODÈLE 48535

CARACTÉRISTIQUES TECHNIQUES

Puissance : 300 watts 220–240 V\~, 50/60 Hz

Red and silver portable movie theater with open door, featuring a large spool of popcorn being poured into a glass container (no visible text or symbols)

CONDITIONS DE GARANTIE

Red and silver portable movie theater with open door, featuring a glass with food being inverted (no visible text or symbols)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

ISTRUZIONI PER L'USO MODELLO 48535

DATI TECNICI

Potenza: 300 Watt, 220–240 V\~, 50/60 Hz

Red and silver portable movie theater with open door, featuring a basket of popcorn being inverted (no visible text or symbols)

Red and silver portable instant coffee maker with open lid, showing food being filled (no visible text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

INSTRUKCJA OBSŁUGI MODEL 48535

DANE TECHNICZNE

Moc: 300 W, 220–240 V\~, 50/60 Hz

Red and silver portable coffee maker with open lid, featuring a glass tray holding popcorn and a basket filled with corn (no visible text or symbols)
