OnTheGo LM1B1D10 - Blender MOULINEX - Free user manual and instructions

Product type	Portable blender
Brand	Moulinex
Model	OnTheGo LM1B1D10
Intended use	Domestic, indoor, altitude < 2000m
Supply voltage	220-240 V
Frequency	50-60 Hz
Power	300 W (estimated)
Bowl capacity	600 ml (estimated)
Bowl material	Tritan plastic (estimated)
Blade material	Stainless steel
Dimensions (H x W x D)	22 x 10 x 10 cm (estimated)
Weight	0.8 kg (estimated)
Main functions	Mixing, smoothies, beverages
Speeds	1 speed (pulse)
Safety	Lid lock, automatic shut-off in case of overheating
Maximum liquid temperature	80 °C
Care and cleaning	Clean immediately after use, bowl and lid dishwasher safe
Spare parts available	Bowl, lid, gasket, blade assembly
Warranty	2 years (standard)
Included accessories	Blender with bowl, lid, measuring cap
Certifications	CE

Frequently Asked Questions - OnTheGo LM1B1D10 MOULINEX

How to clean the OnTheGo blender?

After each use, rinse the bowl and lid with warm water. Removable parts (bowl, lid, cap) can be washed in the dishwasher (low temperature cycle). The blades are very sharp: clean them carefully with a brush. Never immerse the motor unit in water.

Can I blend hot liquids?

No, never pour liquid hotter than 80°C into the bowl. Steam could blow off the lid and cause burns. Let your preparations cool before blending.

What to do if the blender does not start?

Check that the bowl is correctly placed on the base and the lid is locked. Ensure the plug is connected and the fuse has not blown. If the problem persists, contact an authorized service center.

How to replace the blade assembly?

The blade assembly is a wear part. To replace it, unscrew the gasket from the bowl (be careful of sharp blades). Replace with an original Moulinex blade assembly as referenced in the service booklet. Do not reuse a damaged assembly.

Is the appliance covered by warranty?

Yes, Moulinex offers a 2-year warranty against manufacturing defects. The warranty does not cover commercial use, mishandling, or normal wear. Keep the proof of purchase.

Can I use the blender without the lid?

No, the blender must never operate without its lid. The lid prevents splashes and protects from rotating blades. Its absence can damage the appliance and injure the user.

What is the maximum capacity of the bowl?

Do not exceed the MAX mark (approximately 600 ml). Overfilling can cause overflow and motor overheating.

Is the appliance suitable for children?

This appliance is not a toy. Children must not use it. Supervise children to prevent them from playing with the appliance or touching the sharp blades.

Can I put the bowl in the dishwasher?

Yes, the bowl, lid, and measuring cap are dishwasher safe. Place them on the top rack, away from heating elements. The motor unit and blades are hand-wash only.

Where to find spare parts?

Spare parts (bowl, lid, blade assembly, gasket) are available from authorized Moulinex service centers or on the brand's website. Always use original parts to ensure safety.

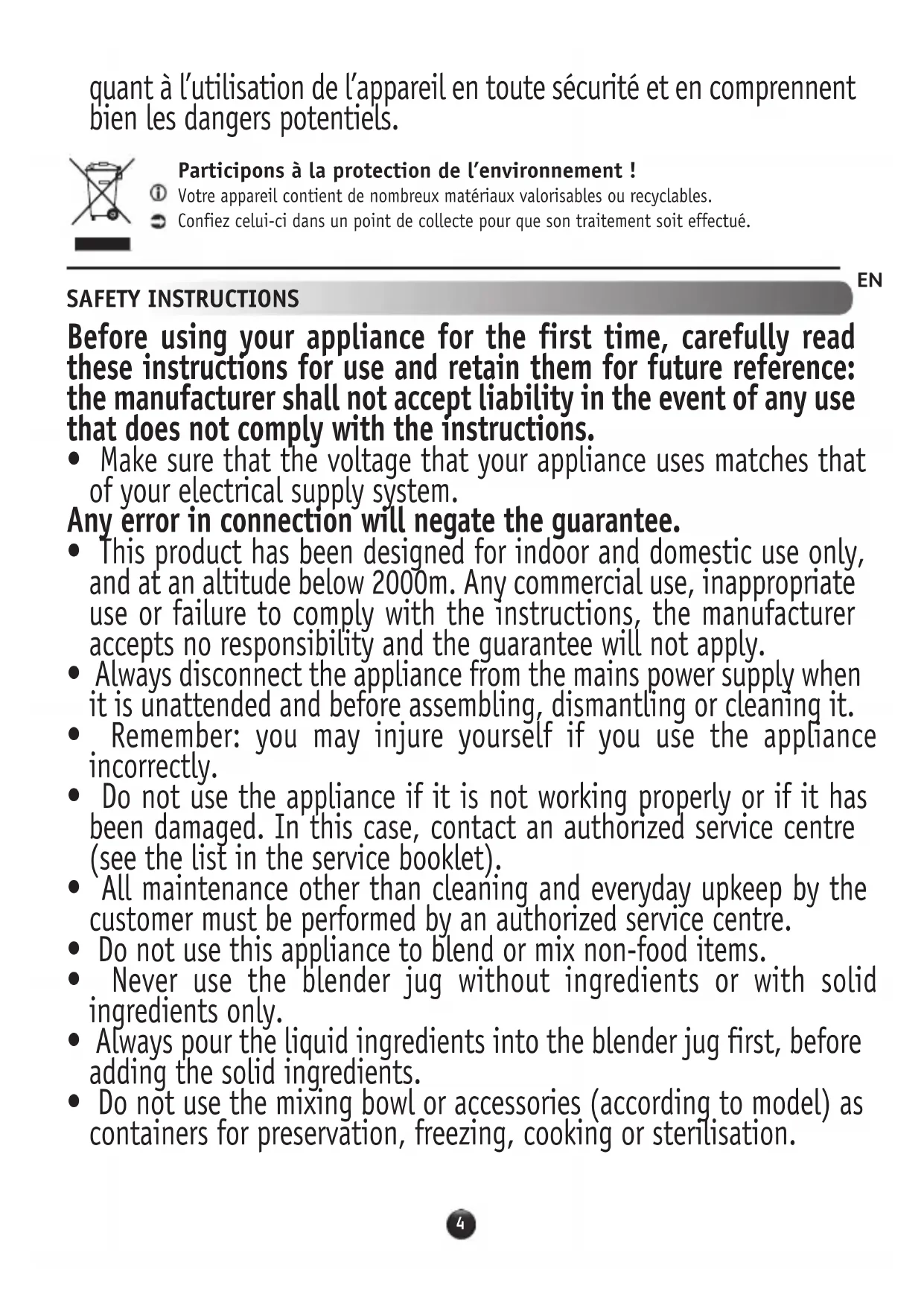

USER MANUAL OnTheGo LM1B1D10 MOULINEX

Before using your appliance for the first time, carefully read these instructions for use and retain them for future reference: the manufacturer shall not accept liability in the event of any use that does not comply with the instructions.

- Make sure that the voltage that your appliance uses matches that of your electrical supply system.

Any error in connection will negate the guarantee.

- This product has been designed for indoor and domestic use only, and at an altitude below 2000m. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

- Always disconnect the appliance from the mains power supply when it is unattended and before assembling, dismantling or cleaning it.

- Remember: you may injure yourself if you use the appliance incorrectly.

- Do not use the appliance if it is not working properly or if it has been damaged. In this case, contact an authorized service centre (see the list in the service booklet).

- 'All maintenance other than cleaning and everyday upkeep by the customer must be performed by an authorized service centre.

- Do not use this appliance to blend or mix non-food items.

- Never use the 'blender jug without ingredients or with solid ingredients only.

- Always pour the liquid ingredients into the blender jug first, before adding the solid ingredients.

- Do not use the mixing bowl or accessories (according to model) as containers for preservation, freezing, cooking or sterilisation.

• In order to prevent overflow, do not fill the bowl or jug over the maximum level (if indicated).
• Do not touch any moving parts (blades, etc.).
• Blades are very sharp: to prevent injuries, handle them with care when emptying the blender jug, the bowls (according to model), cleaning, assembling and dismantling the blender jug (according to model) and the accessories (according to model).
• Never place your fingers or any other object not intended for this function in the blender jug when the appliance is running.
• Never remove the lid or the blender jug before the appliance has come to a complete stop.
  • Always use the blender jug with the lid.
• Place the appliance on a stable, heat-resistant, clean and dry worktop.
• Do not immerse the appliance, power cord or plug in any liquid.
• Do not leave the power cord hanging within reach of children.
• Do not leave the power cord close to or in contact with the hot parts of the appliance, near a source of heat or a sharp angle or inside the blender jug in contact with the blades.
• Keep moving parts (blades) away from the cord during use.
• Never pull the power cord to disconnect the appliance.
• Do not allow long hair, scarves, ties etc. to hang over the appliance or attachment when either is in use.
• Do not use the appliance if the power cord or plug have been damaged. To avoid all danger, have them replaced by an authorized service centre (see the list in the service booklet).
• For your safety, only use spare parts and accessories that are approved for your appliance.
• Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance as it produces a lot steam.
• Do not pour boiling liquids (over 80°C/176°F) in the bowl or jug (according to model).
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

• 'Children should be supervised to ensure that they do not play with the appliance.
• Do not allow children to use the appliance without supervision.

• This appliance is designed for domestic use only. It is not intended to be used in the following environments, in which the guarantee shall not apply:

• Kitchen work areas in shops, offices and other working environments.

• In kitchen areas reserved for staff in shops, offices and other professional environments.
  -Farmhouses
• By clients in hotels, motels and other residential environments.

• Bed and breakfast type environments.

• Switch off the appliance and unplug it from the electrical power supply before changing accessories or approaching parts that move in use.

• Refer to the instructions to obtain the appropriate operating time and speed settings for each accessory.
• Refer to the instructions for correct fitting and assembly of your accessories.
• Refer to the instructions for initial and regular cleaning of surfaces in contact with foodstuff, and for cleaning and maintenance of your appliance.

EUROPEAN MARKETS ONLY

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
  • Children shall not play with the appliance.
• This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the appliance safely and understand the dangers.

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

SICHERHEITSHINWEISE

DOAR PENTRU PIETELE EUROPENE

BEZBEDNOSNA UPUTSTVA

SR

• Pažljivo pročitajte uputstva pre upotrebe vašeg aparata i sačuvajte ih: ukoliko ga ne koristite prema uputstvu oslobađate proizvođača svake odgovornosti.
• Proverite da li napon napajanja aparata odgovara naponu vaše električne instalacije.
