Product type	Above-ground pool with sand filter
Brand	Bestway
Model	Platinum Steel 5615G
Pool material	Steel and PVC
Filter diameter	254 mm
Filtration area	0.05 m²
Maximum operating pressure	0.83 bar (12 PSI)
Recommended operating pressure	< 0.45 bar (6.5 PSI)
Maximum water temperature	35 °C
Recommended sand type	Silica sand #20, 0.45-0.85 mm
Sand capacity	Approximately 9 kg
6-way valve functions	Filter, Close, Backwash, Rinse, Drain, Circulate
Integrated timer	Programmable cycles from 4 to 24 hours
Electrical protection	Residual current device (RCD) 30 mA recommended
Power supply	220-240 V ~ 50 Hz
Motor power	Not specified in the manual
Cable length	Not specified
Weight of sand filter assembled	More than 18 kg

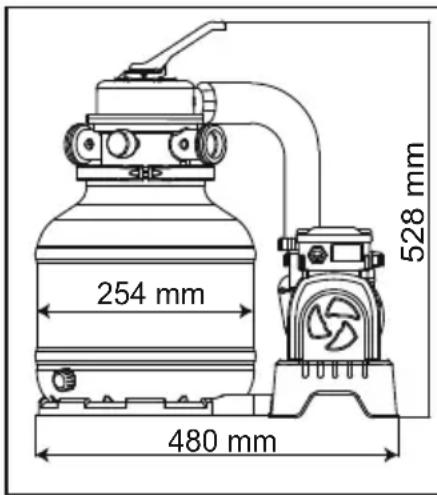

Filter dimensions (H x W x D)	528 x 480 x 254 mm
Filter maintenance	Monthly backwash and rinse recommended
Winter storage	Disassemble, drain and store indoors
Safety	Do not use the pump with swimmers in the pool
Warranty	Not specified

Frequently Asked Questions - Platinum Steel 5615G BESTWAY

How to install the Bestway Platinum Steel 5615G sand filter?

Place the filter on a solid and level ground, at least 2 meters from the pool edge. Fix it vertically using the mounting holes (diameter 8 mm, center distance 86 mm). Connect the hoses according to the provided diagram, using 32 mm (1.25 inch) hoses. Ensure the power outlet is more than 3.5 m from the pool.

What type of sand to use and how much?

Use silica sand #20 (0.45-0.85 mm), approximately 9 kg. First pour some water into the tank to protect the diffuser, then add the sand. You can also use Flowclear™ polyspheres (28 g to replace 1 kg of sand). Caution: inappropriate sand can damage the filter.

How to start the filter for the first time?

Set the valve to Backwash, turn on the pump for 3 to 5 minutes until the water is clear. Turn off, switch to Rinse for 1 minute. Turn off, set to Close, top up the pool water level if necessary. Finally, set to Filter for normal use.

What to do if sand flows into the pool?

First check that the sand is the correct grain size (#20). If the sand level is too high (exceeds the MAX mark), remove the excess. Make sure the skimmer (basket) is not broken. Avoid changing the valve position without stopping the pump first.

How to clean the sand filter?

When the pressure gauge indicates 0.45 bar (6.5 PSI) or more, or if the flow is low, perform a backwash: turn off the pump, set the valve to this function, turn on for 3-5 minutes until the drained water is clear. Then rinse for 1 minute and return to filtration. Repeat about once a month.

How to winterize the pool and filter?

Backwash the filter, drain the pool, unscrew the tank drain plug to remove water, remove all sand, dry all components, disconnect the hoses and store the filter in a dry place protected from frost. Failure to comply may void the warranty.

The control valve leaks at the D port, what to do?

Check that the valve is correctly set to a function (not between two). If the seal is damaged, replace it. Make sure the D port cap is screwed on tightly when the function does not require drainage.

What are the electrical safety precautions?

The pump must be plugged into a grounded outlet and protected by a 30 mA residual current device (RCD). Never use an extension cord. Always disconnect before any maintenance. The distance between the outlet and the pool must be at least 3.5 m. Do not use the pump when people are in the water.

How to set the filter timer?

Turn the timer knob to select the desired operating time (4, 6, 8, 10, 12 or 24 hours). The cycle includes an automatically calculated rest time for a total 24h cycle (except 24h position which runs continuously). The new cycle starts as soon as you turn the knob.

Why is the water not circulating?

Check that the plugs are removed from the ports, the valve is not in the 'Close' position, the strainer is not clogged, and that air has been purged (water coming out of the D port). If the problem persists, inspect the hoses and connections, and contact customer service.

USER MANUAL Platinum Steel 5615G BESTWAY

58497 Hmax 1.5 m

OWNER'S MANUAL

bestwaycorp.com/support

Visit Bestway YouTube channel

SAND FILTER OWNER'S MANUAL

Visit Bestway YouTube channel YouTube

SAFETY INSTRUCTIONS

WARNING

IMPORTANT SAFETY INSTRUCTIONS - READ AND FOLLOW ALL SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS

When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:

• The pump is to be supplied by an isolating transformer or supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.
• The power source on the wall of building should keep more than 4m away from pool.
• The appliance must be supplied by earthed power source.
• RISK OF ELECTRIC SHOCK - The pump cannot be using while people are inside the pool. Forbid the access of the pool in case of damage of the sand filter.
• DO NOT BURY CORD. Locate cord to minimize abuse from lawn mowers, hedge trimmers, and other equipment.
• To reduce the risk of electric shock, replace damaged cord immediately.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Extension cords can't be used.
• Risk of electric shock. Using the sand filter with an unmatched electrical supply is dangerous and will permanently damage the sand filter.
• Do not remove the grounding prong or modify the plug in anyway. Do not use adaptor plugs. Consult a qualified electrician for any questions relating to validity of your plugs or grounding.
• Handle the sand filter with care. Do not pull or carry the sand filter

by the power cord. Never pull a plug from the outlet by yanking the power cord. Keep cord free from abrasions. Sharp objects, oil, moving parts, and heat should never be exposed to the sand filter.

• Always unplug this product from the electrical outlet before removing, cleaning, servicing or making any adjustment to the product.
- Don't plug or unplug the appliance if hand is wet.

• Always unplug the appliance:

• On raining days
• Before cleaning or other maintenance
• Leave it unattended on holidays

- When the appliance will be not used for long time, such as in the winter, the pool set should be disassembled and stored indoor.

- CAUTION: Read the instruction before using the appliance and installation/reassembly every time.

- Safekeeping the instruction. For reconstruction the pool set every time, please always refer to the instructions.

- If instruction is missed, please contact with Bestway or search it in website: www.bestwaycorp.com

- Electric installations should follow national wiring rules. Consult a qualified electrician for any questions.

CAUTION: This sand filter is for use with storable pools only. Do not use with permanently-installed pools. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (For EU market)

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. (For market other than EU)

- Cleaning and user maintenance must be performed by an adult above 18 years old who is familiar with the risk of electric shock.

NOTES:

- Place the sand filter on solid, level ground. Ensure the sand filter is at least 2 meters away from poolside. Keep distance as far as possible.

- Pay attention to position pool and sand filter so adequate ventilation, drainage, and access for maintenance is available. Never place the sand filter in an area that may accumulate water, or on a walking path with lots of foot traffic.

- It is necessary to have the plug accessible after installation of the pool. The plug of the sand filter shall be at least 3.5m away from the pool.

- Atmospheric conditions may affect the performance and life span of the sand filter; take adequate precautions to protect the sand filter from unnecessary wear and tear that may occur during periods of cold or hot weather and/or exposure to sun.

- Please examine and verify all sand filter components are present before use. Notify Bestway at the customer service address listed on this manual for any damaged or missing parts at the time of purchase.

- It is imperative to change as soon as possible all deteriorated parts. Only use parts approved by the manufacturer.

- Do not allow children or adults to lean or sit on the apparatus.

- Do not add chemicals to the sand filter.

- When chemical products are used to clean the pool water, it is recommended to respect a minimum filtration time to preserve the health of swimmers which depends on compliance of health regulation.

- Only the media provided or specified by the manufacturer is to be used with product installation.

- It is essential to check that the suction openings are not obstructed.

- It is advisable to stop the filtration during maintenance operations on the filtration system.

- Regularly monitor the filter clogging level.

- A weekly check is recommended for backwashing or cleaning. Minimum daily filtration operating time of 8 hours is recommended to ensure clear pool water.

- It is essential to change any damaged element or set of elements as soon as possible. Use only parts approved by person responsible for placing the product on the market.

- All filters and filter media shall be inspected regularly to ensure that

there is not a build-up of detritus thus preventing good filtration.

The disposal of any used filter media should also be in accordance with applicable regulations/legislation.

• Mind all the safety requirements and recommendations described in the manual. In case of doubt on the pump or any circulation devices, contact a qualified installer, or the manufacturer/importer/distributor. The water circulation installation shall comply with the European as well as national/local regulations, especially when dealing with electrical issues. Any change of valve position, pump size, grille size can cause a change of the flow and the suction velocity can be increased.

- This product is not intended for commercial use.

PLEASE READ THE INSTRUCTION MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.

SAVE THESE INSTRUCTIONS

PUMP DISPOSAL

Meaning of crossed-out wheeled dustbin:

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

SPECIFICATIONS

Filter Diameter:	254 mm
Effective Fiter Area:	0.05 m^2 (0.54 ft ^2 )
Max. Operating Pressure:	0.83 Bar(12 PSI)
Working sand filter pressure:	<0.45 Bar(6.5 PSI)
Max. Water Temperature:	35°C
Sand:	Not included
Sand Size:	#20 silica sand,0.45-0.85 mm
Sand Capacity:	Approximately 9 kg

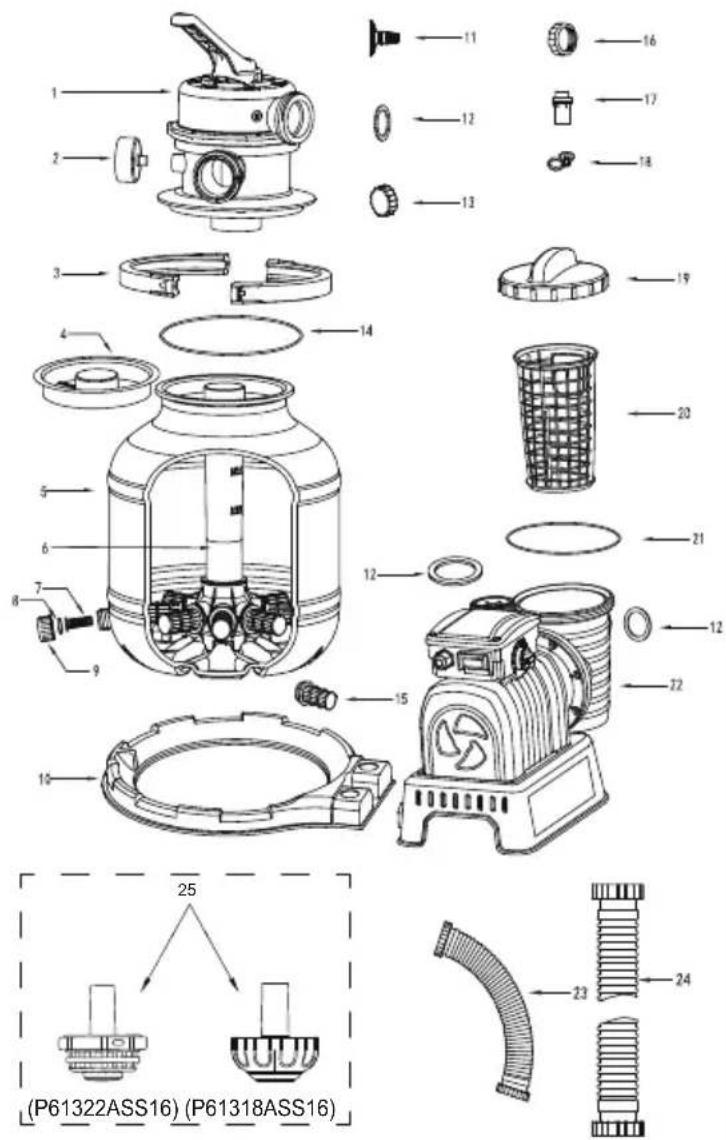

PARTS REFERENCE OVERVIEW

Before assembling the sand filter, take a few minutes to become familiar with all the sand filter parts.

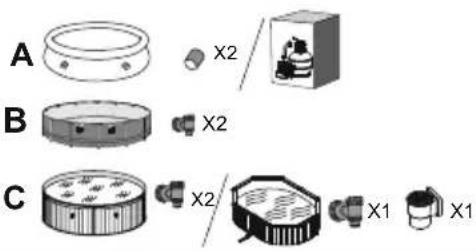

REF.NO	SPARE PART NO.	A	B	C
1	P03831	1	1	1
2	P61138ASS16	1	1	1
3	P03832	2	2	2
4	P61209ASS16	1	1	1
5	P03837	1	1	1
6	P03838	1	1	1
7	P61211ASS16	1	1	1
8	P6581ASS16	1	1	1
9	P6580ASS16	1	1	1
10 1	1 P03839
11 1	1P6614ASS16
12 5	5P6629ASS16
13 1	1 P03830
14 1	P61214ASS16
15 8	8 P03841
16 1	1 P03829
17 2	OP6916ASS16
18 2	OP6024ASS16
19 1	P6561ASS16
20 1	1P6562ASS16
21 1	1P6563ASS16
22	P03846(EU)	1	1	1
	P00574(GB)	1	1	1
23 1	1 P03836
24 2	2P6518ASS16
25	P61322ASS16	1	0	0
	P61318ASS16	1	0	0

ASSEMBLY (You will need a screwdriver.)

1. Carefully remove all components from the package and check to ensure nothing is damaged. If equipment is damaged, immediately notify the retailer from where the equipment was purchased.

2. The sand filter should be placed on solid, level ground, preferably a

concrete slab. Position the sand filter so the Ports and Control Valve are accessible for operation, servicing and winterizing.

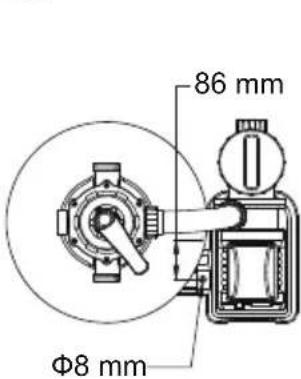

1. EN60335-2-41 TEST standard requires the sand filter to be vertically fixed on ground or a certain pedestal made of wood or concrete before use to prevent the sand filter from accideutally falling. Fully assembled sand filter will exceed 18 kg. The mounting holes should be 8 mm in diameter and spaced 86 mm apart. Use two bolts and nuts with a maximum of 8 mm in diameter to fasten the sand filter to the pedestal.

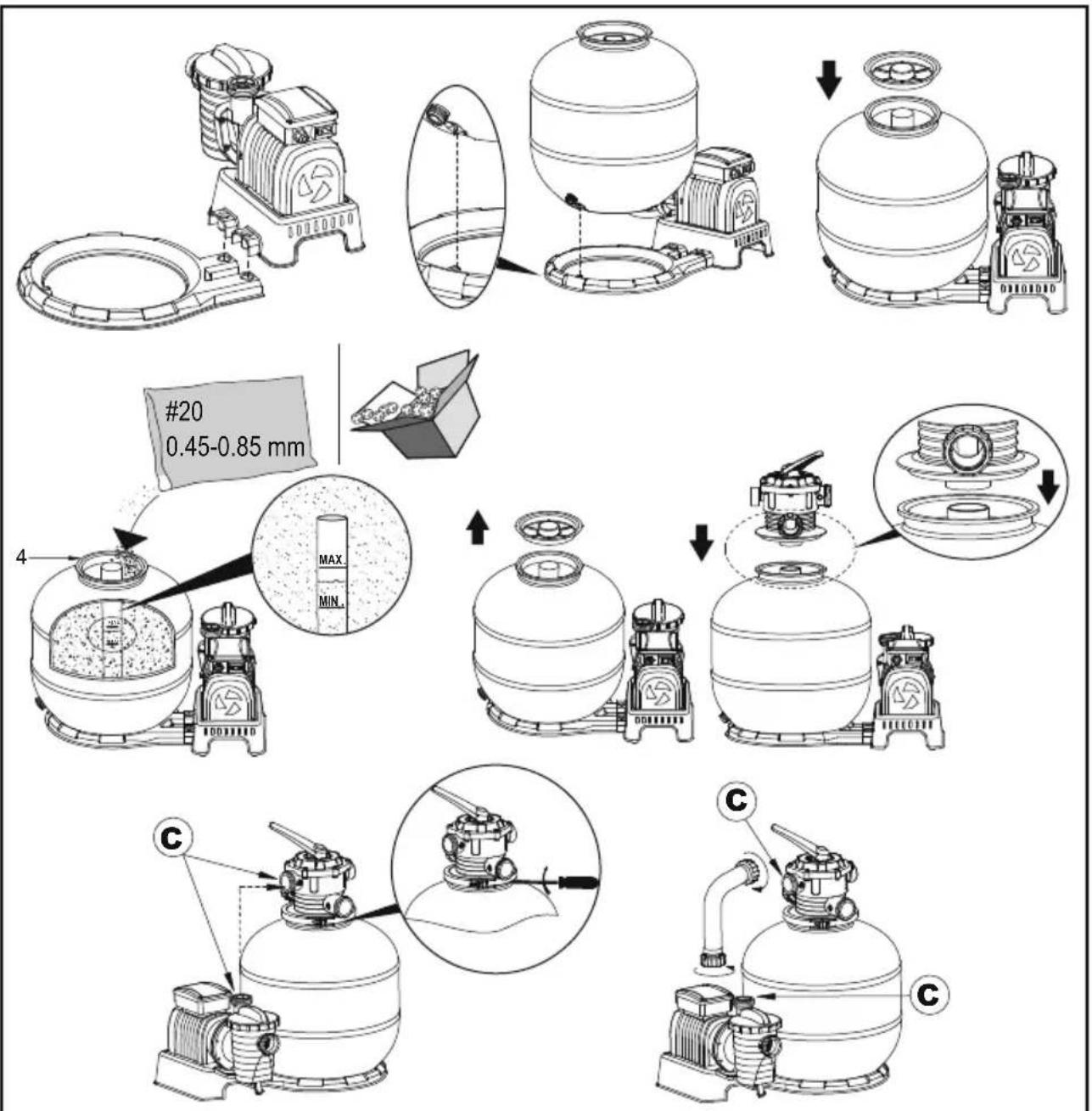

LOAD POOL-GRADE FILTER SAND/FLOWCLEAR™ POLYSPHERE.

NOTE: Use only special pool-grade filter sand, free of all limestone or clay: #20 Silica sand 0.45-0.85 mm, approximately one 9 kg bag should suffice.

If you do not use the recommended size of filter sand, filtering performance will be reduced and the sand filter may damaged, thereby voiding the warranty.

IMPORTANT: We suggest using #20 silica sand with your pool sand filter. It is specially graded to trap particles in the 20 - 100 micron range.

Some small debris can pass throw the sand and back into the pool. This is normal, especially if the debris is fine or silt.

To limit this, it is better to follow the maintenance instructions, and backwash and rinse when necessary.

We also suggest contacting your pool dealer for the chemical product specifically made to clean the sand. The correct maintenance of the sand will optimize the cleaning efficiency and avoid accumulation of oils or scale.

When you are vacuuming the bottom of the pool that has a large amount of debris, we suggest to backwash the sand when you finish cleaning half of the pool.

Remember to backwash and rinse the sand after vacuuming the bottom of the pool each time.

NOTE: To avoid damaging the Skimmer when adding sand, pour some water into the Bottom Tank to submerse the Skimmer on the Hub.

NOTE: Sand/Flowclear™ Polysphere not included.

NOTE: Use 28 g (0.06 lbs) Flowclear™ Polysphere to replace 1 kg (2.20 lbs) sand.

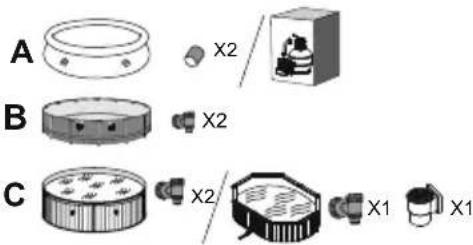

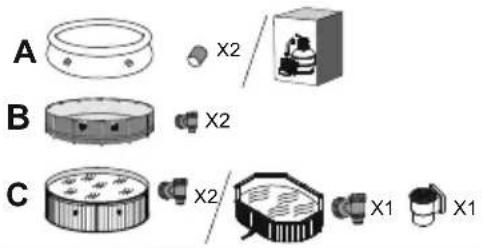

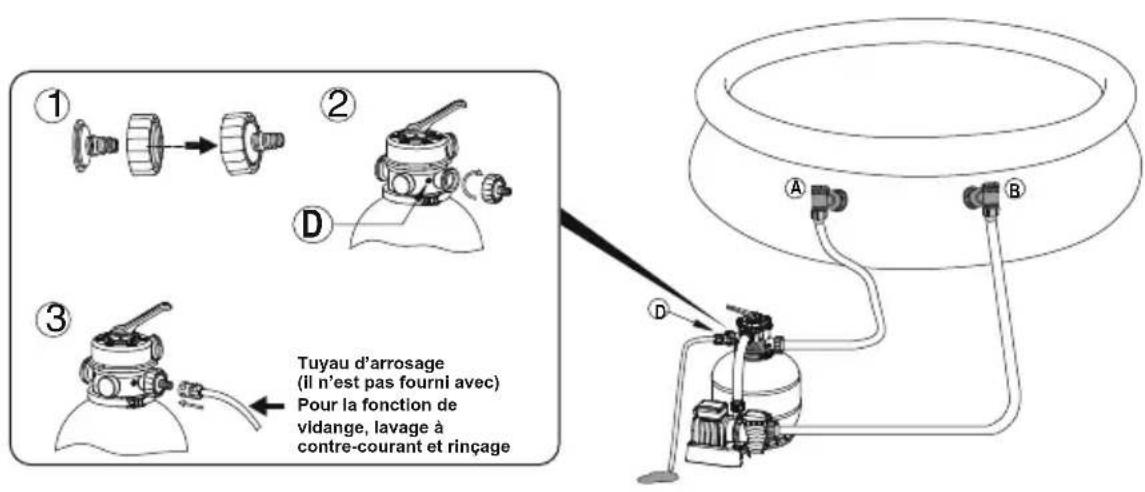

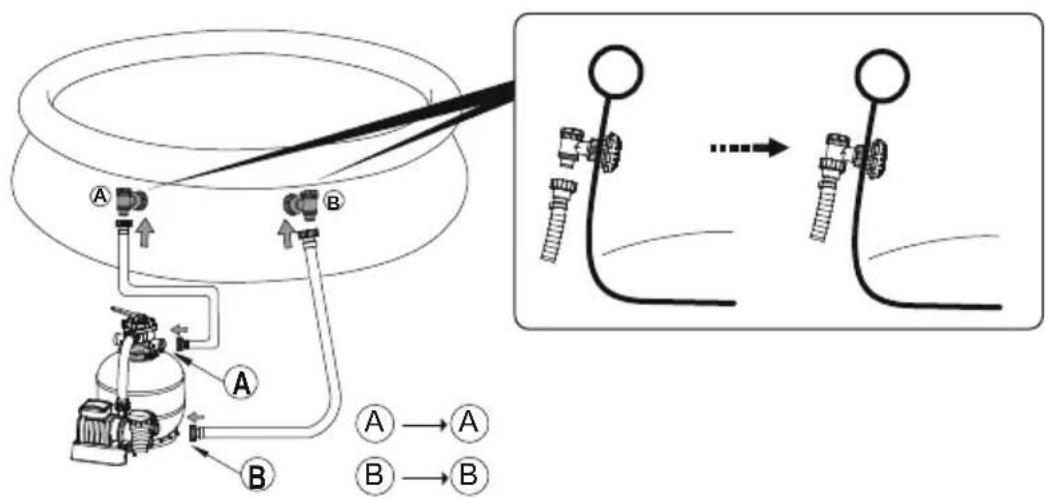

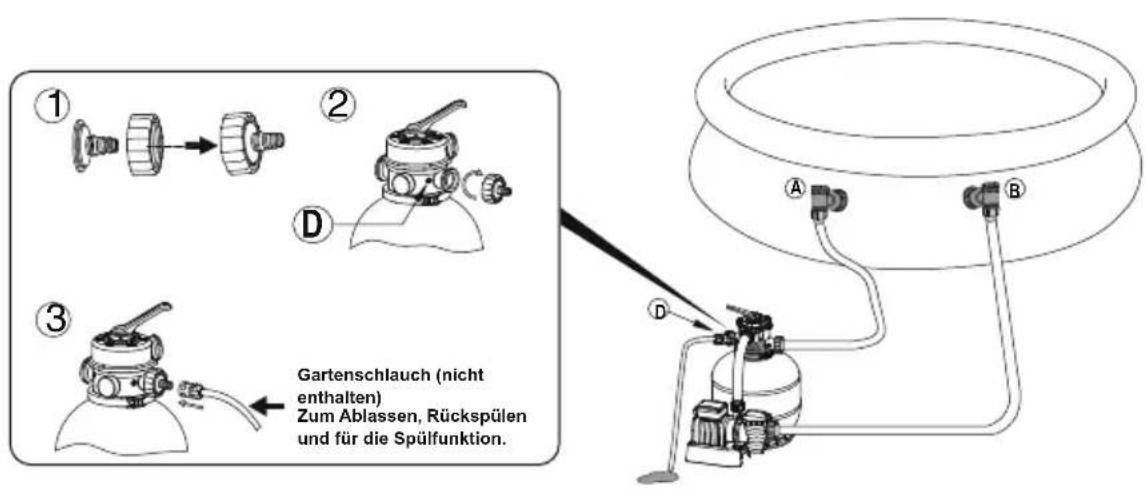

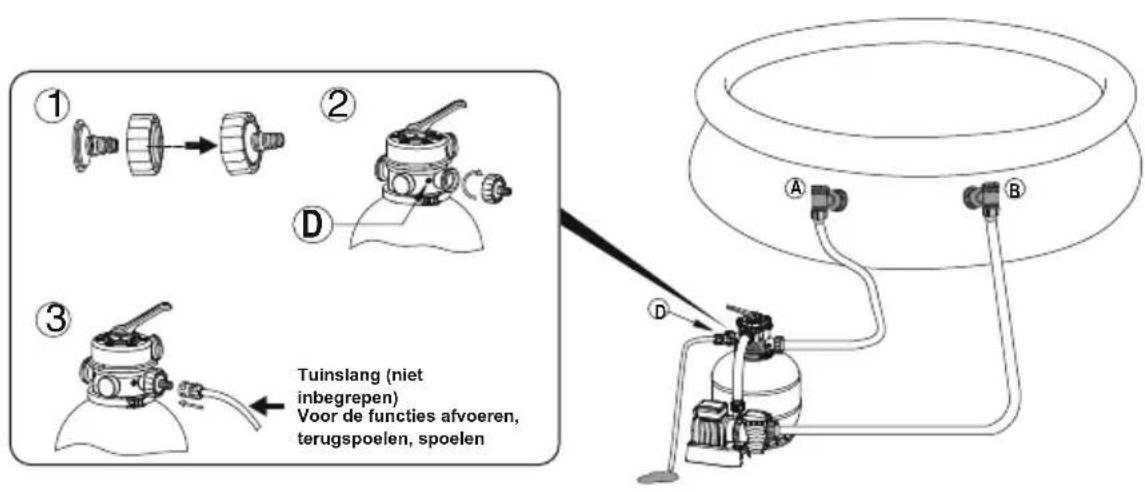

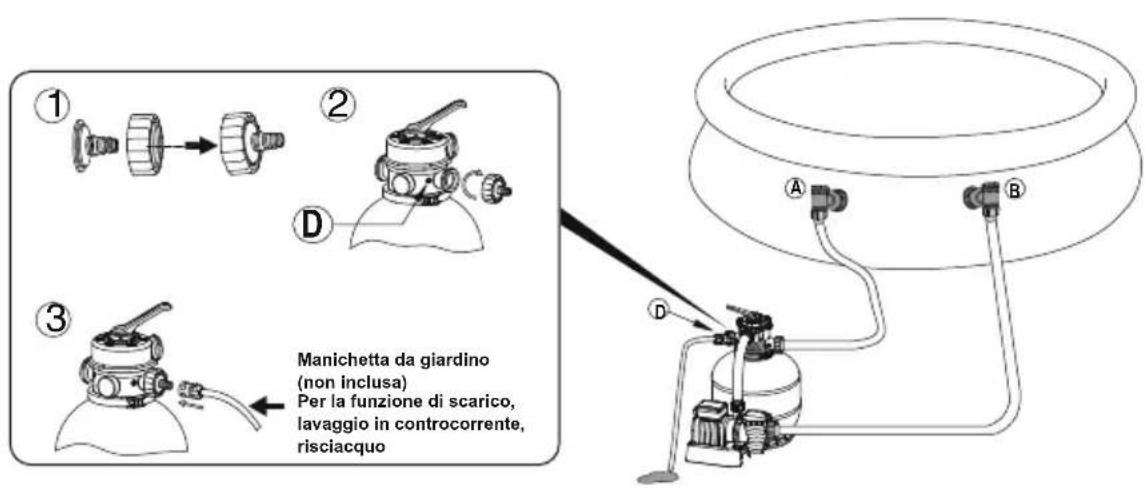

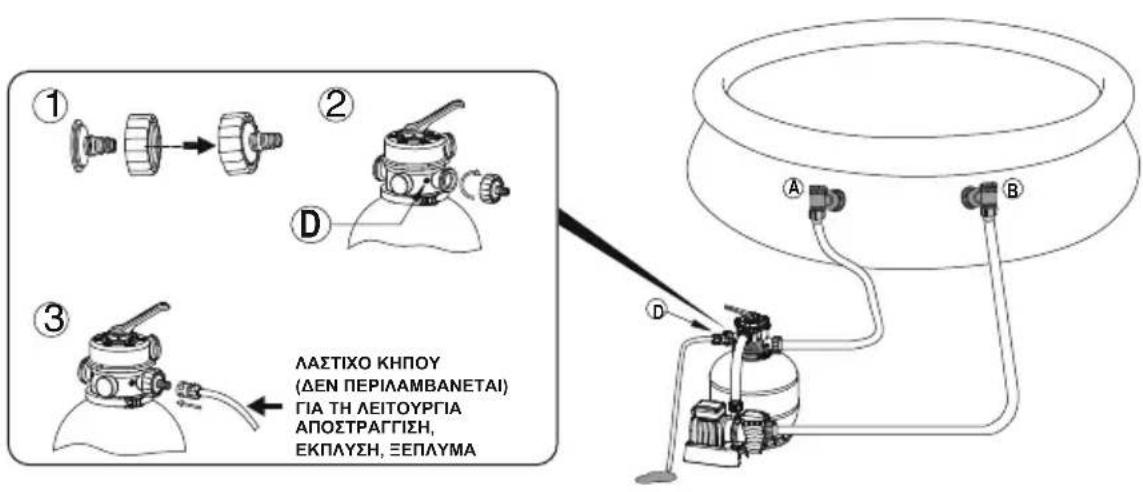

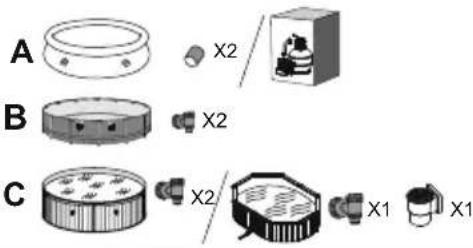

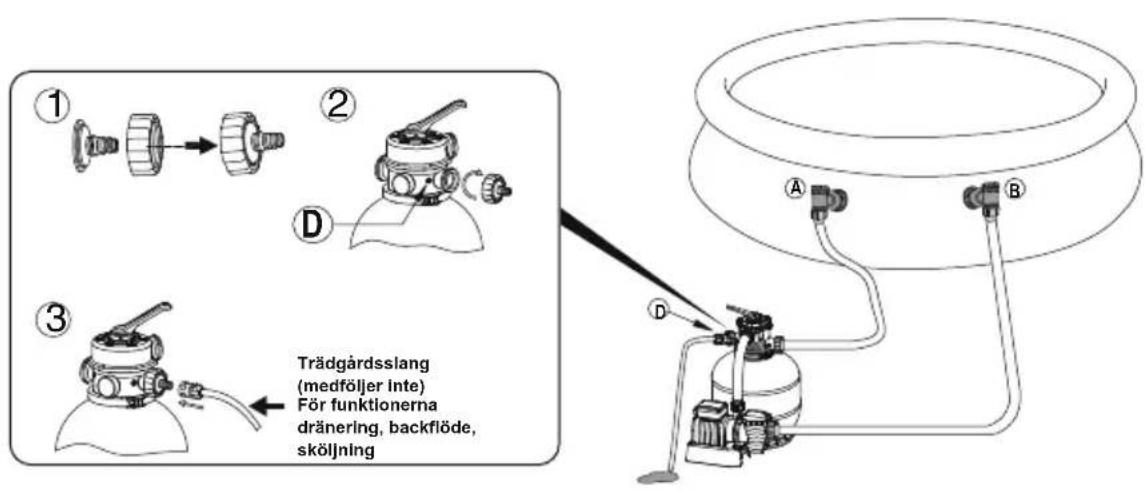

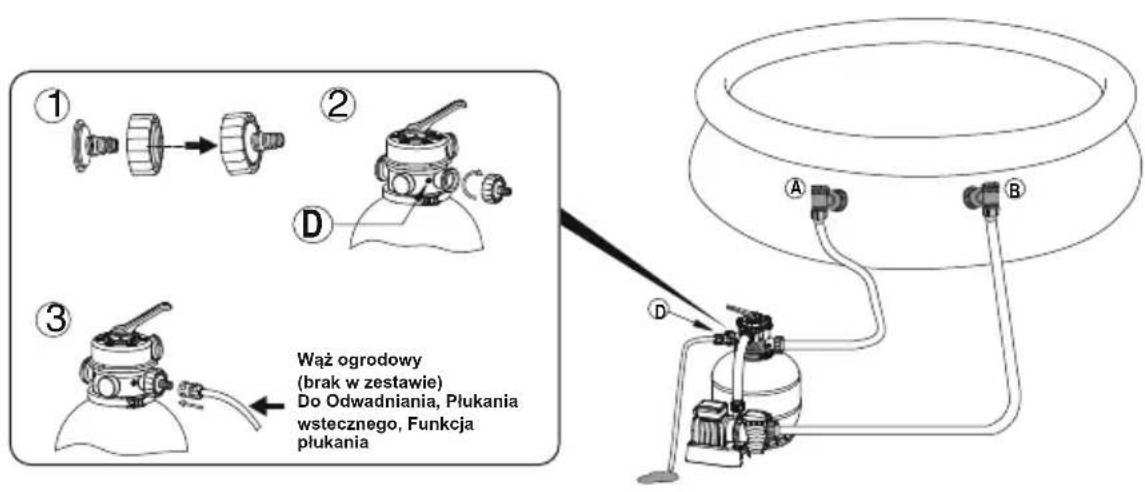

CONNECT TO THE POOL
1

2

FOR POOL WITH 32 MM (1.25 IN.) VALVE

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

STOP Before switching on, please read the manual carefully.

OPERATION

TIMER

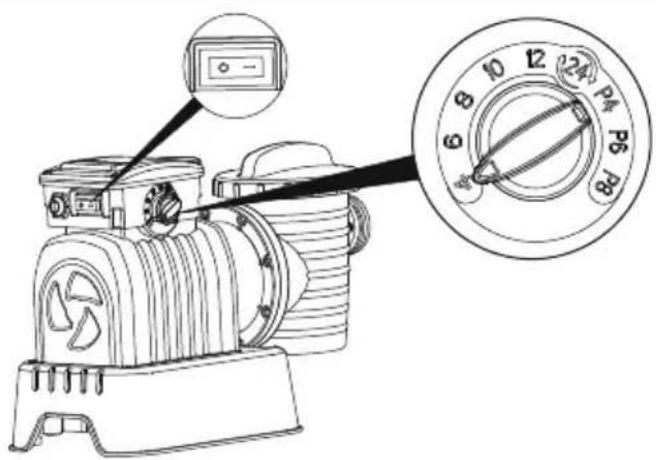

1. Plug into power source, adjust power switch to "ON" (-) position. The sand filter will begin working immediately.
2. Adjust power switch to "OFF" (0) position. The sand filter will stop working immediately.
3. After turning on, you can adjust work time, rest time and cycle time by turning the knob to desired position. See the table below for more details.
4. When the timer knob is moved into new position, the filter's previous cycle automatically cancels so new cycle can begin.
5. Each time the filter is powered on or restarted, a new cycle will begin based on timer knob position.

NOTE: If the knob is adjusted to the 24-hour position (24), the sand filter will work continuously without any rest period.

Knob Position	Working time(H)	Rest time(H)	Cycle period(H)
4	4	20	24
6	6	18	24
8	8	16	24
10	10	14	24
12	12	12	24
24	24	0	24
P4	4	4	8
P6	6	6	12
P8	8	8	16

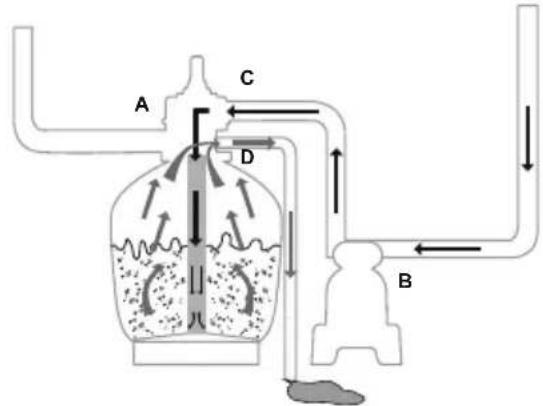

CONTROL VALVE OVERVIEW

WARNING: To prevent equipment damage and possible injury, always switch off sand filter before changing the Control Valve function. Changing valve positions while the pump is running can damage the Control Valve, which may cause personal injury or property damage.

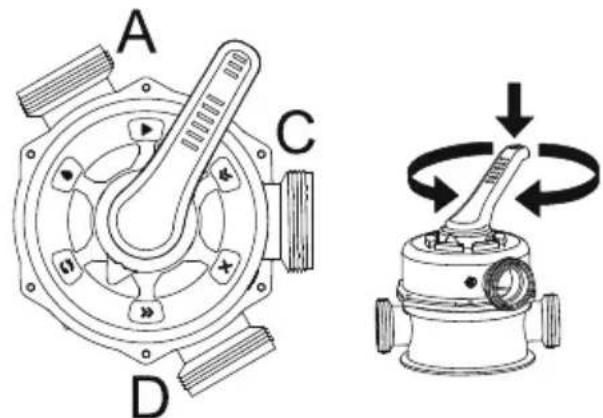

How to Use the Control Valve:

Press down on the Control Valve handle and rotate to desired function.

CONTROL VALVE FUNCTIONS

The Control valve is used to select 6 different filter functions: Filter, Closed, Backwash, Rinse, Drain and Circulate.

Filter: This function is used to filter pool water and should be positioned here 99% of the time. Water is pumped through the sand filter, where it is cleaned and returned to the pool.

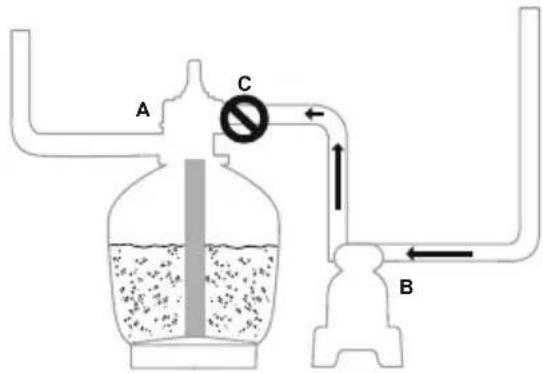

Closed: This function stops water flowing between the sand filter and the pool.

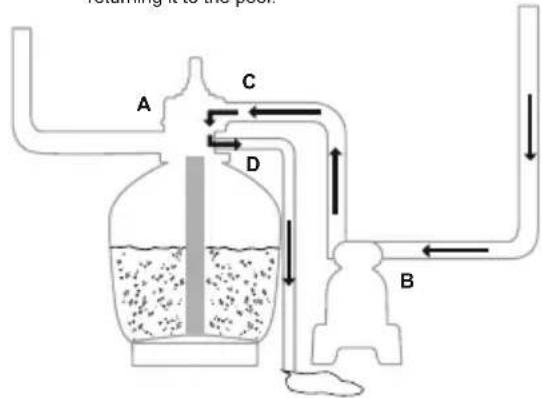

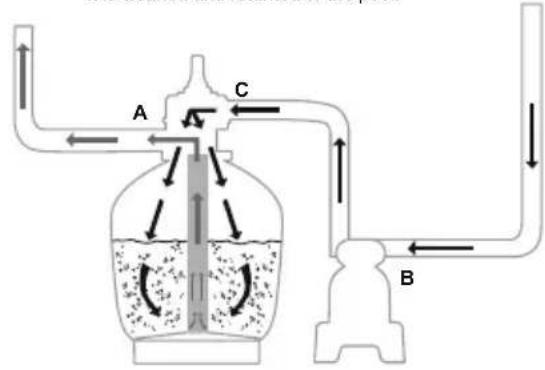

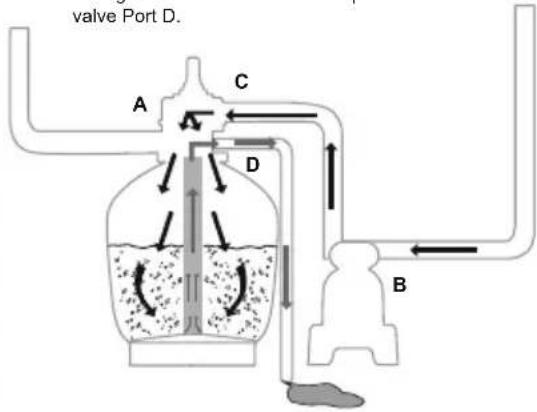

Backwash: This function is used to clean the sand bed; water is pumped down through the Collector Hub, upwards through the sand bed, and deposited out of Port D.

Rinse: This function for initial startup, cleaning, and sand bed leveling after Backwash; water is pumped downwards through the sand bed, up through the Collector Hub and deposited out of the valve Port D.

Drain: This function drains water from the pool; another filter bypass setting, water is pumped and deposited out of Port D, instead of returning it to the pool.

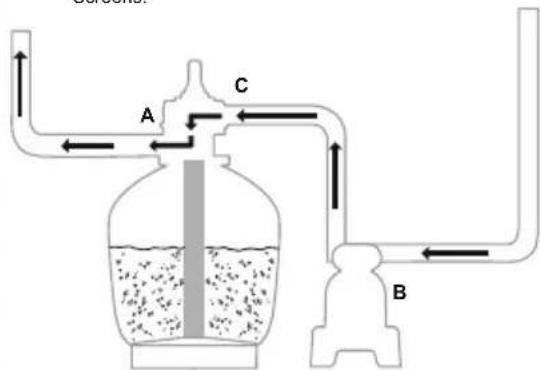

Circulate: This function circulates pool water bypassing the sand filter; use this function if the filter is broken to collect debris in the Debris Screens.

NOTE:

• Be sure all provisions for wastewater disposal meet applicable local, state or national codes. Do not discharge water where it will cause flooding or damage.

• When the Control Valve is set to the Backwash, Rinse, or Drain position, water will discharge from Port D on the Control Valve.

• Do not switch on or operate the sand filter with the Control Valve set to the Closed function or it will seriously damage the sand filter.

• Do not set the Control Valve between two functions, or it will lead to leaking.

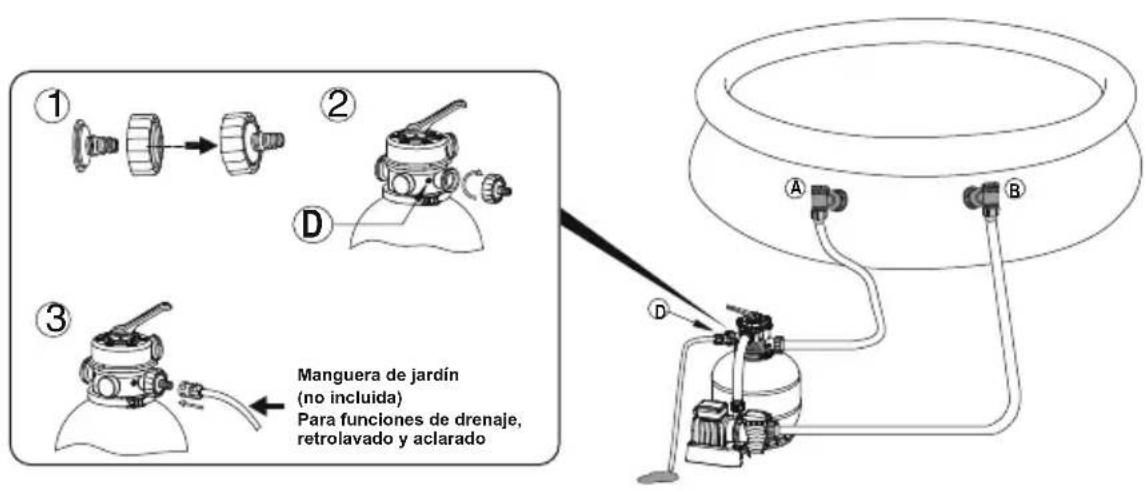

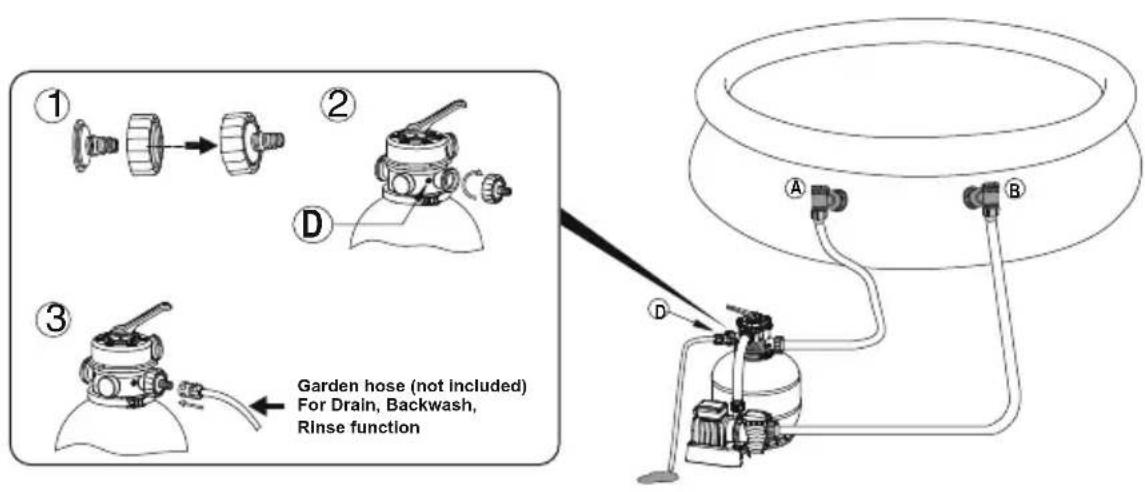

• To avoid water leakage, screw the Port D Cap onto the Control Valve Port D before operating the sand filter.

AIR RELEASE

Press down the control valve handle and wait until the water flow from Port D to release the air.

NOTE: It is important to repeat this operation every time you start the pump after winterizing, maintenance and backwashing the sand bed.

FIRST TIME USE INSTRUCTIONS

Backwash and Rinsing must be performed to prepare the pump for its first use and to wash the sand.

CAUTION: DO NOT DRY RUN THE SAND FILTER

1. Press down on the Control Valve handle and rotate to the Backwash function.
2. Plug in and run the sand filter for 3-5 minutes, or until the water runs clear.
3. Switch off the sand filter and set the Control Valve to the Rinse function.
4. Switch on the sand filter and run the sand filter for 1 min. This circulates water backwards through the sand filter and drains water out Port D.
5. Switch off the sand filter. Set the Control Valve to the Closed function.
6. Top up pool water if required.

IMPORTANT: This procedure removes water from the pool, which you'll need to replace. Switch off the sand filter immediately if water levels near the pool's Inlet and Outlet valves.

1. Now the sand filter is ready for use. Set the Control Valve to the Filter function.

NOTE: To prevent the risk of electrical shock dry any excess water from yourself and the sand filter.

1. Switch on the sand filter to run it.

NOTE: The sand filter has now started its filtering cycle. Check that water is returning to the pool and take note of the filter pressure on Pressure Gauge. Generally, the recommended sand filter pressure is less than 0.45 Bar (6.5 PSI) when it is running.

SAND FILTER MAINTENANCE

CAUTION: You must ensure the sand filter is switched off and unplugged before any maintenance begins or severe risk of injury or death exists. As dirt builds up in the sand filter, the pressure reading on Pressure Gauge will increase. When the Pressure

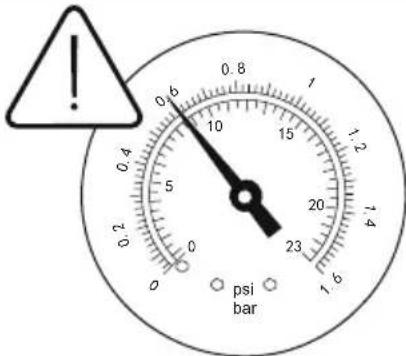

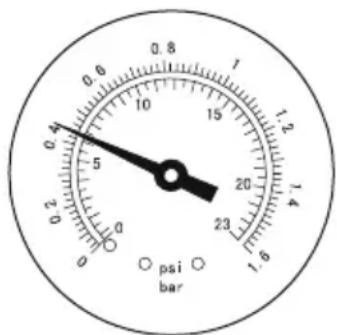

Gauge is 0.45 Bar (6.5 PSI) or higher, or water flow to the pool is too low, it is time to clean the sand. To clean the sand bed, follow all instructions outlined previously in: Backwash and Rinsing.

NOTE: Pressure gauge is for maintenance purpose only, and the pressure gauge value is just for reference, it should not be used as a precision instrument.

NOTE: We recommend you clean the sand bed once a month or less regularly depending on how often the pool is used. Do not clean the sand too frequently.

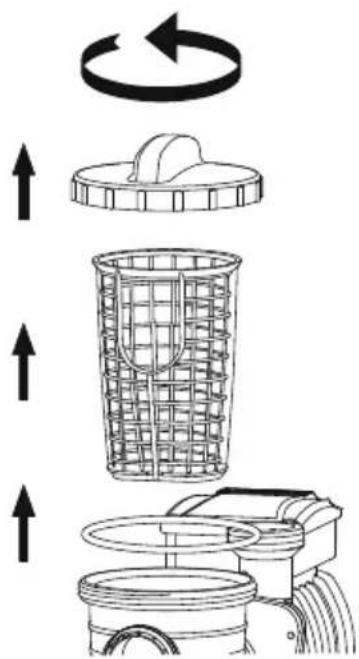

CLEANING THE STRAINER

1. Switch off the sand filter and set the Control Valve to the Closed function.
2. Close the connection valves.
3. Remove the Strainer Cover by unscrewing it.
4. Take out the Strainer, remove any debris.
5. Put the Strainer back into position. Ensure the hole in the strainer is aligned.
6. Ensure the Seal Ring is in place. Secure the Strainer Cover back.
7. Open the connection valves.

NOTE: The Strainer must be emptied and cleaned periodically. A dirty or blocked strainer will reduce the performance of the sand filter.

LOWERING OR DRAINING POOL WATER

1. Backwash the sand filter.

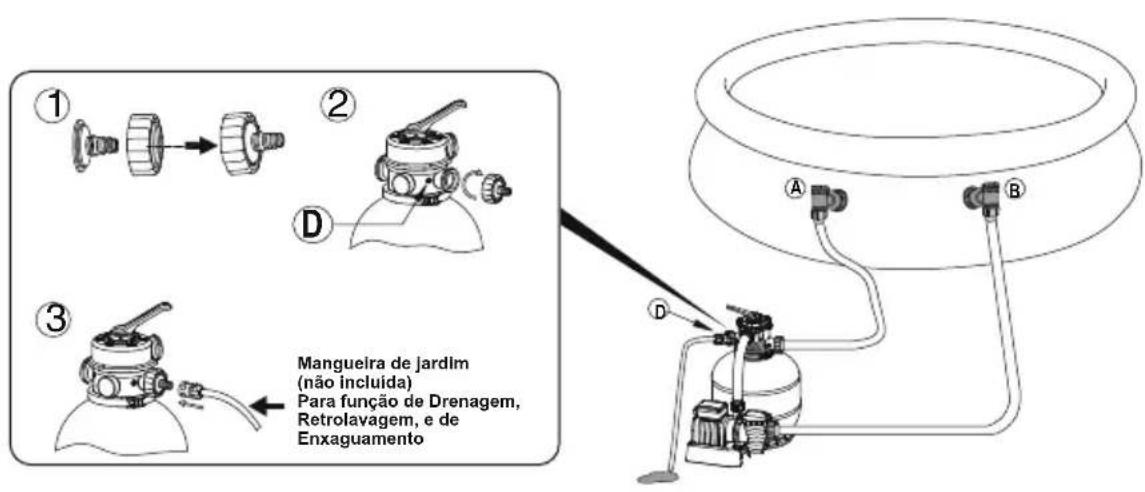

2. Detach the Hose from the pool's Port A and sand filter Port A and attach to Port D.

NOTE: Remember to replace the Debris Screen with Stopper Plug to prevent water from escaping.

1. Switch on the sand filter to remove pool water.

WARNING: DO NOT DRY RUN THE SAND FILTER.

STORAGE

In areas that have freezing winter temperatures, pool equipment must be winterized to protect against damage. Allowing water to freeze will damage the sand filter and void warranty.

1. Backwash the sand filter.
2. Drain the pool according to the pool owner's manual.
3. Unscrew the drain valve cap at the bottom of the tank and release the remaining water.
4. Disconnect the two Hoses from the pool and the sand filter.
5. Completely pour the sand out of the tank and dry all components.
6. Store the sand filter in a dry location out of child's reach.

TROUBLESHOOTING

Problems Probable Causes Solutions
Sand is flowing to the pool	- Sand is too small- Move the control valve from the backwash to the filter function without stop the sand filter- The level of the sand is too high- The skimmer is broken	- Recommend 0.45 mm to 0.85 mm #20 silica sand- Stop the sand filter every time set the control valve- Check if the level of the sand is between the marked “MAX” and “MIN” on the collector hub- Replace the skimmer
No water flow	- Stopper plugs were not removed- Air was not released- The control valve is set to Closed- The strainer is blocked- Sand filter broken	- Remove the stopper plugs and insert the debris screens- Release the air- Set to filter function- Clean the strainer- Call for service
Excessive filter pressure	- Dirty filter- Calcified sand bed- Insufficient backwashing- The pressure gauge is broken	- Backwash- Inspect sand and change if necessary- Backwash until water runs clear- Replace the pressure gauge
Control Valve leaks from the port D	- Control Valve is set between two functions- The gasket is broken	- Set to one function- Replace the gasket
Connectors leak	- Washer of the connectors not in place- Washer of the connectors broken- Loose Hoses	- Reposition the washer- Replace the washer- Tighten them

FILTRO DE AREIA MANUAL DO PROPRIETÁRIO

Visite o canal da Bestway no YouTube YouTube

REF.NR.	PEÇA SOBRESSALENTE NR	A	B	C
1	P03831	1	1	1
2	P61138ASS16	1	1	1
3	P03832	2	2	2
4	P61209ASS16	1	1	1
5	P03837	1	1	1
6	P03838	1	1	1
7	P61211ASS16	1	1	1
8	P6581ASS16	1	1	1
9	P6580ASS16	1	1	1
10 1	1 P03839
11 1	1P6614ASS16
12 5	5P6629ASS16
13 1	1 P03830
14 1	P61214ASS16
15 8	8 P03841
16 1	1 P03829
17 2	OP6916ASS16
18 2	OP6024ASS16
19 1	P6561ASS16
20 1	1P6562ASS16
21 1	1P6563ASS16
22	P03846(EU)	1	1	1
	P00574(GB)	1	1	1
23 1	1 P03836
24 2	2P6518ASS16
25	P61322ASS16	1	0	0
	P61318ASS16	1	0	0

2

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

N° REF.	N° PIEZA RECAMBIO	A	B	C
1	P03831	1	1	1
2	P61138ASS16	1	1	1
3	P03832	2	2	2
4	P61209ASS16	1	1	1
5	P03837	1	1	1
6	P03838	1	1	1
7	P61211ASS16	1	1	1
8	P6581ASS16	1	1	1
9	P6580ASS16	1	1	1
10 1	1 P03839
11 1	1P6614ASS16
12 5	5P6629ASS16
13 1	1 P03830
14 1	P61214ASS16
15 8	8 P03841
16 1	1 P03829
17 2	OP6916ASS16
18 2	OP6024ASS16
19 1	P6561ASS16
20 1	1P6562ASS16
21 1	1P6563ASS16
22	P03846(EU)	1	1	1
	P00574(GB)	1	1	1
23 1	1 P03836
24 2	2P6518ASS16
25	P61322ASS16	1	0	0
	P61318ASS16	1	0	0

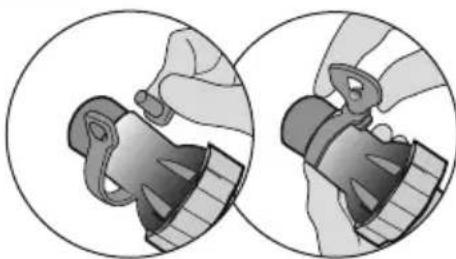

MONTAJE (Se requiere un destornillador.)

2

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

ALTO

VACIAR O REDUCIR EL NIVEL DE AGUA DE LA PISCINA

REF.-NR.	ERSATZTEIL NR.	A	B	C
1	P03831	1	1	1
2	P61138ASS16	1	1	1
3	P03832	2	2	2
4	P61209ASS16	1	1	1
5	P03837	1	1	1
6	P03838	1	1	1
7	P61211ASS16	1	1	1
8	P6581ASS16	1	1	1
9	P6580ASS16	1	1	1
10 1	1 P03839
11 1	1P6614ASS16
12 5	5P6629ASS16
13 1	1 P03830
14 1	P61214ASS16
15 8	8 P03841
16 1	1 P03829
17 2	OP6916ASS16
18 2	OP6024ASS16
19 1	P6561ASS16
20 1	1P6562ASS16
21 1	1P6563ASS16
22	P03846(EU)	1	1	1
	P00574(GB)	1	1	1
23 1	1 P03836
24 2	2P6518ASS16
25	P61322ASS16	1	0	0
	P61318ASS16	1	0	0

MONTAGE

2

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

POOLWASSER ABSENKEN ODER ABLASSEN

VIITENRO	VARAOSAN NRO	A	B	C
1	P03831	1	1	1
2	P61138ASS16	1	1	1
3	P03832	2	2	2
4	P61209ASS16	1	1	1
5	P03837	1	1	1
6	P03838	1	1	1
7	P61211ASS16	1	1	1
8	P6581ASS16	1	1	1
9	P6580ASS16	1	1	1
10 1	1 P03839
11 1	1P6614ASS16
12 5	5P6629ASS16
13 1	1 P03830
14 1	P61214ASS16
15 8	8 P03841
16 1	1 P03829
17 2	OP6916ASS16
18 2	OP6024ASS16
19 1	P6561ASS16
20 1	1P6562ASS16
21 1	1P6563ASS16
22	P03846(EU)	1	1	1
	P00574(GB)	1	1	1
23 1	1 P03836
24 2	2P6518ASS16
25	P61322ASS16	1	0	0
	P61318ASS16	1	0	0

KOKOAMINEN

(Tarvitset

ruuvimeisselin.)

2

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

Nupin asento	Toiminta-aika (H)	Lepoaika (H)	Käyntisykli (H)
4	4	20	24
6	6	18	24
8	8	16	24
10	10	14	24
12	12	12	24
24	24	0	24
P4	4	4	8
P6	6	6	12
P8	8	8	16

SÄÄTÖVENTTIILIN YLEISKATSAUS

SÄÄTÖVENTTIILIN TOIMINNOT

ALTAAN VEDEN MÄÄRÄN VÄHENTÄMINEN TAI ALTAAN TYHJENTÄMINEN

REF.NR.	NR. WISSELOND.	A	B	C
1	P03831	1	1	1
2	P61138ASS16	1	1	1
3	P03832	2	2	2
4	P61209ASS16	1	1	1
5	P03837	1	1	1
6	P03838	1	1	1
7	P61211ASS16	1	1	1
8	P6581ASS16	1	1	1
9	P6580ASS16	1	1	1
10 1	1 P03839
11 1	1P6614ASS16
12 5	5P6629ASS16
13 1	1 P03830
14 1	P61214ASS16
15 8	8 P03841
16 1	1 P03829
17 2	OP6916ASS16
18 2	OP6024ASS16
19 1	P6561ASS16
20 1	1P6562ASS16
21 1	1P6563ASS16
22	P03846(EU)	1	1	1
	P00574(GB)	1	1	1
23 1	1 P03836
24 2	2P6518ASS16
25	P61322ASS16	1	0	0
	P61318ASS16	1	0	0

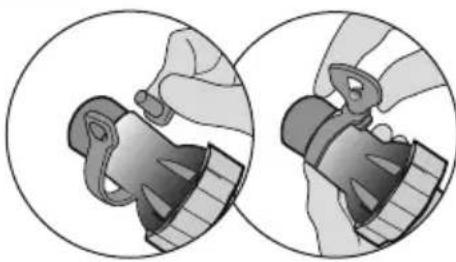

MONTEREN

2

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

STOP Lees de handleiding zorgvuldig alvorens in te schakelen.

WERKING

TIMER

ZWEMBADWATER DOEN ZAKKEN OF AFVOEREN

WAARSCHUWING: LAAT DE ZANDFILTER NIET DROOG WERKEN

OPSLAG

N. RIF.	N. PARTE DI RICAMBIO	A	B	C
1	P03831	1	1	1
2	P61138ASS16	1	1	1
3	P03832	2	2	2
4	P61209ASS16	1	1	1
5	P03837	1	1	1
6	P03838	1	1	1
7	P61211ASS16	1	1	1
8	P6581ASS16	1	1	1
9	P6580ASS16	1	1	1
10 1	1 P03839
11 1	1P6614ASS16
12 5	5P6629ASS16
13 1	1 P03830
14 1	P61214ASS16
15 8	8 P03841
16 1	1 P03829
17 2	OP6916ASS16
18 2	OP6024ASS16
19 1	P6561ASS16
20 1	1P6562ASS16
21 1	1P6563ASS16
22	P03846(EU)	1	1	1
	P00574(GB)	1	1	1
23 1	1 P03836
24 2	2P6518ASS16
25	P61322ASS16	1	0	0
	P61318ASS16	1	0	0

2

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

RÉF.N°	PIÈCE DE RECHANGE N°.	A	B	C
1	P03831	1	1	1
2	P61138ASS16	1	1	1
3	P03832	2	2	2
4	P61209ASS16	1	1	1
5	P03837	1	1	1
6	P03838	1	1	1
7	P61211ASS16	1	1	1
8	P6581ASS16	1	1	1
9	P6580ASS16	1	1	1
10 1	1 P03839
11 1	1P6614ASS16
12 5	5P6629ASS16
13 1	1 P03830
14 1	P61214ASS16
15 8	8 P03841
16 1	1 P03829
17 2	OP6916ASS16
18 2	OP6024ASS16
19 1	P6561ASS16
20 1	1P6562ASS16
21 1	1P6563ASS16
22	P03846(EU)	1	1	1
	P00574(GB)	1	1	1
23 1	1 P03836
24 2	2P6518ASS16
25	P61322ASS16	1	0	0
	P61318ASS16	1	0	0

MONTAGE

2

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

DIMINUTION OU VIDANGE DE L'EAU DE LA PISCINE

AP. ANAΦ.	KΩΔ. EIΔOΥΣ ANΤΑΛΛΑΚΤΙΚΟΥ	A	B	C
1	P03831	1	1	1
2	P61138ASS16	1	1	1
3	P03832	2	2	2
4	P61209ASS16	1	1	1
5	P03837	1	1	1
6	P03838	1	1	1
7	P61211ASS16	1	1	1
8	P6581ASS16	1	1	1
9	P6580ASS16	1	1	1
10 1	1 P03839
11 1	1P6614ASS16
12 5	5P6629ASS16
13 1	1 P03830
14 1	P61214ASS16
15 8	8 P03841
16 1	1 P03829
17 2	OP6916ASS16
18 2	OP6024ASS16
19 1	P6561ASS16
20 1	1P6562ASS16
21 1	1P6563ASS16
22	P03846(EU)	1	1	1
	P00574(GB)	1	1	1
23 1	1 P03836
24 2	2P6518ASS16
25	P61322ASS16	1	0	0
	P61318ASS16	1	0	0

ΣΥΝΑΡΜΟΛΟΓΗΣΗ

2

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

No 3	АПЧАСТЬ No	A	B	C
1	P03831	1	1	1
2	P61138ASS16	1	1	1
3	P03832	2	2	2
4	P61209ASS16	1	1	1
5	P03837	1	1	1
6	P03838	1	1	1
7	P61211ASS16	1	1	1
8	P6581ASS16	1	1	1
9	P6580ASS16	1	1	1
10 1	1 P03839
11 1	1P6614ASS16
12 5	5P66029ASS16
13 1	1 P03830
14 1	P61214ASS16
15 8	8 P03841
16 1	1 P03829
17 2	0P66916ASS16
18 2	0P660124ASS16
19 1	1P66561ASS16
20 1	1P66562ASS16
21 1	1P66563ASS16
22	P03846(EU)	1	1	1
	P00574(GB)	1	1	1
23 1	1 P03836
24 2	2P66518ASS16
25	P61322ASS16	1	0	0
	P61318ASS16	1	0	0

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

Diagram of a mechanical device with rotating arrows indicating rotational motion (no text or symbols)

NR REF.	NR CZEŚCI	A	B	C
1	P03831	1	1	1
2	P61138ASS16	1	1	1
3	P03832	2	2	2
4	P61209ASS16	1	1	1
5	P03837	1	1	1
6	P03838	1	1	1
7	P61211ASS16	1	1	1
8	P6581ASS16	1	1	1
9	P6580ASS16	1	1	1
10 1	1 P03839
11 1	1P6614ASS16
12 5	5P6629ASS16
13 1	1 P03830
14 1	P61214ASS16
15 8	8 P03841
16 1	1 P03829
17 2	OP6916ASS16
18 2	OP6024ASS16
19 1	P6561ASS16
20 1	1P6562ASS16
21 1	1P6563ASS16
22	P03846(EU)	1	1	1
	P00574(GB)	1	1	1
23 1	1 P03836
24 2	2P6518ASS16
25	P61322ASS16	1	0	0
	P61318ASS16	1	0	0

2

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

OBNIŻANIE LUB SPUSZCZANIE WODY W BASENIE

SORSZÁM	ALKATRÉSZ SZÁMA	A	B	C
1	P03831	1	1	1
2	P61138ASS16	1	1	1
3	P03832	2	2	2
4	P61209ASS16	1	1	1
5	P03837	1	1	1
6	P03838	1	1	1
7	P61211ASS16	1	1	1
8	P6581ASS16	1	1	1
9	P6580ASS16	1	1	1
10 1	1 P03839
11 1	1P6614ASS16
12 5	5P6629ASS16
13 1	1 P03830
14 1	P61214ASS16
15 8	8 P03841
16 1	1 P03829
17 2	OP6916ASS16
18 2	OP6024ASS16
19 1	P6561ASS16
20 1	1P6562ASS16
21 1	1P6563ASS16
22	P03846(EU)	1	1	1
	P00574(GB)	1	1	1
23 1	1 P03836
24 2	2P6518ASS16
25	P61322ASS16	1	0	0
	P61318ASS16	1	0	0

ÖSSZESZERELÉS

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

REF.NR.	RESERVDELSNR.	A	B	C
1	P03831	1	1	1
2	P61138ASS16	1	1	1
3	P03832	2	2	2
4	P61209ASS16	1	1	1
5	P03837	1	1	1
6	P03838	1	1	1
7	P61211ASS16	1	1	1
8	P6581ASS16	1	1	1
9	P6580ASS16	1	1	1
10 1	1 P03839
11 1	1P6614ASS16
12 5	5P6629ASS16
13 1	1 P03830
14 1	P61214ASS16
15 8	8 P03841
16 1	1 P03829
17 2	OP6916ASS16
18 2	OP6024ASS16
19 1	P6561ASS16
20 1	1P6562ASS16
21 1	1P6563ASS16
22	P03846(EU)	1	1	1
	P00574(GB)	1	1	1
23 1	1 P03836
24 2	2P6518ASS16
25	P61322ASS16	1	0	0
	P61318ASS16	1	0	0

MONTERING

FYLL PÅ MED POOLFILTERSAND/FLOWCLEAR™ POLYSPHERE.

2

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

Knopp-lägePosition	Arbete	Vilotid(H)	Cykeltid period(H)
4	4	20	24
6	6	18	24
8	8	16	24
10	10	14	24
12	12	12	24
24	24	0	24
P4	4	4	8
P6	6	6	12
P8	8	8	16

MINSKNING ELLER TÖMNING AV POOLVATTNET

For support please visit us at:

bestwaycorp.com/support

©2021 Bestway Inflatables & Material Corp.

All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten/Tutti i diritti riservati

Trademarks used in some countries under license from/

Manufactured, distributed and represented in the European Union by/

Bestway (USA) Inc., 3411 E. Harbour Drive, Phoenix, Arizona 85034, United States of America

Tel: [phone] (For U.S. and Canada)

Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, Unit 2/98-104 Carnarvon St Silverwater, NSW 2128, Australia

Tel: Australia: ([phone]; New Zealand: 0800 142 101

Distributed in United Kingdom by Bestway Corp UK Ltd. 8 Wentworth Road, Heathfield Industrial Estate, Newton Abbot, Devon, TQ12 6TL

Exported by/Exporté par/Exportado por/Exportiert von/Esportato da

Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited

Suite 713, 7/Floor, East Wing, Tsim Sha Tsui Centre, 66 Mody Road, Kowloon, Hong Kong

www.bestwaycorp.com
