USER MANUAL Virage Active TAURUS

Bagless vacuum cleaners

Aspirateur sans sac

Line drawing of a vacuum cleaner with internal components and mounting ring (no text or symbols)

_

| _

一

1

Technical diagram of a vacuum cleaner with labeled parts including handle, arm, and internal components

Technical diagram showing exploded and assembled views of a vacuum cleaner's internal components with labeled parts A through N.

Line drawing of a car interior with a hand holding the steering wheel (no text or symbols)

Fig.6 Fig.7

Line drawing of a hand inserting a component into a car interior (no text or symbols)

_

| _

一

1

Español

Aspirador sin bolsa

Virage Active

DISTINGUIDO CLIENTE:

Bagless vacuum cleaners

Virage Active

DEAR CUSTOMER,

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WARNINGS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance shall not be made by children without supervision

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Disconnect the appliance from

the mains when not in use and before undertaking any cleaning task.

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

- Connect the appliance to a socket that can supply a minimum of 10 amperes.

- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

- Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.

- Do not touch the plug with wet hands.

- Do not use the appliance if the cable or plug is damaged.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

USE AND CARE:

- Do not use the appliance without its filter(s) correctly in place.

- Do not use the appliance if its accessories are not properly fitted.

- Do not use the appliance if the accessories or consumables attached to it are defective. Replace them immediately.

- Do not use the appliance to gather up water or any other liquid.

- Do not use the appliance if the on/off switch does not work.

- Use the appliance handle/s, to catch it or move it.

• This appliance is for household use only, not professional, industrial use.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
• Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.
• Do not work on areas where there are metal objects, such as nails and/or screws.
• Never vacuum hot or sharp objects (cigarette butts, ashes, nails, etc.).
• Only use the appliance for carrying out dry tasks.

SERVICE:

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

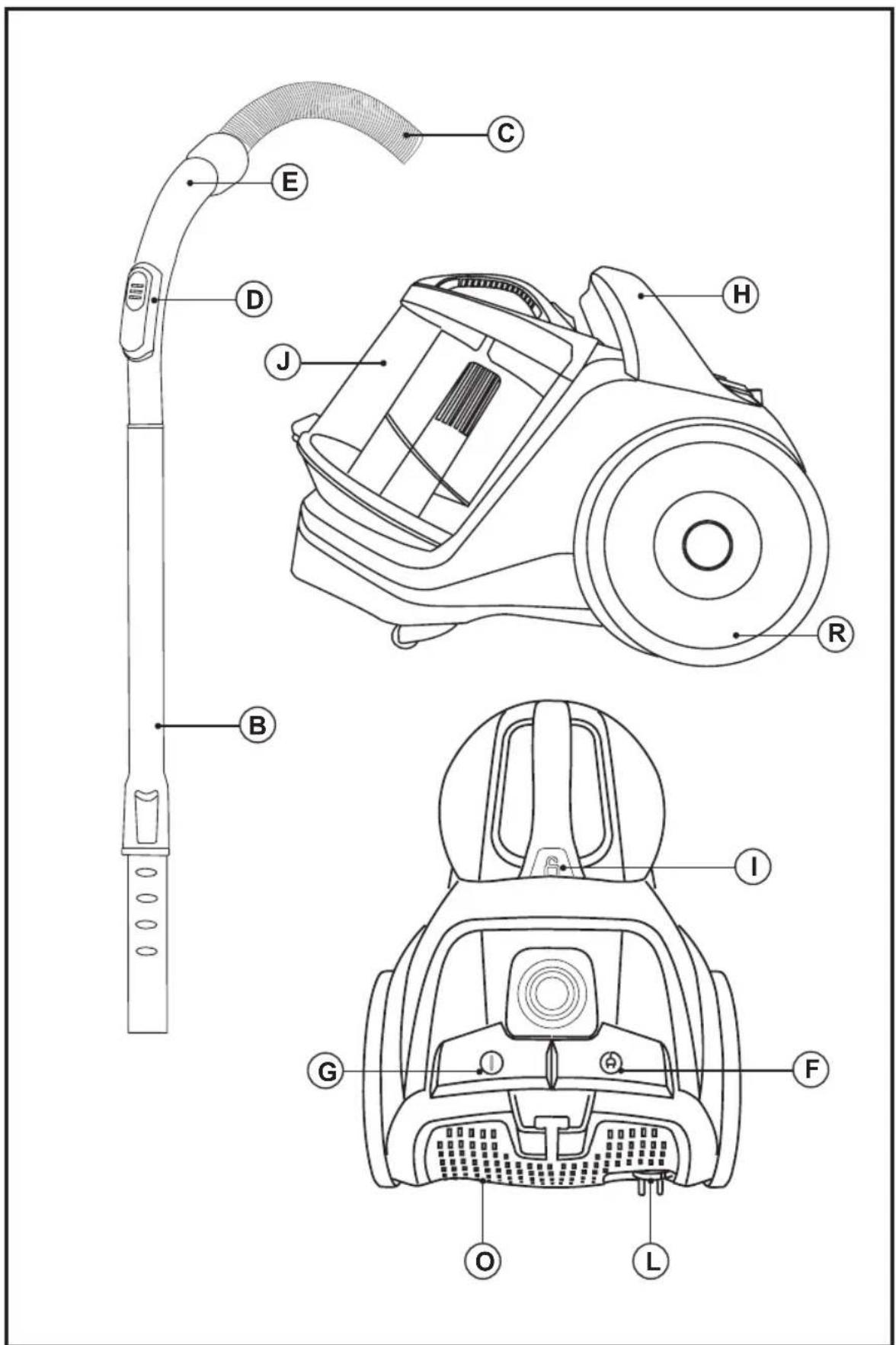

DESCRIPTION

A Floor brush
B Extendable tube
C Hose set
D Manual air regulator
E Hose head
F Automatic cord rewind
G On/off switch
H Carry handle

I Extraction button for deposit
J Dust Tank
K Opening button for deposit
L Cord housing
M Crevice nozzle
N Multi-use brush
O Grill outlet filter
P Outlet filter
Q Motor filter
R Wheels

- If the model of your appliance does not have the accessories described above, they can

also be bought separately from the Technical Assistance Service.

INSTRUCTIONS FOR USE

BEFORE USE:

- Make sure that all products' packaging has been removed.

VACUUMING FUNCTION:

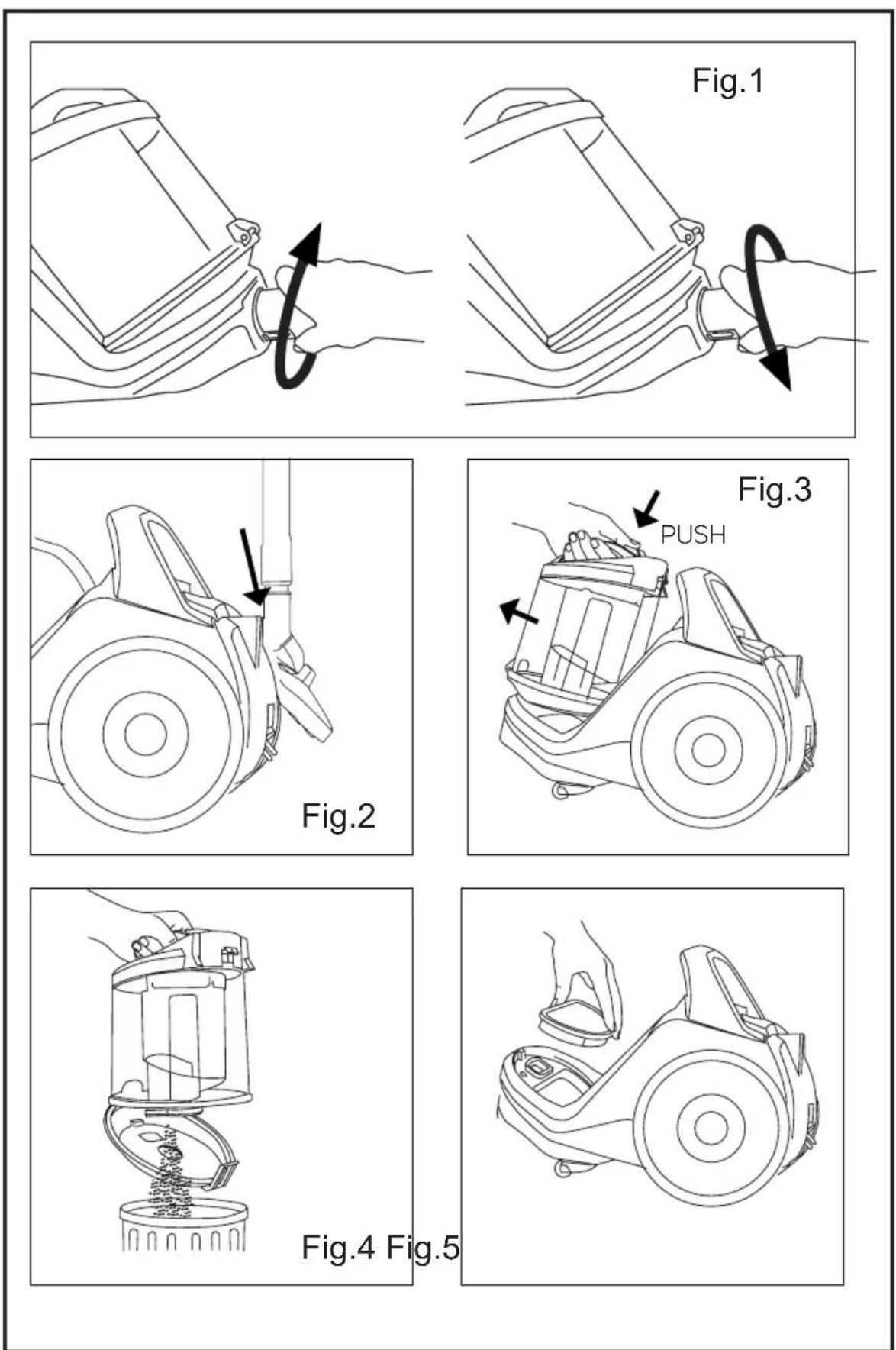

• Fit the hose unit to the vacuum cleaners air intake. (Fig. 1).
• To disconnect the hose unit from the vacuum cleaner, press the button on the hose and pull outwards. (Fig. 2).

INSERTION OF ACCESSORIES INTO THE APPLIANCE'S GRIP:

• The appliance's grip is designed in such a way that it allows the insertion of the following accessories (use the combination that best meets your requirements):
• Extendible tube: designed to provide access to surfaces which are out of reach and make floor cleaning comfortable, its length can be adjusted by using the adjustment control. (B)
• Floor nozzle: specially designed for cleaning floors (both rugs and carpets and hard floors), its base has a retractable brush that can be adjusted to two heights for greater efficiency on these floors. It is advisable to have the brush out for hard floors and the brush in for rugs and carpets.
• Crevice nozzle: specially designed for getting into cracks and difficult corners. (N)
• Multi-use brush: To clean textile and furniture surfaces. (N)

USE:

• Take the length of cable required out of the housing. (M)
• Connect the appliance to the mains.
• Turn the appliance on, by using the on/off button. (G)

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off using the on/off button. (G)
• Unplug the appliance from the mains.
• Retract the cable by pressing the roller cable button and guide the cable into the appliance. (F)

- The cable housing means you can remove and have available the required length of cable for working with the appliance, preventing accident risk situations.

- Clean the appliance.

CARRY HANDLE/S:

- This appliance has a handle on the upper part of the body, which facilitates comfortable transportation (H).

PARKING POSITION:

- This appliance has its own parking position for comfortable and straightforward storage.

- To make use of the horizontal parking hook the head's hook onto the hook that is to be found on the lower part of the appliance. (Fig. 3).

CLEANING

- Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

- Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

- Never submerge the appliance in water or any other liquid or place it under running water.

- Empty the dust container after each use of the vacuum cleaner.

- Disconnect the hose from the vacuum cleaners air intake. (Fig. 4).

- Disconnect the dust box from the appliance. (Fig. 5).

- Open the lid of the dust box and empty the contents into the appropriate waste disposal receptacle. (Fig. 6).

- Check the condition of the motor filter.

- Close the lid of the dust box.

- Attach the dust box to the appliance.

- Connect the hose to the vacuum cleaners air intake. (Fig. 1).

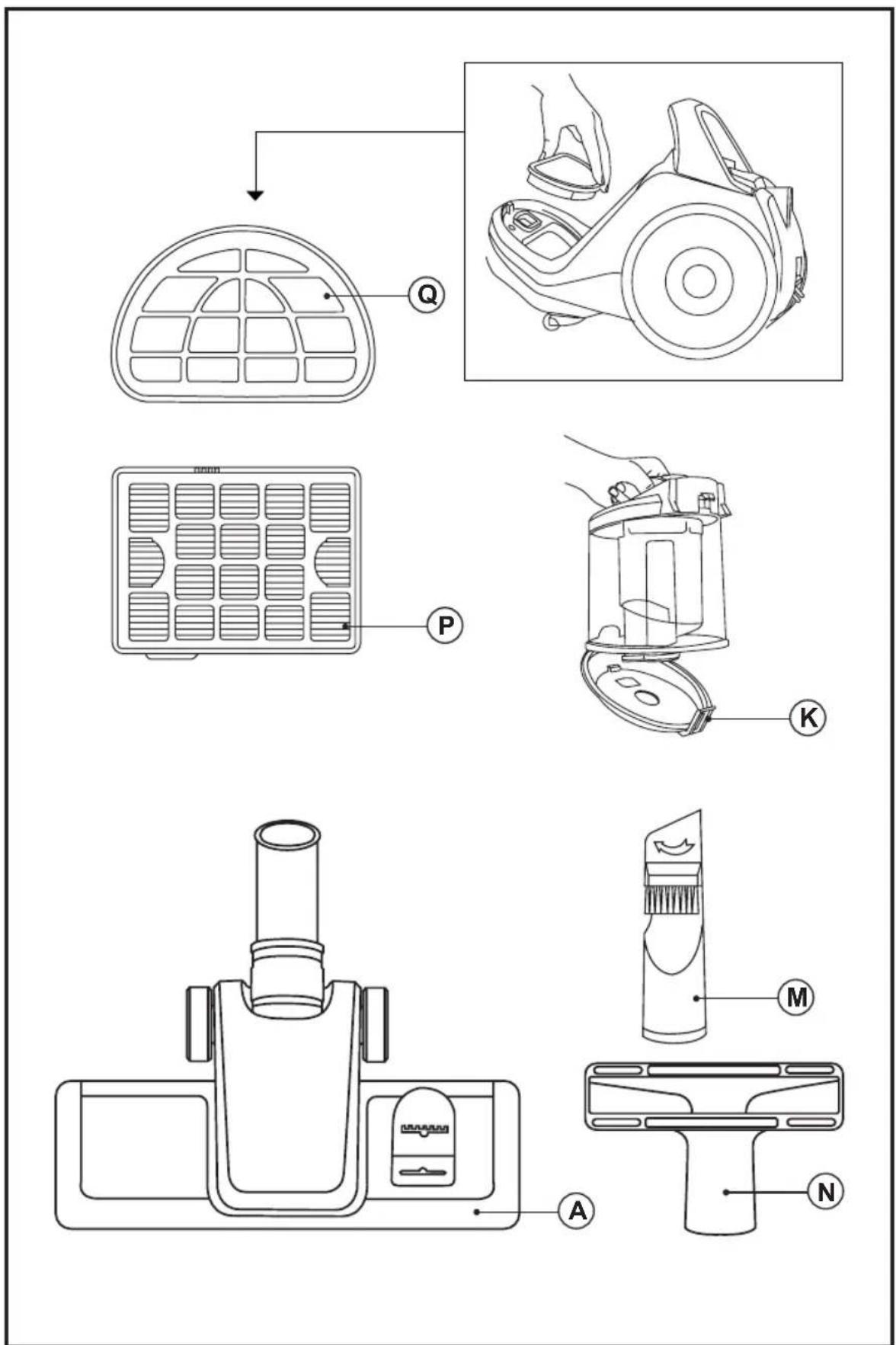

CHANGING THE FILTERS:

- Motor filter, it is advisable to periodically check the state of the filter, which should be cleaned/replaced after every 50 hours of use.

- HEPA type air outlet filter (high efficiency air

filter which effectively removes spores, ash, dust mites, pollen ...), it is advisable to periodically check the condition of the filter, it should be cleaned/replaced after every 50 hours of use, or if a significant drop in suction power is noticed

TO REMOVE THE FILTERS:

MOTOR FILTER:

- Disconnect the dust tank from the appliance. (Fig. 4).

- Open the cover (R) that contains the filter and extract the filter (Q1). (Fig. 7).

- Remove the HEPA filter (Q2) from its housing by rotate it as the arrowhead show. (Fig. 8).

- Rinse the HEPA filter in the lukewarm water and dry it during 24h.

- To reassemble the filter, proceed with the above instructions, in reverse order.

OUTLET FILTER:

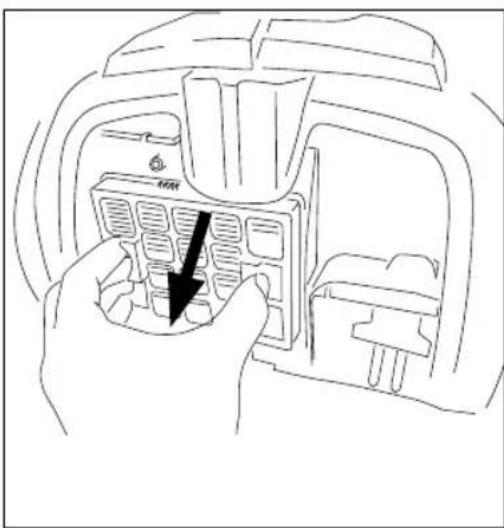

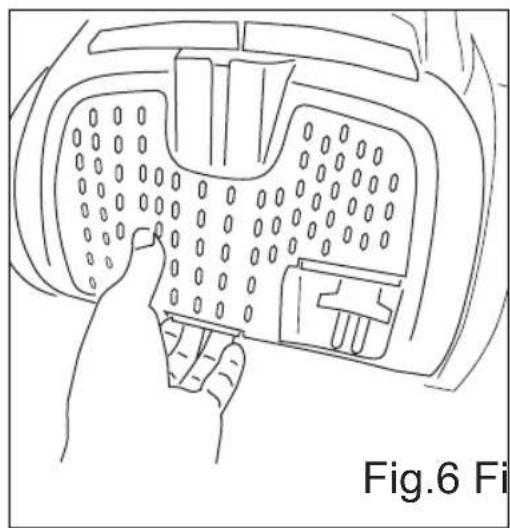

- Rotate the grill outlet filter as the arrowhead show. (Fig. 9).

- Remove the filter (P) from its housing. (Fig. 8).

- To reassemble the filter, proceed with the above instructions, in reverse order.

SUPPLIES

- Supplies can be acquired from distributors and authorised establishments (such as filters, etc...) for your appliance model.

- Always use original supplies, designed specifically for your appliance model.

- These supplies are available in specialist shops.

ANOMALIES AND REPAIR

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

The following information is regarding to energy labelling and ecodesign:

Product fiche
Trade mark: TAURUS
Model: SVC8000 (Vi-	rage Active)
Efficiency class A
Annual energy consump-tion:Indicative annual energy consumption (kWh per year), based on 50 clean-ing tasks. Actual annual energy consumption will depend on how the appli-ance is used	26,3 kWh/año
Carpet cleaning perfor-mance class	C
Hard floor cleaning perfor-mance class	A
Dust re-emission class A
Sound power level 78 dB
Rated input power 800 W

To establish compliance with the ecodesign requirements and for calculation of energy labelling parameters the appliance is considered as general purpose vacuum cleaner and the European standards EN 60312-1, EN 60704-2-1, EN 60335-2-2 are used as reference.

This appliance complies with Directive 2014/35/EC on Low Voltage, Directive 2014/30/EC on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products

FRANÇAIS

Aspirateur sans sac

Virage Active

CHER CLIENT,

HANDVAT(EN) VOOR TRANSPORT:

NIEPRAWIDŁOWOŚCI I NAPRAWA

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/
