• 26 Safety Information for Lawn Mowers 1 Introduction Dear Customer, Thank you for choosing STIHL. We develop and manufacture our quality products to meet our customers’ requirements. The products are designed for reliability even under extreme con‐ ditions. STIHL also stands for premium service quality. Our dealers guarantee competent advice and instruction as well as comprehensive service support. STIHL expressly commit themselves to a sus‐ tainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life. We thank you for your confidence in us and hope you will enjoy working with your STIHL product. Dr. Nikolas Stihl English 0478-131-9948-D 25 © ANDREAS STIHL AG & Co. KG 2021 0478-131-9948-D. VA1.L21. Printed on chlorine-free paper Printing inks contain vegetable oils, paper can be recycled. Translation of Original Instruction Manual p. 46

0000009303_005_GBIMPORTANT! READ BEFORE USING AND

KEEP IN A SAFE PLACE FOR REFERENCE. 2 Guide to Using this Manual

2.1 Applicable Documents

This instruction manual constitutes original man‐ ufacturer’s instructions in the sense of EC Direc‐ tive 2006/42/EC. Local safety regulations apply. ► In addition to this instruction manual, read, understand and keep the following documents:

STIHL AP battery safety information

Safety information for STIHL batteries and products with built-in battery: www.stihl.com/safety-data-sheets

2.2 Warning Notices in Text

DANGER ■ This notice refers to risks which result in seri‐ ous or fatal injury. ► Serious or fatal injuries can be avoided by taking the precautions mentioned. WARNING ■ This notice refers to risks which can result in serious or fatal injury. ► Serious or fatal injuries can be avoided by taking the precautions mentioned. NOTICE ■ This notice refers to risks which can result in damage to property. ► Damage to property can be avoided by tak‐ ing the precautions mentioned.

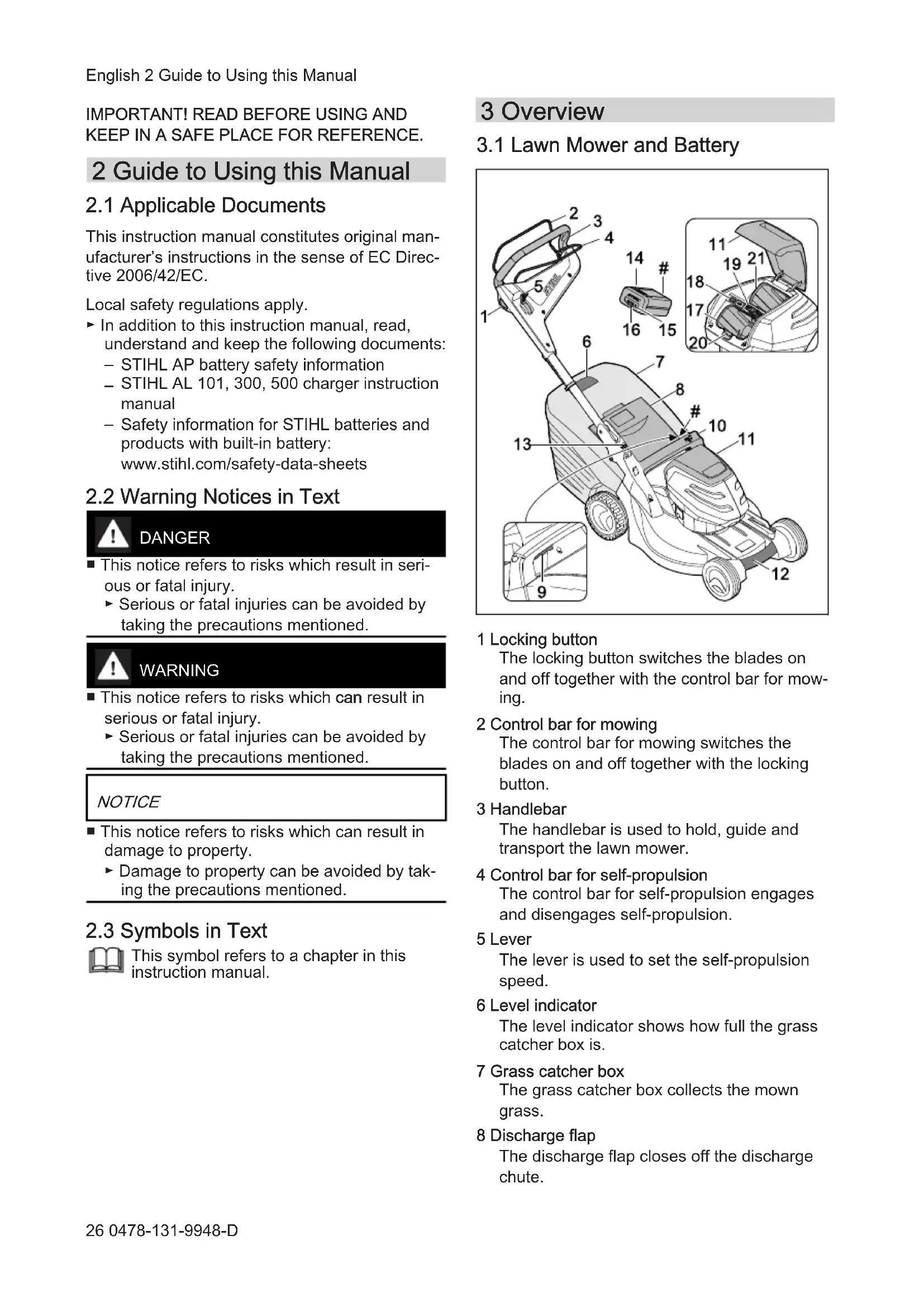

This symbol refers to a chapter in this instruction manual. 3 Overview

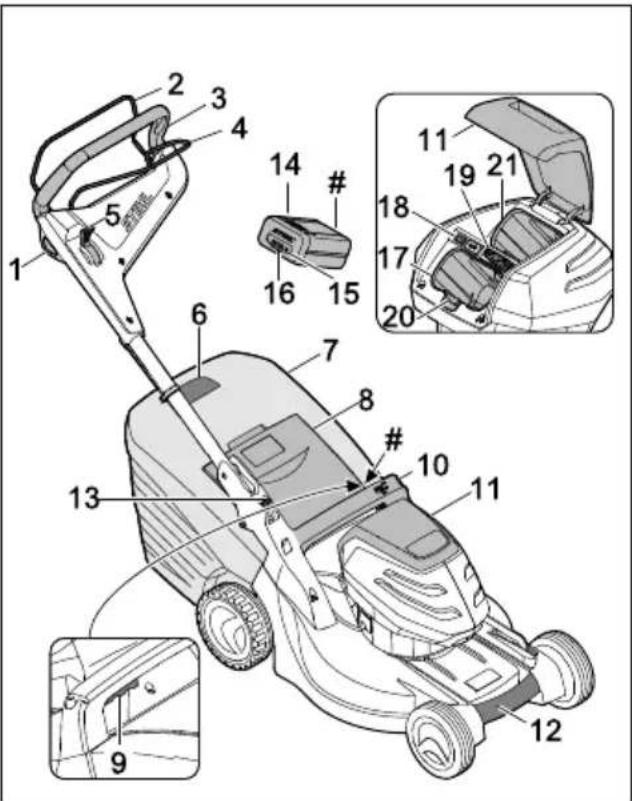

3.1 Lawn Mower and Battery

1 Locking button The locking button switches the blades on and off together with the control bar for mow‐ ing. 2 Control bar for mowing The control bar for mowing switches the blades on and off together with the locking button. 3 Handlebar The handlebar is used to hold, guide and transport the lawn mower. 4 Control bar for self-propulsion The control bar for self-propulsion engages and disengages self-propulsion. 5 Lever The lever is used to set the self-propulsion speed. 6 Level indicator The level indicator shows how full the grass catcher box is. 7 Grass catcher box The grass catcher box collects the mown grass. 8 Discharge flap The discharge flap closes off the discharge chute. English 2 Guide to Using this Manual 26 0478-131-9948-D9 Lever The lever is used to set the cutting height. 10 Handle The handle is used to hold the lawn mower when adjusting the cutting height and to transport the lawn mower. 11 Flap The flap covers the battery and activation key. 12 Transport handle The transport handle is used to transport the lawn mower. 13 Lever The lever is used to adjust and fold down the handlebar. 14 Battery The battery supplies the lawn mower with power. 15 Button The button activates the LEDs on the battery. 16 LEDs The LEDs indicate the battery charge state and faults. 17 Battery compartment The battery compartment holds the battery. 18 ECO switch The ECO switch activates and deactivates ECO mode. 19 Activation key The activation key activates the lawn mower. 20 The locking lever keeps the battery in the bat‐ tery compartment. RMA 443.2 PV, RMA 448.2 PV: 21 Battery compartment The battery compartment holds a second bat‐ tery. RMA 443.2 VC, RMA 448.2 VC: 21 Transport compartment The transport compartment holds a replace‐ ment battery. # Rating plate with machine number

The symbols can be on the lawn mower or bat‐ tery and have the following meaning: This symbol identifies the activation key. This symbol identifies the key recepta‐ cle. ECO ECO This symbol identifies the ECO switch. This symbol identifies the lever for set‐ ting the cutting height.

This symbol indicates the weight of the lawn mower without battery. 1 LED illuminates red. The battery is too warm or too cold. 4 LEDs flashing red. There is a fault in the battery.

Guaranteed sound power level in accordance with Directive 2000/14/EC in dB(A) for the purpose of comparing the sound emissions of products. The number beside the symbol indicates the energy content of the battery according to the cell manufacturer's specifications. The available energy content is lower in practice. Do not dispose of the product with domes‐ tic waste. Activating and deactivating the blade. Setting the driving speed. The lawn mower moves at its fastest speed in this setting. The lawn mower moves at its slowest speed in this setting. 4 Safety Precautions

The warning symbols on the lawn mower or bat‐ tery have the following meaning: Follow the safety instructions and their measures. Read, understand and keep the instruction manual. 4 Safety Precautions English 0478-131-9948-D 27Beware of objects being thrown up - keep a safe distance and keep other people away. Do not touch a turning blade. Remove the battery during work stop‐ pages, transport, storage, maintenance or repair. Pull out the activation key during work stoppages, transport, storage, mainte‐ nance or repair. Maintain a safety distance. Protect the battery from heat and fire. Do not immerse the battery in liquids. Observe the permissible temperature range for the battery.

The STIHL RMA 443 VC, RMA 443 PV, RMA 448 VC or RMA 448 PV lawn mower is used to mow dry grass. The lawn mower is supplied with power by a STIHL AP battery. WARNING

Batteries not approved by STIHL for the lawn mower may cause fires and explosions. This may result in serious or fatal injury to people and damage to property.

Use the lawn mower with a STIHL AP bat‐ tery. ■ Failure to use the lawn mower or battery as intended may result in serious or fatal injury to people and damage to property.

Use the lawn mower and battery as descri‐ bed in this instruction manual.

4.3 Requirements for the User

Uninstructed users cannot recognise or evalu‐ ate the dangers posed by the lawn mower and battery. This may result in serious or fatal injury to the user or other people. ► Read, understand and keep the instruction manual. ► If passing on the lawn mower or battery to another person: provide them with the instruction manual also.

Make sure that the user meets the following conditions:

The user is physically, sensorily and mentally capable of operating the lawn mower and battery and working with them. If the user is physically, sensorily or mentally impaired, the machine must only be used under supervision or fol‐ lowing instruction by a responsible per‐ son.

The user can recognise and evaluate the dangers posed by the lawn mower and battery.

The user is aware that they are respon‐ sible for accidents and damage.

The user is of legal age or the user is being trained under supervision in a profession in accordance with national regulations.

The user has received instruction from a STIHL specialist dealer or a competent person before using the lawn mower for the first time.

The user is not impaired by alcohol, medicines or drugs. ► If anything is unclear: consult a STIHL spe‐ cialist dealer.

4.4 Clothing and Equipment

Objects may be thrown up at high velocity while working. This may result in injury to the user.

Wear long trousers made from resistant material. ■ Dust may be stirred up while working. Breath‐ ing in dust may be harmful to health and cause allergic reactions.

If dust is stirred up: wear a dust mask. English 4 Safety Precautions 28 0478-131-9948-D■ Unsuitable clothing may get caught on wood, brambles and in the lawn mower. This may result in serious injury to the user.

Wear close-fitting clothing. ► Remove scarves and jewellery. ■ The user may come into contact with the blade during cleaning, maintenance or transport. This may result in injury to the user.

Wear work gloves made from resistant material. ■ Wearing unsuitable footwear may cause the user to slip. This may result in injury to the user.

Wear sturdy, closed-toed footwear with high-grip soles. ■ Material particles may be expelled when sharpening the blade. This may result in injury to the user.

Wear close-fitting safety glasses. Suitable safety glasses are tested in accordance with EN 166 or national regulations and available commercially with the correspond‐ ing marking.

Wear work gloves made from resistant material.

4.5 Work Area and Surroundings

Bystanding people, children and animals can‐ not recognise or evaluate the dangers posed by the lawn mower and objects expelled at high speed by the mower. This may result in serious injury to bystanding people, children and animals and damage to property. ► Keep bystanding people, children and animals out of the work area. ► Maintain a safety distance from objects. ► Do not leave the lawn mower unattended. ► Make sure that children cannot play with the lawn mower. ■ Working in the rain may cause the user to slip. This may result in serious or fatal injury to the user.

Do not work when it is raining. ■ The lawn mower is not waterproof. Working in the rain or in a damp environment may result in electric shock. This may result in injury to the user and damage to the lawn mower.

Do not work in the rain or in a damp envi‐ ronment. ► Do not mow wet grass. ■ Electrical components of the lawn mower may produce sparks. Sparks may cause fires and explosions in highly flammable or explosive environments. This may result in serious or fatal injury to people and damage to property.

Do not work in a highly flammable or explo‐ sive environment.

WARNING ■ Bystanding people, children and animals can‐ not recognise or evaluate the dangers posed by the battery. This may result in serious injury to bystanding people, children and animals.

Keep bystanding people, children and ani‐ mals out of the way. ► Do not leave the battery unattended. ► Make sure that children cannot play with the battery. ■ The battery is not protected against all ambi‐ ent conditions. If exposed to certain ambient conditions, the battery may catch fire or explode. This may result in serious injury to people and damage to property. ► Protect the battery from heat and fire. ► Do not throw the battery into a fire. ► Use and store the battery at temper‐ atures between ‑ 10 °C and + 50 °C. ► Do not immerse the battery in liq‐ uids. ► Keep the battery away from metallic objects. ► Do not expose the battery to high pressure. ► Do not expose the battery to microwaves. ► Protect the battery from chemicals and salts.

The lawn mower is in safe condition when the following conditions are met:

The lawn mower is undamaged.

The lawn mower is clean and dry.

The controls are working and have not been modified.

The blade is correctly attached.

Genuine STIHL accessories for this lawn mower are attached.

The accessories are correctly attached. 4 Safety Precautions English

0478-131-9948-D 29WARNING

■ If not in safe condition, components may no longer operate correctly and safety devices may be disabled. This may result in serous or fatal injury to people.

Do not use a damaged lawn mower. ► If the lawn mower is dirty or wet: clean the lawn mower and allow it to dry. ► Do not modify the lawn mower. ► If the controls are not working: do not use the lawn mower. ► Attach genuine STIHL accessories for this lawn mower. ► Attach the blade as described in this instruction manual. ► Attach accessories as described in this instruction manual or in the instruction man‐ ual for the accessories.

Do not insert objects into the apertures in the lawn mower. ► Never connect the key receptacle terminals to metallic objects and cause a short circuit. ► Replace worn or damaged warning signs. ► If anything is unclear: consult a STIHL spe‐ cialist dealer.

The blade is in safe condition when the following conditions are met:

The blade and attachments are undamaged.

The blade is not deformed.

The blade is correctly attached.

The blade is correctly sharpened.

The blade is burr-free.

The blade is correctly balanced.

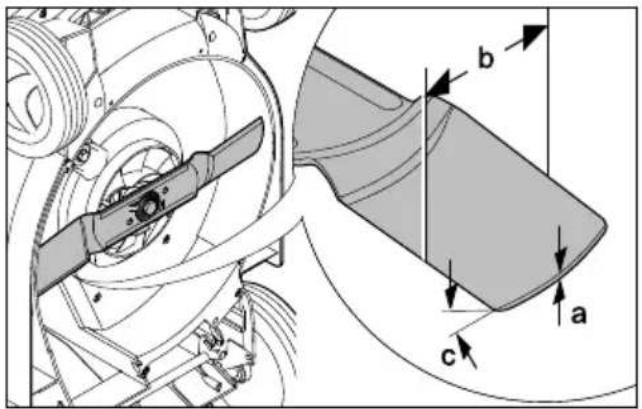

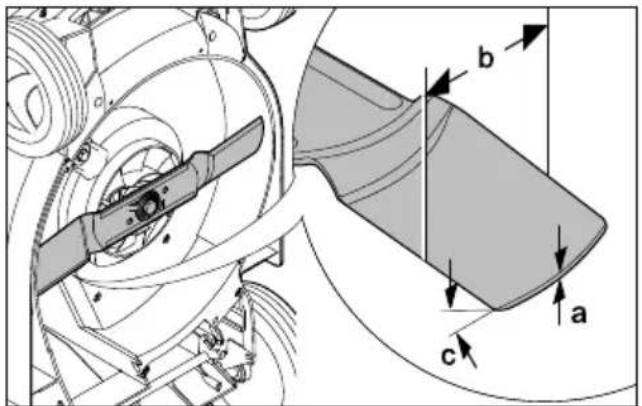

The minimum thickness and minimum width of the blade are not fallen below,

The sharpening angle is observed, 21.2. WARNING

In unsafe condition, blade parts may come loose and be expelled. This may result in seri‐ ous injury to people.

The battery is in safe condition when the follow‐ ing conditions are met:

The battery is not damaged.

The battery is clean and dry.

The battery is working and has not been modi‐ fied. WARNING ■ The battery cannot function safely if it is not in safe condition. There is a risk of serious injury to persons.

Use an undamaged and functioning battery. ► Do not charge a damaged or defective bat‐ tery. ► If the battery is dirty or wet: clean the bat‐ tery and allow it to dry. ► Do not modify the battery. ► Do not insert objects into the apertures in the battery. ► Never connect the battery terminals to met‐ allic objects and cause a short circuit. ► Do not open the battery. ► Replace worn or damaged warning signs. ■ Fluid may leak from a damaged battery. If the fluid contacts the skin or eyes, this may cause irritation.

Avoid contact with the fluid. ► In the event of contact with the skin: wash the affected areas with plenty of soap and water.

In the event of contact with the eyes: rinse the eyes with plenty of water for at least 15 minutes and seek medical attention.

A damaged or defective battery may emit an unusual odour, smoke or catch fire. This may result in serious or fatal injury to people and damage to property.

If the battery emits an unusual odour or smoke: do not use the battery and keep it away from flammable materials.

If the battery catches fire: try to extinguish the battery using a fire extinguisher or water.

In certain situations, the user may no longer be able to concentrate on their work. This may result in the user stumbling, falling and becom‐ ing seriously injured.

Work calmly and carefully. ► If the light and visibility conditions are poor: do not use the lawn mower. ► Operate the lawn mower alone. English 4 Safety Precautions 30 0478-131-9948-D► Watch out for obstacles. ► Do not tilt the lawn mower. ► Work standing on the ground and maintain balance. ► If signs of fatigue occur: take a break. ► If mowing on a slope: mow across the slope. ► Do not work on slopes with an inclination greater than 25° (46.6%). ■ The turning blade may cut the user. This may result in serious injury to the user. ► Do not touch a turning blade. ► If the blade is blocked by an object: switch the lawn mower off, pull out the activation key and remove the battery. Only then remove the object.

If working without self-propulsion when mow‐ ing, self-propulsion may unintentionally be engaged and the lawn mower may start mov‐ ing. This may result in serious injury to people and damage to property.

Only press the control bar for self-propul‐ sion if self-propulsion is to be engaged. ■ If the lawn mower changes or starts to behave differently when working, it may not be in safe condition. This may result in serious injury to people and damage to property.

Stop working, pull out the activation key, remove the battery and consult a STIHL specialist dealer.

The lawn mower may cause vibrations when working. ► Wear gloves. ► Take breaks. ► If signs of a circulatory disturbance occur: consult a doctor. ■ If the blade hits a foreign object when working, the foreign object or parts of it may be dam‐ aged or thrown up at high velocity. This may result in injury to people and damage to prop‐ erty.

Remove foreign objects from the work area. ■ When the control bar for mowing is released, the blade continues to turn for a short time. This may result in serious injury to people.

Wait until the blade is no longer turning. ■ Sparks may be produced if the turning blade hits a hard object. Sparks may cause fires in highly flammable environments. This may result in serious or fatal injury to people and damage to property.

Do not work in a highly flammable environ‐ ment. ■ If the lawn mower is stopped on a sloping sur‐ face, it may unintentionally roll away. This may result in injury to people and damage to prop‐ erty. ► Only let go of the lawn mower if it is on a level surface and cannot roll away by itself. ■ If objects are attached to the handlebar, the additional weight may cause the lawn mower to tip over. This may result in injury to people and damage to property.

Do not attach objects to the handlebar. DANGER ■ If working near live wires, the blade may come into contact with the live wires and damage them. This may result in serious or fatal injury to the user.

Do not work near live wires. ■ The user may be struck by lighting if working during a thunderstorm. This may result in seri‐ ous or fatal injury to the user.

Do not work during thunderstorms.

WARNING ■ The lawn mower may tip over or move during transport. This may result in injury to people and damage to property. ► Pull out the activation key. ► Remove the battery. ► Secure the lawn mower with lashing straps, belts or a net so it cannot tip over and move.

If the activation key and battery are inserted during transport with self-propulsion disen‐ gaged, self-propulsion may unintentionally be engaged and the lawn mower may start mov‐ ing. This may result in serious injury to people and damage to property. ► Pull out the activation key. ► Remove the battery. 4 Safety Precautions English 0478-131-9948-D 314.8.2 Battery WARNING

The battery is not protected against all ambi‐ ent conditions. The battery may be damaged if it is exposed to certain ambient conditions and damage to property may occur.

Never transport a damaged battery. ► Store the battery in non-conductive packag‐ ing. ■ The battery may turn over or shift during trans‐ port. This may result in personal injuries and damage to property.

Pack the battery in packaging in such a way that it cannot move. ► Secure the packaging so that it cannot move.

WARNING ■ Children cannot recognise or evaluate the dangers posed by the lawn mower. There is a risk of serious injury to children. ► Pull out the activation key. ► Remove the battery. ► Keep the lawn mower out of reach of chil‐ dren. ■ Moisture may cause corrosion to the electrical contacts on the lawn mower and metal compo‐ nents. This may result in damage to the lawn mower. ► Pull out the activation key. ► Remove the battery. ► Keep the lawn mower clean and dry. ■ If the activation key and battery are inserted during storage, the blade and self-propulsion may unintentionally be engaged and the lawn mower may start moving. This may result in serious injury to people and damage to prop‐ erty. ► Pull out the activation key. ► Remove the battery. ■ If the lawn mower is kept on a sloping surface, it may unintentionally roll away. This may result in injury to people and damage to prop‐ erty.

The lawn mower should only be kept on level surfaces.

WARNING ■ Children are not aware of and cannot assess the dangers of the battery and can be seri‐ ously injured.

Store the battery out of the reach of chil‐ dren. ■ The battery is not protected against all ambi‐ ent conditions. The battery may be damaged if it is exposed to certain ambient conditions.

Store the battery in a clean and dry condi‐ tion. ► Store the battery in an enclosed location. ► Store the battery separately from the mower and charger. ► Store the battery in non-conductive packag‐ ing. ► Store the battery at temperatures between -10°C and +50°C.

4.10 Cleaning, Maintenance and

If the activation key and battery are inserted during cleaning, maintenance or repair, the blade may unintentionally be activated. This may result in serious injury to people and damage to property. ► Pull out the activation key. ► Remove the battery. ■ If the activation key and battery are inserted during cleaning, maintenance and repair, self- propulsion may unintentionally be engaged and the lawn mower may start moving. This English 4 Safety Precautions 32 0478-131-9948-Dmay result in serious injury to people and damage to property. ► Pull out the activation key. ► Remove the battery. ■ Abrasive cleaning agents, using a water jet for cleaning or sharp objects may result in dam‐ age to the lawn mower, blade and battery. If the lawn mower, blade and battery are not cleaned correctly, components may no longer operate correctly and safety devices may be disabled. This may result in serious injury to people. ► Clean the lawn mower, blade and battery as described in this instruction manual. ■ If the lawn mower, blade or battery are not maintained or repaired correctly, components may no longer operate correctly and safety devices may be disabled. This may result in serous or fatal injury to people.

Do not maintain or repair the lawn mower or battery yourself. ► If the lawn mower or battery need to be maintained or repaired: consult a STIHL specialist dealer.

Maintain the blade as described in this instruction manual. ■ The user may cut themselves on sharp cutting edges during blade cleaning, maintenance or repair. This may result in injury to the user.

Wear work gloves made from resistant material. ■ The blade may become hot during sharpening. This may result in the user burning them‐ selves.

Wait until the blade has cooled down. ► Wear work gloves made from resistant material. 5 Preparing the Lawn Mower for Operation

5.1 Preparing the Lawn Mower for

Operation The following steps must be performed before commencing work: ► Remove packaging material and transport locks from the machine. ► Make sure that the following components are in safe condition:

Fully charge the battery, 6.1.

Clean the lawn mower, 17.2.

Fold up and adjust the handlebar, 8.1. ► If mowing and the mown grass is to be collec‐ ted in the grass catcher box: attach the grass catcher box, 7.2.2. ► If mowing and the mown grass is to be ejected to the rear: detach the grass catcher box,

Set the cutting height,

6.1 Charging the Battery

The charging time depends on several factors, e.g. temperature of the battery or the ambient temperature. The actual charging time may differ from the specified charging time. For specified charging times see www.stihl.com/charging- times. ► Recharge the battery fully as described in the instruction manual for the STIHL AL 101, 300, 500 chargers.

6.2 Displaying the Charge State

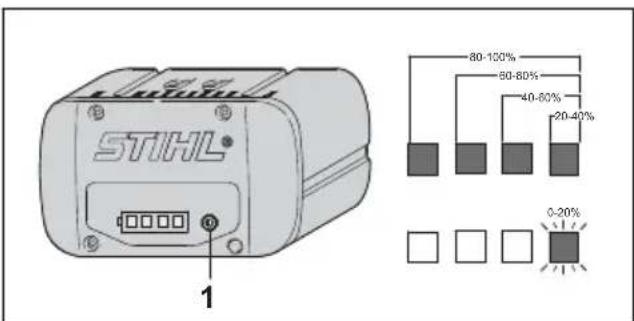

The LEDs can show the state of charge or mal‐ functions. The LEDs can glow or flash green or red. 5 Preparing the Lawn Mower for Operation English 0478-131-9948-D 33The state of charge is indicated when the LEDs glow or flash green. ► If the LEDs glow or flash red: Troubleshooting,

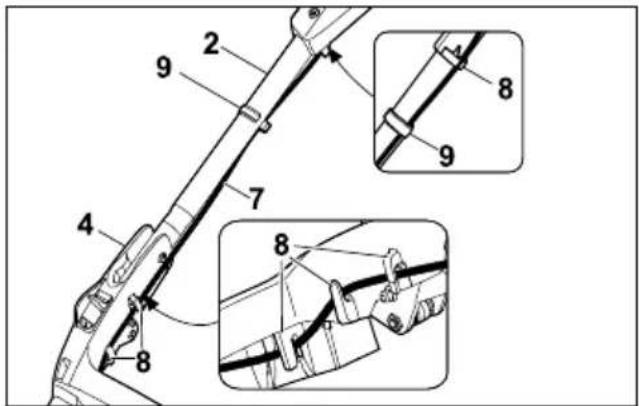

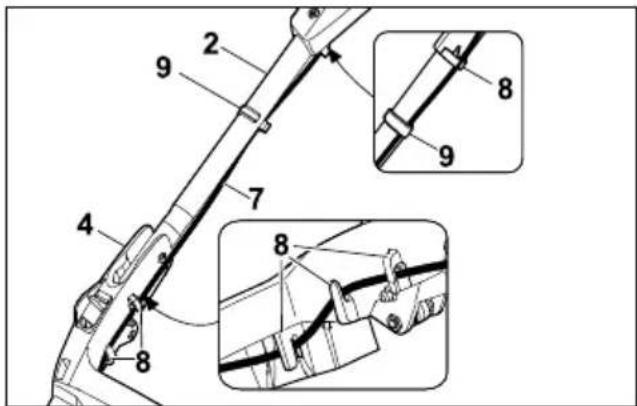

There is a malfunction in the mower or battery. 7 Assembling the Lawn Mower

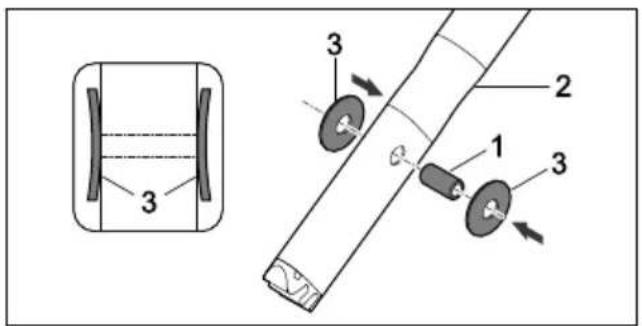

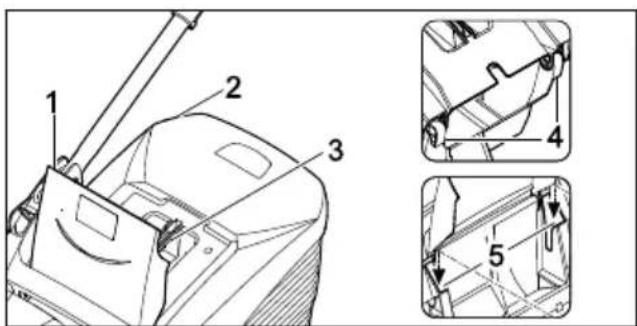

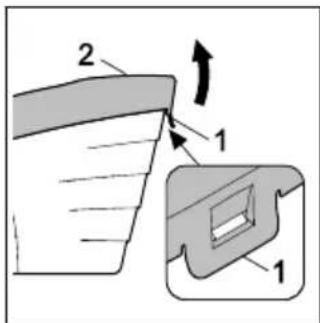

7.2 Assembling, Attaching and

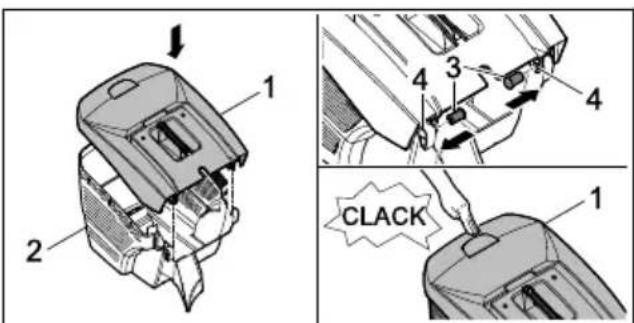

► Fit upper part of grass catcher box (1) onto lower part of grass catcher box (2). ► Press pins (3) through openings (4) from the inside. ► Press upper part of grass catcher box (1) downwards. The upper part of the grass catcher box engages with a click.

► Switch the lawn mower off. ► Place the lawn mower on a level surface. ► Open the discharge flap and hold it open. ► Remove the grass catcher box upwards by the handle. ► Close the discharge flap. 8 Adjusting the Lawn Mower for the User

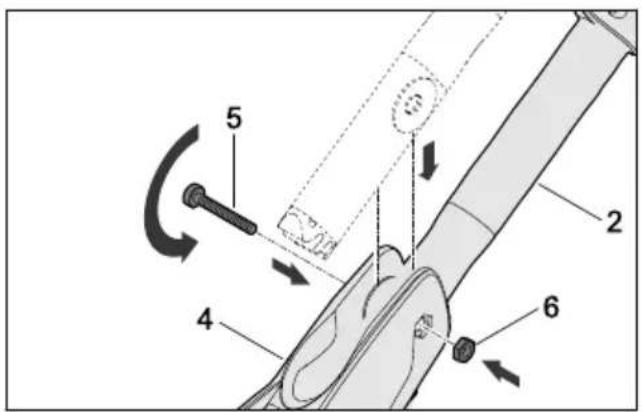

8.1 Adjusting the Handlebar

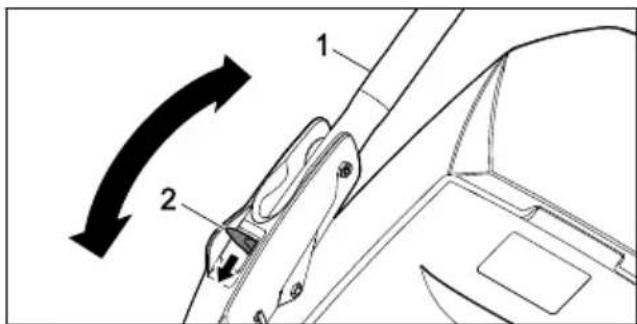

The handlebar can be folded for space-saving transport or storage. ► Switch the lawn mower off, pull out the activa‐ tion key and remove the battery. ► Place the lawn mower on a level surface. ► Press and hold the lever. ► Fold down the handlebar forwards. 9 Removing and Fitting the Battery

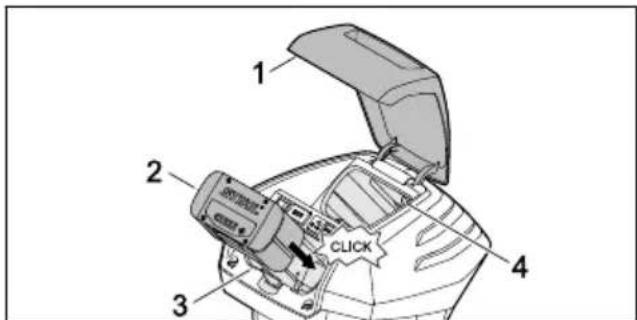

9.1 Fitting the Battery

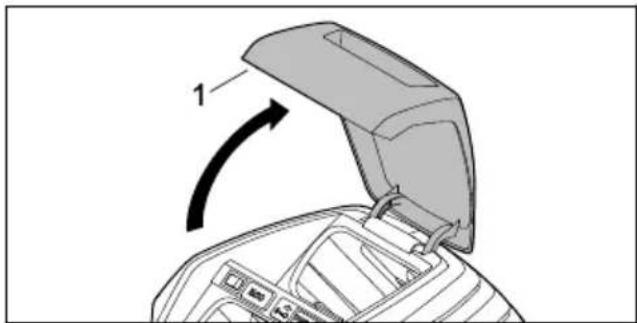

RMA 443 PV and RMA 448 PV: The RMA 443 PV and RMA 448 PV lawn mow‐ ers can be operated with two batteries. As soon as the battery in the first battery compartment (3) is discharged, the machine automatically switches to the battery in the second battery compartment (4). There must always be a bat‐ tery in the first battery compartment (3) when working. RMA 443 VC and RMA 448 VC: The RMA 443 VC and RMA 448 VC lawn mow‐ ers are equipped with a battery compartment (3) and a transport compartment (4). The lawn mow‐ ers can only be operated with the battery in bat‐ tery compartment (3). A replacement battery can be carried in transport compartment (4). ► Open flap (1) as far as the stop and hold. ► Push battery (2) into battery compartment (3) as far as it will go. Battery (2) engages with a click and is locked in place. ► If a second battery is to be carried: fit the bat‐ tery in battery compartment (3) or transport compartment (4). The battery engages with a click and is locked in place. ► Close flap (1).

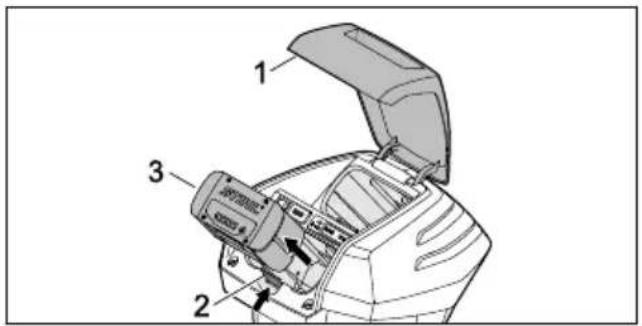

9.2 Removing the Battery

► Place the lawn mower on a level surface. ► Open flap (1) as far as the stop and hold. 8 Adjusting the Lawn Mower for the User English 0478-131-9948-D 35► Press locking lever (2). The battery (3) is released. ► Remove battery (3). ► Close flap (1). 10 Inserting and Removing the Activation Key

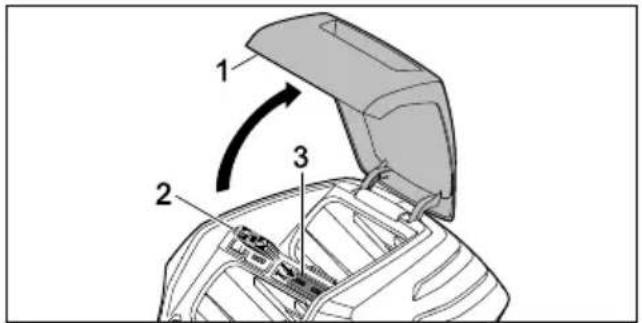

10.1 Inserting the Activation Key

► Open flap (1) as far as the stop and hold. ► Insert activation key (2) in key receptacle (3). ► Close flap (1).

10.2 Removing the Activation Key

► Open the flap as far as the stop and hold. ► Pull out the activation key. ► Close the flap. ► Keep the activation key out of the reach of children. 11 Switching the Lawn Mower On and Off

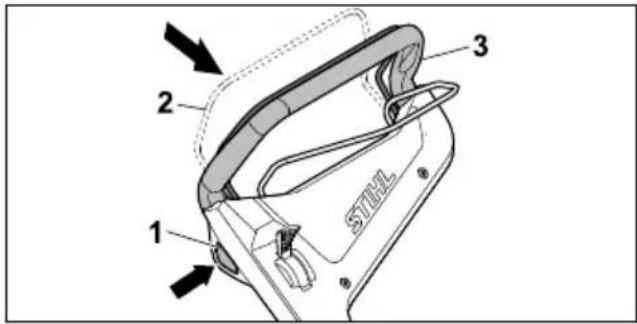

11.1 Activating and Deactivating the

► Release the control bar for mowing. ► Wait until the blade is no longer turning. ► If the blade continues to turn: pull out the acti‐ vation key, remove the battery and consult a STIHL specialist dealer. The lawn mower is defective.

11.2 Switching the Drive On and Off

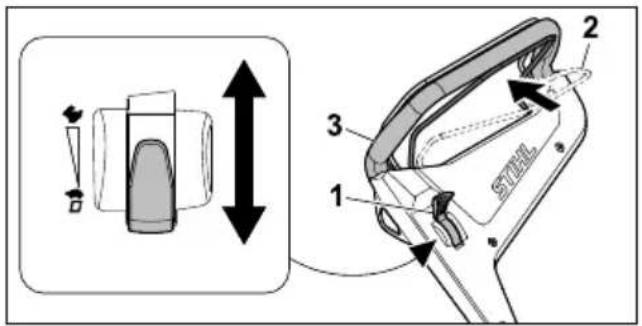

11.2.1 Engaging Self-propulsion

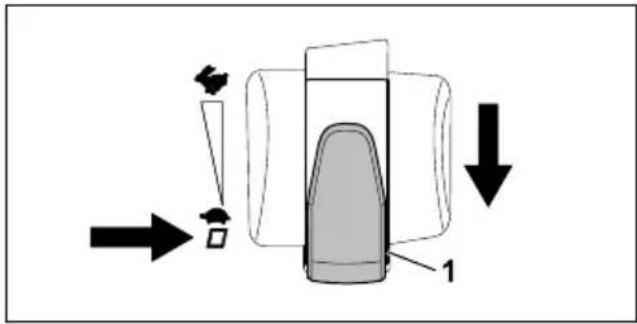

The lever can be used to preselect the maximum possible driving speed in five stages. Pushing the lever towards increases the maximum possible driving speed, pushing it towards reduces it. Self-propulsion is disengaged in the position. The control bar for self-propulsion can be used to continuously regulate the speed from 2.0 km/h up to the preselected maximum speed. The fur‐ ther the control bar for self-propulsion is pulled towards the handlebar, the higher the speed,

The set speed influences the battery life. The lower the speed, the longer the battery life. ► Place the lawn mower on a level surface. ► Activate the blade. English 10 Inserting and Removing the Activation Key 36 0478-131-9948-D► Move lever (1) to the desired position. ► Pull control bar for self-propulsion (2) fully in the direction of handlebar (3) and hold so the thumb encloses handlebar (2). The lawn mower starts moving.

11.2.2 Deactivating Drive System

► Release the control bar for self-propulsion. ► Wait until the mower comes to a standstill. ► If the mower does not stop: Pull out the activa‐ tion key, remove the battery and consult a STIHL specialist dealer for assistance. There is a malfunction in the mower. 12 Checking the Lawn Mower and Battery

12.1 Checking the Controls

Lockout button and switch lever for blade drive ► Pull out the activation key. ► Remove the battery. ► Depress the lockout button and release it again. ► Pull the switch lever for blade drive fully in direction of handle and release it again. ► If the lockout button or switch lever for blade drive is stiff or does not spring back to the idle position: Do not use your mower and contact your STIHL servicing dealer for assistance. There is a malfunction in the lockout button or switch lever. Switch lever for wheel drive ► Pull out the activation key. ► Remove the battery. ► Pull the switch lever for wheel drive fully in direction of handle and release it again. ► If the switch lever for wheel drive is stiff or does not spring back to its idle position: Do not use your mower and contact your STIHL serv‐ icing dealer for assistance. There is a malfunction in the switch lever for wheel drive. Lever ► Pull out the activation key. ► Remove the battery.

Move lever to , and then to . ► If the lever moves too freely: Do not use your mower and contact your STIHL servicing dealer for assistance. The lever is defective. Switching on the mower ► Insert the activation key. ► Fit the battery. ► Depress the lockout button with your right hand and hold it there. ► Pull the switch lever for blade drive fully in direction of the handle with your left hand and hold it so that your thumb is wrapped around the handle. The blade rotates. ► If 3 LEDs flash red: Remove the activation key and battery, and contact your STIHL servicing dealer for assistance. There is a malfunction in the mower. ► Release lockout button and switch lever for blade drive. The blade stops rotating after a brief delay. ► If the blade continues to rotate: Remove the activation key and battery, and contact your STIHL servicing dealer for assistance. There is a malfunction in the mower. Switching on wheel drive ► Insert the activation key. ► Fit the battery. ► Pull the switch lever for wheel drive fully in direction of the handle and hold it so that your thumb is wrapped around the handle. The mower begins to move forwards. ► Release the switch lever for wheel drive. The mower comes to a standstill. ► If the mower does not stop: Remove the bat‐ tery and contact your STIHL dealer for assis‐ tance. There is a malfunction in the mower.

Upend the lawn mower, 17.1. 12 Checking the Lawn Mower and Battery English 0478-131-9948-D 37► Measure the following:

12.3 Testing the Battery

► Press button on battery. The LEDs glow or flash. ► If the LEDs do not glow or flash: Do not use the battery and contact your STIHL servicing dealer. There is a malfunction in the battery. 13 Operating the Lawn Mower

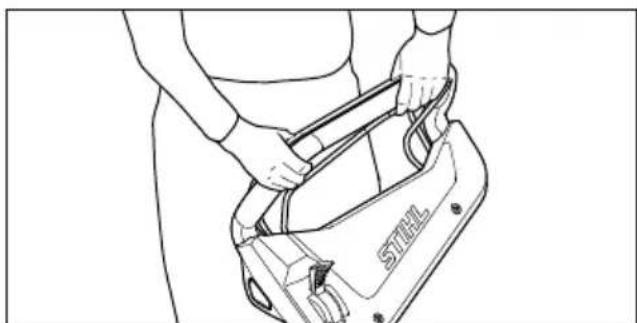

13.1 Holding and Guiding the Lawn

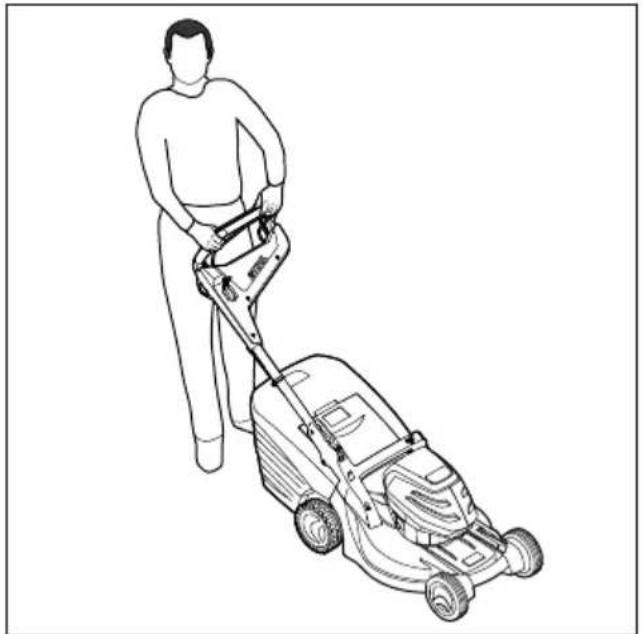

Mower ► Hold the handlebar with both hands so the thumbs enclose the handlebar.

13.2 Adjusting the Cutting Height

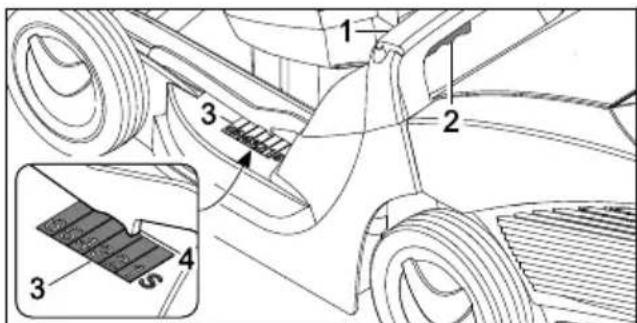

Six cutting heights can be set:

75 mm = position 6 The positions are indicated on the lawn mower. ► Hold the lawn mower at handle (1). ► Press and hold lever (2). ► Move the lawn mower to the desired position by raising and lowering the lever. The current cutting height can be read off at cutting height indicator (3) by means of mark‐ ing (4). ► Release lever (2). The lawn mower engages.

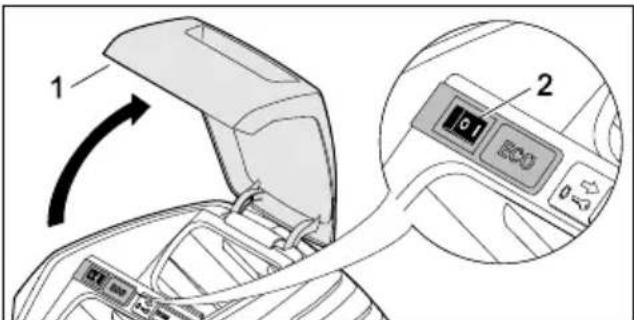

13.3 Activating ECO Mode

When ECO mode is activated, the lawn mower detects the current working conditions and adjusts the blade speed automatically. This may extend the battery life. ► Open flap (1) as far as the stop and hold. ► Set ECO switch (2) to the I position. ► Close flap (1). English 13 Operating the Lawn Mower 38 0478-131-9948-D13.4 Mowing ► If working with self-propulsion engaged: drive the lawn mower forwards in a controlled man‐ ner. ► If working with self-propulsion disengaged: push the lawn mower forwards slowly and in a controlled manner.

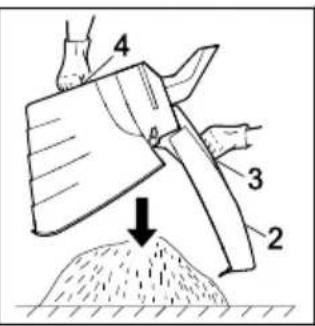

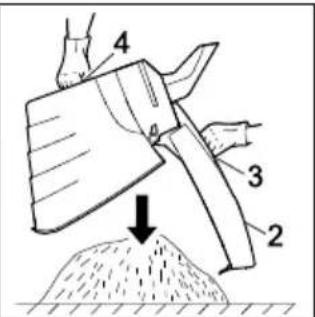

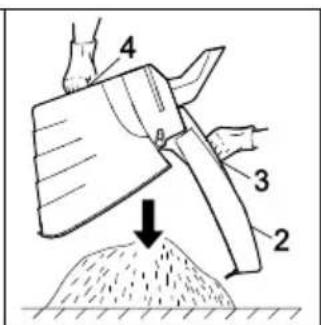

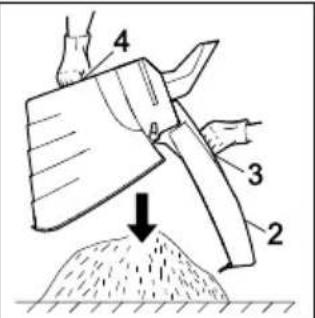

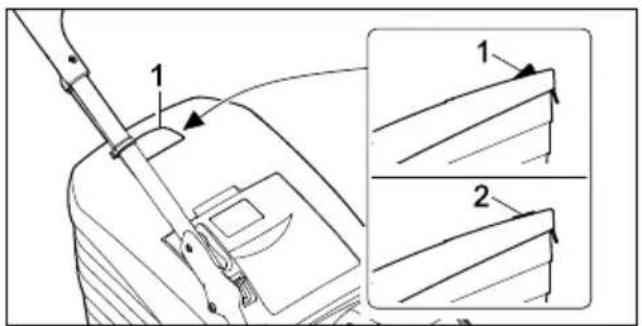

13.5 Emptying the Grass Catcher

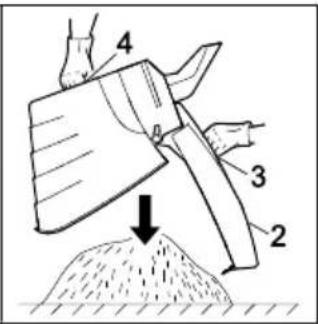

Box The flow of air generated by the blade raises level indicator (1). The flow of air stops when the grass catcher box is full. If the flow of air is too low, level indicator (2) returns to its resting state. This is a prompt to empty the grass catcher box. The functionality of the level indicator is restric‐ ted if the flow of air is impaired. External influen‐ ces such as wet, dense or high grass, low cutting levels, contamination or the like can impair the flow of air and the functionality of the level indica‐ tor. ► If the level indicator drops to its resting state: empty the grass catcher box. ► Switch the lawn mower off.

14.1 After Finishing Work

► Switch off the mower, remove the activation key and battery. ► If the mower is wet: Allow the mower to dry. ► If the battery is wet: Allow the battery to dry. ► Clean the mower. ► Clean the battery. 15 Transporting

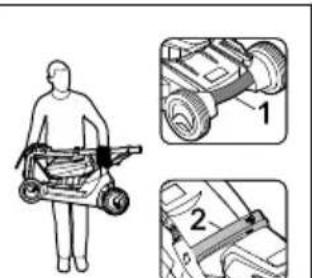

15.1 Transporting the Lawn Mower

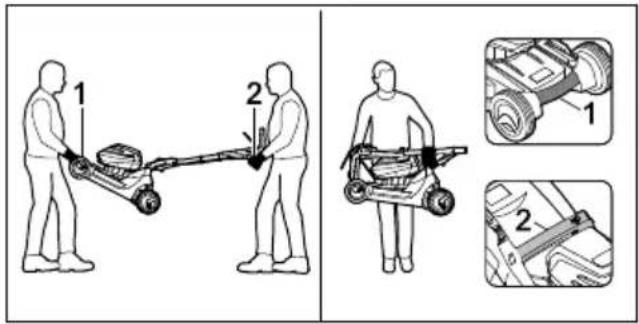

► Switch the lawn mower off. The blade must not be turning. ► Pull out the activation key and remove the bat‐ tery. Pushing the lawn mower ► Push the lawn mower forwards slowly and in a controlled manner. Carrying the lawn mower ► Wear work gloves made from resistant mate‐ rial. 14 After Finishing Work English 0478-131-9948-D 39► If the lawn mower is being carried by two peo‐ ple: ► One person holds the lawn mower by trans‐ port handle (1) using both hands and another person holds handlebar (2) using both hands. ► The lawn mower must be lifted and carried by two people. ► If the lawn mower is being carried by one per‐ son: ► Fold down the handlebar. ► Hold the lawn mower with one hand on transport handle (1) and the other hand on handle (2). ► Lift and carry the lawn mower. Transporting the lawn mower in a vehicle ► Secure the lawn mower upright so that the lawn mower does not tip over and cannot move.

15.2 Transporting the Battery

► Switch off the mower and remove the battery. ► Make sure the battery is in a safe condition. ► Observe the following points when packing the battery:

The packaging must be non-conductive.

Make sure the battery cannot shift inside the packaging. ► Secure the packaging so that it cannot move. The battery is subject to the requirements for the transport of dangerous goods. The battery is classified as UN 3480 (lithium-ion batteries) and has been tested in accordance with UN Manual of Tests and Criteria, Part III, sub-section 38.3. For transport regulations see www.stihl.com/ safety-data-sheets 16 Storing

16.1 Storing the Lawn Mower

► Switch the lawn mower off, pull out the activa‐ tion key and remove the battery. ► Store the lawn mower in accordance with the following conditions:

The lawn mower is out of reach of children.

The lawn mower is clean and dry.

The lawn mower cannot tip over.

The lawn mower cannot roll away.

16.2 Storing the Battery

STIHL recommends that you store the battery with a charge between 40% and 60% (2 LEDs glow green). ► Check the following points when storing the battery:

Battery is out of the reach of children.

Battery is clean and dry.

Battery is in an enclosed location.

Battery is stored separately from the mower and charger.

Battery is in non-conductive packaging.

Battery is in a temperature range between -10°C and +50°C. 17 Cleaning

17.1 Placing the Lawn Mower in the

Set the cutting height to the highest setting.

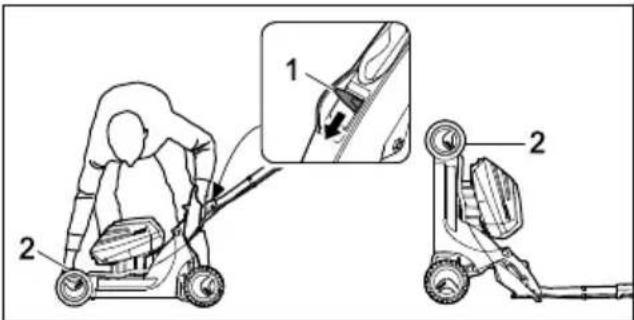

► Move the upper handlebar to the lowest posi‐ tion, 8.1. ► Press lever (1) downwards with the left hand and hold. ► Hold the lawn mower at transport handle (2) with the right hand and upend.

17.2 Cleaning the Lawn Mower

► Switch the lawn mower off, pull out the activa‐ tion key and remove the battery. ► Clean the lawn mower with a damp cloth. ► Clean the discharge chute with a soft brush or a damp cloth. ► Remove any foreign bodies from the battery compartment and clean the battery compart‐ ment with a damp cloth. English 16 Storing 40 0478-131-9948-D► Clean the electric contacts in the battery com‐ partment with a paintbrush or a soft brush. ► Clean the ventilation slots with a paintbrush. ► Upend the lawn mower. ► Clean the area around the blade and the blade with a stick, a soft brush or a damp cloth.

17.3 Cleaning the Battery

► Clean the battery with a damp cloth. 18 Maintenance

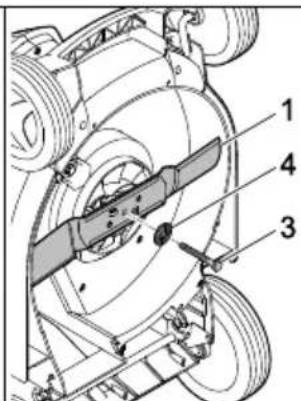

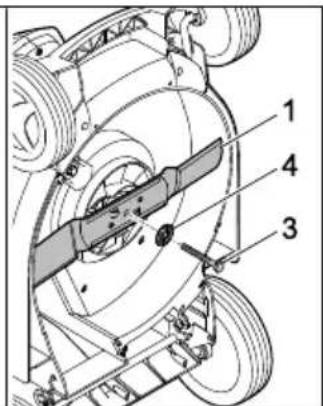

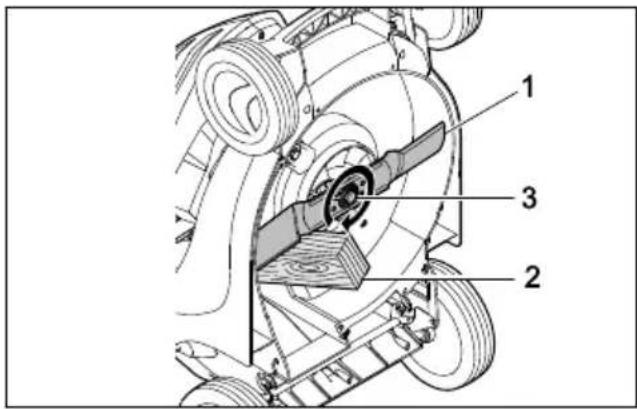

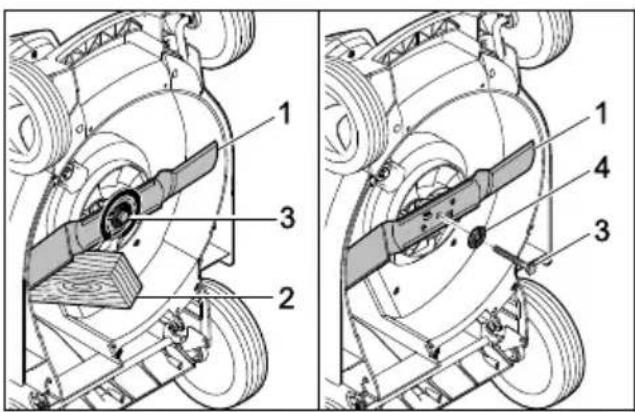

18.1 Removing and Attaching the

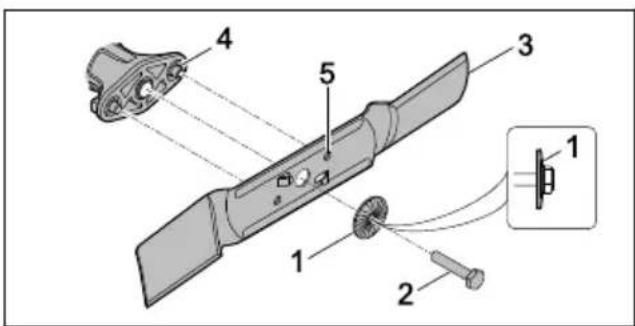

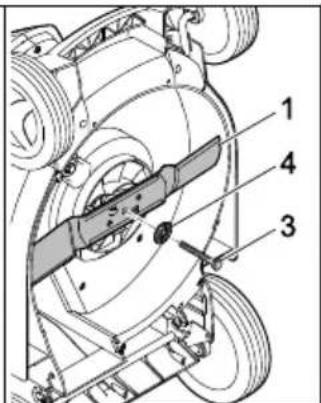

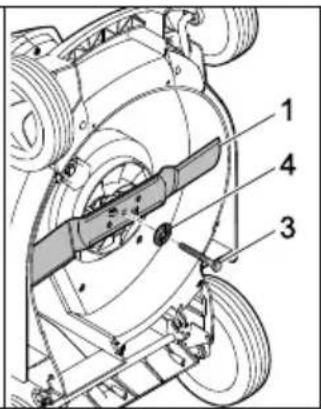

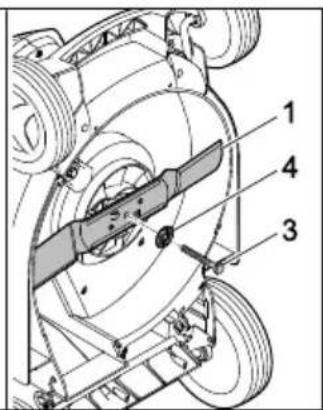

► Switch the lawn mower off, pull out the activa‐ tion key and remove the battery. ► Upend the lawn mower. ► Lay new washer (1) on new screw (2) with the convex side facing outwards. ► Apply Loctite 243 thread locker to the thread of screw (2). ► Position blade (3) so that the raised areas on contact area (4) engage in notches (5). ► Screw in screw (2) together with washer (1). ► Block blade (1) using a piece of wood (2). ► Tighten screw (3) to 65 Nm.

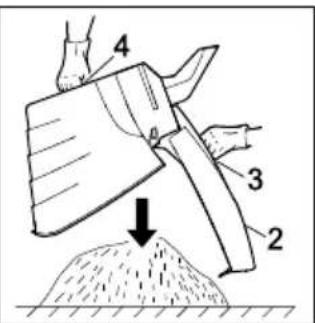

18.2 Sharpening and Balancing the

Blade Sharpening and balancing the blade correctly requires a lot of practice. STIHL recommends having the blade sharpened and balanced by a STIHL specialist dealer. WARNING ■ The cutting edges of the blade are sharp. This may result in the user cutting themselves. ► Wear work gloves made from resistant material. ► Switch the lawn mower off, pull out the activa‐ tion key and remove the battery. ► Upend the lawn mower. ► Remove the blade. ► Sharpen the blade. Observe the sharpening angle and cool the blade, 21.2. Bluing of the blade during sharpening is not permitted. ► Attach the blade. ► If anything is unclear: consult a STIHL special‐ ist dealer. 19 Repairing

19.1 Repairing the Mower and Bat‐

tery The mower, blade and battery cannot be repaired by the user. ► If the mower or the blade is damaged: Do not use your mower and contact your STIHL serv‐ icing dealer for assistance. ► If the battery has a malfunction or is damaged: Replace the battery. 18 Maintenance English 0478-131-9948-D 41► If safety labels are illegible or damaged: Have the labels replaced by a STIHL servicing dealer. 20 Troubleshooting

20.1 Remedying Lawn Mower or Battery Faults

Fault LEDs on the battery Cause Remedy The lawn mower does not start when switched on. 1 LED flashes green. The battery charge state is too low. ► Charge the battery. 1 LED illumina‐ tes red. The battery is too warm or too cold. ► Pull out the activation key. ► Remove the battery. ► Allow the battery to cool down or warm up. 3 LEDs flash red. There is a fault in the lawn mower. ► Pull out the activation key. ► Remove the battery. ► Clean the electric contacts in the battery compartment. ► Fit the battery. ► Switch the lawn mower on. ► If 3 LEDs still flash red: do not use the lawn mower and consult a STIHL spe‐ cialist dealer. 3 LEDs illumi‐ nate red. The lawn mower is too warm. ► Pull out the activation key. ► Remove the battery. ► Allow the lawn mower to cool down. 4 LEDs flash red. There is a fault in the battery. ► Remove the battery and fit it again. ► Switch the lawn mower on. ► If 4 LEDs still flash red: do not use the battery and consult a STIHL specialist dealer. The electrical connec‐ tion between the lawn mower and battery has been interrupted. ► Pull out the activation key. ► Remove the battery. ► Clean the electric contacts in the battery compartment. ► Insert the activation key. ► Fit the battery. The lawn mower or battery are damp. ► Pull out the activation key. ► Remove the battery. ► Clean the lawn mower. ► Allow the lawn mower or battery to dry. The resistance at the blade is too great. ► Set a higher cutting height. ► Switch the lawn mower on in lower grass. The area around the blade is blocked. ► Clean the lawn mower. Self-propulsion is not working. There is a fault in the self-propulsion mechanism. ► Consult a STIHL specialist dealer. The lawn mower stops during ope‐ ration. 3 LEDs illumi‐ nate red. The lawn mower is too warm. ► Pull out the activation key. ► Remove the battery. ► Allow the lawn mower to cool down. ► Clean the lawn mower. ► Do not switch the lawn mower on too fre‐ quently within a short time. ► If working with self-propulsion engaged: switch off self-propulsion. English 20 Troubleshooting 42 0478-131-9948-DFault LEDs on the battery Cause Remedy ► If working with self-propulsion disenga‐ ged: go forwards slower. ► Set a higher cutting height. ► Mow shorter grass. The blade is blocked. ► Pull out the activation key. ► Remove the battery. ► Clean the lawn mower. There is an electrical fault. ► Remove the battery and fit it again. ► Switch the lawn mower on. The lawn mower vibrates excessi‐ vely during ope‐ ration. The blade fastening screw is loose. ► Tighten the screw. The blade is not cor‐ rectly balanced. ► Sharpen and balance the blade. The lawn mower operating time is too short. The battery is not fully charged. ► Fully charge the battery. The battery service life has been excee‐ ded. ► Replace the battery. The area around the blade is blocked. ► Clean the lawn mower. The blade is blunt or worn. ► Sharpen and balance the blade. The resistance at the blade is too great. ► If working with self-propulsion engaged: switch off self-propulsion. ► If working with self-propulsion disenga‐ ged: go forwards slower. ► Set a higher cutting height. ► Mow shorter grass. The battery gets stuck when fitting it into the battery compartment. The guides or electric contacts in the battery compartment are dirty. ► Clean the lawn mower. Charging fails to start after fitting the battery into the charger. 1 LED illumina‐ tes red. The battery is too warm or too cold. ► Leave the battery inserted in the char‐ ger. Charging starts automatically as soon as the permissible temperature range is reached. The grass has not been cut cleanly or the lawn is yellow. The blade is blunt or worn. ► Sharpen and balance the blade. The resistance at the blade is too great. ► If working with self-propulsion engaged: switch off self-propulsion. ► If working with self-propulsion disenga‐ ged: go forwards slower. ► Set a higher cutting height. ► Mow shorter grass. 20 Troubleshooting English 0478-131-9948-D 4321 Specifications

Weight without battery:

Maximum grass catcher box capacity: 55 l

Speed in ECO mode: 2,800 rpm

Minimum driving speed: 2.0 km/h Maximum driving speed (depending on the battery used):

with AP 100: 3.0 km/h

with AP 200: 3.7 km/h

with AP 300: 4.5 km/h For information on the battery life see www.stihl.com/battery-life.

Sharpening angle c: 30°

21.3 STIHL AP battery

Capacity in Ah: see rating label

Energy content in Wh: see rating label

Weight in kg: see rating label

Permissible temperature range for operation and storage: -10°C to +50°C

RMA 443.2 VC, RMA 443.2 PV

The K value for the sound pressure level is 2 dB(A). The K value for the sound power level is

1.2 dB(A). The K value for the vibration value is

Sound pressure level L

measured in accord‐ ance with EN 60335-2-77: 75 dB(A)

Guaranteed sound power level L WAd meas‐ ured in accordance with 2000/14/ EC / S.I. 2001/1701: 90 dB(A)

measured in accordance with EN 20643, EN 60335-2-77, handlebar:

The K value for the sound pressure level is 2 dB(A). The K value for the sound power level is

1.2 dB(A). The K value for the vibration value is

Sound pressure level L

measured in accord‐ ance with EN 60335-2-77: 80 dB(A)

Guaranteed sound power level L WAd meas‐ ured in accordance with 2000/14/ EC / S.I. 2001/1701: 94 dB(A)

measured in accordance with EN 20643, EN 60335-2-77, handlebar:

The indicated vibration values were measured in accordance with a standardised test method and can be used for the purpose of comparing electri‐ cal appliances. The actual vibration values that occur may deviate from the indicated values, depending on the type of application. The indica‐ ted vibration values can be used for an initial assessment of the vibration load. The actual vibration load must be assessed. Times during which the electrical appliance is switched off, along with times during which it is switched on but running without load, can also be taken into consideration. For information on compliance with Employers' Vibration Directive 2002/44/EC and S.I. 2005/1093, see www.stihl.com/vib.

REACH is an EC regulation and stands for the Registration, Evaluation, Authorisation and Restriction of Chemical substances. For information on compliance with the REACH regulation see www.stihl.com/reach. English 21 Specifications 44 0478-131-9948-D22 Spare Parts and Accesso‐ ries

22.1 Spare parts and accessories

These symbols indicate original STIHL spare parts and original STIHL acces‐ sories. STIHL recommends the use of original STIHL spare parts and accessories. Despite ongoing market observation, STIHL is unable to judge the reliability, safety and suitabil‐ ity of other manufacturers' spare parts and accessories; accordingly, STIHL cannot warrant for the use of those parts. Original STIHL spare parts and original STIHL accessories are available from STIHL dealers.

Blade RMA 443.2 VC, RMA 443.2 PV:

23.1 Disposing of the Lawn Mower

Information on disposal is available from your local authority or from a STIHL dealer. Improper disposal may be harmful to health and pollute the environment. ► Take STIHL products including packaging to a suitable collection point for recycling in accord‐ ance with local regulations. ► Do not dispose of the product with domestic waste. 24 EC Declaration of Con‐ formity

design: cordless lawn mower

type: RMA 443.2 VC, RMA 443.2 PV,

complies with the relevant provisions of Direc‐ tives 2000/14/EC, 2006/42/EC, 2014/30/EU and 2011/65/EU and has been developed and manu‐ factured in accordance with the versions of the following standards valid on the date of manufac‐ ture: EN 60335-1, EN 60335‑2-77, EN 55014-1 and EN 55014-2. Approved body involved: TÜV Rheinland LGA Products GmbH Tillystrasse 2 90431 Nuremberg, Germany The measured and guaranteed sound power lev‐ els were determined in accordance with Directive 2000/14/EC, Appendix VIII.

Measured sound power level RMA 443.2 VC, RMA 443.2 PV: 89.2 dB(A)

Guaranteed sound power level RMA 448.2 VC, RMA 448.2 PV: 94 dB(A) The technical documents are stored at STIHL Tirol GmbH. The year of manufacture and machine number are indicated on the lawn mower. Langkampfen, 02.01.2020 STIHL Tirol GmbH p.p. Matthias Fleischer, Head of Research and Development Division p.p. Sven Zimmermann, Head of Quality Department 22 Spare Parts and Accessories English 0478-131-9948-D 4525 UKCA Declaration of Con‐ formity

design: cordless lawn mower

RMA 448.2 VC: 6358 complies with the relevant provisions of the UK regulations Noise Emission in the Environment by Equipment for Use Outdoors Regulations 2001, Supply of Machinery (Safety) Regulations 2008, Electromagnetic Compatibility Regulations 2016 and Restriction of the Use of Certain Haz‐ ardous Substances in Electrical and Electronic Equipment Regulations 2012 and has been developed and manufactured in accordance with the versions of the following standards valid on the date of manufacture: EN 60335-1, EN 60335‑2-77, EN 55014-1 and EN 55014-2. Approved body involved: TUV Rheinland UK Ltd 1011 Stratford Road Solihull, B90 4BN The measured and guaranteed sound power lev‐ els were determined in accordance with the UK regulation Noise Emission in the Environment by Equipment for Use Outdoors Regulations 2001, Schedule 11.

Measured sound power level, RMA 443.2 VC:

Guaranteed sound power level, RMA 443.2 VC: 90 dB(A)

Measured sound power level, RMA 448.2 VC:

Guaranteed sound power level, RMA 448.2 VC: 94 dB(A) The technical documents are stored at STIHL Tirol GmbH. The year of manufacture and machine number are indicated on the lawn mower. Langkampfen, 02.11.2021 STIHL Tirol GmbH p.p. Matthias Fleischer, Head of Research and Development Division p.p. Sven Zimmermann, Head of Quality Division 26 Safety Information for Lawn Mowers

This chapter describes the general safety instructions preformulated in the standard EN 60335-2-77, Annex EE, for electrically operated lawn mowers. WARNING ■ Read all the safety instructions, instructions, illustrations and technical data provided with the lawn mower. Failure to comply with the fol‐ lowing instructions may cause electrical shock, fire and/or serious injury. Keep all safety instructions and instructions for the future.

Read the instruction manual carefully. Ensure that you are familiar with the controls and the correct use of the machine;

Never allow children or other persons who are not familiar with the instructions for use to use the lawn mower. Local regulations may specify a minimum age for users;

Never mow in the vicinity of other persons, particularly children or animals;

Be aware that the person operating the machine or the user is responsible for acci‐ dents involving third parties or their property.

Always wear sturdy shoes and long trousers when operating the machine. Never operate the machine barefoot or in lightweight san‐ dals. Avoid wearing loose clothing or clothing with hanging cords or belts. English 25 UKCA Declaration of Conformity 46 0478-131-9948-Db) Inspect the area on which the machine is to be used and remove any objects that could be taken in and thrown up by the machine.

Before using the machine, always visually inspect the cutting blade, the retaining pins and the entire cutting unit for wear or dam‐ age. To avoid imbalance, worn or damaged cutting blades and retaining pins must be replaced in pairs. Worn or damaged warning signs must be replaced.

Only mow during the day or with good artifi‐ cial light.

Always ensure good stability on slopes.

Operate the machine only at walking pace.

Only mow across and never up or down the slope.

Do not mow on excessively steep slopes.

Be particularly careful when turning the lawn mower around or pulling it towards you.

Stop the cutting blade(s) when the machine needs to be tilted for transportation over sur‐ faces other than grass and when moving the lawn mower from and to the area to be mown.

Never use the lawn mower with damaged safety devices or protective grilles or without attached safety devices, e.g. deflectors and/or grass-catching units.

Exercise care when starting or pressing the starting switch and observe the manufactur‐ er's instructions. Ensure that you keep your feet far enough away from the cutting blade(s).

The lawn mower must not be tilted when starting it, unless the lawn mower needs to be lifted during the process. In this case, only tilt it as far as is absolutely necessary and only raise the side facing away from the user.

Do not start the motor when you are standing in front of the discharge chute.

Never put hands or feet on or underneath rotating parts. Always keep away from the discharge opening.

Never lift or carry a lawn mower with the motor running.

Stop the motor and pull out the starting key. Ensure that all moving parts have come to a complete stop:

whenever you leave the lawn mower;

before remedying blockages, including those in the discharge chute;

before checking, cleaning or working on the lawn mower;

after hitting a foreign object. Inspect the lawn mower for damage and perform the necessary repairs before re-starting and using the lawn mower. If the lawn mower begins to vibrate exces‐ sively, it must be checked immediately.

make the necessary repairs to damaged parts;

ensure that all screws, pins and bolts are tightly fastened.

26.5 Maintenance and Storage

Ensure that all nuts, pins and bolts are tightly fastened and that the machine is in a safe working condition.

Check the grass-catching unit regularly for wear or loss of functionality.

In the interests of safety, replace all worn or damaged parts.

Be aware that on machines with more than one cutting blade, the movement of one cut‐ ting blade can cause the other cutting blade to turn.

Ensure when adjusting the machine that your fingers do not become pinched between moving cutting blades and stationary parts of the machine.

Allow the motor to cool down before storing the machine.

Note when maintaining the cutting blades that the cutting blades can be moved even if the power source is switched off.

In the interests of safety, replace all worn or damaged parts. Only use genuine spare parts and accessories. Table des matières

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV

RMA 443.2 VC, RMA 443.2 PV,

Type: RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV,

com AP 100: 3,0 km/h

RMA 443.2 VC, RMA 443.2 PV

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV

RMA 443.2 VC, RMA 443.2 PV,

Type: RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV,

RMA 443.2 VC, RMA 443.2 PV

κατά 2000/14/EC / S.I. 2001/1701: 90 dB(A)

κατά 2000/14/EC / S.I. 2001/1701: 94 dB(A)

RMA 443.2 VC, RMA 443.2 PV,
