PV260BT - Receiver Power Dynamics - Free user manual and instructions

Product Type	Multi-channel Amplified Receiver
Brand	Power Dynamics
Model	PV260BT
Power Supply	AC 110-240V, 50/60Hz
Max Output Power	6 x 100W
Speaker Impedance	4 / 8 ohms
Number of Channels	6 channels (CH1 to CH6)
Audio Inputs	2 x MIC (6.35mm jack), AUX (3.5mm jack), RCA (DVD/CD), USB, SD, FM antenna
Audio Outputs	6 pairs of speakers (binding post), headphone (6.35mm jack), line (RCA)
Wireless Connectivity	Bluetooth 5.0, FM (antenna included)
Playback Formats	MP3 (via USB/SD)
Microphone Functions	Talkover, echo, microphone volume and tone
Equalization	Treble and bass (for channels 1-4)
Controls	Individual channel volume, master volume, input selector, remote control (not provided?)
Maintenance and Cleaning	Use a dry cloth. Do not use chemicals.
Safety	Do not open. Avoid moisture. Disconnect during storms.
Spare Parts and Repairability	Contact a certified technician. Use original parts.
General Information	Indoor use. Temperature: 5°C to 35°C. Weight and dimensions not provided.

Frequently Asked Questions - PV260BT Power Dynamics

How to connect my smartphone via Bluetooth?

Press the MODE button to select BT mode (the display shows 'BT'). On your smartphone, enable Bluetooth and search for 'PV260BT'. Select it and wait for pairing. A sound confirms the connection.

Why is there no sound from the speakers?

Check that the speakers are properly connected to the corresponding outputs (CH1 to CH6). Make sure the channel volume and master volume are not at zero. Also check that the input source is correctly selected.

How to adjust the microphone echo?

Turn the ECHO knob (item 37) to adjust the microphone echo level. You can also adjust the microphone tone with the MICROPHONE TONE knob (item 38).

Can I connect an electric guitar?

No, the microphone inputs are designed for low-impedance dynamic microphones (6.35mm jack). An electric guitar requires a suitable instrument input or a preamp.

How to use the Talkover function?

Press the TALKOVER button (item 41) to automatically reduce the music volume when you speak into microphone 1. This allows the voice to stand out.

What is the maximum power per channel?

The maximum power is 100W per channel (6x100W). Note that the speaker impedance must be 4 or 8 ohms to avoid overload.

How to memorize FM stations?

In FM mode, press the PLAY/PAUSE button (item H) to start an automatic scan of frequencies from 87.5 to 108 MHz. Found stations are memorized automatically. Use PREV/NEXT to navigate.

What to do if the receiver does not turn on?

Check that the power cord is properly connected and the mains socket works. Make sure the POWER switch (item 6) is in the ON position. If the problem persists, contact a technician.

How to play MP3 files from a USB stick?

Insert the USB stick into the USB port (item 9). Press MODE to select USB mode. Use PLAY/PAUSE, PREV, NEXT to control playback. Note: the USB port only reads storage media, not external MP3 players.

What is the warranty of the device?

The warranty is offered by Power Dynamics subject to compliance with the instructions in the manual. Any unauthorized modification or repair voids the warranty. For any questions, contact your dealer.

USER MANUAL PV260BT Power Dynamics

Power Dynamics Professional Audio

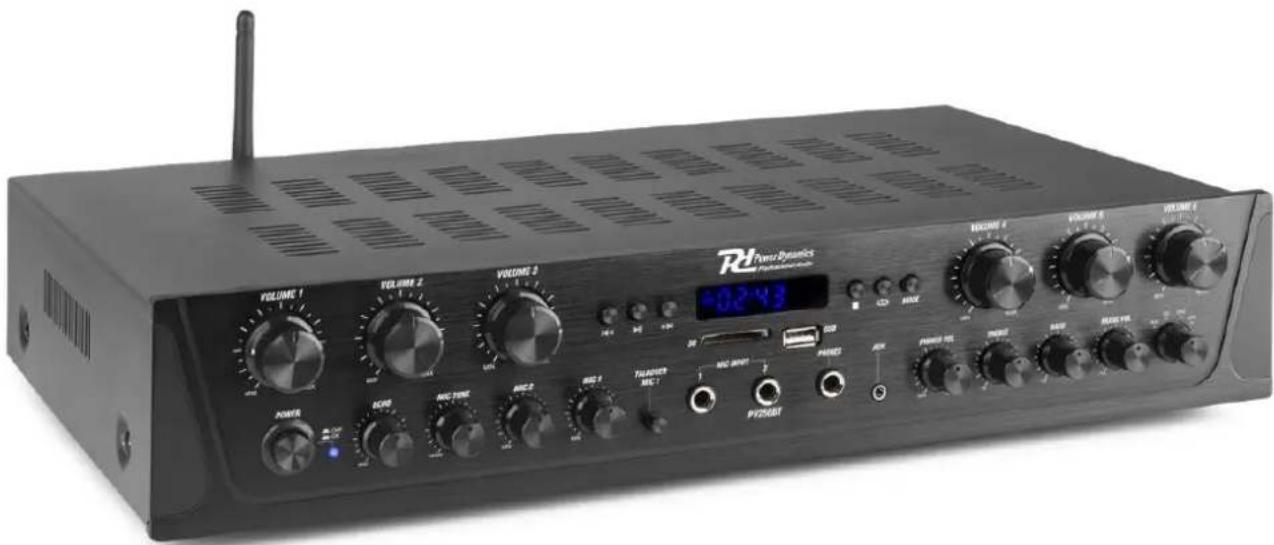

PV260BT Amplifier System

Ref. nr.: 953.034

VOLUME 1 VOLUME 2 VOLUME 3 +0.243 RdTens Dynamics VOLUME 4 VOLUME 5 VOLUME 6 POWER KON MAC TONE MCC 2 MCC 3 TLEADER MCC 7 MAC DINIT PENRS POWER VS INRIS REF RASS VEL VOLUME 7 VOLUME 8 VOLUME 9 VOLUME 10

INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS

Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on.
• Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

FRONT AND BACKPANEL

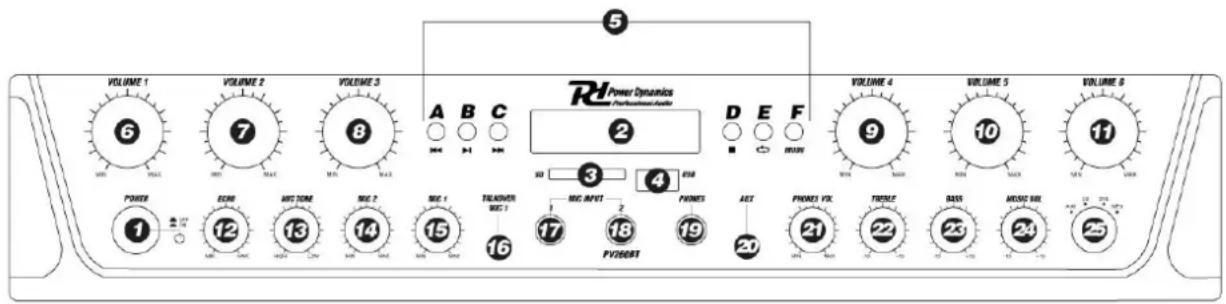

VOLUME 1 6 VOLUME 2 7 VOLUME 3 8 A B C MAX D-1 MAX RD Power Dynamics Power Performance Audio D E F SD 3 4 MOS INPUT 2 PUNES FAST PRICES VIX TRENSLE BASS MRG BIG 24 25 POWER EONE 12 MOS TONE 13 MOS 2 14 MOS 1 15 TELEWATER MOS 1 16 PV20091 20 21 22 23 24 25

1. POWER ON/OFF SWITCH

Press this button to ON/OFF the unit.

2. LED DISPLAY SCREEN

To display the input sources and track time information

3. SD CARD SLOT

Insert your SD Card to play MP3 files.

4. USB PORT

This is the USB port where you insert your USB mass storage device for playing MP3 files.

NOTE: The USB input is only mean to connect to a USB-flash drive. Connecting an MP3 player or computer directly to the USB-flash drive input will result in the unit failing to play the audio from those devices.

5. CONTROL BUTTONS

A. PREV BUTTON: Use this button to select each of function depending on these three different modes as below.

• In USB/SD/BT mode, use to select previous track.
• In FM mode, use to select pervious channel.
• In FM/BT mode, hold this button will decrease the volume.

B. PLAY/PAUSE BUTTON: Each pressing of the PLAY/PAUSE BUTTON causes the operation to change from play to pause or from pause to play in the USB/SD mode or BT mode.

- Presses the PLAY/PAUSE BUTTON one time to auto scan all frequencies from 87.5MHz to 108MHz in FM mode, the unit will auto store the channels.

C. NEXT BUTTON: Use this button to select each of function depending on these three different modes as below.

• In USB/SD/BT mode, use to select next track
• In FM, use to select next channel.
• In FM/BT hold this button will increase the volume.

D. STOP BUTTON: Use this button to stop the playing of music.

E. REPEAT BUTTON: This button allows you to play the music in repeat mode ( All or Single mode)

ALL All tracks in the USB or SD CARD will be repeated in order without interruption.

SINGLE Repeat the track that was current playing.

F. MODE BUTTON Press this button to select one of play mode with USB/SD mode, FM mode and BT mode, automatically set in USB/SD mode after turn on the unit, automatically play mp3 files after inserting a USB -flash driver or SD card.

STEPS FOR CONNECTING WITH BT DEVICE

Once paired you can play music from your BT-device. You can also use the control buttons on the unit to select the tracks from your BT-device.

1. Press MODE button to choose BT mode, display BT on the screen.
2. Search on your BT device for the name "PV260BT".
3. Select the "PV260BT" and wait for the device to pair.
4. The PV260BT" will emit a noise confirming that the devices have successfully paired

6. VOLUME 1 CONTROL KNOB

Turn this knob to adjust the volume of Channel 1.

7. VOLUME 2 CONTROL KNOB

Turn this knob to adjust the volume of Channel 2.

8. VOLUME 3 CONTROL KNOB

Turn this knob to adjust the volume of Channel 3.

9. VOLUME 4 CONTROL KNOB

Turn this knob to adjust the volume of Channel 4.

10. VOLUME 5 CONTROL KNOB

Turn this knob to adjust the volume of Channel 5.

11. VOLUME 6 CONTROL KNOB

Turn this knob to adjust the volume of Channel 6.

12. ECHO EFFECT CONTROL KNOB

Turn this knob to adjust the microphone echo level.

13. MICROPHONE TONE CONTROL KNOB

Turn this knob to adjust the tone of the microphone output.

14. MICROPHONE 2 VOLUME KNOB

Turn this knob to adjust the volume of MIC2

15. MICROPHONE 1 VOLUME KNOB

Turn this knob to adjust the volume of MIC1.

16. TALKOVER

Press this button to lower the music when use the microphone 1 input.

17. MICROPHONE INPUT 1 JACK

MIC 1 Input Jack for connecting an unbalanced low impedance microphone with 6.35mm (1/4") jack connector.

18. MICROPHONE INPUT 2 JACK

MIC 2 Input Jack for connecting an unbalanced low impedance microphone with 6.35mm (1/4") jack connector.

19. PHONES OUTPUT

To allow you to enjoy the music through the headphone devices.

20. AUX INPUT

Connects to a MP3 player or phone with 3.5mm Jack.

21. PHONES OUTPUT VOL CONTROL KNOB

Turn this knob to adjust the volume of the headphone output.

22. TREBLE

Turn this knob to adjust the high frequencies of Channel 1/2/3/4.

23. BASS

Turn this knob to adjust the low frequencies of Channel 1/2/3/4.

24. MUSIC VOLUME CONTROL KNOB

Turn this knob to adjust the master music volume.

25. INPUT SELECTOR

Turn this button to choose the favorable input.

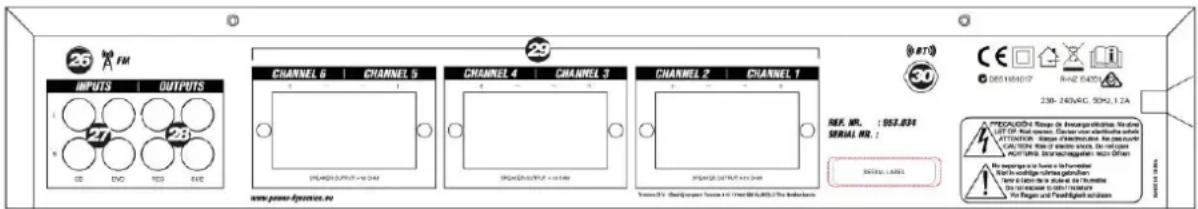

26 FM INPUTS | OUTPUTS CHANNEL 6 | CHANNEL 5 CHANNEL 4 | CHANNEL 3 CHANNEL 2 | CHANNEL 1 CHANNEL 3 CHANNEL 2 CHANNEL 1 CHANNEL 4 CHANNEL 5 CHANNEL 6 CHANNEL 7 CHANNEL 8 CHANNEL 9 CHANNEL 10 CHANNEL 11 CHANNEL 12 CHANNEL 13 CHANNEL 14 CHANNEL 15 CHANNEL 16 CHANNEL 17 CHANNEL 18 CHANNEL 19 CHANNEL 20 CHANNEL 21 CHANNEL 22 CHANNEL 23 CHANNEL 24 CHANNEL 25 CHANNEL 26 CHANNEL 27 CHANNEL 28 CHANNEL 29 CHANNEL 30 CHANNEL 31 CHANNEL 32 CHANNEL 33 CHANNEL 34 CHANNEL 35 CHANNEL 36 CHANNEL 37 CHANNEL 38 CHANNEL 39 CHANNEL 40 CHANNEL 41 CHANNEL 42 CHANNEL 43 CHANNEL 44 CHANNEL 45 CHANNEL 46 CHANNEL 47 CHANNEL 48 CHANNEL 49 CHANNEL 50 CHANNEL 51 CHANNEL 52 CHANNEL 53 CHANNEL 54 CHANNEL 55 CHANNEL 56 CHANNEL 57 CHANNEL 58 CHANNEL 59 CHANNEL 60 CHANNEL 61 CHANNEL 62 CHANNEL 63 CHANNEL 64 CHANNEL 65 CHANNEL 66 CHANNEL 67 CHANNEL 68 CHANNEL 69 CHANNEL 70 CHANNEL 71 CHANNEL 72 CHANNEL 73 CHANNEL 74 CHANNEL 75 CHANNEL 76 CHANNEL 77 CHANNEL 78 CHANNEL 79 CHANNEL 80 CHANNEL 81 CHANNEL 82 CHANNEL 83 CHANNEL 84 CHANNEL 85 CHANNEL 86 CHANNEL 87 CHANNEL 88 CHANNEL 89 CHANNEL 90 CHANNEL 91 CHANNEL 92 CHANNEL 93 CHANNEL 94 CHANNEL 95 CHANNEL 96 CHANNEL 97 CHANNEL 98 CHANNEL 99 CHANNEL 100 CHANNEL 101 CHANNEL 102 CHANNEL 103 CHANNEL 104 CHANNEL 105 CHANNEL 106 CHANNEL 107 CHANNEL 108 CHANNEL 109 CHANNEL 110 CHANNEL 111 CHANNEL 112 CHANNEL 113 CHANNEL 114 CHANNEL 115 CHANNEL 116 CHANNEL 117 CHANNEL 118 CHANNEL 119 CHANNEL 120 CHANNEL 121 CHANNEL 122 CHANNEL 123 CHANNEL 124 CHANNEL 125 CHANNEL 126 CHANNEL 127 CHANNEL 128 CHANNEL 129 CHANNEL 130 CHANNEL 131 CHANNEL 132 CHANNEL 133 CHANNEL 134 CHANNEL 135 CHANNEL 136 CHANNEL 137 CHANNEL 138 CHANNEL 139 CHANNEL 140 CHANNEL 141 CHANNEL 142 CHANNEL 143 CHANNEL 144 CHANNEL 145 CHANNEL 146 CHANNEL 147 CHANNEL 148 CHANNEL 149 CHANNEL 150 CHANNEL 151 CHANNEL 152 CHANNEL 153 CHANNEL 154 CHANNEL 155 CHANNEL 156 CHANNEL 157 CHANNEL 158 CHANNEL 159 CHANNEL 160 CHANNEL 161 CHANNEL 162 CHANNEL 163 CHANNEL 164 CHANNEL 165 CHANNEL 166 CHANNEL 167 CHANNEL 168 CHANNEL 169 CHANNEL 170 CHANNEL 171 CHANNEL 172 CHANNEL 173 CHANNEL 174 CHANNEL 175 CHANNEL 176 CHANNEL 177 CHANNEL 178 CHANNEL 179 CHANNEL 180

26. FM ANTENNA CONNECTOR

Connect for FM antennas.

27. AUDIO INPUT RCA CONNECTOR

Connect the audio output jacks of DVD/CD, to these jacks.

28. LINE OUTPUT

Connect the audio/Subwoofer input RCA jacks of other devices, to these RCA jacks.

29. SPEAKER OUTPUT

There are 6 groups of speaker output.

30. BT ANTENNA

Aim the antenna at an angle of 45 degrees when using BT-audio.

Frequency response : 20Hz - 20kHz

Signal to noise ratio : >85dB

Dimensions per unit : 430 x 250 x 90mm

Weight (per unit) : 6,50 kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

• Low Voltage (LVD) 2014/35/EU
• Electromagnetic Compatibility (EMC) 2014/30/EU
• Restriction of Hazardous Substances (RoHS) 2011/65/EU

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2020 by Tronios The Netherlands
