USER MANUAL PV220BT Power Dynamics

Power Dynamics Professional Audio

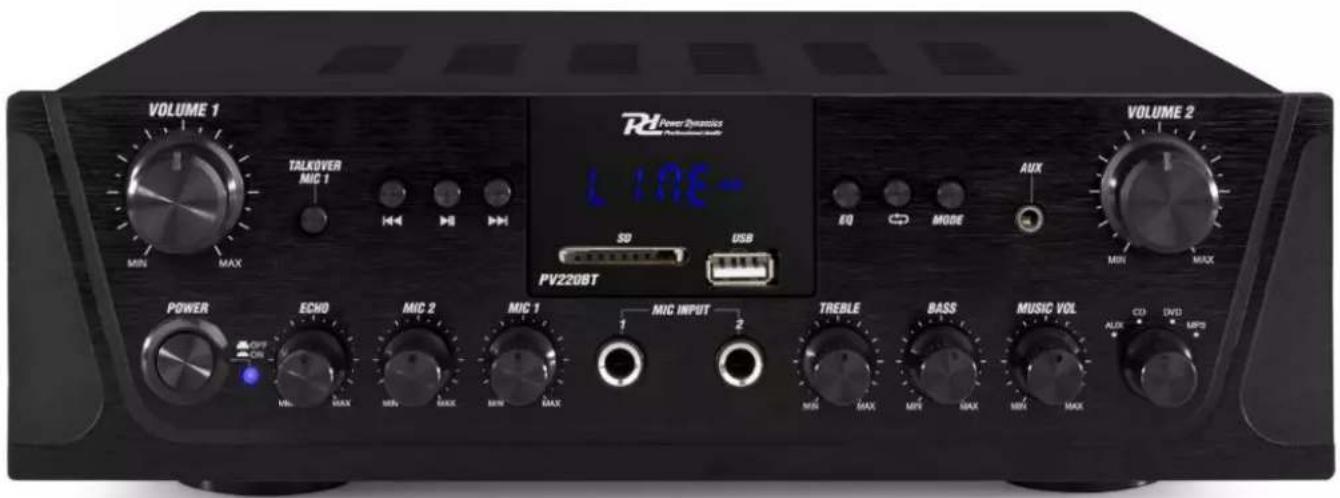

PV220BT Amplifier System

Ref. nr.: 953.030

INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI NÁVOD K POUŽITÍ

V2.1

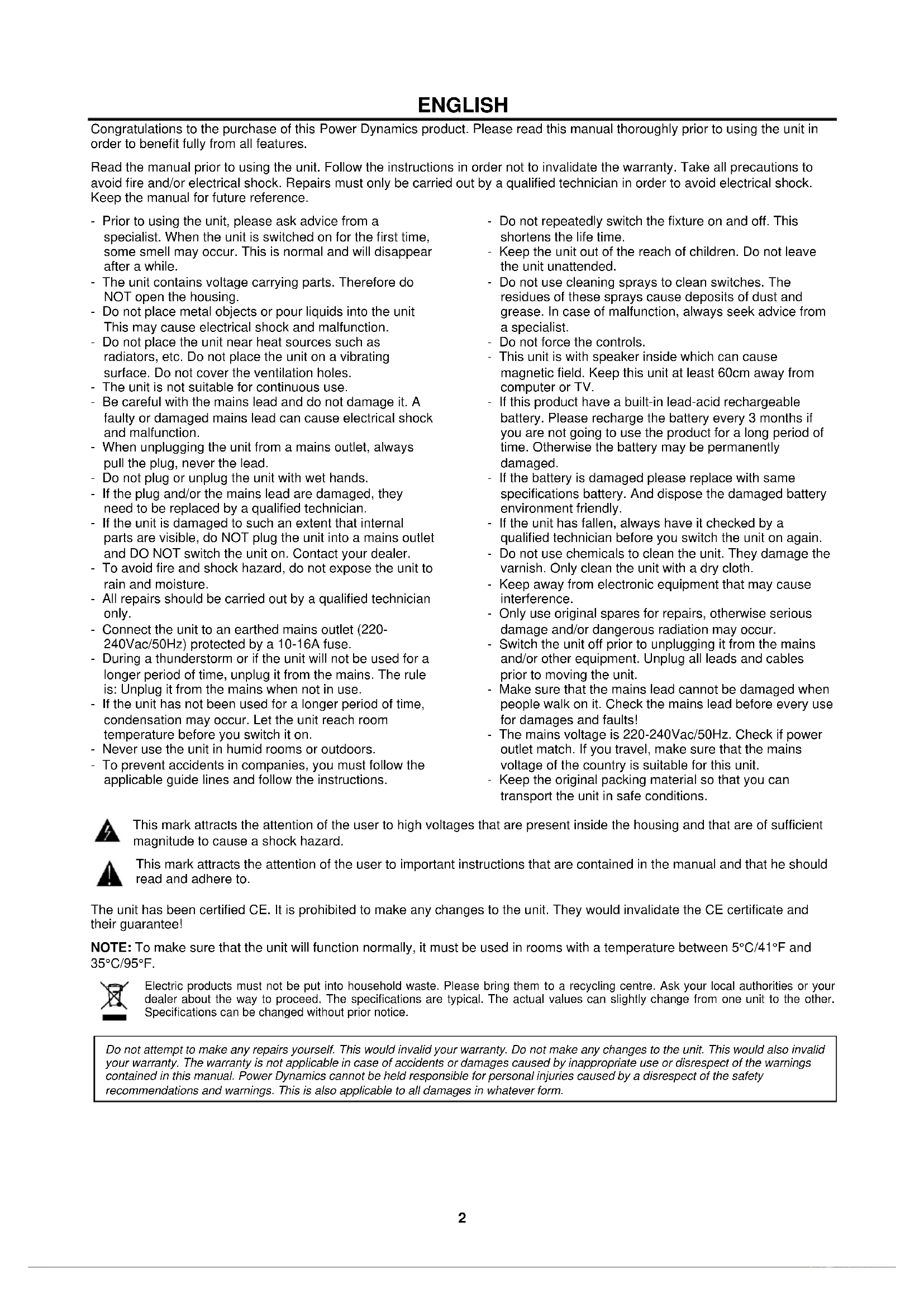

Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on.
• Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

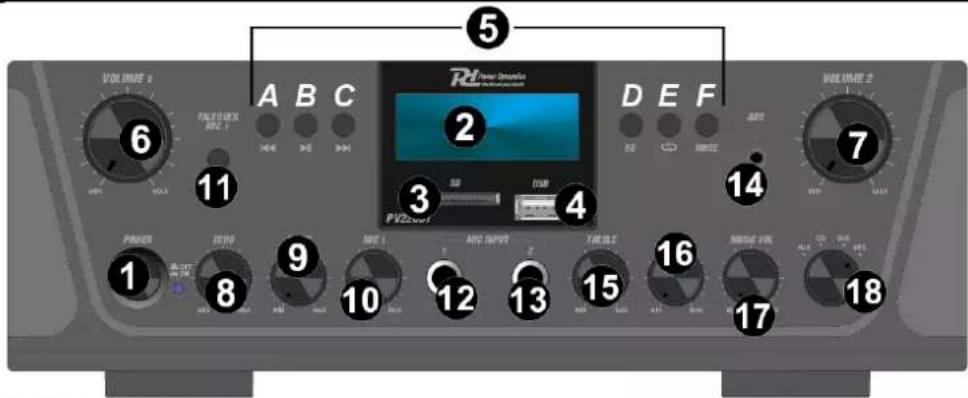

FRONT- AND BACKPANEL

1. POWER ON/OFF SWITCH

Press to turn the unit ON/OFF.

2. DISPLAY

Displays the input source and track time information.

3. SD CARD SLOT

Insert your SD card to play MP3 files.

4. USB PORT

Insert your USB storage device to play MP3 files.

NOTE: The USB input is only mean to connect to a USB-flash drive. Connecting an MP3 player or computer directly to the USB-flash drive input will result in the unit failing to play the audio from those devices.

5. CONTROL BUTTONS

A. PREVIOUS: Use this button to select a function depending on three different modes.

• In USB/SD/BT mode, press to select the previous track.
• In FM mode, press to select previous channel.
• In FM/BT mode, hold this button to decrease the volume.

B. PLAY/PAUSE:

• Each press causes the operation to change from play to pause or from pause to play in the USB/SD- or BT mode.
- Press one time to auto scan all frequencies from 87.5MHz to 108MHz in FM mode. The unit will auto store the channels.

C. NEXT: Use this button to select a function depending on three different modes.

• In USB/SD/BT mode, press to select the next track.
  • In FM, press to select the next channel.
• In FM/BT, hold this button to increase the volume.

D. EQ: Press to change equalizer modes (POP/NORMAL/ROCK/CLASSIC/COUNTRY/JAZZ).

E. REPEAT: Press to change between different repeat modes (all, single, off).

ALL All tracks on the USB or SD CARD will be repeated in order without interruption.

SINGLE Repeat the currently playing track.

F. MODE: Press to change between playback modes. The mode is automatically set to USB/SD after turning the unit on. The unit will automatically play .mp3 files after inserting a USB flash drive or an SD card.

CONNECTING WITH BT DEVICE

Once paired you can play music from your BT-device. You can also use the control buttons on the unit to select the tracks from your BT-device.

1. Press MODE to choose BT mode, "BLUE" appears on the display.
2. Search on your BT streaming device for "PV SERIES".
3. Select "PV SERIES" and wait for the devices to pair.

4. The PV220BT will emit a sound, confirming that the devices have been paired successfully.

5. VOLUME 1

Rotate to adjust the volume of channel 1.

1. VOLUME 2

Rotate to adjust the volume of channel 2.

1. ECHO EFFECT

Rotate this knob to adjust the microphone echo level.

1. MICROPHONE 2 VOLUME

Rotate this knob to adjust the volume of the microphone 2 channel.

1. MICROPHONE 1 VOLUME

Rotate this knob to adjust the volume of the microphone 1 channel.

1. TALKOVER

Press to initiate talkover mode. Music volume level will be lowered when the microphone 1 channel registers input.

1. MICROPHONE 1 INPUT JACK

MIC 1 input jack for connecting an unbalanced low impedance microphone with 6.35mm (1/4") jack connector.

1. MICROPHONE 2 INPUT JACK

MIC 2 input jack for connecting an unbalanced low impedance microphone with 6.35mm (1/4") jack connector.

1. AUX INPUT

3.5mm auxiliary input jack for connecting an MP3 player or phone.

1. TREBLE

Rotate to adjust the high frequencies of channels 1/2/3/4.

1. BASS

Rotate to adjust the low frequencies of channels 1/2/3/4.

1. MUSIC VOLUME

Rotate to adjust the master music volume.

1. INPUT SELECTOR

Rotate to choose the favorable input.

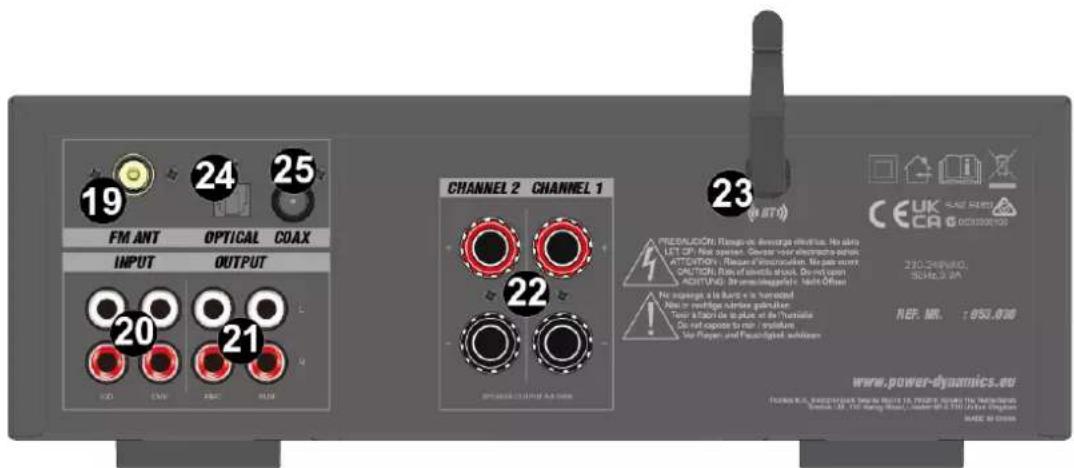

1. FM ANTENNA CONNECTOR

Connector for installing an FM-antenna.

1. AUDIO INPUT

RCA audio input connectors for connecting to the audio output jacks of DVD- CD players.

1. LINE OUTPUT

RCA audio line output connectors. For connecting to the audio/subwoofer input RCA jacks of other devices/units.

1. SPEAKER OUTPUT

2. BT ANTENNA

BT streaming antenna. Aim the antenna at an angle of 45 degrees when using BT-audio.

1. OPTICAL INPUT

Optical (Toslink) connector for input of digital audio signals. To use the OPTICAL input, make sure the INPUT SELECTOR is set to MP3. Press MODE until OPTI appears on screen.

1. COAX INPUT

Coaxial connector for the input of digital audio signals. To use the COAXIAL input, make sure the INPUT SELECTOR is set to MP3. Press MODE until COAH appears on screen.

1. WŁĄCZNIK/WYŁĄCZNIK ZASILANIA

1. VYPÍNAČ NAPÁJENÍ

Stisknutím zapnete/vypnete prístroj.

2. DISPLAY

TECHNICAL SPECIFICATION / TECHNISCHE SPECIFICATIE / TECHNISCHE DATEN / ESPECIFICACIONES TÉCNICAS / SPÉCIFICATIONS TECHNIQUES /

Playback options : BT streaming, FM radio, SD, USB

Output power: Max : 200W

Impedance : 4 Ohm, 8 Ohm

Frequency response : 20Hz - 20.000Hz

Signal-to-noise ratio : >85dB

Power supply : 220-240VAC 50Hz

THD : <0,3%

Dimensions (L x W x H) : 282 x 242 x 85mm

Weight : 2,70 kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2023 by Tronios The Netherlands
