Product type	VHF wireless microphone, single channel
Brand	Vonyx
Model	STWM711H
Frequency band	200.175 MHz - 201.400 MHz
Number of channels	1
Microphone type	Headset microphone
Receiver dimensions	210 x 145 x 42 mm
Receiver power supply	AC 220-240 V / 50 Hz via adapter 13-15 V DC 500 mA
Transmitter power supply	2 AA 1.5 V batteries
Audio outputs	AF output (balanced) and AF mix output
Antennas	2 remote antennas (Antenna input terminal)
Signal-to-noise ratio	> 100 dB
Frequency response	40 Hz - 20 kHz
Total harmonic distortion (THD)	< 0.5 %
Operating temperature	5 °C to 35 °C
Usage	Indoor use only
Maintenance and cleaning	Clean with a dry cloth; do not use chemical products
Safety	Do not open the housing; avoid humidity; use original parts for repairs
Spare parts and repairability	AA batteries available; power adapter; repair by a qualified technician only
General information	CE certification; do not dispose of with household waste; follow safety instructions

Frequently Asked Questions - STWM711H Vonyx

What to do if the microphone produces no sound?

Check that the POWER switch on the transmitter is set to ON. Ensure the batteries are correctly installed (respect polarity). On the receiver, check that the power adapter is plugged in and the volume is sufficient.

How to replace the transmitter batteries?

Open the battery compartment cover, install two new AA 1.5 V batteries respecting polarity. Close the cover. If not using for an extended period, remove the batteries to prevent leakage.

Is the microphone range limited?

The range depends on the environment. For better reception, place the receiver close to the transmitter and orient the antennas at 45° from vertical, away from metal surfaces.

Why is there interference or background noise?

Interference may come from other RF devices. Identify the source and turn it off or change frequency. Ensure the antennas do not touch each other and are correctly positioned.

How to clean the microphone and receiver?

Use a dry, soft cloth. Never use chemicals, solvents, or aerosols. Avoid any contact of moisture with electronic components.

Can I use this microphone with an amplifier or mixing console?

Yes, connect the audio output of the receiver to the input of your amplifier or mixing console using a suitable audio cable (balanced AF output or mix output).

What does the red indicator on the transmitter mean?

The red indicator (LOW BATTERY) means the batteries are low. Replace them quickly to avoid sound loss.

How to store the system during prolonged non-use?

Remove the batteries from the transmitter. Disconnect the power adapter from the receiver. Store the whole system in a dry, dust-free place. If applicable, recharge the lead battery every three months.

Is it possible to use the microphone outdoors?

No, this system is designed for indoor use only. Do not expose it to rain or moisture.

What to do in case of persistent malfunction?

Contact a qualified technician. Do not open the housing yourself, as this would void the warranty and could cause damage.

USER MANUAL STWM711H Vonyx

Product photo of a VONYX wireless microphone receiver with external antennas and a microphone, no visible text or symbols on the device itself.

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS

V1.0

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If the product has built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

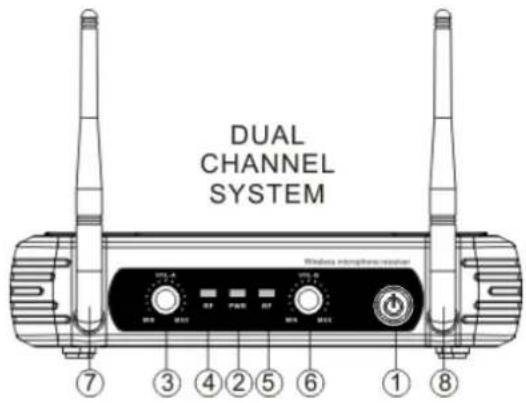

FRONT- AND BACKPANEL

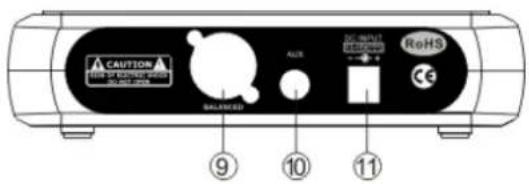

REAR PANEL

1. Power switch
2. Power signal lamp
3. Channel A volume control (not available by 179.185 and 179.187)
4. Channel A signal lamp (not available by 179.185 and 179.187)
5. Channel B signal lamp
6. Channel B volume control
7. Channel A antenna
8. Channel B antenna
9. AF out
10. AF mixing out

Models:

179.178 : STWM712H VHF Microphone System 2 channel Headset microphone
179.180: STWM712C VHF Microphone System 2 channel combi (handheld and bodypack)
179.183:STWM712 VHF Microphone System 2 channel handheld microphone
179.185:STWM711 VHF Microphone System 1 channel handheld microphone
179.187: STWM711H VHF Microphone System 1 channel Headset

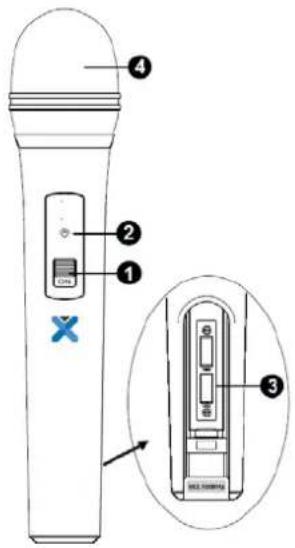

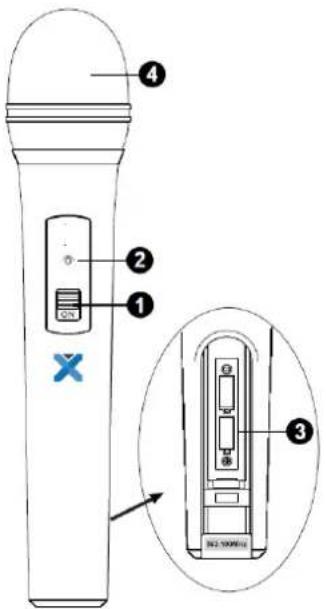

HANDHELD

1. Power ON/OFF Switch.
2. Low battery indicator: Red light glows when the power is low and change the battery.
3. Battery Cover: Open it to install the battery. remove batteries in case of long time no use (prevent leakage).
4. Grille: Protects the cartridge and help reducing the breath sounds and wind noise.

BODYPACK

1. Power ON/OFF and Audio mute switch.
2. Microphone input Jack for headset.
3. Antenna
4. Low battery indicator (Red light glows when the power is low and change the battery)
5. Gain Adjusting Volume: Adjust the transmitter audio input gain.
6. Battery Cover: Open it to install the battery. Remove batteries in case of long time no use (prevent leakage).
7. Belt Clip

HEADSET MICROPHONE

Connect the connector of supplied headset microphone to the connecting jack of transmitter (Shown as below). Set the transmitter work state in wireless headset system (6).

Line drawing of a handheld electronic device with a cable and connector (no text or symbols)

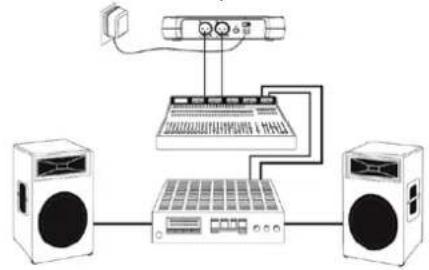

SYSTEM CONNECTIONS

1. Receiver power connection: Connect the AC adapter into the DC power connector on the back of the receiver. Plug the AC adapter into a AC230V 50Hz outlet.

1. Antenna: Keep the position of antenna at a 45^ angle from vertical. Shown as below.

1. Audio connection: Connect the audio cable from the audio output on the receiver to the input on your amplifier equipment.

OPERATION

Turn off the system first, turn down the receivers volume to the minimum and then turn on the receiver, CPU initializes, the LCD screen begins to display and the system reverts to the last shutdown's state!

If the system is turned on look at the transmitter and receiver's frequency. Then the receiver display shows RF signal level value, the antenna status will display antenna A or B. Adjust the volume to the desired level.

Volume adjustment

Adjust the receiver's volume to the 12 o'clock position, then adjust the volume of the amplifier or mixer to a desired level. If the receiver volume has been adjusted too loud the amplifier will produce a saturated distortion which will blow the amplifier or/and the loudspeaker(s)!

Best acoustics:

1. You should always see the receiver antenna from your transmitter location.
2. The distance between transmitter and receiver should be as short as possible.
3. If the receiver has two antennas, they should be adjusted 45^ with a vertical line.
4. Keep the antennas away from metal surfaces and shelter.
5. Let the antennas not contact or cross each other.
6. Before using the system during the presence of public do a test to find out where the "dead spots" are. Avoid these spots when operational

TROUBLESHOOTING

PROBLEM	INDICATOR	SOLUTION
No sound	Red transmitter indicator is not flash	Slide transmitter POWER ON/OFF switch to ON position. Make sure battery is inserted properly, observing battery (+ / -). If battery is inserted properly, replace with fresh battery.
No sound	Red transmitter indicator is flash.	Slide transmitter MUTE/ON switch to ON position.
No sound	Red receiver indicator POWER light off.	Make sure AC adapter is securely plugged into electrical outlet and into DC input connector.Make sure AC electrical outlet works and supplies proper voltage.
No sound	Receiver signal indicators A/B lights glowing.	Turn up receiver volume control. Confirm that the output connections from the receiver to the external equipment are secure.
Sound level differs from level of a cabled instrument.	Receiver signal indicators A/B lights glowing.	Adjust transmitter gain level to compessary.Adjust receiver volume as necessary.
Distortion level increases gradually	Receiver signal indicators A/B lights and transmitter LOW BATTERY light glowing	Replace transmitter battery
Bursts of noise or other audible radio signals present.	Signal indicators A/B/ lights on.	Identify potential sources of interferences (other RF-sources) and turn off, remove or use a wireless system operating on a different frequency.
Momentary loss of sound as transmitter is moved around performing area.	Receiver signal indicator A/B lights of when sound is lost	Reposition receiver and perform walk-through test again. If audio dropouts persist, mark “dead” spots and avoid them during performance.

NEDERLANDS

ACHTERZIJDE

Line drawing of a handheld electronic device with cable and connector (no text or symbols)

SYSTEEM AANSLUITEN

RÜCKSEITE

Line drawing of a handheld electronic device with cable and connector (no text or symbols)

SYSTEMANSCHLÜSSE

BEDIENUNG:

REAR PANEL

179.178 : STWM712H VHF Microphone System 2 channel Headset microphone
179.180: STWM712C VHF Microphone System 2 channel combi (handheld and bodypack)
179.183:STWM712 VHF Microphone System 2 channel handheld microphone
179.185:STWM711 VHF Microphone System 1 channel handheld microphone
179.187:STWM711H VHF Microphone System 1 channel Headset

MICRÓFONO DE MANO

Line drawing of a handheld electronic device with cable and connector (no text or symbols)

CONEXIONES

Line drawing of a medical device with earbuds and connector (no text or symbols)

MICROPHONE SERRE-TETE

Line drawing of a handheld electronic device with a cable and connector (no text or symbols)

BRANCHEMENTS

A license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements. Licensing of wireless microphone equipment is the user's responsibility and licensability depends on the user's classification, application and frequency.

NEDERLANDS

Class II product for use in Frequency band 195.000-201.900MHz.

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Blue glossy circular icon with a stylized white 't' symbol (no text or numbers)

tronios

Sound & Light

CE Declaration of Conformity

Manufacturer: TRONIOS BV

Product Description: STWM Series VHF Wireless Microphone

Trade Name: VONYX

Regulatory Requirement: EN 60065 :2002+A2:2010

EN 55013 :2001+A2 :2006 Receiver

EN 55020 :2007 Receiver

EN 301489-1 :2008-04

EN 301489-9 :2007-11

EN 300422-1 :2008-03

EN 300422-2 :2008-03

EN 62479 :2010

I hereby declare that the product meets the requirements stated in Directives 2014/35/EU and 2014/30/EU, R&TTE Directive (1999/5/EC) and conforms to the above mentioned Declarations.

Almelo,

08-06-2017

Name : M. Velders

Signature :

Specifications and design are subject to change without prior notice..
