WinSafe WS 44 - Security lock Burg Wächter - Free user manual and instructions

Brand	Burg Wächter
Model	WinSafe WS 44
Product type	Window security lock
Area of use	Inward-opening windows and French doors (wood, aluminum, PVC with metal insert)
Standards and certifications	Certified VdS 2536, tested according to DIN 18104-1
Package contents	1 window lock, adjustment shims (1/2/4 mm), 4 screw covers, 2 striking plates, shims for striking plate, striking plate cover, screws (4.8×50/4.8×22/3.5×25/3.5×13)
Tools required for installation	Phillips screwdriver, drill/screwdriver, ruler, pencil, hammer, drill bits Ø 2.5/3.0/3.5, saw/file/vise (for adjustment)
Main function	Sliding bolt lock with safety deadbolt; integrates into normal window operation
Use	Manual locking in the top position; unlocking to open by turning or tilting
Compatible material	Wood, aluminum, PVC (with metal reinforcement)
Installation	Hinge side; screw into frame and sash; adjustment shims included
Security	Burglary-resistant certified; do not drill through; hand-tighten to avoid over-tightening
Maintenance and cleaning	No special maintenance; periodically check proper operation and screw tightness
Repairability	Spare parts available from the manufacturer; for repairs, contact customer service
Languages of the instructions	French, German, English, Dutch

Frequently Asked Questions - WinSafe WS 44 Burg Wächter

What types of windows are compatible with the WinSafe WS 44?

The WinSafe WS 44 is compatible with all inward-opening windows and French doors made of wood, aluminum, or PVC with a metal insert. It mounts on the hinge side.

What tools are needed to install the lock?

You will need a Phillips screwdriver, a drill/screwdriver, a ruler, a pencil, a hammer, and drill bits with diameters 2.5 mm (wood), 3.0 mm (aluminum/PVC), and 3.5 mm. A saw, file, or vise may be useful to shorten screws if necessary.

How to determine the correct mounting position?

The window lock should be positioned so that the lock axis is aligned with the hinge axis. Use the provided shims to adjust the distance between the sash and frame. Check that the window closes and opens correctly before drilling.

What precautions should be taken when drilling?

Never drill through the frame or sash completely. Use a depth stop. Be careful not to damage moving parts, seals, or glass. Drill at low speed and without forcing.

How to use the WinSafe WS 44 on a daily basis?

To lock, slide the bolt upward. The safety deadbolt then extends. For normal rotary opening, no additional unlocking is needed. To tilt the window, push the bolt so that the deadbolt extends, then open normally.

What to do if the bolt does not slide easily?

Check that the striking plate is properly aligned. You can adjust the position of the striking plate by loosening the screws slightly and moving it. Also ensure that the shims are in place and that the screws are not overtightened.

Is the product certified?

Yes, the WinSafe WS 44 is certified according to VdS 2536 and tested according to DIN 18104-1. These certifications guarantee a burglary-resistant security level meeting requirements.

Can the WS 44 be used on plastic windows?

Yes, provided that the PVC profile contains a metal insert to ensure a solid fixing. For added security, use the MA99 DUO mounting anchor recommended by the manufacturer.

How to clean and maintain the lock?

No special maintenance is required. It is advisable to periodically check the proper operation of the bolt and the tightness of the screws. Clean the device with a soft, dry cloth. Do not use abrasive products or lubricants.

Where to find spare parts for the WinSafe WS 44?

Spare parts can be obtained directly from the manufacturer Burg Wächter or its authorized distributors. Contact customer service for any requests. Keep the proof of purchase.

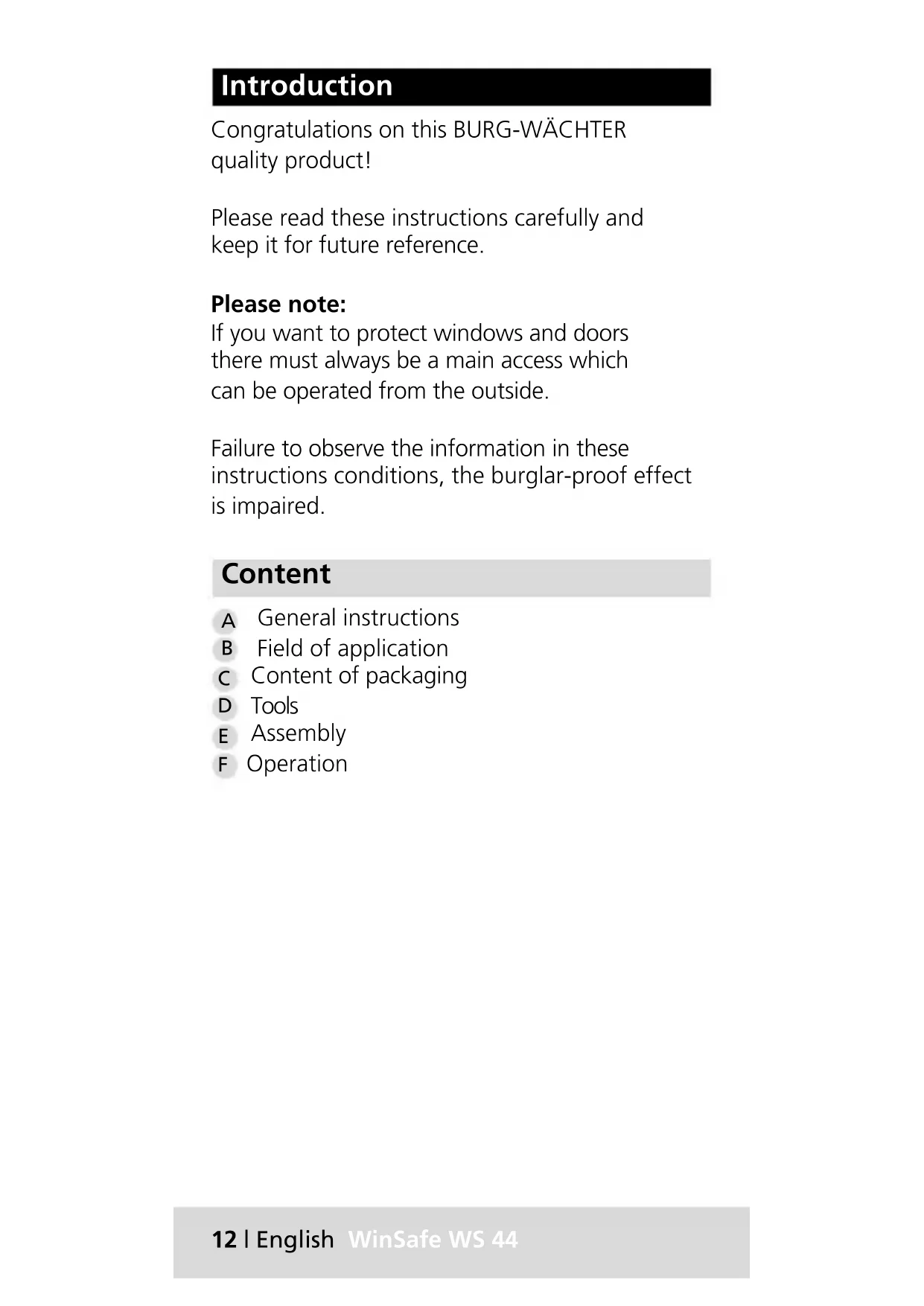

USER MANUAL WinSafe WS 44 Burg Wächter

Congratulations on this BURG-WACHTER quality product!

Please read these instructions carefully and keep it for future reference.

Please note:

If you want to protect windows and doors there must always be a main access which can be operated from the outside.

Failure to observe the information in these instructions conditions, the burglar-proof effect is impaired.

Content

A General instructions
B Field of application
c Content of packaging
D Tools
Assembly
F Operation

A. General instructions

The window protection WS44 is approved by VdS 2536 and tested according to DIN 18104-1.

According to DIN 18104-1 at least one additional protection should be mounted on each side

for every 1m window height. On the operating side (handle side) at least one additional protection must be lockable.

The borehole depths and screw lengths must be matched according to local conditions. Do not pierce the windows / French doors, eventually work with a drill stopper. When drilling do not damage any moving parts, seals or glass panes. The mounting screws should be tightened by hand to avoid overtighting.

For any possible injuries and / or damages caused by improper handling during assembly, the manufacturer accepts no liability.

As an additional safety measure in case of plastic elements and possibly for aluminum and wooden elements, we recommend using the BURG-WACHTER mounting anchor MA 99 DUO.

B. Field of application

The WS 44 is mounted on the hinge side of the window or French window and is suitable for all standard, inward opening windows / French doors made of wood, aluminum or plastic with metal insert.

C. Content of packaging

1 Hinge side protection
2 Underlay for hinge side protection 1mm,2mm,4mm
3 4 screw covers
4 2 Stuck Flugelbleche (1), (2)
5 Underlays for casement plate 2 pcs. each 1mm,2mm,4mm
6 Casement plate covering
7 Countersunk screws
4 pcs. 4,8x50/1 pcs. 4,8x22 rounded head screws
2 pcs. 4,8x50/2 pcs. 3,5x25/2 pcs. 3,5x13

D. Tools

• Phillips screwdriver/drilling machine/ scale/pencil/hammer
• Drill 2,5/3,0/3,5
• Saw/file/vice for shortening screws (if necessary)

E. Assembly

Before mounting please check the function of the window / French door. It must be possible to open and close properly. Please measure whether the on page 5 required dimensions are available for your window/French door.

Unlock the hinge side protection with the slider and hold it with the locking bolt in the direction of the hinge on the window frame. Determine in which distances to the casement and window

frames are necessary with the aid of accompanying underlays. The safety pin and the hinge pin must be aligned.

Position the hinge side protection at the desired location with the determined distance to the casement.

The securing bolt must face down.

Mark the 3 drilling positions with a pencil.

Deepen the markings lightly with e. g. a screw tip/hammer and drill the 3 holes with a 3,5 drill.

Do not drill through the window frame.

Fit the hinge side protection with the determined underlays. Avoid overtighting of the screws.

Insert the right casement plate (1) or (2) into the hinge side protection and lock them with the slide. If necessary, support the casement plate with the appropriate underlays. Align the

casement plate and mark the two drill holes positions with a pencil.

Deepen the markings lightly with eg. a screw tip/hammer and drill 2 holes with a 2,5 drill for wood or 3,0 for aluminum and plastic with metal insert.

When drilling do not damage any

moving parts, seals or glass panes. Do not drill through the casement.

If you are using underlays for the casement plate, please shorten the 2 rounded head screws 3,5 × 25 and 1 countersunk screw 4,8 × 50 accordingly.

Fit the 2 rounded head screws 0.3,5 × 13 or the shortened screws.

Avoid overtighting of the screws.

Check the function of the hinge side protection. The slide

needs to be moved easily. Readjust the casement plate if necessary. The window / French windows must be opened and closed properly.

Drill the 2 outer holes for the screws 4,8 × 50 and the middle hole for the screw 4,8 × 22 with a 3,5 ~mm drill. When drilling do not damage any moving parts, seals or glass panes.

Do not drill through the casement.

Fit the casement plate with 2 countersunk screws 4,8 × 50 and 1 countersunk screw 4,8 × 22 or the shortened screw 4,8 . Avoid overtighting of the screws.

Insert the covering caps on the casement plate and into the screw holes. Caution: The caps can no longer be removed without damage!

F. Operation

The WS 44 is included in the normal operation of the window. In the closed state of the window, you can slide the slider and thus lock the hinge side protection. For the normal opening of the window, no further operation is necessary.

To tilt the window, move the slider of the hingeside protection so that the locking bolt moves out.

The extended bolt shows: Attention! The fuse is not locked. After closing the window, please press the slider back until the bolt is retracted.
