Secure X8 - Shredder REXEL - Free user manual and instructions

Product Type	Document Shredder
Brand	Rexel
Model	Secure X8
Control Type	Slide switch or push buttons depending on version
Main Functions	Auto-start, forward, reverse, stop, ready indicator, overheat indicator, overload/jam indicator
Safety	Safety lock, overheat detection, contact protection with blades, do not open
Destructible Materials	Stapled paper (staple ≤ 25 mm from corner), paper clips (small/medium, wire ≤ 0.9 mm), paper > 80 g/m² (via manual feed), thick paper (<200 g/m²), cardboard, glossy sheets, folded sheets
Non-Destructible Materials	Large capacity staples (>6 mm), large paper clips (>32 mm), plastic, folders, laminated documents, double clip clamps, bound documents, credit cards, adhesive labels, CD/DVD
Maintenance	Use Rexel lubricating sheets (ref. 2101949 or 2101948); do not use aerosols or spray lubricants
Available Spare Parts	Lubricating sheets (2101949 - 20 sheets, 2101948 - 12 sheets)
Repairability	Do not open or repair yourself; contact an approved service; 2-year warranty (except misuse)
Power Supply	Mains (standard plug); unplug if not used for extended period
Usage	Indoor only; do not use outdoors; avoid moisture
Recycling	WEEE - do not dispose with household waste; deposit at collection point

Frequently Asked Questions - Secure X8 REXEL

What to do in case of a jam?

In case of a jam, use the reverse function to free the paper. Reduce the number of sheets and reinsert them. If the jam persists, unplug the device and carefully remove the jammed paper.

How to lubricate the shredder?

Use Rexel lubricating sheets (ref. 2101949 or 2101948). Insert a sheet into the feed slot and activate shredding. Never use aerosols or spray lubricants.

Can I shred staples and paper clips?

Yes, but only standard staples (26/6 or 24/6) placed less than 25 mm from the edge, and small or medium paper clips (wire ≤ 0.9 mm). Avoid large staples (>6 mm) and large paper clips (>32 mm).

What does the overheat indicator mean?

The overheat indicator lights up when the motor is too hot. Let the device cool down for about 30 minutes before using it again. Do not turn off, the internal fan continues to cool.

How to clean the shredder?

Use a dry or slightly damp cloth for the exterior. Never use aerosol cleaners. For the interior, use lubricating sheets to remove residue.

Can I shred credit cards?

No, according to the manual, credit cards should not be shredded. The shredder is designed for paper only.

What is the maximum shredding capacity?

Capacity depends on the model. For the Secure X8, capacity is 8 sheets (80 g/m²) in one pass. For thicker paper, use manual feed.

How to use the reverse function?

Press the reverse button (or position on the slide switch) to reverse the roller direction and release jammed paper. Release once the paper is removed.

What to do if the device does not turn on?

Check that the shredder head is correctly placed on the bin (safety lock). Ensure the switch is in the auto-start position and that the mains socket works. If the problem persists, contact an approved service.

How to recycle the shredder at end of life?

Do not dispose of the device with household waste. Deposit it at a WEEE collection point (waste electrical and electronic equipment) for recycling. Check with your local council or the brand's website to find the nearest point.

USER MANUAL Secure X8 REXEL

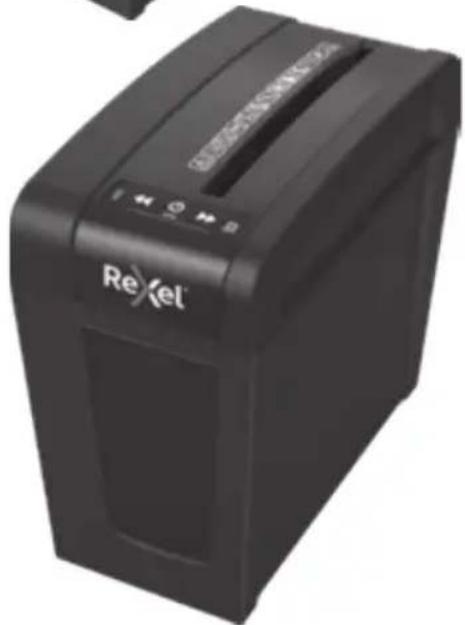

Exterior view of a black and silver RoXel brand electronic device (no visible text or symbols on body)

Exterior view of a black ReXel printer (no visible text or symbols on body)

start here

starten sie hier démarrez ici iniziare qui empieza aquí comece aqui begin hier start her

start her

börja här

aloita tästä

alusta siit

sāc šeit

pradèti čia

rozpocznij tutaj

починай тут

начинать здесь

мунда бастаңыз

začněte zde

tu začnite

kezdés itt

începe aici

ξεκινήστε εδώ

buradan başlayın

أبدأ هنا

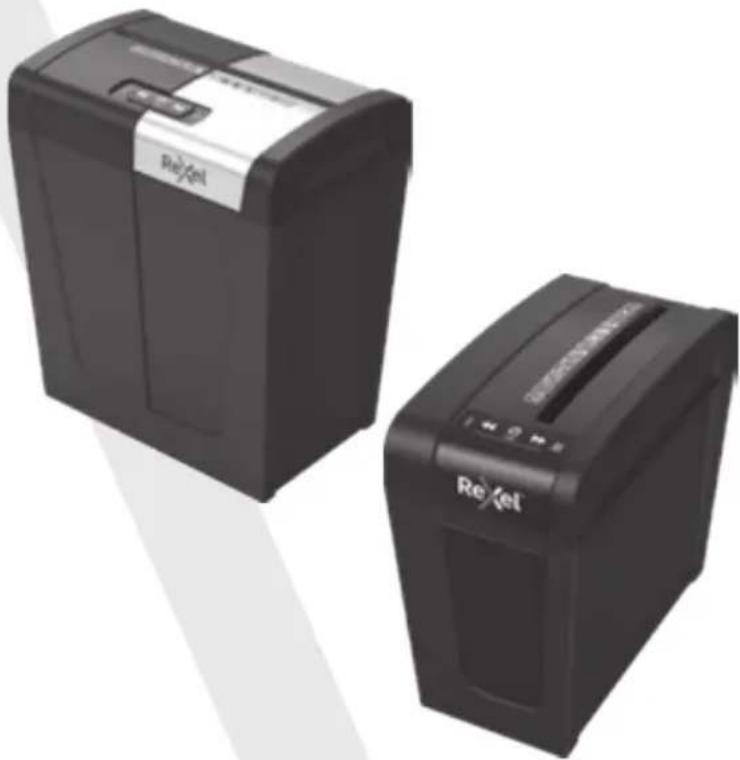

Two black ReXel printer units shown from different angles, no visible text or symbols on the devices themselves.

Secure S5

Secure X6

Secure X8

Secure X10

Secure X6-SL

Secure X8-SL

Secure X10-SL

Secure MC3

Secure MC4

Secure MC6

Secure MC3-S

Secure MC4-SL

Secure MC6-SL

Specifications

Model Rexel	Cut Level	Sheets Manual	Bin Size	Run Time	Amperage
Secure S5	P2	5	10	3
Secure X6	P4	6
Secure X8 8			14
Secure X10 10 18
Secure X6-SL 6 10				6
Secure X8-SL 8 14
Secure X10-SL 10 18
Secure MC3	P5	3 10
Secure MC4 4 14
Secure MC6 6 18
Secure MC3-SL 3 10
Secure MC4-SL 4 14
Secure MC6-SL		6 18

EN 4

DE 8

FR 12

IT 16

ES 20

PT 24

NL 28

DA 32

NO 36

SV 40

FI 44

ET 48

LV 52

LT 56

PL 60

UK 64

RU 68

KK 72

CS 76

SK 80

HU 84

RO 88

GR 92

TR 96

AR 100

220-240V AC / 50-60Hz

To register and activate the warranty go to www.rexeleurope.com/register

CE

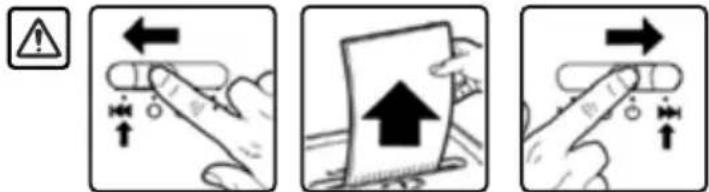

Operation Slide Switch models

Switching machine on

Manual shredding

Removing Jam

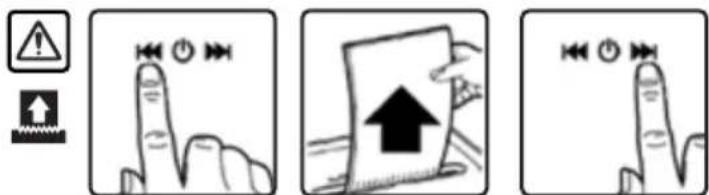

Operation Push Button models

Switching machine on

Two-step diagram showing a plug socket and a hand inserting a plug into a terminal block (no text or symbols)

Manual shredding

Removing Jam

Please read and keep these important safety instructions

For a full copy of the operating instructions, hints & tips and troubleshooting guide, please visit www.rexeleurope.com/support or www.leitz.com

The following symbol which is found on the product indicates you could be seriously hurt or killed if you open the machine. DO NOT OPEN.

WARNING Electrical shock hazard. Do not open. No user serviceable parts inside. Refer servicing to qualified service personnel.

Warning: Do not touch cutters, beware of sharp edges.

Warning: Moving parts hazard, keep hands away from rollers whilst in operation.

- Please read all the safety information and the instructions; the manufacturer is not liable for cases of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions. In such cases, the warranty will be voided.

- Only use the unit for its intended purpose.

- The unit must only be connected to a supply voltage corresponding to the electrical rating shown on the unit.

- Unit should be connected to a socket outlet near the equipment that is easily accessible.

- Do not connect multiple adaptors or use with an extension cable.

- Do not attempt to service or repair the unit yourself.

- If recycling, separate paper and credit card shreds.

- Do not use this unit if the cable or plug have been damaged.

- Care should be taken when moving equipment to avoid any unlevelled surfaces.

- The device is intended for use indoors. Never use outdoors.

- Keep the device away from moisture.

- Be vigilant at all times, and always be careful what you are doing. Do not use electrical equipment if you are lacking in concentration or awareness, or are under the influence of drugs, alcohol or medication. Even a moment of inattentiveness can lead to serious injuries when using electrical equipment.

- Do not attempt to open, modify or repair the device. Do not drop, puncture, break or expose to high pressure.

• Alterations to the device and technical modifications are not permitted.

- Check the device and cable (and if applicable, the adapter) for any damage before use. If there is any visible damage, a strong odour, or excessive overheating of components, unplug all the components immediately and stop using the device.

- Shredder must be disconnected from power source if not used for an extended period of time.

- Do not use spray cleaners or spray lubricants as these may present a risk of flash fire.

- Never bypass the safety interlock (strictly forbidden and dangerous, especially when unit is connected to a power source).

- Do not lean on the shredder door; this may damage the door and will not be covered by your warranty.

- Failure to follow these instructions could result in damage/injury and will invalidate your guarantee.

Warning symbols

Warning symbols

Keep loose jewellery clear

No credit cards

Ties and loose clothing hazard

Keep long hair clear

Do not reach into opening

This equipment is not intended for use by children

No aerosols. Do not use spray cleaners or lubricants, as these may present a risk of flash fire.

Max sheet capacity

No CDs

No heavy duty staples above 26mm

Warning: moving parts

Accessories

Only use Rexel accessories:

Oil Sheets (20) - 2101949

Oil Sheets (12) - 2101948

Controls and Indications

Slide Switch and Indications

Icon Type Slide Switch / indication & action
	Slide switch	Auto-start slide to position for shredding
		Reverse slide to position
		Forward slide to position
	Status Indicators	Off slide to position
		Ready indication (ensure head is on the bin and slide switch is in Auto-start position)
[2846]		Over-heated indication (allow to cool)

Button and Indications

Icon Type Button / indication & action
	Control buttons	Auto-start and stand-by button (press one time)
		Manual reverse button (hold down)
		Manual forward run button (hold down)
###		Over-heated indication (allow to cool)
###		Over loaded / Jam indication (Reduce sheets / remove jam)

Shredding Media

CAN shred the following:

• Stapled paper, 25mm within the corner
• 26/6 and 24/6 or smaller staples
- Small sized paper

• Paperclipped paper, 25mm within the corner
- Capable of shredding small/medium paperclips (max. wire thickness = 0.9 mm)
- >80/100gsm paper

Thick paper or card <200gsm

Glossy paper or a sheet covered with print on both sides.

Multiple folded sheets (A3 sheets folded in half).

CANNOT shred the following:

Heavy duty staples. Check the staple leg length is not greater than 6mm.

Large clips. Check the length of the paperclip is not longer than 32mm.

Plastic sheets, laminated documents, plastic folders.

Bound documentsBulldog clips Credit cards

Adhesive labels

Magazines or other documents bound by multiple staples or clips.

No aerosols

No Oil, only oil sheets

CDs & DVDs

Waste Electrical and Electronic Equipment (WEEE)

• At the end of its useful life, your product is considered to be WEEE. As such, it is important to note that WEEE is not to be disposed of as unsorted municipal waste. It is to be collected separately such that it can be disassembled so its components and materials can be recycled, re-used, and recovered (burned for energy content in the production of electricity).
• Public collection points have been set up by municipalities for the collection of WEEE, free of charge to you.
• Please return your WEEE to the collection facility nearest your home or office.
• If you have difficulty locating a collection facility, the retailer that sold you the product should accept your WEEE.
• If you are no longer in contact with your retailer, please contact ACCO for assistance with this matter.
• Recycling of WEEE is geared toward protecting the environment, protecting human health, preserving raw materials, improving sustainable development, and ensuring a better supply of commodities in the European Union. This will be achieved by retrieving valuable secondary raw materials and reducing the disposal of waste. You can contribute to the success of these goals by returning your WEEE to a collection facility.
• Your product is marked with the WEEE symbol (wheelie bin with an X through it). This symbol is to inform you that the WEEE is not to be disposed of as unsorted municipal waste.

Guarantee

• Operation of this machine is guaranteed for two years within the date of purchase, subject to normal use. Within the guarantee period, ACCO Brands Europe will at its own discretion either repair or replace the defective machine free of charge. Defects due to misuse or use for inappropriate purposes are not covered under the guarantee.
• Proof of date of purchase will be required. Repairs or alterations made by persons not authorised by ACCO Brands Europe will invalidate the guarantee. It is our aim to ensure that our products perform to the specifications stated. This guarantee does not affect the legal rights which consumers have under applicable national legislation governing sale of goods.
• This guarantee does not apply to Australian customers—see warranty on page 104.

www.rexeleurope.com/support oppure www.leitz.com

For a full copy of the operating instructions, hints & tips and troubleshooting guide, please visit www.rexeleurope.com/support or www.leitz.com

ADVARSEL: Moving parts hazard, keep hands away from rollers whilst in operation.

www.rexeleurope.com/support ar www.leitz.com

www.rexeleurope.com/support alebo www.leitz.com.

This document details the terms and conditions of the warranty against defects provided with this product. Please disregard any other representation contained on this product's packaging or provided with this product which constitutes or appears to constitute a warranty against defects.

WARRANTY AGAINST DEFECTS

This product comes with ACCO Brands Australia Pty Ltd (ACCO Brands) warranty against defects, the details and conditions of which are set out below.

Subject to the terms and conditions set out in this warranty, ACCO Brands will (at ACCO Brands' option) repair or replace this product with a new or refurbished product if it contains defects which are a result of faulty manufacturer workmanship or materials.

PERIOD OF WARRANTY

You may claim on this warranty if you notify ACCO Brands within 2 years of the date of purchase in the manner set out below and if you comply with the other conditions of this warranty.

WHO CAN CLAIM UNDER THIS WARRANTY?

This warranty applies to and can be exercised by the original purchaser of the product only. This warranty is not transferrable to any other person or party under any circumstances.

WHAT THIS WARRANTY DOES NOT COVER

If we reasonably consider that any of the following situations are present, this warranty does not apply. The situations to which this warranty does not apply are:

• any cosmetic damage;
• any product where the product's serial number is no longer present or visible;
• loss or damage caused by factors beyond ACCO Brands' control including, but not limited to, damage or failure due to power fluctuations, overload, excessive heat or humidity;
• any product which has not been installed and/or maintained according to any care or operating instructions provided with the product;
• any alterations or repairs to the product not authorised in writing or performed by ACCO Brands;
• damage or defects caused to the product due to unusual, abnormal, non-recommended or negligent use of the product;
• any wearable component in any product, including but not limited to blades, slitters, cutting sticks, cutting light bulbs, drill bits, base boards, feed wheels, separators, fuses, cutters and carriers, manual punches and cutting disks, light bulbs and staple inserts; or
• liability based on any service agreement entered into with third parties.

PROCEDURE FOR MAKING A CLAIM

Any claim made under this warranty must be made by sending the faulty product to ACCO Brands at the address noted below, together with the following information in writing:

• Your name or company name (if applicable);
• Your address;
• Your telephone number;
• Contact name;
  • Machine type, model number and serial number;
  • Proof of your purchase of this product, such as your receipt; and
• A detailed description of the defect you believe the product to have.

WHAT WE WILL DO TO HONOUR THIS WARRANTY

Upon delivery to us we will organise for the product to be assessed to determine if the fault or problem is covered by this warranty. We will advise you by telephone, email or in writing whether the fault is covered by this warranty.

STATUTORY GUARANTEES AND YOUR OTHER RIGHTS AND REMEDIES

This warranty against defects is provided in addition to other rights or remedies you, as a consumer, may have under a law in relation to this product.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.

You are entitled to a replacement or refund for a major failure and for compensation for any reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

CONTACTING US

ACCO Brands Australia Pty Ltd (ABN 16 000 265 047)

Australia and New Zealand Distributor

Locked Bag 50

Blacktown BC NSW 2148

For product purchased in Australia call: 1300 278 546 Email: [e-mail]

For product purchased in New Zealand call: 0800 800 526 Email: [e-mail]
