USER MANUAL Maximo 1500 Sonnenkönig

07 - CONFORMITY / DISPOSAL 38EN

02 WARNING NOTICE Please read and understand these instructions completely before attempting to assemble, ope- rate or install the product. This manual contains important information about the installation, operation and maintenance of this ceramic heater. General safety information is presented on these first pages and is also found throughout this manual. Retain this manual for future reference and to educate new users of this product. This manual should be read in conjunction with the labeling on the product. Safety precau- tions are essential when dealing with mechanical or propane powered equipment. These precautions are required when using, storing and maintaining this item. Using this equipment with due respect and caution will reduce the possibility of personal injury or property damage. Inspect the unit for damage after removing the packaging. If damage is suspected, do not operate the device and contact a specialist. The recyclable packaging material must not be kept or disposed of in a way that is accessible to small children, but must be disposed of properly. This device may only be used for the purpose for which it was expressly designed. Any other use is to be considered improper and consequently dangerous. The supplier is not liable for any personal injury and/or damage to property resulting from improper or incorrect use. Repairs to electrical equipment may only be carried out by qualified personnel. Improperly perfor- med repairs and modifications to the equipment may result in dangerous consequences for the user, whereupon warranty claims will be rejected. The following basic precautions should always be followed when handling electrical equipment:

• To avoid overheating, do not cover the heater.

• Do not touch the device with wet hands or feet.

• Do not expose the device to the weather conditions.

• Unplug the unit when it is no longer needed.

• Do not pull on the power cord or the unit to unplug it.

• Unplug the unit before any cleaning or maintenance operation.

• The air intake must be cleaned at least once a week.

• Do not use the unit in the immediate vicinity of water sources or swimming pools.

• Do not use accessories or devices that are not approved by the manufacturer.

• Do not insert any objects inside the device.

• Do not cover the device with objects. The device must not be used under the following conditions:

• In rooms with explosive atmospheres.

• In rooms with aggressive atmospheres.

• In rooms with high solvent concentrations.

• In rooms with an extremely high dust load.

• In case of questionable conditions of use, it is recommended to contact the technical department of Sonnenkönig or a specialized dealer.

• The use of an electric heater under inadmissible conditions will void the warranty claims!

• Do not dispose of electrical equipment as unsorted waste, but use separate collection facilities. Contact the local municipality for information on collection systems. When electrical equipment is disposed of in landfills, hazardous substances can enter the groundwater and thus the food chain. Protect your health and well-being.EN

• Children must be supervised so they do not play with the equipment.

• When the heater is used for the first time, there may be a slight emission of smoke. This is quite normal and will pass after a short time. The heating element is made of stainless steel and has been coated with protective oil during manufacture. The smoke is caused by the residual oil when it is heated.

• The housing is made of sheet steel and has been coated with heat-resistant powder.

• It is supplied complete with cable and plug.

• The device should not be placed lower than the socket.

• To avoid danger, a damaged connection cable may only be replaced by the manufacturer, its cus- tomer service or a person qualified to do so.

• Do not use this heater if the unit has been dropped.

• Do not use if there are visible signs of damage to the heater.

• Use this heater on a horizontal and stable surface or mount it on the wall if necessary.

• WARNING: Do not use this heater in small rooms if they are occupied by persons who cannot leave the room alone, unless this is constantly monitored. WARNING: To reduce the risk of fire, keep textiles, curtains or other combustible materials on material at least 1 m away from the heater. The heater must not be located in front of an electrical outlet.

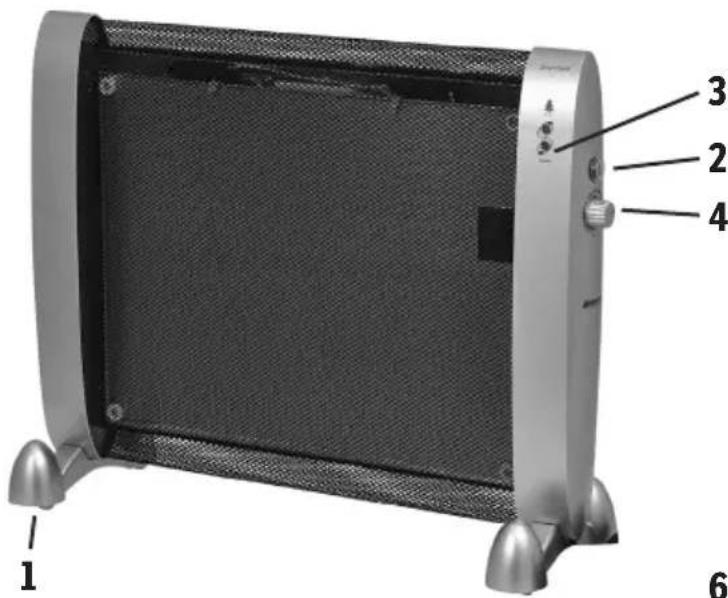

1. Transport rollers (not available for

Please use suitable screws for mounting!EN

5.1. Commissioning To use the heater, proceed as follows:

• Plug the power cord into the power outlet.

• Press the on/off switch.

• Then operate the unit according to the following description. 5.2. Thermostat You can set the desired heating intensity by means of the thermostat. To do this, turn the thermostat to the desired setting. The heater will now operate at maximum level until the setting is reached. The thermostat causes the heater to turn on when the ambient temperature is below the preset setting. If the temperature rises above this value, the thermostat switches the unit to the ECO saving function. 5.3. ECO mode When the heater reaches the operating temperature, the device switches to the ECO function mode, the ECO function indicator now starts to light up. In this mode, the heater can save 30% of heat. The power consumption in ECO mode are as follows: MAXIMO 1000 700 watts MAXIMO 1500 1000 watts MAXIMO 2000 1300 watts When the ECO function indicator goes off, the device switches back to the normal heating mode. 5.4. Wall mounting

• Use the supplied mounting bracket to mount the heater to the wall.

• Fasten suitable screws as well as dowels according to requirements. The fixed bracket for perma- nent mounting is located on the back of the unit.

• Subsequently, the mounted screws serve as a support for the device.EN

Attention! The general safety conditions must be observed during maintenance and care. To ensure trouble-free operation of the heater, the unit should be cleaned regularly. The following procedure is recommended for this:

1. Switch off the heater.

2. Then unplug the power cord from the power outlet.

3. Remove the accumulated dust using a cloth or vacuum cleaner.

4. Wipe the housing with a damp cloth. Never use gasoline, solvents or abrasive agents to clean the

plastic parts, as these can damage the plastic surface. Plug the power cord into the power outlet.

5. Switch on the device.

6. Plug in the cable.

7. Adjust the device.

8. To avoid danger, a damaged connection cable may only be replaced by the manufacturer, its cus-

tomer service or a person qualified to do so.EN

07 - CONFORMITY / DISPOSAL

Warranty All products are checked from our company before the delivery. In case that there is a lack on your product, please contact the vendor. Please bring your proof of purchase for guarantees. Please save the packaging materials of the unit. Disposal Please remove the heater properly. You can bring the product to any specialist dealer fort he removal. Technical changes Technical changes in technique and design are possible. CE declaration of Conformity This device complies with the following standards EMC EN -:/A: EN -: EN IEC --: EN --: + A: LVD EN -: + AC: + A: + A: + A: + A: + A: EN --: + Cor.: + A: + A: EN : ErP EN : EN : + A: + A: + A: LVD //EU EMC //EU RoHS //EU ErP / Any modifications or repairs to the device must be carried out by a qualified person. Since the development of the produced devices is constantly progressing, your product may differ minimally from the one described.EN

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 31 March 2015 implementing Directive 2015/863/EU on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management. The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and envi

ronmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indica

tes that the disposal of used batteries is prohibited in household waste. Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.NL NEDERLANDSVersie BEDRIJF Sonnenkönig of SwitzerlandOlensbachstrasse 9-15CH-9631 UlisbachTel. Int. [phone]Tel. Nat. 0848 870 850Sonnenkönig of SwitzerlandPeter-Henlein-Strasse 5D-89331 BurgauTel: 0180 500 64 350.14 Cent/Minute

02 - WAARSCHUWINGEN 43

02 - WAARSCHUWINGENNL

Table for information requirements for MAXIMO 1000/1500/2000 Item Symbol Value Unit Item P Heat output Type of heat input, for electric storage local space heaters only (select one) MAXIMO 1000 Manual heat charge control with integrated thermostat [no] Nominal heat output P nom 1 kW Manual heat charge control with room and/or outdoor tempera

ture feedback [no] Minimum heat output (indicative)

min N/A kW Electronic heat charge control with room and/or outdoor tem

Fan assisted heat output [no] MAXIMO 1500 Type of heat output/room temperature control (select one) Nominal heat output P nom

Single stage heat output and no room temperature control [no] Minimum heat output (indicative)

min N/A kW Two or more manual stages, no room temperature control [no] Maximum continuous heat output

With mechanic thermostat room temperature control [yes] MAXIMO 2000 With electronic room temperature control [no] Nominal heat output P nom 2 kW Electronic room temperature control plus day timer [no] Minimum heat output (indicative)

min N/A kW Electronic room temperature control plus week timer [no] Maximum continuous heat output

Other control options (multiple selections possible) Room temperature control, with presence detection [no] Room temperature control, with open window detection [no] With distance control option [no] With adaptive start control [no] With working time limitation [no] With black bulb sensor [no] Auxiliary electricity consumption At nominal heat output
