USER MANUAL Bosotherm 2000 BOSO

EN Thermal underblanket Instruction for Use 9

1. Items included in the package 10
   1.1 Description 10
2. Important instructions Retain for future use 10
3. Intended use 12
4. Operation 12
   4.1 Safety 12
   4.2 Putting into operation 12
   4.3 Switching on. 12

4.4 Setting the temperature 12
4.5 Switching off. 13
5. Cleaning and care. 13
6.Storage 14
7.Disposal. 14
8. In the event of problems 14
9. Technical data 14
10.Warranty 14

Explanation of symbols

	Read the instructions!	40	40°C gentle washing program
			Do not bleach
	Do not insert pins! Do not tumble dry
					Do not iron
	Do not use folded or rucked!		Do not dry-clean
0-3	Not to be used by very young children (0 - 3 years).	OEKO-TEX® CONFERENCE IN TEXTILES STANDARD 100 PROTEINATION 06.0.43510 HOHENSTEIN HTI Tested for harmful substances, www.ohen-teststandard.org	The textiles used for this device meet the stringent human ecological requirements of Oeko-Tex Standard 100, as verified by Hohenstein Research Institute.
PAP	Dispose of packaging in an environmentally friendly manner.
CE	This product satisfies the requirements of the applicable European and national directives.	KEMA EUR	The KEMA-KEUR symbol documents the safety and compliance with standards of an electrical product.
	Please dispose of the device in accordance with EC Directive - WEEE (Waste Electrical and Electronic Equipment).		The device has double protective insulation and therefore complies with protection class 2.
	WARNING: Warning of risks of injury or health hazards
	CAUTION: Safety information about possible damage to appliance/accessories.
	NOTE: Important information.

1. Items included in the package

1 x heated underblanket
1 x control
1 x operating instructions

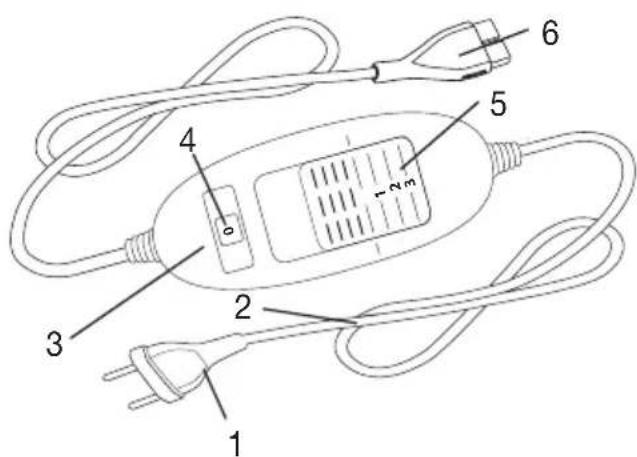

1.1 Description

1 Supply plug
2 Supply cord
3 Control
4 Illuminated temperature settings
5 Slider for ON/OFF and temperature settings
6 Plug-in coupling

2. Important instructions Retain for future use

WARNING

• Failure to observe the information provided below can lead to personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information not only serves to protect your health and the health of others, it also protects the product from damage. Therefore, observe this safety information and pass on these instructions together with the product.

• This electric underblanket must not be used by people who are not sensitive to heat or by vulnerable people who may not be able to react to overheating (e.g. diabetics, persons with skin changes related to illness or persons with scarred skin in the area where the pad is to be applied, after taking any pain-relieving medication or alcohol).

• This heated underblanket may not be used for very young children under the age of three (0-3) due to their inability to react to overheating.
• This heated underblanket may not be used for young children over the age of three (3-8) unless the control has been pre-set by a parent or guardian and unless the child has been adequately instructed how to operate the heated underblanket safely.
• This heated underblanket can be used by older children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the heated underblanket.
• Cleaning and user maintenance shall not be made by children without supervision.
• This heated underblanket is not intended for use in hospitals.
• Do not insert pins.
• Do not use folded or rucked.
• Do not use if wet.
• If the heated underblanket is used on an adjustable bed, check that the underblanket and cord do not become trapped or rucked, for example in hinges.
• This heated underblanket must be used with the type of control that is marked on the rating label of the heated underblanket, only.
• The electric and magnetic fields emitted by this electrical heated underblanket may possibly interfere with the operation of pacemakers. However, they are well below the permissible limits: electric field strength: maximum of 5,000V / m , magnetic field strength: maximum of 80A / m , magnetic flux density: maximum of 0.1 millitesla. Please therefore ask your doctor and the manufacturer of your pacemaker before using this product.
• Do not pull, twist or make any sharp kinks in the cords.

• This heated underblanket must be examined frequently for signs of wear or damage. If there are such signs, if the heated underblanket has been misused or does not work, return it to the supplier before switching it on again.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

• While this heated underblanket is switched on

• never place any sharp objects on it,

• never place any heat source on it, such as a hot water bottle, heating pad etc.

• When in use, the electronic components in the control of the heated underblanket make the control slightly warm. The control should therefore never be covered or placed on the heated underblanket when it is in operation.

• Should you still have questions on using our appliances, please contact our customer service.
• Always observe the notes on operation (section 4), cleaning and maintenance (section 5) and storage (section 6).

3. Intended use

CAUTION

This heated underblanket is designed for warming beds, only.

4. Operation

4.1 Safety

CAUTION

• This heated underblanket is equipped with a SAFETY SYSTEM. This sensor technology prevents the entire surface of the heated underblanket from overheating by automatically switching off the heated underblanket in the event of a fault. If the safety system has switched off the heated underblanket, the temperature setting is not illuminated any more even when the heated underblanket is switched on.
• Please note that the heated underblanket is not operable any more due to safety reasons in this case and has to be sent to the service address indicated.
• Do not connect the defective heated underblanket with another controller of the same type. This would trigger a permanent switch-off via the controller safety system.

4.2 Putting into operation

Spread out the heated underblanket flat onto your mattress starting at the foot end.

Then put on your bedsheet in the usual manner so that the heated underblanket is between your mattress and the bedsheet

CAUTION

Make sure that the heated underblanket is spread out entirely flat and that it will not rumple up or crease when in use.

• To operate the heated underblanket connect the controll to the heated underblanket by plugging in the connector.
• Then plug in the supply plug into the mains outlet.

4.3 Switching on

To switch on the heated underblanket, set the slider for ON/OFF and temperature settings to setting 1, 2 or 3. The temperature settings are illuminated when switched on.

4.4 Setting the temperature

Setting 0: OFF

Setting 1: minimum heat

Setting 2: medium heat

Setting 3: maximum heat

WARNING

If the heated underblanket is used continuously (for several hours) it is recommended to use the lowest setting of the control to avoid overheating of the user.

i NOTE:

• The quickest way to heat up the heated underblanket is to select the highest temperature setting of the control, first.
• We strongly recommend switching on the heated underblanket approx. 30 minutes before going to bed and covering it with the quilt to prevent the warmth from escaping.

4.5 Switching off

To switch off the heated underblanket, set the slider for ON/OFF and temperature settings to the OFF (0) position. The temperature settings are then no longer illuminated.

1 NOTE:

If the heated underblanket is not used for several days, set the slider for ON/OFF and temperature settings to the OFF (0) position and remove the mains plug from the socket. Then remove the control from the heated underblanket by disconnecting it at the conector.

5. Cleaning and care

WARNING

Always remove the supply plug from the mains outlet and remove the control from the heated underblanket by disconnecting it at the connector.

CAUTION

The controll must never get in contact to water or other liquids. Otherwise the controll may be damaged.

• To clean the controller, use a dry, lint-free cloth. Do not use any chemical or abrasive cleaning agents.
• The textile cover can be cleaned in accordance with the symbols on the label and must be removed from the heating pad prior to cleaning.

CAUTION

Note that the heated underblanket must not be dry-cleaned, wrung out, machine dried or ironed.

• The heated underblanket is machine washable.
• Set the washing machine to a delicate washing cycle at 40^ . Use a mild detergent with dosage according to the manufacturer's instructions.

CAUTION

Note that the heated underblanket will suffer from too frequent washing.

For its entire life, therefore, the heated underblanket should be washed not more than 5 times in a washing machine.

• While the heated underblanket is still damp after washing, shape it to its original form and size and place it flat over a clothes drying rack to dry.

CAUTION

• Do not attach the heated underblanket to washing lines with washing pegs or the like. Otherwise the heated underblanket may be damaged.
• Only reconnect the controller to the heated underblanket after the connector and the heated underblanket are completely dry. Otherwise the heated underblanket may be damaged.

WARNING

Under no circumstances switch on the heated underblanket to dry it. Otherwise there is a risk of an electric shock.

6. Storage

When not in use we recommend to store the heated underblanket in its original packaging. For this purpose, disconnect the controller from the electric underblanket by unplugging the plug-in coupling.

CAUTION

• Allow the heated underblanket to cool down before folding. Otherwise the heated underblanket may be damaged.
• Do not crease the heated underblanket by placing items on top of it during storage.

7. Disposal

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the unit at a suitable local collection or recycling point. Dispose of the device in accordance with EC Directive - WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

8. In the event of problems

Problem Cause Remedy
The temperature settings are not illuminated while - the control is fully connected to the heated under- blanket - the supply plug is connected to the mains outlet with correct function - the setting is 1,2 or 3	The Safety system switched off the heated underblanket irreversible	Send the heated un- derblanket together with the control to the service.

9. Technical data

For technical data, see the rating label on the heated underblanket.

10. Warranty

We offer a 5-year product warranty against material and production faults. The warranty does not cover:

• Damage due to improper operation
  Wearing parts
• Deficiencies already known to the customer upon purchase
• Cases of personal negligence on the part of the customer
  Outside interference

The warranty does not affect the customer's statutory rights. To assert a warranty claim within the warranty period, the customer must provide proof of purchase.

The warranty claim must be submitted within a period of 5 years from the date of purchase to BOSCH + SOHN GmbH u. Co. KG, Bahnhofstr. 64, D-72417 Jungingen (Germany). In the event of a warranty claim, the customer reserves the right to have the goods repaired at our own workshop or at a workshop authorised by us. No further rights are granted to the customer (on the basis of the warranty).
