Product type	Electric ice crusher
Brand	Orbegozo
Model	PK 4200
Power supply	230 V ~ 50 Hz
Rated power	150 W (estimated)
Bowl capacity	Approximately 1 L (estimated)
Body material	ABS plastic
Blade material	Stainless steel
Dimensions (L x W x H)	20 x 20 x 30 cm (estimated)
Weight	2 kg (estimated)
Color	White and silver
Operation	On/off switch
Usage	Pour ice cubes after starting
Maintenance	Unplug before cleaning; bowl, lid and container washable with soapy water
Cleaning the blades	Use a brush for the interior; beware of sharp blades
Child safety	Do not leave children under 8 years without supervision; do not play with the appliance
Protection	Do not immerse in water; do not use outdoors
Included accessories	Ice bowl, lid
Spare parts	Contact the manufacturer or authorized service
Repairability	Repair by an authorized technician recommended
Warranty	2 years (standard)

Frequently Asked Questions - PK 4200 Orbegozo

How to use the PK 4200 ice crusher?

Make sure the switch is on '0'. Plug in the appliance, turn it on, then pour ice cubes into the filling slot. The crushed ice falls into the bowl. To stop, set the switch back to '0'.

What is the power of the PK 4200?

The power is not explicitly stated in the manual, but for a domestic ice crusher, it is generally between 150 and 300 W.

Can I crush something other than ice?

No, this appliance is designed only for crushing ice cubes. Do not insert other foods, as this could damage the blades.

How to clean the ice crusher?

Always unplug the appliance before cleaning. Wash the bowl, lid and container with soapy water. Use a brush to clean the inside of the crusher, being careful of the sharp blades.

What to do if the appliance does not work?

Check that the socket works and the switch is in the on position. If the problem persists, contact an authorized technical service. Do not attempt to repair it yourself.

Can children use this appliance?

Children over 8 years can use it under supervision. Younger children should not approach it. Keep the appliance out of reach of children under 8 years.

Can I wash the parts in the dishwasher?

The manual does not specify. It is recommended to hand wash the parts with soapy water to avoid damage.

What is the maximum ice cube capacity?

The manual states not to fill beyond the maximum quantity. In practice, do not exceed the top edge of the filling slot.

How to get fine or coarse crushed ice?

This appliance does not offer a fineness adjustment. The ice is crushed to a standard texture. For variations, you can adjust the crushing time (longer = finer).

Where can I find spare parts?

For spare parts, contact the manufacturer Orbegozo via email at [e-mail] or an authorized dealer.

USER MANUAL PK 4200 Orbegozo

White ceramic shower unit with clear glass lid and blue liquid, no visible text or symbols

PK 4200 A

Sonifer,S.A.

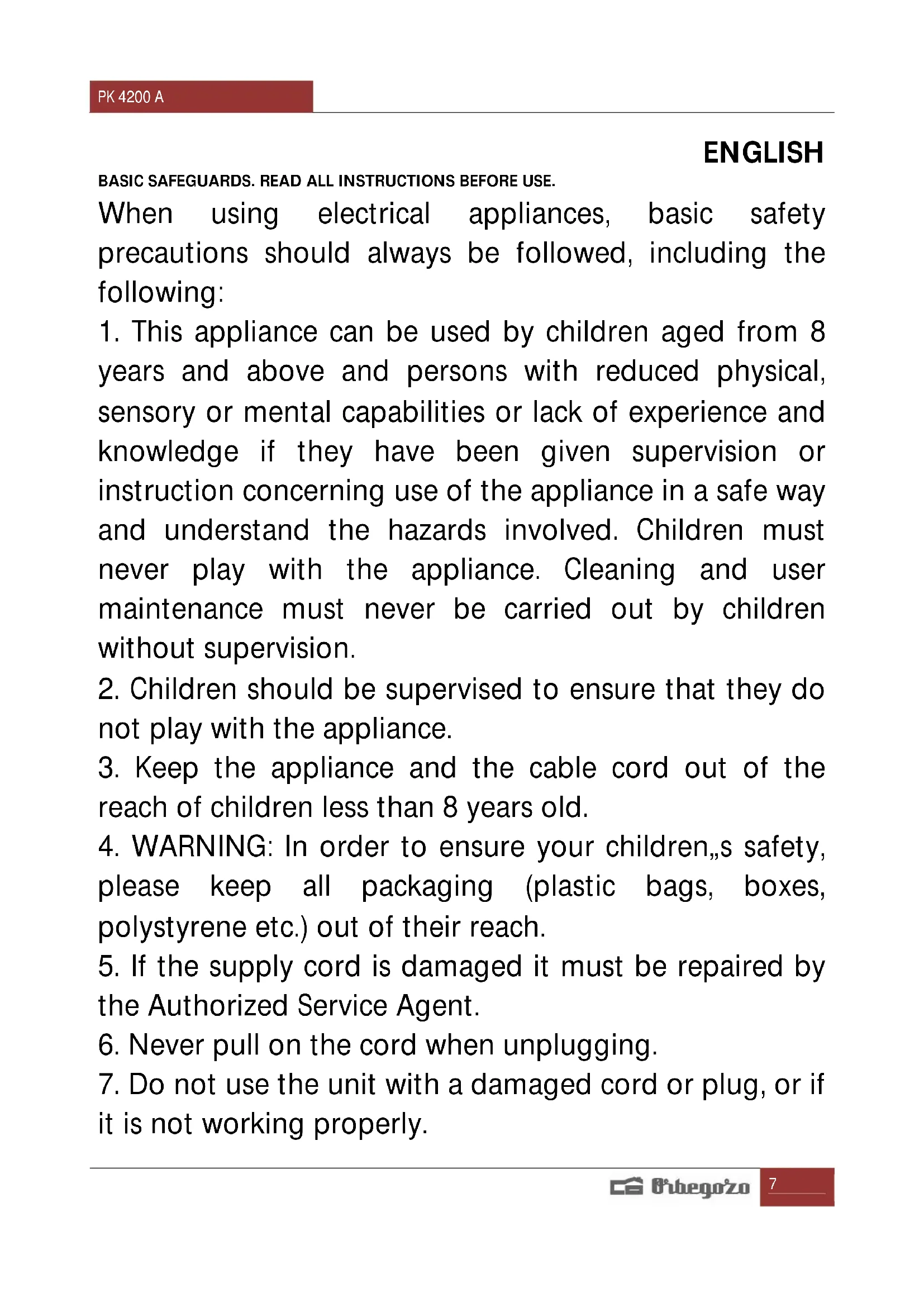

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children,,s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Allow the ice crusher to operate for max. 2 min. of each uses then the appliance to cool down for 1 minutes after each use.

16. Care shall be taken when handling the sharp cutting blades, emptying the parts and during cleaning.
17. NEVER fill the ice crusher with boiling liquids or other foods! This appliance is only for ice cubes crushing, only allow put the ice cubes into the appliance. Otherwise, the appliance could overheat and/or get damage of appliance.
    • Always disconnect the ice crusher from the supply if

it is left unattended and before assembling, disassembling or cleaning;

- This appliance is intended to be used in household and similar applications such as:

staff kitchen areas in shops, offices and other working environments;

farm houses;

by clients in hotels, motels and other residential type environments;

bed and breakfast type environments.

- Use the appliance only in dry rooms; never use it outdoors or in damp environments

Exterior view of a modern blue glass shower unit with labeled parts (1, 2, 3), no visible text or symbols on the device itself.

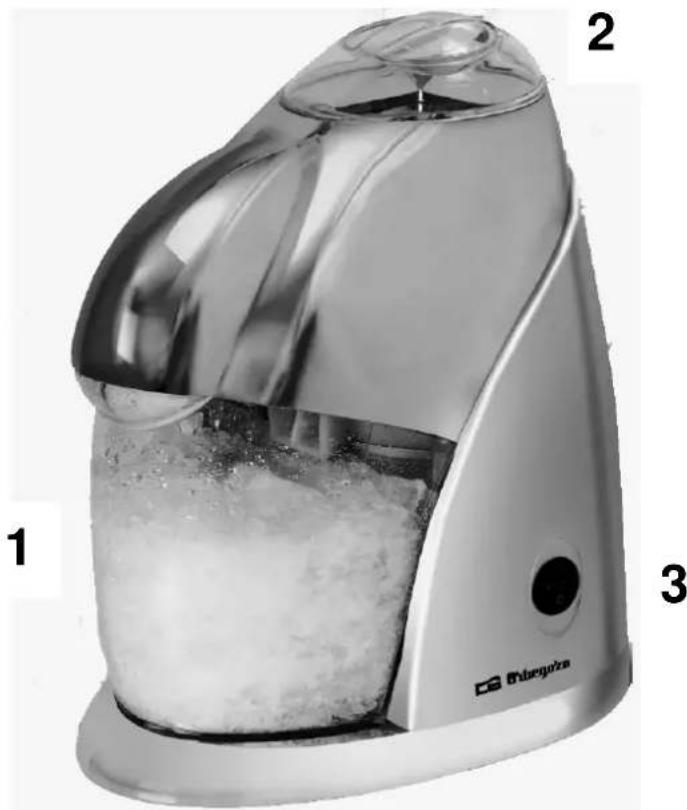

Overview of the Components

1 Collection vessel
2 Cover
3 Switch

Using the Machine

1. Take the device and the accessories out of the box. Remove any packaging materials that may be present. Then clean the accessories
2. Attach the accessories as shown in the diagram.
3. Please ensure that the switch (3) is set to "0".
4. Connect the machine to a correctly installed 230V, 50 Hz power socket. Important: First start the motor and only then add the ice cubes. Do not overfill the crushing equipment. Do not insert your fingers or other objects into the crushing gear! There is a danger of injury.
5. Switch on the machine.
6. Add ice cubes slowly to the grinding section through the filler tube.

Important: First start the motor and only then add the ice cubes. Do not overfill the crushing equipment. Do not insert your fingers or other objects into the crushing gear! There is a danger of injury.

1. The crushed ice is collected in the collection vessel (1).
2. When you would like to stop the crushing process, switch the device to "0".
3. Transfer the crushed ice from the collection vessel to the vessels you wish to use.

Cleaning

• Before cleaning remove the mains lead from the socket.
• For cleaning the outside of the machine use only a damp washing-up cloth.
• Do not use any sharp or abrasive detergents.
• The collection vessel, the bowl and the lid can be cleaned in soapy water.
• Please use a brush to clean the grinding mechanism.
• Caution: The grinding mechanism contains sharp edges. Danger of injury!
• Please allow all parts to dry thoroughly before storing the machine away.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old

household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
