USER MANUAL LST140C BLACK & DECKER

ION MANUAL NUMBER

KEY INFORMATION YOU SHOULD KNOW

⚠ WARNING: Do not remove guard. The guard must be attached when trimming. Operating this trimmer without the guard will violate the product warranty.

⚠️CAUTION: When replacing the line, use only .065 inches (1.65 mm) diameter round line. Other sizes may degrade performance or cause damage to the trimmer.

- For use only with BLACK+DECKER 40v batteries.

IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY BLACK+DECKER appliance, CALL US TOLL FREE AT: 1-800-544-6986.

Thank you for choosing BLACK+DECKER!

PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON.

If you have a question or experience a problem with your BLACK+DECKER purchase, go to http://www.blackanddecker.com/instantanswers

If you can't find the answer or do not have access to the Internet, call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with an agent. Please have the catalog number available when you call.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

*Maximum initial battery pack voltage (measured without a workload) is 40 volts. The nominal voltage is 36.

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risks of personal injury or property damage.

⚠️DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

⚠ WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

⚠️CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in property damage.

IMPORTANT SAFETY WARNINGS

⚠ WARNING: When using electric gardening appliances, basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including the following.

READ ALL INSTRUCTIONS

- ALWAYS WEAR EYE PROTECTION – Wear safety spectacles or goggles at all times when battery is installed. These items are available for purchase.

- GUARD – Do not use this appliance without guard attached.

- DRESS PROPERLY – Do not wear loose clothing or jewelry. They can be caught in moving parts. Gloves and substantial rubber soled footwear are recommended when working outdoors. Don't operate the appliance when barefoot or wearing open sandals. Wear heavy long pants to protect your legs. Wear protective hair covering to contain long hair.

- NYLON LINE – Keep face, hands and feet clear of rotating nylon line at all times.

- THE ROTATING LINE PERFORMS A CUTTING FUNCTION – Use care when trimming around screens and desirable plantings.

- KEEP ALL BYSTANDERS AWAY – at a safe distance from work area, especially children.

- IMPORTANT WARNING – When being used as an Edger, stones, pieces of metal and other objects can be thrown out at high speed by the line. The appliance and guard are designed to reduce the danger. However, the following special precautions should be taken: MAKE SURE that other persons and pets are at least 100 feet (30m) away.

- TO REDUCE THE RISK of rebound (ricochet) injury, work going away from any nearby solid object such as wall, steps, large stone, tree, etc. Use great care when working close to solid objects and where necessary, do trimming by hand.

- AVOID ACCIDENTALLY STARTING – Don't carry with finger on trigger when battery is installed.

- USE THE RIGHT APPLIANCE – Do not use this appliance for any job except that for which it is intended.

- DON'T OVERREACH– Keep proper footing and balance at all times.

- DON'T FORCE APPLIANCE – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed

- DAMAGE TO UNIT – If you strike or become entangled with a foreign object, stop appliance immediately, remove battery, check for damage and have any damage repaired before further operation is attempted. Do not operate with a broken hub or spool.

- REMOVE BATTERY – when not in use, when replacing line, or prior to cleaning.

- AVOID DANGEROUS ENVIRONMENTAL CONDITIONS – Do not use electric appliances in damp or wet locations. Follow all instructions in this Instruction Manual for proper operation of your appliance. Don't use the appliance in the rain.

- DO NOT OPERATE portable electric appliances in gaseous or explosive atmospheres. Motors in these appliances normally spark, and the sparks might ignite fumes.

- STORE IDLE APPLIANCES INDOORS - When not in use, appliances should be stored indoors in a dry, locked-up place out of reach of children.

- STAY ALERT – Do not operate this unit when you are tired, ill, or under the influence of alcohol, drugs, or medication.

- MAINTAIN APPLIANCES WITH CARE – Follow instructions in maintenance section. Keep handles dry, clean and free from oil and grease.

- CHECK DAMAGED PARTS – Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving

parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless otherwise indicated elsewhere in this manual.

ADDITIONAL SAFETY WARNINGS

a) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

b) Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

c) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

d) Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

e) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

f) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

g) Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

h) Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion. The temperature of 130°C can be replaced by the temperature of 265°F.

i) Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

- DO NOT immerse appliance in water or squirt it with a hose. DO NOT allow any

liquid to get inside it. If appliance does get wet, allow to dry for a minimum of 48 hours.

• DO NOT store the appliance on or adjacent to fertilizers or chemicals.
• DÔ NOT clean with a pressure washer.
• Keep guards in place and in working order.
• Keep hands and feet away from cutting area.
• DO NOT charge appliance in rain, or in wet locations.

- Use only with BLACK+DECKER LB series 36V or 40V Max batteries.

- Use only with BLACK+DECKER LC series 36V or 40V Max chargers.

- DO NOT dispose of the battery in a fire. The cell may explode. Check with local codes for possible special disposal instructions.

- DO NOT open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

⚠ WARNING: Do not use appliance if the switch trigger does not turn the appliance on or off. Any appliance that can not be controlled with the switch trigger is dangerous and must be repaired.

⚠ WARNING: Some dust created by this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers
• compounds in insecticides, herbicides and pesticides
• arsenic and chromium from chemically treated lumber

To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

- The label on your appliance may include the following symbols. The symbols and their definitions are as follows:

V....volts mW....milliwatts nm....wavelength in nonometers

A.....amperes

Hz......hertz

W.....watts

min ......minutes

\~ or AC.....alternating current

---or DC ...direct current

no no load speed

Class I Construction (grounded)

earthing terminal

⚠️ ......safety alert symbol

☐ ......Class II Construction (double insulated)

.../min or rpm...revolutions or reciprocation per minute

Use proper respiratory protection

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGERS

SAVE THESE INSTRUCTIONS: This manual contains important safety instructions for battery chargers.

- Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using battery pack.

⚠ WARNING: SHOCK HAZARD.

Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

⚠ WARNING: SHOCK HAZARD. Do

not allow any liquid to get inside the charger. Electric shock may result.

⚠ WARNING: BURN HAZARD. Do not submerge the battery pack in any liquid or allow any liquid to enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.

⚠CAUTION: BURN HAZARD. To reduce the risk of injury, charge only BLACK+DECKER rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and property damage.

⚠CAUTION: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material.

⚠ WARNING:

- DO NOT attempt to charge the battery pack with any chargers other than those specified by the manufacturer. The charger and battery pack are specifically designed to work together.

- These chargers are not intended for any uses other than charging designated BLACK+DECKER rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.

- Do not expose charger to rain or snow.

- Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and cord.

- Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

- When operating a charger outdoors, always provide a dry location.

- If use of an extension cord is absolutely necessary outdoors, use an extension cord suitable for outdoor use. Use of a

cord suitable for outdoor use reduces the risk of electric shock.

- An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is 16 gauge has more capacity than 18 gauge. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size.

Recommended Minimum Wire Size for Extension Cords

Volts	Minimum Gage for Cord Sets
	Total Length of Cord in Feet
120V	0-25(0-7,6m)	26-50(7,6-15,2m)	51-100(15,2-30,4m)	101-150(30,4-45,7m)
Ampere Rating
More Not more American Wire Gage
Than Than
0	-6	18	16	16 14
6	-10	18	16	14 12
10	-12	16	16	14 12
12	-16	14	12	Not Recommended

• Do not place any object on top of charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.
• Do not mount charger on wall or permanently affix charger to any surface. The charger is intended to use on a flat, stable surface (i.e., table top, bench top).
• Do not operate charger with damaged cord or plug — have them replaced immediately.
• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorized service center.
• Do not disassemble charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.
  • NEVER attempt to connect 2 chargers together.
• The charger is designed to operate on standard household electrical power (120 Volts). Do not attempt to use it on any other voltage.

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY PACKS

⚠ WARNING: READ ALL SAFETY

WARNINGS and all instructions for the battery pack, charger and power tool.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging procedures outlined.

READ ALL INSTRUCTIONS

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries and chargers.
• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when battery packs are burned.
• Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust or fumes.
• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte for Li-ion batteries is composed of a mixture of liquid organic carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.
• Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible special disposal instructions.
• Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
• Charge the battery packs only in BLACK+DECKER chargers.
• DO NOT splash or immerse in water or other liquids. This may cause premature cell failure.
• Do not store or use the appliance and battery pack in locations where the temperature may reach or exceed 105°F (40°C) (such as outside sheds or metal buildings in summer).

⚠ WARNING: BURN HAZARD. BATTERY LIQUID MAY BE FLAMMABLE IF EXPOSED TO SPARK OR FLAME.

⚠ WARNING: NEVER ATTEMPT TO OPEN THE BATTERY PACK FOR ANY REASON. IF BATTERY PACK CASE IS CRACKED OR DAMAGED, DO NOT INSERT INTO CHARGER. DO NOT CRUSH, DROP OR DAMAGE BATTERY PACK. DO NOT USE A BATTERY PACK OR CHARGER THAT HAS RECEIVED A SHARP BLOW, BEEN DROPPED, RUN OVER OR DAMAGED IN ANY WAY (I.E., PIERCED WITH A NAIL, HIT WITH A HAMMER, STEPPED ON). DAMAGED BATTERY PACKS SHOULD BE RETURNED TO SERVICE CENTER FOR RECYCLING.

⚠ WARNING: FIRE HAZARD. DO NOT STORE OR CARRY BATTERY SO THAT METAL OBJECTS CAN CONTACT EXPOSED BATTERY TERMINALS. FOR EXAMPLE, DO NOT PLACE BATTERY IN APRONS, POCKETS, APPLIANCE BOXES, PRODUCT KIT BOXES, DRAWERS, ETC., WITH LOOSE NAILS, SCREWS, KEYS, ETC. TRANSPORTING BATTERIES CAN POSSIBLY CAUSE FIRES IF THE BATTERY TERMINALS INADVERTENTLY COME IN CONTACT WITH CONDUCTIVE MATERIALS SUCH AS KEYS, COINS, HAND APPLIANCES AND THE LIKE. THE US DEPARTMENT OF TRANSPORTATION HAZARDOUS MATERIAL REGULATIONS (HMR) ACTUALLY PROHIBIT TRANSPORTING BATTERIES IN COMMERCE OR ON AIRPLANES (I.E., PACKED IN SUITCASES AND CARRY-ON LUGGAGE) UNLESS THEY ARE PROPERLY PROTECTED FROM SHORT CIRCUITS. SO WHEN TRANSPORTING INDIVIDUAL BATTERIES, MAKE SURE THAT THE BATTERY TERMINALS ARE PROTECTED AND WELL INSULATED FROM MATERIALS THAT COULD CONTACT THEM AND CAUSE A SHORT CIRCUIT. NOTE: BATTERIES SHOULD NOT BE PUT IN CHECKED BAGGAGE.

STORAGE RECOMMENDATIONS

1. The best storage place is one that is cool and dry away from direct sunlight and excess heat or cold.
2. For long storage, it is recommended to store a fully charged battery pack in a cool dry place out of the charger for optimal results.

NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ON position.

NOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use.

CHARGING PROCEDURE

BLACK+DECKER chargers are designed to charge BLACK+DECKER battery packs.

NOTE: To ensure maximum performance and life of lithium ion BATTERY PACKS:

• Charge the battery pack fully before first use.
• Recharge discharged batteries as soon a possible after every use.
• Do not discharge batteries fully.

BLACK+DECKER Battery and Charger Systems
Chargers/Charge Time** (Hours) (0% - 100% charge)
40V MAX* Batteries	Watt Hours	40V MAX* Chargers
		LCS36	LCS40	LCS436
LBX36 47		1 1 3	25
LBXR36 60		1.25 1	25 3.75
LBX1540 60		1.25 1	25 3.75
LBXR2036 80		1.5 1.5	5
LBX2040 80		1.5 1.5	5
LBXR2540 100		1.75 1	75 6.25
LBX2540 100		1.75 1	75 6.25

**All charge times are approximate. Actual charge time may vary.

1. Plug the charger into an appropriate outlet before inserting the battery pack.
2. Insert the battery pack into the charger.
3. The green LED will flash indicating

that the battery is being charged.

1. The completion of charge is indicated by the green LED remaining on continuously. The pack is fully charged and may be used at this time or left on the charger.

Recharge discharged batteries as soon as possible after use or battery life may be greatly diminished.

CHARGER DIAGNOSTICS

This charger is designed to detect certain problems that can arise with the battery packs or the power source. Problems are indicated by one LED flashing in different patterns.

BAD BATTERY

The charger can detect a weak or damaged battery. The red LED flashes in the pattern indicated on the label. If you see this bad battery blink pattern, do not continue to charge the battery. Return it to a service center or a collection site for recycling.

HOT/COLD PACK DELAY

When the charger detects a battery that is excessively hot or excessively cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery has normalized. After this happens, the charger automatically switches to the Pack Charging mode. This feature ensures maximum battery life. The red LED flashes in the pattern indicated on the label when the hot / cold pack delay is detected.

LEAVING THE BATTERY IN THE CHARGER

The charger and battery pack can be left

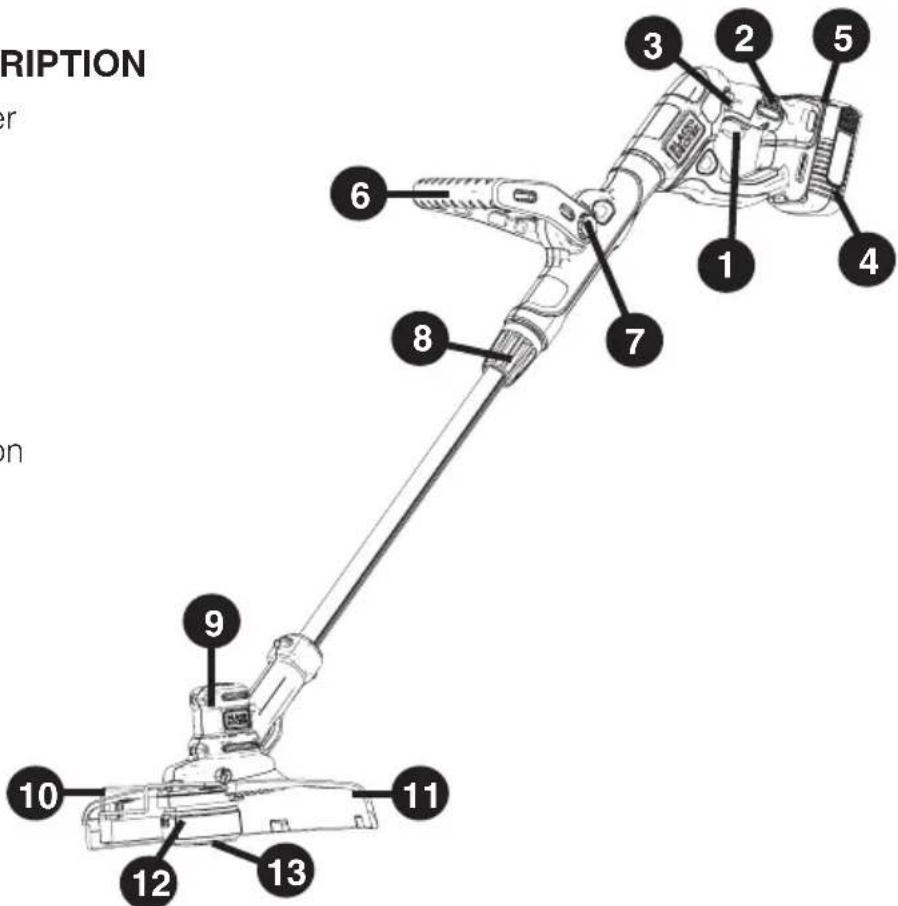

FUNCTIONAL DESCRIPTION

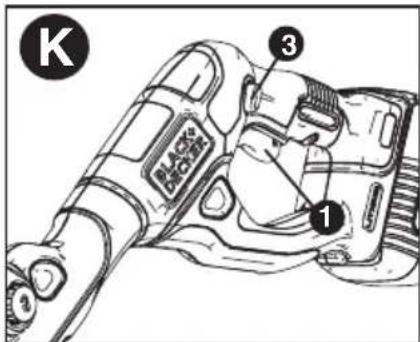

1. Variable speed trigger
2. Handle
3. Lock off button
4. Battery
5. Charge indicator

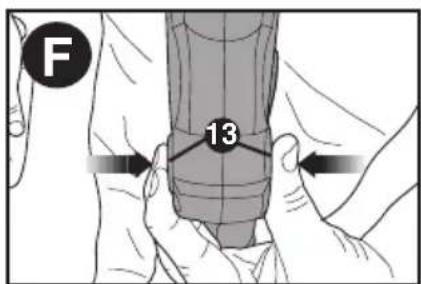

6. Auxiliary handle
7. Auxiliary handle button

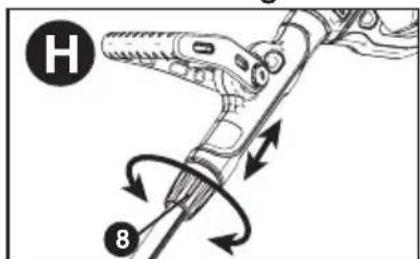

8. Adjustment collar
9. Trimmer head
10. Edge guide
11. Guard
12. Spool housing
13. Spool cap

RIPTION r 1 2 3 4 5 6 7 8 9 10 11 12 13

connected with the green LED glowing indefinitely. The charger will keep the battery pack fresh and fully charged.

IMPORTANT CHARGING NOTES

1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 60°F and 80°F (16°-27°C). DO NOT charge the battery pack in an air temperature below +40°F (+4.5°C), or above +105°F (+40.5°C). This is important and will prevent serious damage to the battery pack.

2. The charger and battery pack may become warm to touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed, or an uninsulated trailer.

3. If the battery pack does not charge properly: a. Check current at receptacle by plugging in a lamp or other appliance b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights.

c. Move charger and battery pack to a location where the surrounding air temperature is approximately 60^ F - 80^ F ( 16^ - 27^ C).

d. If charging problems persist, take the appliance, battery pack and charger to your local service center.

1. The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse affect on the battery pack.

2. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.

3. Do not freeze or immerse charger in water or any other liquid.

⚠ WARNING: SHOCK HAZARD. Do not allow any liquid to get inside charger. NEVER ATTEMPT TO OPEN THE BATTERY PACK FOR ANY REASON. IF THE PLASTIC HOUSING OF THE BATTERY PACK BREAKS OR CRACKS, RETURN TO A SERVICE CENTER FOR RECYCLING.

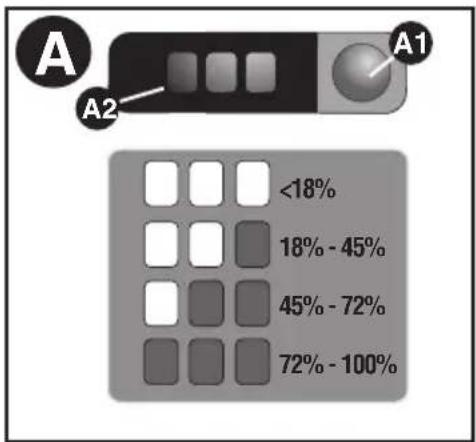

STATE OF CHARGE INDICATOR

The battery is equipped with a state of charge indicator. This can be used to display the current level of charge in the battery while in the trimmer and during charging. It does not indicate appliance functionality and is subject to variation based on product components, temperature and end-user application.

Checking state of charge during use:

• Press the state of charge indicator button (A1).
• The three LEDs (A2) will illuminate indicating the percent of charge in the battery. See chart in figure A.
• If LED light does not illuminate, charge battery.

A A2 A1 <18% 18% - 45% 45% - 72% 72% - 100%

INSTALLING AND REMOVING THE BATTERY PACK

⚠ WARNING: MAKE SURE THE SWITCH IS NOT ACTUATED WHEN REMOVING OR INSTALLING BATTERY.

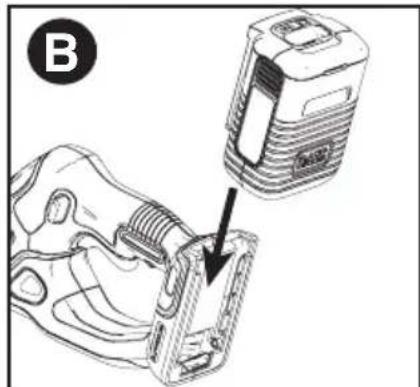

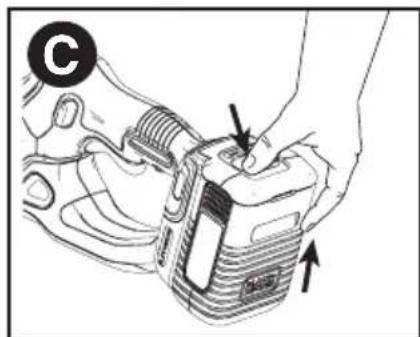

TO INSTALL BATTERY PACK:

Insert battery pack into trimmer until fully seated and an audible click is heard (figure B). Make sure battery pack is fully seated and fully latched into position.

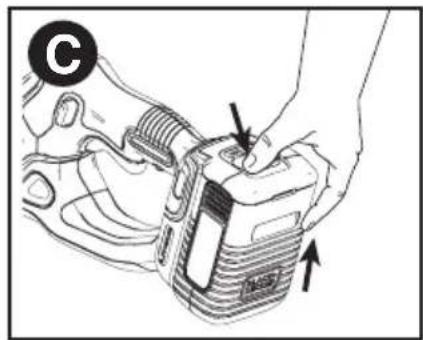

TO REMOVE BATTERY PACK: Depress the battery release button in the back of the battery pack and pull battery pack out of trimmer (figure C).

B

C

SAVE THESE INSTRUCTIONS INTENDED USE

This string trimmer is designed for residential trimming applications. DO NOT use under wet conditions or in presence of flammable liquids or gases.

This string trimmer is a residential appliance. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this appliance.

ASSEMBLY AND ADJUSTMENT

⚠ WARNING: BEFORE ASSEMBLY, MAKE SURE THAT THE APPLIANCE IS SWITCHED OFF AND THE BATTERY HAS BEEN REMOVED.

ASSEMBLY TOOLS REQUIRED (NOT SUPPLIED):

- Phillips Screwdriver

⚠ WARNING: REMOVE THE BATTERY BEFORE ATTEMPTING TO ATTACH ANY OF THE FOLLOWING COMPONENTS.

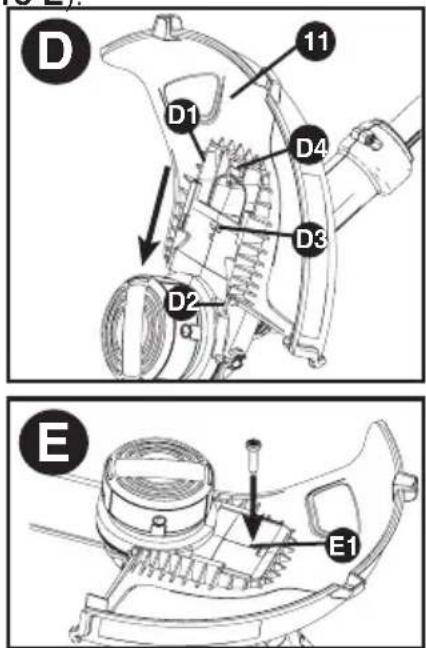

ATTACHING THE GUARD (FIGURES D AND E)

⚠ WARNING: NEVER OPERATE APPLIANCE WITHOUT GUARD FIRMLY IN PLACE. The guard must always be properly attached on the appliance to protect the user.

• Remove the screw (E1) from the guard.
• Keeping the guard square to the trimmer head slide it fully into place until the retaining tab clicks into place (Ensure that the guide rails (D1) on the guard (11) are correctly aligned with the guide rails (D2) on the trimmer head (figure D). The locking tab (D3) should snapped into the housing slot (D4).

- Secure the guard with the screw (E1) (figure E).

D 11 D1 D4 D3 D2 E E1

ATTACHING THE AUXILIARY HANDLE (FIGURE F, G)

The auxiliary handle can be adjusted to provide optimum balance and comfort.

• To attach the handle (6), press in on the buttons (13) on both sides of the upper housing as shown in figure F.

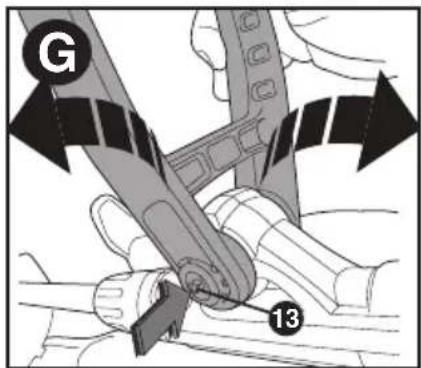

• Position the handle as shown in figure G, matching up the grooved side of the handle with the grooved button. Partially push the handle on so that it will hold the buttons in when you release them with your hand.
• Push the handle completely onto the housing and position it until it "snaps" into place (figure G).
• To adjust the handle up or down, press in on the button (13) and raise or lower the handle.
• The handle should be adjusted so that your front arm is straight when the trimmer is in the working position.

F 13

G 13

HEIGHT ADJUSTMENT (FIGURE H)

⚠CAUTION: Adjust the length of the trimmer to obtain proper working positions as shown in figure M.

• The overall height of the trimmer can be adjusted by loosening the collar (8) and rotating it in the direction of the arrow shown in figure H.
• Move the upper housing straight up or down. When the desired height is achieved, tighten the collar by rotating it opposite of the direction shown in figure H.

H 8

RELEASING THE CUTTING LINE

In transit, the cutting line is taped to the spool housing.

- Remove the tape holding the cutting line to the spool housing.

OPERATION

⚠ WARNING: ALWAYS USE PROPER EYE PROTECTION THAT CONFORMS TO ANSI Z87.1 (CAN/CSA Z94.3) WHILE OPERATING THIS APPLIANCE.

⚠ WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

⚠CAUTION: Before you begin trimming, only use the appropriate type of cutting line.

⚠CAUTION: Inspect area to be trimmed and remove any wire, CORD, OR STRING-LIKE OBJECTS WHICH COULD BECOME ENTANGLED IN THE rotating line or spool. Be particularly careful to avoid any wire which might be bent outwardly into the path of the trimmer, such as barbs at the base of a chain link fence.

PROPER HAND POSITION

⚠ WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

⚠ WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the main handle (2) and one hand on the auxiliary handle (6).

SETTING TRIMMING OR EDGING MODE (FIGURE I, J)

- The trimmer can be used in trimming mode as shown in figure I or in edging mode to trim overhanging grass along lawn edges and flower beds as shown in figure J.

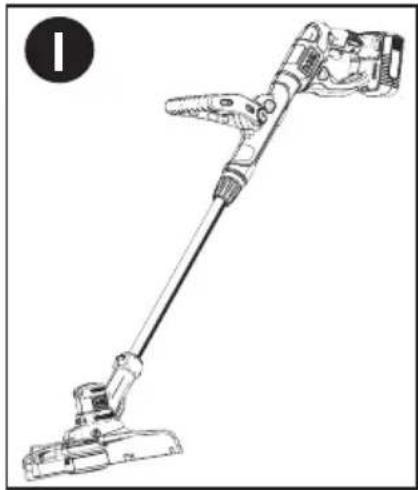

TRIMMING MODE

For trimming, the trimmer head should be in the position shown in figure J. If it is not:

• Remove the battery from the trimmer.
• Loosen the collar (8) as shown in figure H.
• Hold the metal shaft and rotate the lower housing 180° until trimmer is in the position shown in figure I.
• Tighten the collar (8) until tight.

Line drawing of a handheld vacuum cleaner with lever and handle (no text or symbols)

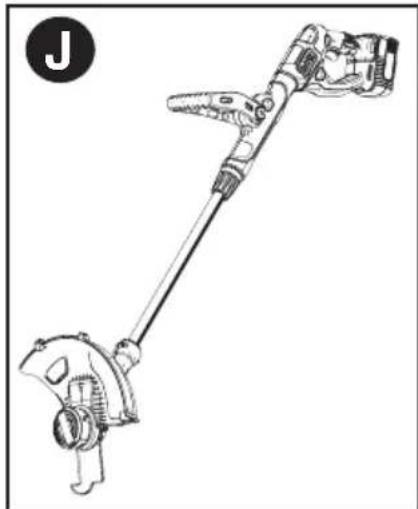

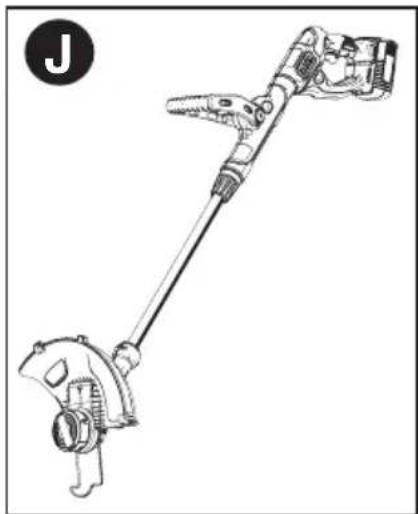

EDGING MODE (FIGURE J)

⚠ WARNING: When being used as an Edger, stones, pieces of metal and other objects can be thrown out at high speed by the line. The trimmer and guard are designed to reduce the danger. However, MAKE SURE that other persons and pets are at least 100 feet (30m) away.

For edging, the trimmer head should be in the position shown in figure J. If it is not:

• Remove the battery from the trimmer.
• Loosen the collar (8) as shown in figure H.
• Hold the metal shaft and rotate the lower housing 180° until trimmer is in the position shown in figure J.
• Tighten the collar (8) until tight.
• Drop the edge guide (10) in to the open position. Ensure that the edging guide is all the way down, an audible click will be heard.

NOTE: The head will only rotate in one direction.

NOTE: The Auto Feed System may not operate correctly if edge guide is not used.

Technical line drawing of a mechanical device with lever and handle (no text or symbols)

SWITCHING ON AND OFF (FIGURE K)

- To switch the trimmer on, push the lock off button (shown in inset, figure J) across from either side and then squeeze the trigger switch.

- To switch the trimmer off, release the trigger switch.

⚠WARNING: Never attempt to lock the on/off button in the on position.

K 3 1

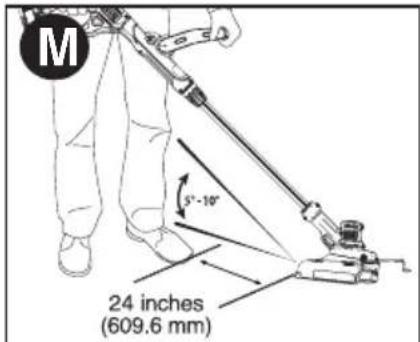

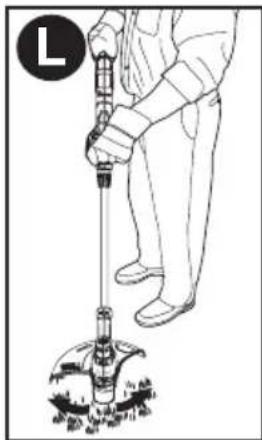

OPERATING THE TRIMMER (FIGURES L,M)

- With the unit on, angle unit and slowly swing the trimmer side to side as shown in figure L.

- Maintain a cutting angle of 5^ to 10^ as shown in figure M. Do not exceed 10^ . Cut with the tip of the line. To keep distance from hard surfaces use edge guide (10). Pull the guide out until it snaps securely into place.

- Maintain a minimum distance of 24 inches (609.6 mm) between the guard and your

Line drawing of a person using a handheld device to lift a pump (no text or symbols)

feet as shown in figure M. To achieve this distance adjust the overall height of the trimmer as shown in figure H.

M 5°-10° 24 inches (609.6 mm)

CONVERT TO EDGING MODE

⚠ WARNING: When being used as an Edger, stones, pieces of metal and other objects can be thrown out at high speed by the line. The trimmer and guard are designed to reduce the danger. However, MAKE SURE that other persons and pets are at least 100 feet (30m) away.

• To operate as a maintenance edger, turn

the collar (8) as shown in figure H.

- Hold the metal shaft and rotate the lower housing 180° until trimmer is in the position shown in figure J.

- Turn the collar back until tight.

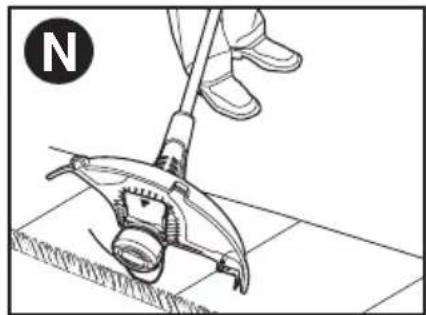

- Position the trimmer with the edge guide (10) along the surface as shown in figure N.

- Return to the trimming position by loosening the collar and rotating the lower housing back 180°.

- Turn the collar until tight. When using the trimmer, retract the wire edge guide to the original position, out of the way.

Illustration of a person using a tool to lift a large mechanical component on a tiled floor (no text or symbols)

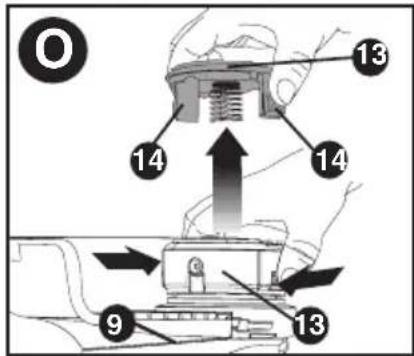

REPLACING THE SPOOL (FIGURES O, P, Q)

⚠ WARNING: Remove the battery from the trimmer before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the appliance accidentally.

⚠CAUTION: To avoid appliance damage, if the cutting line protrudes beyond the trimming blade, cut it off so that it just reaches the blade.

• Remove battery from trimmer.
• Depress the tabs (14) and remove the spool cap (13) from the spool housing (12) in the trimmer head (9) (figure O).
• For best results, replace spool with BLACK+DECKER model # AF-100.
• Grasp empty spool with one hand and spool housing with other hand and pull spool out.
• If lever (15) in base of housing becomes dislodged, replace in the position as shown in figure P before inserting new spool into housing.
• Remove any dirt and grass from the spool and housing.
• Unfasten the end of the cutting line and guide the line into the eyelet (18) figure Q.

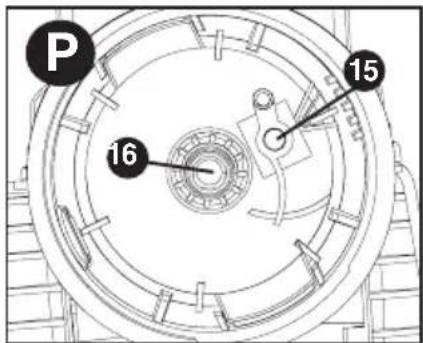

• Take the new spool and push it onto the boss (16) (figure P) in the housing. Rotate the spool slightly until it is seated. The line should protrude approximately 5-3/8 inches (136mm) from the housing.

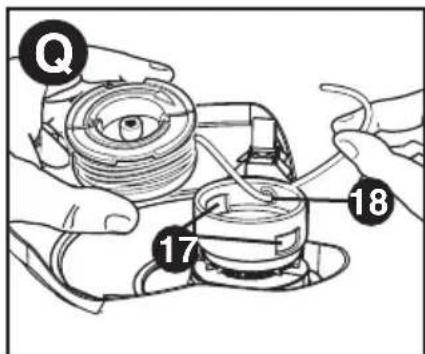

• Align the tabs (14) on the spool cap with the slots (17) in the housing (figure Q).
• Push the cap onto the housing until it snaps securely into place.

NOTE: The line should protrude

approximately 4-13/16 inches (122mm) from the housing.

O 13 14 14 9 13

P 15 16

Q 17 18

REWINDING SPOOL FROM BULK LINE (USE ONLY .065 IN. ROUND DIAMETER LINE) (FIGURES R, S, T)

⚠ WARNING: Remove the battery from the trimmer before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the appliance accidentally.

Bulk line is also available for purchase from your local retailer.

NOTE: Do not use square, star or other shaped line or larger diameter. These may cause feeding issues or overload the motor.

NOTE: Hand wound spools from bulk line are likely to become tangled more frequently than BLACK+DECKER factory wound spools. For best results, replace spool with BLACK+DECKER model # AF-100.

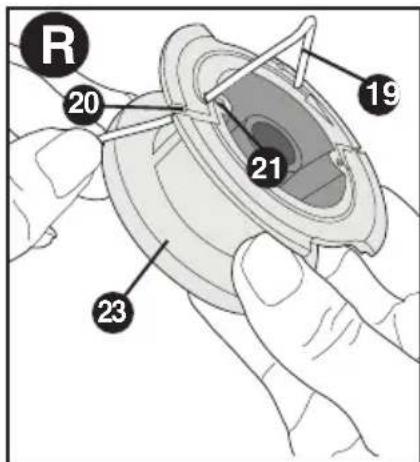

TO INSTALL BULK LINE, FOLLOW THE STEPS BELOW:

• Remove battery from trimmer.

• Remove the empty spool from the trimmer as described in "REPLACING THE SPOOL".

• Remove any remaining cutting line from the spool.

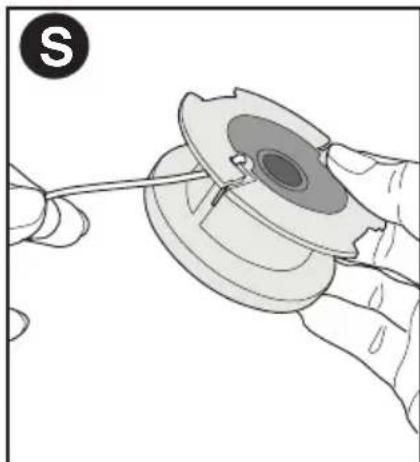

• Make a fold at the end of the cutting line at about 3/4 inch (19mm) (19). Feed the cutting line into one of the line anchoring slots (20) as shown in figure R.
• Insert the 3/4 inch (19mm) end of the bulk line into the hole (21) in the spool adjacent to the slot as shown in figure R. Make sure the line is pulled tight against the spool as shown in figure S.

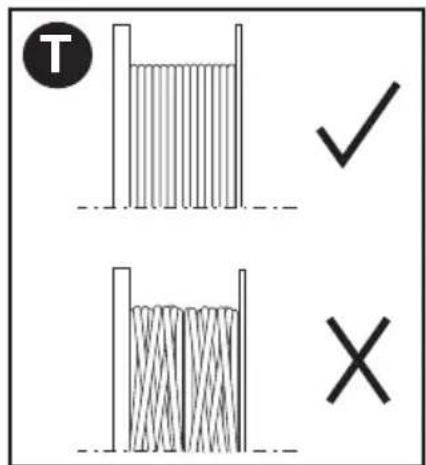

• Wind the cutting line onto the spool in the direction of the arrow on the spool. Make sure to wind the line on neatly and in layers. Do not crisscross (figure T).
• When the wound cutting line reaches the recesses (22), cut the line. (figure R).
• Fit the spool onto the trimmer as described in "REPLACING THE SPOOL".

R 20 19 21 23

Illustration of a hand holding a small mechanical component with a tool, no text or symbols present

T ✓ X

Troubleshooting

PROBLEMTrimmer runs slowly.	SOLUTIONFully depress the variable speed trigger. The level of trigger depression affects speed.Remove battery from trimmer.Check that the spool housing can rotate freely. Carefully clean it if necessary.Check that the cutting line does not protrude more than approximately 4-13/16 inches (122mm) from the spool.If it does, cut it off so that it just reaches the line trimmingblade.
Automatic line feed does not feed more line.	More line is fed when the line shortens to approximately 3 inches (76.2mm). To determine if the line is not feeding, let line wear past this point.Keep the tabs depressed and remove the spool from the spool housing in the trimmer head.Ensure that the line is not crisscrossed on the spool as detailed infigure T. If it is, unwind the cutting line, then wind it back on the spool neatly so that the lines do not cross.Inspect tracks at the bottom of spool for damage. If damaged, replace spool.Pull the cutting line until it protrudes approximately 4-13/16 inches (122mm) from the spool. If insufficient cutting line is left on the spool, install a new spool of cutting line.Align the tabs on the spool cap with the cut outs in the housing.Push the spool cap onto the housing until it snaps securely into place.If the cutting line protrudes beyond the trimming blade, cut it off so that it just reaches the blade. If the automatic line feed still does not work or the spool is jammed, try the following suggestions:Carefully clean the spool and housing.Make sure you are using correct line size and diameter (065 inch (1.65 mm))- smaller and larger line sizes will affect the functionality of the auto feed system.Remove the spool and check if the lever in the spool housing can move freely.Remove the spool and unwind the cutting line, then wind it on neatly again.Replace the spool into the housing.
Overfeeding	Ensure you are cutting with the tip of the line (7 inches (177.8mm) from the spool). Use the edge guide if needed to ensure proper space is maintained.Ensure you are not exceeding a 10^ angle as shown infigure M.
Line unravels when cap or spool is removed.	Make sure to park the lines in holding slots (figure R) before removing.

HELPFUL CUTTING TIPS

• Use the tip of the string to do the cutting; do not force string head into uncut grass. Use edge guide along such things as fences, houses and flower beds for best practices.
• Wire and picket fences cause extra string wear, even breakage. Stone and brick walls, curbs, and wood may wear string rapidly.
• Do not allow spool cap to drag on ground or other surfaces.
• In long growth cut from the top down and do not exceed 12 inches (304.8 mm) high.
• Keep trimmer tilted toward the area being cut; this is the best cutting area.
• The trimmer cuts when passing the unit from the right to left. This will avoid throwing debris at the operator.
• Avoid trees and shrubs. Tree bark, wood moldings, siding, and fence posts can easily be damaged by the string.

CUTTING LINE / LINE FEEDING

Your trimmer uses .065 inch (1.65 mm) diameter, ROUND nylon line. During use, the tips of the nylon lines will become frayed and worn and the special self feeding spool will automatically feed and trim a fresh length of line. Do not bump on ground in attempt to feed line or for any other purposes.

Cutting line will wear faster and require more feeding if the cutting or edging is done along sidewalks or other abrasive surfaces or heavier weeds are being cut.

CLEARING JAMS AND TANGLED LINE (FIGURES O, P, R)

⚠ WARNING: Remove the battery from the trimmer before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the appliance accidentally. From time to time, especially when cutting thick or stalky weeds, the line spool housing may become clogged with sap or other material and the line will become jammed as a result. To clear the jam, follow the steps listed below.

• Depress the tabs (14) and remove the spool cap (13) from the spool housing (12) in the trimmer head (figure O).
• Grasp spool with one hand and spool housing with other hand and pull spool out and clear any broken line or cutting debris, dirt and grass from the spool area.

• If lever (15) in base of housing becomes dislodged, replace in the position as shown in figure P before inserting the spool into housing.

• Place spool and line into spool housing with line "parked" in anchoring slot (20) as shown in figure R.

• Fit the spool onto the trimmer as described in "REPLACING THE SPOOL".

NOTE: Make sure that cover is fully positioned, listen for two audible clicks to ensure both lugs are correctly located.

Power the appliance on. In a few seconds or less you'll hear the nylon line being cut automatically to the proper length.

⚠CAUTION: To avoid appliance damage, if the cutting line protrudes beyond the trimming blade, cut it off so that it just reaches the blade.

NOTE: Other replacement parts (guards, spool caps, etc.) are available through BLACK+DECKER service centers. To find your local service location call: 1-800-544-6986 or visit www.blackanddecker.com.

⚠ WARNING: The use of any accessory not recommended by BLACK+DECKER for use with this appliance could be hazardous.

MAINTENANCE

⚠ WARNING: To avoid serious injury, remove the battery from the appliance before performing any maintenance.

1. Keep the air intake slots clean to avoid overheating.
2. Your trimmer line can dry out over time. To keep your line in top condition, store spare pre-wound spools or bulk line in a plastic, sealable bag with a tablespoon of water.
3. Plastic parts may be cleaned by using a mild soap and a damp rag.
4. The line cutter on the edge of the guard can dull over time. It is recommended you periodically touch-up the sharpness of the blade with a file.

The RBRC® Seal

The RBRC® (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithiumionbatteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid by BLACK+DECKER. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call 2 Recycle® program provides an environmentally conscious alternative.

Call 2 Recycle, Inc., in cooperation with BLACK+DECKER and other battery users,

has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized BLACK+DECKER service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC® is a registered trademark of Call 2 Recycle, Inc.

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003.

SERVICE INFORMATION

All BLACK+DECKER Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the BLACK+DECKER location nearest you. To find your local service location call: 1-800-544-6986 or visit

www.blackanddecker.com

THREE-YEAR LIMITED WARRANTY

Black & Decker (U.S.) Inc. warranties this product to be free from defects in material or workmanship for a period of three (3) years following the date of purchase, provided that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidental damage or when repairs have been made or attempted by anyone other than Black+Decker and its Authorized Service Centers. A defective product meeting the warranty conditions set forth herein will be replaced or repaired at no charge in either of two ways: The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer's policy for exchanges. Proof of purchase may be required. Please check with the retailer for its specific return policy regarding time limits for returns or exchanges. The second option is to take or send the product (prepaid) to a Black+Decker owned or authorized Service Center for repair or replacement at Black+Decker's option. Proof of purchase may be required. Black+Decker owned and authorized service centers are listed online at www.blackanddecker.com. This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state. Should you have any questions, contact the manager of your nearest Black+Decker Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other guarantees, express or implied, are hereby disclaimed.

LATIN AMERICA: This warranty does not

apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for such information.

Imported by Black & Decker (U.S.) Inc., 701 E. Joppa Rd. Towson, MD 21286 U.S.A.

BLACK+ DECKER™

TAILLE-BORDURE / COUPE-BORDURE AVEC PILE AU LITHIUM DE 40 V MAX\*

MODE D'EMPLOI

NUMERO DE CATALOGUE LST140

A A2 A1 <18% 18% - 45% 45% - 72% 72% - 100%

INSERTION ET RETRAIT DU BLOC-PILES

⚠AVERTISSEMENT : VEILLER À NE PAS ACTIONNER LA DÉTENTE LORS DE LA POSE OU DU RETRAIT DU BLOC-PILES.

INSTALLATION DU BLOC-PILES :

FIXATION DU PARE-MAIN (FIGURES D ET E)

Line drawing of a vacuum cleaner with handle and lever mechanism (no text or symbols)

Technical line drawing of a mechanical device with lever and housing (no text or symbols)

Line drawing of a person using a manual push tool to lift a bucket (no text or symbols)

M 5"-10" 24 inches (609.6 mm)

Line drawing of a hand using a manual tool to lift a wall-mounted device, with a compass indicating north (no text or symbols on the diagram itself)

CHANGEMENT DE BOBINE (Figures O, P, Q)

Illustration of a hand holding a small mechanical component with a wire, no text or symbols present

T ✓ X

--- o DC.....corriente directa

A A2 A1 <18% 18% - 45% 45% - 72% 72% - 100%

Diagram showing a device being inserted into a device housing, with no visible text or symbols.

C

CONSERVE ESTAS INSTRUCCIONES USO DEBIDO

Line drawing of a vacuum cleaner with handle and lever mechanism (no text or symbols)

Technical line drawing of a mechanical device with lever and handle (no text or symbols)

MODO DE BORDEADO (FIGURA J)

Line drawing of a person using a manual push tool to lift a bucket (no text or symbols)

M 5'-10' 24 inches (609.6 mm)

CONVERTIR A MODO DE BORDEADO

Line drawing of a person using a mop to lift a metal tool on a tiled floor (no text or symbols)

CAMBIO DEL CARRETE (FIGURAS O, P, Q)

Illustration of a hand holding a small mechanical component with a wire, no text or symbols present

T ✓ X

CONSEJOS ÚTILES PARA CORTAR

Date of purchase · Fecha de compra Invoice No. · No. de factura

Col. Fracc. Universidad

Chihuahua, Chihuahua

Tel. [phone]

Fernando González Armenta

Bolivia No. 605

Col. Felipe Carrillo Puerto

Cd. Madero, Tamaulipas

Tel. [phone]
