BD 3101 web - Iron Exquisit - Free user manual and instructions
Find the device manual for free BD 3101 web Exquisit in PDF.
| Product Type | Steam Iron |
| Brand | Exquisit |
| Model | BD 3101 web |
| Functions | Spray, Steam jet, Vertical steaming, Auto shut-off, Anti-scale function |
| Settings | Thermostat from MIN/OFF to MAX (for nylon, synthetic, silk, wool, cotton, linen), steam flow regulator |
| Safety | Auto shut-off after 8 minutes in vertical position or 30 seconds in horizontal position, hot surface (symbol) |
| Indicator light | Heating indicator (lights up during heating, turns off when temperature is reached) |
| Filling | Via the filling opening cover, distilled or tap water, do not exceed maximum level |
| Dry ironing | Set the steam regulator to the position (without steam) and choose the temperature suitable for the fabric |
| Spray function | Moistens stubborn creases, usable at any temperature, with or without steam |
| Steam jet function | Provides additional steam for stubborn creases and vertical steaming |
| Anti-scale function | Internal anti-scale housing that softens water and reduces deposits |
| Maintenance | Regular cleaning, descaling without vinegar or liquid products, soleplate cleaning with special non-abrasive products |
| Warranty | Legal warranty covering manufacturing and material defects; defective accessories are exchanged free of charge |
| After-sales service | www.ggv-service.de, service portal for complaints and repairs |
Frequently Asked Questions - BD 3101 web Exquisit
User questions about BD 3101 web Exquisit
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Iron in PDF format for free! Find your manual BD 3101 web - Exquisit and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BD 3101 web by Exquisit.
USER MANUAL BD 3101 web Exquisit
- Spray nozzle
- Lid of the filling opening
- Variable steam/dry dial
- Burst of steam button
- Spray button
- Fabric selector switch
- Temperature indicator
- Power cord
FR

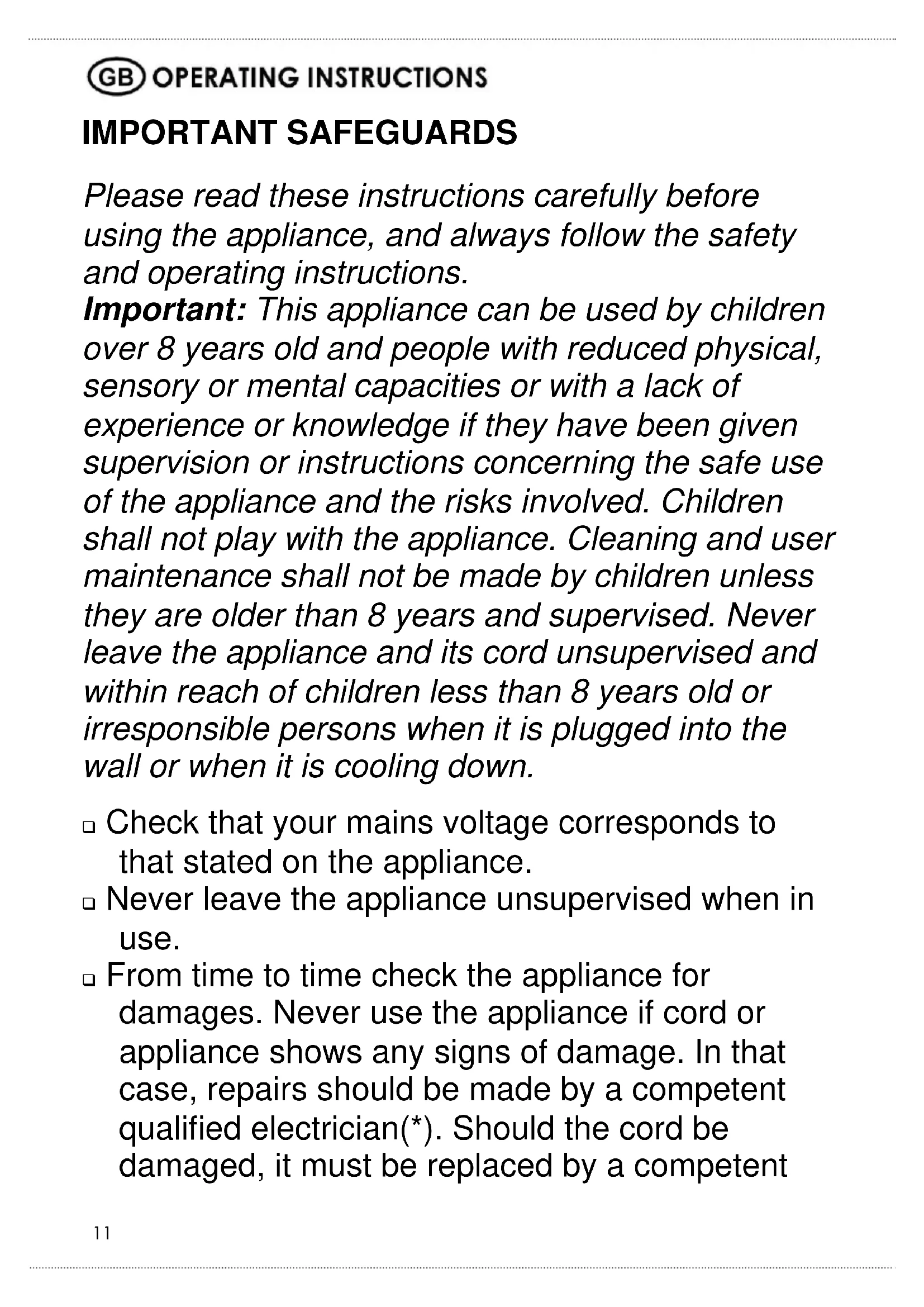

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.
Important: This appliance can be used by children over 8 years old and people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge if they have been given supervision or instructions concerning the safe use of the appliance and the risks involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Never leave the appliance and its cord unsupervised and within reach of children less than 8 years old or irresponsible persons when it is plugged into the wall or when it is cooling down.
Check that your mains voltage corresponds to that stated on the appliance.
- Never leave the appliance unsupervised when in use.
□ From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician ^(*) . Should the cord be damaged, it must be replaced by a competent
qualified electrician* in order to avoid all danger.
- Only use the appliance for domestic purposes and in the way indicated in these instructions.
- Never immerse the iron or the base in water or any other liquid for any reason whatsoever.
- Never use the appliance near hot surfaces.
□ Before cleaning or storing the appliance, always unplug the appliance from the power supply to avoid electric shocks and let it cool down. - Never use the appliance outside and always place it in a dry environment.
- Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
- Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch these surfaces, always use the handle. - Make sure the cord does not come into contact with the hot parts of the appliance.
Before using the appliance for the first time, remove all labels and remainders from the sole plate and carefully wipe it dry.
Always let the appliance cool down before cleaning, storing or filling it (model with spray and/or steam).
To fill the tank it is absolutely necessary to unplug the cord (model with spray and/or steam).
- Never put your appliance in horizontal position, but preferably in vertical position.
- Make sure its soleplate does not touch inflammable materials (e.g. plastic, textile) during use.
□ If you have a special heat-resistant base, make sure you put the steam dial in position.
Always unplug the iron when not in use.
The iron shall be used and placed on a stable level surface.
- Do not use the iron if it has fallen, if it shows any visible signs of damage or if it leaks.
□ Always place the base of the appliance on a stable ironing board, table or on the ground.
□ When you place the iron on its support (if available with the model), make sure that the surface on which you put the support is stable.
- Please note: Should the symbol be indicated on a certain surface, you need to be careful when handling the product. This symbol means: CAUTION, this surface may get very hot during use.
The symbol s always put on the surface with the highest temperature, however the other
metallic or non-metallic surfaces can also become very hot during use and it is therefore advisable to always handle them with care and if possible with the help of isothermal gloves or other thermal protection. In case of doubt concerning the temperature of a certain surface it is always preferable to protect oneself.
(*) Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician (www.ggv-service.de).
! BEFORE USING THE IRON, remove any labels from the soleplate and wipe any manufacturing residue from the soleplate using a soft cloth.
FILLING THE WATER TANK
Use preferably demineralised water. If you want to use the steam dial, fill the water tank as follows:
1) Unplug the iron from the outlet to let it cool down and set it horizontally on a stable level surface.
2) Put the temperature dial to "MIN/OFF" and the variable steam dial to the setting.
3) To fill the water tank, open the lid of the filling opening and pour water using a measuring cup. Never exceed the MAX mark indicated on the appliance.
4) When ironing, unplug the appliance before refilling. Fill the water tank by holding the appliance in horizontal position without putting down the hot soleplate, unless you have a heat-resistant base.
TEMPERATURE SETTINGS
You can choose the temperature setting depending on the cloth to iron.
- Plug in the iron. Choose the correct ironing temperature by turning the fabric selector switch. The temperature indicator lights up. Once the desired temperature has been reached, the temperature indicator lamp will go out.
DRY PRESSING
- Turn the variable steam dial to position
- Plug in the iron.
- Set the temperature dial for the desired fabric. Always check the label of the garment before choosing the temperature setting.
- Set the iron on its heel rest and wait until the temperature indicator light goes out.
STEAM PRESSING
| Kind of textile | Temperature dial | Steam ironing |
| Nylon Synthetic (e.g. acetate, acrylic, viscose, polyamide, polyester, ...) | MIN/OFF | |
| Silk Wool | ||
| Cotton Linen | MAX | |
| Care and cleaning |
- Fill the water tank (variable steam dial on position).
- Put the plug of the appliance into the power socket.
-
Choose the desired temperature.
-
Turn the variable steam dial between N and N according to the desired amount of steam.
- Set the iron on its heel and wait until the temperature indicator goes out.
Caution: Set the temperature dial within the steam range (or ). If the temperature setting is too low, water may drip from the soleplate.
Check the garment label before ironing because some clothes may be damaged when exposed to steam or water.
SPRAY
- Produces a mist for removing stubborn creases.
Spray can be used at any temperature setting and during either dry or steam pressing. Press down the spray button to spray.
BURST OF STEAM
The burst of steam feature provides additional steam for removing stubborn creases. This button also allows you to iron delicate articles of clothing vertically. This feature is called "vertical burst of steam". To do so, hang your article of clothing on a hanger, keep the steam button pressed and pass the iron to and fro in front of the article of clothing, making sure that the soleplate does not come into contact with the article of clothing. The distance between the soleplate and the article of clothing depends on the kind of textile and the creases.
AUTOMATIC CUTOUT
The automatic cut-off device trips after the iron has been left for approximately eight minutes in the upright position or unused for approximately thirty seconds in the horizontal position. The temperature indicator will flash & some beeps are issued to indicate that the cut-off device has tripped. As soon as you move the iron, the device turns off and the iron starts working again.
ANTI-CALC FEATURE
There is a decalcification box inside the appliance, which can absorb unsolvable calcium ion and send out solvable sodium ion so that water can be softened, and the process of calcium depositing would be much slower.
CARE AND CLEANING
Clean the iron regularly according to the hardness of the water and the frequency of use.
- Fill the water tank and put the thermostat in MAX position.
Plug in the appliance. The pilot light will come on. Make sure the steam dial is in position.
- Never use vinegar or other liquids to descale the iron.
- As soon as the pilot light goes out, hold the iron over a sink and press the steam button again and again. Steam, water and dust particles will come out of the soleplate.
- When the water tank is empty, release the steam button.
- To clean the plastic parts of the iron, use a humid cloth.
- To clean the soleplate, make sure you use a product made especially for this purpose. Never use abrasive products.
WHEN YOU HAVE FINISHED IRONING
- Turn the temperature dial to "MIN/OFF" and the steam dial to × and unplug the iron from the electrical outlet.
With the soleplate facing away from you, turn the iron upside down to empty the water. - Then store the hot iron on its heel rest so that any remaining moisture will evaporate.
PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2012/19/EU
In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the
implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
ErP Declaration - Regulation 1275/2008/EC
We, GGV Handelsgesellschaft mbH & Co. KG, hereby confirm that our product meets the requirements of regulation 1275/2008/EC. Admittedly, our product does not dispose of a function to minimize the power consumption, which should according to regulation 1275/2008/EC put the product in off or standby mode after finishing the main function, but this
is practically impossible, as it would compromise the main function of the product so strongly, that using the product would no longer be possible!
For this reason we always tell the customer in our instruction manual to unplug the appliance immediately after use.
Specifications
Model: BD3101bl
Rated voltage: 220-240V~
Power: 1800W
Safety class: I
Ambient conditions: Temperature: 0 to +40^
TERMS OF GUARANTEE
For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observation of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents.
On website www.ggv-service.de you can find a quick and easy solution to register a complaint in case of a defect within the warranty period. Just log on to the service portal (www.ggv-service.de), designate the appliance and then you will be guided through the menu, with all necessary information and advantages, to help you and solve your problem. We are at your service on the service portal during and also after the warranty period.
In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged.
Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!
AFTER THE LEGAL PERIOD OF GUARANTEE
Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.
The user manual is by simple request also available in electronic format from the after-sales service.
POUR VOTRE SECURITE
REPASSAGE AVEC VAPEUR
Specifications Techniques
Modèle: BD3101bl
Tension nominale: 220-240V~
Puissance: 1800W
Classe de protection: I
