USER MANUAL KM1598D Krüger&Matz

Before Use Thank you for purchasing this system. Please read these operating instructions before operating the unit. The operating instructions should be retained for future reference. For your safety Before operating this system, check thevoltage of this system to see if it is identicalwith the voltage of your local power supply.When you disconnect the power cord,always pull the plug, never the cable.Protect the power cord from being walkedon or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the device.Never place the product and accessoriesnear naked ames or other heat sources,including direct sunlight.To avoid electric shock, do not open thecabinet. Refer all servicing to qualiedservice personnel.Never expose the product and accessoriesto rain or water. Never place liquid containers, such as vases, near the product.This symbol indicates that dangerous voltageconstituting a risk of electric shock is presentwithin this unit.This symbol indicates that there are importantoperating and maintenance instructions in theliterature accompanying this unit.Don’t obstruct the ventilation openings ofthe equipment with items such as newspaper,table-cloths,curtains, etc.. Overheatingwill cause damage and shorten the life ofthe equipment.NEVER let anyone especially childrenpush anything into holes, slots or anyother opening in the case - this couldresult in a fatal electrical shock;Never hitting the product use the sharpobjects. Laser Product This product is equipped with low power laser equipment. For your own safety do not remove any covers or take the product apart. Repair work must be carried out by qualied personnel.

CLASS 1 LASER PRODUCT

Caution:This product is equipped with low power laser equipment inside, for your safety, don’t open the laser ra-diation protective equipment. Don’t look at the laser radiation district when the equipment is operating.

TO PREVENT FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THIS APPLIANCE TO

DRIPPING OR SPLASHING. CAUTION:

Hearing safety Listen at a moderate volume.

• Using headphones at high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing lose.

• Sound can be deceiving. Over time your hearing “comfort level”adapts to higher volumes of sound. So after prolonged listening, what sounds “normal”can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there. To establish a safe volume level:

• Set your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, without distortion. Listen for reasonable periods of time:

• Prolonged exposure to sound, even at normally “safe”levels, can also cause hearing lose.

• Be sure to use your equipment reasonably and take appropriate breaks. Be sure to observe the following guidelines when using your headphones.

• Listen at reasonable volumes for reasonable periods of time.

• Be careful not to adjust the volume as your hearing adapts.

• Do not turn up the volume so high that you can’t hear what’s around you.

• You should use caution or temporarily discontinue use in potentially hazardous situations. Do not use headphones while operating a motorized vehicle, cycling, skateboarding, etc.; it may create a trafc hazard and is illegal in many areas.26 Owner’s manual

Tuning Forward Button

• Remove the batteries if the remote control is not going to be used for an extended period of time.

• To avoid possible failure, read the following instructions and handle the remote control properly.

• Do not drop or cause impact to the remote control.

• Do not spill water or any liquid on the remote control.

• Do not place the remote control on a wet object.

• Do not place the remote control under the direct sunlight or near sources of excessive heat.

• Do not use caustic cleaners (porcelain, stainless steel, toilet, or oven cleaner etc.) on the remote, as it may suffer damage. Note: Remove the battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to leakage of battery. Installation of Batteries

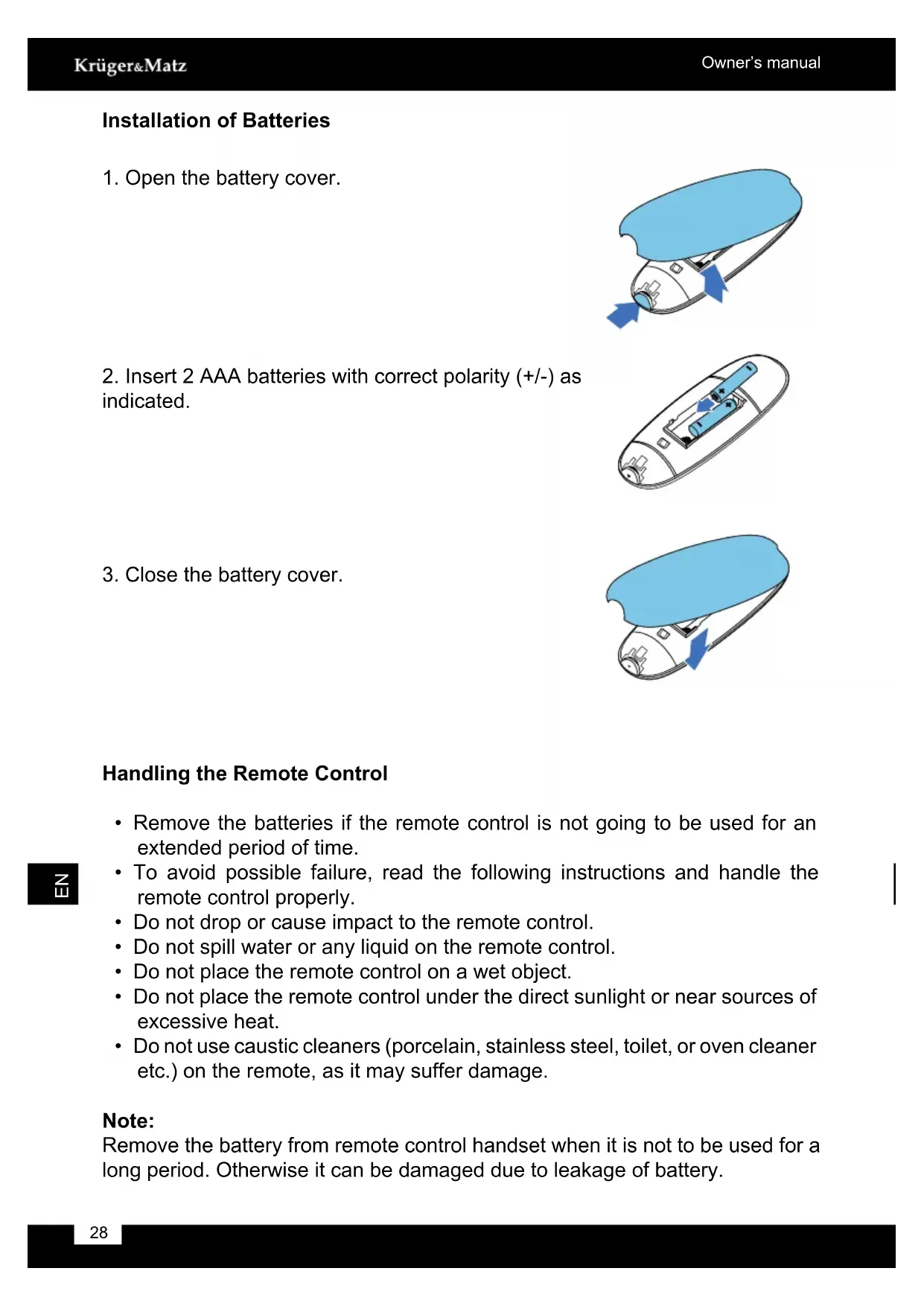

1. Open the battery cover.

2. Insert 2 AAA batteries with correct polarity (+/-) as

3. Close the battery cover.29

Remote Control Operation Range Point the remote control to the unit no more than 6 meters from the remote control sensor and within 60° horizontally and 40° vertically of the front of the unit. The operating distance may vary according to the brightness of the room. CONNECTIONS Caution: Make all connections before plugging the unit into the AC Power outlet. Connecting the FM/DAB Antenna Connect the supplied FM/DAB Antenna to the FM/DAB Antenna socket on the rear of the unit by turning the Antenna screw cap clockwise. Note: Do not overtighten, this could damage the Antenna. Caution: To avoid noise, keep Antenna away from the unit, the connecting cable and the AC power cable. Note:

• Make sure that there is no obstacle between the infrared remote sensor of the unit and remote control, as the remote controllable range may decrease

• Do not expose the infrared remote sensor to direct sunlight or other strong light, such as inverter uorescent light.

Connecting Auxiliary Equipment Connecting the Speakers Connect the AUX IN sockets on the rear of the unit to the AUX output sockets on the auxiliary equipment with an audio cable illustrated below. Connect the speaker cords between the terminals as shown below. Connect the cable with a sliver head to the (-) terminals and cable with a gold head to the (+) terminals. How to connect:

1. Turn the terminal cap counterclockwise to loosen it. The speaker terminal

caps cannot be fully removed from the base.

2. Insert the wire into the terminal fully.

3. Turn the terminal cap clockwise to securely connect it.

• Rotate the SOURCE knob on the unit or press the AUX button on the remote control to select the AUX source.

• Start play on the audio player.31 Owner’s manual

Connecting the AC Power Cable Insert the AC Power cable into a wall outlet, then your unit is ready to use. Caution:

• Be sure to unplug the power plug from the outlet when the unit is not in use for an extended period of time. Connect the AUDIO IN socket on the front of the unit to the headphone socket on an external device with an audio cable, as illustrated below:

• Rotate the SOURCE knob on the unit or press the AUDIO IN button on the remote control to select the AUDIO IN source.

• Start to play the device.32 Owner’s manual

Powering ON/OFF When you insert the AC power cable into a wall outlet, the unit will be in standby mode.

• Press the STANDBY button to switch the unit on. The word “HELLO” will show in the display. A countdown of 10 seconds starts for preheating of the system. Then, the system will switch to the last selected source.

• Press the STANDBY button to switch the unit back to standby mode. The words “BYE BYE” will scroll across the display. Switching the system to ECO Power/Standby mode Press and hold the standby button for 2 seconds or more to switch to ECO Power Standby or normal standby.

• ECO Power standby mode The clock will not be displayed. Press the CLOCK button to display the clock on the LCD (if set).

2. Press and hold the CLOCK button to activate the clock setting mode, [24]

begins to blink on the LCD.

3. Set the 12/24 hour format with the VOL+/VOL- buttons.

4. Press the CLOCK button, hour indicator will blink.

5. Set the hour with the VOL+/VOL- buttons.

6. Press the CLOCK button, minute indicator will blink.

7. Set the minute with the VOL+/VOL- buttons.

8. Press the CLOCK button, the built-in clock starts operating.

• To exit clock setting mode without storing, press the STOP button.

• The clock must be set in standby mode and if the set-up time for each step is longer than 90 seconds, set-up will be cancelled.

• If a power failure occurs or the unit is disconnected from the mains, the clock setting will be lost. Setting the Clock Automatically When the DAB/RDS station display the time, press and hold the INFO button on the remote control, the clock will automatically sync time of DAB/RDS. - CT SYNC is displayed when CT information is available - NO CT is displayed when time signal is not available.33 Owner’s manual

Display the Clock In any source mode, press the CLOCK button to display the clock. SOUND QUALITY Adjusting the Volume To increase or decrease the volume, rotate the VOLUME control knob on the unit or press the VOL+/VOL- buttons on the remote control. Mute sound During play, press the MUTE button to mute or un-mute sound. Adjusting the Bass Rotate the BASS knob on the unit to adjust the intensity of the bass output sound. Note: Bass adjusted, preset equalizer function is not available. Adjusting the Treble Rotate the TREBLE knob on the unit to adjust the intensity of the treble output sound. Note: Treble adjusted, preset equalizer function is not available. Presetting Equalizer You can adjust the sound reproduced simply by choosing from 5 preset equalizers. Press the EQ button repeatedly to scroll through the following options: FLAT > POP > JAZZ > ROCK > CLASSIC (looped) Changing the Front Panel Darkness To dim or brighten the display, press the DIM button repeatedly on the remote control to the desired brightness.

• Make sure that you have correctly connected and fully extended the antenna.

• You can program a maximum of 30 DAB radio stations. Store DAB radio stations automatically

1. Rotate the SOURCE knob on the unit or repeatedly press the FM/DAB

button on the remote control to select DAB source. The word “DAB” will be displayed on the LCD.34 Owner’s manual

• Note: if the program list is empty, the device will automatically begin programming stations.

2. Press the SCAN button on the remote control to activate automatic program mode.

• [SCANING] is displayed.

• All available stations are programmed.

• The rst programmed radio station is broadcast automatically. Store DAB radio stations manually

1. Tune to a radio station.

2. Press the PROGRAM button on the remote control to activate program mode.

• The preset number will blink.

3. Press the PRESET / buttons on the remote control to allocate a number

to this radio station. Note: If you select more than 30, the preset number will be changed to “1” automatically.

4. Press the PROGRAM button on the remote control again to store the station.

5. Repeat above steps 1 to 4 for each station you want to store in memory with

a preset number. Tuning to a DAB radio station Repeatedly press the / buttons to change the frequency until you nd the station you want. Tuning to Preset DAB Stations Press the PRESET / buttons on the remote control until the desired preset station is displayed. The unit will tune to the selected station automatically. DAB Information Display You can view the DAB service information in the following modes. Depending on the DAB radio station you are tuning to, some information modes may be unavailable. Repeatedly press the INFO button on the remote control to view the following information.

• Ensemble Name A multiplex is a collection of radio stations that are bundled and transmitted on one frequency. There are national and local multiplexes. Local ones contain stations that are specic to that area. Note: DAB – unlike normal radio, groups together several radio stations and transmits them on one frequency.

Dynamic label segment is a scrolling message that the broadcaster may include with their transmissions. The message usually includes information, such as programme details etc.

• Signal Strength This shows a number to indicate the signal strength which is between 0 and 100, for example 15, 80 or 100. The stronger the signal, the greater the number.

• Before operating the radio, please check that the antenna is correctly connected and adjusted for length and direction.

• You can program a maximum of 20 FM radio stations Tuning in to a Station

1. Rotate the SOURCE knob on the unit or press the FM/DAB button on the

remote control to select tuner source.

2. Select a station using one of the following methods.

• Auto Tuning Press and hold the / button, the frequency changes down or up automatically until a station is found.

• Manual Tuning Repeatedly press the / buttons to change the frequency until you nd the station you want.

• Preset Tuning (Available only after the stations are preset) Repeatedly press the PRESET / buttons on the remote control to select the desired preset number. Its band and frequency are displayed on the front panel. Program radio stations

• Automatically Press and hold the PROGRAM button on the remote control to activate automatic program mode. [SCANING] is displayed. The unit stores all the FM radio stations automatically and then broadcasts the rst preset radio station.

1. Tune to the desired station:

2. Press the PROGRAM button on the remote control to activate program

Note: If you select more than 20, the preset number will be changed to “1” automatically.

4. Press the PROGRAM button again to store the station.

5. Repeat above steps 1-4 for each station you want to store in memory with

a preset number. Note: If the unit is unplugged or if a power failure occurs, the preset stations will not be erased after being stored. RDS RECEPTION FM Display Modes Every time you press the INFO button, the display will cycle through the following display modes: Station Name, Programme Type, Time, Radio Text, Frequency (looped). The information is displayed on the lower segment of the display. CD OPERATION CD Playing

1. Rotate the SOURCE knob on the unit or press the CD/USB button on the

remote control to select disc source.

2. Press the button to open the disc door and place the disc on the disc tray

(with the printed side up).

3. Press the button to close the disc door, the unit will read the disc and play

it automatically. Note: If in stop mode, please press the button to start playing the disc.

4. Press the button to pause the playing, press again to continue play.

5. Press the button to stop the disc playing.

To Skip or Search and Play

• Press the / button once or more to skip backward/forward one or more tracks on the disc.

• Press and hold the / buttons to search for the position that you intend to start playing. Release to resume normal play. Programme Play You can programme up to 20 tracks to play in any desired order. The player must be in STOP mode only with a CD inserted.

1. Insert a disc and press the STOP button when it starts playing.

2. Press the PROGRAM button, the LCD will display “ ” and “ ”.

3. Press the / buttons on the remote control to select the desired track number.

4. Press the PROGRAM button to conrm the track number to be stored.37

5. Repeat steps 3-4 to select and store all desired tracks.

6. Press the button to start programme play.

7. Press the button once to stop the programme play. Press the button

twice to clear programme. Playing Repeatedly (CD) ONE and ALL Repeat Play can be set by pressing the REPEAT/SHUFFLE button.

• First press: To repeat the same track, the words “TRK” will blink and “REP” will stay lit.

• Second press: To repeat playing all tracks on a disc, the words “TRK” and “REP ALL” will stay lit.

• Third press: To play tracks randomly, the words “TRK” and “SHUF” will stay lit.

• Fourth press: To cancel the repeat playing, the word “TRK” will stay lit. Repeat A-B can be set by pressing the A-B button.

• First press : Select the start point, the words “REP A-” will stay lit.

• Second press : Select the end point, the words “REP A-B” will stay lit.

• Third press : To cancel repeat play, the word “REP A-B” will disappear. Note: The section A and B can be set only within the same track. Text Display During Playback (CD disc) Repeatedly press the INFO button on the remote control to show the current track number and single elapsed time or single remain time or total elapsed time or total remain time.

remote control to select disc source.

2. Press the button to open the disc door and place the MP3/WMA disc on

the disc tray (with the printed side up).

3. Press the button on the unit to close the disc door, the unit will read the

disc and play it automatically. Note: If in stop mode, please press the button to start playing the disc.

4. Press the button to pause the playing, press again to continue play.

5. Press the button to stop the disc playing.

Text Display During Playback (MP3/WMA discs)

• If playing le contains the ID3 information, when start playing, the le name will be scroll on the screen automatically.

control, the current track and track of time will be displayed.

• Press the INFO button on the remote control to enter or exit the ID3 playing mode. To Select Album

• Press the ALBUM / buttons on the remote control to select the next/ previous album, and play the rst track of this album.

• If the playing has ended, press the ALBUM / buttons on the remote control to select the next/previous album. Playing Repeatedly (MP3/WMA disc) ONE and ALL Repeat Play can be set by pressing the REPEAT/SHUFFLE button.

• First press: To repeat the same track, the words “TRK” will blink and “REP” will stay lit.

• Second press: To repeat playing album, the words “ALB” will blink and “TRK”, “REP ALL” will stay lit.

• Third press: To repeat playing all tracks on a disc, the words “TRK” and “REP ALL” will stay lit.

• Fourth press: To play tracks randomly, the words “TRK” and “SHUF” will stay lit.

• Fifth press : To cancel the repeat playing, the word “TRK” will stay lit. Repeat A-B can be set by pressing the A-B button.

• First press : Select the start point, the words “REP A-” will stay lit.

• Second press : Select the end point, the words “REP A-B” will stay lit.

• Third press : To cancel repeat play, the word “REP A-B” will disappear. Note: The section A and B can be set only within the same track. USB

1. Insert the USB device’s USB plug into the socket on the front of unit.

2. Press the CD/USB button on remote control or rotate the SOURCE knob on

the unit to select the USB source.

3. Press the ALBUM / buttons on the remote control to select a folder.

4. Press the / buttons to select a le.

5. Press the button to start play.

Note: The player support the USB music le format of MP3, WMA only. USB Storage Device Data Protection

• Always insert the USB device in the correct direction. Failure to do so may result in damage to the USB device and this unit.39 Owner’s manual

• Do not remove the USB device while it is being accessed.

• Electrical interference and electrostatic discharges may cause the USB device to malfunction and suffer damage, resulting in data loss. It is strongly recommended that any important data is backed up on a PC to protect against corruption, data loss or device malfunction. Please note that our company shall not accept any liability for damage or loss of stored data. Note: USB connection may not compatible with all hard drive models. PLAy FROM BLUETOOTH DEVICE Pairing bluetooth-enabled devices To connect your Bluetooth device to the unit, you need to pair the device to the unit. Pairing needs to be done only once.

Bluetooth button on the remote control or rotate the SOURCE on the front panel.

2. Turn on the Bluetooth function on your device.

3. Search for other Bluetooth device with your device.

4. Select “KM1598D” in the pairing list.

5. Enter default password “0000” if necessary.

6. Start music play on your Bluetooth device, you can use this unit’s remote to

control the function to your Bluetooth device. Note:

• The device will also be disconnected when the device is moved beyond the operation range.

• If you want to reconnect the device to the unit, place it within the operational range.

• The operational range between this unit and a Bluetooth device is up to 10 meters.

• Compatibility with all Bluetooth devices is not guaranteed.

• Any obstacle between this unit and a Bluetooth device can reduce the operational range.

• Keep this unit away from any other electronic device that may cause interference.40 Owner’s manual

This unit can switch to standby mode automatically after a set period. When the unit is turned on, press SLEEP button repeatedly to select a preset period (in minutes): 120 > 90 > 60 > 45 > 30 > 15 When sleep timer is activated, the “SLEEP” is displayed. To deactivate the sleep timer, press SLEEP button repeatedly until [SLEEP OFF] is displayed.

This unit can be used as an alarm clock. You can select DISC, USB or TUNER as alarm source.

1. In standby mode, press and hold the TIMER button until [TIMER SET] (set

timer) scrolls on the display and the source is displayed, e.g. DISC.

2. Press VOL+/VOL- button on the remote control to select source.

3. Press TIMER button, the hour indicator will blink.

4. Set the hour with the VOL+/VOL- buttons on the remote control.

5. Press TIMER button, the minute indicator will blink.

6. Repeat above steps 4-5 to set the minute.

7. Repeat above steps 4-5 to set the alarm volume.

Activate / deactivate alarm timer In the standby mode, press TIMER button repeatedly.

• If timer is activated, the icon is displayed.

• If timer is deactivated, the icon disappears. Note:

• To exit timer setting mode without storing, press the STOP button.

• If no button is pressed in 90 seconds, the unit exits clock setting mode automatically.

• If DISC/USB source is selected and the audio cannot be played, TUNER is activated automatically.41 Owner’s manual

• To keep the disc clean, please don’t touch the disc’s surface when you are holding it. You should hold the edge.

• If the disc is dirty, it will affect the sound quality. Please use the clean and soft cloth to wipe the disc from inside to outside. Don’t wipe the disc in circular motion.

• Don’t stick paper on the disc.

• After you have nished with the disc, please place it back in its original case. To avoid warping or damage, do not stack discs.

• Don’t play the disc which has aw or deformation, in case of damaging this player.

• Clean your discs using only a soft dry cloth. Do not use any chemicals such as benzine, thinner, antistatic or record sprays as these can damage the disc surface.

If you are having a problem with your system, check this list for a possible solution before calling for service. If you can not solve the problem from the hints give here, or the system has been physically damaged, call a qualied person, such as your dealer, for service. TROUBLESHOOTING No power No disc detected

• Ensure that the AC adaptor plug of the unit is connected properly.

• Ensure that there is power at the AC outlet.

• To save power, the unit switches to standby automatically 15 minutes after a play reaches the end and no control is operated.

• Check if the disc is inserted with the print side facing inward.

• Wait until the moisture condensation at the lens has cleared.

• Increase the distance between the unit and your TV or VCR.

• Fully extend and adjust the FM antenna. USB device not supported The USB device is incompatible with the unit. Try another one. No sound Adjust the volume. Clock timer setting erased

• Power has been interrupted or the power cord has been disconnected.

Cannot display some le in USB device

• The number of folders or les in the USB device has exceeded a certain limit. This phenomenon is not a malfunction.

• The formats of these les are not supported. Timer does not work

• Set the clock correctly.

• Switch on the timer. Remote control does not work

• Before pressing any function button, rst select the correct source with the remote control instead of the main unit.

• Reduce the distance between the remote control and the unit.

• Insert the battery with its polarities (+/– signs) aligned as indicated.

• Replace the batteries.

• Aim the remote control directly at the sensor on the front of the unit. Power supply:...................................................................................220-240 V; 50/60 Hz DAB+ Frequency Range (band III) :................................................174.928 - 239.200 MHz FM Tuning Range:.....................................................................................87.5~108 MHz Power Consumption:.................................................................................................70 W Output Power:............................................................................................2 x 75 W RMS THD:...........................................................................................................................≤1% USB Port:...............................................................................................................5 V 1 A Impedance:..................................................................................................................4 Ω Input Power:..............................................................................................................75 W Dimensions:........................................................................(Unit) 245 x 136 x 295 mm ......................................................(Speaker) 158(W) x 270(H) x 217(D) mm SPECIFICATIONS English Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm lo the environment or human health from uncon- trolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofce, for details of where and how they can take this item for environ- mentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal. Made in China for LECHPOL Zbigniew Leszek, Miętne, 1 Garwolińska Street, 08-400 Garwolin. Specications are subject to change without prior notice. “The Lechpol company declares that product KM1598D is consistent with the essential requirements and other relevant provisions of directive 1999/5/EC. The proper declaration for download from www.lechpol.eu” LEARN MORE For more information on this product, go to www.krugermatz.com. Visit www.krugermatz.com website for more products and accessories. In case of any doubts or questions reach out to our Frequently Asked Questions section.43 Mode d’emploi

CLASS 1 LASER PRODUCT
