AC 900 - Massage device MEDISANA - Free user manual and instructions

Brand	Medisana
Model	AC 900
Product type	Anti-cellulite massage device
Dimensions (W x D x H)	Approx. 130 x 110 x 85 mm
Weight	Approx. 220 g (without power supply)
Power supply	AC adapter: input 100-240 V~, 50/60 Hz, 400 mA; output 12 V⎓, 1200 mA
Number of rollers	3 pairs of rotating rollers (6 rollers)
Speeds	2 speeds (slow and fast) selectable via sliding switch
Handle	Individually adjustable
Maximum usage time	15 consecutive minutes, then at least 30 minutes break
Thermal protection	Automatic shut-off in case of overheating
Recommended massage areas	Buttocks, thighs, arms, hips
Cleaning the rollers	Removable and washable with soapy water
Cleaning the housing	With a slightly damp soft cloth (mild soap solution)
Usage precautions	Do not use on wounds, inflammation, sensitive areas; contraindicated for pregnant women, pacemaker wearers, etc.
Warranty	3 years (subject to conditions described in the manual)
Repairability	Repairs exclusively by Medisana authorized after-sales service
Article reference	88540
EAN code	40 15588 88540 2

Frequently Asked Questions - AC 900 MEDISANA

How long can I use the device continuously?

Do not exceed 15 minutes of continuous use. Then let the device cool down for at least 30 minutes before using it again.

Can I use the device on any part of the body?

No. Avoid the head, neck, and any area with lesions, inflammation, burns, swelling, or pain. Do not use on pregnant women, children, or animals.

How to clean the massage rollers?

The rollers are removable: pull them firmly to remove, wash them with warm water and dish soap, dry thoroughly, then reassemble.

What if the device suddenly turns off?

This is likely the thermal protection device. Let the device cool down for at least 30 minutes before using it again. If the problem persists, contact Medisana customer service.

Can I use the device in the shower or bath?

No. The device is designed only for use in a dry, indoor location. Never expose it to water or moisture.

Is the device suitable for people with a pacemaker?

People with pacemakers, artificial joints, or electronic implants must consult a doctor before any use.

What are the expected effects on cellulite?

Massage stimulates blood circulation and metabolism, which can help reduce the appearance of cellulite in the long term, combined with a balanced diet and exercise.

How to adjust the massage speed?

Use the sliding switch on the device: position 0 to turn off, 1 for slow speed, 2 for fast speed.

What if the power cord is damaged?

Do not use the device. The cable or adapter must be replaced only by Medisana, an authorized dealer, or a qualified person.

Is the device under warranty?

Yes, Medisana offers a 3-year warranty from the date of purchase, subject to proper use and presentation of the purchase receipt.

USER MANUAL AC 900 MEDISANA

Please read carefully!

1 Individually adjustable non-slip hand strap
2 3 × 2 rotating massage rollers
3 Mains adaptor socket
4 Sliding switch:

0 = device off

1 = low speed

2 = high speed

Read the instruction manual carefully before using this device, especially the safety instructions, and keep the instruction manual for future use.

Should you give this device to another person, it is vital that you also pass on these instructions for use.

1 Safety Information!

• Only use this unit according to the intended purpose and as directed in the instruction manual. The device is not intended for commercial use.
• Before connecting the device to your power supply, please ensure that the supply voltage stated on the rating plate is compatible with your mains supply.
• The warranty is null and void if it is not used for the intended purpose.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children must be supervised to ensure that they do not play with the device.
• Do not attempt to repair the unit yourself in the event of any defect. Not only does this render the warranty null and void but you can also run the risk of serious hazards (fire, electric shock, injury). Only have repairs carried out by authorised service points.
• Cleaning and user maintenance shall not be made by children without supervision.

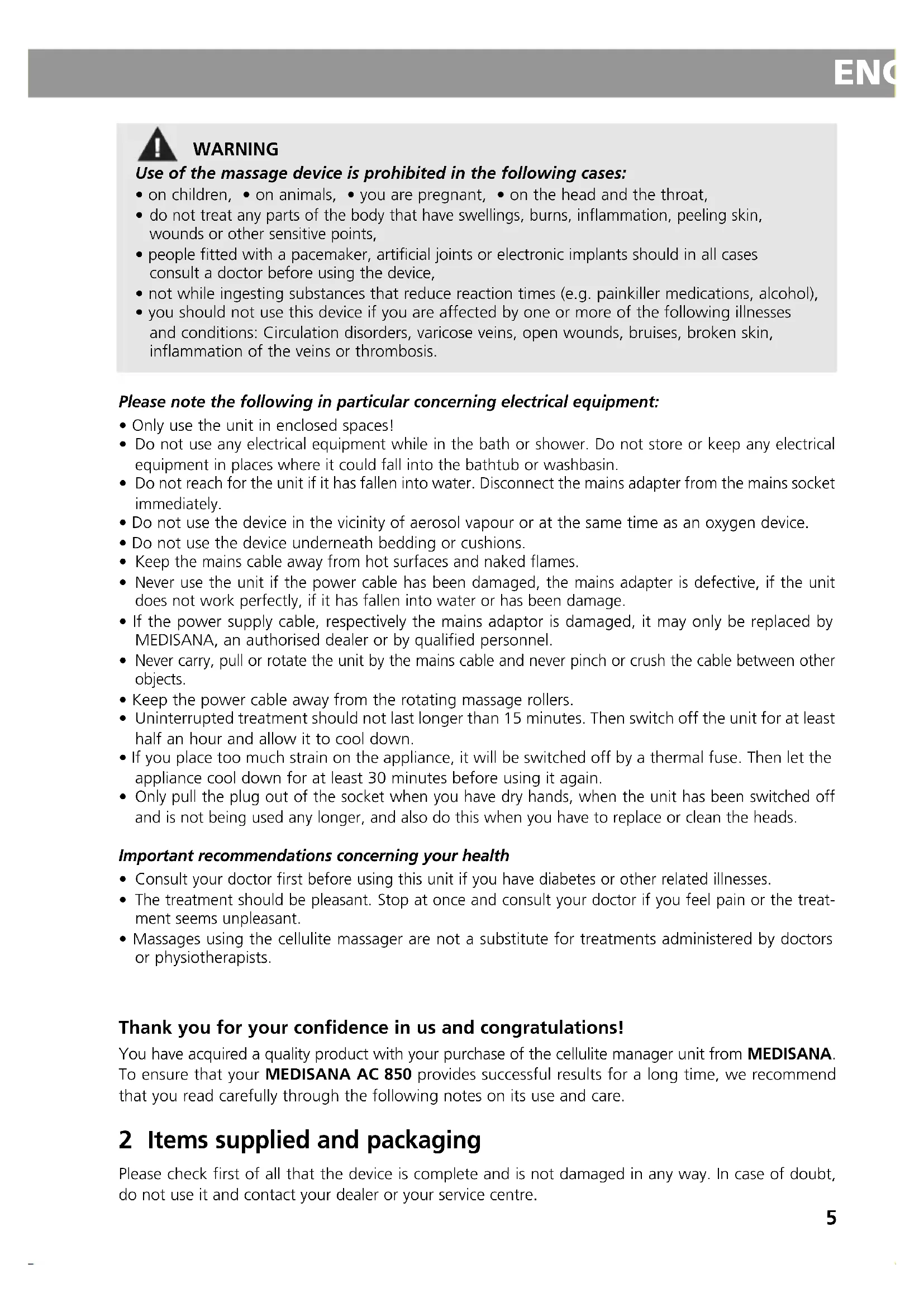

WARNING

Use of the massage device is prohibited in the following cases:

• on children, • on animals, • you are pregnant, • on the head and the throat,
• do not treat any parts of the body that have swellings, burns, inflammation, peeling skin, wounds or other sensitive points,
• people fitted with a pacemaker, artificial joints or electronic implants should in all cases consult a doctor before using the device,
  • not while ingesting substances that reduce reaction times (e.g. painkiller medications, alcohol),
• you should not use this device if you are affected by one or more of the following illnesses and conditions: Circulation disorders, varicose veins, open wounds, bruises, broken skin, inflammation of the veins or thrombosis.

Please note the following in particular concerning electrical equipment:

• Only use the unit in enclosed spaces!
• Do not use any electrical equipment while in the bath or shower. Do not store or keep any electrical equipment in places where it could fall into the bathtub or washbasin.
• Do not reach for the unit if it has fallen into water. Disconnect the mains adapter from the mains socket immediately.
• Do not use the device in the vicinity of aerosol vapour or at the same time as an oxygen device.
• Do not use the device underneath bedding or cushions.
• Keep the mains cable away from hot surfaces and naked flames.
• Never use the unit if the power cable has been damaged, the mains adapter is defective, if the unit does not work perfectly, if it has fallen into water or has been damage.
• If the power supply cable, respectively the mains adaptor is damaged, it may only be replaced by MEDISANA, an authorised dealer or by qualified personnel.
• Never carry, pull or rotate the unit by the mains cable and never pinch or crush the cable between other objects.
• Keep the power cable away from the rotating massage rollers.
• Uninterrupted treatment should not last longer than 15 minutes. Then switch off the unit for at least half an hour and allow it to cool down.
• If you place too much strain on the appliance, it will be switched off by a thermal fuse. Then let the appliance cool down for at least 30 minutes before using it again.
• Only pull the plug out of the socket when you have dry hands, when the unit has been switched off and is not being used any longer, and also do this when you have to replace or clean the heads.

Important recommendations concerning your health

• Consult your doctor first before using this unit if you have diabetes or other related illnesses.
• The treatment should be pleasant. Stop at once and consult your doctor if you feel pain or the treatment seems unpleasant.
• Massages using the cellulite massager are not a substitute for treatments administered by doctors or physiotherapists.

Thank you for your confidence in us and congratulations!

You have acquired a quality product with your purchase of the cellulite manager unit from MEDISANA. To ensure that your MEDISANA AC 850 provides successful results for a long time, we recommend that you read carefully through the following notes on its use and care.

2 Items supplied and packaging

Please check first of all that the device is complete and is not damaged in any way. In case of doubt, do not use it and contact your dealer or your service centre.

The following parts are included:

• AC 850 -device
• mains adapter
• instruction manual

The packaging can be reused or recycled. Please dispose properly of any packaging material no longer required. If you notice any transport damage during unpacking, please contact your dealer without delay.

WARNING

Please ensure that polythene packing is kept away from the reach of children! Risk of suffocation!

3 Cellulite massager AC 850

• Cellulite, an irregularity in the texture of the skin, is caused by an uneven distribution of subcutaneous fat, compression of the connective tissue and poor blood circulation.
• There is no magic cure for cellulite. Gymnastics, sport, a balanced diet and massages to encourage better circulation do, however, make the fat deposits melt away. They stimulate the metabolism, boost the lymphatic circulation and have a positive effect on the connective tissue.
• The cellulite massager provides a way to massage the buttocks, upper thighs, upper arms and hips to stimulate circulation. The massages have the welcome effect of activating and stimulating circulation – helping to activate the metabolism accordingly. The massage can, when performed on a daily basis and over a longer period of time, help to tauten the skin appreciably.

4 Operating the unit

• Plug the mains adapter into the socket ③ of the appliance and then plug the mains adapter into the power socket.
• Hold the massager on the part of the body you wish to massage. Make sure that no parts of the body (e.g. fingers) or the power cable become trapped between the rotating massage rollers.
• If you feel any pain or using the appliance triggers unpleasant sensations, change the contact pressure, try a different part of the body, or discontinue the massage.
• Using the sliding switch 4 to activate the appliance. As soon as you push the switch to position 1, the massage rollers 2 start to rotate at a gentle speed. Select position 2. To switch the appliance off, push the sliding switch 4 to position 0.

NOTE

Uninterrupted treatment should not last longer than 15 minutes. Using the unit for longer can over-stimulate the muscles and cause tension.

5 Cleaning and maintenance

• Always pull the mains adapter out of the socket in the case of an electrical unit.
• Never use strong cleaning agents or stiff brushes.
• The massage rollers can be removed by pulling firmly and be cleaned under running water with a washing-up liquid. Dry off the rollers and place the appliance back on the base unit.
• Clean the unit with a soft cloth which has been lightly moistened with a mild soap. Never dip the unit into water for cleaning and ensure that no water gets into the unit at any time. Only use the unit again, when it is fully dry.
• Store the device in a dry, cool place.

6 Disposal

This product must not be disposed of together with domestic waste.

All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner. Consult your municipal authority or your dealer for information about disposal.

7 Technical specifications

Name and model : MEDISANA Cellulite massager AC 850

Current supply : Mains adapter type: RSS1001-144120-W2E

input: 100-240 V\~ ; 50-60 Hz ; 400 mA

output: 12,0 V = ; 1200 mA

Dimensions : appr. 130 x 110 x 85 mm (L x W x H)

Weight : appr. 220 g (without mains adapter)

Article no. : 88540 EAN-Number : 40 15588 88540 2

In accordance with our policy of continual product improvement, we reserve the right to make technical and optical changes without notice.

The current version of this instruction manual can be found under www.medisana.com

8 Warranty and repair terms

Please contact your dealer or the service centre in case of a claim under the warranty. If you have to return the unit, please enclose a copy of your receipt and state what the defect is.

The following warranty terms apply:

1. The warranty period for MEDISANA products is three years from date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.

2. Defects in material or workmanship will be removed free of charge within the warranty period.

3. Repairs under warranty do not extend the warranty period either for the unit or for the replacement parts.

4. The following is excluded under the warranty:

a. All damage which has arisen due to improper treatment, e.g. non-observance of the user instructions.

b. All damage which is due to repairs or tampering by the customer or un-authorised third parties.

c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the service centre.

d. Accessories which are subject to normal wear and tear.

1. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is accepted as a warranty claim.

MEDISANA GmbH

Jagenbergstraße 19

41468 NEUSS

GERMANY

The service centre address is shown on the attached leaflet.

REMARQUE IMPORTANTE! TOUJOURS CONSERVER!
