Product Type	Digital Scale
Brand	DYMO
Model	SP5
Maximum Capacity	5 lb (2.2 kg)
Resolution	0.1 oz (1 g)
Accuracy (0 to 1 lb)	± 0.1 oz (± 2 g)
Accuracy (more than 1 lb)	± 0.2 oz (± 4 g)
Units of measurement	Pounds/ounces (kg/g)
Power supply	9V alkaline battery
Auto-off	After 30 seconds of inactivity (can be disabled)
Operating temperature	5°C to 40°C (50°F to 104°F)
Functions	Zero/tare, unit change, auto-off disable
Display	LCD digital
Maintenance	Clean with a soft, dry cloth; avoid abrasive products
Safety	Do not overload, handle with care, insert battery correctly
Warranty	1 year against defects in materials and workmanship

Frequently Asked Questions - SP5 DYMO

How to turn on the scale?

Press the ON/TARE button on the front of the scale. Wait a few seconds for the display to show 0.0 before weighing.

How to change the unit of measurement?

Press the oz/g button to switch between imperial (pounds/ounces) and metric (kg/g) units.

How to use the tare function?

Place an empty container on the platform, wait for it to stabilize, then press ON/TARE to reset the display to zero. Add the items to be weighed: the net weight will be displayed.

How to disable the auto-off function?

Turn off the scale, then press ON/TARE. When the display shows SP5, press oz/g. The display shows SHOF then 0.0. The scale remains on until manually turned off. This disabling is temporary.

What to do if the display shows 'Low Battery'?

Replace the 9V alkaline battery with a new one. Remove the battery compartment cover on the back of the scale.

What to do if the display shows '0ooo.o'?

The object exceeds the maximum capacity of 5 lb (2.2 kg). Remove it immediately to avoid damaging the scale.

Why does the display show 0.0 when an object is on the platform?

This may be due to pressing ON/TARE with an object on it or turning it on with an object on it. Remove the object and press ON/TARE to reset.

How to maintain the scale?

Use it on a stable, flat surface at room temperature. Avoid exposure to dust, moisture, vibrations, and shocks. Clean with a soft, dry cloth.

What to do if the display shows 'OUT2'?

Contact DYMO Technical Support at [phone] or via www.dymo.com/support for assistance.

Which battery to use and how to insert it?

Use a 9V alkaline battery. Turn the scale over, remove the compartment cover, insert the battery observing polarity, then close. Remove the battery if not used for an extended period.

USER MANUAL SP5 DYMO

Exterior view of a Dymo 5.0B x 2.2 kilo digital display unit (no signage or text beyond branding)

© 2009 Sanford, L.P. All rights reserved. Revised 6/09.

No part of this document or the software may be reproduced or transmitted in any form or by any means or translated into another language without the prior written consent of Sanford, L.P.

DYMO by Pelouze Digital Postal Scale

Your new Digital Postal Scale weighs items up to five pounds (2.2 kg) in 0.1 ounce (1 g) increments. This User Guide provides instructions for using the scale.

Unpacking the Scale

The scale is shipped with a protective ring under the scale platform. You must remove this ring before using the scale.

To unpack the scale

1. Unpack the scale.
2. Set the scale on a firm, flat surface.
3. Remove the protective ring from under the scale platform.
4. Remove the protective film from the scale display.

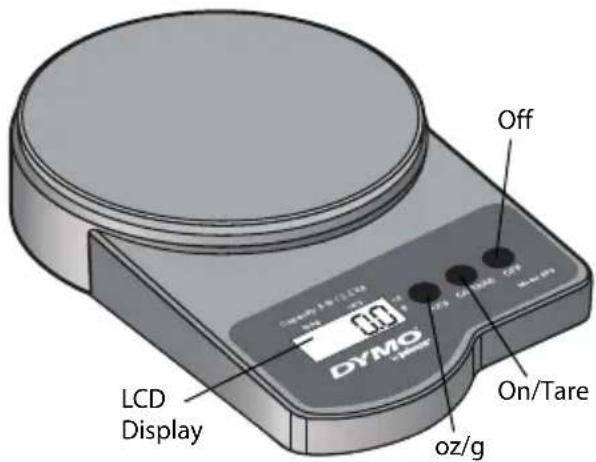

LCD Display On/Tare oz/g DWMO OFF

Inserting the Battery

The scale uses one 9-volt alkaline battery.

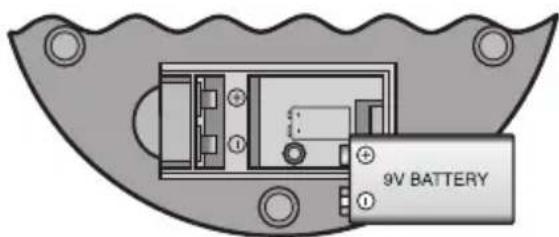

To insert the battery

1. Turn the scale over.
2. Remove the battery compartment cover.
3. Insert a 9-volt battery into the battery compartment as shown.

9V BATTERY

Make sure to insert the battery correctly. Inserting the battery backwards can damage the scale and cause smoke or burning.

1. Replace the battery compartment cover.

Remove the battery if the scale will not be used for a long period of time.

Turning On the Power

The scale has an Auto Shut Off feature which turns the scale off automatically after thirty seconds of inactivity. You can turn off this Auto Shut Off feature.

To turn the scale on

- Press the ON/TARE button on the front of the scale. When the scale is first turned on, wait a few seconds for the scale to stabilize before weighing items. The display shows 0.0 when ready.

To turn the scale off

◆ Press the OFF button on the front of the scale.

To turn off Auto Shut Off

1. Make sure that the scale is off.
2. Press the ON/TARE button.
3. When the display shows SP5, press the oz/g button.

The display shows SHOF and then 0.0 when ready.

The scale now remains on until manually turned off.

Turning off the Auto Shut Off feature is temporary. You need to repeat this procedure each time you turn on the scale.

Weighing an Item

Always wait for 0.0 to display before placing an item on the scale platform.

After placing an item on the scale, wait for several seconds for the weight to appear. When the scale is ready, a appears in the upper-left corner of the display.

To weigh an item

◆ Place an item on the scale platform.

Using the Tare Feature

You can weigh small items or items that cannot be easily placed on the scale platform by placing the items in a container and using the Tare feature to eliminate the weight of the container.

! Pressing the ON/TARE button always returns the scale to zero.

To use the Tare feature

1. Place an empty container on the platform.
2. When the scale is ready, press the ON/TARE button.

The display is set to zero.

1. Place the items to be weighed in the container.
   The display shows the weight of the items, without the weight of the container.
2. After removing the container, press the ON/TARE button to reset the scale to zero.

Changing the Units of Measure

Your scale can display weight in English (pounds) or metric (kilograms) units. The default unit of measure is English.

To change the units of measure

◆ Press the oz/g button to toggle between English and metric units.

Caring for the Scale

With proper care and handling, your scale will give you years of service. Keep the following in mind when using your scale:

• Your scale works best when operated and stored at normal room temperature. Avoid lengthy exposure to extreme heat or cold.
• Only operate the scale on a stable, vibration free surface.
• Exposure to dust, dirt, moisture, vibration, and air currents; and proximity to other electronic equipment can affect the reliability and accuracy of your scale.
• Using the scale in proximity to wireless devices, such as mobile phones, can cause the scale display to fluctuate when the device is in use.
• Although this scale is designed to be quite durable, gently place items to be weighed on the platform. Avoid rough treatment, as this may permanently damage the internal sensor and void your warranty.
• You can permanently damage the scale by placing significantly overweight items on the scale platform.
• Avoid shaking, dropping, or otherwise shocking the scale. This is a precision instrument and MUST BE HANDLED WITH EXTREME CARE.
• The scale has been calibrated at the factory and will not need to be calibrated again.

Technical Specifications

Capacity 5.0 pounds (2.2 kg)

Resolution 0.1 oz. (1 g)

Accuracy

Under ±0.1 oz.(142 g)

Over 1lb. ±0.2 oz. (±4 g)

Units lb./oz. (kg/g)

Auto Shut Off After thirty seconds of inactivity

Operating Temperature 50° - 104° F (5° - 40° C)

Power 9-volt alkaline battery

For information about our other scale products, visit www.dymo.com.

Troubleshooting

Problem/Error Message Solution
No display Ensure the battery is inserted correctly.
Low Battery is displayed Replace the 9-volt battery.
Negative number is displayed	A Tare value is displayed as a negative number when the items are removed from the scale. Press the ON/TARE button to reset the scale to zero.
0000.o is displayed The item on the scale platform exceeds the maximum capacity of the scale. Remove the item immediately to prevent damage to the scale.
Display reads 0.0 with an item on the platform	This can happen because:• The ON/TARE button was pressed while an item was on the scale.• Power to the scale was disconnected or turned off and then on again with an item on the scale.In both of these cases, remove the item from the platform and press the ON/TARE button to return the display to 0.0.
OUT2 is displayed The load cell in the scale is damaged and the scale must be replaced. Contact Technical Support for assistance.

If you need further assistance, contact Technical Support at [phone]. You can also obtain support at www.dymo.com.

Warranty

Your DYMO® Scale comes with a warranty against defects in materials, design, or workmanship, for one year from the original date of purchase, when used in accordance with all operating instructions. Normal wear and tear is not covered, nor is excessive use, abuse or damage caused by a user either intentionally or accidentally.

EXCEPT AS PROVIDED HEREIN, DYMO MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED, AND DYMO SPECIFICALLY EXCLUDES WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. DYMO'S LIABILITY UNDER THIS WARRANTY SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE SCALE. DYMO SHALL NOT BE RESPONSIBLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, WHETHER OR NOT FORESEEABLE.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE AND COUNTRY TO COUNTRY.

In the event of a product failure, please visit www.dymo.com/support or contact DYMO Technical Support to obtain a Return Material Authorization (RMA) number and further instructions to return your product.

Balance postale numérique DYMO by Pelouze

ACL DWMO on/Tare oz/g Off

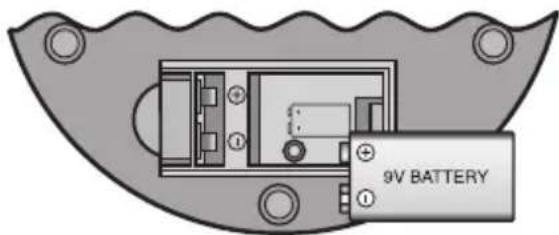

9V BATTERY

Declaration of Conformity - FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Declaration of Conformity - Industry Canada

This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions; (1) this device digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
