Product Type	Electronic Postal Scale
Brand	Dymo
Model	M3
Maximum Capacity	3 lb (1.3 kg)
Weight Increments	0.05 oz (1 g)
Accuracy (lower half of capacity)	±0.1 oz
Accuracy (upper half of capacity)	±0.2 oz
Measurement Units	lb/oz and kg/g (switch via button)
Power Supply	3 AAA alkaline batteries (included)
Auto-off	After 3 minutes of inactivity
Operating Temperature	10 to 40 °C (50 to 104 °F)
Main Functions	Weighing, tare, zero, hold, unit change
Display	LCD (Liquid Crystal Display)
Warranty	1 year limited (defects in design, materials and workmanship)
Maintenance	Clean with a soft cloth; avoid dust, moisture, shocks
Repairability	Not recalibratable; contact technical support if issues

Frequently Asked Questions - M3 DYMO

How to turn the scale on and off?

Press the front button to turn it on. To turn it off, press the same button again. The scale also turns off automatically after 3 minutes of inactivity.

How to change the measurement unit?

Press the Unit button to switch between imperial (lb/oz) and metric (kg/g) units. The last used unit is remembered.

How to use the tare function?

Place an empty container on the scale, wait for the weight to stabilize, then press the Tare/Zero button (0.0). The display returns to zero. Then add the items to be weighed; the displayed weight is the weight of the items without the container.

How to freeze the display with the Hold function?

Press the Hold button. The screen shows HOLD then 0. Place the object on the scale, wait a few seconds, then remove it. The weight remains displayed for about 10 seconds.

What to do if the screen shows 'LO'?

The LO (Low Battery) message indicates low batteries. Replace the three AAA batteries with new ones.

What to do if the screen shows '00000'?

This means the placed object exceeds the maximum capacity (3 lb / 1.3 kg). Immediately remove the object to avoid damaging the scale.

Why does the scale display a negative number?

A negative number appears when a tare value is present and you remove the object. To reset to zero, press the Tare/Zero button.

How to clean the scale?

Use a soft, dry cloth. Avoid water, solvents, and abrasive products. Never immerse the scale in water.

What to do if the screen stays black?

Check that the batteries are inserted correctly (observe polarity) and that they are new. Replace them if necessary.

How to benefit from the warranty?

The one-year limited warranty covers defects in design, materials, and workmanship. For a claim, contact Dymo technical support at [phone] or via www.dymo.com. You will need to return the product at your own expense.

USER MANUAL M3 DYMO

DYMO® Digital Postal Scale . 1

DYMO® Digital Postal Scale

This User Guide provides instructions for using your DYMO® Digital Postal Scale. Visit www.dymo.com/register to register your scale.

Setting Up the Scale

The scale is powered by three AAA batteries (included).

To set up the scale

1. Unpack the scale.
2. Set the scale on a firm, flat surface.
3. Remove the protective covering from the LCD display.

Inserting the Batteries

The scale uses three AAA alkaline batteries. The scale automatically turns off after three minutes of inactivity.

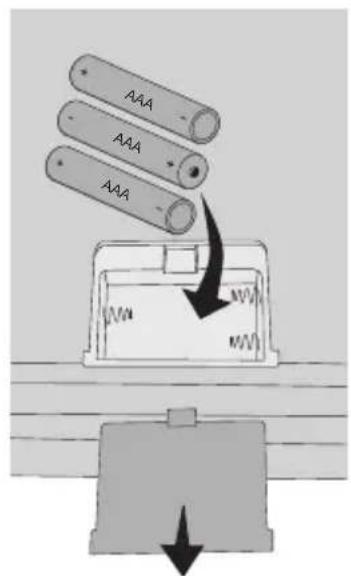

To insert the battery

1. Turn the scale over.
2. Remove the battery compartment cover.
3. Insert three AAA batteries as shown.

Make sure to insert the batteries correctly. Inserting the batteries backwards can damage the scale.

1. Replace battery compartment cover.

! Remove the batteries if the scale will not be used for a long period of time.

Turning On the Power

The scale has an Auto Shut Off feature which automatically turns off the scale after three minutes of inactivity.

To turn the scale on

Press the front of the scale.

When the scale is first turned on, wait a few seconds for the scale to stabilize before weighing items. The display shows 0 g, 0.0 oz, or 0.00 oz when ready.

To turn the scale off

Press the front of the scale to turn the scale off.

The scale turns off automatically after three minutes of inactivity.

Using the Scale

Always wait for 0 g, 0.0 oz, or 0.00 oz to display before placing an item on the scale platform.

After placing an item on the scale, wait for several seconds for the weight to appear. When the scale is ready, a o appears to the left of the weight.

To weigh an item

Place an item on the scale platform.

Using the Tare Feature

You can weigh small items or items that cannot be easily placed on the scale platform by placing the items in a container and using the Tare/Zero button to eliminate the weight of the container.

To use the tare feature

1. Place an empty container on the platform.
2. When the scale is ready, press 0.0

The display is set to zero.

1. Place the items to be weighed in the container.
   The display shows the weight of the items, without the weight of the container.
2. After removing the container, press reset the scale to zero.

Using the Hold Feature

When an item being weighed extends over the front of the scale and you cannot see the display, you can freeze the display so that the weight is still displayed after removing the item.

To use the Hold feature

1. Press

The display shows HOLD and then 0 g, 0.0 oz, or 0.00 oz when ready.

1. Place the item on the scale.
2. After a few seconds, remove the item from the scale.

The weight continues to be displayed for about ten seconds.

Changing the Units of Measure

Your scale can display weight in English (pounds) or metric (kilograms) units. The default unit of measure is English. Each time you turn on the scale, the scale defaults to the unit of measure that was last used.

To change the units of measure

Press toggle between English and metric units.

Caring for the Scale

With proper care and handling, your scale will give you years of service. Keep the following in mind when using your scale:

• Your scale works best when operated and stored at normal room temperature. Avoid lengthy exposure to extreme heat or cold.
• Only operate the scale on a stable, vibration free surface.
• Exposure to dust, dirt, moisture, vibration, and air currents; and proximity to other electronic equipment can affect the reliability and accuracy of your scale.
• Using the scale in proximity to wireless devices, such as mobile phones, can cause the scale display to fluctuate when the device is in use.
• Although this scale is designed to be quite durable, gently place items to be weighed on the platform. Avoid rough treatment, as this may permanently damage the internal sensor and void your warranty.
• You can permanently damage the scale by placing significantly overweight items on the scale platform.
• Avoid shaking, dropping, or otherwise shocking the scale. This is a precision instrument and MUST BE HANDLED WITH EXTREME CARE.
• The scale has been calibrated at the factory and will not need to be calibrated again.

Technical Specifications

NOT LEGAL FOR TRADE

Model M3 M5
Capacity 0.1 oz	→ 3 pounds (2 g → 1.3 kg)	0.2 oz → 5 pounds (2 g → 2.2 kg)
Weight Increments 0.05 oz (1 g)	0.1 oz (1 g)
Accuracy
Under half the capacity	±0.1 oz	±0.1 oz
Over half the capacity	±0.2 oz	±0.2 oz
Units lb/oz (kg/g)	lb/oz (kg/g)
Auto Shut Off After three minutes of inactivity
Operating Temperature 50° - 104° F (10° - 40° C)
Power 3 AAA alkaline batteries

For information about our other scale products, visit www.dymo.com.

Troubleshooting

Problem/Error Message Solution
No display Replace the batteries.
LO is displayed Replace the batteries.
Negative number is displayed A hare value is displayed as a negative number when the items are removed from the scale. Press reset the scale to zero.
00000 is displayed	The item on the scale platform exceeds the maximum capacity of the scale. Remove the item immediately to prevent damage to the scale.
Display reads 0 g, 0.0 oz, or 0.00 oz with an item on the platform	This can happen because: • The Tare/Zero button, as pressed while an item was on the scale. • Power to the scale was disconnected or turned off and then on again with an item on the scale. In both of these cases, remove the item from the platform and press to return the display to 0 g, 0.0 oz, or 0.00 oz.

If you need further assistance, contact Technical Support at [phone]. You can also obtain support at www.dymo.com.

Warranty

ONE-YEAR LIMITED WARRANTY

Sanford, L.P., d/b/a Dymo ("Dymo") warrants the Dymo scales to be free from defects in design, materials and workmanship for one year from the date of purchase. If this product is found to be defective within that time, we will promptly repair or replace it at our cost. This warranty does not cover accidental damage, wear and tear or consequential or incidental loss.

WHAT IS COVERED?

This warranty covers this product only and only against defects in design, materials or workmanship. If, after inspection of your returned product, we find that the product is defective in design, materials or workmanship, we shall at no charge to you repair or replace the product at our discretion, and return the product to you. You are responsible for the full cost of shipping the product to Dymo, but there is no charge for the inspection or the return postage.

WHAT IS NOT COVERED?

This warranty does not cover loss of or damage to a computer or other devices connected directly or indirectly to this Dymo product. This warranty also does not cover any loss of or damage to data, programs, records or other information. This warranty does not cover any defect or loss which would not have occurred if instructions in the owner's manual had been followed. This warranty does not cover other incidental or consequential damages even if Dymo has been informed of the possibility of such damages. This warranty is in lieu of all other warranties, express or implied. This warranty gives you specific rights and you may also have other rights, which may vary from state to state or country to country.

HOW TO MAKE A WARRANTY CLAIM

To make a warranty claim, please contact customer support

Customer Support - [phone]

www.dymo.com

Declaration of Conformity

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Environmental Information

The equipment that you bought has required the extraction and use of natural resources for its production. It may content hazardous substances for the health and the environment.

In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems. Those systems will reuse or recycle most of the materials of your end life equipment in a sound way.

The crossed-bin symbol marked in your device invites you to use those systems.

If you need more information on the collection, reuse and recycling systems, please contact your local or regional waste administration. You can also contact us for more information on the environmental performance of our products.

Documentation Feedback

We are constantly working to produce the highest quality documentation for our products. We welcome your feedback.

Send us your comments or suggestions about our online Help, printed, or PDF manuals.

Please include the following information with your feedback:

Product name and version number
- Type of document: printed manual, PDF, or online Help
- Topic title (for online Help) or page number (for printed or PDF manuals)
- Brief description of content (for example, step-by-step instructions that are inaccurate, information that requires clarification, areas where more detail is needed, and so on)
- Suggestions for how to correct or improve the documentation

We also welcome your suggestions for additional topics you would like to see covered in the documentation.

Send email feedback to:

[e-mail]

Please keep in mind that this email address is only for documentation feedback. If you have a technical question, please contact Customer Service.

Specifications techniques

NON LÉGALE POUR LE COMMERCE

Distributed by: DYMO, Atlanta, GA 30328

800-426-7827: www.dymo.com

© 2010 Sanford, L.P.

W005538_B
