Product Type Gas Grill Plate
Brand CHAR BROIL
Model Performance 463228622
Fuel Type Propane gas (LPG) - 20 lb (9 kg) bottle
Main Material Stainless steel, porcelain, painted steel
Cooking Surface Porcelain grates and warming rack
Main Burners 5 burners (tube and bar)
Side Burner Yes, with its own ignition
Ignition Electronic by AAA 1.5 V battery (included)
Appliance Dimensions Approximately 150 x 60 x 110 cm (estimated)
Appliance Weight Approximately 50 kg (estimated)
Grease Tray Capacity Removable aluminum or black tray
Thermometer Integrated in lid
Storage Side shelves and lower shelf
Included Accessories Match holder, support
Warranty Stainless steel burner 5 years, body 2 years, other parts 1 year
Cleaning Brush after cooling; disassemble burners for thorough cleaning
Usage Outdoor only, on flat and stable surface
Safety Standards Regulator with anti-leak safety; automatic shut-off in case of leak
Repairability Spare parts available via customer service

Frequently Asked Questions - Performance 463228622 CHAR BROIL

How to light the grill?
Open the lid, turn the burner knob to HIGH, press the electronic ignition button until the burner ignites. If no ignition in 5 seconds, turn off the gas, wait 5 minutes and try again.
What to do if there is a gas smell?
Shut off the gas supply to the appliance and the cylinder. Extinguish any open flame. Open the lid. If the smell persists, move away and call the fire department.

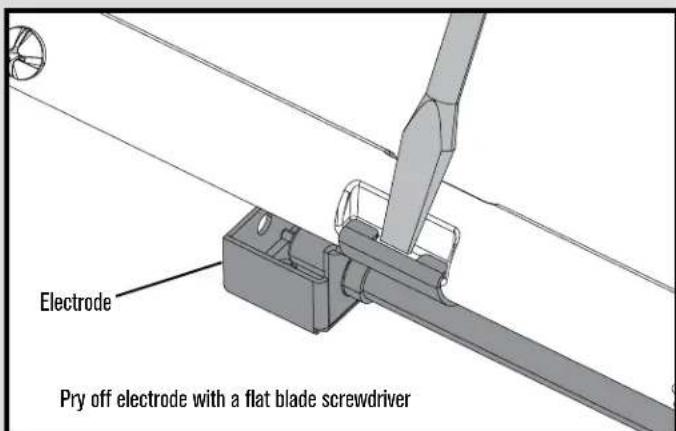

How to clean the burners?

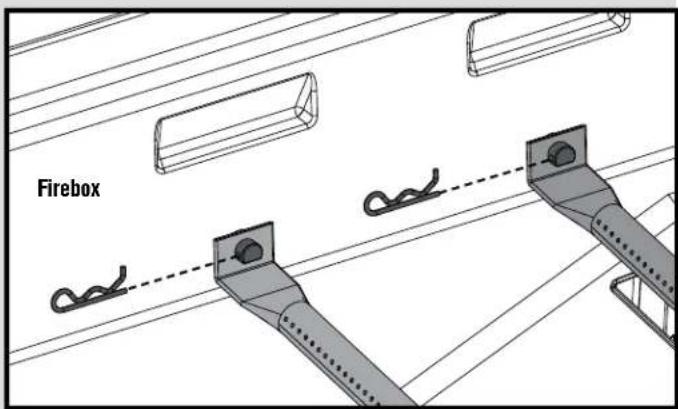

Turn off the gas and disconnect the cylinder. Remove grates and burner covers. Clean burner tubes with a wire hook, pipe cleaner brush, or compressed air. Brush the outside. Check the ports. Reassemble and test for leaks.
Grill heats little (250-300°F max)?
This may be due to the regulator safety device. Close all knobs, close the cylinder valve, disconnect the regulator, wait 30 seconds, reconnect, slowly open the valve, then ignite. If the problem persists, check the gas level.
How to store the grill in winter?

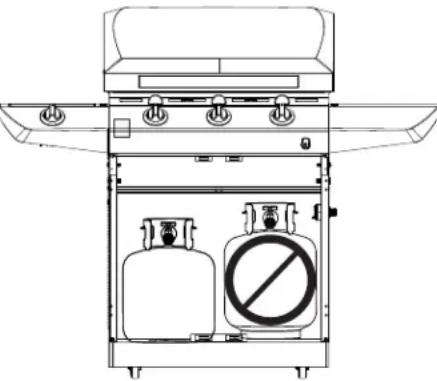

Clean the grates, store the appliance in a dry place. If the cylinder is connected, store outside, well ventilated. Otherwise, disconnect the cylinder and store it outside. Use a cover if stored outdoors.
Can I use charcoal or briquettes?
No, this grill is designed for gas only. Adding charcoal, briquettes, or lava rocks reduces combustion, increases fire risk, and voids the warranty.
How to detect a gas leak?

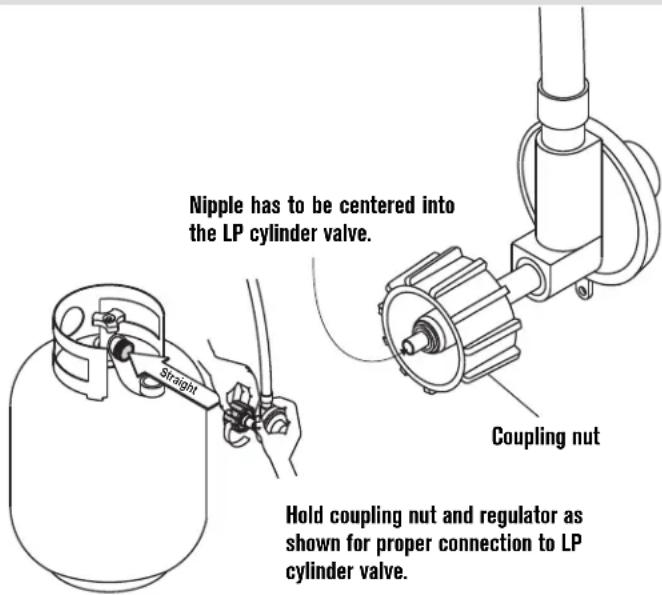

Prepare a soapy water solution. Apply it to the connections (cylinder, regulator, hose). If bubbles appear, turn off the gas and tighten the connections. If the leak persists, replace the part.
What types of gas to use?

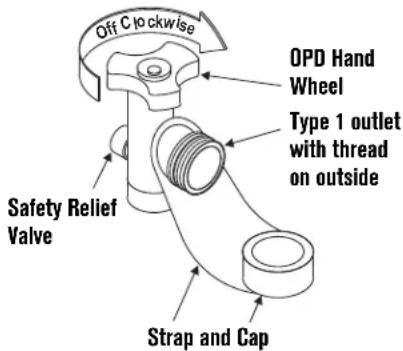

Use only propane (LPG) with the 20 lb (9 kg) cylinder and the supplied regulator. For natural gas, a conversion kit is required.
How to extinguish a grease fire?
Do not pour water. Close the knobs and the cylinder valve. Leave the lid open to let flames die out. Once cool, clean excess grease.
Does the warranty cover rust?
Surface rust is not covered, as it is considered an aesthetic defect. The warranty covers perforations and manufacturing defects on burners (5 years), hood and firebox (2 years), other parts (1 year).
