USER MANUAL 24VHG100 Sun Joe

© 2021 by Snow Joe , LLCAll rights reserved. Original instructions.

SAVE THESE INSTRUCTIONS

A Division of Snow Joe

IMPORTANT! Safety Instructions All Operators Must Read These Instructions Before Use Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, re and/ or serious injury. General Safety WARNINGS! Notice the personal safety alert symbol m used in this manual to draw your attention to a WARNING given along with the particular operating instruction. This means that the operation requires special ATTENTION, CAUTION, and AWARENESS. When using this heat gun, basic safety precautions, including the following, should always be followed to reduce the risk of re, electric shock, personal injury and material damage. Work Area Safety

1. Keep work area clean and well lit. Cluttered or dark

areas invite accidents.

2. Do not operate the heat gun in explosive atmospheres,

such as in the presence of ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

3. Keep children and bystanders away while operating a

heat gun. Distractions can cause you to lose control. Electrical Safety mWARNING! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury.

1. Do not expose the heat gun to rain or wet conditions.

Water entering the unit will increase the risk of electric shock.

2. Recharge only with the charger specied by the

manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

3. Use appliances only with specically designated battery

packs. Use of any other battery packs may create a risk of injury and re.

4. When the battery pack is not in use, keep it away from

other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

5. Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

6. Do not use a battery pack or appliance that is damaged

or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

7. Do not expose a battery pack or appliance to re or

excessive temperature. Exposure to re or temperature above 265ºF (130°C) may cause explosion.

8. Follow all charging instructions and do not charge the

battery pack or appliance outside of the temperature range specied in the instructions. Charging improperly or at temperatures outside of the specied range may damage the battery and increase the risk of re.

9. Do not modify or attempt to repair the appliance or the

battery pack except as indicated in the instructions for use and care. Personal Safety mWARNING! Do not touch the metal part or heat outlet while operating the unit or before the unit is completely cool down. Touching hot surface can cause severe burns, personal injury or property damage.

1. Stay alert, watch what you are doing and use common

sense when operating the heat gun. Do not use the unit while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating the unit may result in serious personal injury.

2. Use personal protective equipment. Always wear eye

protection. Protective equipment such as dust mask, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

3. Prevent unintentional starting. Ensure the switch is in

the o-position before inserting the battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energizing power tools that have the switch on invites accidents.2

4. Do not overreach. Keep proper footing and balance at

all times. This enables better control of the power tool in unexpected situations.

5. Dress properly. Do not wear loose clothing or jewelry.

Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

6. Do not let familiarity gained from frequent use of tools

allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

7. Do not wear loose clothing or jewelry. Contain long hair.

Loose clothes, jewelry, or long hair can be drawn into air vents.

8. Do not use on a ladder or unstable support. Stable

footing on a solid surface enables better control of the power tool in unexpected situations. Power Tool Use and Care

1. Do not force the power tool. Use the correct power tool

for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

2. Do not use the power tool if the switch does not turn it

on and o. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

3. Store idle power tools out of the reach of children and

do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

4. Maintain power tools and accessories. Check for

misalignment or binding of moving parts, breakage of parts and any other condition that may aect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

5. Use the power tool, accessories and tool bits etc.

in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations dierent from those intended could result in a hazardous situation.

6. Keep handles and grasping surfaces dry, clean and

free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Service

1. If your appliance requires service, contact an

dealer or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). Only identical replacement parts should be utilized for repairs. This will ensure that the safety of the power tool is maintained.

2. If the battery charger cable is damaged, it must be

immediately replaced to avoid a hazard. Contact the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance. Safety Instruction for Heat Gun General Safety Warnings for Heat Gun mWARNING! This heat gun generates extremely high temperatures. Hidden areas such as behind walls, ceilings, oors, sot boards and other panels may contain ammable materials that could be ignited by the heat gun when working in these locations. The ignition of these materials may not be readily apparent and could result in property damage and injury to persons. When working in these locations, keep the heat gun moving in a back-and-forth motion. Lingering or pausing in one spot could ignite the panel or the material behind it. mWARNING! Extreme care should be taken when stripping paint. The peelings, residue and vapors of paint may contain lead, which is poisonous. Once deposited on surfaces, hand to mouth contact can result in the ingestion of lead. Exposure to even low levels of lead can cause irreversible brain and nervous system damage; young and unborn children are particularly vulnerable. Before beginning any paint removal process you should determine whether the paint you are removing contains lead. This can be done by your local health department or by a professional who uses a paint analyzer to check the lead content of the paint to be removed. LEAD-BASED PAINT SHOULD ONLY BE REMOVED BY A PROFESSIONAL AND SHOULD NOT BE REMOVED BY USING A HEAT GUN. mWARNING! Do not direct hot nozzle or heat outlet toward clothing, hands, or other body parts. Intense heat from tip or nozzle can cause serious burns or cause clothing to ignite.

1. The heat outlet of the heat gun becomes very hot during

operation and should not be touched until the tool has cooled. Always hold the tool by the insulated gripping surface to reduce the risk of serious personal injury.

2. Heat guns produce very high temperatures and must be

used with caution to prevent combustible material from igniting. Keep tool in constant motion; do not stop or dwell in one spot. Following this rule will reduce the risk of re or serious personal injury.

3. Excessive heat can generate fumes which may be

dangerous when inhaled. Wear a dust respirator mask or dual lter respirator mask when using the heat gun. Following this rule will reduce the risk of serious personal injury.

4. Keep a fully charged re extinguisher close at hand for

emergency use. Following this rule will reduce the risk of re or serious injury.3

5. Do not leave the heat gun unattended while running or

cooling down. Always set tool on a at, level surface so the tip is directed upwards, away from supporting surface, while running or cooling down. Following this rule will reduce the risk of re or serious injury.

6. Know your power tool. Read operator’s manual carefully.

Learn its applications and limitations, as well as the specic potential hazards related to this tool. Following this rule will reduce the risk of electric shock, re, or serious injury.

7. Always wear eye protection. Following this rule will reduce

the risk of serious personal injury.

8. Before using, check all parts for proper function and

damage to component parts.

9. Do not use this heat gun to heat, mold or bend plastic

sheets, moulding or tubing. Safety Warnings for Removing Paint with the Heat Gun

1. Move the work piece outdoors. If this is not possible, keep

the work area well ventilated. Open the windows and put an exhaust fan in one of them. Be sure the fan is moving the air from inside to outside.

2. Remove or cover any carpets, rugs, furniture, clothing,

cooking utensils and air ducts.

3. Place drop cloths in the work area to catch any paint

chips or peelings. Wear protective clothing such as extra work shirts, overalls and hats.

4. Work in one room at a time. Furnishings should be

removed or placed in the center of the room and covered. Work areas should be sealed o from the rest of the dwelling by sealing doorways with drop cloths.

5. Children, pregnant or potentially pregnant women and

nursing mothers should not be present in the work area until the work is done and all clean up is complete.

6. Wear a dust respirator mask or a dual lter (dust and

fume) respirator mask. Change lters often. DISPOSABLE PAPER MASKS ARE NOT ADEQUATE.

7. Use caution when operating the heat gun. Keep the heat

gun moving, as excessive heat will generate fumes, which can be inhaled by the operator.

8. Keep food and drink out of the work area. Wash hands,

arms and face and rinse mouth before eating or drinking. Do not smoke or chew gum or tobacco in the work area.

9. Clean up all removed paint and dust by wet mopping the

oors. Use a wet cloth to clean all walls, sills and any other surface where paint or dust is clinging. DO NOT SWEEP, DRY DUST OR VACUUM. Use a high phosphate detergent or trisodium phosphate (TSP) to wash and mop areas.

10. At the end of each work session put the paint chips and

debris in a double plastic bag, close it with tape or twist ties and dispose of properly.

11. Remove protective clothing and work shoes in the work

area to avoid carrying dust into the rest of the dwelling. Wash work clothes separately. Wipe shoes o with a wet rag that is then washed with the work clothes. Wash hair and body thoroughly with soap and water. Battery & Charger Safety Instructions We pay a great deal of attention to the design of every battery pack to ensure that we supply you with batteries that are safe, durable and have a high energy density. The battery cells have a wide range of safety devices. Each individual cell is initially formatted and its electrical characteristic curves are recorded. This data is then used exclusively to be able to assemble the best possible battery packs. Despite all the safety precautions, caution must always be exercised when handling batteries. The following points must be obeyed at all times to ensure safe use. Safe use can only be guaranteed if undamaged cells are used. Incorrect handling of the battery pack can cause cell damage. IMPORTANT! Analyses conrm that incorrect use and poor care of high-performance batteries are the main factors responsible for personal and/or product damage. mWARNING! Use only approved replacement batteries; other batteries may damage the power tool and cause it to malfunction, which can lead to serious personal injury. mWARNING! Do not use a battery pack or appliance that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care. Have your battery pack serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the battery pack is maintained. mCAUTION! To reduce the risk of injury, charge the Sun Joe

24V lithium-ion battery pack only in its designated Sun Joe

lithium-ion charger. Other types of chargers present risk of re, personal injury and damage. Do not wire a battery pack to a power supply plug or car cigarette lighter. Such misuse will permanently disable or damage the battery pack.

• Avoid dangerous environments – Do not charge the battery pack in rain, snow or in damp or wet locations. Do not use the battery pack or charger in the presence of explosive atmospheres (gaseous fumes, dust or ammable materials) because sparks may be generated when inserting or removing the battery pack, which could lead to a re.

• Charge in a well-ventilated area – Do not block the charger vents. Keep them clear to allow for proper ventilation. Do not allow smoking or open ames near a charging battery pack. Vented gases may explode.4 NOTE: The safe temperature range for the battery is 41°F – 105ºF (5°C – 40.5°C). Do not charge the battery outside in freezing weather; charge it at room temperature.

• Maintain charger cord – When unplugging the charger, pull the plug, not the cord, from the receptacle to reduce the risk of damage to the electrical plug and cord. Never carry the charger by its cord or yank it by the cord to disconnect it from the receptacle. Keep the cord away from heat, oil and sharp edges. Make sure the cord will not be stepped on, tripped over or subjected to damage or stress when the charger is in use. Do not use the charger with a damaged cord or plug. Replace a damaged charger immediately.

• Do not use an extension cord unless it is absolutely necessary – Using the wrong, damaged or improperly wired extension cord poses a risk of re and electric shock. If an extension cord must be used, plug the charger into a properly wired 16 gauge or larger extension cord with the female plug matching the male plug on the charger. Make sure that the extension cord is in good electrical condition.

• Charger 24VCHRG-QC is rated for 120 volt AC only – The charger must be plugged into an appropriate receptacle.

• Use only recommended attachments – Use of an attachment not recommended or sold by the battery charger or battery pack manufacturer may result in risk of re, electric shock or personal injury.

• Unplug charger when not in use – Make sure to disconnect battery pack from unplugged charger. mWARNING! To reduce the risk of electric shock, always unplug the charger before performing any cleaning or maintenance. Do not allow water to ow into the charger. Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock hazards.

• Do not burn or incinerate battery pack – Battery pack may explode, causing personal injury or damage. Toxic fumes and materials are created when battery packs are burned.

• Do not crush, drop or damage battery pack – Do not use the battery pack or charger if they have sustained a sharp blow, been dropped, run over or have been damaged in any way (i.e. pierced with a nail, hit with a hammer, stepped on, etc.).

• Do not disassemble – Incorrect reassembly may pose a serious risk of electric shock, re or exposure to toxic battery chemicals. If the battery or charger are damaged, contact an authorized Snow Joe

dealer or call the Snow Joe

• Battery chemicals cause serious burns – Never let a damaged battery pack contact the skin, eyes or mouth. If a damaged battery pack leaks battery chemicals, use rubber or neoprene gloves to safely dispose of it. If skin is exposed to battery uids, wash the aected area with soap and water and rinse with vinegar. If eyes are exposed to battery chemicals, immediately ush with water for 20 minutes and seek medical attention. Remove and dispose of contaminated clothing.

• Do not short circuit – When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

• Store your battery pack and charger in a cool, dry place – Do not store the battery pack or charger where temperatures may exceed 105ºF (40.5ºC), such as in direct sunlight or inside a vehicle or metal building during the summer. Information about the battery

1. The battery pack supplied with your cordless heat gun is

only partially charged. The battery pack has to be charged completely before you use the tool for the rst time.

2. For optimum battery performance, avoid low discharge

cycles by charging the battery pack frequently.

3. Store the battery pack in a cool place, ideally at 77°F

(25°C) and charged to at least 40%.

4. Lithium-ion batteries are subject to a natural aging

process. The battery pack must be replaced at the latest when its capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery pack are no longer capable of meeting the high power requirements needed for the proper operation of your cordless heat gun, and therefore pose a safety risk.

5. Do not throw the battery pack into an open re as this

poses a risk of explosion.

6. Do not ignite the battery pack or expose it to re.

7. Do not exhaustively discharge batteries. Exhaustive

discharge will damage the battery cells. The most common cause of exhaustive discharge is lengthy storage or non-use of partially discharged batteries. Stop working as soon as the performance of the battery falls noticeably or the electronic protection system triggers. Place the battery pack in storage only after it has been fully charged.

8. Protect the battery and the tool from overloads. Overloads

will quickly result in overheating and cell damage inside the battery housing even if this overheating is not apparent externally.

9. Avoid damage and shocks. Immediately replace batteries

that have been dropped from a height of more than 3 feet (1 meter) or those that have been exposed to violent shocks, even if the housing of the battery pack appears to be undamaged. The battery cells inside the battery may have suered serious damage. In such instances, please read the waste disposal information for proper battery disposal.

10. If the battery pack suers overloading and overheating,

the integrated protective cuto will switch o the equipment for safety reasons. IMPORTANT! Do not press the power supply button any more if the protective cut-o has been activated. This may damage the battery pack.5

11. Recharge only with the charger specied by the

manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

12. Use appliances only with specically designated battery

packs. Use of any other battery packs may create a risk of injury and re.

13. Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

14. Do not use a battery pack or appliance that is damaged

or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

15. Do not expose a battery pack or appliance to re or

excessive temperature. Exposure to re or temperature above 265ºF (130°C) may cause explosion.

16. Follow all charging instructions and do not charge the

battery pack or appliance outside of the temperature range specied in the instructions. Charging improperly or at temperatures outside of the specied range may damage the battery and increase the risk of re. Information about the charger and the charging process

1. Please check the data marked on the rating plate of the

battery charger. Be sure to connect the battery charger to a power supply with the voltage marked on the rating plate. Never connect it to a dierent mains voltage.

2. Protect the battery charger and its cord from damage.

Keep the charger and its cord away from heat, oil and sharp edges. Have damaged cords repaired without delay by a qualied technician at an authorized Snow Joe

dealer or call the Snow Joe

the plug in any way. Do not use any adapter plugs with grounded appliances. Unmodied plugs and matching outlets will reduce the risk of electric shock.

4. Keep the battery charger, battery pack and the cordless

tool out of the reach of children.

5. Do not use the supplied battery charger to charge other

6. During periods of heavy use, the battery pack will become

warm. Allow the battery pack to cool to room temperature before connecting with the charger to recharge.

7. Do not overcharge batteries. Do not exceed the maximum

charging times. These charging times only apply to discharged batteries. Frequent insertion of a charged or partially charged battery pack will result in overcharging and cell damage. Do not leave batteries in the charger for days on end.

8. Never use or charge the battery if you suspect that it has

been more than 12 months since the last time they were charged. There is a high probability that the battery pack has already suered dangerous damage (exhaustive discharge).

9. Charging batteries at a temperature below 41°F (5°C) will

cause chemical damage to the cells and may cause a re.

10. Do not use batteries that have been exposed to heat

during the charging process, as the battery cells may have suered dangerous damage.

11. Do not use batteries that have suered curvature or

deformation during the charging process or those that exhibit other atypical symptoms (gassing, hissing, cracking, etc.).

12. Never fully discharge the battery pack (maximum

recommended depth of discharge is 80%). A complete discharge of the battery pack will lead to premature aging of the battery cells. Protection from environmental inuences

1. Protect your cordless tool and the battery charger from

moisture and rain. Moisture and rain can cause dangerous cell damage.

2. Do not use the cordless tool or the battery charger near

vapors and ammable liquids.

3. Use the battery charger and cordless tools only in dry

conditions and at an ambient temperature of 41ºF – 105°F (5°C – 40.5°C).

4. Do not keep the battery charger in places where the

temperature is liable to reach over 105°F (40.5°C). In particular, do not leave the battery charger in a car that is parked in the sunshine.

5. Protect batteries from overheating. Overloads,

overcharging and exposure to direct sunlight will result in overheating and cell damage. Never charge or work with batteries that have been overheated – replace them immediately, if possible.

6. Store the charger and your cordless tool only in dry

locations with an ambient temperature of 41ºF – 105°F (5°C – 40.5°C). Store your lithium-ion battery pack in a cool, dry place at a temperature of 77°F (25°C). Protect the battery pack, charger and cordless tool from humidity and direct sunlight. Only place fully charged batteries in storage (charged to at least 40%).

7. Prevent the lithium-ion battery pack from freezing. Battery

packs that were stored below 32°F (0°C) for more than 60 minutes must be discarded.

8. When handling batteries, be wary of electrostatic charge.

Electrostatic discharges can damage the electronic protection system and the battery cells. Avoid electrostatic charging and never touch the battery poles.6 Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the tool before attempting to assemble and operate. Indoor use only. Only use battery charger indoors.

MANUAL(S) – Read, understand, and follow all instructions in the user manual(s) before attempting to assemble and operate. SAFETY ALERT – Indicates a precaution, a warning, or a danger. WARNING! Do not expose the unit to rain or wet conditions. Keep dry. WARNING! Electrical shock hazard. Symbols SymbolsDescriptions Descriptions HOT SURFACE – To reduce the risk of injury or damage, avoid contact with any hot surface.

WEAR EYE AND HEARING

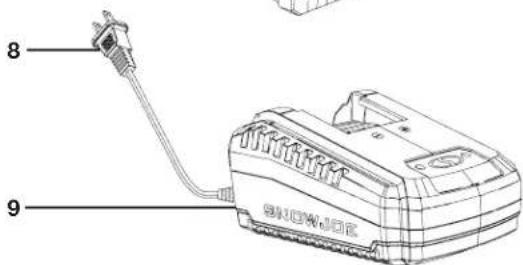

PROTECTION – For protection against injury, wear ear defenders and safety goggles. Wear mask for protection during operation.7 Know Your Cordless Heat Gun Read the owner’s manual and safety instructions carefully before operating this cordless heat gun. Compare the illustration below to the cordless heat gun in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

(24VBAT) featuring exclusive EcoSharp

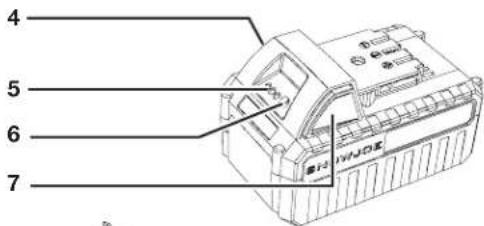

6. Push button for battery indicator

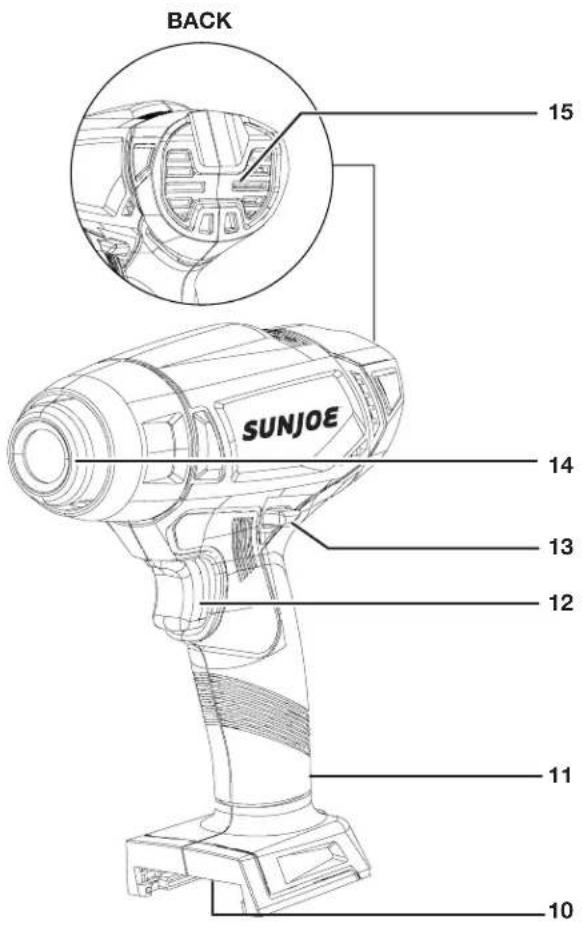

10. Battery compartment

15. Air vent (on the back)

• Manual with registration card

1. Carefully remove the cordless heat gun and check to see

that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you nd damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new cordless heat gun. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations. IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. These items can be swallowed and pose a suocation risk! Battery Pack Operation The equipment is powered by a lithium-ion battery. The battery pack is completely sealed and maintenance free. Battery Charge Level Indicator The battery pack is equipped with a push button for checking the charge level. Simply press the push button to read o the battery charge level from the LEDs of the battery indicator:

• All 3 level monitoring LEDs are lit: Battery charge level is high.

• 2 level monitoring LEDs are lit: Battery charge level is decreasing. Turn o the heat gun as soon as possible.

• 1 level monitoring LED is lit: Battery is at. Turn o the heat gun IMMEDIATELY and charge the battery. Otherwise the battery’s service life will be greatly shortened. NOTE: If the charge level button does not appear to be working, insert the charger and charge as needed. NOTE: Immediately after using the battery pack, the charge level button may display a lower charge than it will if checked a few minutes later. The battery cells “recover” some of their charge after resting. Charger Operation mWARNING! Charge only Sun Joe

24V lithium-ion battery pack with its compatible Sun Joe

24V lithium-ion charger. Other types of batteries may cause personal injury and damage. To reduce the risk of electric shock, do not allow water to ow into the charger's AC/DC plug. When to Charge the iON+ 24VBAT Lithium-iON Battery NOTE: The iON+ 24VBAT lithium-ion battery pack does not develop a "memory" when charged after only a partial discharge. Therefore, it is not necessary to run down the battery pack before charging. Charge level button The battery is at 30% capacity and requires charging The battery is at 60% capacity and requires charging soon The battery is at full capacity Light IndicatorsLights9

• Use the battery indicator lights to determine when to charge your iON+ 24VBAT lithium-ion battery pack.

• You can "top-o" your battery pack's charge before or after a long day of use. Charging the Battery

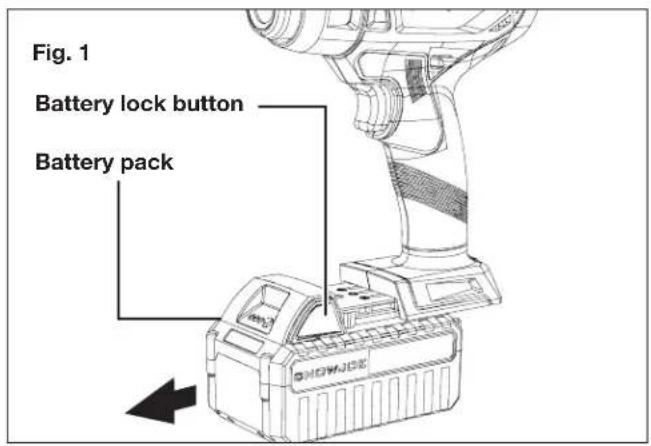

1. Push the push lock buttons on the battery to pull the

battery pack out from the battery compartment (Fig. 1).

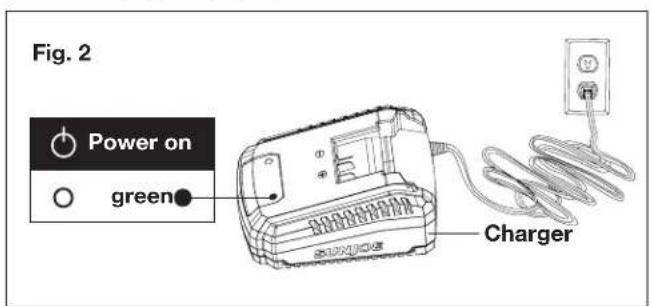

2. Check that the mains voltage is the same as that marked

on the rating plate of the battery charger. Then, insert the charger's plug into the electrical wall outlet. When you plug in the charger, the top right green light will illuminate and stay green (Fig. 2).

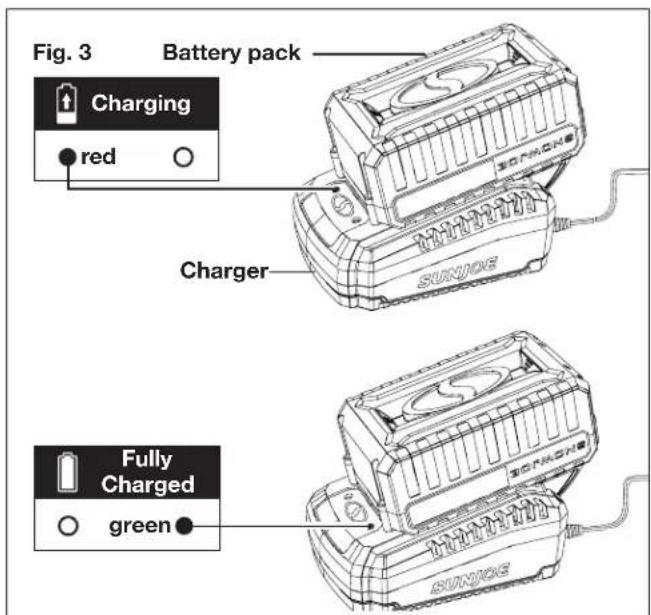

3. Place the battery pack into the charger by sliding the

pack to lock it into position. When you insert the battery into the charger, the top right green light will go o, and the top left red light will illuminate to indicate that the battery is charging (Fig. 3).

4. When the charger light turns green, the battery is fully

charged (Fig. 3). NOTE: A fully discharged pack with an internal temperature in the normal range will fully charge in 1 hr 50 mins (between 32ºF/0ºC and 113ºF/45ºC).

5. If the light indicators do not come on at all, check that

the battery pack is fully seated into the bay. Remove the battery pack and reinsert. If the problem persists, contact an authorized Snow Joe

dealer or call the Snow Joe

6. When charging is complete, remove the battery from the

charger by pressing the push lock buttons and sliding the battery backward to unlock it from the charger. Operation mWARNING! Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sucient to inict serious injury. mWARNING! Always remove battery pack from the tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury. mWARNING! Always wear eye protection when using the heat gun. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries. mWARNING! Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury. Fig. 1 Battery pack Battery lock button Fig. 2 Charger green Power on Fig. 3 Battery pack Charger red Charging green Fully Charged10 Intended Applications This heat gun is intended for the purposes listed below:

• Soften paint, caulking and putty for easier removal.

• Soften adhesives to help remove stickers, oor tiles, wallpaper, etc.

• Shrink tubing for electrical work.

• Shrink plastic lm for wrapping or weatherproong. Any usage other than the applications listed above may cause personal injury and property damage, and will void the warranty. mDANGER! DO NOT use under wet conditions or in presence of ammable liquids or gases. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool. Starting and Stopping

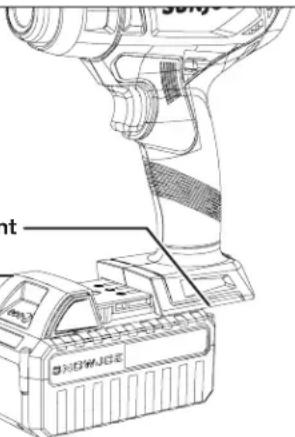

1. Insert the battery in the battery compartment. Push to

make sure it is locked in place (Fig. 4).

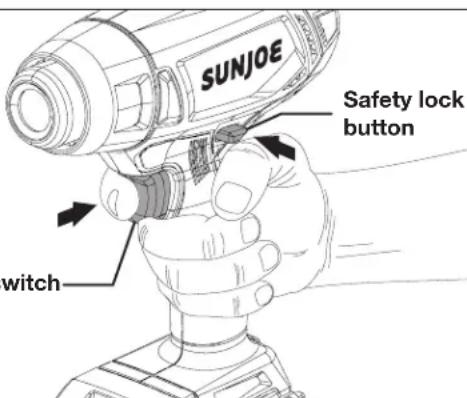

2. To turn the heat gun on, depress the safety lock button.

While the safety lock button is pressed, press the trigger switch (Fig. 5). NOTE: The safety lock button reduces the possibility of accidental starting. It can be depressed from either the left or right side.

3. When the heat gun is on, release the safety lock button

rst, and release the trigger switch. The heat gun is equipped with hand-free operation function and it's not necessary to keep pressing the trigger switch to use the gun. NOTE: When the heat gun is just started, it's normal that smoke is produced from the heat outlet.

4. To turn the heat gun o, press the safety lock button

again. Using the Nozzles 3 nozzle attachments are included with the heat gun to expand its capabilities. Check the table below for details of each attachment.

1. Make sure the trigger switch is in the o position and the

tool is disconnected from the battery pack. Ensure that both the heat outlet and the desired nozzle are cooled down.

2. Place the desired nozzle onto the heat outlet of the heat

gun. Push in to secure.

3. Before disconnecting a nozzle, turn o the heat gun and

remove the battery. Make sure both the nozzle and the heat outlet is cooled down. General Operation Process mWARNING! Make sure the nozzle always points away from you and any bystanders. Do not direct hot tip or nozzle toward clothing, hands, or other body parts. Intense heat from the heat gun can cause serious burns or cause clothing to ignite. Battery pack Fig. 4 Battery compartment Trigger switch Fig. 5 Safety lock button Concentrator nozzle. The concentrator nozzle intensies the application of heat in a specic area. Uses for this nozzle include bending acrylic plastic sheets and directing heat into corners. Flat nozzle. The at nozzle spreads heat over wide area. Use this nozzle for drying, removing paint, removing vinyl or linoleum, thawing. Reector hook nozzle. The reector hook nozzle reects heat around item, avoiding excess heat burning or hurting surface behind item being heated. It's good for applying heat to shrinkable tubing and thawing pipes.11 mWARNING! DO NOT insert anything into the heat outlet.

1. Assemble the desired nozzle, insert the battery, and turn

on the heat gun as instructed above.

2. Hold the heat gun with one hand.

mWARNING! Do not place second hand on top of tool or near the heat outlet at any time. Holding the tool on or near the heat outlet can cause serious personal injury.

3. Move the heat gun until the nozzle is close to the area

being heated. NOTE: Experiment with scrap materials to determine the proper amount of heat, distance and time for your project.

4. During heating, move the tool back-and-forth. Avoid

lingering or pausing in one spot as this could overheat or potentially ignite the material being heated.

5. Turn o the heat gun and remove the battery pack. Allow

the heat gun, the nozzle and the heated surface to cool thoroughly. Remove Paint mWARNING! Refer to Safety Warnings for Removing Paint with the Heat Gun in the Warning section before using the tool to remove paint. mWARNING! Do not strip paint on metal window frames as the heat may crack the glass. When stripping paint on other window frames, use a glass protector.

1. Attach the at nozzle. Insert the battery and turn on the

2. Direct hot air onto the paint to be removed. Best results

will be achieved if the heat gun is moved slowly, but CONSTANTLY, from side to side to evenly distribute heat. DO NOT LINGER OR PAUSE IN ONE SPOT.

3. When the paint softens, scrape the paint away using a

hand scraper. NOTE: Splinters and small particles of stripped paint can be ignited and blown through holes and cracks in the surface being stripped. Cool Down The heat outlet and nozzle become very hot during use. Turn o the heat gun, remove the battery and let the tool cool down for at least 30 minutes before moving or storing it. Maintenance mWARNING! Before inspecting, cleaning, or servicing the unit, stop the heat gun and remove the battery pack, wait for the heat gun to cool. Failure to follow these instructions can result in serious personal injury or property damage. mWARNING! When servicing, use only identical replacement parts. Use of any other parts could create a hazard or cause product damage. General Cleaning Tips The heat gun should be kept clean, dry, and free of oil or grease. Only a mild soap and damp cloth should be used to clean the heat gun. Do not allow liquid to enter the tool. The high temperatures of the heat gun will cause the heat outlet to turn dark over time. This is normal and will not aect its performance or life. Air vents must be kept clean and free of foreign matter. The most eective method of cleaning the vents is with compressed air. Do not attempt to clean by inserting pointed objects through the openings. mWARNING! Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc. Storage mWARNING! The heat outlet of the heat gun will stay hot for a while after use. Always allow heat gun to cool before storage. Following this rule will reduce the risk of serious personal injury or property damage.

• Switch o and remove the battery. Cool down the unit. Thoroughly clean the housing.

• Store the heat gun, with the battery and charger indoors in a safe location out of the reach of children. Disposal Recycling the tool

• Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities.

• Contact your local government agency for information regarding the collection systems available.

• If electrical appliances are disposed of in landlls or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

• When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposal at least free of charge. Recycling + Disposal The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is functioning properly. Recycle the package afterwards or keep it for long-term storage.12 WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling regulations. Battery Caution + Disposal Always dispose of your battery pack according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations. mCAUTION! Even discharged battery packs contain some energy. Before disposing, use electrical tape to cover the terminals to prevent the battery pack from shorting, which could cause a re or explosion. mWARNING! To reduce the risk of injury or explosion, never burn or incinerate a battery pack even if it is damaged, dead or completely discharged. When burned, toxic fumes and materials are emitted into the surrounding atmosphere.

1. Batteries vary according to device. Consult your manual

for specic information.

2. Install only new batteries of the same type in your product

3. Failure to insert the battery in the correct polarity, as

indicated in the battery compartment or manual, may shorten the life of the batteries or cause batteries to leak.

4. Do not mix old and new batteries.

5. Do not mix Alkaline, Standard (Carbon-Zinc) or

Rechargeable (Nickel Cadmium, Nickel Metal Hydride, or Lithium-Ion) batteries.

6. Do not dispose of batteries in re.

7. Batteries should be recycled or disposed of as per state

cordless heat gun needs service or maintenance, please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). Model + Serial Numbers When contacting the company or reordering parts, you will need to provide the model and serial numbers of your product. These are found on the decal axed to the housing of your cordless heat gun. Copy these numbers into the space provided below. 24V iON+ Lithium-Ion Charger (24VCHRG-QC) Federal Communications Commission (FCC) mWARNING! Any changes or modications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Class B device: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Record the following numbers from the housing or handle of your new product: Model #: 2 4 V - H G 1 0 0 Serial #:13 Optional Accessories mWARNING! ALWAYS use only authorized Snow Joe

replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this cordless heat gun. Contact Snow Joe

if you are unsure whether it is safe to use a particular replacement part or accessory with your cordless heat gun. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. iON+ 24V lithium-ion Battery Quick Charger iON+ 24V lithium-ion Dual-port Battery Charger 24VBAT-LTE 24VCHRG-QC 24VBAT-LT 24VBAT 24VBAT-XR ModelAccessories Item

24V iON+ 2.0 Ah Lithium-Ion Battery Battery Runtime Max (Continuous heating): 8 min 24V iON+ 2.5 Ah Lithium-Ion Battery Battery Runtime Max (Continuous heating): 10 min 24V iON+ 4.0 Ah Lithium-Ion Battery Battery Runtime Max (Continuous heating): 16 min 24V iON+ 5.0 Ah Lithium-Ion Battery Battery Runtime Max (Continuous heating): 20 min 24VCHRG-DPC NOTE: Accessories are subject to change without any obligation on the part of Snow Joe

to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe

CUSTOMER PROMISE OUR WARRANTY: Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe’s authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there’s an issue with a specic part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that! This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs. WHO CAN SEEK LIMITED WARRANTY COVERAGE: This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product. WHAT IS NOT COVERED? This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not aect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563). ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe

product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products. EN151617 ©2021 Snow Joe , LLCDerechos reservados. Instrucciones originales.

A Division of Snow Joe
