Ranger Xtreme 8x42 - Binoculars Steiner - Free user manual and instructions

Product type	Binoculars
Brand	Steiner
Model	Ranger Xtreme 8x42
Magnification	8x
Objective lens diameter	42 mm
Prism type	Porro
Focusing system	Sports-Auto-Focus or Fast-Close-Focus depending on version
Interpupillary distance	Adjustable via central hinge
Eyecups	Adjustable in multiple positions (ErgoFlex, cylindrical, or rotary)
Integrated compass	Optional with illumination
Illumination power supply	Button cell battery
Reticle	Integrated measuring scale
Strap attachment	ClicLoc system
Protective case	Neoprene case and rain cap
Lens caps	Removable ClicLoc
Waterproofing	Immersion waterproof binoculars
Lens cleaning	Brush and soft cloth
Armor maintenance	Plastic care product
Safety	Never look at the sun
Serial number	On the hinge or inside the objective lens
Customer service	Steiner-Optik GmbH, Phone: [phone]

Frequently Asked Questions - Ranger Xtreme 8x42 Steiner

How to adjust the interpupillary distance?

To adjust the distance between your eyes, fold the central hinge until you see a round image. This adapts the binoculars to your face shape.

How to adjust eyecups for eyeglass wearers?

The eyecups can be set in the raised position (for non-wearers) or lowered position (for eyeglass wearers). Turn or fold down the eyecups depending on the model for best comfort.

How to use the Sports-Auto-Focus system?

Set both diopter adjustments to 0. For visual impairment, cover one objective lens, look with the corresponding eye and turn the diopter adjustment until sharp. Then repeat for the other eye. The focus is then automatic from 20 m to infinity.

How to change the compass battery?

Open the battery compartment, replace the used battery with a new one observing polarity, then carefully close the lid to ensure waterproofing.

How to clean the lenses?

First remove dust with a brush, then wipe the lenses with a soft cloth (damp if necessary). In case of salt water, rinse with fresh water then dry with a dry cloth.

How to attach the strap with the ClicLoc system?

Press the indicated pin on the rubber armor to unlock the closure. Insert the strap into the eyelet and snap the closure until you hear a click. The lug must face outward.

What to do if the image is not sharp?

First check the diopter adjustment: cover one objective lens and adjust the focusing wheel or diopter for each eye. Ensure the interpupillary distance is correct.

How to use the reticle to estimate distance?

Use the formula: Distance = Actual height (in m) x 1000 / Measured height (in m). For example, if a 10 m object measures 20 in the reticle, the distance is 500 m.

What are the important safety instructions?

Never look directly at the sun with the binoculars, as this can cause serious eye damage. Keep binoculars out of reach of children.

Where to find the serial number?

The serial number is located on the front end of the hinge, between the objectives, under the hinge, or in the objective lens. It helps identify the product in case of loss or theft.

USER MANUAL Ranger Xtreme 8x42 Steiner

Person in blue jacket and boots climbing a rocky cliff with binoculars (no text or symbols visible)

STEINER

Nothing Escapes You

Unvergessliche Momente erleben

Bedienungsanleitung

Experience unforgettable moments

Instruction Manual

Congratulations on purchasing STEINER binoculars! Do not miss your life's defining moments! The accessories included with your purchase may be used according to your requirements. Proper handling is a date for enjoying this precision device over several decades. Therefore, please read the following pages before the STEINERs for the first time.

Pure diagram of symmetrical mechanical or electrical components with blue directional arrows, no text or symbols present

B

Dachkant-Modelle Roof models Prismes en toit Modelli con prisma retto Modelos de Techo Модели с призмой Roof

Silhouette of binoculars with red arrows indicating upward motion (no text or symbols)

Diagram of a train or ship's cross-section with numbered components, likely illustrating structural or operational layout.

1 2 3 4

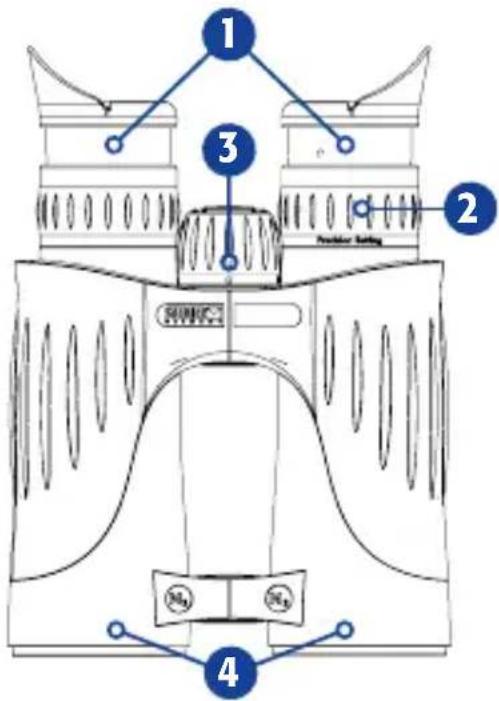

Erläuterung Porro-Modelle / Explanation for the Porro models / Explication des Prismes de porro / Spiegazione dei modelli con prisma di Porro / Descripción de los modelos de Porro / Пояснения к моделям с призмой Порро

1 Okular mit Augenmuschel, Ocular with eyecup, Oculaire à œillère, Oculare con conchiglia oculare, Ocular con tapón ocular, Окуляр с наглазником
2 Dioptrienausgleich, Dioptre setting, Correction dioptrique, Regolazione diottrica, Compensador de dioptrías, Корректор диоптрий
3 Fokussierrad, Focussing wheel, Molette de mise au point, Ghiera di messa a fuoco, Rueda de enfoque, Фокусировочный маховичок
4 Objektiv, Objective, Objectif, Obiettivo, Objetivo, Объектив

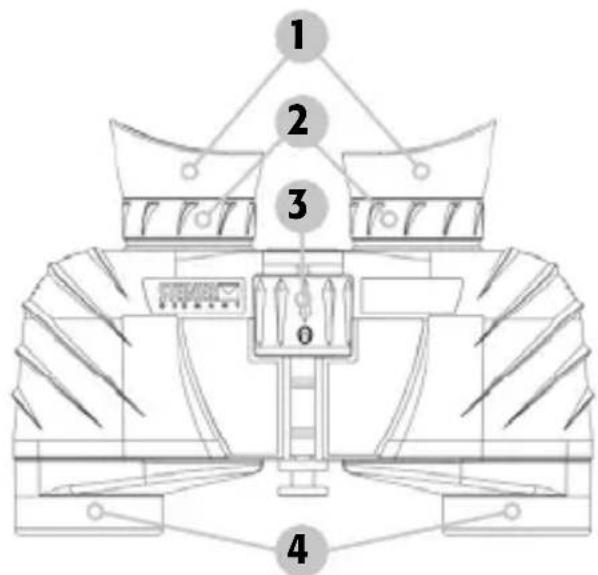

Erläuterung Dachkant-Modelle / Explanation for the roof models / Explication des modèles Prismes en toit / Spiegazione dei modelli con prisma retto / Descripción de los modelos de Techo / Пояснения к моделям с призмой Roof

1 Okular mit Augenmuschel, Ocular with eyecup, Oculaire à œillère, Oculare con conchiglia oculare, Ocular con tapón ocular, Окуляр с наглазником
2 Dioptrienausgleich, Dioptre setting, Correction dioptrique, Regolazione diottrica, Compensador de dioptrías, Корректор диоптрий
3 Fokussierrad, Focussing wheel, Molette de mise au point, Ghiera di messa a fuoco, Rueda de enfoque, Фокусировочный маховичок
4 Objektiv, Objective, Objectif, Obiettivo, Objetivo, Объектив

Customer-Service International:

www.steiner-binoculars.com

STOEGER CANADA (1990) LTD

1801 Wentworth St. Unit #1

Whitby, Ontario L1N 8R6

Canada

Tel.: [phone]

E-Mail: [e-mail]

www.stoegercanada.ca

STEINER

Nothing Escapes You

Black-and-white photo of a climber in protective gear climbing a steep rocky cliff face (no text or symbols visible)

STEINER

Nothing Escapes You

Experience unforgettable moments

Instruction Manual

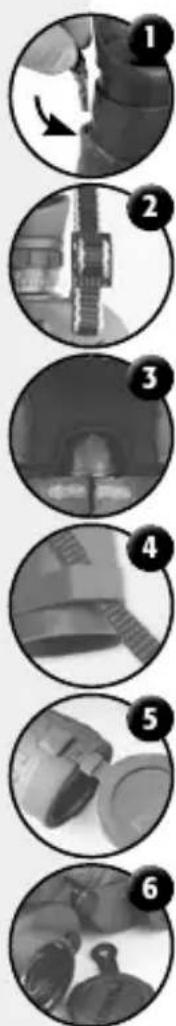

Attaching the belt attachment:

With ClicLoc System:

To loosen the carrying strap and unlatch the lock, press and hold the marked oval position on the rubber armouring ①. The snap fit can now be pulled off and/or inserted. Make sure that the catch is always facing outwards and that it audibly engages while being inserted.

Without ClicLoc system:

Please loosen one end of the strap from the side loop and feed the strap from the top through the eyelet. ② Now pull the carrying strap through the slide loop again and pull firmly on the strap to tighten it. Repeat these steps to fasten the other end of the strap in the same way.

Attaching the neoprene protection cover and the rain protection cover:

Several rain protection systems may be enclosed with your binoculars that are attached to the carrying strap. For neoprene protection covers, please ensure that the semicircular opening on the cover is placed over the focussing whe el ③. For rain protection covers, the strap retainer may be threaded laterally through the open eyelet ④ provided for this purpose.

Attaching the objective protection covers:

If your binoculars are equipped with locking ClicLoc objective protection covers, press on the visible depression to release the cover and pull it out of its retainer 5. To re-connect it, push the snap-on fastener back into the retainer until it is secure and audibly engages. Objective protection covers that are attached to the centre axis are removed by pulling them over the centre axis 6.

Adjusting the interocular distance and the eyecups:

Adjusting the interocular distance:

To adjust an individual interocular distance turn the two halves of the binoculars via the centre axis until you can see a round image.

To ensure optimum visibility through your STEINERS, the eyecups may be set to different positions:

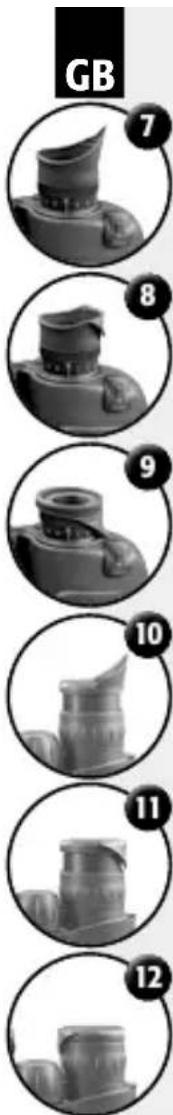

Adjusting the eyecups (models with ErgoFlex and ergonomic eyecups): ergonomic 7, cylindric al 8 or for persons wearing glass es 9.

Adjusting the eyecups (models with cylindrical eyecups): cylindrical 8 or for persons wearing glass es 9.

Adjusting the eyecups (models with twist-up eyecups): ergonomic ⑦, cylindrical ⑧ or for persons wearing glass es ⑨.

Focussing:

Porro binoculars with Sports-Auto-Focus (see also key):

Adjust both dioptre settings to "0" and everything from approx. 20m and beyond is always sharp and clear. If this is not the case, one or both eyes may be ametropic. This has to be adjusted.

1. Choose a very detailed and remote object (approx. 200m distant).
2. Cover the left objective with your hand or the objective protection cover and look through the binoculars.
3. Now turn the dioptre setting on the right ocular until you can see an entirely sharp and clear image with your right eye.
4. Please repeat the same steps for the left eye. Now everything from 20m and beyond is always sharp and clear.

GB 7 8 9 10 11 12

Porro binoculars with Sports-Auto-Focus PLUS:

Once set to the individual acuity (see Sports-Auto-Focus), Sports-Auto-Focus PLUS also offers you the possibility to focus objects close by (from a distance of 2m) by means of a short turn on the focussing whe el 13.

Roof binoculars with Fast-Close-Focus (see key also):

1. Choose a very detailed and remote object (approx. 200m distant).
2. Cover the left objective with your hand, or the objective protection cover if enclosed, and look through the binoculars.
3. Now turn the focussing wheel until you can see an entirely sharp and clear image with your right eye.
4. To adjust the left eye of the binoculars, cover the right objective and look through your binoculars. Then turn the dioptre setting on the left ocular until you see a sharp and clear image of the same object.
5. By turning the focusing wheel, it is now possible to focus the binoculars down to different distances giving outstandingly detailed and brilliant images.
   Note: in the Discovery series you will find the dioptre setting on both oculars.

Compass settings:

Compass light:

For STEINER marine binoculars equipped with an integrated compass, you will find a button on the side of the compass housing to illuminate the compass display inside the ocular in the dark. To do so, simply press and hold the corresponding button. In order to use the compass at night the compass light is equipped with a battery.

Changing batteries:

To be able to also use the compass at night, the compass light is equipped with a battery. Proceed as follows to change the battery:

Open the battery case 15. Now replace used battery/batteries and be careful to correctly assign the positive and/or negative pole terminals. When closing the battery cover, make sure that you close it tightly to prevent water from penetrating into the battery compartment.

Environmental protection: Batteries must not be disposed of with household waste 16. Obtain information about the applicable regulations for the collection of WEEE (Waste of Electrical and Electronic Equipment) in your country.

Products with integrated precision reticle:

It is highly visible le 17 and gives measurements in metres or feet (0.33m).

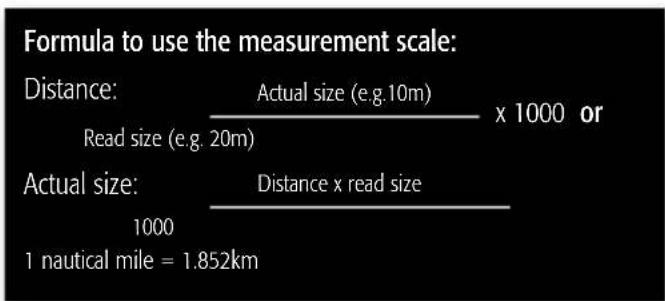

Formula to use the measurement scale: Distance: Actual size (e.g. 10m) x 1000 or Read size (e.g. 20m) Actual size: Distance x read size 1000 1 nautical mile = 1.852km

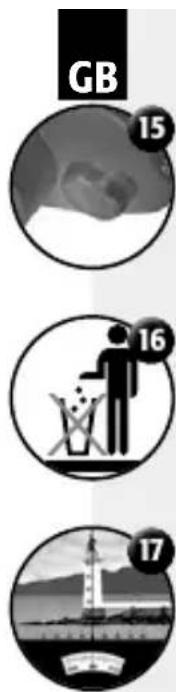

Measurement example:
