Product Type	Additional Cordless Handset
Brand	Panasonic
Model	KX-TGHA20EX
Power Supply	AC Adapter PNLV233CE (220-240 V) / Rechargeable Ni-MH AAA Batteries (2 provided)
Battery Type	Ni-MH AAA (R03)
Charging Time	Approx. 7 hours
Display	LCD Screen with Language Selection
Compatibility	Compatible with Panasonic bases from KX-TGEA20 and KX-TGHA20 series (corresponding models)
Main Functions	Call, Phonebook, Caller ID, Call Waiting, Intercom (via base)
Included Accessories	Charger, AC Adapter, Batteries (×2), Handset Cover, Belt Clip (depending on version)
Maintenance and Cleaning	Soft damp cloth; no benzene, thinner, or abrasive powder
Safety	Use only Ni-MH AAA batteries; do not expose to water; unplug in case of malfunction
Spare Parts	Replacement batteries (ref. see base manual), AC Adapter PNLV233CE
Repairability	Panasonic authorized service center
Standards	Compliant with R&TTE, WEEE and Batteries Directives
Weight (approx.)	150 g with batteries
Dimensions (approx.)	170 × 50 × 30 mm
User Manual	112 pages, available in multiple languages

Frequently Asked Questions - KX-TGHA20EX PANASONIC

How to register the handset to the base?

Place the handset on the base or charger, then press the [] key on the handset and hold down the [•••] key on the base for 5 seconds. Wait for the confirmation tone and the ⚪ icon.

How to change the display language?

Press [☐] (right programmable key) then dial #110. Use [▲] to select the desired language and press [OK], then [].

What type of battery should I use?

Use only rechargeable Ni-MH AAA (R03) batteries. Do not use alkaline, manganese, or Ni-Cd batteries.

How long does charging take?

Full charging takes approximately 7 hours. The indicator shows 'Charging' then 'Charged'.

Can I use alkaline batteries?

No, use only rechargeable Ni-MH AAA batteries. Alkaline batteries may cause malfunction or risk of explosion.

How to clean the device?

Clean the outer surface with a soft damp cloth. Do not use benzene, thinner, or abrasive powder.

What if the handset does not register?

If an error tone sounds or the ¥ icon appears, repeat the registration procedure following the base manual instructions. Ensure the handset is on the charger.

Is this handset compatible with all Panasonic bases?

It is compatible with the KX-TGEA20 and KX-TGHA20 series and corresponding models. Check the base manual for the full list.

How to dispose of the device at end of life?

Do not dispose of the device or batteries with household waste. Take them to a collection point in accordance with local regulations and the WEEE and Batteries Directives.

Where can I find the base user manual?

The base manual is supplied with the main product. You can also download it free in PDF format from notice-facile.com by searching your base model.

USER MANUAL KX-TGHA20EX PANASONIC

Additional Digital Cordless Handset

Model No.

KX-TGEA20EX

KX-TGHA20EX

Illustration of a classic mobile phone with a keypad and front panel (no text or symbols)

KX-TGEA20

Illustration of a mobile phone with a screen and keypad (no text or symbols)

KX-TGHA20

Thank you for purchasing a Panasonic product.

This unit is an additional handset compatible with the following series of Panasonic Digital Cordless Phone:

• KX-TGE210/KX-TGE220 (KX-TGEA20)
• KX-TGH210/KX-TGH220 (KX-TGHA20)

(The corresponding models are subject to change without notice.)

You must register this handset with your base unit before it can be used.

This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit's operating instructions for further details.

Please read this installation manual before using the unit and save it for future reference.

Accessory information

Supplied accessories

Accessory item/Part number	Quantity
Charger	1
AC adaptor/PNLV233CE	1
Rechargeable batteries*1	2
Handset cover*2	1
Belt clip (KX-TGEA20)	1

*1 Please read the base unit's operating instructions for replacement battery information.
*2 The handset cover comes attached to the handset.

Note:

• Please read the base unit's operating instructions for additional/replacement accessories.
• Please read "General information" of the base unit's operating instructions for information regarding R&TTE Directive.

Setting up

Connections

① Connect the AC adaptor plug to the unit until you hear a click.
② Connect the AC adaptor to the power outlet.

Note:

• Use only the supplied Panasonic AC adaptor PNLV233CE.
• The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)

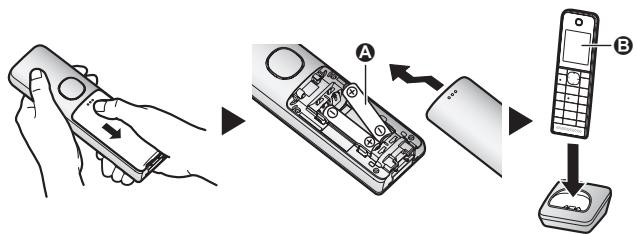

Battery installation/Battery charging

When the language selection is displayed after installing the batteries for the first time, you can select your desired language.

【▲】: Select your desired language. → [OK] → [💡]

Important:

• Use the supplied rechargeable batteries. For replacement, we recommend using the Panasonic rechargeable batteries noted in the base unit's operating instructions.
• USE ONLY rechargeable Ni-MH batteries AAA (R03) size (A).
• Do NOT use Alkaline/Manganese/Ni-Cd batteries.
• Confirm correct polarities (⊕, ⊖).

Charge for about 7 hours.

• Confirm "Charging" is displayed (B).
• When the batteries are fully charged, "Fully Charged" is displayed.

Installation

- Model shown is KX-TGHA20.

Note:

• The handset display may show "Please wait for 1 minute." when the handset is placed on the charger if it is not registered to the base unit.
• If the batteries are fully charged, but the operating time seems to be shorter, clean the battery ends (⊕, ⊖) and the charge contacts with a dry cloth and charge again.

Display language

1 【■】(right soft key) #110
2 【▲】: Select your desired language. → [OK] → [💡]

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold [💡] for few seconds to turn the handset on.

1 Handset:

Lift the handset and press [💡].

2 Base unit:

Press and hold [●▶▶] for about 5 seconds.

- If all registered handsets start ringing, press [•]) again to stop, then repeat this step.

3 Handset:

Place the handset on the base unit or charger.

- Continue the operation even when the handset display shows "Please wait for 1 minute.".

4

4 With the handset still on the base unit or charger, wait until a confirmation tone sounds and ⬆ is displayed.

Note:

- If an error tone sounds, or if is displayed, register the handset according to the base unit's operating instructions.

For your safety

To prevent severe injury and loss of life/property, read this section carefully before using the product to ensure proper and safe operation of your product.

WARNING

Power connection

• Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire.
• Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire.
• Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact an authorised service centre.

Installation

• To prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture.
• Do not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.

Operating safeguards

- The use of excessive sound volume through earphones, headphones, or headsets may cause hearing loss. (KX-TGEA20)

CAUTION

Installation and location

- The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible.

Installation

Battery

• We recommend using the supplied batteries or additional/replacement batteries noted in the base unit's operating instructions for replacement battery information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size.
• Do not mix old and new batteries.
• Do not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed.
• Exercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns.
• Charge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual.
• Only use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode.

Important safety instructions

When using your product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Do not use this product near water for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
2. Do not use the telephone to report a gas leak in the vicinity of the leak.
3. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

SAVE THESE INSTRUCTIONS

Other information

- Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Routine care

• Wipe the outer surface of the product with a soft moist cloth.
• Do not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

- This product can store your private/confidential information. To protect your privacy/confidentiality, we recommend that you erase information such as phonebook or caller list entries from the memory before you dispose of, transfer, or return the product.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols (①, ②, ③) on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols (①, ②, ③) are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Installation

Note for the battery symbol

This symbol (②) might be used in combination with a chemical symbol (③). In this case it complies with the requirement set by the Directive for the chemical involved.
