Grillexpress 3600 - Grill plate Klarstein - Free user manual and instructions

Product type	Electric grill plate
Brand	Klarstein
Model	Grillexpress 3600
Power	3600 W
Power supply	220-240 V ~ 50/60 Hz
Temperature range	50 °C to 300 °C
Cooking surface	Two plates with non-stick coating
Grease tray	Removable for easy cleaning
Handles	Insulated for safe handling
Preheating time	Approximately 7 to 8 minutes
Indicator lights	Power indicator and heating indicator
Thermostat	Adjustable with temperature maintenance
Material	Stainless steel and heat-resistant plastic
Dimensions (approx.)	45 x 30 x 15 cm
Weight (approx.)	5.5 kg
Cleaning	Soft cloth and mild detergent; do not immerse
Safety	Automatic shut-off not specified; use on stable surface, keep away from flammable materials
Repairability	Repairs by qualified personnel only; spare parts available
Article numbers	10039917, 10039918, 10039919
Warranty	2 years (depending on reseller)

Frequently Asked Questions - Grillexpress 3600 Klarstein

What is the power of the Klarstein Grillexpress 3600 grill plate?

The power is 3600 W, which allows fast heating and even cooking.

What is the adjustable temperature range?

The temperature can be adjusted from 50 °C to 300 °C, ideal for a variety of foods.

How to clean the grill plate?

Clean after each use with a soft cloth and mild detergent. Never immerse the appliance in water.

What to do if the power indicator does not light up?

Check the electrical outlet and the cable. If the problem persists, the indicator may be defective and must be replaced by a professional.

The heating element does not heat despite the indicator being on, what to do?

This may indicate a defective heating element or thermostat. Contact an authorized service for replacement.

Can I use the appliance outdoors?

No, the appliance is intended for indoor use on a stable surface and away from moisture.

What minimum distance should be kept from walls?

Keep a distance of at least 30 cm from walls and flammable objects.

How to adjust the temperature?

Turn the temperature adjustment knob to the desired value. The heating indicator lights up and turns off once the temperature is reached.

Is the grease tray removable?

Yes, the grease tray is removable for easy cleaning. Empty and wash it regularly.

Can I use metal utensils on the plate?

It is recommended to use utensils made of wood or heat-resistant plastic to avoid scratching the non-stick coating.

USER MANUAL Grillexpress 3600 Klarstein

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Exploded view diagram of a device with numbered parts for identification

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

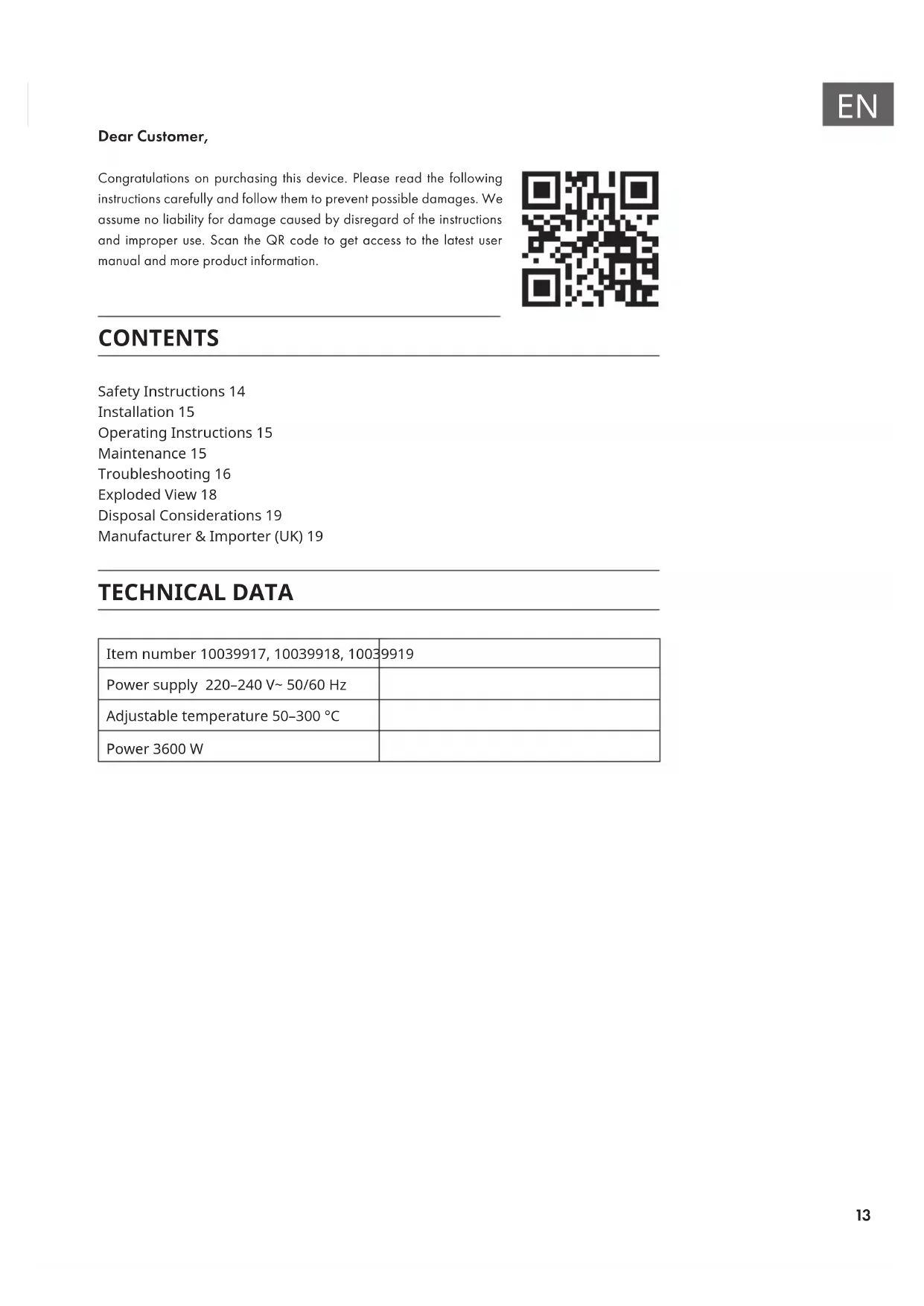

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 14

Installation 15

Operating Instructions 15

Maintenance 15

Troubleshooting 16

Exploded View 18

Disposal Considerations 19

Manufacturer & Importer (UK) 19

TECHNICAL DATA

Item number 10039917, 10039918, 10039919
Power supply 220-240 V~ 50/60 Hz
Adjustable temperature 50-300 °C
Power 3600 W

SAFETY INSTRUCTIONS

- Connect the device so that the mains plug is easily accessible at all times.

- Inspect the power cord regularly for damage. If the power cord is damaged, it must be replaced by the manufacturer or an authorized service center or a similarly qualified person.

- Repairs may only be carried out by qualified personnel, do not attempt to repair the device yourself.

- Do not connect the unit to a timer or a remote control power outlet.

- Never immerse the appliance, power cord or plug in water or other liquids.

- Do not handle the plug with wet hands.

- Do not pull the plug out of the socket by the cable, but hold it firmly by hand when pulling it off.

- Do not use the cable as a handle.

- Lay the cable in such a way that no one will trip over it.

- Do not let the cable run over sharp edges.

- Do not use the unit in wet rooms or in the rain.

- Place the appliance in such a way that it cannot fall into water. If it does fall into water, immediately unplug the appliance from the wall outlet and only then touch the appliance.

- Unplug the appliance from the wall outlet when it is no longer in use.

- Keep the appliance away from open fire and heat sources.

- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

- Keep children away from the grill and do not leave the appliance unattended during operation.

- Place the appliance on a stable, level surface.

- Make sure that there are no easily inflammable objects or materials around the grill.

- Keep at least 30 cm away from walls.

- Do not touch the grill grate or other hot surfaces during operation.

- Do not move the appliance until it has cooled down completely. Only touch the appliance by the handles provided for this purpose.

- Only place the appliance on surfaces that are insensitive to heat. Position the appliance so that it is not too close to the edge.

- To avoid heat build-up, do not place the appliance directly under kitchen cabinets or shelves.

- Do not place the appliance on or near a stove.

- Do not expose the appliance to excessive temperatures and weather variations.

- Never fill the grill with liquids.

- If parts are damaged, do not continue to use the grill.

INSTALLATION

1 Before installation, should first check whether the power, voltage and a nameplate marking voltage is consistent, whether the user side power switch and fuse conforms to the machine power requirements.
2 The machine shell must be reliable grounding, grounding wire will be strictly prohibited in tap water or gas pipeline. Stove are placed around the flammable and explosive articles, and keep working environment with good ventilation.
3 Please be careful, not to place the machine on the reach of children. If you use the product in child place, be careful and take good care of children.

OPERATING INSTRUCTIONS

1 Be sure power cord is properly connected to a proper source (220\~240V/50Hz).
2 Power indicator should indicate power available (light on).
3 Set to desired temperature (heating indicator will light on). Warm-up time is approximately 7-8 minutes. Heating indicator will cycle at set temperature.
4 When set temperature is reached, lift top grill, using black handle, and lightly grease grill plates with vegetable oil. Place food on grill and lightly press handle down. Excess oil will collect in the grease collection tray. Remove food when cooked. The heating elements will automatically cycle as needed.
5 Turn off the machine when no longer needed and unplug from power source.

MAINTENANCE

• All maintenance work must be carried out after cutting off power.
• The machine after use should use soft cloth for cleaning, if necessary, select the non corrosive cleaning agent. Do not use water to flush directly or spraying machine, in order to avoid electrical appliances due to seepage failure caused moisture.
• The lower part of the body and connected with the residual oil and residue oil box collection, often should clean out, keep clean.
• When not use in a long time, should keep the machine clean, and save in the ventilated, non corrosive gas environment.

TROUBLESHOOTING

No	Fault Cause Solution
1 The	power indicator does not light	1. The machine without power into2. The power indicator light burned out.	1. Thermostat on the machine power supply2. Replace the power indicator light
2 Work	indicator is light, but the heating element without heating, flat plate have not temperature rise	1. The heating element has been burned out2. The thermostat is broken	1. Replace the heating element2. Detection of the replacement thermostat.
3 A flat	plate temperature is normal, but the working indicator does not light	Work indicator was burned out.	Replace work indicator.
4 Grilled	plate temperature rise, but cannot be set and controlled	The thermostat failure.	Replace the temperature controller.

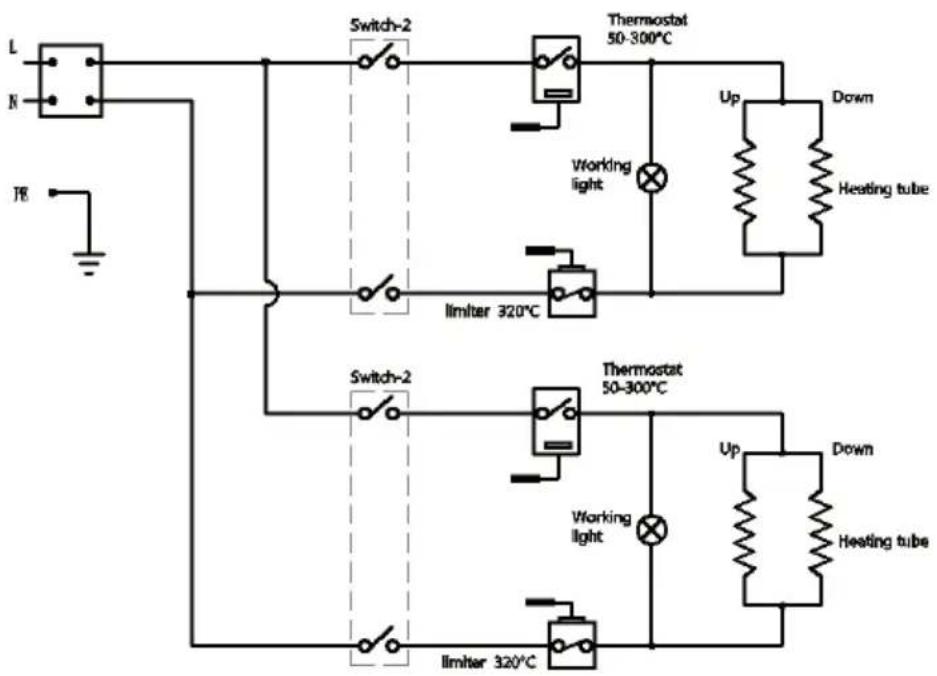

L N PE Switch-2 Thermostat 50-300°C Up Down Heating tube Working light limiter 320°C Switch-2 Thermostat 50-300°C Up Down Heating tube Working light limiter 320°C

EXPLODED VIEW

Exploded view diagram of a refrigerator with numbered parts for identification

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Exploded view diagram of a device with numbered parts for identification

INFORMATIONS SUR LE RECYCLAGE

Symbol of a trash bin crossed with no visible text or labels

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Exploded view diagram of a refrigerator with numbered parts for identification

INDICACIONES SOBRE LA RETIRADA DEL APARATO

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Exploded view diagram of a device with numbered parts for identification

AVVISO DI SMALTIMENTO

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

KLARSTEIN
