USER MANUAL 62669 HAMILTON BEACH

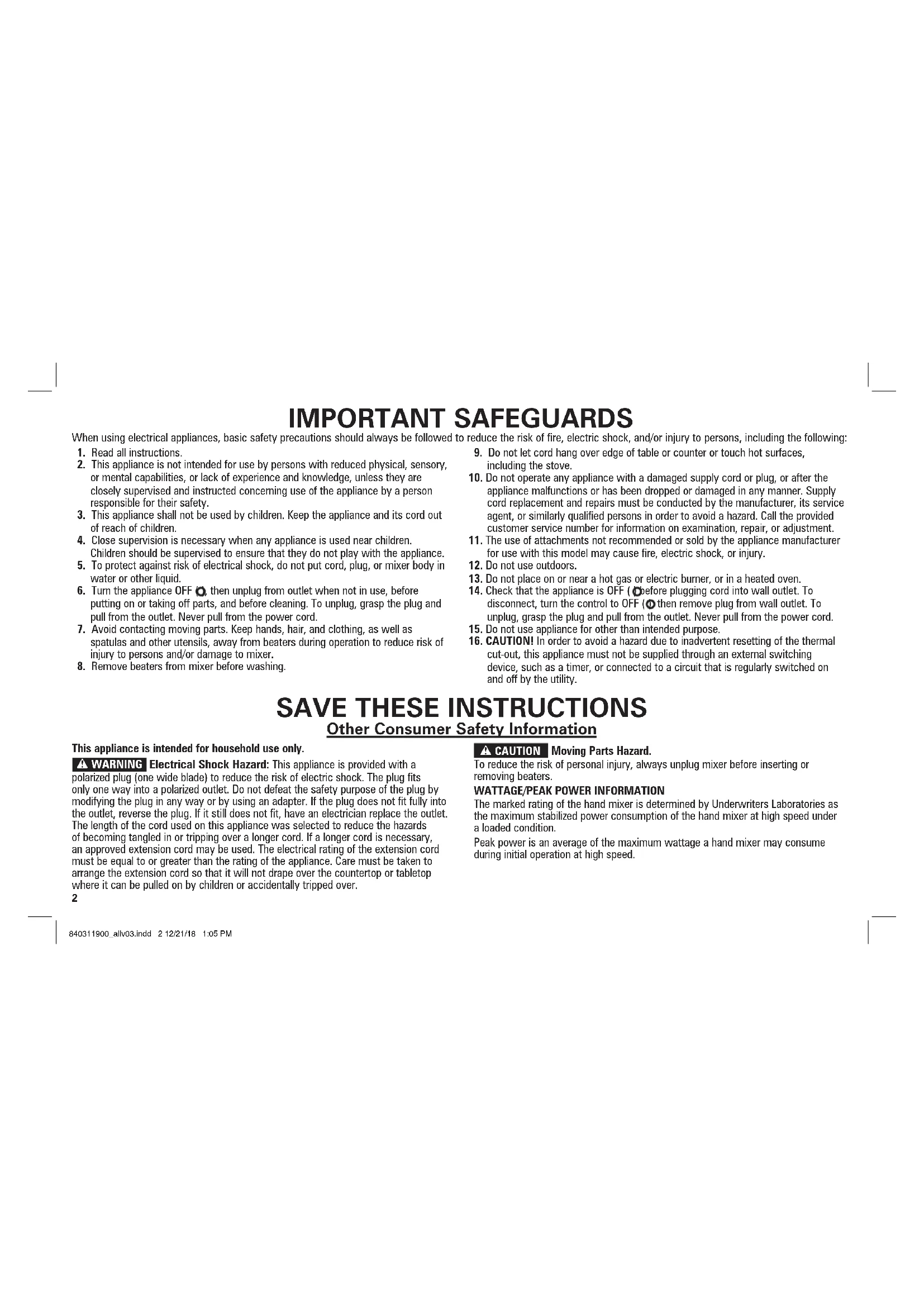

1. Read all instructions.

2. This appliance is not intended for use by persons with reduced physical, sensory,

or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

3. This appliance shall not be used by children. Keep the appliance and its cord out

of reach of children.

4. Close supervision is necessary when any appliance is used near children.

Children should be supervised to ensure that they do not play with the appliance.

5. To protect against risk of electrical shock, do not put cord, plug, or mixer body in

water or other liquid.

6. Turn the appliance OFF ( ), then unplug from outlet when not in use, before

putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

7. Avoid contacting moving parts. Keep hands, hair, and clothing, as well as

spatulas and other utensils, away from beaters during operation to reduce risk of injury to persons and/or damage to mixer.

8. Remove beaters from mixer before washing.

9. Do not let cord hang over edge of table or counter or touch hot surfaces,

including the stove.

10. Do not operate any appliance with a damaged supply cord or plug, or after the

appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

11. The use of attachments not recommended or sold by the appliance manufacturer

for use with this model may cause fire, electric shock, or injury.

12. Do not use outdoors.

13. Do not place on or near a hot gas or electric burner, or in a heated oven.

14. Check that the appliance is OFF ( ) before plugging cord into wall outlet. To

disconnect, turn the control to OFF ( ); then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

15. Do not use appliance for other than intended purpose.

16. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal

cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information This appliance is intended for household use only. w WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over. w CAUTION Moving Parts Hazard. To reduce the risk of personal injury, always unplug mixer before inserting or removing beaters.

WATTAGE/PEAK POWER INFORMATION

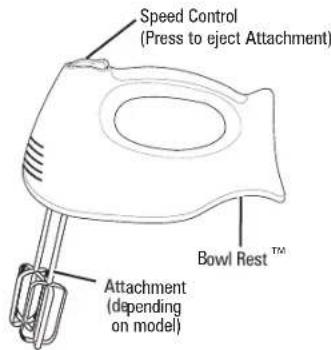

The marked rating of the hand mixer is determined by Underwriters Laboratories as the maximum stabilized power consumption of the hand mixer at high speed under a loaded condition. Peak power is an average of the maximum wattage a hand mixer may consume during initial operation at high speed. 840311900_allv03.indd 2 12/21/18 1:05 PM3 Parts and Features* Speed Control (Press to eject Attachment) Attachment (depending on model) Bowl Rest™ Flat Beaters (General Use) Whisk (Whipping/Aerating) Snap-On Case To order parts: US: 1.800.851.8900 www.hamiltonbeach.com Canada: 1.800.267.2826 Mexico: 01 800 71 16 100 How to Use Your Hand Mixer

1. Make sure Mixer is unplugged and turned to

2. Following diagrams on bottom of Mixer, insert

desired Attachment(s) into proper openings on bottom of Mixer. Push and click into place.

3. Plug into outlet.

4. Place Beaters/Whisk into bowl.

5. Move Speed Control to desired speed.

Start at 1 and increase speed as needed.

6. When finished, turn speed control to OFF ( )

Attachments. QuickBurst™ Press and hold down QuickBurst button for additional power at any speed. NOTE: Do not use QuickBurst for more than two minutes at a time or motor may overheat. Bowl Rest™ Use Bowl Rest while adding ingredients or checking a recipe. To use, turn mixer OFF ( ); then set Mixer on edge of bowl. NOTES:

• Never use Bowl Rest when Mixer is on.

• Do not use Bowl Rest on small or plastic mixing bowls.

• Do not lean Beaters against side of bowl. Straight Wire Beaters (General/Heavy Use) Dough Hooks (Mixing/Kneading) Twisted Wire Beaters (General Use) Milk Shake (Ice Cream/Powdered Drink Mixes)

• Appearance may differ from images shown. Not all attachments are included with this model. Speed Control Button QuickBurst™ Button 840311900_allv03.indd 3 12/21/18 1:05 PM4 Care and Cleaning w WARNING Electrical Shock Hazard. Disconnect power before cleaning. Do not immerse mixer, cord, or plug in any liquid. This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V ~ 60 Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance. Limited Warranty General Mixing Guide SPEED FUNCTION OFF ( ) and/or Eject

LOW speed for folding or mixing in dry ingredients, muffins, or quick breads 2 To cream butter and sugar; most cookie dough

MEDIUM speed for most packaged cake mixes 4 Frosting and mashed potatoes; kneading dough 5 Beating egg whites; kneading dough

HIGH speed for whipping cream

1. Make sure Mixer is unplugged before cleaning.

2. Wash Attachments in hot, soapy water. Rinse and dry. Or, wash in

dishwasher, top-rack only. DO NOT use the “SANI” setting when washing in the dishwasher. “SANI” cycle temperatures could damage your product.

3. Wipe Mixer with a soft, damp cloth or sponge and dry.
