USER MANUAL 62641 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online

Questions Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Exterior view of a modern electric blender with black handle and silver casing (no visible text or symbols)

English 2

Français...... 8

Español 15

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put cord, plug, or mixer body in water or other liquid.
6. Turn the appliance OFF( )When unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contacting moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beaters during operation to reduce risk of injury to persons and/or damage to mixer.
8. Remove beaters from mixer before washing.

9. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.

10. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

11. The use of attachments not recommended or sold by the appliance manufacturer for use with this model may cause fire, electric shock, or injury.
12. Do not use outdoors.
13. Do not place on or near a hot gas or electric burner, or in a heated oven.
14. Check that the appliance is OFF (○) before plugging cord into wall outlet. To disconnect, turn the control to OFF (○) then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
15. Do not use appliance for other than intended purpose.
16. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Electrical Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

CAUTION Moving Parts Hazard.

To reduce the risk of personal injury, always unplug mixer before inserting or removing beaters.

WATTAGE/PEAK POWER INFORMATION

The marked rating of the hand mixer is determined by Underwriters Laboratories as the maximum stabilized power consumption of the hand mixer at high speed under a loaded condition.

Peak power is an average of the maximum wattage a hand mixer may consume during initial operation at high speed.

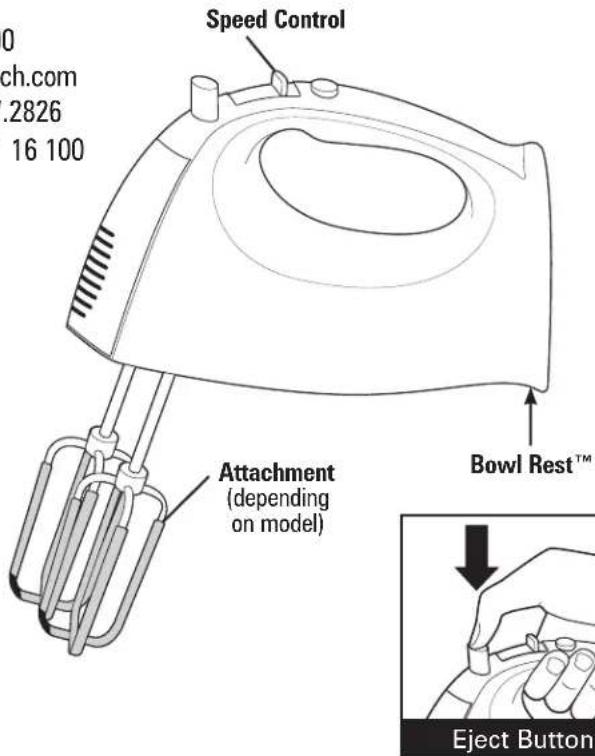

Parts and Features

Optional Accessory on Select Models

To order parts:

US: 1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 01 800 71 16 100

0 ch.com .2826 16 100 Speed Control Attachment (depending on model) Bowl Rest™ Eject Button

Flat Beaters
(General Use)

SoftScrape™ Beaters
(General/Heavy Use) Dishwasher-Safe

Straight Wire Beaters
(General/Heavy Use)

Dough Hooks
(Mixing/Kneading)

Stainless Steel Whisk
(Whipping/Aerating)

SoftScrape™ Whisk
(Whipping/Aerating) Dishwasher-Safe

Snap-On Case

Snap-On Case
With Storage Door

How to Use Your Hand Mixer

Line drawing of a washing machine connected to an electrical outlet (no text or symbols)

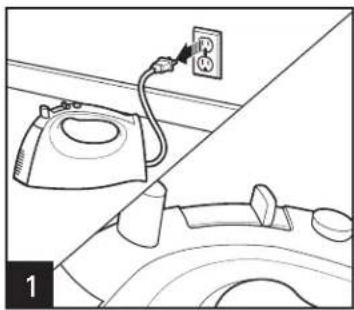

Make sure mixer is unplugged and turned to OFF (Q)

Diagram of a mechanical device with a lever and mounting holes, labeled with number 2 (no text or symbols on the diagram itself)

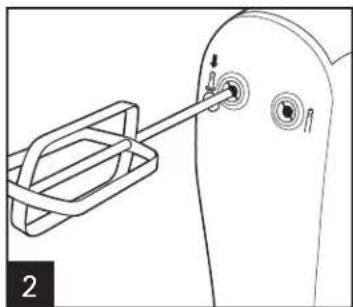

Following diagrams on bottom of mixer, insert desired attachment(s) into proper openings on bottom of mixer. Push and click into place.

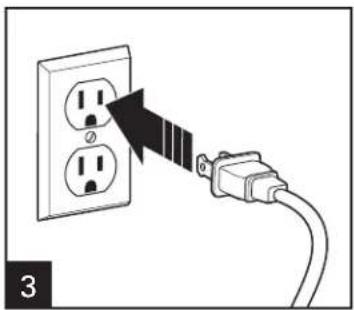

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the cable's direction (no text or symbols present)

Line drawing of a hand mixer in a bowl (no text or symbols)

Diagram showing a mechanical component with arrows indicating motion or force direction (no text or symbols)

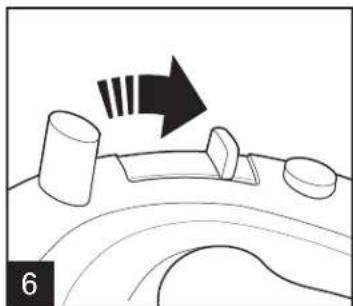

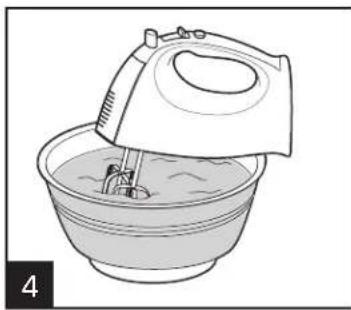

Move speed control to desired speed. Start at 1 and increase speed as needed.

Diagram showing a curved surface with geometric shapes and a large arrow pointing upward (no text or symbols)

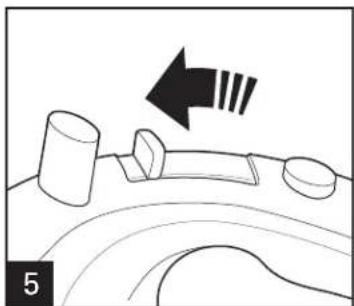

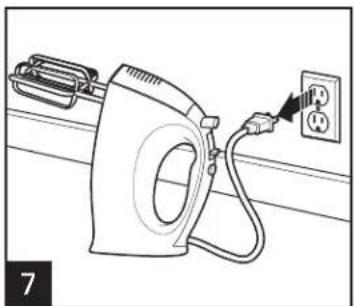

When finished, turn speed control to OFF (♀) and unplug mixer.

Line drawing of a washing machine connected to an electrical outlet (no text or symbols)

NOTE: Always unplug mixer before attempting to remove beaters.

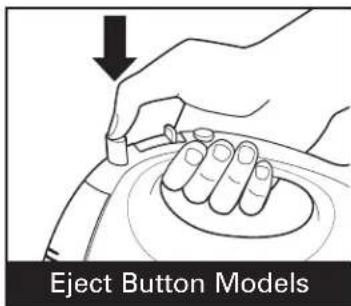

Eject Button Models

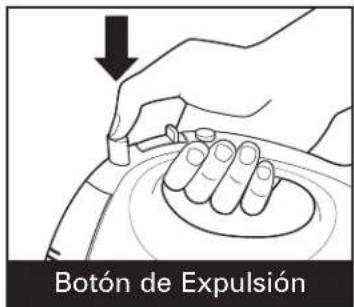

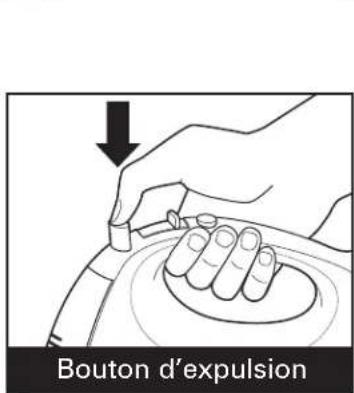

Push eject button to eject attachments.

Mixing Guide

General Mixing Guide

The following mixing guide is a suggestion for selecting mixing speeds for 6-speed mixers. Begin on speed 1 and increase to desired speed depending on the recipe consistency.

SPEED	FUNCTION
○	OFF and/or Eject
1	LOW speed for folding or mixing in dry ingredients, muffins, or quick breads
2	To cream butter and sugar; most cookie dough
3	MEDIUM speed for most packaged cake mixes
4	Frosting and mashed potatoes; kneading dough
5	Beating egg whites; kneading dough
6	HIGH speed for whipping cream

Cookie Dough Mixing Guide

• Use a large mixing bowl so that the ingredients spread out for easier mixing.
• Butter and margarine should be at room temperature.
• Add flour one cup at a time, mixing thoroughly after each addition.
  • Chips and nuts should be stirred by hand.

Additional Features

Speed Control Button QuickBurst™ Button QUICKBURST™

QuickBurst™

Press and hold down the QuickBurst button for additional power at any speed.

NOTICE: Do not use QuickBurst for more than 2 minutes at a time. This could cause the motor to overheat, possibly resulting in permanent damage to the mixer.

Line drawing of a hand mixer in a bowl (no text or symbols)

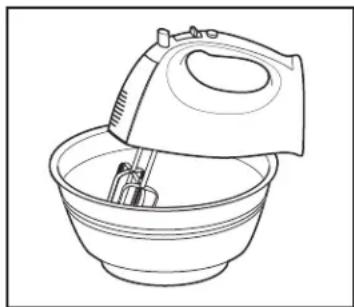

Bowl Rest™

Use the Bowl Rest while adding ingredients or checking a recipe. To use, TURN MIXER OFF (○) and then set the mixer on the edge of the bowl.

Never use Bowl Rest when mixer is on.

Do not use Bowl Rest on small or plastic mixing bowls.

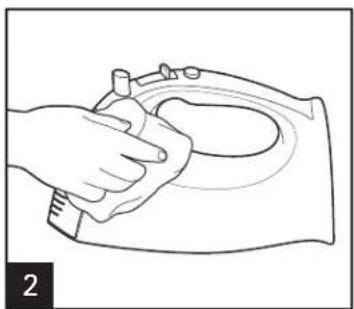

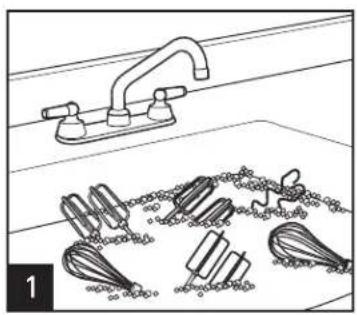

Cleaning and Storage

Line drawing of a kitchen sink with faucet and multiple hanging fixtures (no text or symbols)

Line drawing of a hand holding a tool over a mechanical component (no text or symbols)

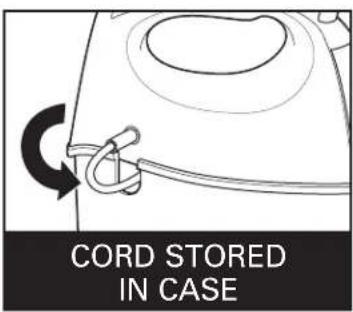

CORD STORED IN CASE

WARNING Electrical Shock Hazard.

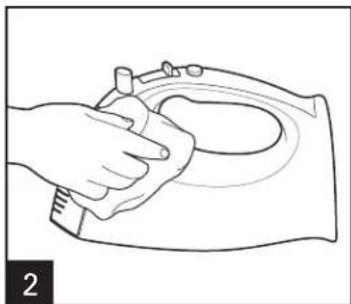

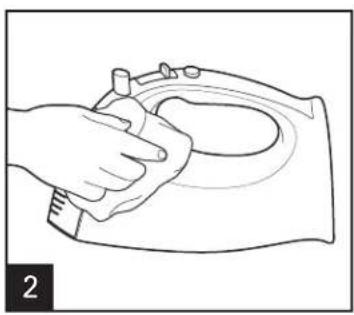

Disconnect power before cleaning. Do not immerse mixer, cord, or plug in any liquid.

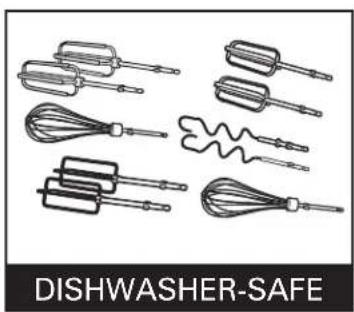

DISHWASHER-SAFE

NOTE: SoftScrape™ beaters and whisk may be placed in the dishwasher.

DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Line drawing of a washing machine connected to an electrical outlet (no text or symbols)

Line drawing of a mechanical device with a bracket and circular ports, no text or symbols present

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

Line drawing of a hand mixer blending liquid into a bowl (no text or symbols)

Diagram showing a mechanical component with arrows indicating motion or force direction (no text or symbols)

Diagram showing a curved surface with geometric shapes and a black arrow indicating direction (no text or symbols)

Line drawing of a washing machine connected to an electrical outlet (no text or symbols)

Line drawing of a hand mixer in a bowl (no text or symbols)

Bowl Rest ^MC

(Support de bol)

Line drawing of a kitchen sink with faucet and various household fixtures (no text or symbols)

Line drawing of a hand holding a circular object with a handle, no text or symbols present

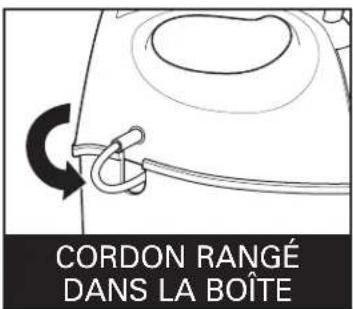

CORDON RANGÉ DANS LA BOÎTE

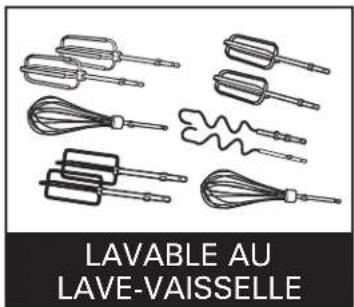

LAVABLE AU LAVE-VAISSELLE

Line drawing of a washing machine connected to an electrical outlet (no text or symbols)

Diagram of a mechanical device with a lever and mounting hole (no text or symbols)

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the insertion direction (no text or symbols present)

Line drawing of a washing machine connected to an electrical outlet (no text or symbols)

Line drawing of a hand mixer blending liquid into a bowl (no text or symbols)

Diagram showing a vehicle on a curved road with a large cylinder and directional arrow, no text or symbols present

Diagram showing a curved surface with geometric shapes and a large arrow, no text or symbols present

Line drawing of a hand mixer in a bowl (no text or symbols)

Line drawing of a kitchen sink with faucet and hanging fixtures (no text or symbols)

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

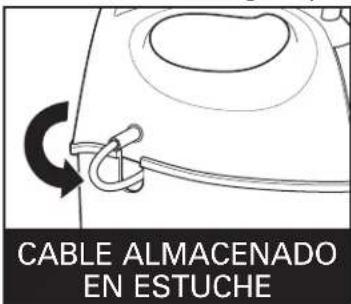

CABLE ALMACENADO EN ESTUCHE

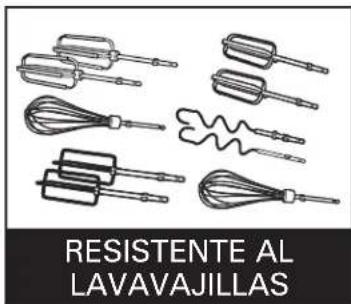

RESISTENTE AL LAVAVAJILLAS
