USER MANUAL 62629 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online

Questions Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Line drawing of a kitchen hand mixer with handle and whisk (no text or symbols)

Hand Mixers

Batteur à main

Batidora de Mano

English 2

Français.... 8

Español 15

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put cord, plug, or mixer body in water or other liquid.
6. Turn the appliance OFF(○), then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contacting moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beaters during operation to reduce risk of injury to persons and/or damage to mixer.
8. Remove beaters from mixer before washing.

9. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.

10. Do not let cord contact hot surfaces, including the stove.

11. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
12. The use of attachments not recommended or sold by the appliance manufacturer for use with this model may cause fire, electric shock, or injury.
13. Do not use outdoors.
14. Do not place on or near a hot gas or electric burner, or in a heated oven.
15. Check that the appliance is OFF (before plugging cord into wall outlet. To disconnect, turn the control to OFF (then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
16. Do not use appliance for other than intended purpose.
17. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

⚠ WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care

must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

CAUTION Moving Parts Hazard.

To reduce the risk of personal injury, always unplug mixer before inserting or removing beaters.

WATTAGE/PEAK POWER INFORMATION

The marked rating of the hand mixer is determined by Underwriters Laboratories as the maximum stabilized power consumption of the hand mixer at high speed under a loaded condition.

Peak power is an average of the maximum wattage a hand mixer may consume during initial operation at high speed.

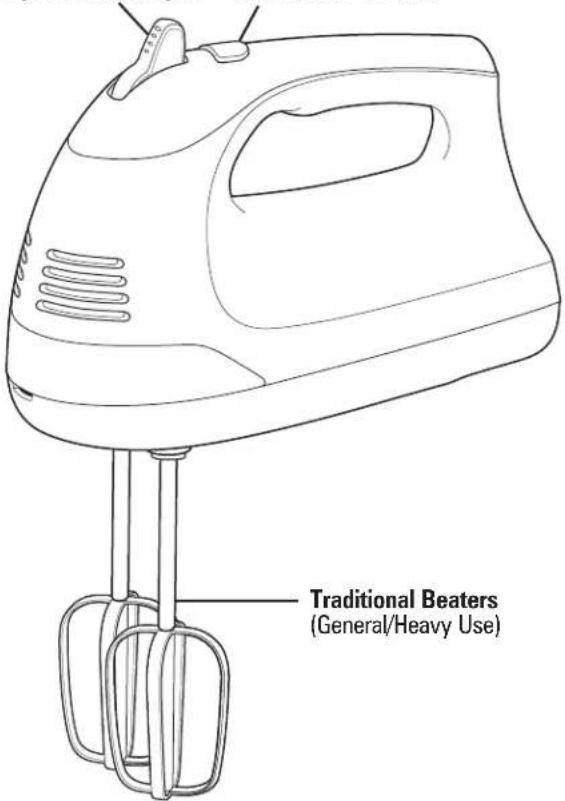

Parts and Features

To order parts:

US: 1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 800 71 16 100

Speed Control/Eject

Speed Control/Eject QuickBurst™ Button

Traditional Beaters (General/Heavy Use)

Line drawing of a whisk with a pointed tip and handle (no text or symbols)

Whisk
(Whipping/Aerating)

Line drawing of a portable air conditioner unit (no text or symbols)

Snap-On Case

How to Use Your Hand Mixer

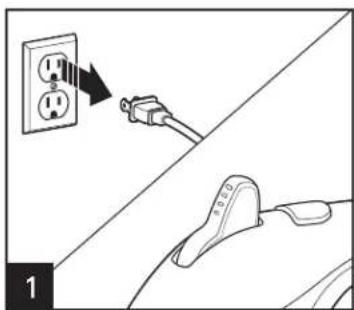

Diagram showing a plug inserted into an electrical socket, with a switch and cable attachment labeled '1'

Make sure mixer is unplugged and turned to ⒶOFF).

Technical line drawing of a mechanical component with a lever and mounting holes (no text or symbols)

Following diagrams on bottom of mixer, insert beaters or whisk into proper openings on bottom of mixer. Push and click into place.

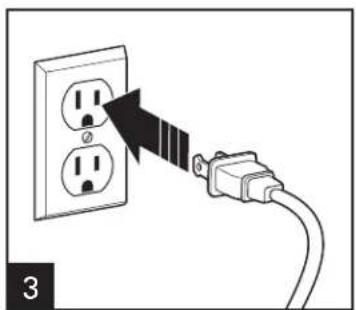

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

(No text)

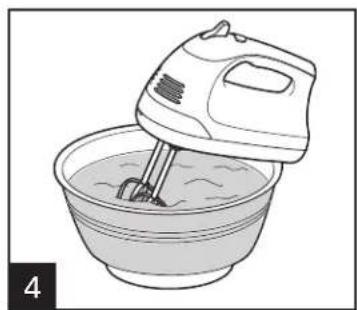

Line drawing of a hand mixer blending liquid in a bowl (no text or symbols)

广力云智慧零售收银系统

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

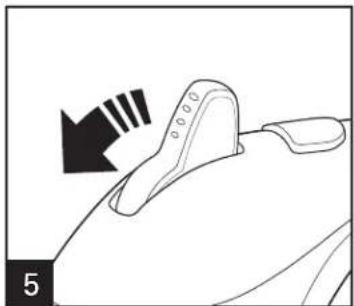

Move speed control to desired speed. Start at 1 and increase speed as needed.

Diagram of a car's seat with arrows indicating motion direction (no text or symbols)

When finished, turn speed control to QOFF) and unplug mixer.

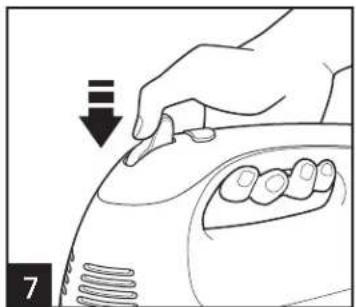

Illustration of a hand pressing down on a device with a downward arrow and label '7' (no text or symbols on the diagram itself)

Push speed control to eject attachments.

Additional Features

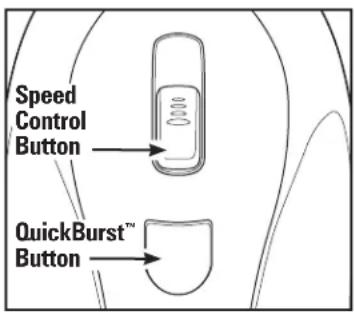

Speed Control Button QuickBurst™ Button

QuickBurst™

Press and hold down the QuickBurst button for additional power at any speed.

NOTE: Do not use QuickBurst for more than 2 minutes at a time or motor may overheat.

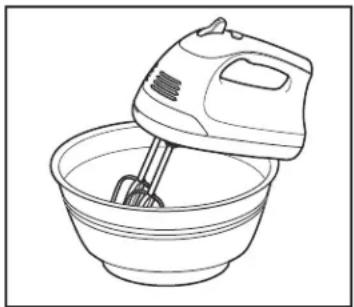

Line drawing of a hand mixer in a bowl (no text or symbols)

Bowl Rest™

Use the Bowl Rest while adding ingredients or checking a recipe. To use, TURN MIXER OFF; then set the mixer on the edge of the bowl.

Never use Bowl Rest when mixer is on.

Do not use Bowl Rest on small or plastic mixing bowls.

General Mixing Guide

The following mixing guide is a suggestion for selecting mixing speeds for 6-speed mixers. Begin on speed 1 and increase to desired speed depending on the recipe consistency.

SPEED FUNCTION
0	OFF (Φand/or Eject
1	LOW speed for folding or mixing in dry ingredients, muffins, or quick breads
2 To cream butter and sugar; most cookie dough
3 MEDIUM speed for most packaged cake mixes
4 Frosting and mashed potatoes; kneading dough
5 Beating egg whites; kneading dough
6 HIGH speed for whipping cream

Cookie Dough Mixing Guide

• Use a large mixing bowl so that the ingredients spread out for easier mixing.
• Butter and margarine should be at room temperature.
• Add flour 1 cup (237 ml) at a time, mixing thoroughly after each addition.
• Chips and nuts should be stirred by hand.

Cleaning

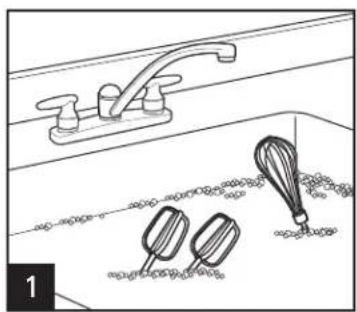

Line drawing of a kitchen sink with faucet and three pushpins (no text or symbols)

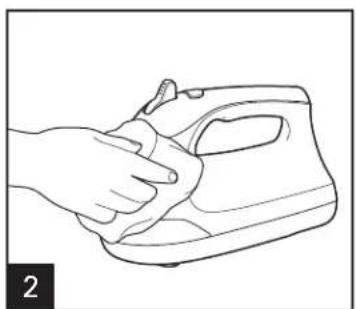

Line drawing of a hand holding a small iron or iron shaver (no text or symbols)

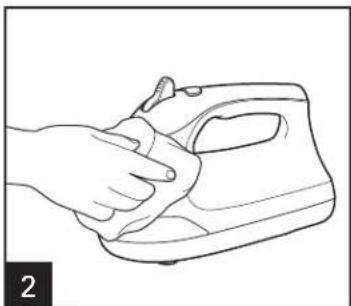

Wipe mixer and case with a damp cloth or sponge and dry.

Storage

Line drawing of a portable air purifier with a circular arrow indicating rotation (no text or symbols)

Store attachments and cord in case.

WARNING Electrical Shock Hazard.

Disconnect power before cleaning. Do not immerse mixer, cord, or plug in any liquid.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Line drawing of a whisk with a mesh head and handle (no text or symbols)

Fouet (battage/aération)

Line drawing of a portable air conditioner unit (no text or symbols)

Boîte à pression

Diagram showing a plug inserted into an electrical outlet, with a close-up of the plug being inserted (no text or symbols present)

Technical line drawing of a mechanical component with a rod inserted, showing bolt holes and a base (no text or symbols)

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

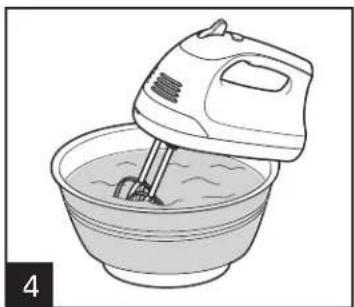

Line drawing of a hand mixer blending liquid into a bowl (no text or symbols)

Line drawing of a hand mixer blending liquid into a bowl (no text or symbols)

Line drawing of a shoe component with a black arrow indicating direction (no text or symbols)

Diagram of a car's seat with arrows indicating motion direction (no text or symbols)

Illustration of a hand pressing down on a device with three arrows indicating downward motion (no text or symbols)

Line drawing of a hand mixer in a bowl (no text or symbols)

Bowl Rest™ (Support de bol)

Line drawing of a kitchen sink with faucet and three pushbells (no text or symbols)

Line drawing of a hand holding a small object, possibly a lamp or iron, with no text or symbols present.

Line drawing of a portable air purifier with a circular arrow indicating rotation (no text or symbols)

Line drawing of a whisk with a curved brine and handle (no text or symbols)

Batidor
(Batir/Airear)

Line drawing of a portable air conditioner unit (no text or symbols)

Caja a Presión

Diagram showing a plug inserted into an electrical socket, with a magnified view of the socket connected to a device.

Technical line drawing of a mechanical component with a rod inserted, showing mounting holes and a base (no text or symbols)

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

Line drawing of a hand mixer blending liquid into a bowl (no text or symbols)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

Line drawing of a car's seat with a black arrow indicating direction (no text or symbols)

Line drawing of a car's seatbelt with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a device with three arrows indicating downward motion (no text or symbols)

Line drawing of a hand mixer in a bowl (no text or symbols)

Bowl Rest™

Line drawing of a kitchen sink with faucet and three pushpins, no text or symbols present

Line drawing of a hand holding a small iron or iron shaver (no text or symbols)

Line drawing of a portable air purifier with a circular arrow indicating rotation (no text or symbols)
