Robot Vacuum Aspirateur robot Robot aspirador Robot aspirapolvere Saugroboter Robot gruntownie odkurzający i5+ Owner’s Guide Guide du propriétaire Manual del usuario Guida utente Bedienungsanleitung Przewodnik użytkownikaEN This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision. Safety information Important safety information

SAVE THESE INSTRUCTIONS

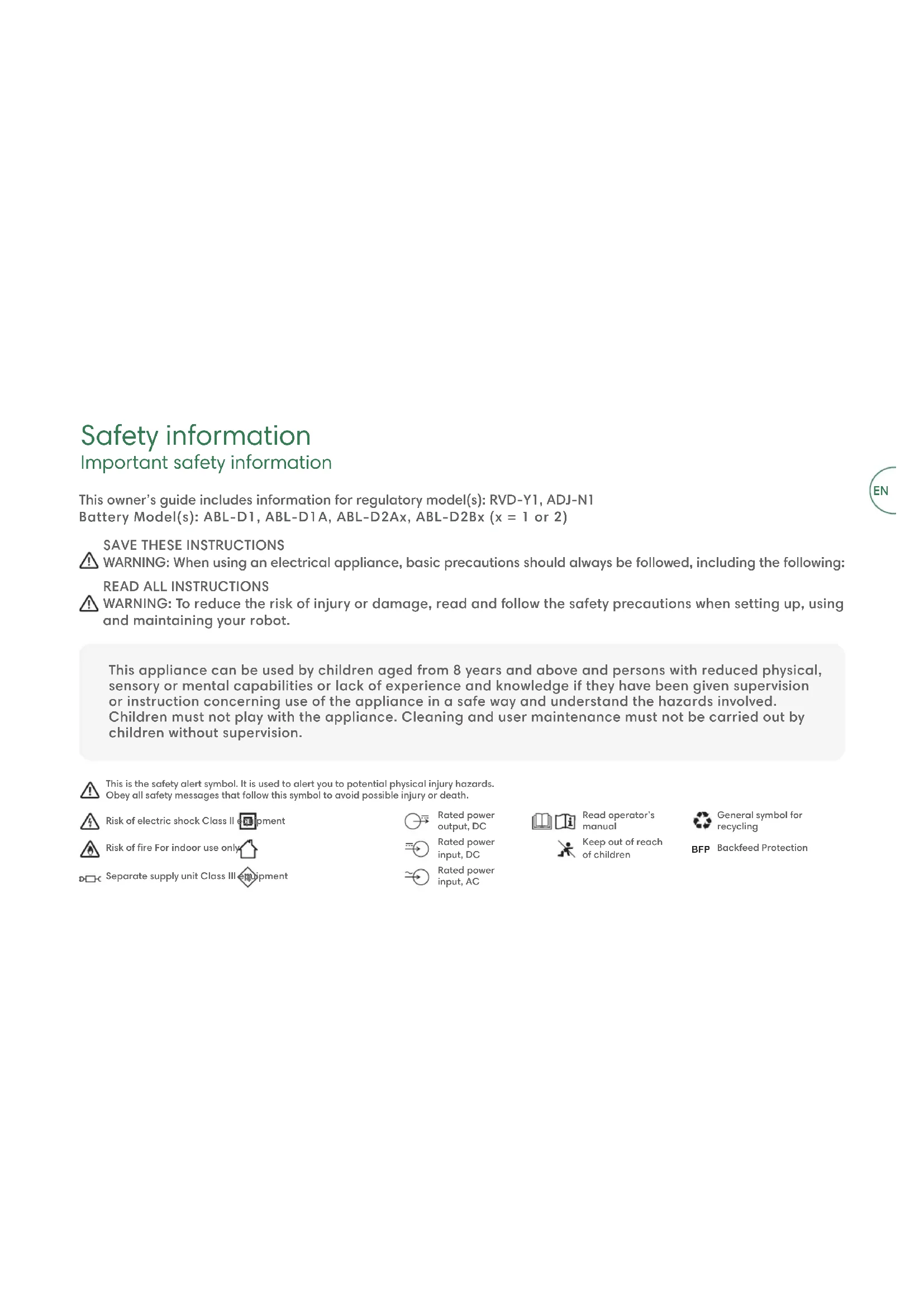

WARNING: When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS

WARNING: To reduce the risk of injury or damage, read and follow the safety precautions when setting up, using

and maintaining your robot. This owner’s guide includes information for regulatory model(s): RVD-Y1, ADJ-N1 Battery Model(s): ABL-D1, ABL-D1A, ABL-D2Ax, ABL-D2Bx (x = 1 or 2) This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Risk of electric shock Class II equipment Rated power output, DC Read operator’s manual General symbol for recycling Risk of re For indoor use only Rated power input, DC Keep out of reach ofchildren BFP Backfeed Protection Separate supply unit Class III equipment Rated power input, ACEN

WARNING: Indicates a hazardous situation that, if not avoided,

could result in death or serious injury. CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. NOTICE: Indicates a hazardous situation that, if not avoided, could result in property damage. GENERAL WARNING

• Your product is not a toy. Small children and pets should be supervised when your robot is operating. • Do not sit or stand on your robot or Clean Base™• Do not use unauthorised chargers. Use of an unauthorised charger could cause the battery to generate heat, smoke, catchre, or explode.• Your robot comes with a region approved power supply cord and is designed to be plugged into a standard household AC power socket only. Do not use any other power supply cord. For replacement cords, please contact Customer Care to ensure proper selection of country specic power supply cord.• Do not open your robot or Clean Base™. There are no user serviceable parts inside. Refer servicing to qualied service personnel.• Risk of electric shock, use indoors in dry locations only.• Do not handle your robot or Clean Base™ with wet hands. • Store and operate your robot in room temperature environments only.• If the room to be cleaned contains a balcony, a physical barrier should be used to prevent access to the balcony and ensure safe operation.• Clean cli sensors to remove buildup.• If the room to be cleaned contains equipment, such as a stove, fan, portable heater, or humidier, remove the equipment before operation. There is a risk of injury, accident or malfunction if the robot comes in contact with and pushes the equipment. • Do not allow your robot or charging station to become wet. • Be aware that oors may be slippery after wet cleaning with your robot. CAUTION
• Do not operate the robot in areas with exposed electrical outlets in the oor. • Do not use this device to pick up sharp objects, glass or anything that is burning or smoking.• Be aware that the robot moves on its own. Take care when walking in the area that the robot is operating in to avoid stepping on it.• If the device passes over a power cord and drags it, there is a chance an object could be pulled o a table or shelf. Before using this device, pick up objects such as clothing, loose papers, pull cords for blinds or curtains, power cords and any fragile objects. Extinguish candles. Shut o portable heaters.• Perform the required maintenance as per the Owner’s Guide to ensure safe operation of the robot and dirt disposal.• If the robot is operating on a oor with stairs, please remove any clutter from the top step.• Perform the required maintenance as per the Owner’s Guide to ensure safe operation of the robot and charging station. • If the robot is operating on a oor with stairs, please remove any clutter from the top step. NOTICE
• Do not allow your robot or CleanBase to become wet. • Do not place anything on top of your robot.• Failure to maintain cleanliness of charger contacts could result in loss of ability for the robot to charge the battery. • Before running your robot on hard oors, please test your robot on a small section of the hard oor to ensure that it is compatible. Using your robot on a hard oor that is not compatible could result in damage to your oor. Contact your hard oor manufacturer with questions on compatibility.EN
• The failure to maintain cleanliness of charger contacts could result in loss of ability for the robot to charge the battery.• Before running your robot on hard oors, please test your robot on a small section of the hard oor to ensure that it is compatible. Using your robot on a hard oor that is not compatible could result in damage to your oor. Contact your hard oor manufacturer with questions on compatibility. • Before running your robot on carpets or rugs, ensure that the carpets or rugs are compatible with the dual multi-surface rubber brushes on your robot, otherwise known as beater bars. Using your robot on a carpet or rug that is not compatible could result in damage to your carpet or rug. Contact your carpet or rug manufacturer with questions on compatibility. CLEANING SOLUTION WARNING
• Household cleaning products are safe when used and stored according to the instructions on the label. Always be sure to read and follow the directions carefully.• Only use authorised cleaning solutions found on answers.irobot.com/s/roomba-combo-cleanser.• For cleaning solution warnings, please refer to the outer box and solution bottle.Keep away from children Rinse hands after useKeep away from eyes. If product gets into eyes rinse thoroughly with water BATTERY WARNING
• Do not open, crush, or heat above 176°F: 80°C, or incinerate. Follow the manufacturer’s instructions. • Do not short-circuit the battery by allowing metal objects to contact battery terminals or immerse in liquid. Do not subject batteries to mechanical shock.• Periodically inspect the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery packs, do not allow the liquid to come in contact with skin or eyes. If contact has been made, wash the aected area with copious amounts of water and seek medical advice. Place the battery in a sealed plastic bag and recycle or dispose of it safely according to local environmental regulations, or return it to your local authorised iRobot Service Center for disposal.• Lithium ion batteries and products that contain lithium ion batteries are subject to stringent transportation regulations. If you need to ship this product (with the battery included) for service, travel, or any other reason, you MUST see the Troubleshooting section of your manual or contact customer care for shipping instructions. CAUTION
• Battery usage by children should be supervised. Seek medical advice immediately if a cell or a battery has been swallowed. NOTICE
• The battery pack must be removed from the robot before recycling or disposal.• For best results, only use the iRobot Lithium Ion Battery that comes with the robot. • Do not use non-rechargeable batteries. Use only the rechargeable battery supplied with the product. For replacement, purchase identical iRobot battery or contact iRobot Customer Care for alternative battery options.• Always charge and remove the battery from your robot and accessories before long-term storage.EN

• Do not use if the cord or plug is damaged. If appliance is not working as it should, has been dropped, damaged, left outdoors or dropped into water, return it to a service centre.

• Always disconnect your robot from the dirt disposal before cleaning or maintaining it.

• Do not use the dirt disposal as a step.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air ow.

• To properly maintain your dirt disposal, do not place foreign objects inside and ensure that it is clear of debris.

• In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and o by the utility.

• Do not allow liquids to get on or into the dirt disposal.

• Do not pour any liquids into the device and do not immerse in water.

• Do not use outdoors or on wet surfaces.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Use only as described in this manual.

• To reduce the risk of electric shock, unplug your dirt disposal before cleaning it.

• Keep the dirt disposal and power cord away from heated surfaces.

• To reduce the risk of electric shock, unplug your dirt disposal before cleaning.

• Keep the dirt disposal and power cord away from heated surfaces. NOTICE

• Product may not be used with any type of power converter. Use of power converters will immediately void the warranty.

• If you live in an area prone to electrical storms, it is recommended that you use additional surge protection. Your dirt disposal may be protected with a surge protector in the event of severe electrical storms.

• Do not use without dust bag and/or lters in place. This symbol on the battery indicates that the battery must not be disposed of with unsorted common municipal waste. As the end-user, it is your responsibility to dispose of the end-oife battery in your appliance in an environmentally sensitive manner as follows: (1) returning it to the distributor/dealer from whom you purchased the product; or (2) depositing it in a designated collection point The separate collection and recycling of end-of-life batteries at the time of disposal will help to conserve natural resources and to ensure that it is recycled in a manner that protects human health and the environment. For more information, please contact your local recycling oce or the dealer from whom you originally purchased the product. Failure to properly dispose of end-of- life batteries may potentially result in negative eects on the environment and human health due to the substances in the batteries and accumulators. Information regarding the eects of problematic substances in the battery waste stream may be found at the following source: http://ec.europa.eu/environment/waste/batteries/Roomba

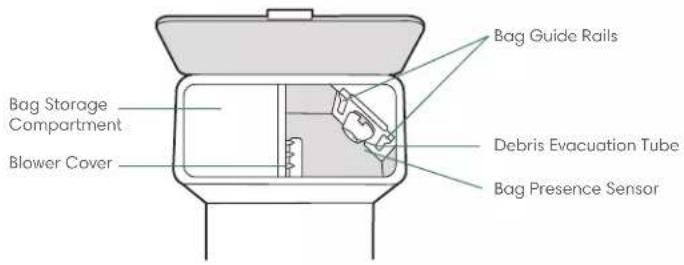

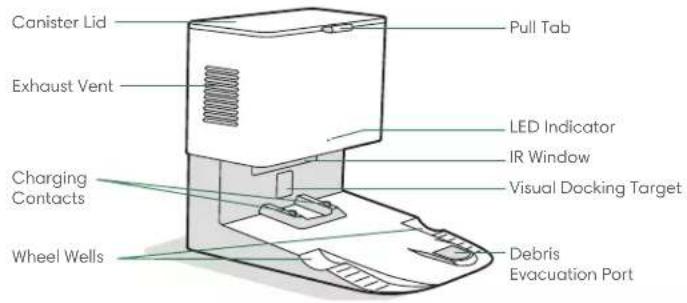

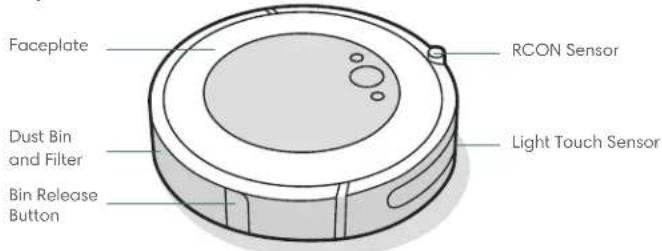

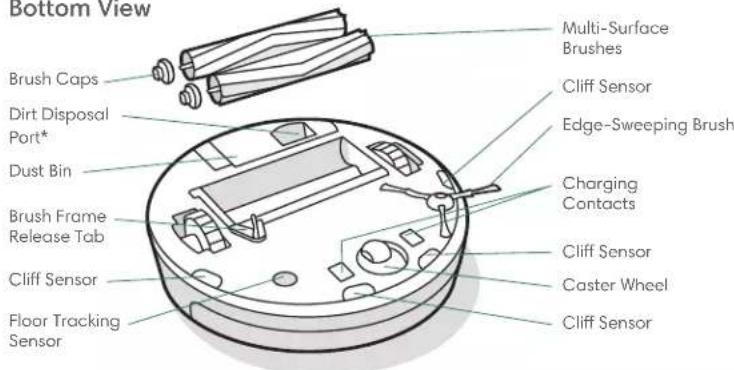

Top view Front view Canister Lid Visual Docking Target IR Window Exhaust Vent Cord Wrap Debris Evacuation Port Bag Guide Rails Debris Evacuation Tube Debris Evacuation Tube Bag Storage Compartment Blower Cover Bag Presence Sensor Back view Bottom view About your Clean Base Automatic Dirt Disposal Pull Tab LED Indicator Wheel Wells Charging ContactsRoomba

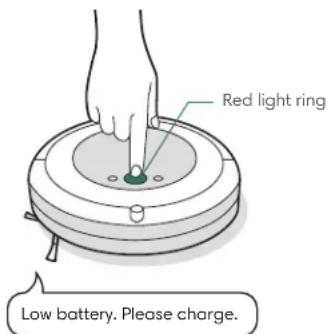

White light ring while charging Solid white: fully charged Pulsing white: charging Pulsing red: charging/low Positioning the Clean Base Automatic Dirt Disposal Charging Using your Roomba Robot Vacuum Download the iRobot Home App and connect to Wi-Fi

• Follow the step-by-step instructions to set up your Roomba Robot Vacuum.

• Set an automatic cleaning schedule and customise cleaning preferences.

• Create smart maps to tell your robot where, when and how to clean. Note: Do not place your Clean Base in direct sunlight. Ensure that the area around the dock is free of clutter to improve docking performance.

WARNING: To prevent the

risk of your robot falling downstairs, ensure that the Charging Station is placed at least 1.2 metres (4 feet) away from stairs. Note: Your robot comes with a partial charge, but we recommend that you charge the robot for 3 hours prior to starting the rst cleaning job.

• If your robot needs to recharge mid-clean, it will return to its Clean Base. Once it is suciently charged, it will then resume the cleaning job where it left o.

• The robot uses a small amount of power whenever it is on the Clean Base. You can put the robot in a further- reduced power state when not in use. For instructions and more details on this Reduced Power Standby Mode, refer to the iRobot Home App.

• For long-term storage, turn o the robot by removing it from the Clean Base and holding down for 10 seconds. Store the robot in a cool, dry place.

• Place the robot on the Clean Base to activate the battery.

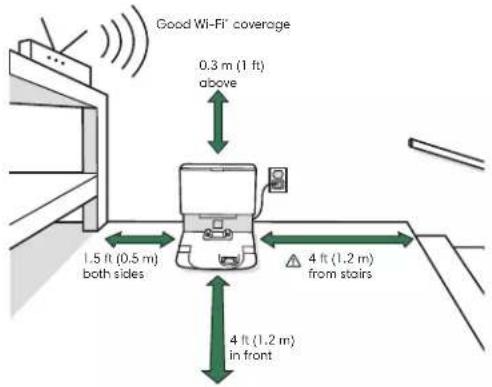

0.3 m (1 ft) aboveGood Wi-Fi

coverage*Objects are not to scale.4 ft (1.2 m) from stairs4 ft (1.2 m) in front1.5 ft (0.5 m) both sides4 For more information, visit global.irobot.com

• Your robot will automatically explore and clean your home. It will return to the Clean Base at the end of a cleaning job and whenever it needs to recharge.

• To send the robot back to its Clean Base, tap . A blue light ring pattern will indicate that the robot is seeking the Clean Base.

• When your robot detects an especially dirty area, it will go into DirtDetect™ mode, moving over the area multiple times until it senses that the area has been suciently cleaned. The light ring indicator will ash blue.

• Tap to spot clean a designated area. The robot will spiral outwards about 3 feet (1 metre) and then spiral inwards to end where it started. The light ring indicator will show a blue spiral. Remove excess clutter from oors before cleaning. Use your robot frequently to maintain well-conditioned oors. Just press CLEANTap to start/pause/resumeHold for 3 seconds to end a job About your Automatic Dirt Disposal While cleaning, your robot will automatically return to the dirt disposal to empty its bin and recharge as needed. The dirt disposal’s LED indicator will turn solid red when a new bag is needed. If a clog is detected, the dirt disposal will trigger additional attempts to automatically clear the clog. Note: If you place your robot on the dirt disposal by hand, it will not empty automatically. In this case, use the iRobot Home App or hold the button down for 2–5 seconds. CleaningRoomba

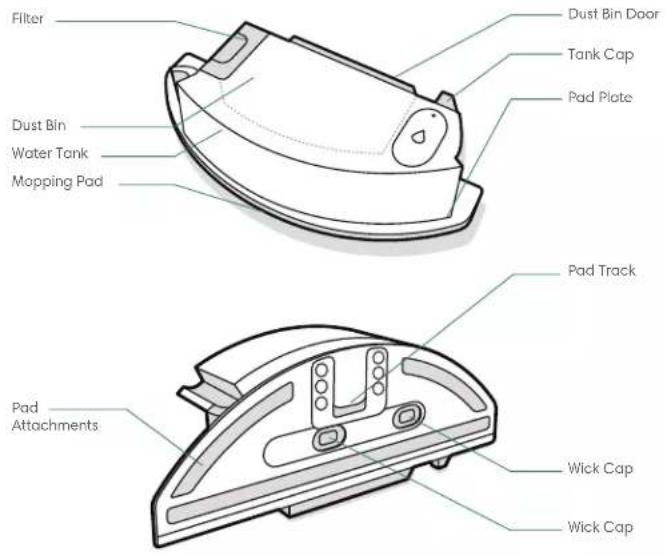

Roomba Combo™ Bin Important: You must register your product in the iRobot Home App and complete a mapping run before using your Combo Bin. See the Activate your Combo Bin card for instructions. Important: Do not flip the robot over with the Combo Bin installed Tank Cap Dust Bin Door Filter Mopping Pad Water Tank Dust Bin Pad Plate Pad Track Pad Attachments Wick Cap Wick Cap Remove the Dust Bin from the robot, and install the Combo Bin. Fill the Combo Bin with water. You may also use a compatible cleaning solution. Compatible solutions are listed at this answers.irobot.com/s/roomba- combo-cleanser Slide the pad down over the track. Press the pad to the plate to attach.

Note: The product starts wicking as soon as water is put into the tank.

Care and Maintenance Part Care Frequency Replacement Frequency* Bags - Bags should be replaced when prompted by the LED indicator/app. Charging Contacts Visual Docking Target Once every month - Blower Cover inside canister Once every month (remove debris from blower cover)

Bin Wash bin as needed - Filter Clean once a week (twice a week if you have a pet). Do not wash Every 2 months Full Bin Sensor Clean every 2 weeks Front Caster Wheel Clean every 2 weeks Every 12 months Edge-Sweeping Brush and Multi-Surface Brushes Clean once a month (twice a month if you have a pet) Every 12 months Sensors and Charging Contacts Clean once a month - Mopping pad Clean after a mopping job After 30 washes Wick cap Replace if dirty or shows wear - To keep your robot running at peak performance, perform the procedures on the following pages. Care and Maintenance Instructions

• Replacement frequency may vary. Parts should be replaced if visible wear appears. Note: iRobot manufactures various replacement parts and assemblies. If you think that you need a replacement part, please contact iRobot Customer Care for more information.

Cleaning the Filter Remove debris by tapping the filter against your trash container. Reinsert filter with ridged grips facing out. Place bin back in the robot. Remove the bin. Remove the filter by grasping both ends and pulling out. Important: The robot will not run if the filter is not installed correctly. Replace the filter every two months.

Cleaning the Full Bin Sensors Washing the Bin Remove and empty the bin. Release the bin, remove the filter, and open the bin door. Wipe the inner sensors with a clean, dry cloth. Rinse the bin using warm water. Wipe the bin door with a clean, dry cloth. Make sure bin is completely dry. Reinsert filter and place bin back in the robot. Closed Door Important: Do not wash the filter. Remove the filter before washing the bin. Open Door Note: Bin is not dishwasher safe.8 For more information, visit global.irobot.com

Cleaning the Edge-Sweeping Brush Use a small screwdriver to loosen the screw holding the Edge-Sweeping Brush in place. Pull to remove the Edge-Sweeping Brush. Remove any hair or debris, then reinstall the brush.

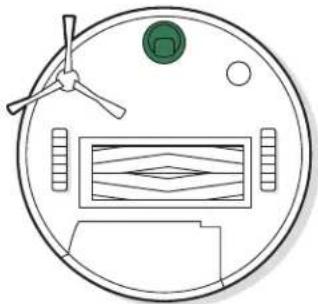

Cleaning the Front Caster Wheel Pull firmly on the front wheel module to remove it from the robot. Pull firmly on the wheel to remove it from its housing Remove any debris from inside the wheel cavity. Reinstall all parts when finished. Make sure the wheel clicks back into place. WheelAxle Important: A front wheel clogged with hair and debris could result in damage to your floor. If the wheel is not spinning freely after you have cleaned it, please contact Customer Care. HousingRoomba

Remove the bin from the robot and clear any debris from the vacuum path. Reinstall the brushes in the robot. Match the shape of the brush pegs with the shape of the brush icons in the cleaning head module

Cleaning the Visual Docking Target Sensors, IR Window and Charging Contacts Wipe sensors and charging contacts with a clean dry cloth. Alternatively, you can use a pad of melamine foam to remove built-up debris on the robot and Clean Base charging contacts. Inspect the visual docking target, IR window and charging contacts to make sure that they are clear of debris. Wipe with a clean, dry cloth. Important: Do not spray cleaning solution or water onto the sensors or sensor openings.

Cleaning the Multi-Surface Brushes Remove the brushes from the robot. Remove the brush caps from the ends of the brushes. Remove any hair or debris that has collected beneath the caps. Reinstall the brush caps. Remove any hair or debris from the square and hexagonal pegs on the opposite side of the brushes. Pinch the brush frame release tab, lift the tab, and remove any obstructions.10 For more information, visit global.irobot.com

Note: To achieve optimal performance with your robot and automatic dirt disposal, clean and/or replace your robot’s filter as needed. Install a new bag, sliding the plastic card into the guide rails Discard the used bag. Press down on the lid making sure it is completely closed.

Note: This will seal the bag so dust and debris cannot escape. Replacing the Bag Pull up on the plastic card to remove the bag from the canister. Lift up on the canister lid to open.

Removing Debris from Blower Cover Inspect blower cover for any lint or debris build- up and wipe with a clean dry cloth to remove.Roomba

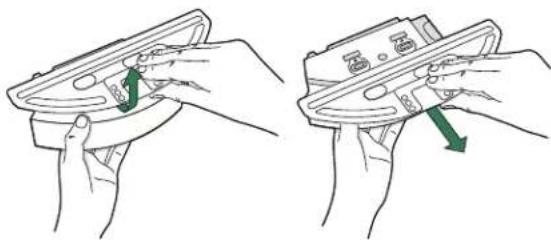

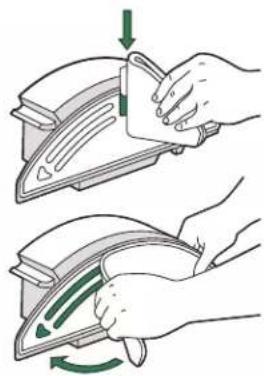

Cleaning the Mopping Pad Replacing the Wick Cap HAND WASHING Thoroughly wash the pad with warm water. MACHINE WASHING Wash using the warm cycle, then air dry. Do not tumble dry. Do not wash with delicates.

Remove pad plate Remove the wick cap by pulling on the side rubber tab. Replace with a new wick cap, pressing firmly into place to create a tight seal to prevent leaking. Reintall pad plate12 For more information, visit global.irobot.com

Troubleshooting Your dirt disposal will tell you if something is wrong via an LED indicator on the front of the canister and through the iRobot Home App. Your robot will tell you something is wrong by playing an audio alert and turning the light ring indicator red. Press CLEAN for details. Further support and instructional videos are available in the iRobot Home App. If you are unsure if the robot is nished or paused, consult the iRobot Home App to check on its status. This product has been equipped with a thermal protector designed to protect against damage due to overheating. If the protector operates, the motor will stop running. If this happens, unplug the unit, allow it to cool for 30 minutes, clear any obstructions from the evacuation port and evacuation tube, then plug the unit back in. LED indicator Common error How to x Solid red Bag full or missing 1. Replace the bag if it is full or missing.2. Make sure that the bag is securely inserted.3. If problem persists, remove any debris from the port on the bottom of your robot and the dirt disposal.Blinking red There is a leak or a clog in the dock evacuation path1. Make sure that the canister lid is pushed down and rmly sealed. Hold the CLEAN button on your robot down for 2–5 seconds to manually empty the bin.2. Remove any debris from the port on the bottom of your robot and dirt disposal.3. Unplug the dirt disposal from the wall. Place it on its side and inspect the debris evacuation tube for debris. If necessary, remove the tube to clear any debris. Automatic Dirt Disposal Robot Battery Safety and Postage For best results, only use the iRobot Lithium Ion Battery that comes with your robot. Red light ring Low battery. Please charge.

WARNING: Lithium ion batteries and products that contain lithium ion

batteries are subject to stringent transportation regulations. If you need to post this product for service, travel or any other reason, you MUST follow the postage instructions below.• Battery MUST be turned o before postage.• Turn o the battery by removing the robot from the Clean Base and holding down for 10 seconds. All indicators will turn o.• Package the robot securely for postage.• If you need further assistance, contact our Customer Care team or visit global.irobot.com.Roomba

Regulatory Information Hereby, iRobot Corporation declares that this robot vacuum cleaner model RVD-Y1 is in compliance with the EU Radio Equipment Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www. irobot.com/compliance. Hereby, iRobot Corporation declares that this robot vacuum cleaner model RVD-Y1 is in compliance with the Radio Equipment Regulations 2017. The full text of the UKCA Declaration of Conformity is available at the following internet address: www.irobot.com/compliance. Chemical information report listing SVHC (substances of very high concern) per EU Regulation EU 1907/2006 can be found here: www.irobot.com/compliance. This vacuum cleaning robot, model RVD-Y1, incorporates the Sundial radio module model: AXF-Y1. This vacuum cleaning robot, model RVD-Y1 operates in the WLAN 2.4 GHz band. The

2.4 GHz band is limited to operate between 2412 MHz and 2472

MHz with a maximum EIRP output power of 19.1 dBm (81.28 mW) at 2442 MHz. This symbol on the product indicates that the appliance must not be disposed of with unsorted common municipal waste. As the end-user, it is your responsibility to dispose of the end-of-life appliance in an environmentally sensitive manner as follows: (1) returning it to the distributor/dealer from whom you purchased the product; or (2) depositing it in a designated collection point. Disposing of this product correctly will help save valuable resources and prevent any potential negative eects on human health and the environment, which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details or your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. More information may be found at the following source: https:// ec.europa.eu/environment/topics/waste-and-recycling/waste- electrical-and-electronic-equipment-weee_en14 For more information, visit global.irobot.com
