USER MANUAL Defender XPG
ADATA Technology Co., Ltd.
2F, No. 258, Liancheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan
Product Name: XPG DEFENDER
產品類別:PC 機殼/PC 机壳
Front I/O Buttons and Ports 05
Installation 07
Warranty Guide 15
PACKAGE CONTENT
- XPG DEFENDER Chassis
- XPG DEFENDER Quick Installation Guide
- Accessory Box
- Brand Card

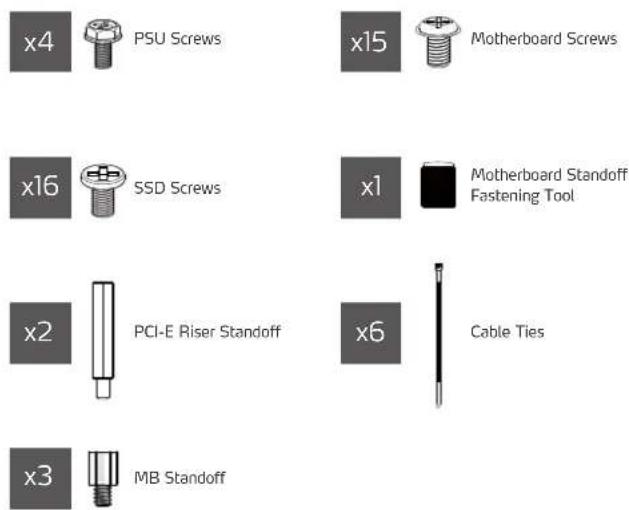

ACCESSORY BOX CONTENTS


XPG DEFENDER MID-TOWER CHASSIS
A Magnetic MESH Front Panel
B Dust Filter
C Tempered Glass Panel
D XPG VENTO 120 x 3 Fans Included
E 2.5" / 3.5" HDD/SSD Brackets
SPECIFICATIONS
| Color | Black / White |

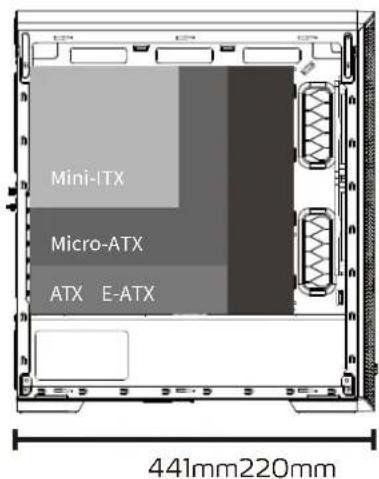

| Form Factor | Mini-ITX, Micro-ATX, ATX,E-ATX, CEB, EEB |
| Dimensions (W x H x D) | 220 x 492 x 441 mm8.7 x 19.3 x 17.3 inch |
Material SGCC
Side Panel 3mm Tempered Glass (Left Side)
PCI-E Slots 7 Horizontal / 2 Vertical
| 3.5" Drive Bay 2 | |
| 2.5" Drive Bay | 2+2 (Combo 3.5" / 2.5") |
| Fan Mounts | FRONT 140mm x 2 / 120mm x 3TOP 140mm x 2 / 120mm x 2REAR 120mm x 1 |
Fan Pre-Installed XPG VENTO 120 x3
| Radiator Support | FRONT 360 / 280 / 240mm x 1TOP 280 / 240 / 120mm x 1REAR 120mm x 1 |
| I/O Ports | 2 x USB 3.0 Type A1 x Hybrid Audio Port1 x Reset Button / 1 x Power Button |
| Compatibility | VGA Length Limitation : 380mmCPU Cooler Height Limitation : 170mmPSU Length Limitation : 220mm |
FRONT I/O BUTTONS and PORTS DIMENSIONS and COMPATIBILITY





USB 3.0 x2 Hybrid Audio Port Powen ButtonReset Button
FRONT I/O CABLES
Please consult your user manual of motherboard manufacturer, then connect these leads to the panel header on the motherboard.

USB 3.0 Connection : Please refer to the motherboard manual for more information on the USB 3.0 connection.

Audio Connection : Please refer to the motherboard installation to avoid the device error and cause the motherboard sound device to be damaged.


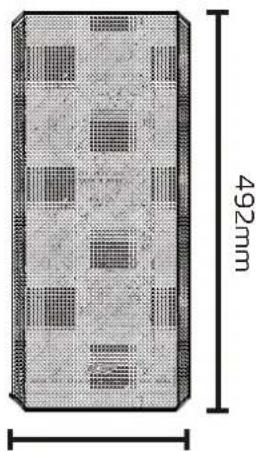

Diagram of a rectangular grid structure with a 492mm dimension label (no text or symbols within the diagram itself)VGA Length Limitation 380mm
CPU Cooler Height Limitation 170mm
PSU Length Limitation 220mm
REMOVING THE FRONT PANEL and THE DUST FILTER REMOVING THE GLASS SIDE PANEL
- Detach the Magnetic Front Panel
- Pull the Dust Filter outwards.
Manually unscrew the glass side panel, and pull backward with care.


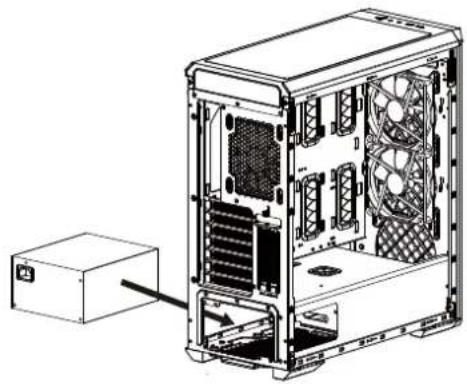

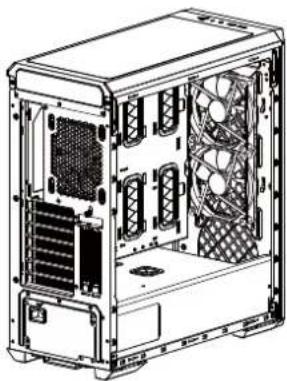

POWER SUPPLY INSTALLATION FAN LOCATIONS and RADIATOR COMPATIBILITY
| Location | Quantity | |
| 140mm | 120mm | |
| Front | ×2 | ×3 |
| Top | ×2 | ×2 |
| Pear | — | ×1 |
| Compatibility Chart - Radiator | |||
| Radiator Size (mm) | Location | ||
| Front | Top | Left | |
| 360 | V | - | - |
| 280 | V | V | - |
| 240 | V | V | |
| 140 | V | V | - |
| 120 | V | V | V |
STORAGE LOCATIONS

STORAGE LOCATIONS
-
Lock-in the 2.5" HDD/SSD Drive.
-
Ensure both Drives are firmly installed with the provided screws.
STORAGE LOCATIONS : COMBO DRIVES
2 COMBO drive trays are provided for 3.5" HDD and 2.5" HDD/SSD
INSTALLING PCI-E CARD
Horizontal Installation Vertical Installation
| 2 Vertical Slots |
INSTALLING PCI-E CARD : Horizontally and Vertically
Remove the expansion slot cover, then securely install the PCI-E card.

EN
CLEANING INSTRUCTIONS
Please use a clean damp cloth to clean the product properly.
Do not apply any soap or solvent agent on the surface to preserve its integrity.
SAFETY INSTRUCTIONS
For a proper use of the product, and to ensure your safety, please follow the following instructions:
- Keep the device away from liquids, excess humidity or moisture to avoid any shock hazards. Should the device come into contact with liquids, please make sure to unplug the device immediately, store it in a dry place, and contact support for assistance.
- Operate the device only within the specific temperature range of 0^ C ( 32^ F) to 40^ C ( 104^ F). Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.
- Should you have any other trouble operating the device properly and normal troubleshooting does not work, please unplug the device and contact our service for support.
- Do not attempt to service or fix the device by yourself at any time.
DURATION OF WARRANTY
ADATA Technology Co., Ltd. provides a two-year warranty period for this product unless regional laws and regulations state otherwise.
LIMITATION OF WARRANTY
This limited warranty covers only repairs or replacements of products manufactured by ADATA Technology Co. Ltd. and its authorized partners.
Please note that ADATA is responsible for providing free repairs except for the following reasons:
- The warranty label is altered, damaged or missing.
- Product serial number does not conform to our original system.
- Products purchased from an unauthorized agent.
- Damage caused by natural calamity
- Any abuse outside the intended product operation.
ONLINE CUSTOMER SERVICE
For frequently asked questions, additional information and service instruction please visit the product page at www.xpg.com
