Holly BE 2004 - Scale ADE - Free user manual and instructions

Type de produit	Digital scale
Brand	ADE
Model	Holly BE 2004
Dimensions (L x W x H)	Approximately 300 x 300 x 20 mm
Weight	Not specified in the manual – approximately 1.5 kg (estimated)
Power supply	1 lithium battery CR2032, 3 V
Rated current	10 mA
Maximum capacity	180 kg
Accuracy	1% ± 100 g
Graduation (division)	100 g
Measurement units	kg, lb, st:lb
Display	Digital screen
Automatic shut-off	Yes, a few seconds after stepping off
Initial setup	Remove the insulating strip from the battery compartment
Main functions	Weighing, unit change, automatic calibration
Usage	Private use, weighing people
Minimum age for use	8 years (with supervision)
Care and cleaning	Wipe with a soft, slightly damp cloth; never immerse
Safety	Do not step on with wet feet; stable and flat surface; do not exceed 180 kg
Spare parts / repairability	Replacement battery CR2032; repairs by a specialized workshop
Warranty	2 years (material or manufacturing defects)
General information	Compliant with directives 2014/30/EU and 2011/65/EU
Distributor	Waagen-Schmitt GmbH, Hamburg, Germany

Frequently Asked Questions - Holly BE 2004 ADE

How to turn on the scale for the first time?

Remove the insulating strip from the battery compartment under the scale. The CR2032 battery is already inserted. Then place the scale on a flat surface and step on it briefly to calibrate.

How to change the measurement unit (kg, lb, st)?

Turn on the scale by gently pressing the weighing surface. Press the UNIT button located under the scale to switch between kg, lb and st:lb. The display shows the selected unit.

What does the 'LO' display on the screen mean?

The 'LO' display indicates that the battery is low and needs to be replaced. Use a new CR2032 battery, respecting polarity (+ facing up).

What does the 'Err' display on the screen mean?

'Err' (Error) appears if the maximum capacity of 180 kg is exceeded. Step off the scale immediately to avoid damage.

How to clean the scale?

Use a soft, slightly damp cloth to wipe the surface. Never immerse the scale in water and do not use abrasive cleaners. You may disinfect occasionally with a mild disinfectant.

Why does the scale display incorrect results?

Make sure the scale is placed on a hard, flat surface (not on carpet). Keep away from devices emitting electromagnetic waves (phones, radios). If the problem persists, remove the battery, wait a few moments, and reinsert it.

Can I use the scale on a carpet or rug?

No, the scale must be placed on a hard, flat, and dry surface. Carpets or rugs can distort measurements.

What is the maximum capacity of the scale?

The maximum capacity is 180 kg. Do not exceed this limit to avoid damaging the scale.

What safety precautions are there for children?

Children over 8 years old may use the scale under supervision. Keep batteries out of reach of young children (risk of ingestion). Do not let children play with packaging.

How to dispose of the scale at the end of its life?

Do not dispose of the scale with household waste. Take it to a collection point for electronic waste. Used batteries must be deposited at a dedicated collection point.

USER MANUAL Holly BE 2004 ADE

0.0 kg ADE

Bedienungsanleitung

BE 2004

Operating instructions | Instrucciones de operación | Mode d'emploi Istruzioni per l'uso | Instrukcja obsługi | Инструкция

Icon of a person using a laptop inside a circle (no text or symbols)

1 2 3 10.0 kg ADE 4

22143 Hamburg, Germany

You have chosen to purchase a high-quality ADE brand product, which combines intelligent functions with an exceptional design. This bathroom scale makes it possible for you to determine and monitor your body weight. The wealth of experience of the ADE brand ensures a high technical standard and proven quality.

We hope you enjoy weighing yourself and wish you success in reaching your goal weight!

Your ADE Team

General information

About this operating manual

This operating manual describes how to operate and maintain your product safely. Keep this operating manual in a safe place for future reference. If you pass this product on to someone else, pass on this operating manual as well.

Failure to observe this operating manual may result in injuries or damage to your product.

Explanation of symbols

This symbol combined with the word DANGER warns of serious injuries.

This symbol combined with the word WARNING warns of moderate and mild injuries.

This symbol combined with the word NOTE warns of material damage.

This symbol indicates additional information and general notes.

Table of Contents

General information....12

Intended use....14

Safety 14

Overview 16

Scope of delivery 16

Start-Up....17

Weighing 18

Changing the battery....18

Cleaning....18

Fault/Remedy....19

Technical data....19

Declaration of Conformity....20

Warranty 20

Disposal....20

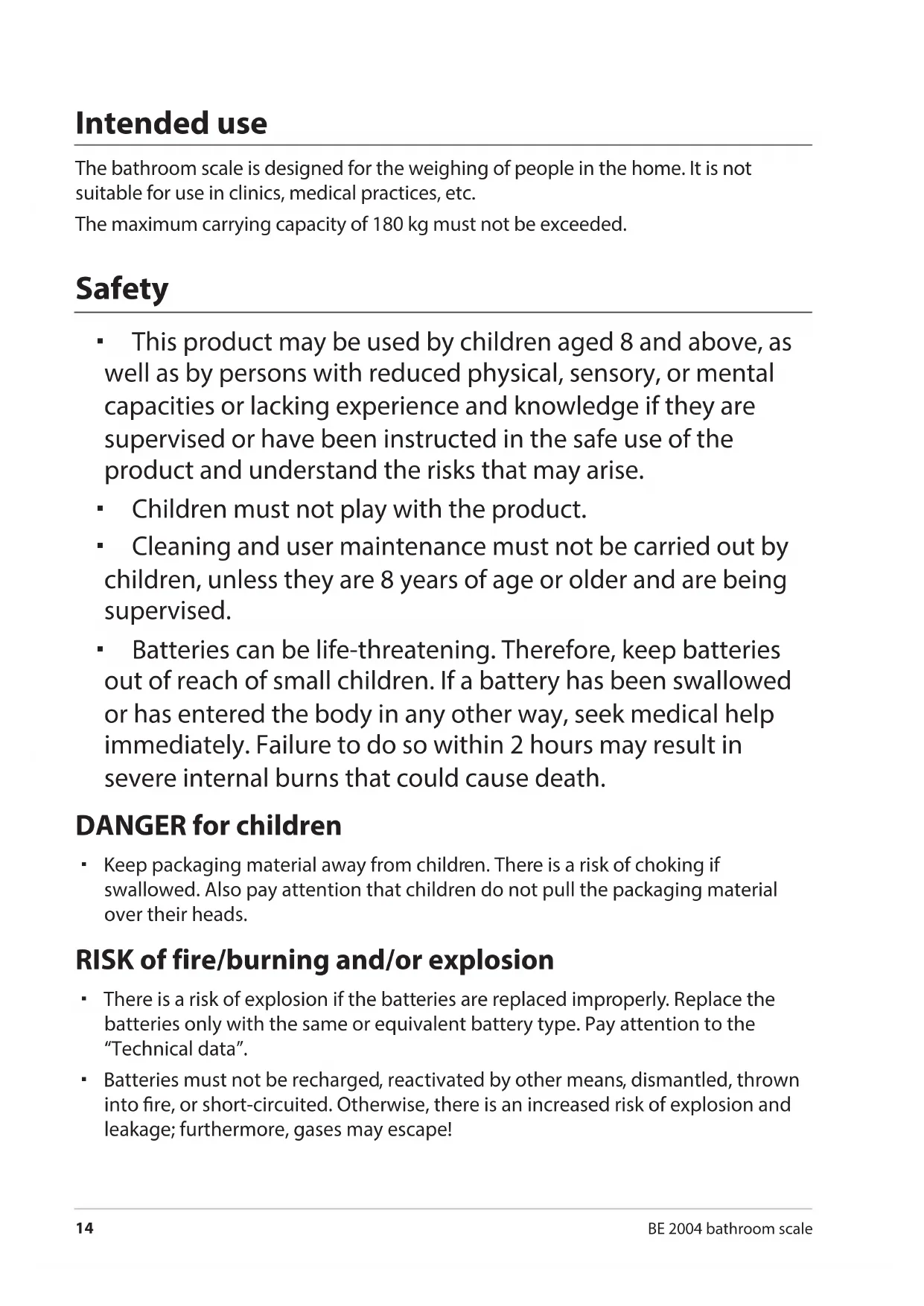

The bathroom scale is designed for the weighing of people in the home. It is not suitable for use in clinics, medical practices, etc.

The maximum carrying capacity of 180 kg must not be exceeded.

Safety

• This product may be used by children aged 8 and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge if they are supervised or have been instructed in the safe use of the product and understand the risks that may arise.
• Children must not play with the product.
• Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
• Batteries can be life-threatening. Therefore, keep batteries out of reach of small children. If a battery has been swallowed or has entered the body in any other way, seek medical help immediately. Failure to do so within 2 hours may result in severe internal burns that could cause death.

DANGER for children

- Keep packaging material away from children. There is a risk of choking if swallowed. Also pay attention that children do not pull the packaging material over their heads.

RISK of fire/burning and/or explosion

• There is a risk of explosion if the batteries are replaced improperly. Replace the batteries only with the same or equivalent battery type. Pay attention to the "Technical data".
• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise, there is an increased risk of explosion and leakage; furthermore, gases may escape!

- Avoid contact of the battery fluid with skin, eyes, and mucosa. In case of contact, immediately rinse the affected areas with plenty of clean water and consult a doctor.

WARNING of risk of injury

• Do not step onto the outer edge of any one side of the scale. Risk of tipping!
• Do not step onto the scale with wet feet or when its surface is damp. Risk of slipping!
• If the scale falls down and shatters, there is a risk of injury from glass splinters.

BEWARE of material damage

• Place the scale on a stable, even surface.
• Do not overload the scale. Pay attention to the "Technical data". Place yourself on the scale exclusively for weighing purposes.
• Protect the scale from strong shocks and vibrations.
• Remove the battery from the scale when it is depleted or when you are no longer using the scale. You will thus avoid damage that may result from leakage of battery acid.
• When inserting and changing the battery, pay attention to the correct polarity (+/-).
• Do not expose the battery to any extreme conditions, for example, by storing it on radiators or under direct sunlight.

Increased risk of leakage!

• Clean the battery and device contacts, as needed, before inserting the battery.
• Do not make any modifications to the product. Only allow repairs to be carried out by a specialist workshop. Repairs carried out improperly can considerably endanger the user.
• Do not place the scale in the vicinity of devices that may emit electromagnetic radiation, such as mobile phones, wireless devices, or the like. Doing so may lead to incorrect display indications or malfunctions.
• There are feet on the underside of the scale. Since floor surfaces are made from various materials and are treated with diverse care products, it cannot be completely excluded that some of these substances contain ingredients that may adversely affect and soften the feet of the device. If necessary, place a non-slip pad under the scale.

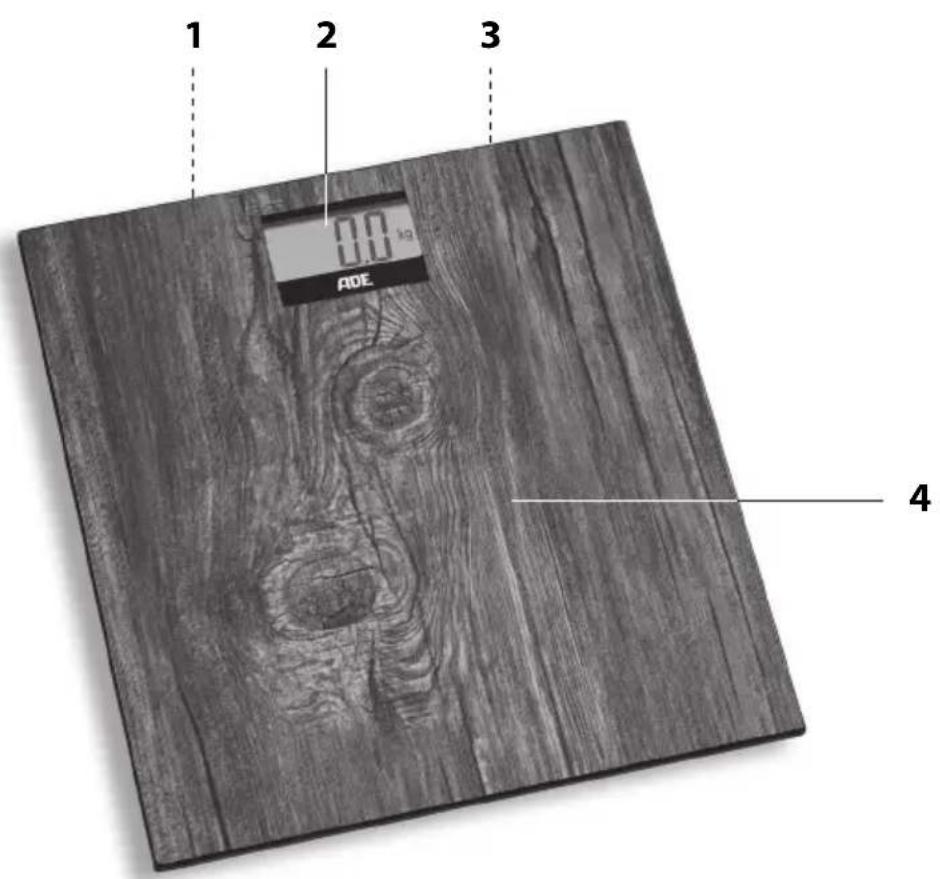

1 2 3 10.0 kg ADE 4

1 Battery compartment (underside)
2 Display
3 UNIT button (underside): Changing the unit of measurement
4 Weighing surface

Scope of delivery

• Bathroom scale
• 1 Battery, CR2032, 3 ¥= (inserted)
• Operating Manual

Removing iso-strip

The battery is already inserted upon delivery and fitted with an iso-strip to prevent it from discharging ahead of time. In order to start up the scale, you must remove the iso-strip.

The battery compartment is located on the underside of the device.

1. Open the battery compartment.
2. Pull out the iso-strip.
3. Replace the battery compartment cover.

Choosing the unit of measurement

The standard unit of measurement upon delivery is "kg" (kilogramme). The measurement result can also be displayed as "lb" (pounds) and as "st:lb" (stones:pounds).

1. To switch on the scale, step on the middle of the weighing surface.
2. Use the UNIT button on the back of the scale to set the desired unit of measurement. Note the display.

Setting up the scale

1. Place the scale on an even, firm and dry surface. Do not place the scale on a carpet.
2. First, briefly step onto the middle of the weighing surface to calibrate the scale. As soon as the display shows "0.0", calibration is complete.
   This calibration must be performed after each battery change.

WARNING against injuries

- Do not step onto the scale with wet feet or when its surface is damp. Risk of slipping!

- Position yourself on the scale. Stand still and do not hold on to anything.

The measured weight will be displayed shortly thereafter.

A few seconds after you step off the weighing surface, the scale will switch off automatically.

- Weigh yourself with as little clothing on as possible.

- Try to always weigh yourself at the same time and under consistent conditions in order to obtain comparable values.

Changing the battery

A change of batteries becomes necessary when "LO" appears on the display, or when nothing at all is displayed.

When changing the battery, bear the following in mind:

- Only use the type of battery that is specified in the "Technical data".

Pay attention to the correct polarity (+/-) when inserting the battery.

The plus pole (+) must point upwards.

- Dispose of the old battery in an environmentally responsible way (see "Disposal").

Cleaning

NOTE on material damage

- Do not immerse the scale in water or other liquids. - Never use harsh, scouring or abrasive cleaning agents or the like to clean the scale. Otherwise, the surface could be scratched.

1. Wipe the scale as needed with a slightly damp soft cloth.
2. Disinfect the weighing surface from time to time using a suitable disinfecting agent (available at specialist retailers and pharmacies).

Fault/Remedy

Fault Possible cause
No function	Is the battery empty or inserted improperly?
The scale appears to be displaying wrong weighing results	Is the scale located on a firm, even surface?Is a device that can cause electromagnetic disturbances located in the vicinity of the scale?Remove the battery from the scale and wait a moment. Reinsert the battery.
“Err” is shown on the display	The maximum capacity of the scale (180 kg) has been exceeded.
“LO” is shown on the display	The battery is empty (see “Inserting/ changing the battery”).

Technical data

Model: Digital bathroom scale BE 2004 "Holly"

Battery: 1x CR2032/3 V---

Rated current: 10 mA

Measuring range: max. 180 kg

Variance: 1% +/- 100 g

Display scaling: 100 g

Scale dimensions: approx. 300 x 300 x 20 mm

Distributor (no service address): Waagen-Schmitt GmbH

Neuer Höltigbaum 15

22143 Hamburg, Germany

Our products are constantly being developed and improved.

For this reason, design and technical modifications are possible at any time.

Declaration of Conformity

Waagen-Schmitt GmbH hereby declares that the electronic bathroom scale BE 2004 complies with EU directives 2014/30/EU and 2011/65/EU. This declaration will lose its validity if any modification is made to the scale without our consent.

Hamburg, March 2021

Waagen-Schmitt GmbH

Warranty

Waagen-Schmitt GmbH warrants for 2 years from the purchase date the cost-free rectification of defects in material and workmanship through repair or exchange.

In the event of a warranty claim, please return the product with the proof of purchase (specifying the reason for claim) to your dealer.

Disposal

Disposing of the packaging

Dispose of the packaging with similar materials. Dispose of cardboard with waste paper and of films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste.

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Bring the old device to a collection point for electronic waste or to a recycling depot. For more information, contact your local waste disposal firm or your local administrative body.

Batteries and rechargeable batteries should not be disposed of in the household waste.

All batteries and rechargeable batteries must be brought to a local or district collection point or to the retailer. Such batteries and rechargeable batteries can thus be disposed of in an environmentally friendly way.
