Product Type	Bathroom Scale
Brand	ADE
Model	BE 1806 / BE 1807
Maximum Capacity	150 kg
Graduation	100 g
Accuracy	± (1% + 100 g)
Dimensions	300 × 300 × 34 mm
Power Supply	2 CR2032 batteries, 3 V
Units of Measurement	kg / lb / st:lb
Tap-on Function	Yes (activation by foot tap)
Auto-off	Yes
Display	LCD Screen
Surface Material	Bamboo
Usage	Indoors, on flat and hard surface
Cleaning	Damp cloth, do not immerse
Warranty	2 years
Repairability	Repair by a professional only
Package Contents	Scale, 2 CR2032 batteries, instruction manual

Frequently Asked Questions - BE 1806 ADE

How to change the unit of measurement?

Press the UNIT button located next to the battery compartment on the back of the scale. The display will successively show kg, lb, and st:lb.

What to do if the screen displays 'LO'?

The LO indication means the batteries are discharged. Replace both batteries with new CR2032 batteries, respecting the polarity.

How to calibrate the scale?

Place the scale on a flat and hard surface. Step briefly onto the weighing surface to calibrate. Calibration is complete when the display shows 0.0.

Can I use the scale on a carpet?

No, the scale must be placed on a hard and flat surface. Using it on a carpet can distort measurements and damage the scale.

What does 'Err' mean on the screen?

The Err message indicates that the maximum capacity of 150 kg has been exceeded. Step off the scale immediately to avoid damage.

How to clean the scale?

Wipe the scale with a slightly damp cloth. Do not use abrasive or corrosive products. Never immerse the scale in water.

Which batteries to use and how to replace them?

Use two CR2032 3V batteries. Open the compartment on the back, insert the batteries with the + pole facing up, then close the cover.

The scale does not turn on, what to do?

Check that the batteries are inserted with the correct polarity and that they are not discharged. If necessary, replace the batteries. Also ensure the scale is on a stable surface.

How to reset the scale?

Remove the batteries from the compartment, wait a few moments, then reinsert the batteries respecting the polarity. The scale will return to its factory settings.

What is the warranty of the scale?

The warranty is 2 years from the date of purchase, covering material and manufacturing defects. To apply it, contact your retailer with the proof of purchase.

USER MANUAL BE 1806 ADE

22089 Hamburg, Germany

You have chosen to purchase a high-quality product from the brand ADE, which combines intelligent functions with an exceptional design. These bathroom scales make it possible for you to determine and monitor your body weight. The many years of experience of the brand ADE ensures a high technical standard and proven quality.

We hope you enjoy weighing yourself and wish you success in reaching your goal weight!

Your ADE Team

General Information

About this manual

This operating manual describes how to safely use and care for your products. Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well.

Failure to observe the recommendations in this operating manual can lead to injuries or damage to your products.

Explanation of symbols

This symbol, combined with the word DANGER, warns against serious injury.

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

This symbol, combined with the word NOTE, warns against material damage.

This symbol signifies additional information and general advice.

Table of Contents

General Information 12

Intended Use 14

Safety 14

Overview 16

Scope of delivery. 16

Start-up 17

Weighing 18

Resetting the scales. 18

Cleaning. 18

Fault/Remedy. 19

Technical Data 19

Declaration of Conformity 20

Guarantee 20

Disposal 21

Bamboo is a natural material that lives and changes over time, so there may be appear slight cracks in the surface.

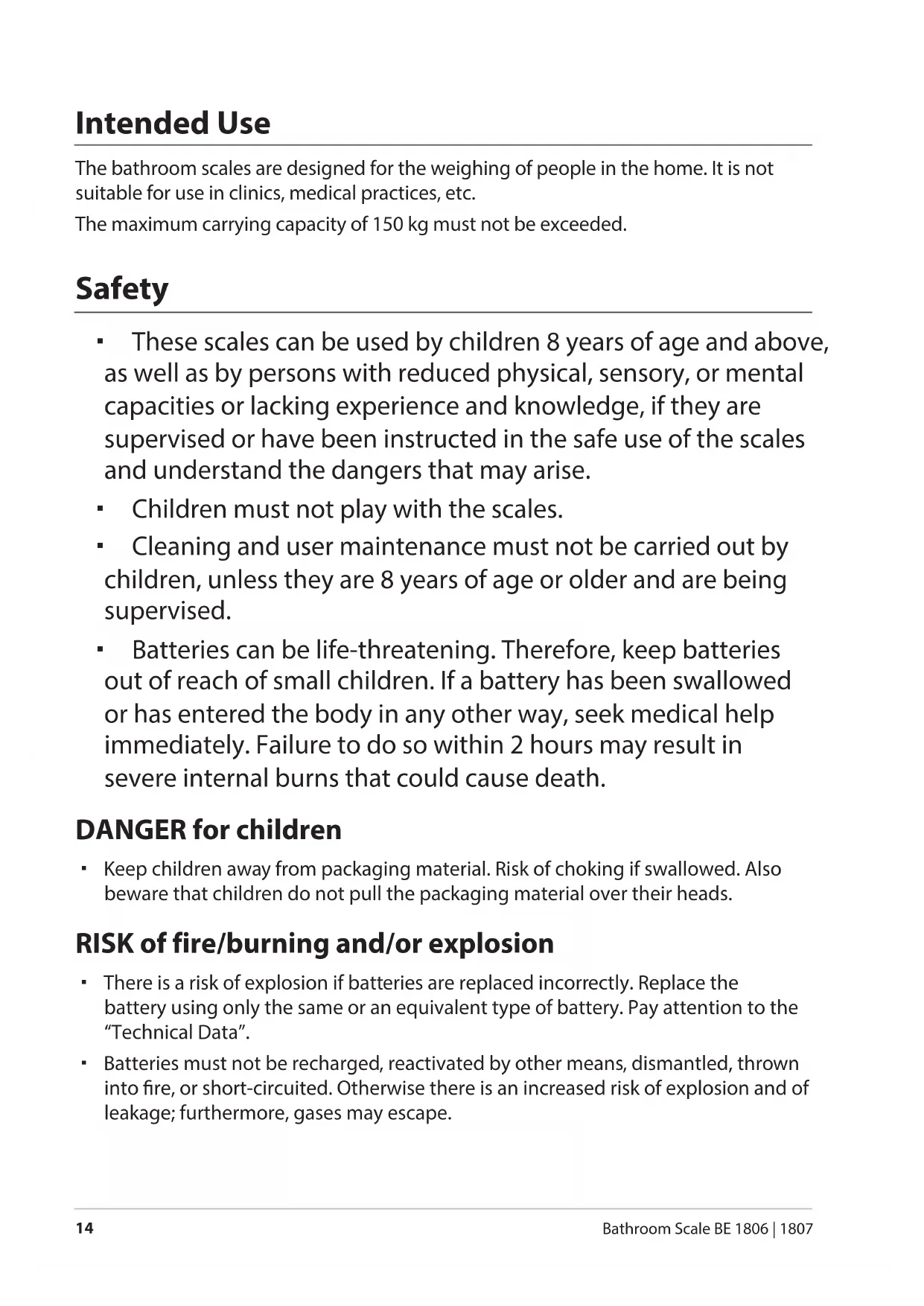

The bathroom scales are designed for the weighing of people in the home. It is not suitable for use in clinics, medical practices, etc.

The maximum carrying capacity of 150kg must not be exceeded.

Safety

• These scales can be used by children 8 years of age and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge, if they are supervised or have been instructed in the safe use of the scales and understand the dangers that may arise.
  Children must not play with the scales.
• Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
• Batteries can be life-threatening. Therefore, keep batteries out of reach of small children. If a battery has been swallowed or has entered the body in any other way, seek medical help immediately. Failure to do so within 2 hours may result in severe internal burns that could cause death.

DANGER for children

• Keep children away from packaging material. Risk of choking if swallowed. Also, beware that children do not pull the packaging material over their heads.

RISK of fire/burning and/or explosion

• There is a risk of explosion if batteries are replaced incorrectly. Replace the battery using only the same or an equivalent type of battery. Pay attention to the "Technical Data".

• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise there is an increased risk of explosion and of leakage; furthermore, gases may escape.

• Avoid contact with skin, eyes, and mucosa. If you come into contact with battery acid, flush the affected site immediately with plenty of clean water and see a doctor promptly.

WARNING against risk of injury

• Do not step onto the outer edge of any one side of the scales. Risk of tipping!
• Do not step onto the scales with wet feet or when its surface is damp. Risk of slipping!

BEWARE of material damage

• Place the scales on a stable, even surface.

• Do not overload the scales. Pay attention to the "Technical Data". Place yourself on the scales exclusively for weighing purposes.

• Protect the scales from sharp jolts and vibrations.
• Remove the batteries from the scales if they have been used up or if you are not going to use the scales for a long time. You will thus avoid damage that may result from the leakage of battery acid.
• When inserting and changing batteries, pay attention to the correct polarity (+/-) .
• Do not subject the batteries to extreme conditions by, for example, storing them on heaters or under direct sunlight. Increased risk of leakage!
• Clean the battery and device contacts, as needed, before inserting the battery.
• Only insert batteries of the same type; do not use different types or used and new batteries with each other.
• Do not make any modifications to the scales. Only allow repairs to be carried out at a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.
• Do not place the scales in the vicinity of devices which may emit electromagnetic radiation, such as mobile phones, wireless devices, or the like. Doing so may lead to incorrect display indicators or malfunctions.
• There are feet on the underside of the scales. Since floor surfaces are made from various materials and are treated with diverse care products, the possibility cannot be completely excluded that some of these substances contain constituents that attack and soften the feet of the device. If necessary, place an anti-slip underlay beneath the scales.

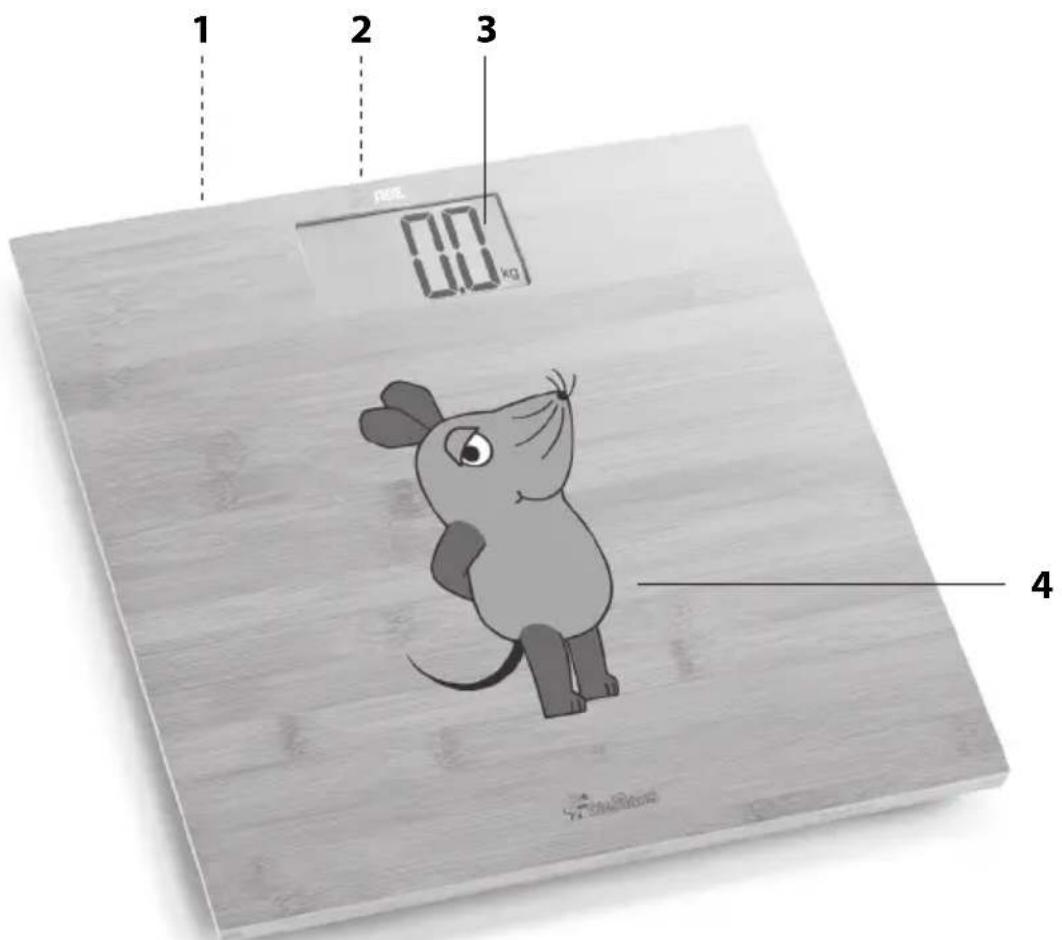

1 UNIT button (underside): Changing the unit of measurement
2 Battery compartment (underside)
3 Display
4 Weighing surface

Scope of delivery

• Bathroom scales
  Battery type CR2032, 3% = (2x)
• Operating Manual

Inserting/changing batteries

To use the scales, you require 2 batteries of the type CR2032, 3V (included in scope of delivery). The battery compartment is located on the underside of the device.

1. Press the locking tab towards the middle of the scales and remove the battery compartment cover, which is labelled with OPEN.
2. Push the batteries against the contact springs under the large, angular retaining tabs. The batteries then snap into the opposite retaining collars, such that the batteries sit firmly in their retainers.

Pay attention to the correct polarity (+/-) . The plus pole (+) for both batteries must point upwards.

1. Put the battery compartment cover back in place. The locking tab must snap securely into place.

Notes on changing the battery:

• A change of batteries becomes necessary when "LO" appears on the display, or when nothing at all is displayed.
• Only use the type of battery that is specified in the "Technical Data".
  Always change both batteries at the same time.
• Dispose of batteries in an environmentally appropriate way (see "Disposal")
• Calibrate the scale, see "Setting the scale".

Choosing the unit of measurement

When the scales are delivered, the unit of measurement is set to "kg" as standard. However, the measurement result can also be displayed in the English units of measurement, "lb" (pound) or "st:lb" (stone:pound).

• Press the UNIT button next to the battery compartment on the rear-side of the scales repeatedly. Pay attention to the display indicator.

Setting the scales

1. Place the scale on an even, firm, and dry surface. Do not place the scale on carpet.
2. First, briefly step onto the middle of the weighing surface to calibrate the scale. As soon as the display shows "0.0", calibration is complete. This calibration must be performed after each battery change.

WARNING against injuries

• Do not step onto the scales with wet feet or when its surface is damp. Risk of slipping!

• Step once with a little force on the weighing surface (tap-on function).

In the illuminated display "0.0", as well as the set measuring unit e.g. "kg", is shown.

1. Position yourself on the scales. Remain standing still and do not hold on to anything.

The measured weight will be displayed shortly thereafter.

A few seconds after you step off the weighing surface, the scales will switch off automatically.

• Weigh yourself with as little clothing on as possible.
• Try to weigh yourself always at the same time and under consistent conditions in order to obtain comparable values.

Resetting the scales

Reset the scales to factory settings if unusual or obviously incorrect values are shown on the display.

1. Remove the batteries from the battery compartment and wait a moment.
2. Re-insert the batteries. Pay attention to the correct polarity of the batteries (+/-) . The plus pole (+) for both batteries must point upwards.

After switching the scales on, you can weigh yourself as usual.

Cleaning

NOTE on material damage

-Do not immerse the scales in water or other liquids.

• Do not under any circumstances use harsh, scraping, or abrasive cleaning agents or the like to clean the scales. If you do, the surface could be scratched.

• Wipe down the scales as needed using a lightly dampened, soft cloth.

• Disinfect the weighing surface from time to time using a suitable disinfecting agent (available at specialist retailers and pharmacies).

Fault/Remedy

Fault Possible Cause
No function	• Are the batteries empty or have they been inserted incorrectly?
The scales appear to be displaying false weighing results	• Are the scales standing on a firm, even surface? • Is a device that can cause electromagnetic disturbances located in the vicinity of the scales? • Remove the batteries from the scales and wait a moment. Re-insert the batteries.
“Err” is shown on the display	• The maximum capacity of the scales (150 kg) has been exceeded.
“LO” is shown on the display.	• The batteries are empty (see “Inserting/ changing batteries”).

Technical Data

Model: Bathroom Scales BE 1806, 1807

Battery: 2x CR2032/3 V

Rated current: 15mA

Measuring range: max. 150kg

Variance: 1% + / - 100g

Indicator division: 100g

Dimensions of scales: approx. 300 × 300 × 34 mm

Distributor: Waagen-Schmitt GmbH

(no service address) Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed and improved.

For this reason, design and technical modifications are possible at any time.

Waagen-Schmitt GmbH hereby declares that the BE 1806 and BE 1807 bathroom scale comply with EU directives 2014/30/EU and 2011/65/EU.

This declaration loses its validity if modifications are made to the product without our approval.

Hamburg, june 2018

Waagen-Schmitt GmbH

Guarantee

The company Waagen-Schmitt GmbH guarantees for 2 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange.

In the event of a guarantee claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposing of the packaging

Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste.

At the end of their life, the products must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Recyclable and disposable batteries do not belong in household waste.

All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.
