ATJ401MSJB - Snow blower Snow Joe - Free user manual and instructions

Product Type	Utility Snow Shovel
Brand	Snow Joe
Model	ATJ401MSJB
Main Material	Aluminum
Handle Type	Adjustable Telescopic
Adjustable Heights	82 cm, 65 cm, 54.1 cm
Net Weight	0.6 kg
Assembly	Push-button quick assembly
Use	Residential and light snow removal
Warranty	2 years (limited)
Customer Service	1-866-SNOWJOE (1-866-766-9563)
Product Registration	Recommended online at snowjoe.com
Wear Parts	Not covered by warranty (e.g., belts, augers)
Repairability	Parts available through customer service or authorized dealers
Cleaning	Wipe with a damp cloth; avoid abrasive products

Frequently Asked Questions - ATJ401MSJB Snow Joe

How to assemble the Snow Joe ATJ401MSJB snow shovel?

To assemble the shovel, press the two push buttons at the end of the upper handle, then insert the lower handle until it clicks. Then press the buttons on the lower handle and insert it into the shovel head until it locks.

How to adjust the handle height?

The telescopic handle offers 3 heights: 82 cm, 65 cm and 54.1 cm. To adjust, press both push buttons and slide the upper handle to the desired position until it locks.

What is the weight of the shovel?

The net weight of the Snow Joe ATJ401MSJB shovel is 0.6 kg, making it lightweight and easy to handle.

What material is the shovel head made of?

The shovel head is made of aluminum, a lightweight and corrosion-resistant material ideal for snow removal.

What is the warranty of this product?

Snow Joe offers a 2-year limited warranty from the date of purchase for normal residential use. Wear parts like belts are not covered.

How do I register my product?

You can register your product online at snowjoe.com/register, by phone at 1-866-SNOWJOE, or by email at [e-mail].

Can I use this shovel for commercial use?

No, this shovel is designed for residential and household use. Commercial use voids the warranty.

How to clean and maintain the shovel?

After use, wipe the shovel with a damp cloth. Avoid abrasive cleaners. Store in a dry place to prevent corrosion.

Where can I buy spare parts?

Spare parts can be ordered online at snowjoe.com or by calling customer service at 1-866-SNOWJOE.

What if a push button does not lock?

Check that the buttons are fully pressed and the handle sections are aligned. If the problem persists, contact Snow Joe customer service at 1-866-SNOWJOE for assistance.

USER MANUAL ATJ401MSJB Snow Joe

ALL-PURPOSE | TELESCOPING | ALUMINUM CONSTRUCTION

Pala compacta telescópica de aluminio multi-uso

If you have any questions or comments,

please call the Snow Joe ^ 念 Sun Joe ^ 念 customer service department at:

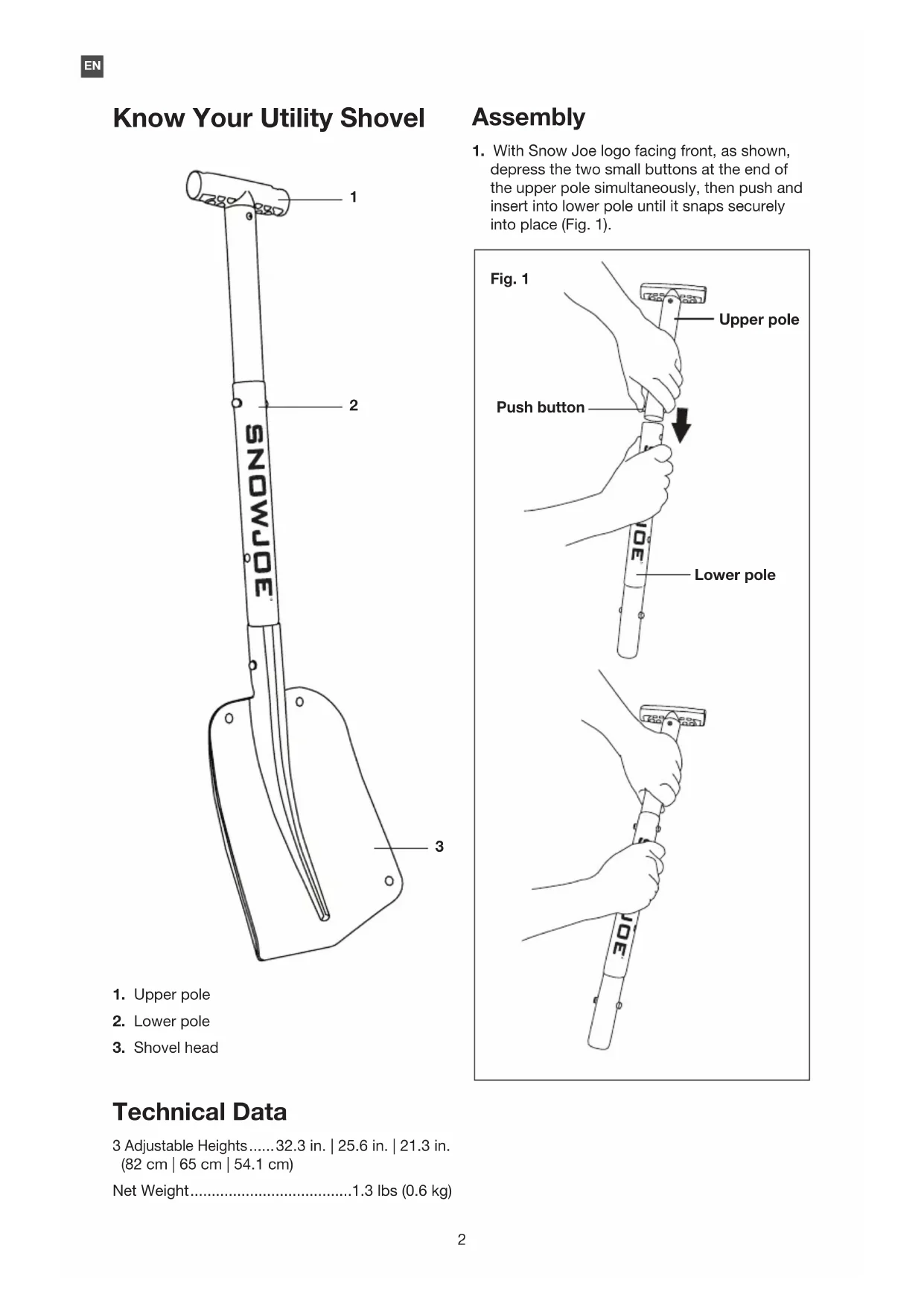

1. Upper pole
2. Lower pole
   3.Shovel head

Assembly

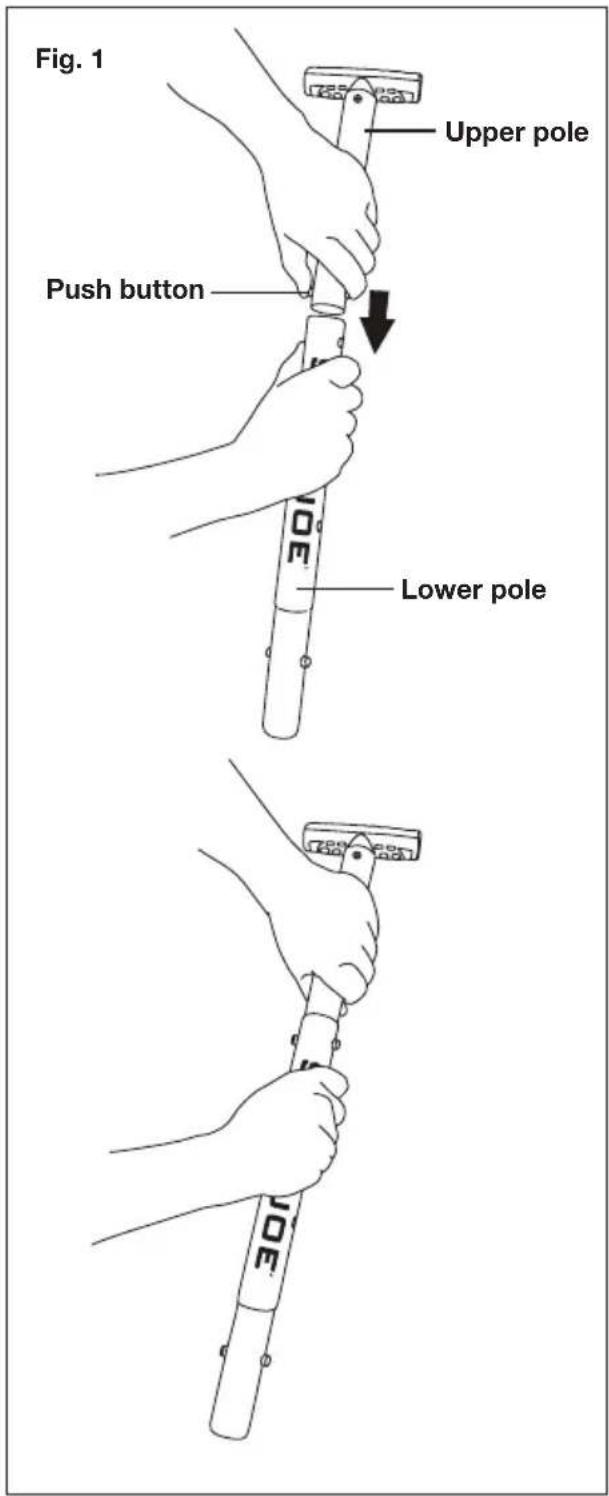

1. With Snow Joe logo facing front, as shown, depress the two small buttons at the end of the upper pole simultaneously, then push and insert into lower pole until it snaps securely into place (Fig. 1).

Technical Data

3 Adjustable Heights.....32.3 in. | 25.6 in. | 21.3 in.

(82 cm | 65 cm | 54.1 cm)

Net Weight. 1.3 lbs (0.6 kg)

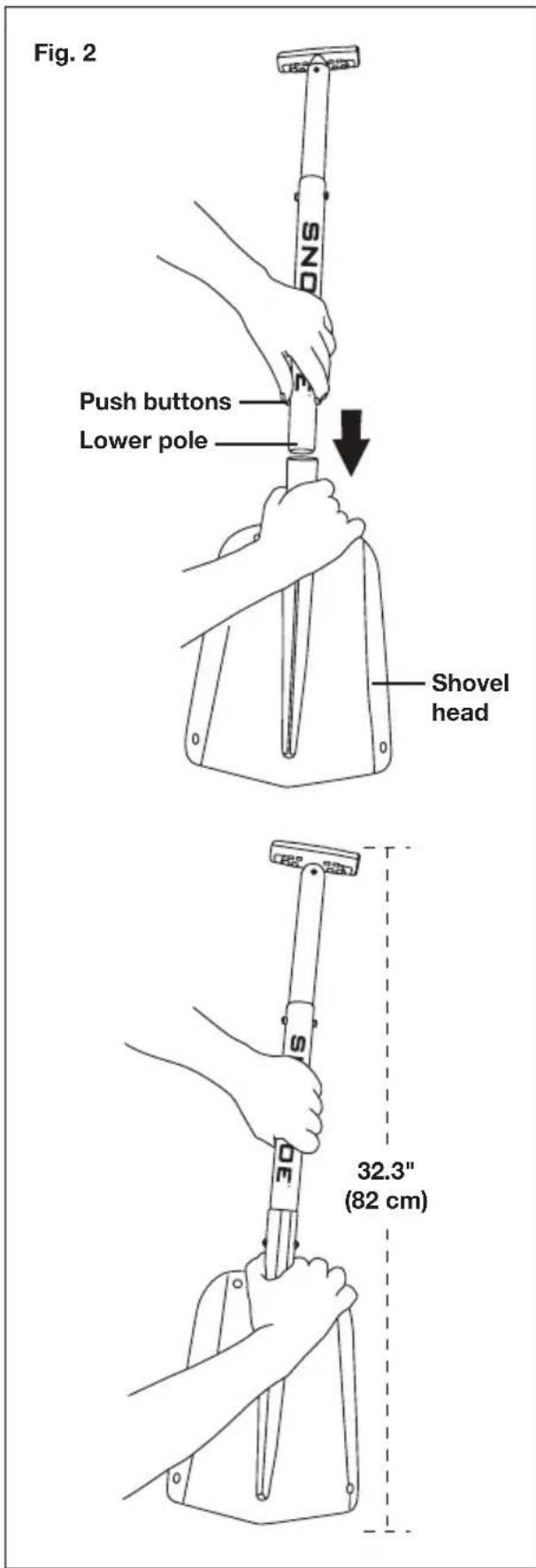

1. Depress the two small buttons at the end of the lower pole assembly, push and insert into the shovel head until it snaps securely into place (Fig. 2).

Pole Adjustment

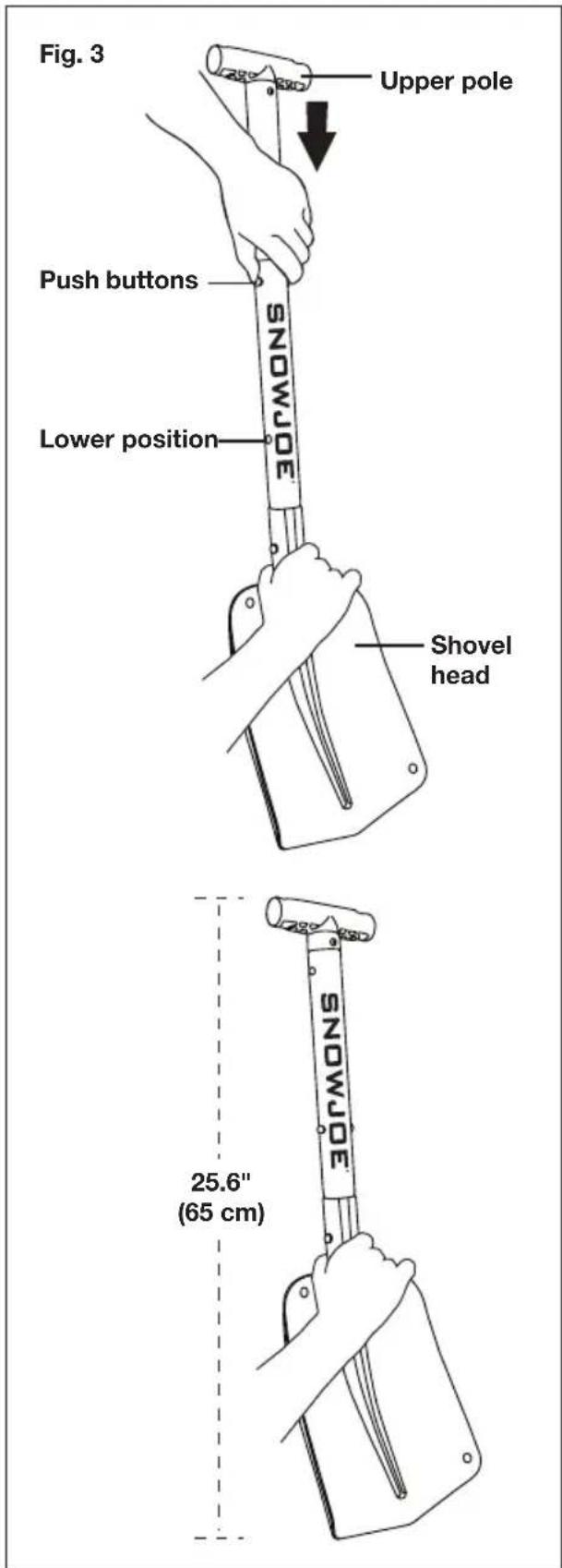

1. To shorten the shovel, depress the two small buttons and push down on the upper pole until it snaps securely into the lower position, as shown in (Fig. 3).

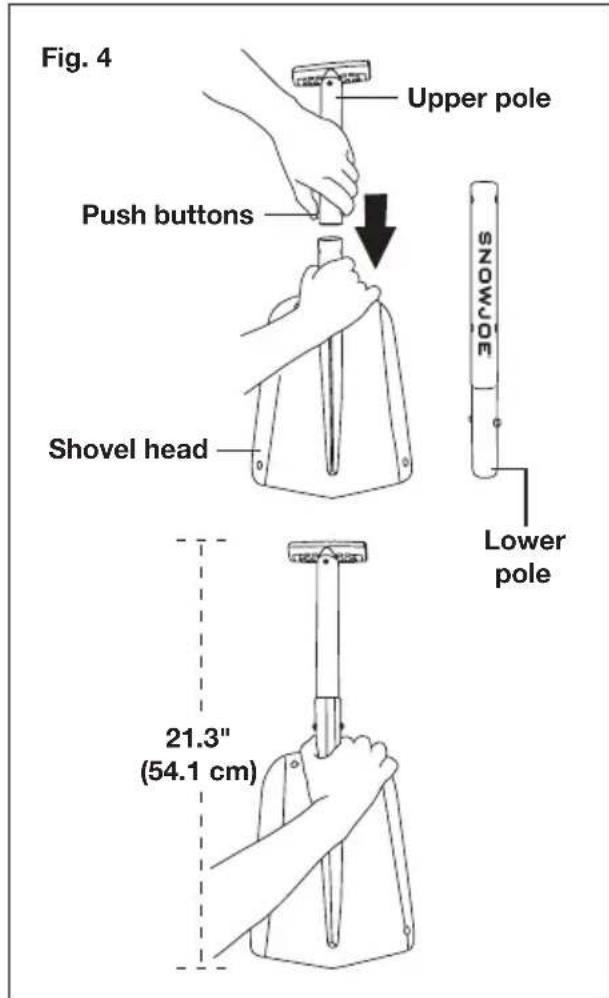

1. Remove the lower pole. Depress the two small buttons at the end of the upper pole, and insert directly into the shovel head until it snaps securely into place, as shown in (Fig. 4).

NOTE: If you have any questions, please call the Snow Joe + Sun Joe customer service department at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the unit. Copy these numbers into the space provided below.

SNOW JOE ^ 念 SUN JOE ^ 念 CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC ("Snow Joe") is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe®, Sun Joe®, or Aqua Joe® product ("Product") does not work or breaks under normal operating conditions. We think it's important that you know what you can expect from us. That's why we have a Limited Warranty ("Warranty") for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).

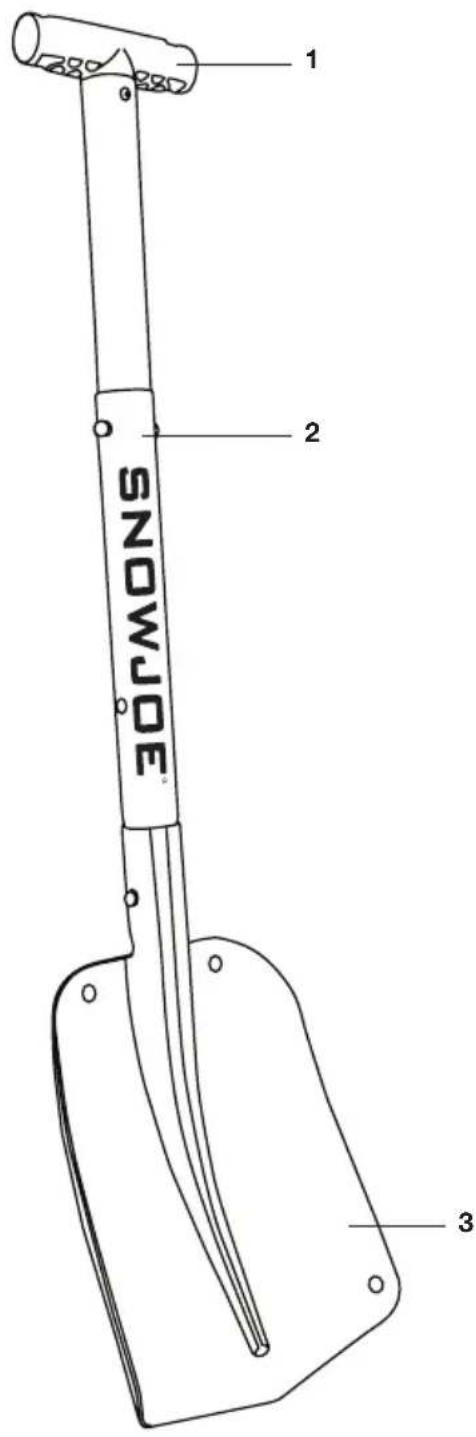

Conozca su pala

1. Mango superior
2. Mango inferior
3. Cabezal de pala

Datasétnicos

Ajustable para tres alturas....32.3 in. | 25.6 in. | 21.3 in.

(82 cm | 65 cm | 54.1 cm)

Peso neto 1.3 lb (0.6 kg)

Ensemblado
