W7X 94T KS - Fridge WHIRLPOOL - Free user manual and instructions
Find the device manual for free W7X 94T KS WHIRLPOOL in PDF.
| Brand | Whirlpool |
| Model | W7X 94T KS |
| Product type | Refrigerator with freezer compartment |
| Lighting | LED, energy efficiency class F (depending on model) |
| Refrigerator capacity | Not specified in the manual |
| Freezer capacity | Not specified in the manual |
| Climate class | Not specified |
| Defrost | Automatic for refrigerator compartment |
| Door reversibility | Possible, contact after-sales service |
| Shelves | Removable, number varies by model |
| Door balconies | Removable |
| Vegetable drawer | Present, with drawer |
| Freezing zone | Compartment with drawers, possibility to remove the upper drawer |
| Cooling function | Natural air circulation |
| Recommended temperatures | Factory setting, adjustable according to conditions |
| Electrical supply | 220-240 V, frequency not specified |
| Energy consumption | Not specified in the manual |
| Noise level | Normal operating noises (hissing, gurgling, etc.) |
| Maintenance | Clean with a damp cloth and mild detergent; clean the condenser with a vacuum cleaner |
| Safety | Unplug before cleaning; do not use steam cleaners |
| Spare parts | Available for 7 or 10 years depending on regulations |
| After-sales service | Contact the technical assistance center |
Frequently Asked Questions - W7X 94T KS WHIRLPOOL
User questions about W7X 94T KS WHIRLPOOL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual W7X 94T KS - WHIRLPOOL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. W7X 94T KS by WHIRLPOOL.
USER MANUAL W7X 94T KS WHIRLPOOL
Light systems (depending on the model) 2
Shelves and door balconies 2
Door 2
How to use the appliance 3
First time use 3
Refrigerator compartment and food storage 3
How to store fresh food and beverages 3
Freezer compartment and food storage 3
Removing the freezer drawer container 3
Tips for freezing and storing fresh food 3
4
Food shelf life at different tempertures 4
Functional sounds 4
Recommendation in case of no use of the appliance 5
Cleaning and maintenance 6
Gasket replacement 7
After-sales service 8

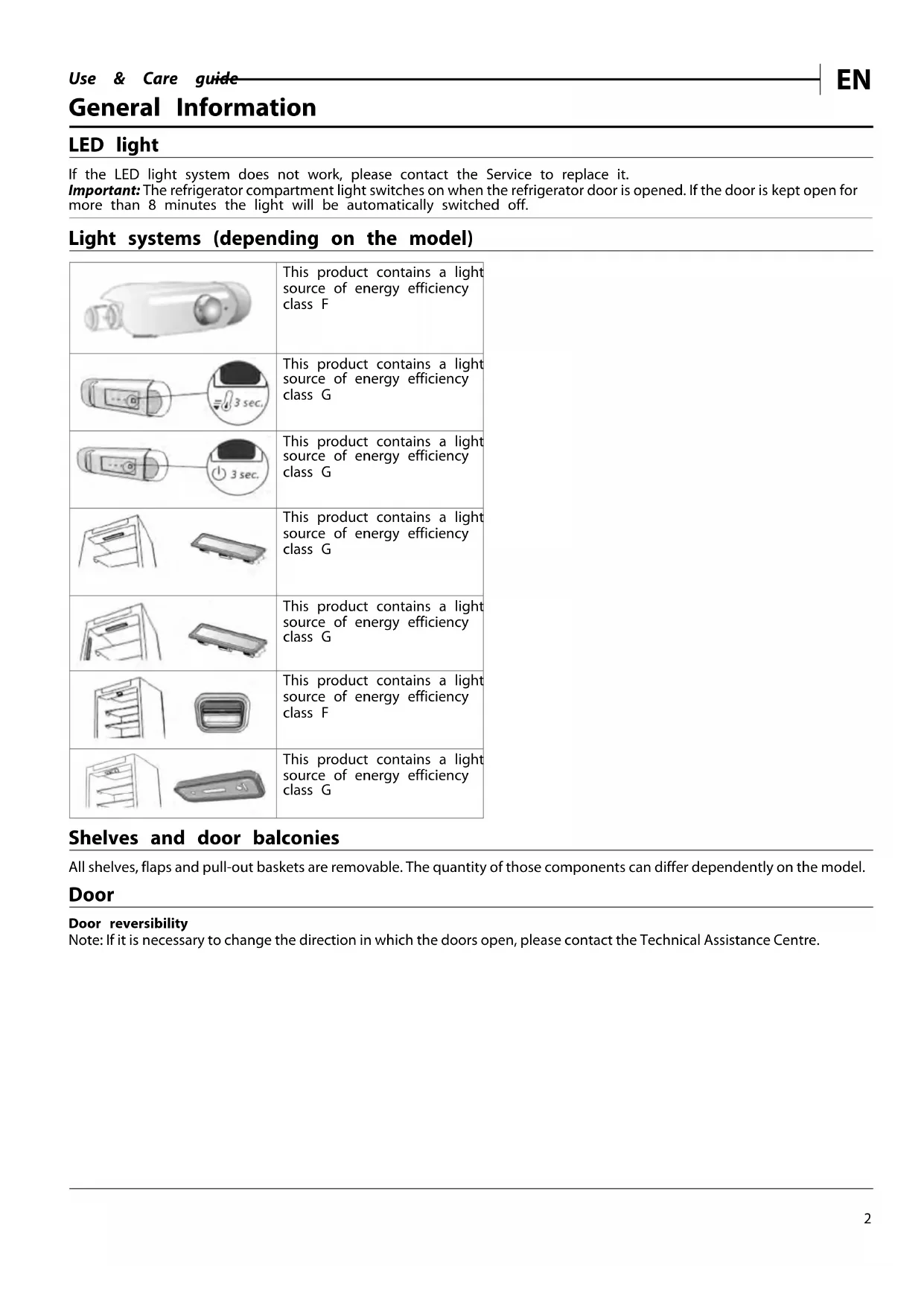

General Information
LED light
If the LED light system does not work, please contact the Service to replace it.
Important: The refrigerator compartment light switches on when the refrigerator door is opened. If the door is kept open for more than 8 minutes the light will be automatically switched off.
Light systems (depending on the model)
| This product contains a light source of energy efficiency class F |
| This product contains a light source of energy efficiency class G |
| This product contains a light source of energy efficiency class G |
| This product contains a light source of energy efficiency class G |
| This product contains a light source of energy efficiency class G |
| This product contains a light source of energy efficiency class G |
Shelves and door balconies
All shelves, flaps and pull-out baskets are removable. The quantity of those components can differ dependently on the model.
Door
Door reversibility
Note: If it is necessary to change the direction in which the doors open, please contact the Technical Assistance Centre.
How to use the appliance
First time use
After installation, wait at least two hours before connecting the appliance to the power supply. Once connected, it will start working automatically. The ideal temperature settings are preset from the factory. After turning the appliance on, wait 4-6 hours for it to reach the correct food storage temperature.
Refrigerator compartment and food storage
The refrigerator compartment allows for the storage of fresh food and drink. The refrigerator compartment defrosts completely automatically. The occasional presence of drops of water on the internal back wall of the compartment is a sign of the automatic defrosting phase. The defrosting water is channelled into a drain and then collected in a container, where it evaporates.
Note: the ambient temperature, how often the doors are opened and the position of the appliance may affect the internal temperatures in the two compartments. Set the temperatures depending on these factors. In very humid conditions, condensation may form in the refrigerator compartment, especially on the glass shelves. In this case, it is recommended that you close containers with liquids in (e.g. a pot of stock), wrap up food with a high water content (e.g. vegetables) and turn on the fan, if there is one. All of the drawers, door shelves and shelves can be removed.
Air ventilation
The natural circulation of air in the refrigerator compartment results in zones with different temperatures. Insufficient ventilation results in an increase in energy consumption and reduction of the refrigerating performance.
How to store fresh food and beverages
Foods which give off a large amount ethylene gas (apples, apricots, pears, peaches, avocado, figs, prunes, blueberries, mellons, beans) and those that are sensitive to this gas, such as fruit vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example do not store tomatoes together with kiwi fruits or cabbage. Do not store food too close together to enable sufficient air circulation. Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods. If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the crisper for fruits and vegetables since this is the coolest area of the compartment. Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer or cover them. To avoid bottles falling over, you can use the bottle holder (available on selected models).
Freezer compartment and food storage
The freezer compartment allows for the storage of frozen food and the freezing of fresh food. The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Arrange the fresh food in the freezing area inside the freezer compartment, leaving enough space around it to allow air to circulate freely. Avoid fresh food to come into direct contact with frozen food. Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading. To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers.
Removing the freezer drawer container
- Open the freezer door.
- Pull the upper container upwards by the right and left corners (1).
- Remove the drawer (2).
- Install the upper container in the reverse order.
Tips for freezing and storing fresh food
We recommend to label and date all your frozen food. Adding a label will help you to identify foods and to know they should be used before their quality deteriorates. Do not re-freeze defrosted food.
Before freezing, wrap and seal fresh food in: aluminium foil, cling film, air and water-tight plastic bags, polythene containers with lids or freezer containers suitable for freezing fresh food.
- Food must be fresh, mature and of prime quality in order to obtain high quality frozen food.
- Fresh vegetables and fruit should preferably be frozen as soon as they are picked to maintain the full original nutritional value, consistency, colour and flavor. Some meat, especially game, should be hung before it is frozen.
- Always leave hot food to cool before placing in the freezer.
Eat fully or partially defrosted foods immediately. Do not refreeze unless the food is cooked after it has thawed. Once cooked, the thawed food can be refrozen.
- Do not freeze bottles with liquid.
Frozen food: shopping tips
When purchasing frozen food products:
- Ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have begun.
- When shopping, buy frozen foods at the end of your trip and transport them in a thermally insulated cool bag.
- Once at home, place the frozen foods immediately in the freezer.
- If food has defrosted even partially, do not refreeze it. Consume within 24 hours.
- Avoid or reduce temperature variations to the minimum. Respect the best-before date on the package.
- Always observe the storage information on the package.
Food shelf life at different tempertures
| FROZEN COMPARTMENT | |||
| Product Storage period (-12°C) Recommended Storage | period (-18°C) | Storage period (-24°C) | |
| Butter or margarine 1 month | 6 months 9 months | ||
| Fish 1 month 1-3 months 6 | months | ||
| Fruits (except citrus) & Vegetables | 1 month 8-12 months 12 months | ||
| Meat-Ham-sausage Roasts (beef-pork-lamb) Steaks or chops (beef-lamb-pork) | 1 month 2 months | 8-12 months 4 months | 12 months |
| Milk, Fresh fluid, Cheese, Ice cream or sherbet | 1 month 1-3 months 5 months | not recommended | for ice cream) |
| Poultry (chicken-turkey) 1 month 5-7 months 9 months | |||
| UNFROZEN COMPARTMENT | |||
| Product | Storage period 0-3°C | Storage period (3-6°C) | Storage period 6-8°C |
| Cans, drinks, eggs, sauces, pickles, butter, jam | 3-4 weeks | 3-4 weeks | 3-4 weeks |
| Tropical fruit | Not recommended 2-4 weeks | 3-4 weeks | |
| Cheese, milk, dairy food, deli food, yoghurt | i2-5 days | 2-5 days | 2-5 days |
| Cold cuts, desserts, meat and fish and home-cooked food | B-5 days | 1-2 days | Not recommended |
| Store vegetables and fruits (excluding tropical fruits and citrus) | 15 days | 10-12 days | 4-7 days |

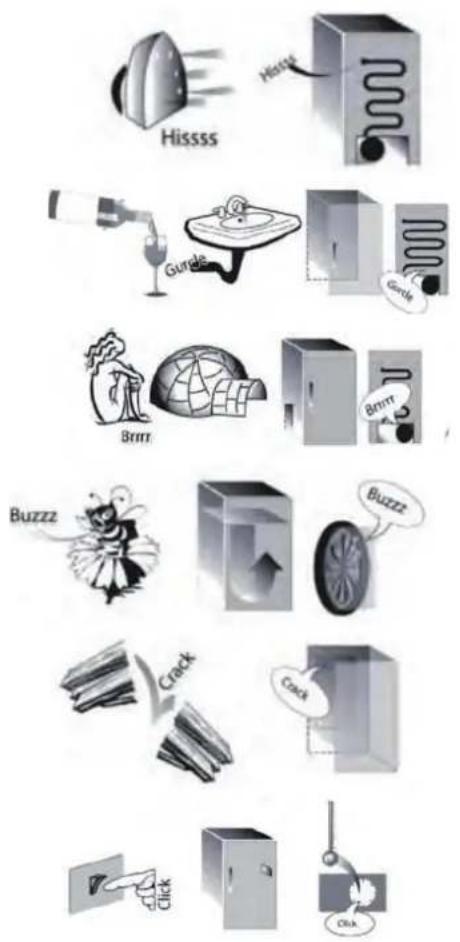

Functional sounds
Sounds coming from your appliances are normal since it has a number of fans and engines to regulate performances that switch on and off automatically.
Some of the functional sounds can be reduced through:
- Leveling the appliance and installing it on an even surface.
- Separating and avoiding contact between the appliance and furniture.
- Checking if the internal components are correctly placed.
- Checking if bottles and containers are not in contact with each other.

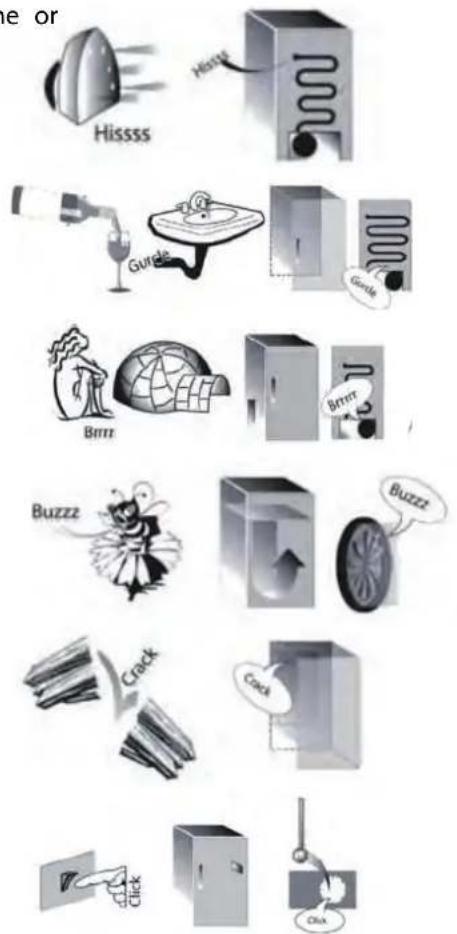

Some of the functional sounds you might hear
- A hissing sound when switching on the appliance for the first time or after a long pause.
- A gurgling sound when refrigerant fluid enters into the pipes.
- BRRR sound is from the compressor running.
- Buzzing sound when water valve or fan start working.
- A cracking sound when compressor starts.
- The Click is from the thermostat which adjusts how often the compressor is running.
Recommendation in case of no use of the appliance
In the event of non-use of the applicance
Disconnect the appliance from the power supply, empty it, defrost it (if necessary) and clean it.
Keep the doors slightly ajar to let air circulate inside the compartments. By doing this, you avoid the development of mould and bad odours.
In the event of an interruption to the power supply
Keep the doors closed so the food stays cold for as long as possible. Do not re-freeze food that has partially defrosted. If there is a prolonged power cut, the black out alarm may also activate (in products with electronics).
Cleaning and maintenance
Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the elect power supply.
Never use abrasives. Never clean refrigerator parts with flammable fluids.
Do not use steam cleaners.
The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but cloth.
Periodically clean the appliance with a cloth and a solution of lukewarm water and neutral detergent specifically for refrigerator interiors.
Clean the outside of the appliance and the door seal with a damp cloth and dry with a soft cloth.

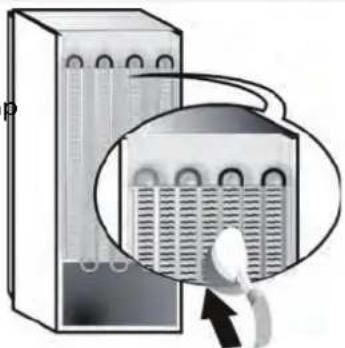

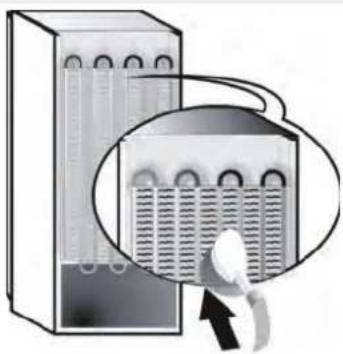

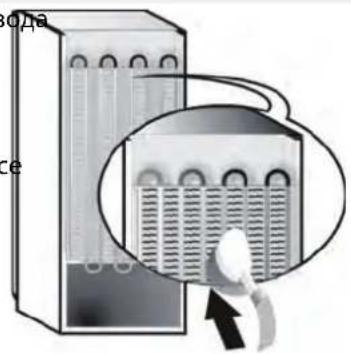

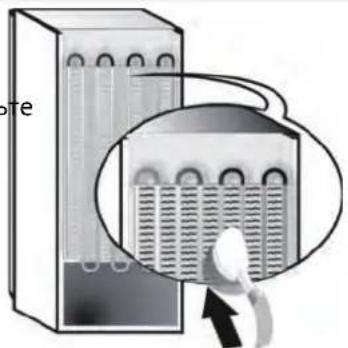

- Condenser placed in the rear of the appliance should be cleaned regularly using a vacuum cleaner.
Important:
The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.
The refrigeration system pipes are located near the defrost pan and can become hot. Periodically clean them with a vacuum cleaner.
To ensure the constant and correct flow of the defrosting water, regularly clean the inside of the drain situated in the back wall of the refrigerator compartment near the fruit and vegetable drawer using the utensil provided *.

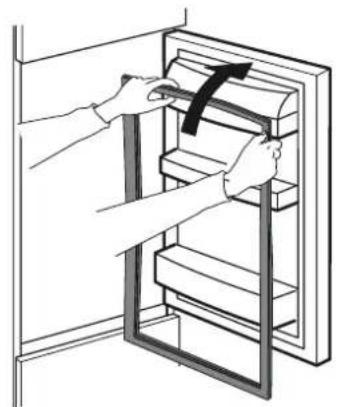

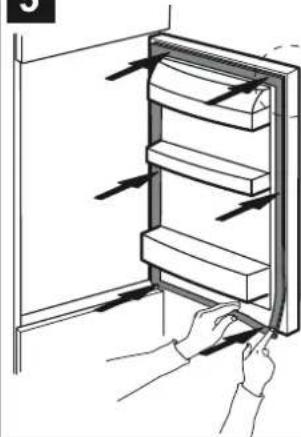

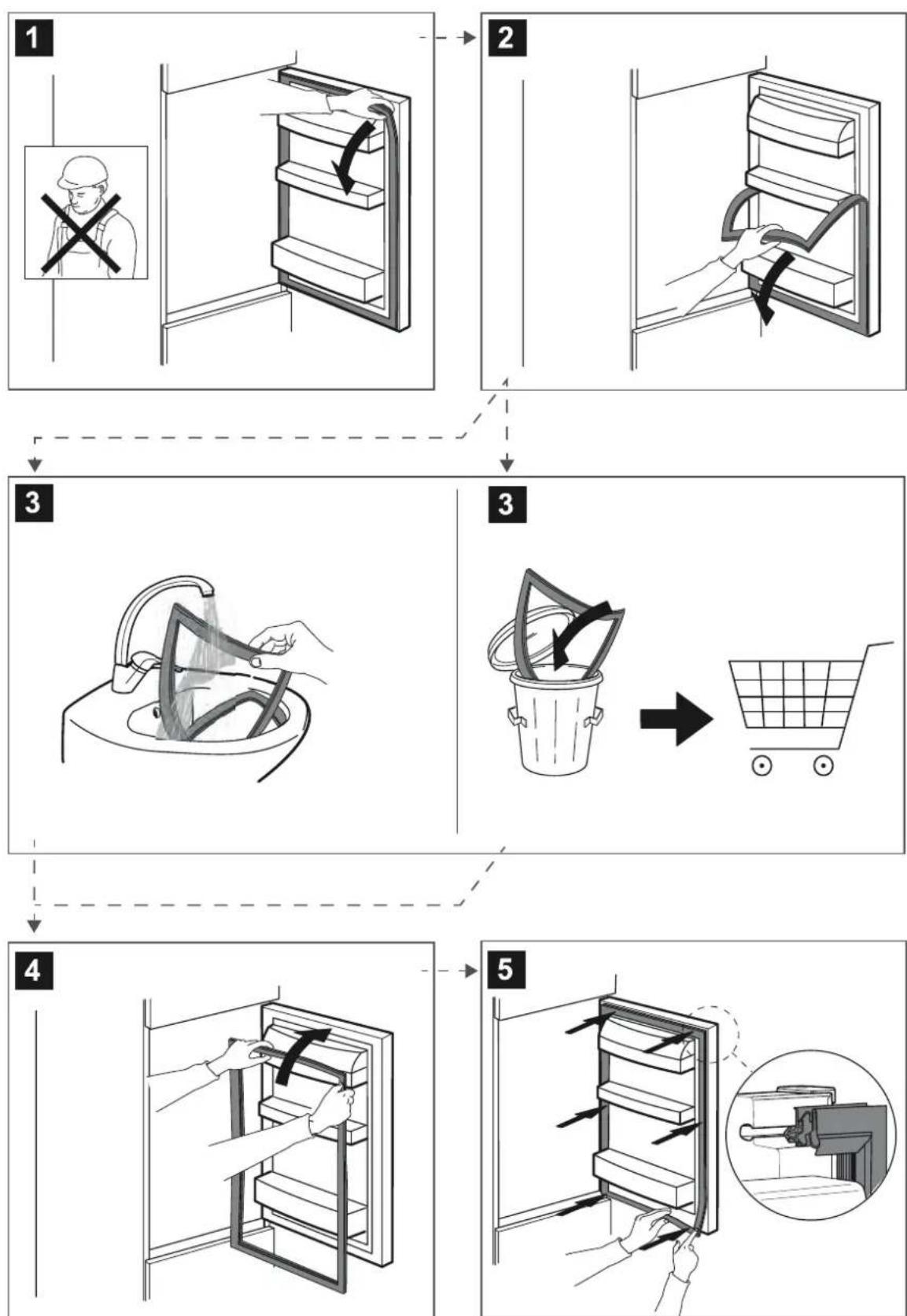

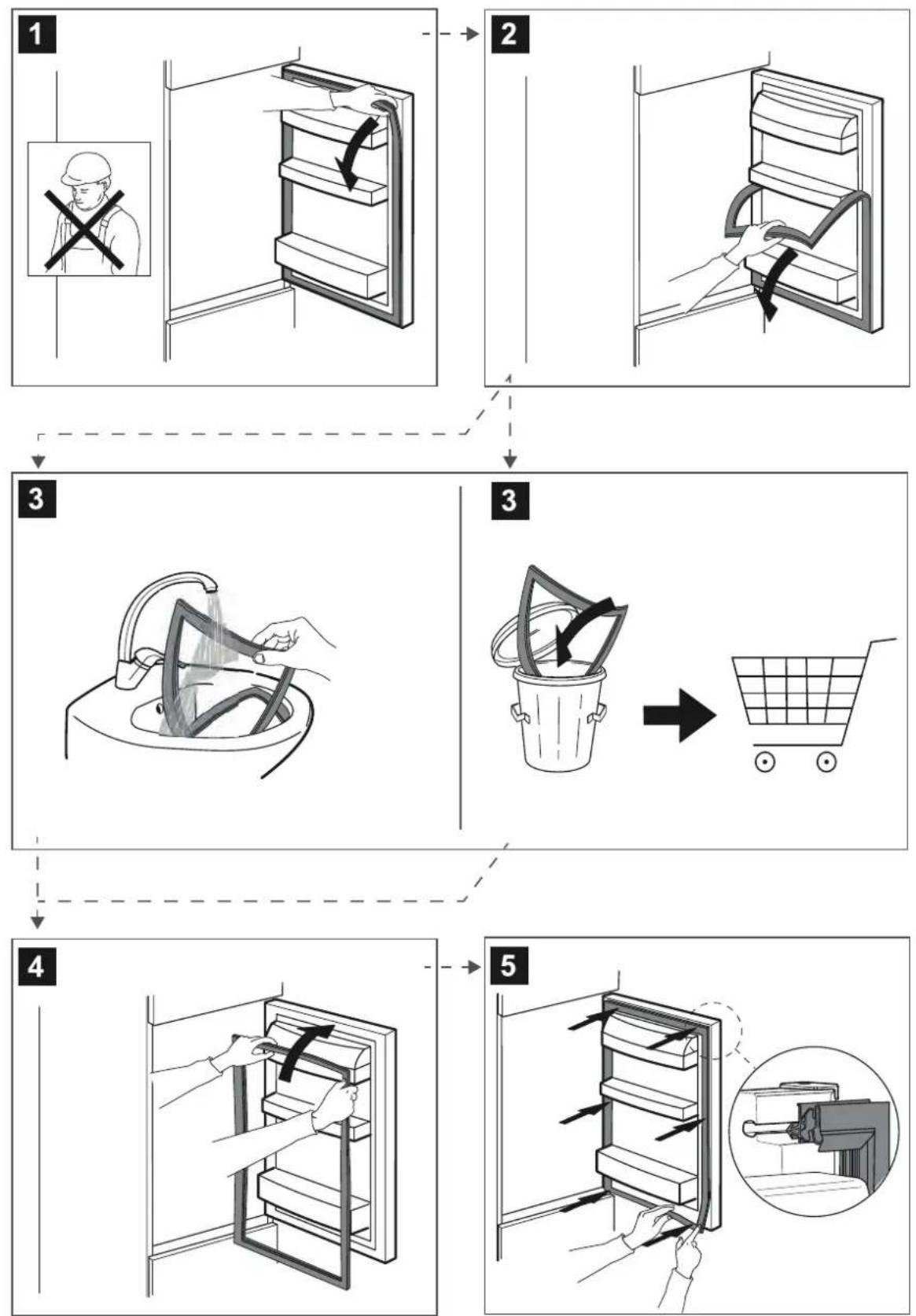

Gasket replacement
After-sales service
BEFORE CALLING THE AFTER-SALES SERVICE
- See if you can solve the problem by yourself with the help of the suggestions given in the TROUBLESHOOTING.
- Switch the appliance off and back on again to see if the fault persists.
IF AFTER THE ABOVE CHECKS THE FAULT STILL OCCURS, GET IN TOUCH WITH THE NEAREST AFTER-SALES SE
To receive assistance, call the number shown on the warranty booklet.
When contacting our Client After sales service, always specify:
- a brief description of the fault;
- the type and exact model of the appliance;
- the service number (number after the word Service on the rating
plate). The service number is also indicated on the guarantee booklet.
- your full address;
- your telephone number.
If any repairs are required, please contact an authorised aftersales service (to guarantee that original spare parts will be used and repairs carried out correctly).
Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.
Bedienungsanleitung
BEDIENUNGSANLEITUNG
INDEX
Cleaning and maintenance
EcTeCTBeHaTa CnPKyIaIaIHa Bb3DyX B OTdEJIeHHeTo Ha XlaIaIIHnKa BoIN Do NOLyUaBaHe Ha 3OHN C pa3NIuHn TeMnepe HeNoctaTbUHaTa BeHTnIaIaIaHa BoIN Do yBENuHaBe Ha KOHCymauIra Ta Ha eHepn I HAmaJIaBaHe Ha OXNaJdaHeTo.
Kak da ce cbyxpaHbAT npechn xpaHn HannITkn
XpaH, KOnto OTdaBaT rOJMAO KOJIueCTBO eTNHe (A6blKn, KaCnN, KpyuN, nPacKOBn, ABOKaDO, CMOKHN, CINBn, BOpOB NbNeun, fAcyn), n XpaH, KOnto ca YyBCTBnTeHN KbM To3n Ra3, KaTO IIOdoBE, 3eJeHcyuN i Canatn, Tp6Ba BuHaRn d pa3deJHn nn yBnuBAH BB FOJNO, 3a Da He Ce HamaJRA TaXHaT aROHOCT; HAnpIMep, He cbxpaHBAIte DomAtn 3ae, c KInBn nn 3eJe. He cbxpaHBAIte XpaHTE npEkanEO 6bn30 eHa Do npyra 3a No3BOJBAHe Ha DOCTaTBHO UnpKyn Ha Bb3dyx. N3non3BaIte PnaCTMacOBn, MetaHn, anyMHHneBu N CTbKLeHN KOHTeHepn, KOINTo MORaT da Ce pezknipat, KaKTo n ONAKOByHo FOJNO 3a ObuBaHe Ha XpaHTE. Ako Imate MaIKo KOJIueCTBO xpaHa 3a cbxpaHEnHe B XnaDlnHnka, npenopbUbaMe Da n3non3BaTe paTOBeTe Ha ndyeMe JO 3eJeHcyuN, TbK KATO TOBa B Na-CTyDeHaT o OT otJeHHeTo. BuHaRn n3non3BaIte 3a TBopeHn KOHTeHepn 3a TeHuOCTn i 3a XpaHn, KOINTo OTdJIaT nn MoRaT da n MmPrn3Mn nn BKyc, nn n nn POKpuaBeTe. 3a n368rBaHe Ha naJaHeTo Ha 6ytjNK moKeTe da n3non3BaTe NOCTaBkata 3a (HaJIuHn npOnpeJelenMoJIEN).
Hnkora He n3non3BaTe a6pa3nBn cpeCTBa. Hnkora He nouNTBaTe qactte Ha xJaunnHa Ka Cbc 3anaJMM TeHQCTN.
He n3non3BaIte ypeu, noocTbaun c npapa.
BytoHnTe n dncnneT Ha KOHTponnna naen He Tp86Ba da ce nouCTBaT cbc cnpt mnn BeuecTba Ha OCHOB cnnp, a cbc cyxa Kbpna.
- PernoDnHNO nouCTBaIe ypea c Kbpna n pa3TBOp Ha xnaKa BO, HneTpapanen NooCTBaIe npenapat, CneuaHNo npedHa3NaueH 3a BbTpewHOCTTa Ha XnaHnHka.
-Почитete Вьншине чагпураи улътэнeto Ha Bpatичкata C влжна Кьрпи И посушete C Meka Кьрпа.
OxnaIteJIaT,HAMipaCeB3aHaTa YAcT Ha ypea,Tp6Ba Da ce NOuNCBa peoBHO C npaxocMykaKa.
Baxho:
BytoHnTe nIinCnPnEaHa KOHTpONHnnaHe Tp6Ba da Ce NouNCtBaT CbC CNPT uNBeUeCTBa Ha OCHOBaTa Ha CnnpT, a Cbc cyxa Kbpna.
Tp6nte Ha oxlanTeHATA CNTema Ce HAMnpat B 6n30CT DO KOHTeHepa 3a 06e3ckpexabaHe moraT da cTaHaT ropeu. IepnoDnuHO r n NOUcTBaIte C npaxOcMykaKa.
3a da ce rapaHTnpa HenpeKbCHato n npabunHO OTTuHa He Ha BODaTa O
06e3ckpeXaBAHeTo, noCTBaItepeOBOHooTbBtpeTpB6aTa 3An3TOUbaHe,
KOrTO ce HAmnpa Ha Tbp6a Ha XlaDiuHnka, B 6bn3oCt Do YekMeJKeTo
NIOOBe N3eJeHuqn, KaTO n3NOJ3BaTe PpeOCTaBEHnH NHCpymENT*.

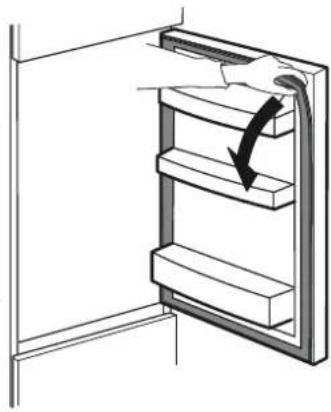

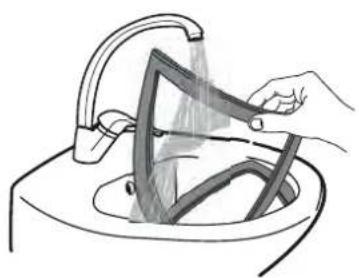

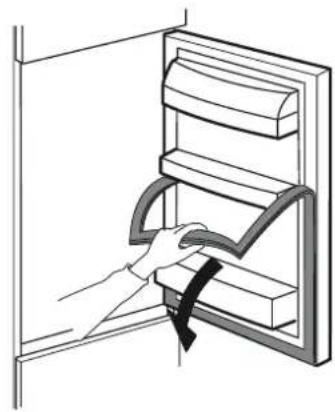

CmHa Ha yPbTheHne
1
2
3
3
4
5
Cnei npoJax6eH o6cnyXbaHe
IPEIN DA CE CbPkETE C OTdJIa 3A CJLEIIPOJAXBEO OBCJYKBAH
- Пювере далу можete д отстанiteCAMи поблеса сnomоцдаHa npednoженяТа,даденВ pa3дела OTCTPAHBAHE HA HEN3ПРABHOCTN.
2.ИЗКЛЮЧЕуpeдаи OTHOBO ГВКЛЮЧЕ,зды ВДИТе ддп HeN3ПЯВHOCITТа npОдьЖABA.
AKO CLEI N3BbPbBAHE HA TOPENOCOYHTE IPOBEPKN HEIN3IIIPABHOCTTA BCE OUe HE E OTCTPAHEHA, CBbPXETE CE C HAI-BJIN3KNA OTJEI 3A CJIEINPODAXKBEO BCJNYKBAHE
3a Na nonyuHte cbdeIcTBue, o6aTe ce Ha HOMepa, daeH Ha KNHXKaTa 3a rapaHcyra.
Korato ce cBbpxTe c otDena 3a cneInpoJaXBeHo 06cnyXBaHe, BuHaNIOcoUbaTe:
KpaTKO OINcaHne Ha HEn3npaBHOCTT;
TOUHIN TUN N MOden Ha ypeda;
- CepBn3HnH HOMeP (HomepBT cneI dymata Service Ha Ta6enkata c daHH). CepBn3HnT HOMeP e nocoueh N B rapaHcNHOHaT A KHN
Baunn nbnen anpec;
BnHaHn n3ToUbaIte BODaTa, npedn da OTbaprTe BpaTuKata.
SERVICE 0000 000 00000
Ako ce Hanaarat HkaKBN peMOHTN DeHocT, MoJc CbPKeTe ce c OToPi3upaH OTdE 3a CneInpOdaX6eHo 06CnykBaHe da 6bDte cnpyHn, ye ue 6bDat n3No13BaHn opunHaHn pe3epBn qactn n peMOHTHnte deHocTn ue 6bDat n3Bbpu npabunho).
Pe3epBHTe qactn 6bDat HannuHn 3a nepnoD do 7 nnn do 10 roHH, B cbOTBeTcTBne Cbc CneunHnHTe n3nCKBa PerlaMeHTa.
Kaepiogockouvtnpn . 7
AvikataoTaon laotixou 8
Eunnpetnon n eatawv 9
Tevikéç πληροφopiεç
Auxvia LED
Av to ouotnua qwtoou LED dev leitoupyei, eikovwnote me to kvtpo Eunnpentno n 1a va to avtikataohtoe.
Enuavko: To woc tou yueiou avabi otav aoviei npota tou yueiou Av n npota napaeivei aoixtn ia nepiooote po ano 8 aeia, to qwc th a obnoei autouata.
PRE NGO STO POZOVETE POSTPRODAJNI SERVIS
- Proverite da li mozte de resite problem sami uz pomoć saveta datih u odeljku VODIC ZA REŠAVANJE PROBLEMA.
- Ukljucite pa iskljucite uredaj i proverite da li je kvar i dalje prisutan.
UKOLIKO I NAKON GORENAVEDENIH PROVERA KVAR I DALJE POSTOJI, OBRATITE SE NAJBLIZEM POSTPRODAJN SERVISU
Da biste dobili pomoc, pozovite broj naveden u garantnoj knjižici.
Prilikom kontaktiranja naseg postprodajnog servisa za kupce potrebno ja da navedete:
- kratak opis problema;
- tip i tacan model uredaja;
SERVICE
- servisni broj (broj iza reci Service na plopci sa podacima). Servisni broi
je takode naveden u garantnej knjižici:
svoju punu adressu;
Uvek ispustite vodu pre otvaranja vrata.
Ako su potrebne bilo kakve popravke,kontaktiraje ovlasenci postprodajn servis (kako biste bili sigurni da ce se koristiti originalni rezervni delovi i da ce popravke biti ispravno obavljene).
Rezervni delovi su dostupni u periodu od 7 do 10 godina, u skladu sa posebnim zahtevima odredbe.
Návod na používanie
NAVOD NA POUZIVANIE
OBSAH
Police in predali v vratih 2
Vrata 2
Uporaba aparata 3
Prva uporaba 3
Hladilni prostor in shranjevanje zivil 3
Police in predali v vratih
Akuo npua He BnKOpncTOByETbcra
Biiknouitb npnad Biénektpomepeki, BntarHtib i3 Hboro Bci npodykTu, 3a notpe6n po3mop03te Ta ouncTiB niOg Tpmaite DBePcTa TPOXN BiuHHeHmU, 0o6 3a6e3neHTu cnpkyraio nobitpy y BiDileneHHx. TaKIM YHOM Bu yH BUNKHeHHy Cbili Ta HeepnemHnx 3anaxiB.
y BnnaKny nepe6oIB HanpyrB eNeektpomepexi
TpmaTe DBePraTa 3aunHeHmN, 0o6 kOMora DOBwe 36epeTn npOyKTn OxOnOxKeHmN. He 3amopoxyte noBtopi qactKoBO pOzMOpOxeni npOyKTN. Kaio eJeKtpoeHepriio BiDknIOueHO Ha TpNBaIIN Yac, MoKe BBIMKHyTncr HnJI 3HeCTpyMlENHH (y MOnEnX, OChauEHNx eJeKTPoHikoIO).
Доглд i TexhiuHe obcnyroByBaHHa
Iepu HIX BUNKOHyBaTn YUeHHe a6o TexHicHe 0cNryROByBaHHa, Bi'edHaTe npuaD BiE eKeTpOmepeKi a6o BNTARHITb BNkY 3 po3ETKn.
Hikon He BnKOpNCTOByTe a6pa3uBHX MnHnx 3ac06iB. Hikon He BnKOpNCTOByTe 3aMnuctx piHN dIa MNT XoNoDnJIbHnka.
3a60pOHeTbC3aCTOCOByBaTu npooUChnKn.
Khonk Ta ducnne naheni KepybaHH He moXHa npotnpaPiuHAMn, aKi MCTaTb cnpT, a nuwe cyxoO raHc
- Perioquho MnTe npnla3a donomoro raHupkn Ta po3uHy TeNoBn 3 HeTpalbHM MnHm 3ac06om (oc6nBO, kkuo MOBa Ipe BHytpiHi qactnH XOnOdnbHnka).
30BHIHIO NOBEPXHIO npnady u yuihbiOBau dna DBepaT OCH3a DonomoroIO BOIoroI raHupKn, a NOTIM BntpItb cyxio. - IotpiioHO peryIapno qnCTHTKoHdEHCATOp, po3TaObaHn Ha 3aHi CTINi npNAdy, BkOpNCTOByUOn nnococ.
Baxlueo:
KHOKN Ta dncnne nane He moKHa npotnpaPi dHAMn, kMi cTb cNpT, a Nlle cyxo raHupkoio.
Tpy6n ciCTeMn OxonoJKeHHa PO3aUoBaHI NO6n3y NiDOnHy dIra 36OpY PO3MOpOKeHOrO NbOdy Ta MoKybHarpiBaTncr. IepioNtuHO uCtictb zu Tpy6n 3a DonomoroIO nnococa.
Дя 3a6e3neueHH 6e3nepeKoHOrO Ta npabNlbHOrO CTiKaHHraTanoI BOJn peYnApHO OuyuTe dpehaxHn OTBip, PO3aUOBaHn Ha 3aHi nCTIHcXoJIoNbHOrO BiDineHH 6In KOnTeHepa Dn A pkykTiB i OBOUIB, 3a DonOMorIO npnAADn, 10 NoCTaHaETBCB KOMnEKeTI *.
3amHa yuilbHOBaIbHOi npoklaKn
NEPU HIX TELEFOHYBATU Y UCEHT PICJNPODAXKHO OBCJYROBYAHH
- IpeBipTe, uM MoKHa BnpiHn npo6NeMy camocTiHo 3a donomoroI npaI, HabeJeHX y po3diI NOCIBHK I3 UCYHEHHA HECnPABHOCTE.
- BvmkhHtB npuaad i 3HOBy yBimkhHtB noRo, o6 nepebipuTn, nn HecnpaBHic7 3aJnaeTbcra.
IICJIAPDAXHORO OBCJYROBYAHH
Дя OTРIMAHн ДОПOMOr 3ВерHITьСЯ HomepOM, lo Bka3aHn y rapaHTiHOMy TaNoHi.
PiJ yac 3B'3ky 3 Haunm CepBicom nicIa npoJxHoro 06cnyroByBaHHa 3aBXn yTOuHIOHTe:
KOPOTKNI ONNC HecnpaBHOCTI;
TINI TOUY MOeInb npnnay;
- cepBicHm Homep (Homep nCnla CnoBa Service Ha nacnopTHi
Ta6nuei). Cepbichn HmOp TaKoX Bka3aHO B rapaHTiHOMy TaHOSEVICE - NOBHy aDpeCy CBOr MiCz r npoxnBaHHr;
- Nepw HIX BiIDKPNBn DBePcTa 3aBXn 3NBAIte BODy.
Kuio notpi6eH pEmoHT, 3BepHtbcra Do ABTOp3ObaHoro ceHTpy nCnInpOdaXHoro o6cnyroByBaHHa (uo6 rapaHTyBaTH npaBnHicTb pMOHTy Ta BnKOpNCtAHHn OpriHaBHX 3anuaCTNH).
3anachi yactnHn 6ydytb doctynHbnpoobK TepmiHy 7 a6o 10 pokIB, BiNObiHO KOHKpeTHnx HopMaTNBHX
lstifadacinin telimat kitabcasi
ISTIFADOÇININ TOLIMAT KITABÇASI
GÖSTÖRICI
Istismar ve qulluq üzre & rehberlik 2
Umumi məlumat 2
LEDisig 2
Isiqlanma systemleri (modelden asili olaraq) 2
Refler ve qapi refleri 2
Qapi 2
Cihazdan neci istifade etmek 3
IIk dfe istifad etdikde 3
Soyuducu bolmesi ve qida mehsullarinin saxlanmasi 3
Teze qida mehsullarini ve iickileri neca saxlamaq 3
Dondurucu bolmesi vqidanin saxlanmasi 3
Dondurucunun siyirtma qabinin cixarilmasi 3
Teze qida mehsullarinin dondurulmasi ve saxlanilmasi uzre meslehetler 4
Donmus qida: satin-alma ürmeislehetler 4
Qidanin muxtelif temperaturlarda saxlanma muddeti 4
Funsional sesler 5
Cihazdan istifad edilmədiyi hallarda tovsiyeler 6
Tamizlme v texniki xidmet 7
Contanin oevz edilmesi 8
Satisdan sonra servis 9
Umumi məlumat
LED isi
Oger LED isiqlanma sistemi islemirse, onu deyismek uçün Servis xidmetine müraciet edin. Digget: Soyuducu bolmasinin isiqlanmasi soyuducunun qapisı acildiqda qosulur. Oger qapi 8 dqiqeden cox qalirsa, isiq avtomatik seksilde sonocak.
Isiqlanma sistemleri (modelden asili olaraq)
8syo5ymo 1s330:603m260s000000000
6mogus yocymdo goyoym 36mogjU:
JU3mssoo & aomol 60d2s5cm
Mgogoo 3y6bom5myo bgo 6mo08 oUsdmo Amoloo5mo
- 3050u bds amymonmou 30630mo hsoo30su 56 686030 38960u 8oo8.
- 2yyoyyo yddyogomdoyno oombou dmoa amb30gohsu.
- 8666 b2y6u 8aumgdu 3m36gum6u H603d.
- 6y6y6o yymol u6j30mol 5 360000000000000000
- 866666603m336jumnouhmo3olu.
- 0768mUgOu 33o3y6o 6mo2mo 6mo8ymo6oU 3mo36gumol ayasmdol uobdoj.
603m26cos8n 4ymmnnol u aamnyo5mmol o 00b303
aymoommool yamgy0mmolu 000b30380
a0000000000000000000000000000000000000000000000000
30600 m653 00s 008m300, 0ma 30no 02oluygmo 06ymojogu 30johoo. 000 03005 m0lu 000 u50u jamjabsu.
OoJ60606060606060606060606060606060606060606060606060606060606060606060606060606060606060606060606060606
006y6m00 3660, 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 100
8888888888 8888888888 8888888888 8888888888 8888888888 8888888888 88
sulugu gmooy6mo oohoymo ausmgo. hulugu gfo5cmoaog360 6fomgdo osybsco
66 gdoomoy5mon mnojmou wogag6goo.
m0m3g0 536mm m 1u3m0 6 y6 80805cmu u3n600 5 u3n60u 8230mo 503006000, gusy65cogdmyo500 aghsmo jumgo.
30hommyo 80f0600 amymdmss Gommno 00
0005000000000000000000000000000000000000000000
a0050000 amfymommmg 86606 00 36nou 00000000000000000000000000000
amymommonu y36s abn 8503uymo m6g6uymo, cmm co m 6000
050367mm36508
m0030000000030000000000000000000000000000000000000000000
880000u uuuuoo 8o00 850034yymos yomgmdou 560606 8a1udmss a6bcooo. 36000000 000000
5605mo yymol 4y030 5 Ummn 80620u
667630mUsymo30, 68ymyommyo 8060000 8030mol
3305300000 85003uoymo 8500360bomol
8mu6yymol yxholo5, 8ouo30u 85ymon36mo 8ymonol
aodmy6doo*.
U0630U 305060
aouo 0560u aodoboo
- 566008000000000000000000000000000000000000000000000000000
- aamnnoa amymaommo os ouo hokoo, oosd yamdoom gysdoonsm
y 505050000000000000000000000000000000000000000000000
osbsnoouoosoo 6m006%o,6mo0300000000000000000000000000000000000000000000
3350 amalusbmy60nlu 3056005 6030an60nulu ym30mo3oU
·b03060b am3mo 2
·amSyymoommool 030 00 yIgO amoo;
SERVICE
amalusbmyoou 6mgo (6moNo Service uoy30u 2008
f665yom oom. amalusbmyoou 6mgo 30
ooogymos uasfoom y
-03350 uynmo aolaafo;
03350 Gmogm5ol 5mgo.
Oy y 30000000000000000000000000000000000000000000000000000000000000000000
Uusooaogam 6fomgno bcmadouo3cmo 7 5 10 0000 3000, 68mssd50u 3m5360ymo
D
1
2 1
2 10
2 LED
2 (山)
2 1
2 1
3 1
3 1
3 1
3 1
3 1
3
3 1
4
4 1
4 2
5 jie 1
6 1
7 1
8 1
L 8
（）
1
Jg 1
a
J 6 4 J 1 2
paae
Jlalll lIyI cI aI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI
y 10000000000000000000000000000000000000000000000000000000000
4
a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a
a j 1111111111111111
a a a a a a a a a a a a a a a a a a a a a a a a a
- gall iigall jiaill lglao lai glj
a 1
a a a a a a a a a a a a a a a a a a a a a a a a
J 1
ginaeae aegi gaiy elgai bua
j j 1
J 1
1
2
.3
Jai gao jie pao lao lao jia ci 4
Jai jyjaylaie laic ysi .5
J 6
jL
jglplslnol
A
a 1
y
Laiy 1
（）
y
Jusuuljui jilg uaiy 1jui y
J 1
a 2
jlll lall jduo, jlda aab pdsiy jglll aaiy aaii iie
Jus 121 Jua 201 Juaia Juaia jia
aee aee eae ae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae
m : x = 1 或 3x + 4y + 1 = 0
a a a a a a a a a a a a a a a a a a a a a a a a a a a a
Jaaalll aaii aaiy jaii
aal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal
jaiai
JolSIL 1
(1)
a 10 7
400011548596
