Gozero ADD4901 - Carbonated drink machine PHILIPS - Free user manual and instructions

Brand	Philips
Model	Gozero ADD4901
Product type	Sparkling water maker
Maximum working pressure	8 bar (116 psi)
Maximum operating temperature	40 °C (104 °F)
Power supply	Manual (no electricity)
Bottle capacity	Up to the level mark (approx. 1 L)
Recommended carbonation time	2-3 seconds (max 5 seconds)
Gas type	Carbon dioxide (CO2) cylinder
Bottle compatibility	Philips carbonation bottles (plastic or stainless steel)
Plastic bottle cleaning	By hand, cold water, mild detergent. Do not put in dishwasher
Stainless steel bottle cleaning	Dishwasher safe
Machine cleaning	Wipe with a damp cloth, no abrasive products
Safety	Do not use other bottles, do not carbonate sugary liquids, do not exceed 5 seconds
Warranty	Visit www.philips.com/water

Frequently Asked Questions - Gozero ADD4901 PHILIPS

What water can I use in the Gozero ADD4901 machine?

Use only fresh, clear still water. Never carbonate sweetened water, flavored drinks, or those containing solid ingredients.

How to install the CO2 cylinder?

Place the machine upright on a flat surface. Remove the water bottle if full. Tilt the machine, remove the cylinder cap, and screw it into the bottom compartment by turning clockwise until secure. Do not force.

How long should I carbonate the water?

Press the button for 2 to 3 seconds maximum. Never exceed 5 seconds to avoid risk of injury or gas loss.

Can I add flavors or fruits to the bottle before carbonation?

No, add flavors, juices, or fruit slices only after carbonation. Otherwise, the valves may malfunction.

How to clean the plastic bottle?

Wash it by hand with cold water, a fiber brush, and mild detergent. Never put it in the dishwasher and do not exceed 40 °C.

Is the stainless steel bottle dishwasher safe?

Yes, the 100% stainless steel carbonation bottle is dishwasher safe. Check that it is not damaged after washing.

Can I use bottles from another brand?

No, use only Philips carbonation bottles. Using other bottles may damage the machine and void the warranty.

How do I know if the CO2 cylinder is empty?

The cylinder is empty when carbonation no longer produces bubbles or the flow decreases. Usage duration depends on frequency. Replace it following the installation procedure.

What to do if the machine leaks or does not work properly?

Stop using immediately. Check that the cylinder is properly screwed in and the bottle is not damaged. Visit www.philips.com/water or contact customer service.

Where to find spare parts (bottles, cylinders)?

Spare parts are available at www.philips.com/water or from authorized Philips retailers. Use only original accessories.

USER MANUAL Gozero ADD4901 PHILIPS

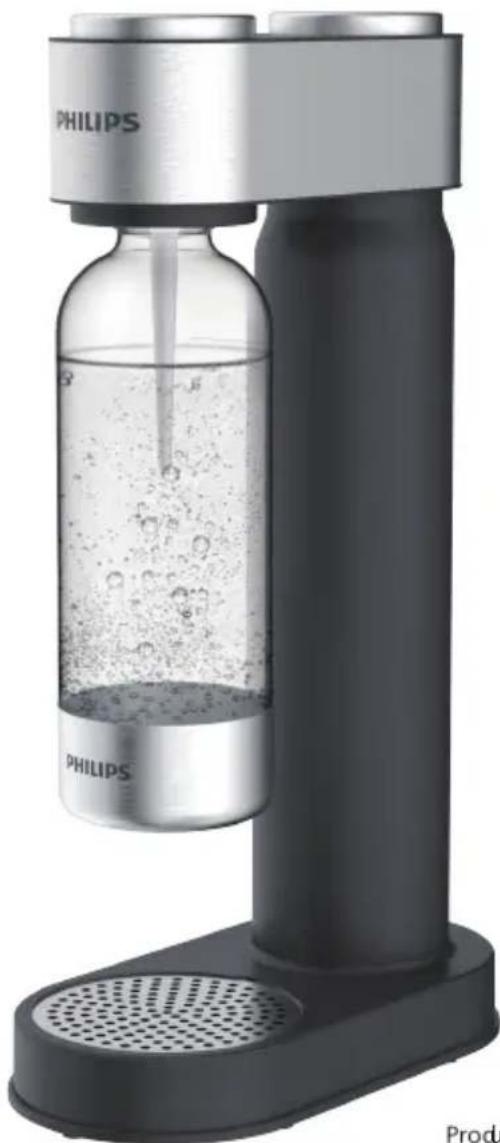

Product image for reference only

EN User manual

1. Button
2. Decorative cover
3. Gas cylinder compartment
4. Bottom cap
5. Pedestal
6. Drip tray
7. Carbonating bottle
8. Upper cover

DE

1. Introduction 1
2. For your safety 1
3. General description 2
   4.Before creating fun 2
   5.Let the fun begin 3
4. Cleaning 3
   7.Guarantee & service 4

DE

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that we offer, register your product at www.philips.com/water.

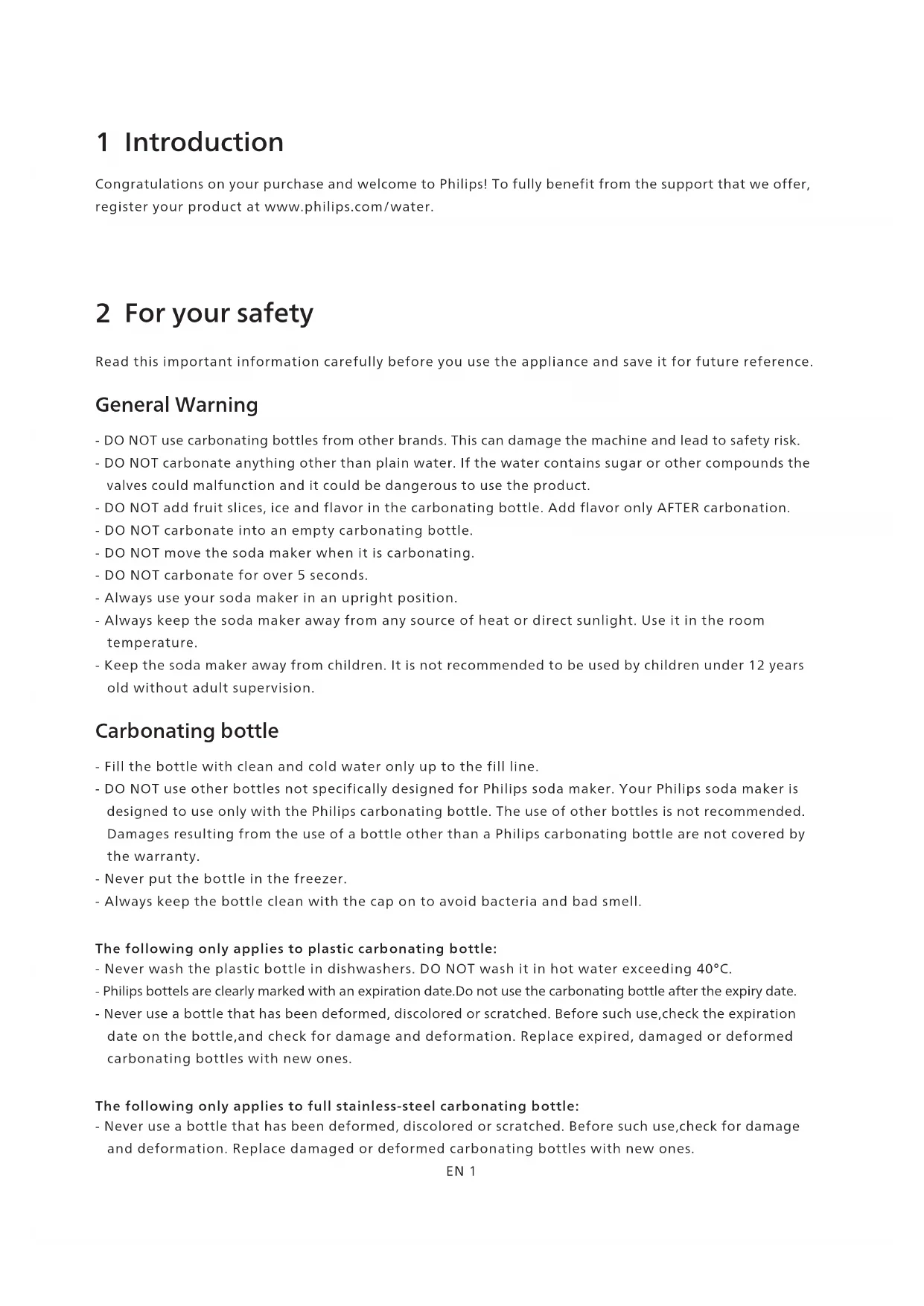

2 For your safety

Read this important information carefully before you use the appliance and save it for future reference.

General Warning

• DO NOT use carbonating bottles from other brands. This can damage the machine and lead to safety risk.
• DO NOT carbonate anything other than plain water. If the water contains sugar or other compounds the valves could malfunction and it could be dangerous to use the product.
• DO NOT add fruit slices, ice and flavor in the carbonating bottle. Add flavor only AFTER carbonation.
• DO NOT carbonate into an empty carbonating bottle.
• DO NOT move the soda maker when it is carbonating.
• DO NOT carbonate for over 5 seconds.
• Always use your soda maker in an upright position.
• Always keep the soda maker away from any source of heat or direct sunlight. Use it in the room temperature.
• Keep the soda maker away from children. It is not recommended to be used by children under 12 years old without adult supervision.

Carbonating bottle

• Fill the bottle with clean and cold water only up to the fill line.
• DO NOT use other bottles not specifically designed for Philips soda maker. Your Philips soda maker is designed to use only with the Philips carbonating bottle. The use of other bottles is not recommended. Damages resulting from the use of a bottle other than a Philips carbonating bottle are not covered by the warranty.
• Never put the bottle in the freezer.
• Always keep the bottle clean with the cap on to avoid bacteria and bad smell.

The following only applies to plastic carbonating bottle:

• Never wash the plastic bottle in dishwashers. DO NOT wash it in hot water exceeding 40^ .
• Philips bottels are clearly marked with an expiration date. Do not use the carbonating bottle after the expiry date.
• Never use a bottle that has been deformed, discolored or scratched. Before such use, check the expiration date on the bottle, and check for damage and deformation. Replace expired, damaged or deformed carbonating bottles with new ones.

The following only applies to full stainless-steel carbonating bottle:

• Never use a bottle that has been deformed, discolored or scratched. Before such use, check for damage and deformation. Replace damaged or deformed carbonating bottles with new ones.

Carbon dioxide (CO_2) cylinder

• Handle the cylinder properly to avoid serious personal injury.
• Carefully check the cylinder and cylinder valve for any damage before using the soda maker. If any problems are found, do not use the cylinder and the soda maker and please contact the customer service.
  Best before: see the date indicated on the cap or on the head sleeve, or at the bottom of the cylinder.
• Do not breathe the gas contained into the cylinder. It is forbidden to alter and/or modify the cylinder and valve integrity.
• Remove the carbonating bottle if it is filled with water before installing the cylinder.
• It is forbidden to remove and/or handle the cylinder while the soda maker is working.
• Always keep the cylinder away from any sources of heat and direct sunlight, keep in a cool and ventilated place. It is forbidden to expose the cylinder to temperatures higher than 50^ .
• A high concentration can cause asphyxiation (EIGA-As). It contains gas under pressure; it may explode when heated (H280). Liquid contact may cause freezing burns.
• Do not put the cylinder into the freezer and/or into the fridge. If frozen do not use it and keep it away from the body.
• Do not use the content for babies' food preparation.
• Do not alter and/or modify the cylinder and the valve.
• Keep away from children.
• DO NOT attempt to puncture, throw or burn the cylinder.
• DO NOT transport the soda maker with the cylinder attached.
• The use duration of the cylinder depends on the use frequency.

3 General description

Product overview

Refer to

A1

Machine rating of information:

Maximum Working Pressure: 116 psi/8 bar

Maximum Allowed Operating Temperature: 40^ / 104^

4 Before creating fun

Installing the gas cylinder

1. Place the Philips soda maker in an upright position and on a flat surface. Remove the carbonating bottle before installing or replacing the cylinder if it is filled with water. Remove the drip tray grid and then carefully lay the soda maker down on the side.

2. Remove seal and cap from the CO_2 cylinder. Carefully insert the cylinder through the hole at the bottom. Don't drop the cylinder into the hole. When you feel that it reaches the bottom, begin screwing the cylinder clockwise until it is fastened. Don't screw too hard since this might break the threads holding the gas cylinder in place. A2-1

3. When you need to replace the gas cylinder, lay the soda maker down on the side and unscrew it counterclockwise and then carefully pull it out of the compartment. A2-2

5 Let the fun begin

1. Fill the carbonating bottle

Rinse the carbonating bottle with cold water before you use it for the first time. Fill the carbonating bottle with cold, clean water up to the marked filling line. A3-1

1. Attach the carbonating bottle

Screw the carbonating bottle into the carbonating bottle socket. Screw counterclockwise if viewed from above. Don't screw extremely hard - just make sure the carbonating bottle sits properly. A3-2

1. Carbonate the water

Press the button downwards firmly until you hear a sound from the valve. The carbonation time is 2-3 seconds for each time. A3-3

NOTE:

• NEVER continuously carbonate for over 5 seconds each time. It can lead to gas wastes or personal injury.

• You can add more carbonation to the water by repeating the carbonating process.

• Ventilate the bottle

When hearing a buzzing sound after 3 seconds, you should release the button back to horizontal position. Please allow the button release itself. The remaining pressure in the carbonating bottle will be released with a puff sound. Then the sparkling water is ready. You can unscrew the carbonating bottle and enjoy it now. A3-4

6 Cleaning

Rinse the carbonating bottle

• Rinse the carbonating bottle before the first use.
• Use clean cold water, fiber brush with a mild detergent.
• Do not use solvent, strong detergent cleaner or abrasive cleaners to clean.

NOTE:

• Never wash the plastic carbonating bottles in a dishwasher.
• The full stainless-steel carbonating bottle is dishwasher safe.

Clean the soda maker

• DO NOT use abrasive cleaners or solvent cleansers to clean.
• Wipe the drip tray to keep it dry.

7 Guarantee & service

If you need information or if you have any problems, please visit the Philips website at www.philips.com or contact the Philips Customer Care Center in your country.

If there is no Customer Care Center in your country, go to local Philips dealer.

1 Einführung

Register your product and learn more in the website link below:

www.philips.com/water

Specifications are subject to change without notice

© 2021 AquaShield

All rights reserved.

The Philips trademark and the Philips Shield Emblem are registered trademarks of

Koninklijke Philips N.V. used under license.

This product has been manufactured by and is sold under the responsibility of

Hong Kong AquaShield Health Technology Company Limited and Hong Kong AquaShield

Health Technology Company Limited is the warrantor in relation to this product.
